Condition: Used

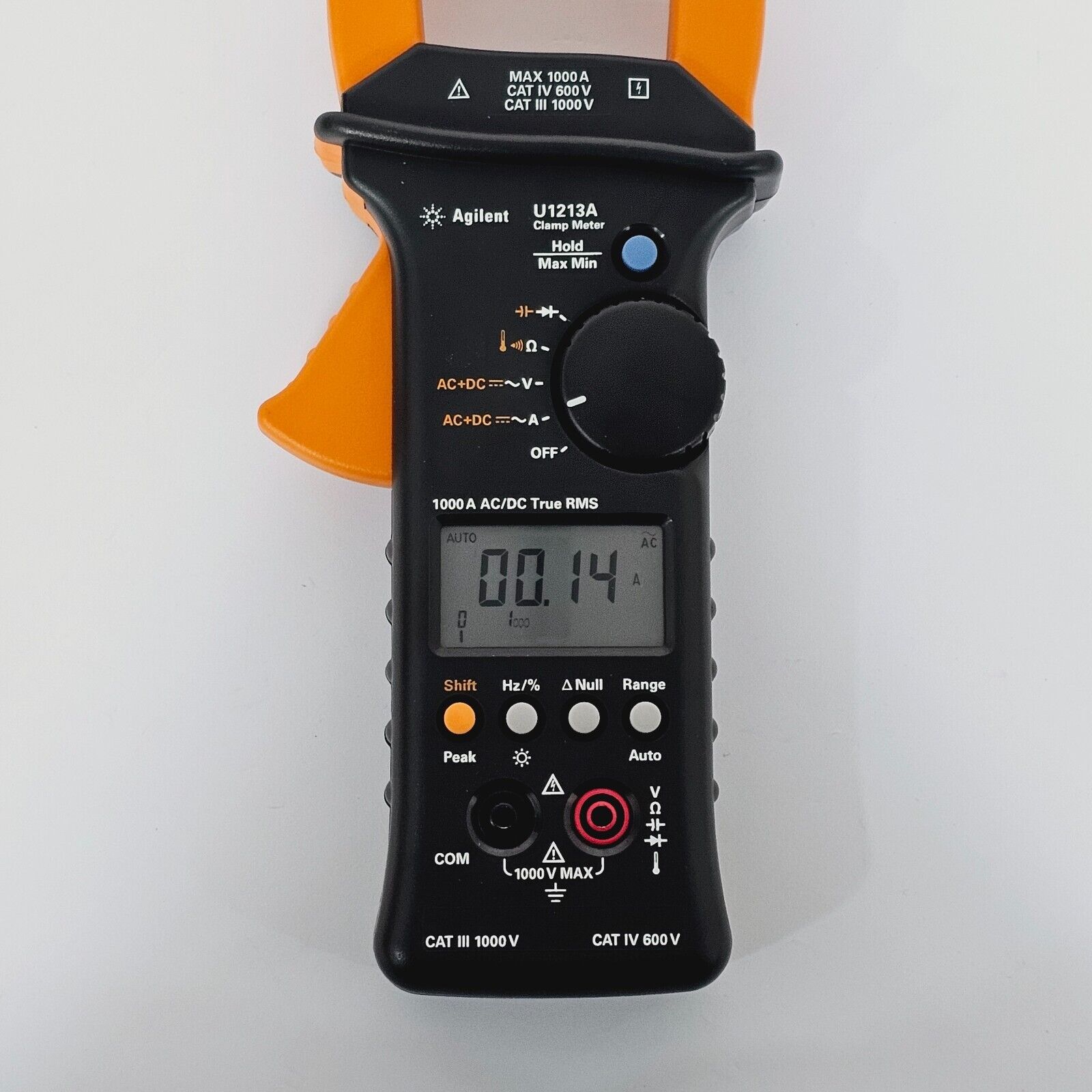

The Keysight Agilent U1213A is a True RMS AC/DC clamp meter from the U1210 Pro series, designed for high-current electrical measurements up to 1000A. Part of the professional U1210 series, it combines clamp meter and full DMM capabilities in a rugged handheld form factor suitable for industrial and electrical installation environments.

Typically includes:

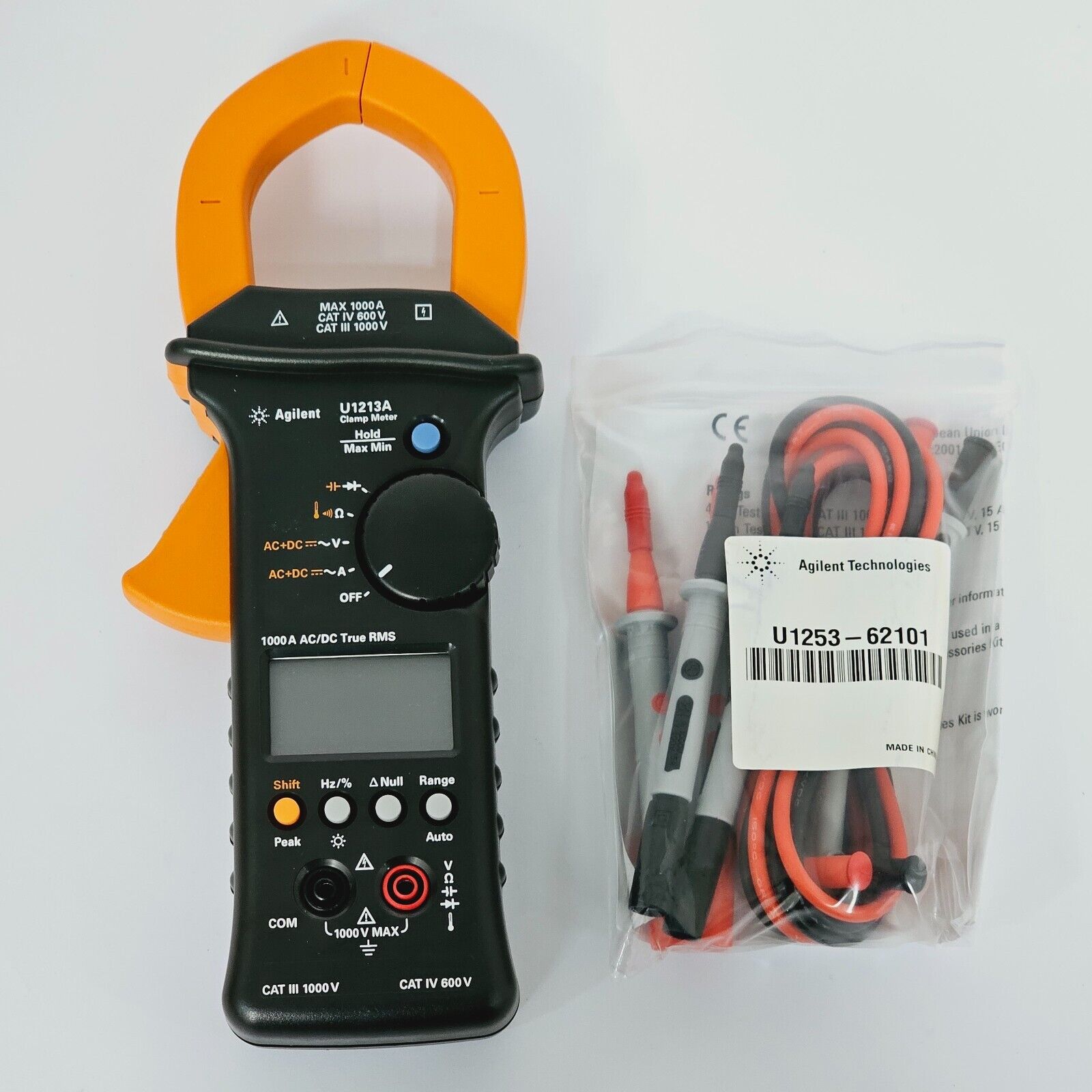

• Test lead set

The Keysight (formerly Agilent) U1213A is a 3½-digit True RMS handheld clamp meter from the U1210 Series, designed for electronic, electrical, and industrial process testing. It enables non-contact high-current measurements on cables up to 52 mm (2 inches) in diameter without breaking the circuit. Unlike standard clamp meters, the U1213A also integrates full digital multimeter (DMM) capabilities including resistance, capacitance, frequency, and K-type temperature measurement, simplifying troubleshooting during installation and maintenance.

Key Features:
- True RMS measurement for accurate readings on non-sinusoidal waveforms
- Large 52mm jaw opening for thick cables and bus bars
- IR connectivity compatible with optional U1177A IR-to-Bluetooth adapter for wireless data logging
- Data logging: stores up to 10 readings
- Flashing backlight as visual alert during continuity test
- Auto-ranging and auto power-off
- Dual display with analogue bar graph
- 4000 count LCD display
- Peak hold, Min/Max tracking, Hold functions
- CAT III 1000V / CAT IV 600V overvoltage protection

Electrical Specifications:
AC Current Range: 40A to 1000A (True RMS)
DC Current Range: 40A to 1000A
AC+DC Current Range: 40A to 1000A
AC Voltage Range: 4V to 1000V
DC Voltage Range: 4V to 1000V
Resistance Range: 400 Ohm to 40 MOhm
Capacitance Range: 4 µF to 4000 µF
Frequency Range: 99.99 Hz to 999.9 kHz
Temperature Range: -200°C to +1372°C (K-type thermocouple)
Jaw Opening: 52mm (2 inches)
Display Count: 4100
Battery: 9V
Safety Rating: CAT III 1000V / CAT IV 600V
AC Response: True RMS
Crest Factor: Up to 3.0 at full scale (1.5 at 1000V and 1000A ranges)
Operating Temperature: 0°C to 55°C
Relative Humidity: Up to 80% RH at ≤31°C (decreasing to 50% RH at 50°C)
Altitude (operating): 2000 metres
Storage Temperature: -20°C to 60°C
Accuracy Reference: ±(% of reading + number of least significant digits) at 23°C ±5°C

Keysight U1210 Series Handheld Clamp Meters Data Sheet (includes U1213A specifications): Download PDF

Keysight U1211A/U1212A/U1213A Clamp Meters User's and Service Guide (PDF): Download PDF

Keysight U1211A/U1212A/U1213A User and Service Guide – multilingual edition (PDF): Download PDF
