Keysight Agilent TapeStation 4150 G2992A Automated Electrophoresis MFD 2019
Model: TapeStation 4150 G2992A
Condition: Used
In stock: 0
SKU: 3370 1B02
- Misc Test Equipment
Choose options
















Condition: Used

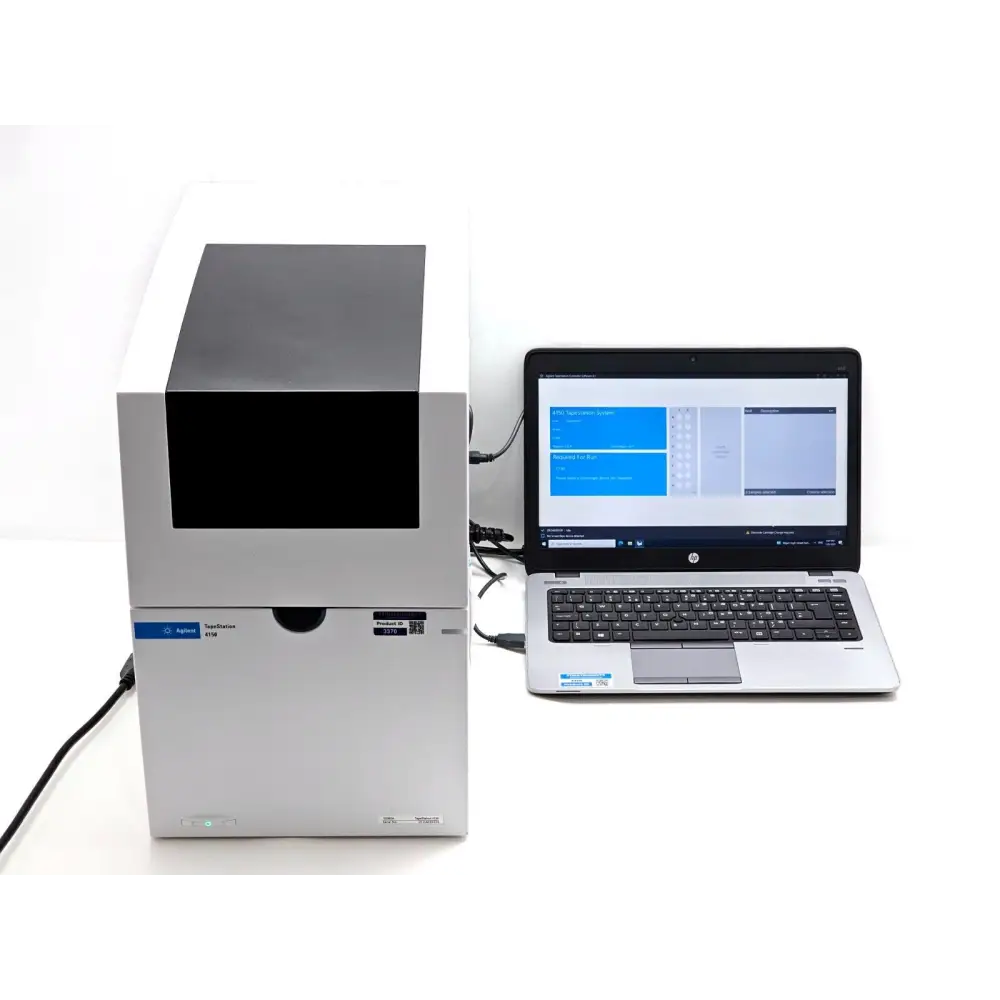

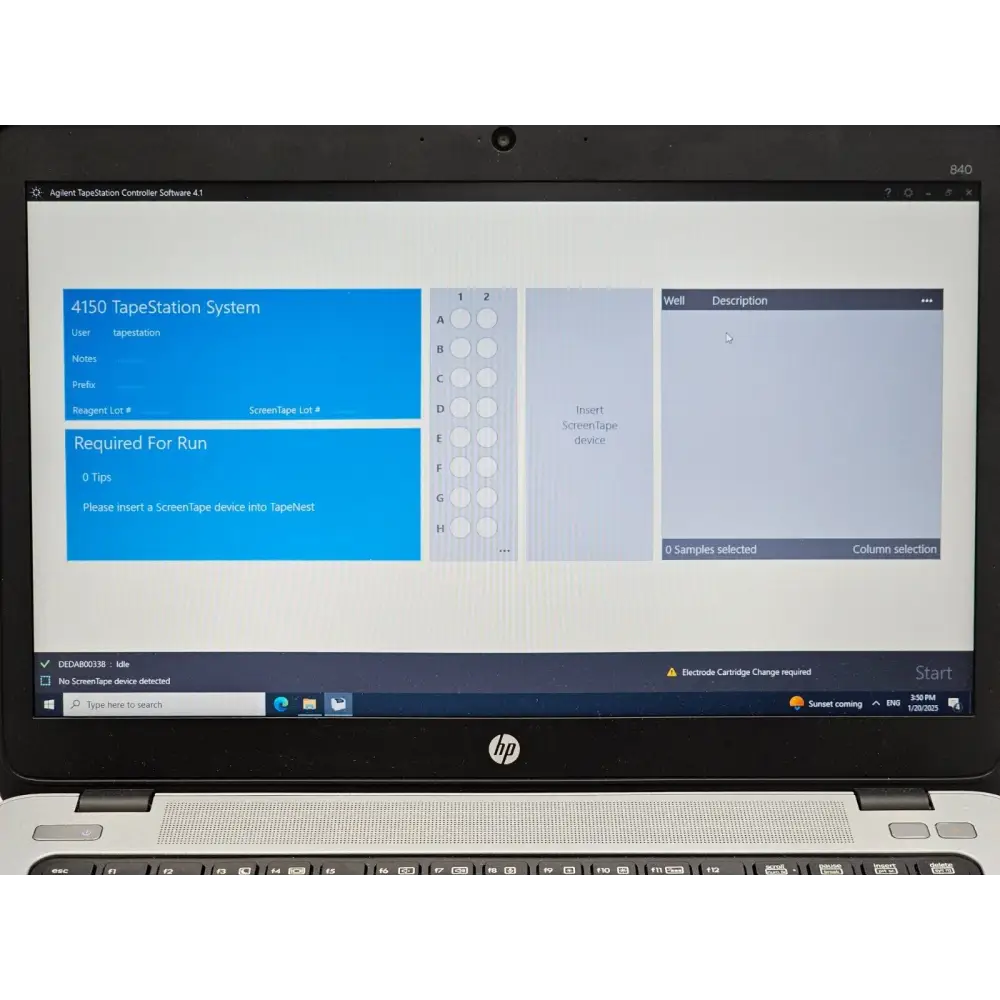

Used Agilent 4150 TapeStation (G2992A), manufactured 2019. Supplied with an HP EliteBook 840 laptop with TapeStation software pre-installed. All self-tests pass and the instrument is in good working order. Note: the system indicates an electrode cartridge change is required as the existing cartridge has expired.
Included with this system:

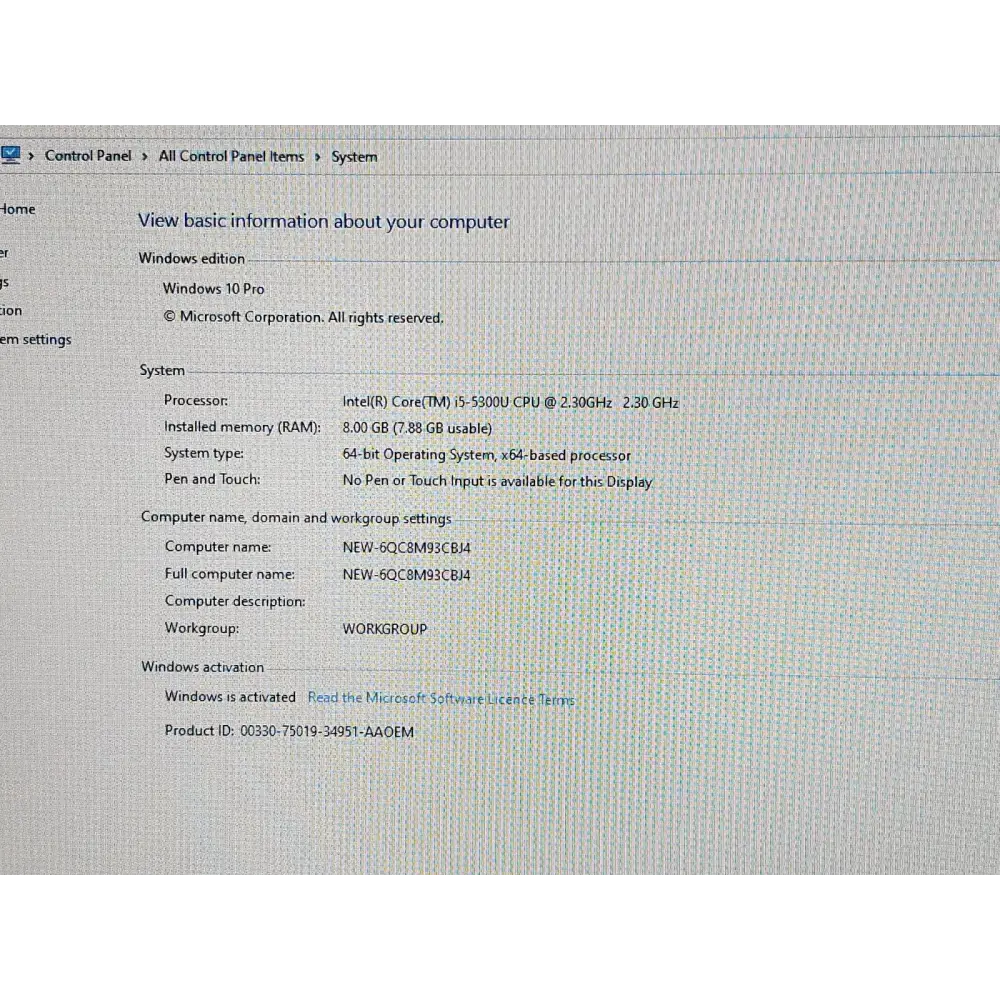

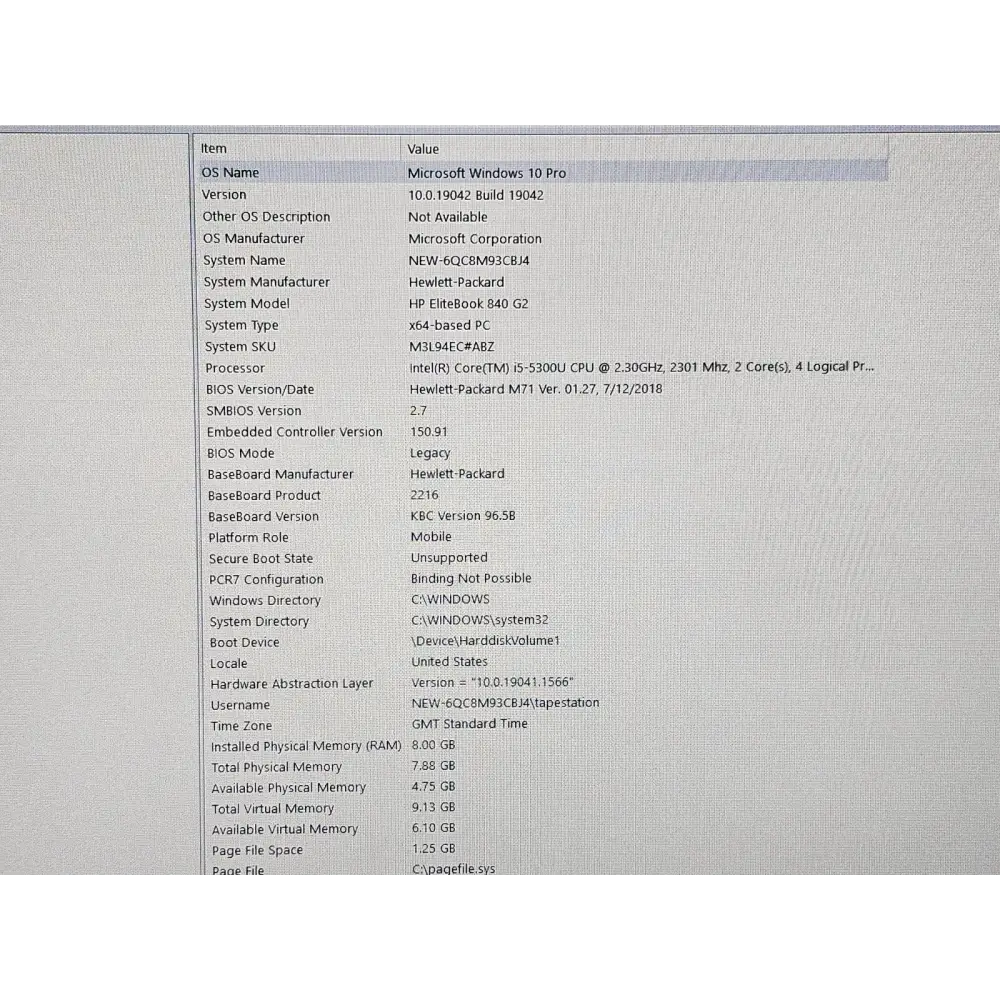

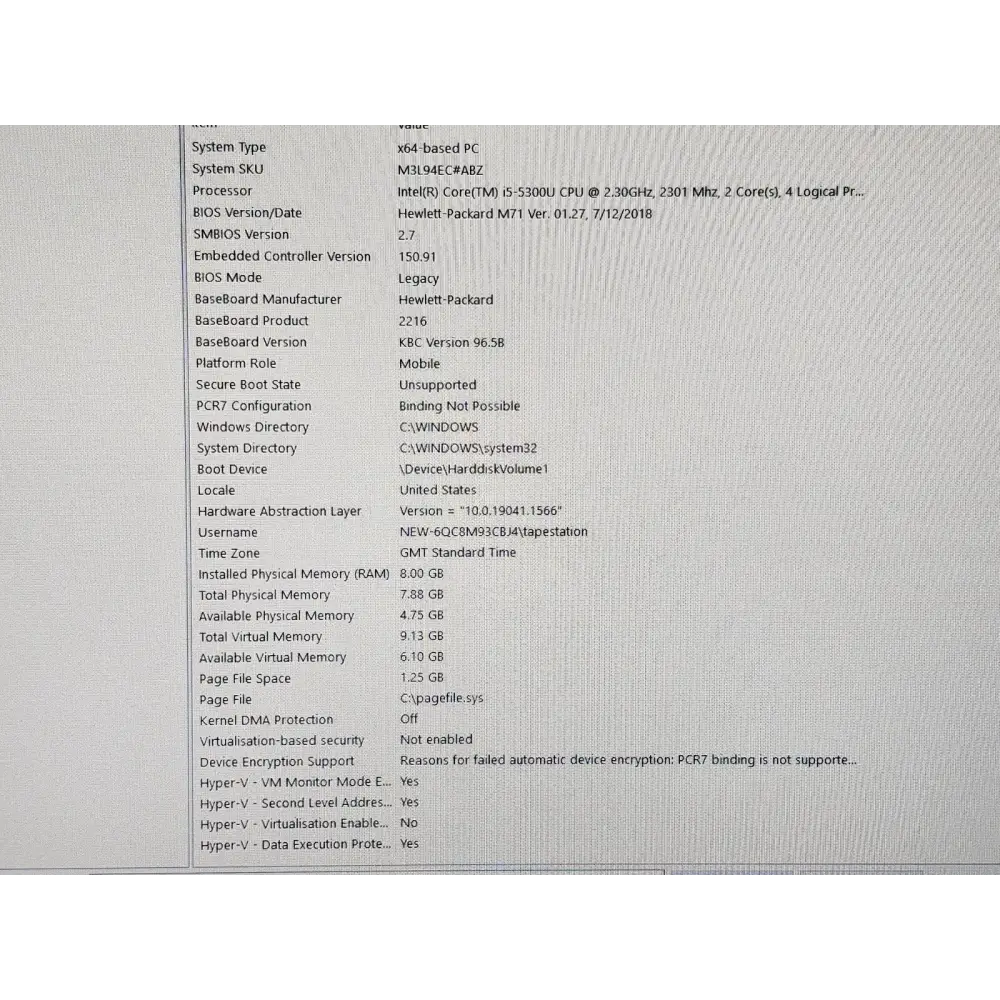

• HP EliteBook 840 laptop with TapeStation software pre-installed

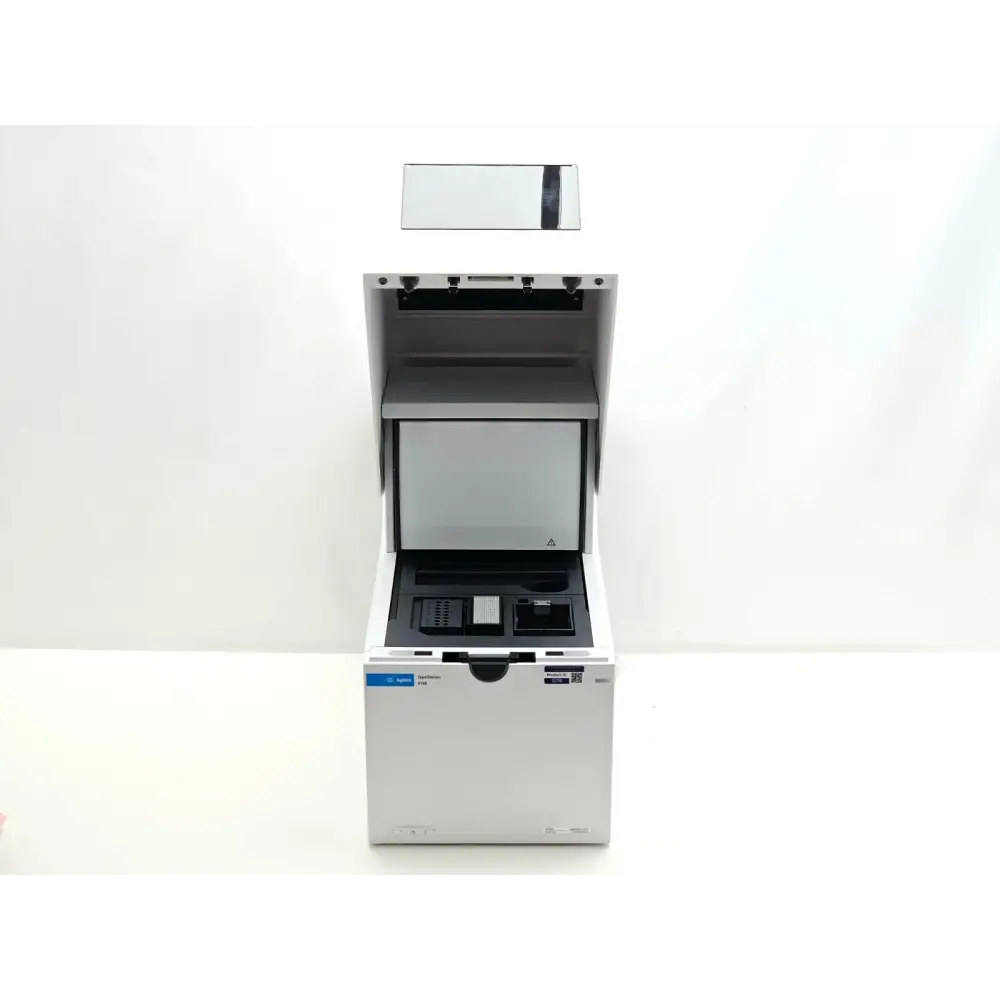

• Accessories as pictured (no additional consumables or ScreenTape reagents included)
The Agilent 4150 TapeStation System (G2992A) is an economic, low-throughput automated electrophoresis platform for nucleic acid sample quality control. Building on the proven ScreenTape technology, it enables quick, easy, and reliable analysis of DNA and RNA samples for up to 16 samples per run. It is the ideal entry-level solution for QC of RNA and DNA samples in next-generation sequencing (NGS), biobank, and vaccine development workflows.
The instrument uses barcoded, credit card-sized ScreenTape consumables available for a wide range of DNA and RNA applications. No error-prone gel handling or filling steps are required. Results are presented as a familiar gel image and electropherogram for each sample via the integrated TapeStation Software. Integrity standards including RNA integrity number equivalent (RINe), DNA integrity number (DIN), and cell-free DNA (%cfDNA) are automatically calculated.
Physical Specifications:
Weight: 17.8 kg (39.2 lb)
Dimensions (W × D × H): 254 × 510 × 415 mm (10.0 × 20.1 × 16.3 inches)

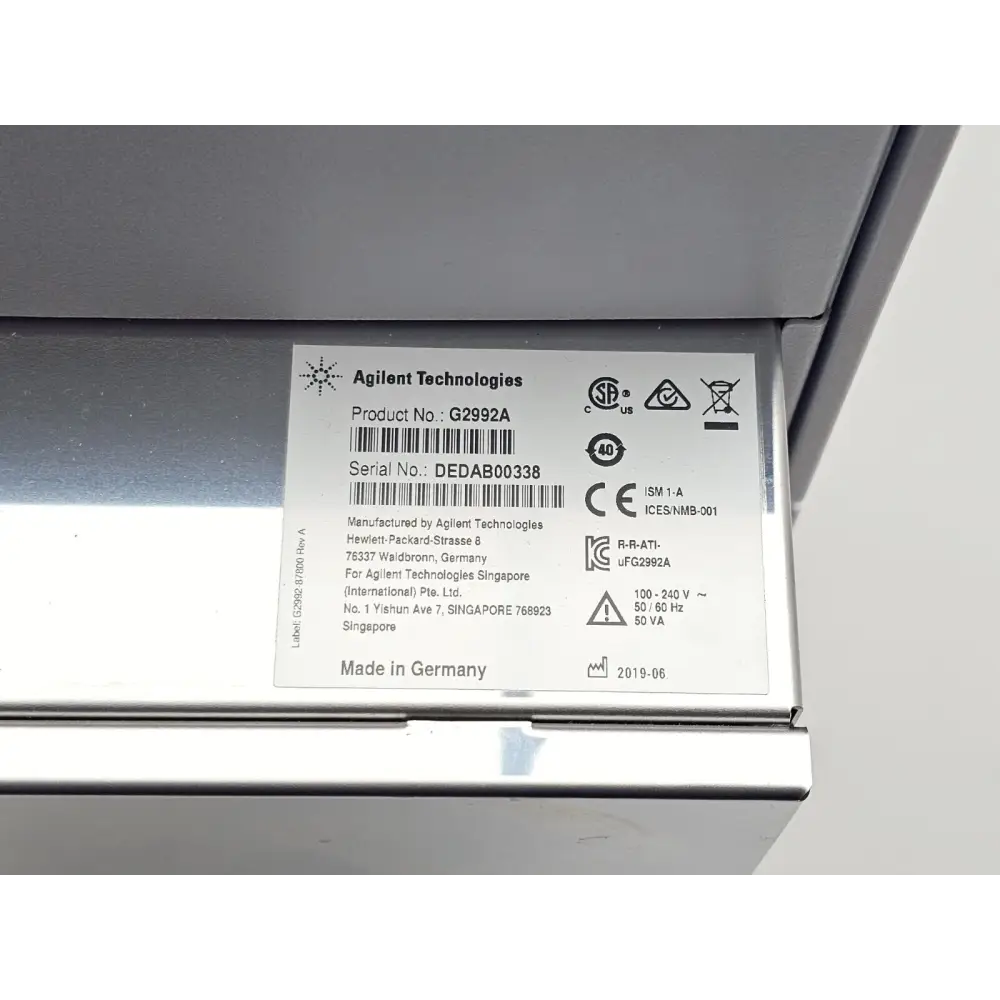

Line Voltage: 100–240 V AC
Line Frequency: 50–60 Hz
Power Consumption: 50 VA
Performance Specifications:
Sample Throughput: 1 to 16 samples per run
Sample Volume Required: 1–2 µL per sample
Analysis Time: 1–2 minutes per sample; less than 20 minutes for 16 samples

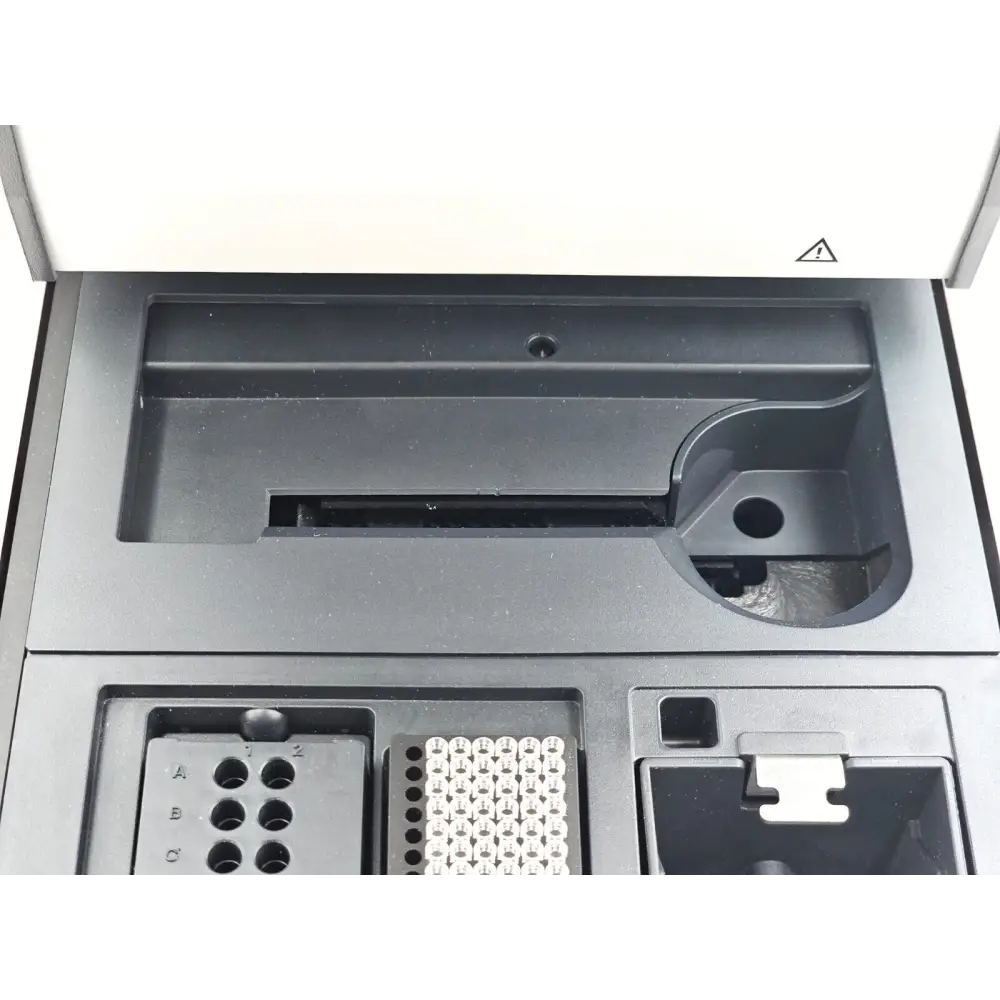

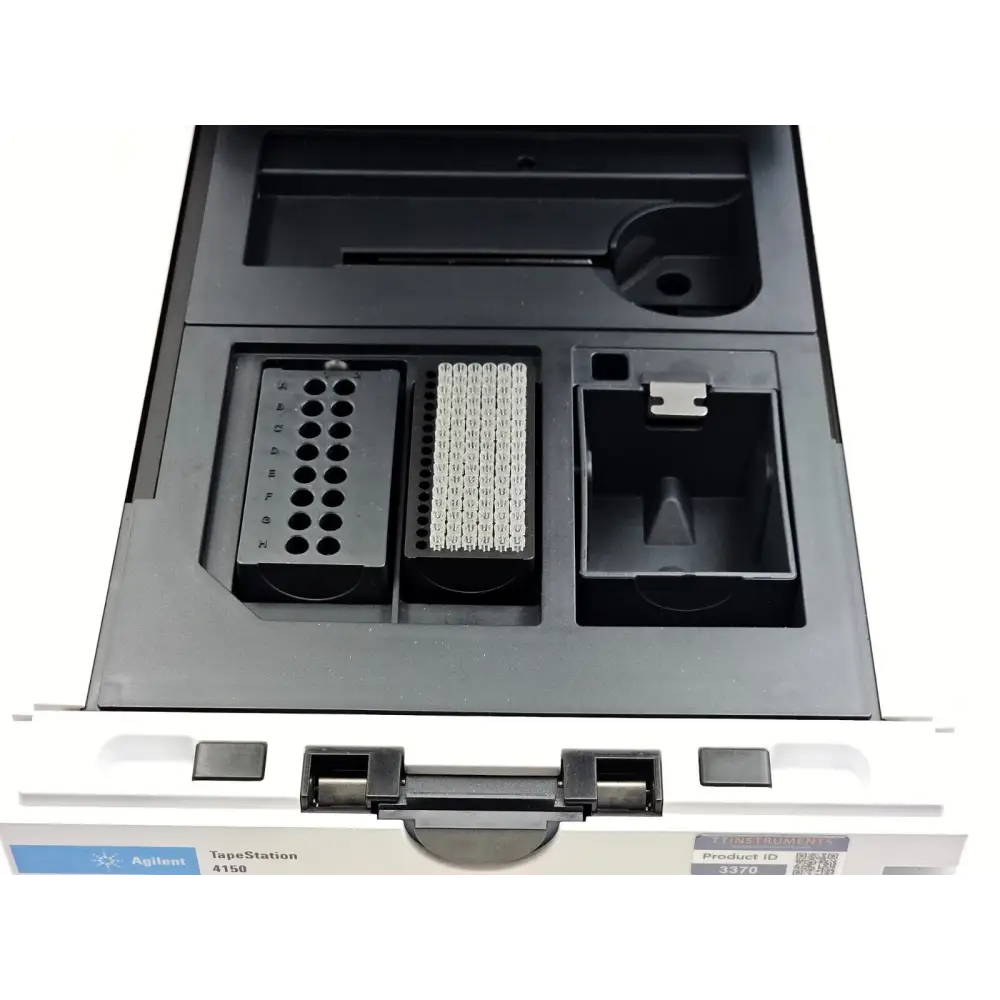

Sample Format: Two 8-tube strips
ScreenTape Assay Compatibility: Full range of DNA and RNA ScreenTapes, including genomic DNA and cell-free DNA assays
Key Features:
- Ready-to-use ScreenTape consumables for operational simplicity
- Constant cost-per-sample across all run sizes from 1–16 samples
- No cross-contamination risk with individual ScreenTape lanes
- Automated RINe, DIN, and %cfDNA integrity scoring
- Small benchtop footprint
- Upgradeable compatibility: complete assay compatibility with the 4200 TapeStation system
- Certified with My Green Lab's ACT (Accountability, Consistency, Transparency) label
- For Research Use Only. Not for use in diagnostic procedures.
Typical Applications:
- Next-generation sequencing (NGS) sample QC
- Biobank sample integrity assessment
- Vaccine development workflows
- Genomic and cell-free DNA analysis
- RNA integrity assessment
Ordering Information:
Part Number: G2992AA (instrument with software, vortexer, accessories, plastic consumables, and user information)
Part Number: G2992A (instrument only)
Agilent 4150 TapeStation System Datasheet (5994-0146EN): Download PDF
Agilent 4150 TapeStation System System Manual (official PDF): Download PDF
Product Overview
Condition: Used
Used Agilent 4150 TapeStation (G2992A), manufactured 2019. Supplied with an HP EliteBook 840 laptop with TapeStation software pre-installed. All self-tests pass and the instrument is in good working order. Note: the system indicates an electrode cartridge change is required as the existing cartridge has expired.
Included with this system:
• HP EliteBook 840 laptop with TapeStation software pre-installed
• Accessories as pictured (no additional consumables or ScreenTape reagents included)
Manufacturer's Description
The Agilent 4150 TapeStation System (G2992A) is an economic, low-throughput automated electrophoresis platform for nucleic acid sample quality control. Building on the proven ScreenTape technology, it enables quick, easy, and reliable analysis of DNA and RNA samples for up to 16 samples per run. It is the ideal entry-level solution for QC of RNA and DNA samples in next-generation sequencing (NGS), biobank, and vaccine development workflows.
The instrument uses barcoded, credit card-sized ScreenTape consumables available for a wide range of DNA and RNA applications. No error-prone gel handling or filling steps are required. Results are presented as a familiar gel image and electropherogram for each sample via the integrated TapeStation Software. Integrity standards including RNA integrity number equivalent (RINe), DNA integrity number (DIN), and cell-free DNA (%cfDNA) are automatically calculated.
Physical Specifications:
Weight: 17.8 kg (39.2 lb)
Dimensions (W × D × H): 254 × 510 × 415 mm (10.0 × 20.1 × 16.3 inches)
Line Voltage: 100–240 V AC
Line Frequency: 50–60 Hz
Power Consumption: 50 VA
Performance Specifications:
Sample Throughput: 1 to 16 samples per run
Sample Volume Required: 1–2 µL per sample
Analysis Time: 1–2 minutes per sample; less than 20 minutes for 16 samples
Sample Format: Two 8-tube strips
ScreenTape Assay Compatibility: Full range of DNA and RNA ScreenTapes, including genomic DNA and cell-free DNA assays
Key Features:
- Ready-to-use ScreenTape consumables for operational simplicity
- Constant cost-per-sample across all run sizes from 1–16 samples
- No cross-contamination risk with individual ScreenTape lanes
- Automated RINe, DIN, and %cfDNA integrity scoring
- Small benchtop footprint
- Upgradeable compatibility: complete assay compatibility with the 4200 TapeStation system
- Certified with My Green Lab's ACT (Accountability, Consistency, Transparency) label
- For Research Use Only. Not for use in diagnostic procedures.
Typical Applications:
- Next-generation sequencing (NGS) sample QC
- Biobank sample integrity assessment
- Vaccine development workflows
- Genomic and cell-free DNA analysis
- RNA integrity assessment
Ordering Information:
Part Number: G2992AA (instrument with software, vortexer, accessories, plastic consumables, and user information)
Part Number: G2992A (instrument only)
Resources
Agilent 4150 TapeStation System Datasheet (5994-0146EN): Download PDF
Agilent 4150 TapeStation System System Manual (official PDF): Download PDF
