Condition: Used

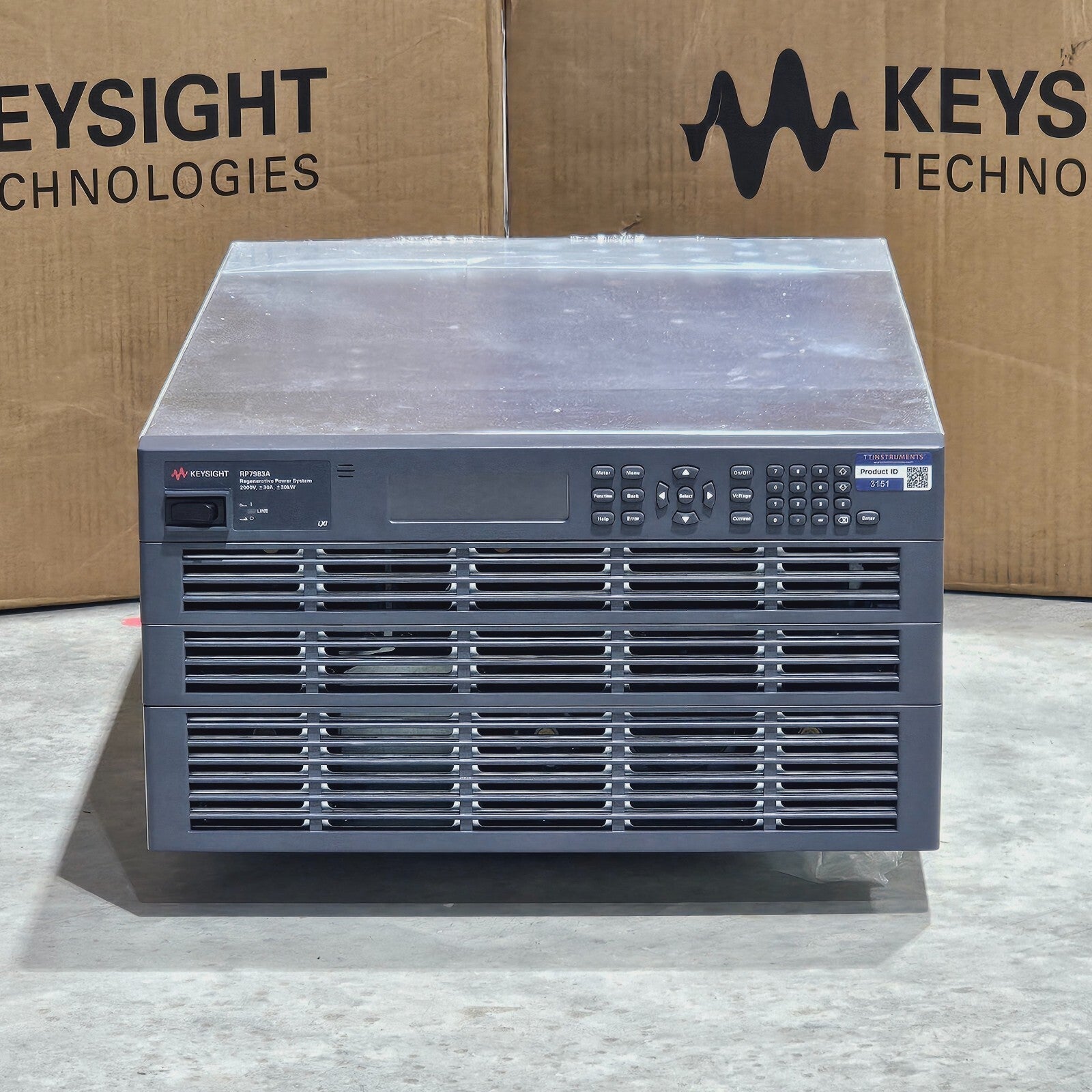

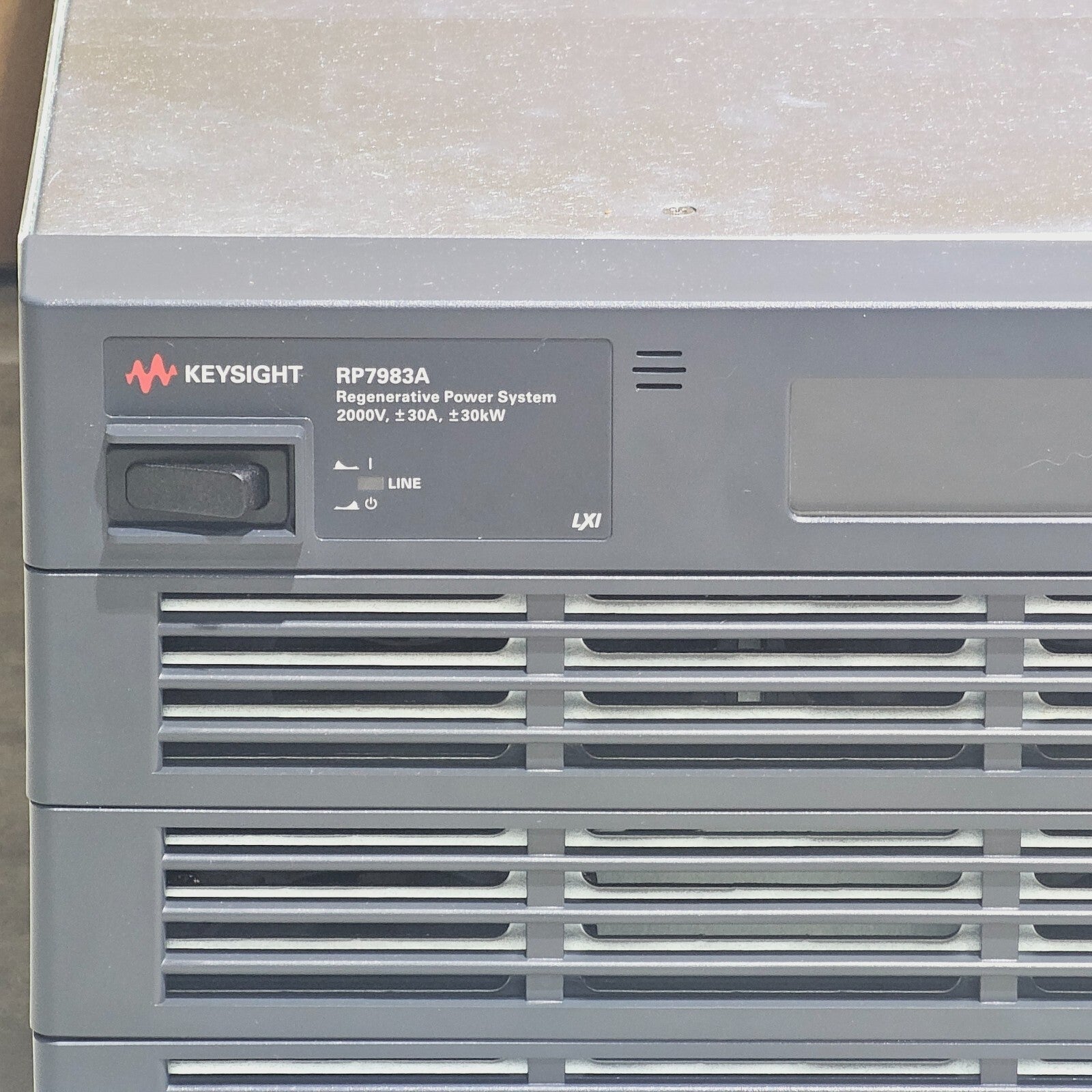

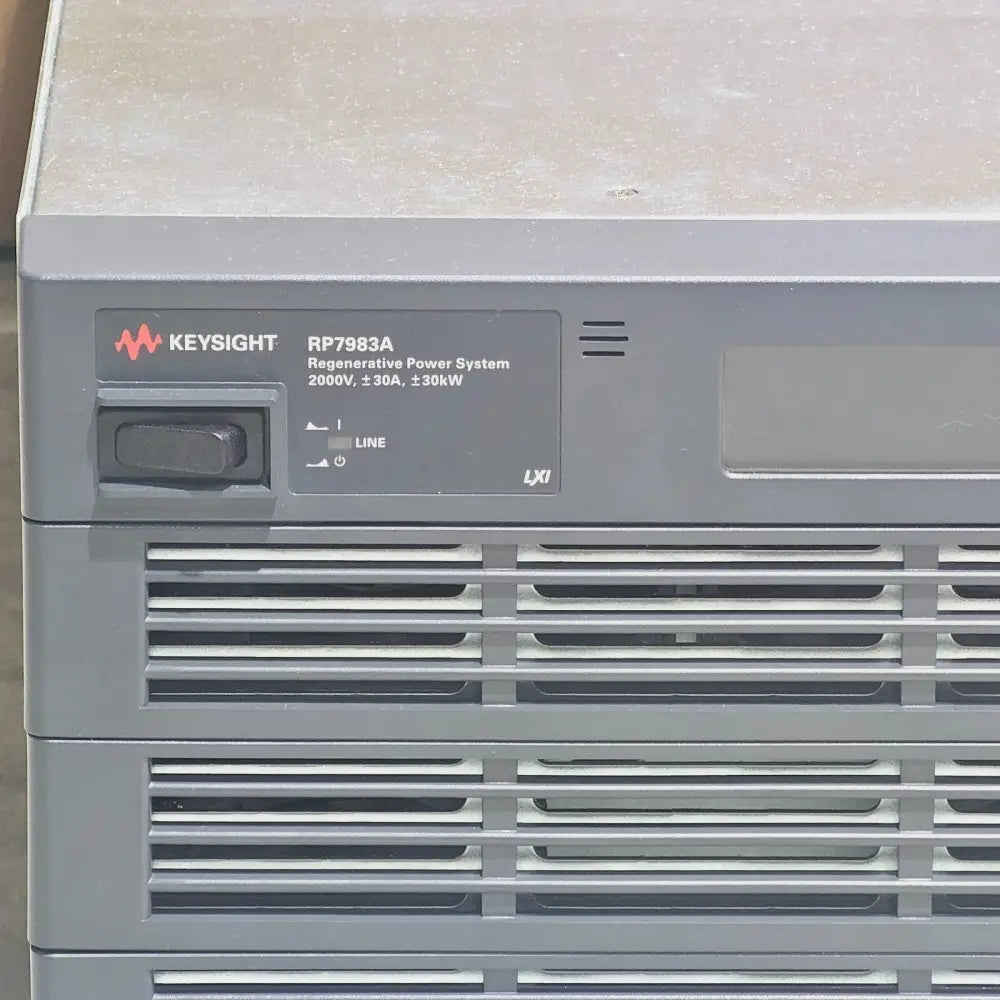

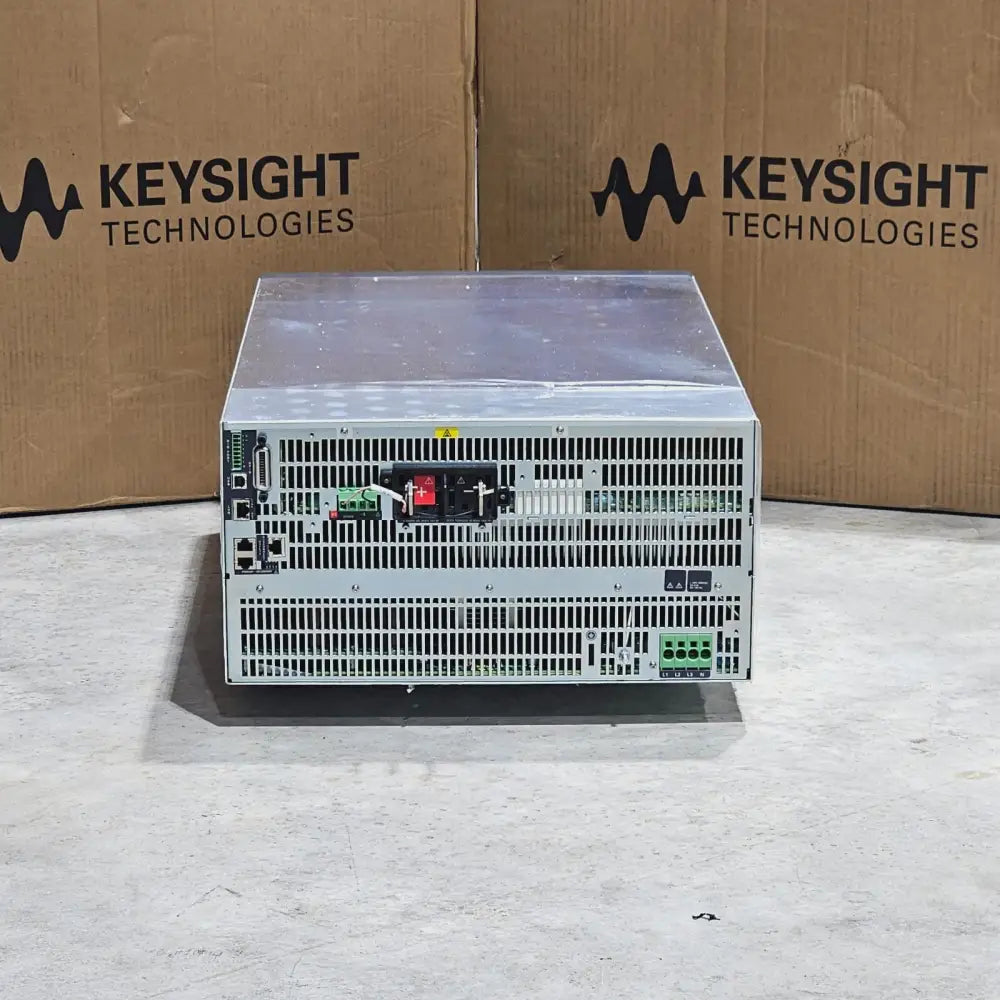

Excellent condition, described as like new. The RP7983A is the 30 kW, 2000 V PV-mode variant of Keysight's RP7900 Series, combining bidirectional DC source and regenerative electronic load functionality in a compact 5U rack-mount chassis. Supplied without accessories.

Typically includes:
• Main unit only (no accessories included)

The Keysight RP7983A is a member of the RP7900 Series — a family of single-output, bi-directional, regenerative DC power supplies engineered for high-voltage, high-power automated test applications. It is part of Keysight's HEV/EV Power Converter Test Solutions, providing the confidence to deploy solutions meeting the fast-paced demands of the hybrid and electric vehicle market.

The RP7983A operates in two-quadrant mode, functioning seamlessly as both a DC power source and a regenerative electronic load. Its regenerative capability automatically returns consumed energy cleanly back to the grid — no programming required — saving costs associated with energy consumption and cooling. Anti-islanding protection senses that the grid is live before regenerating power, safeguarding the device under test and operators.

The instrument features an autoranging output characteristic, providing a wider range of usable voltage and current combinations compared to traditional rectangular-characteristic supplies. Battery emulation is supported via programmable internal resistance, enabling simulation of batteries in different charge states. Power transient simulation (step, list, and arbitrary waveform) allows testing of DUT responses to real-world supply conditions.

Up to 20 units can be paralleled for system power up to 600 kW. The RP7983A also features photovoltaic (PV) array simulation capability, enabling verification and optimisation of solar inverter maximum power point tracking (MPPT) algorithms under simulated environmental conditions.

Key Specifications:
Output Voltage: 0 to 2000 V DC
Output Current: 0 to ±30 A
Output Power: 30 kW

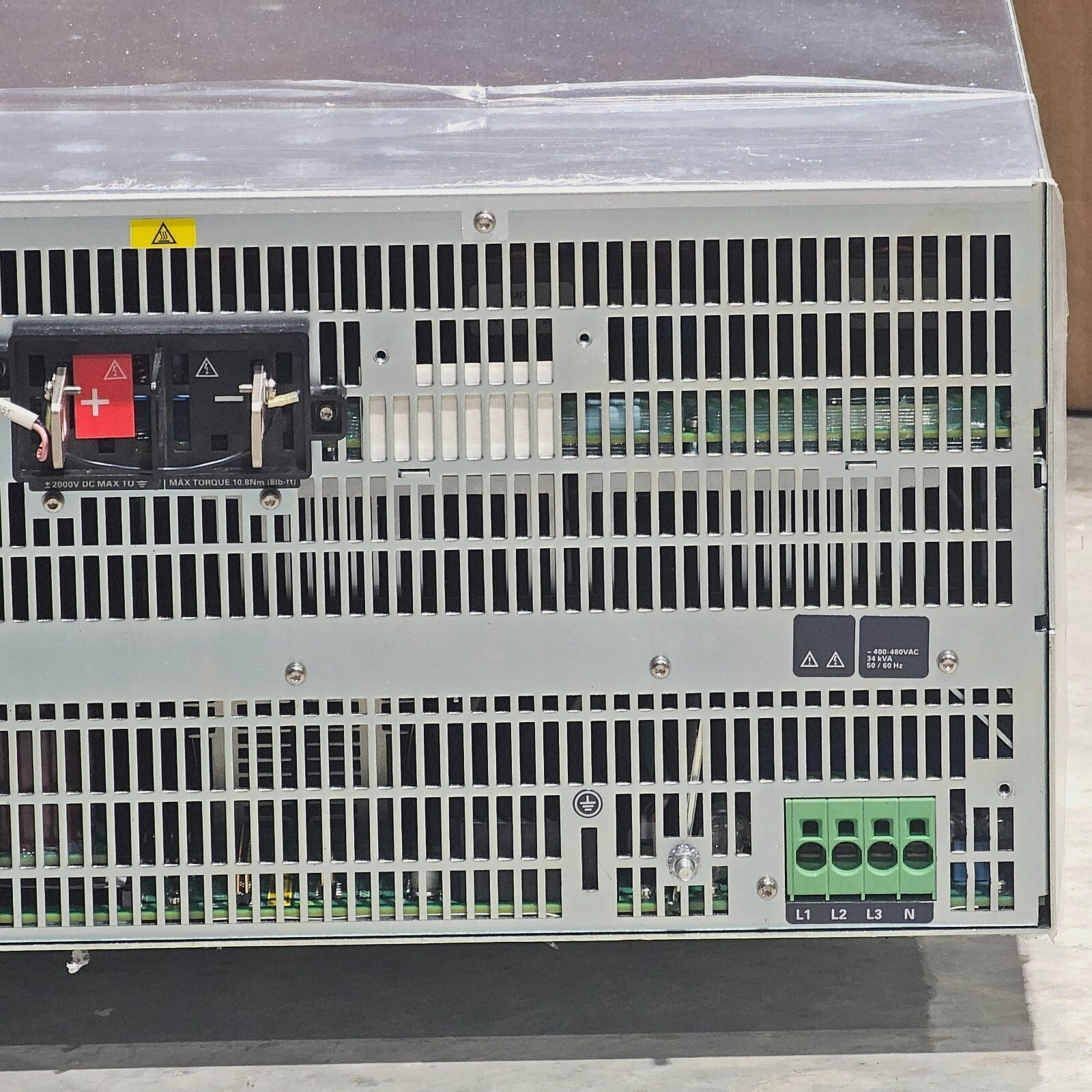

AC Input: 400 / 480 VAC, 3-phase
Form Factor: 5U rack-mount
Weight: 126 lbs (57.2 kg)
Parallel Capability: Up to 20 units (up to 600 kW)
Command Processing Time: ≤1 ms (sub-millisecond)
Regeneration Efficiency: >80%
Total Harmonic Distortion: 2% typical at full load

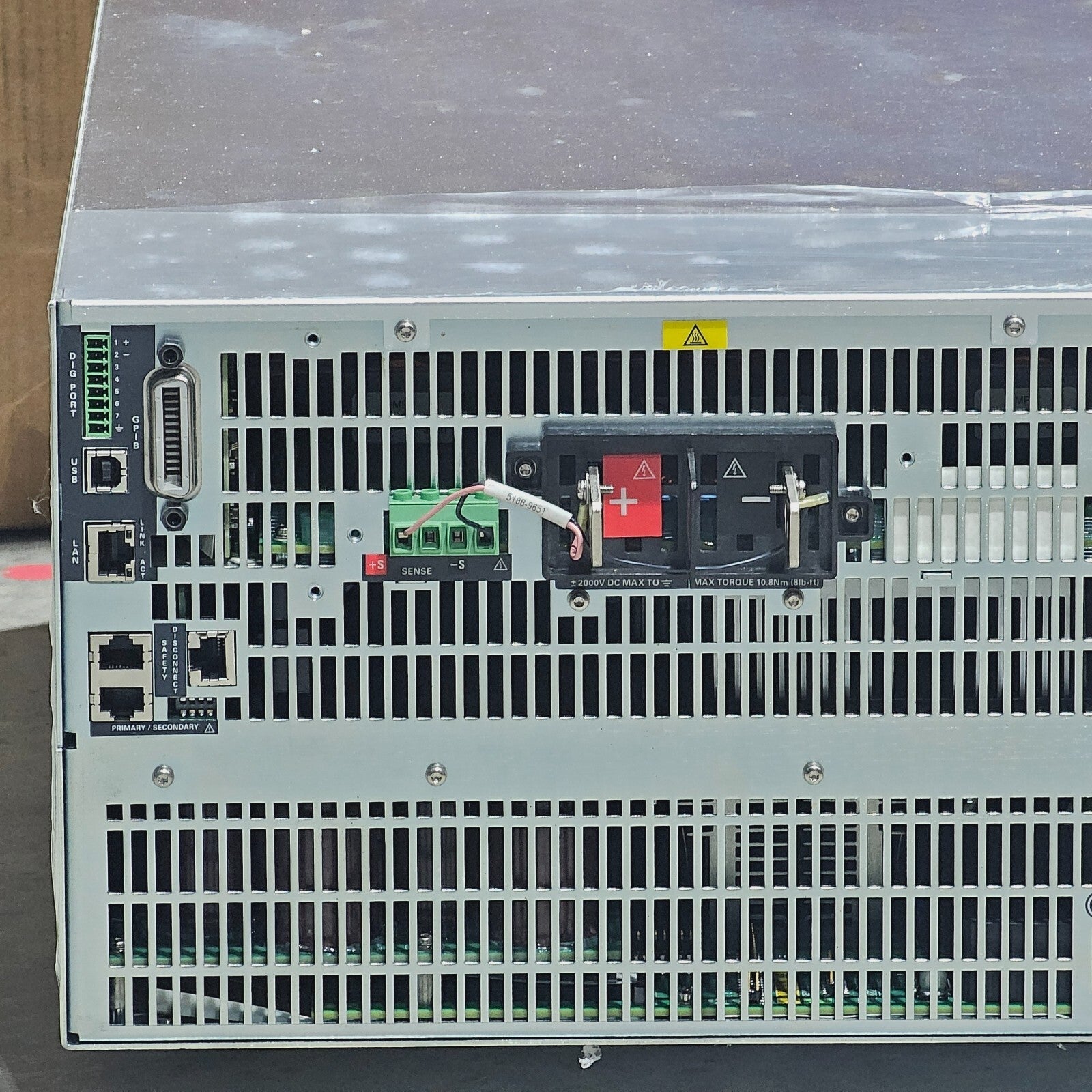

Interfaces: GPIB, Ethernet/LAN (LXI Core), USB 2.0
PV Simulation: Yes (PV mode — MPPT algorithm testing)
Battery Emulation: Yes (programmable internal resistance)
Operating Temperature: 0 to 40 °C
Programming Accuracy: ±0.075% full scale (all interfaces)
Safety: Highly integrated; anti-islanding; integrated over-voltage and over-temperature protection

Keysight RP7900 Series Regenerative Power System Data Sheet (5992-2335): Download PDF

Keysight RP7900 Series Regenerative Power System Data Sheet (TestEquity hosted, latest revision): Download PDF
