Condition: New other (see details)

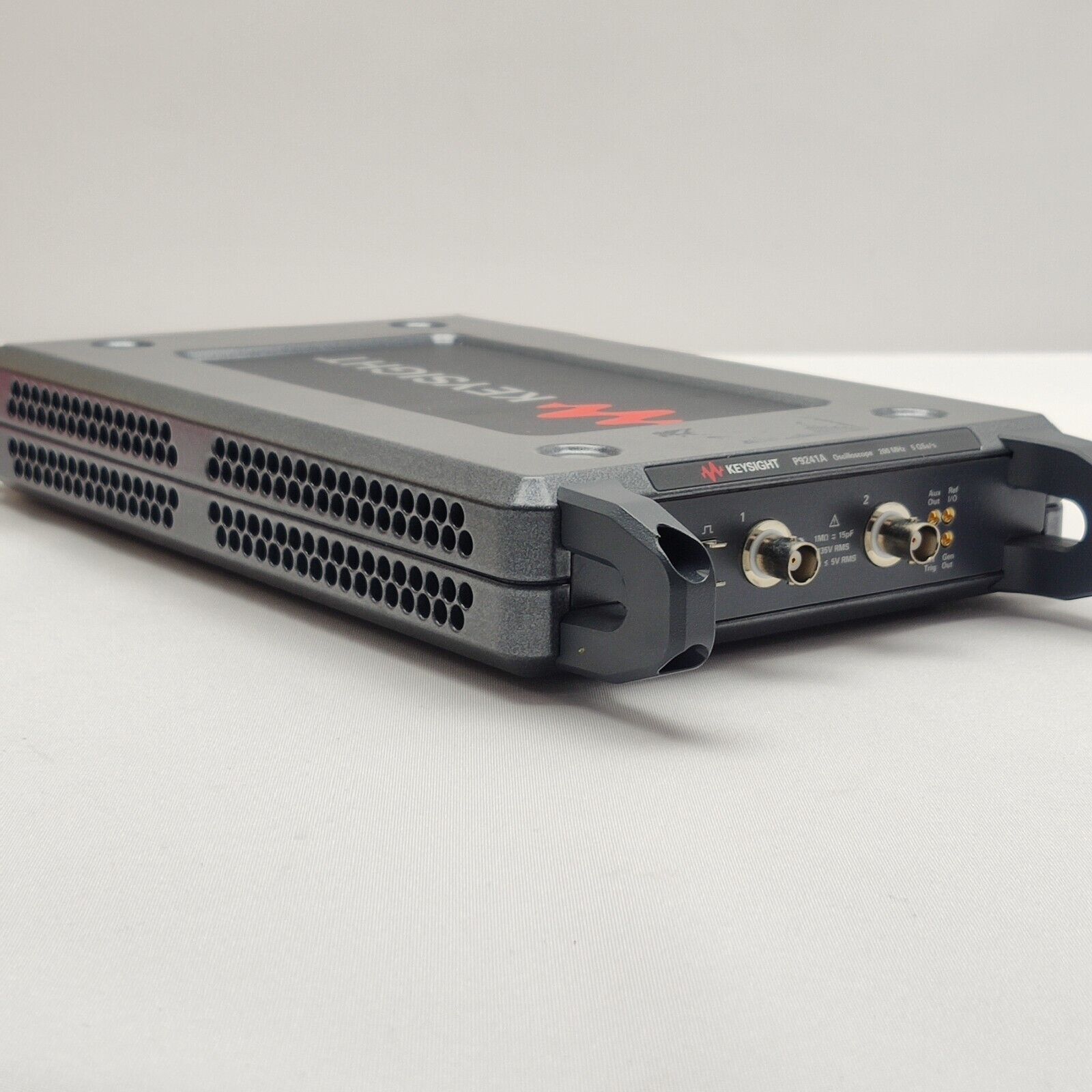

The Keysight P9241A Streamline Series USB oscilloscope is supplied as pictured with no accessories or power cord included. It features InfiniiVision technology with MegaZoom IV hardware processing and supports 2 analogue channels at 200 MHz.

Included with this unit:
• Oscilloscope unit only (no accessories or power cord supplied)

The Keysight Streamline Series P9241A is a compact, faceless USB oscilloscope that brings the renowned InfiniiVision usability and performance to a USB form factor. Unlike digitiser-based USB oscilloscopes that rely on PC software, the P9241A performs triggering and analysis using the MegaZoom IV smart memory ASIC — Keysight's proprietary onboard hardware. This enables a true 1,000,000 waveforms/sec update rate, hardware serial decoding, hardware mask/limit testing, and integration of multiple instruments in one compact device.

Product Series: Keysight Streamline Series P924xA
Bandwidth (–3 dB): 200 MHz
Input Channels: 2 analogue
Maximum Sample Rate: 5 GSa/s (1 channel), 2.5 GSa/s (2 channels)
Memory Depth: 4 Mpts (standard), with standard segmented memory
Waveform Update Rate: ≥ 1,000,000 waveforms/sec
Calculated Rise Time (10–90%): ≤ 1.75 ns
Vertical Resolution: 8 bits
Vertical Sensitivity: 1 mV/div to 5 V/div
Time Base Range: 2 ns/div to 50 s/div
Input Impedance: 1 MΩ
Segmented Memory: Up to 1,000 events
Integrated Instruments: Oscilloscope, 3-digit DVM, 8-digit frequency counter, protocol analyser, FFT spectrum analysis, 20 MHz arbitrary waveform generator
Serial Protocol Support: I²C, UART, CAN, LIN, CXPI, and more
Trigger Types: Edge, zone touch, zone mask, and advanced triggers
Automatic Measurements: 31 typical oscilloscope measurements
Operating System Compatibility: Windows 7 / Windows 10 (64-bit)
Interface: USB 3.0
Form Factor: Compact, portable, faceless USB module

Keysight Streamline Series P924xA USB Oscilloscopes — Official Datasheet (PDF): Download PDF

Keysight Streamline Series P924xA USB InfiniiVision Oscilloscopes — Product Fact Sheet (PDF): Download PDF

Keysight P924xA Streamline Series Datasheet — Amplicon hosted PDF: Download PDF

Keysight Streamline Series P924xA USB Oscilloscopes Datasheet — Mouser hosted PDF: Download PDF
