Condition: Used

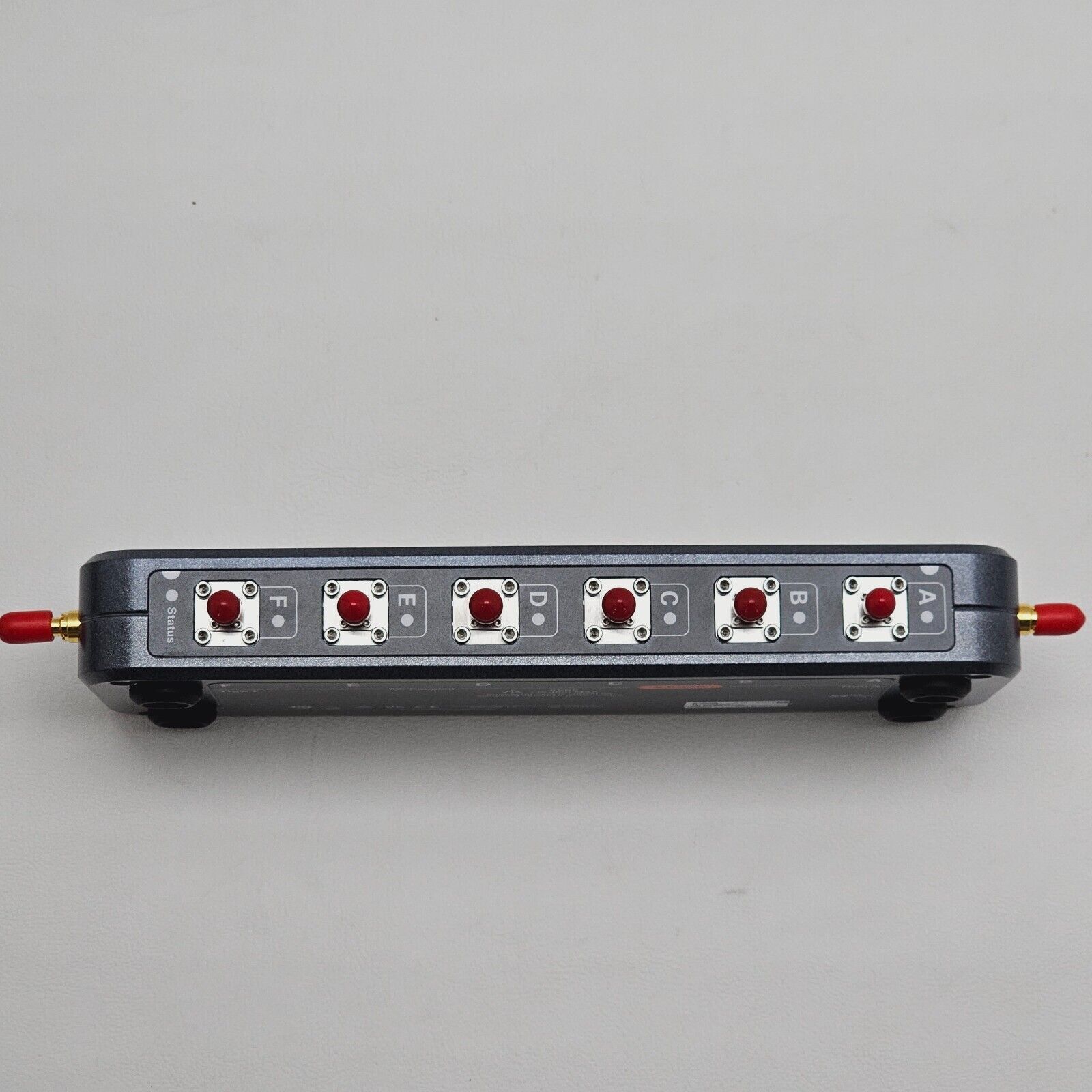

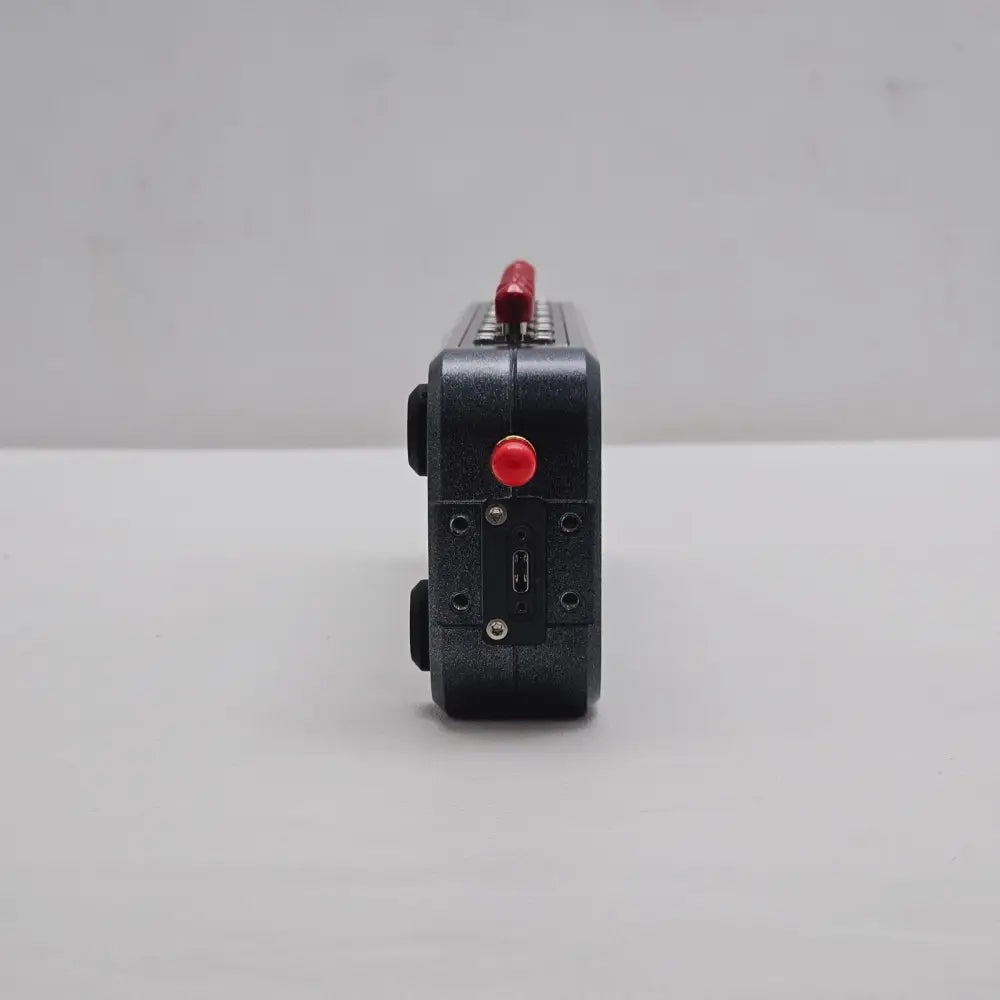

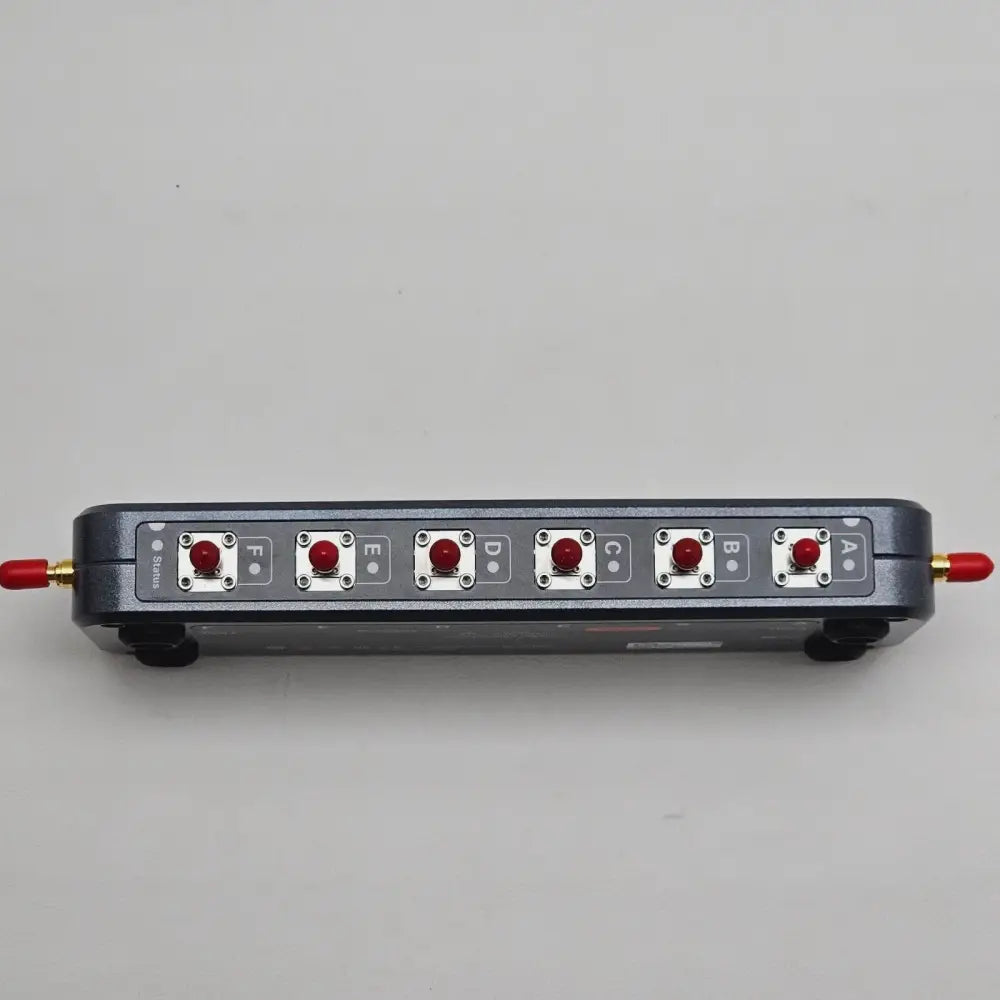

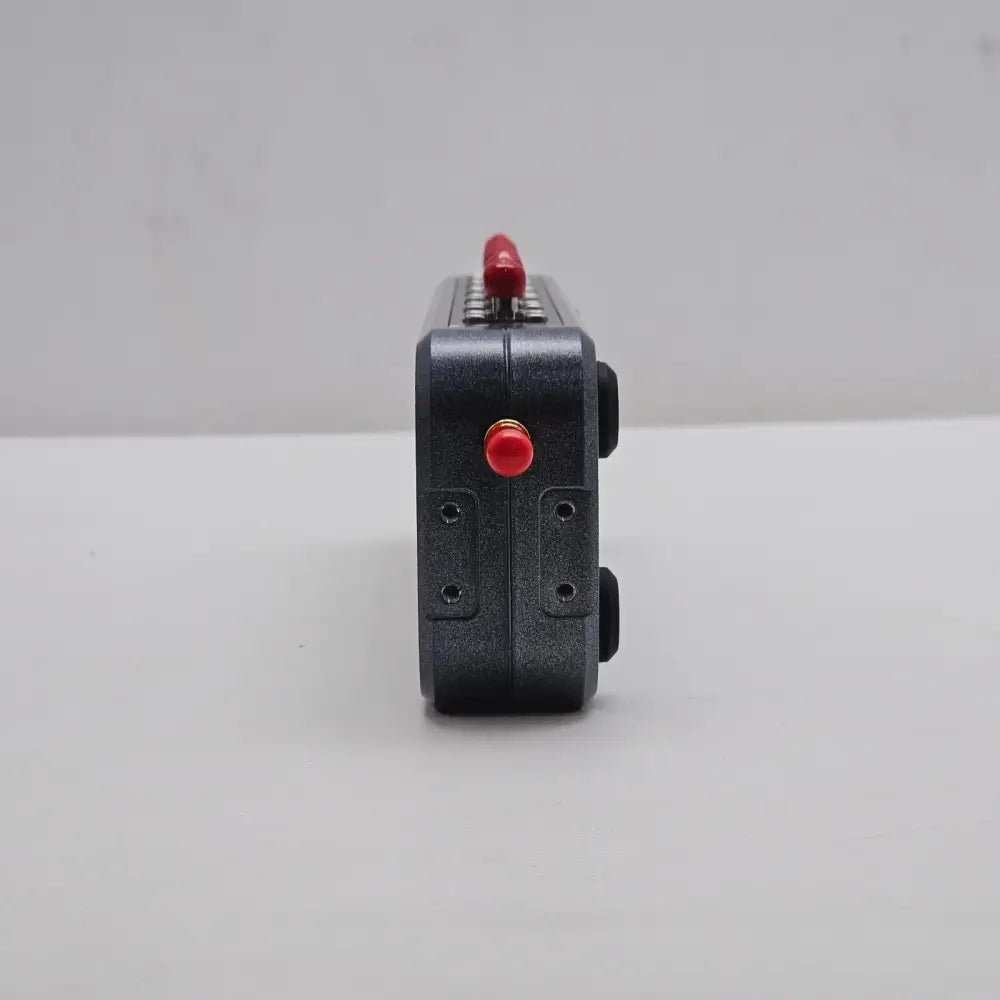

In excellent, like-new condition, this Keysight N7564A Multiport ECal Module offers DC to 20 GHz coverage across 6 ports with 3.5 mm female connectors. Controlled directly via USB 3.x, it automates full 6-port VNA calibration and can be cascaded with other N756xA units to scale up to 36 ports.

Included in the sale:
• Keysight N7564A Multiport ECal Module (6-port, DC–20 GHz, 3.5 mm female)
• USB cable
• Connector torque wrench (gold-handled)
• Mounting brackets / stand-off feet (black anodised)
• Multiple anti-static bags / connector protection accessories
• Original Keysight Technologies carry/storage box

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

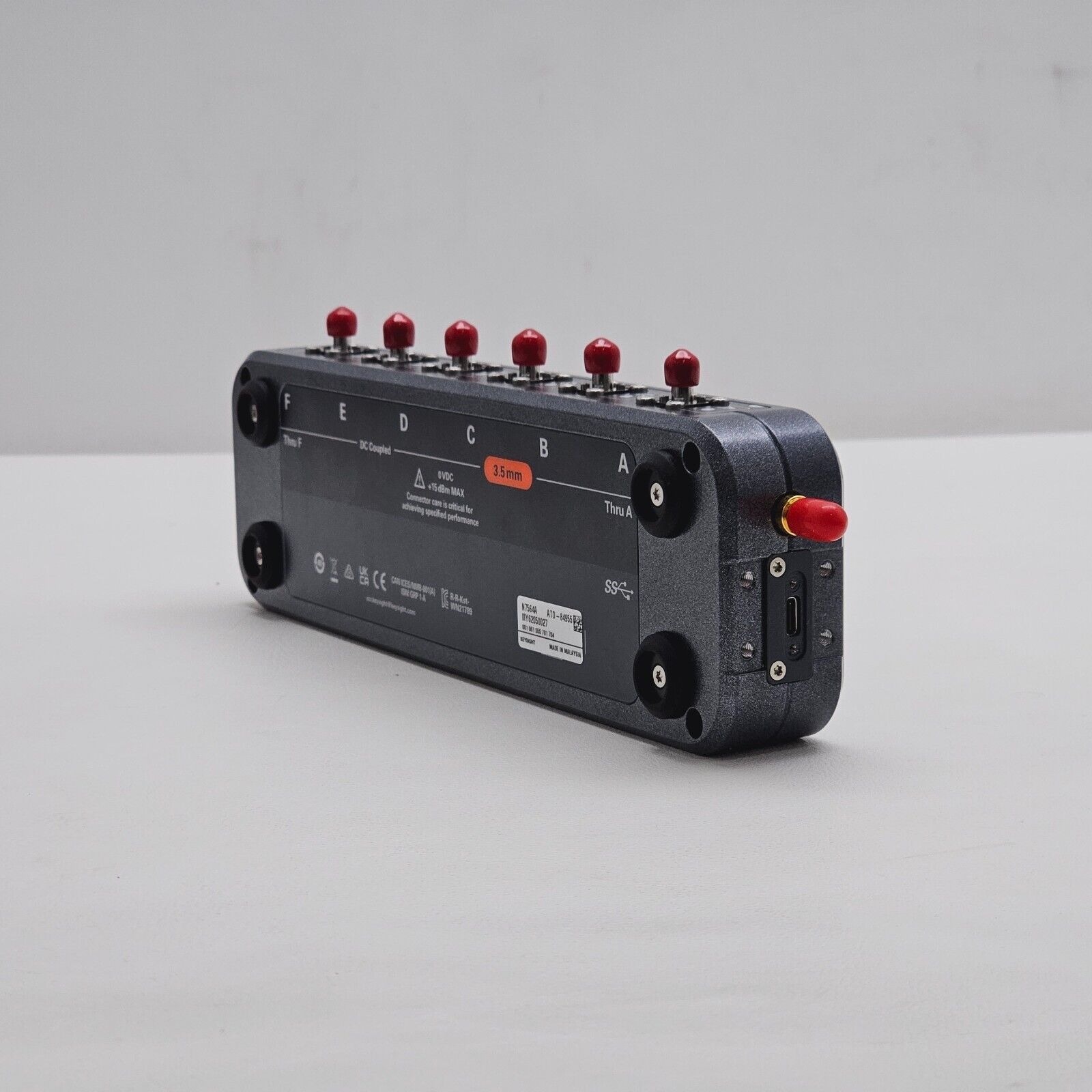

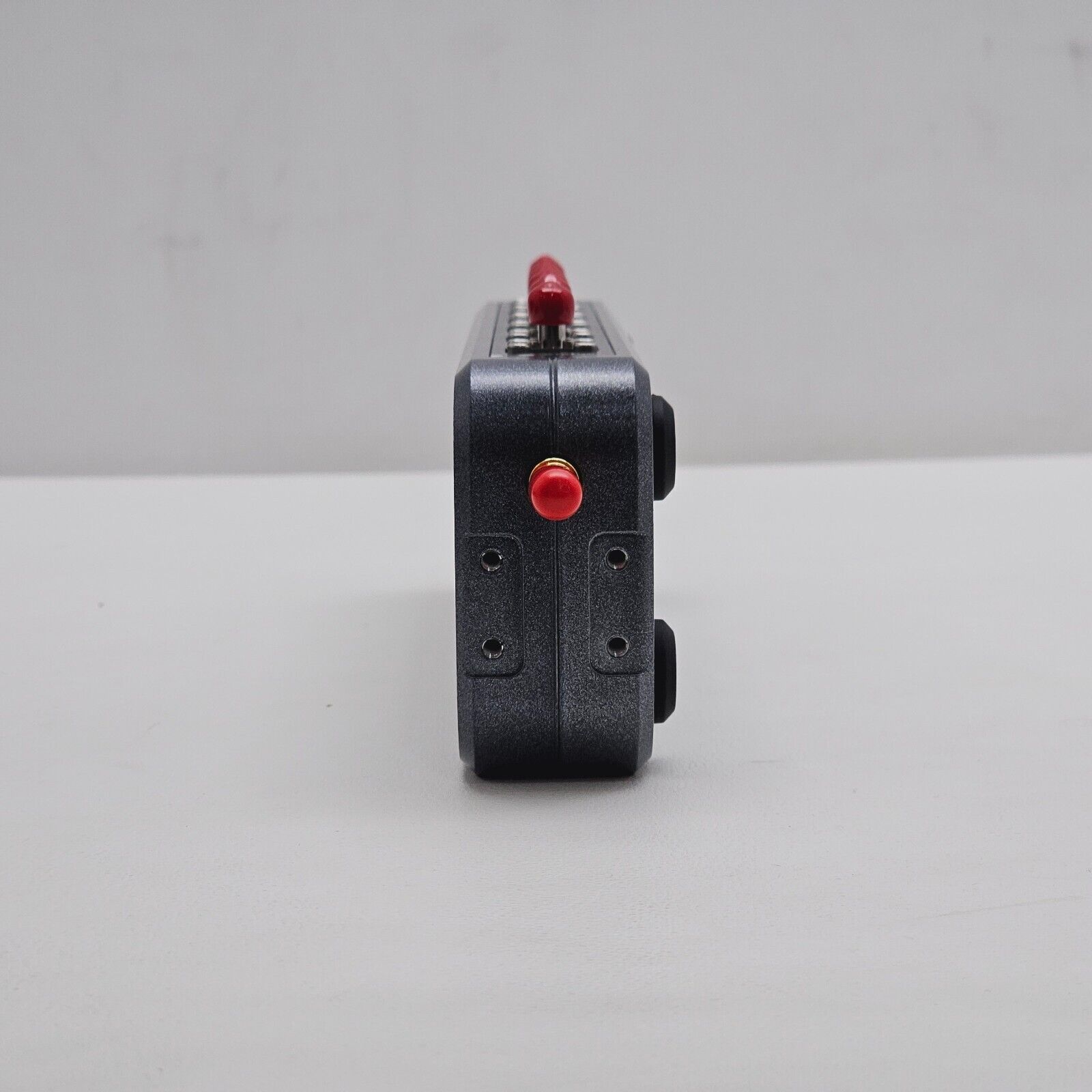

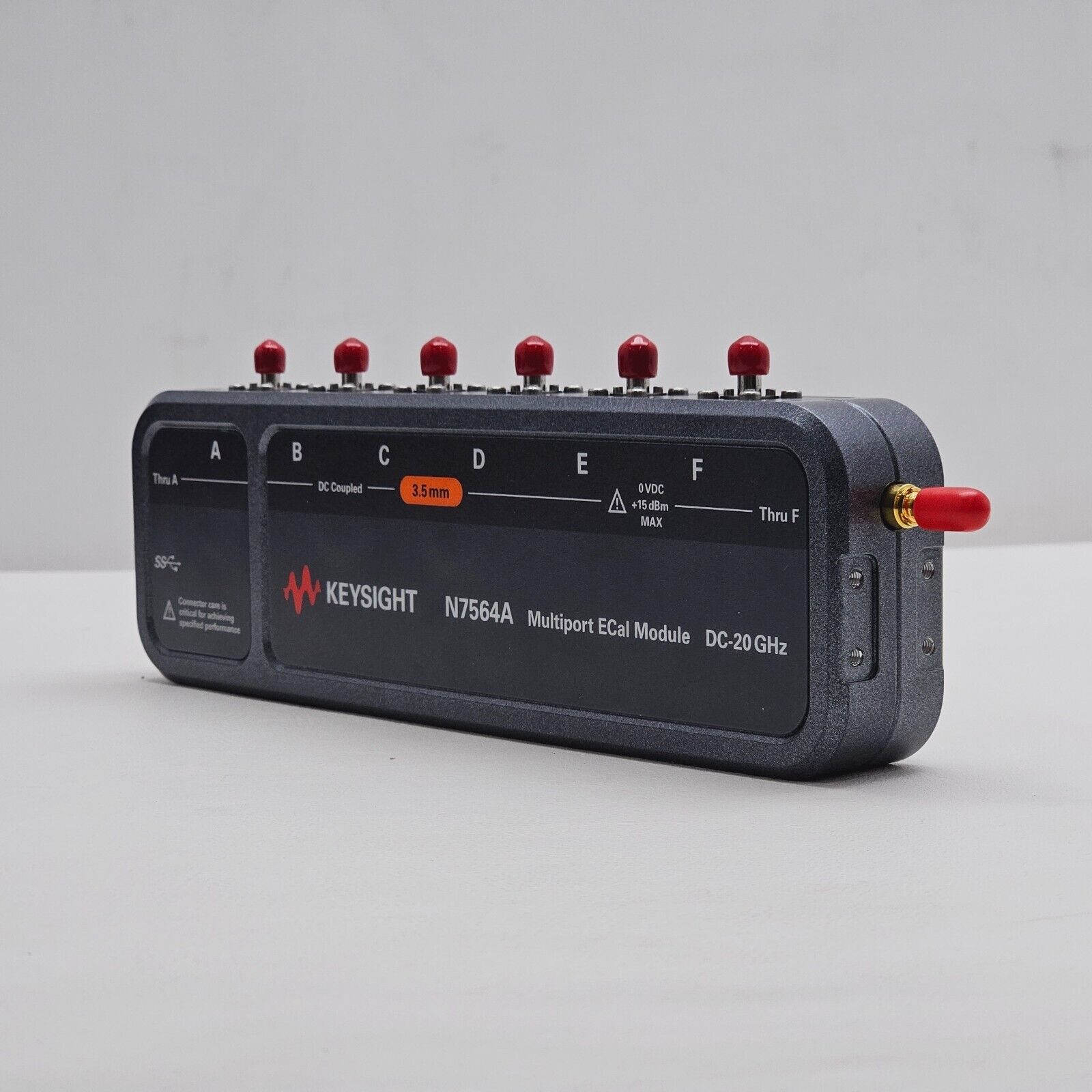

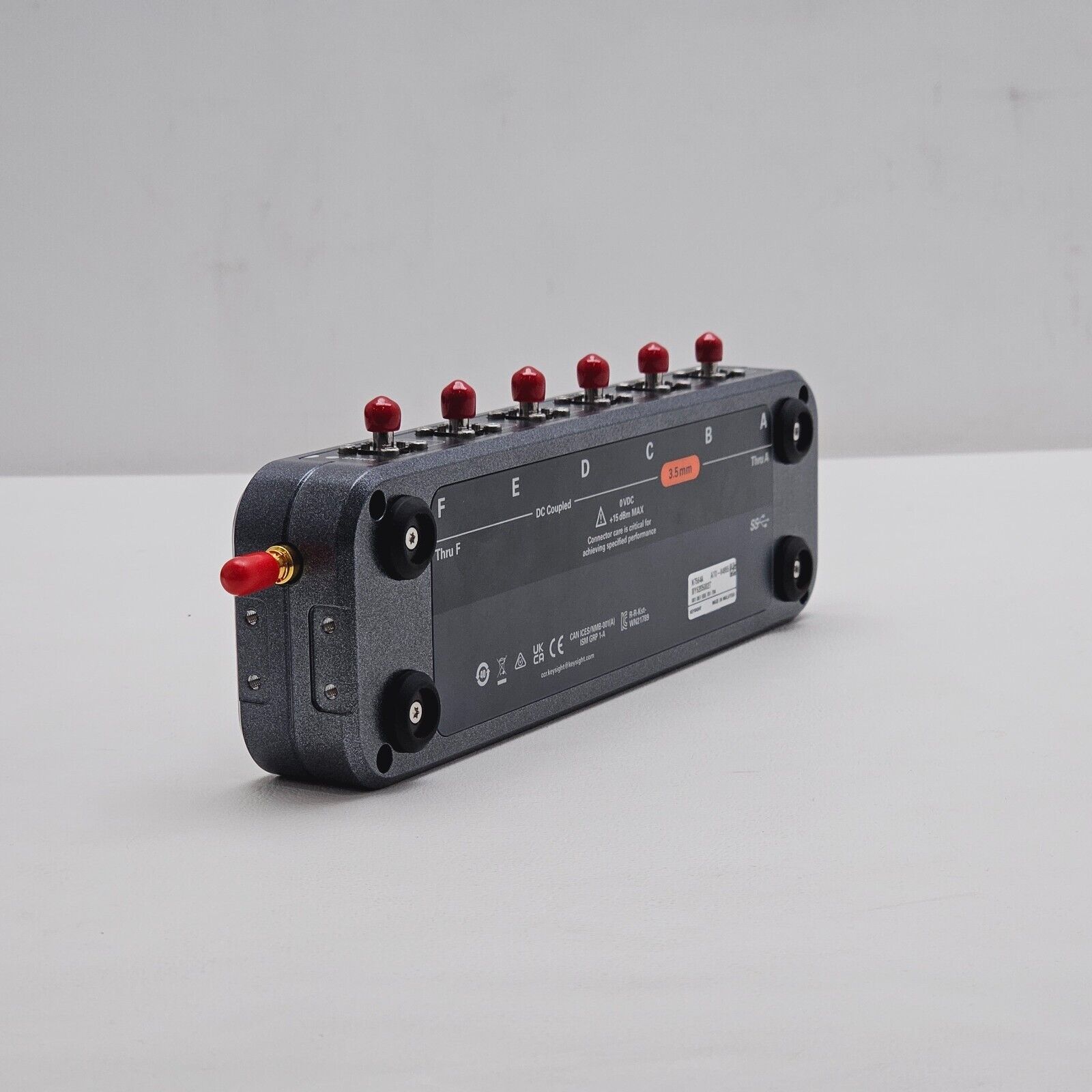

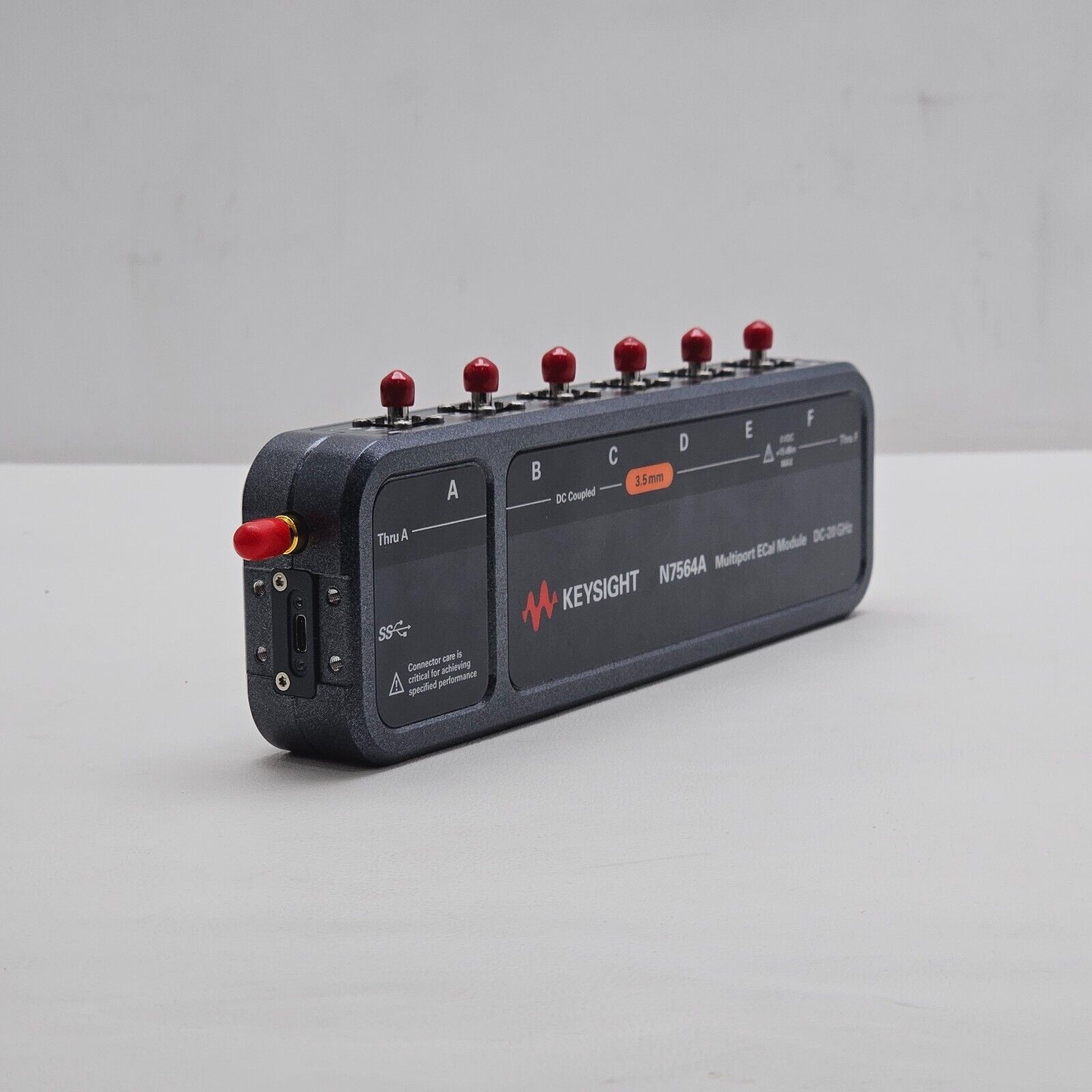

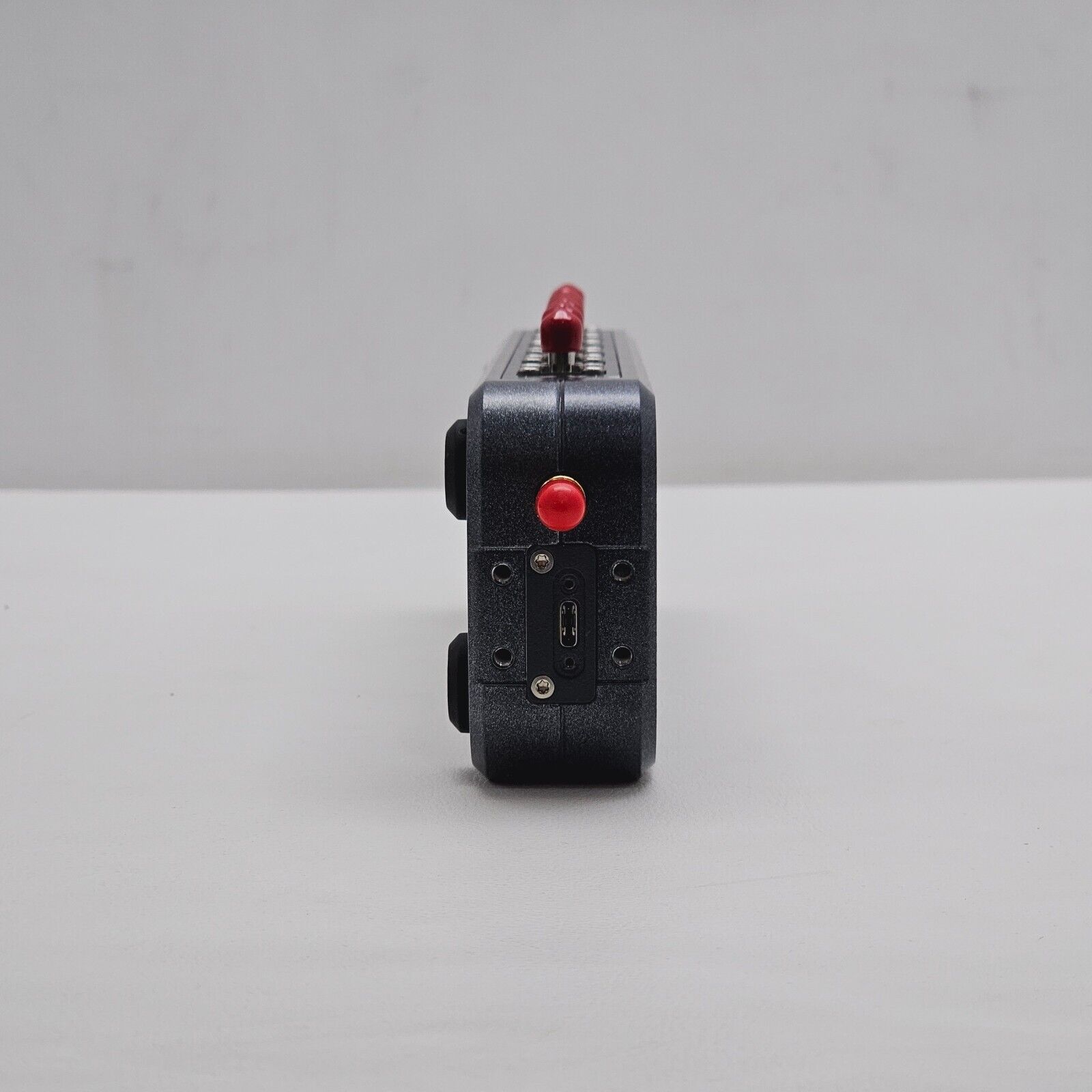

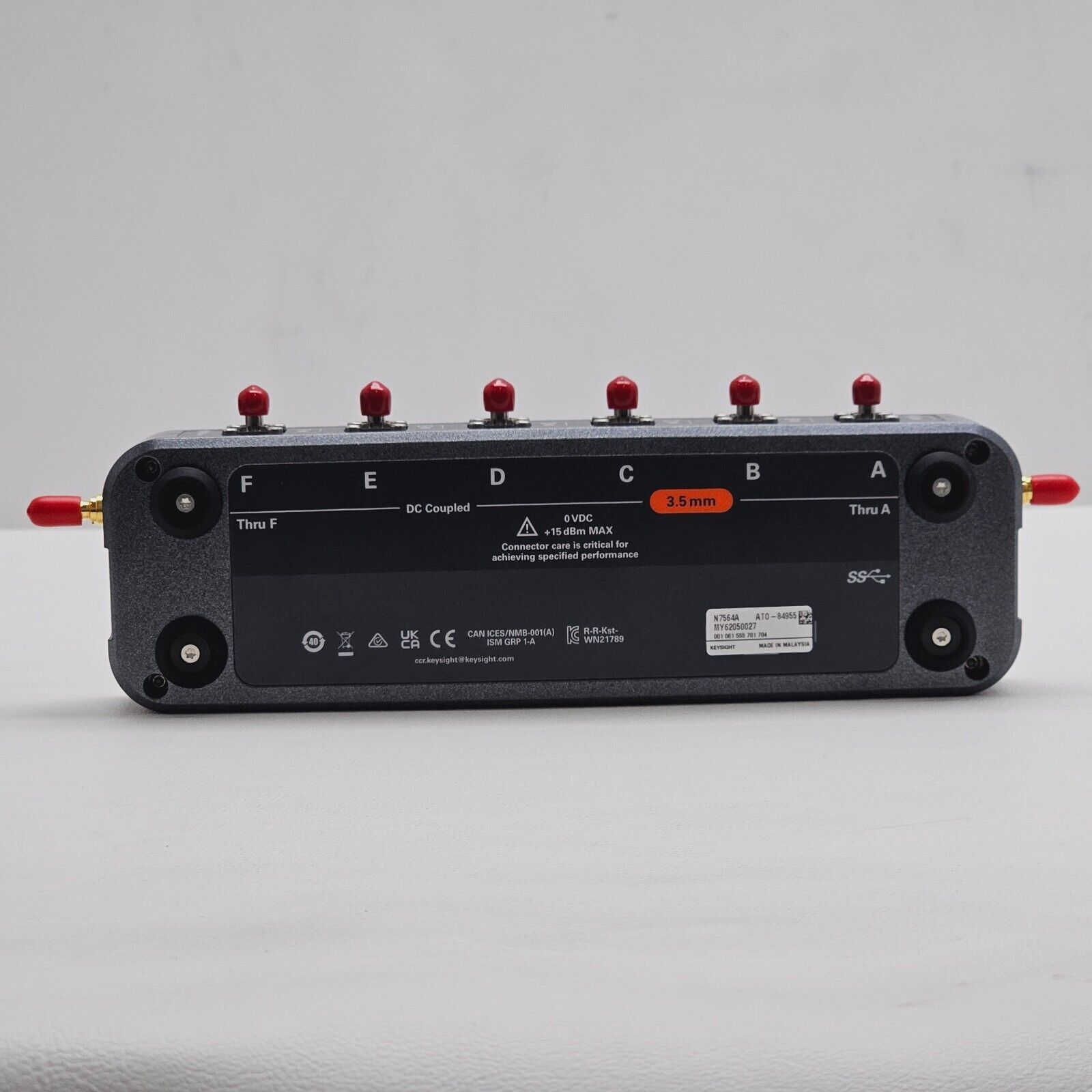

The Keysight N7564A is a 6-port Multiport Electronic Calibration (ECal) Module operating from DC to 20 GHz with 3.5 mm female connectors. It is part of the N756xA/AEP series — the world's first portable and configurable multiport ECal family, cascadeable up to 36 ports for high port-count VNA calibration.

The N7564A makes calibration of Keysight vector network analyzers fast, easy, and accurate. Performing a full 6-port calibration takes less than half the time and fewer connections than traditional mechanical cal kits. The operator simply connects the ECal module to the VNA via USB 3.x and the VNA firmware controls the calibration automatically, reducing operator error and connector wear.

The module stores unique S-parameter characterisation data in its internal memory. ECal uses this data to calculate the error terms for the connected network analyser. A node-locked perpetual software licence (S94555B) is pre-installed via Keysight License Manager (KLM) and does not require separate ordering or installation.

Key Features:
• Broad frequency range from DC to 20 GHz
• 6-port configuration with 3.5 mm female connectors, DC coupled
• Cascade multiple units to scale from 6 up to 36 ports
• USB 3.x interface — plug-and-play with compatible Keysight VNAs
• Compact, portable footprint suitable for multi-location sharing
• Compatible with PXI VNAs, PNA, ENA, and Streamline Series VNAs
• Ideal for PA/FEM testing, massive MIMO antenna characterisation, and high-speed digital interconnect applications
• Note: Does not support calibration with external switches or user characterisation

Electrical Specifications (N7564A, 3.5 mm Female):
Frequency Range: DC to 20 GHz
Connector Type: 3.5 mm Female
Coupling: DC Coupled
Number of Ports: 6
Maximum Input Power: 0 VDC, +15 dBm MAX
Directivity (DC to 100 kHz): 42 dB
Source Match (DC to 100 kHz): 37 dB
Reflection Tracking (DC to 100 kHz): ±0.13 dB
Directivity (100 kHz to 500 MHz): 42 dB
Source Match (100 kHz to 500 MHz): 37 dB
Reflection Tracking (100 kHz to 500 MHz): ±0.13 dB
Directivity (500 MHz to 4 GHz): 36 dB
Source Match (500 MHz to 4 GHz): 30 dB
Reflection Tracking (500 MHz to 4 GHz): ±0.13 dB
Interface: USB 3.x (SuperSpeed USB)
Cascadeable: Yes, up to 36 ports
Software Licence Included: S94555B (pre-installed, node-locked perpetual)

Keysight N7562/4/5A Multiport ECal Modules User Guide — full operating, maintenance and specification manual: Download PDF

Keysight ECal Modules Reference Guide — calibration procedures, troubleshooting and electrical specifications for N443xD, N469xD and N755xA series: Download PDF

Keysight Electronic Calibration (ECal) Modules Technical Overview — product features, VNA compatibility and selection guide: Download PDF
