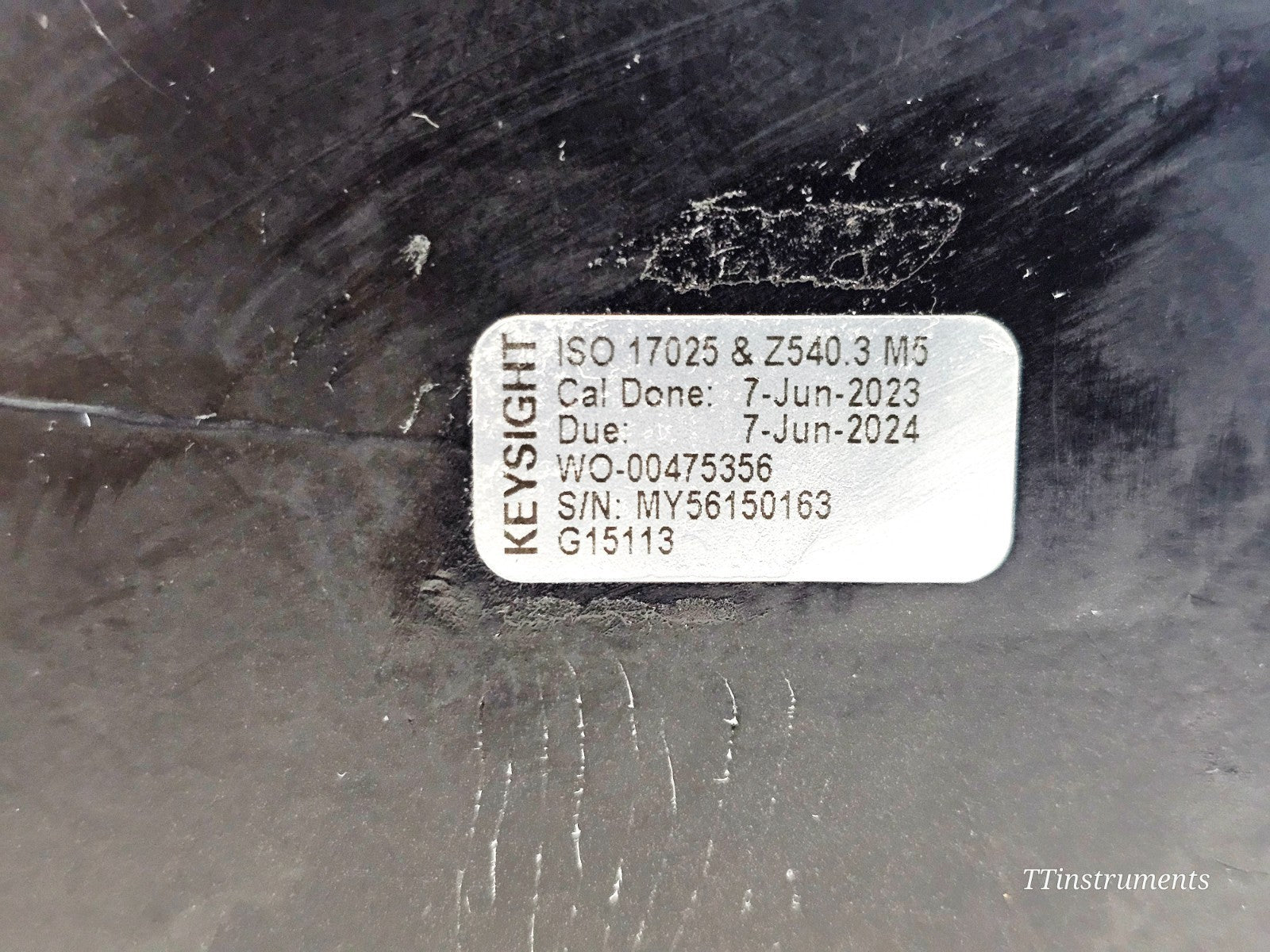

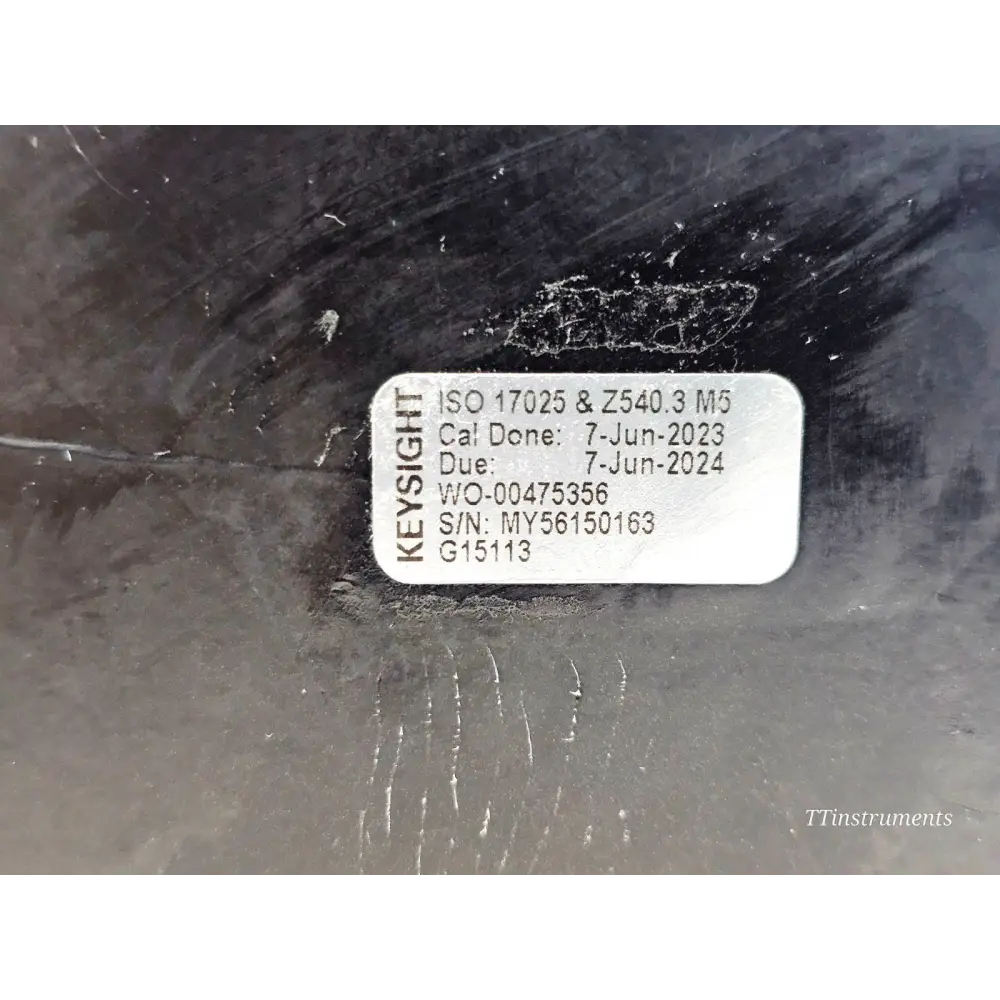

Condition: Used — Good working condition, calibration expired 2024.

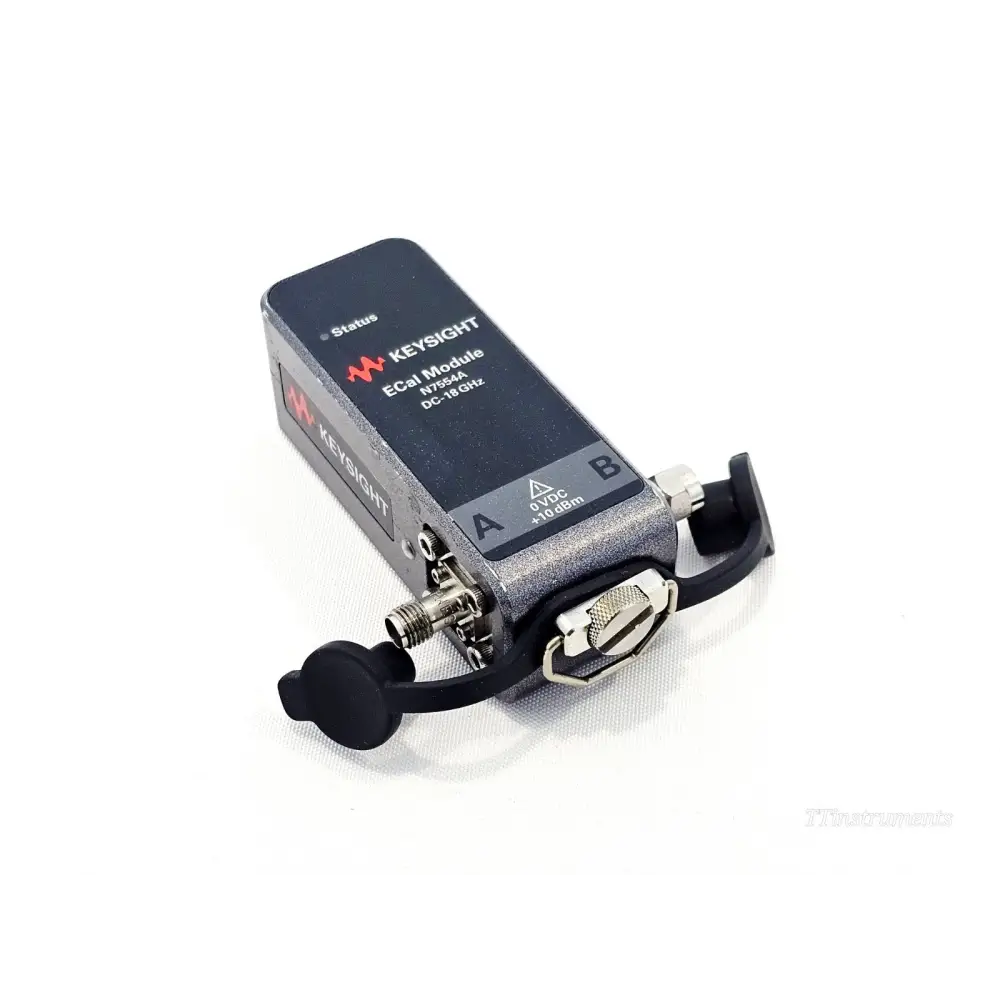

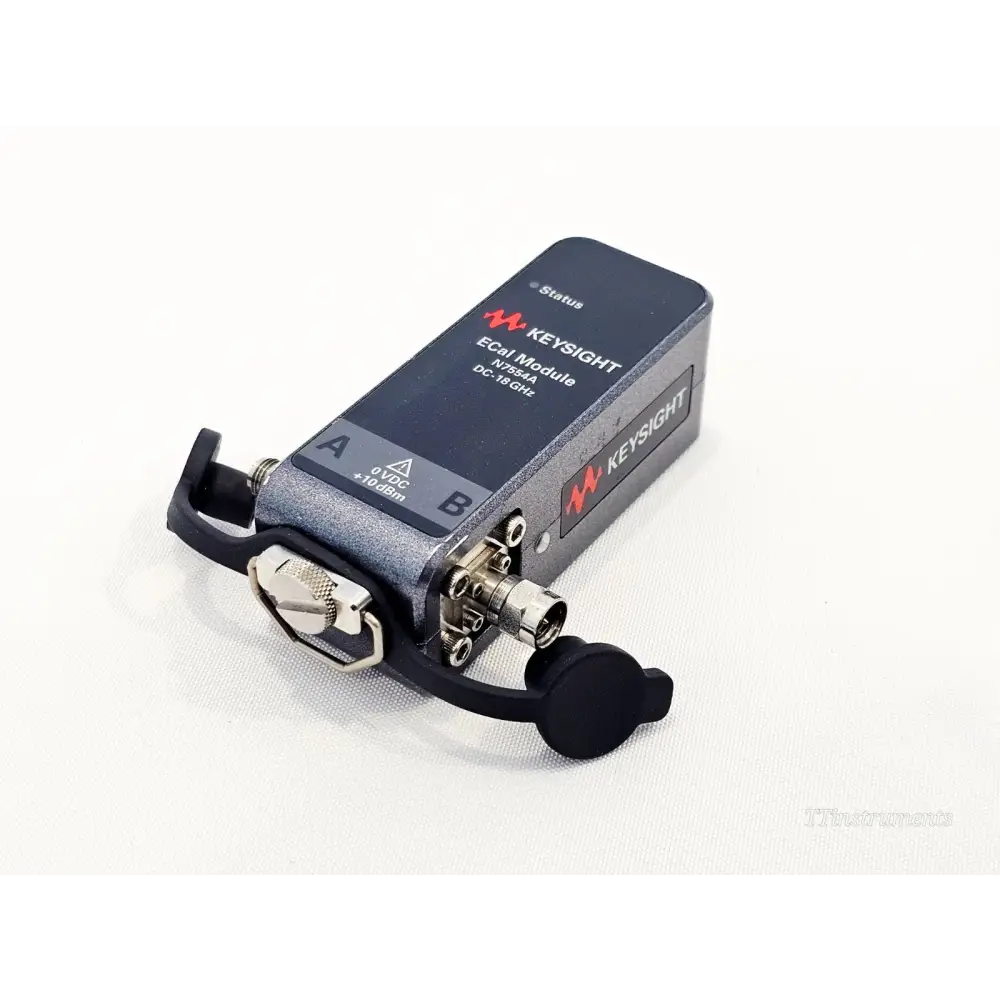

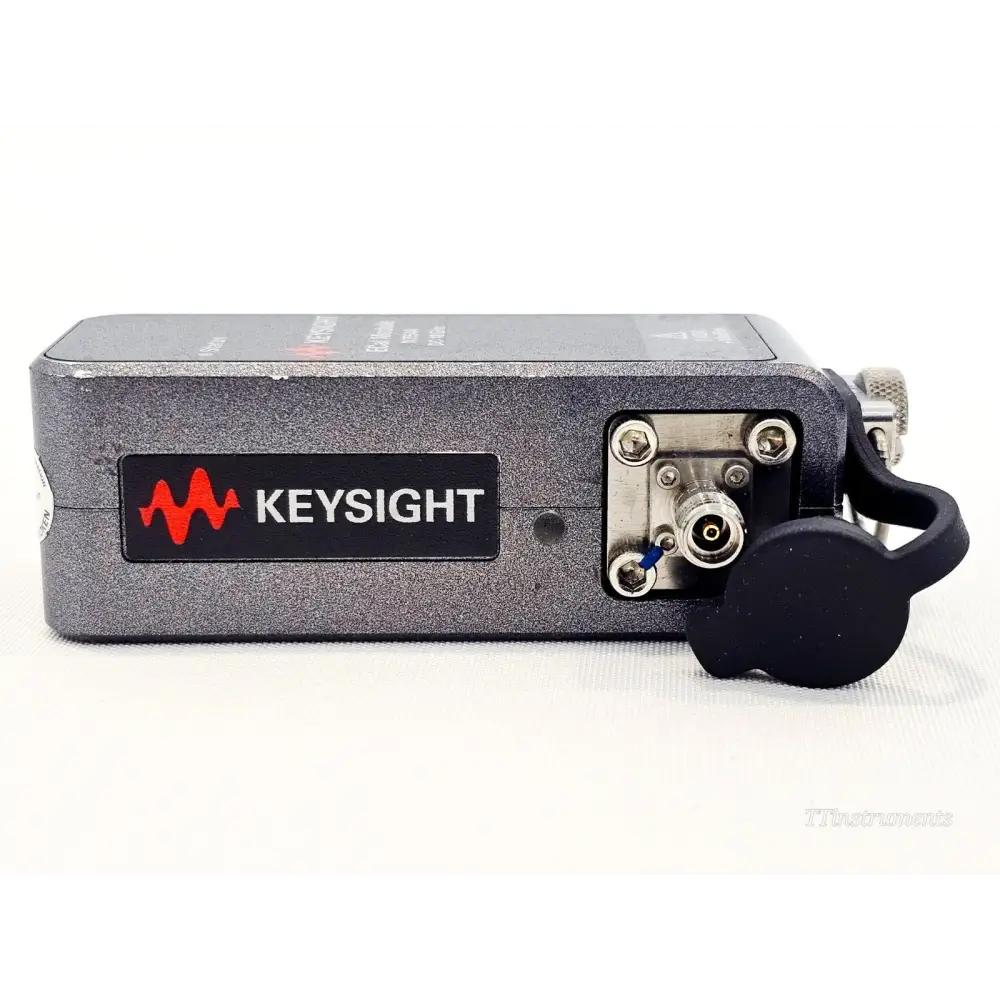

The Keysight N7554A is a compact 2-port economy ECal module covering DC to 18 GHz. It connects via USB 2.0 micro-interface and is controlled entirely by the host VNA firmware, providing a fully integrated, single-connection calibration solution.

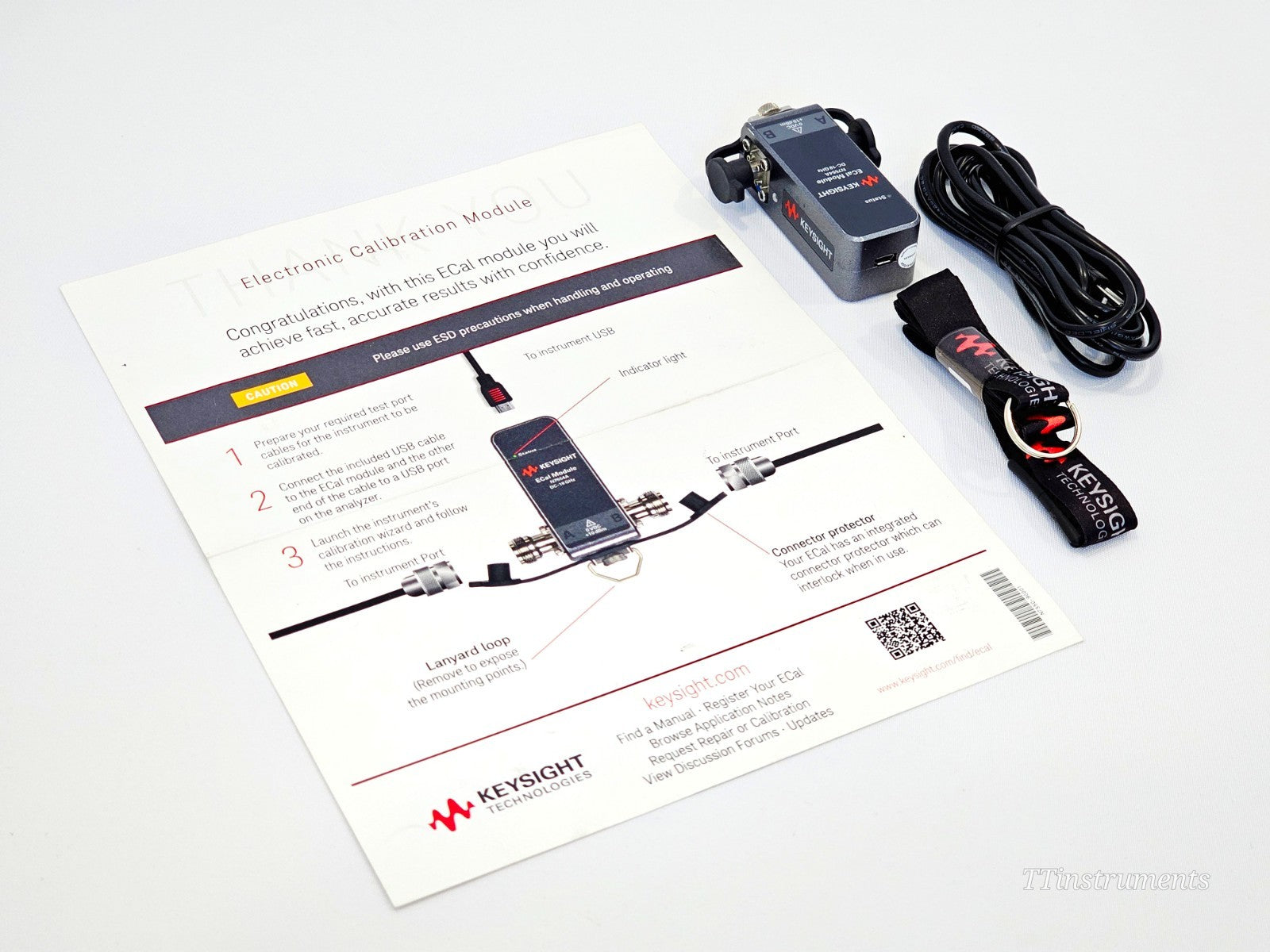

What is typically included:

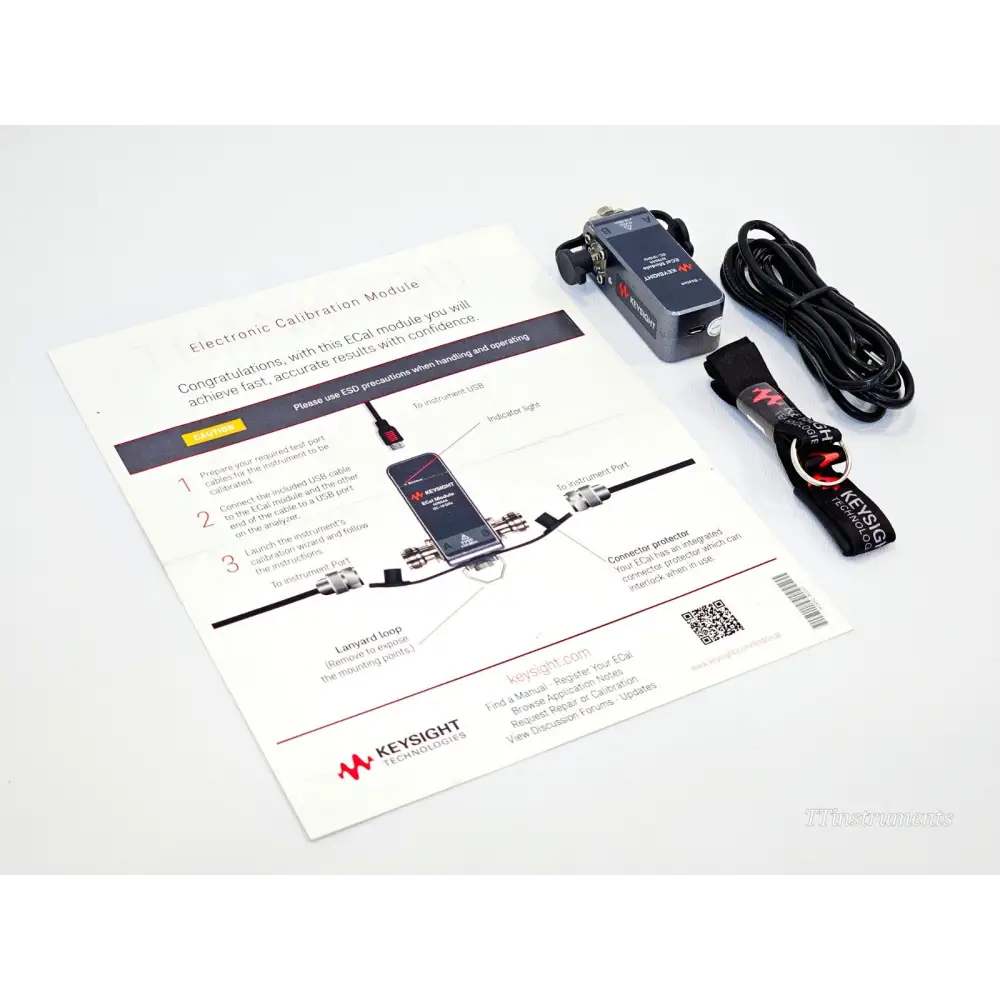

• Keysight N7554A ECal module

The Keysight N7554A is part of the N755xA Series of 2-port economy Electronic Calibration (ECal) modules for vector network analyzers. It delivers fast, accurate, and repeatable VNA calibration from DC to 18 GHz, significantly reducing calibration time compared to traditional mechanical calibration kits. The module connects to the host VNA via a USB 2.0 micro-interface; all calibration control is handled by the firmware already installed on the instrument, making it a fully integrated solution with zero wait time.

The N7554A supports a wide range of Keysight VNA platforms including the PNA-X, PNA, ENA, PXI vector network analyzers, and FieldFox handheld analysers. All 2-port ECal modules support in-family mixed connector options (male-male, female-female, and male-female) for the same connector type, simplifying calibration of non-insertable devices.

Key Specifications:

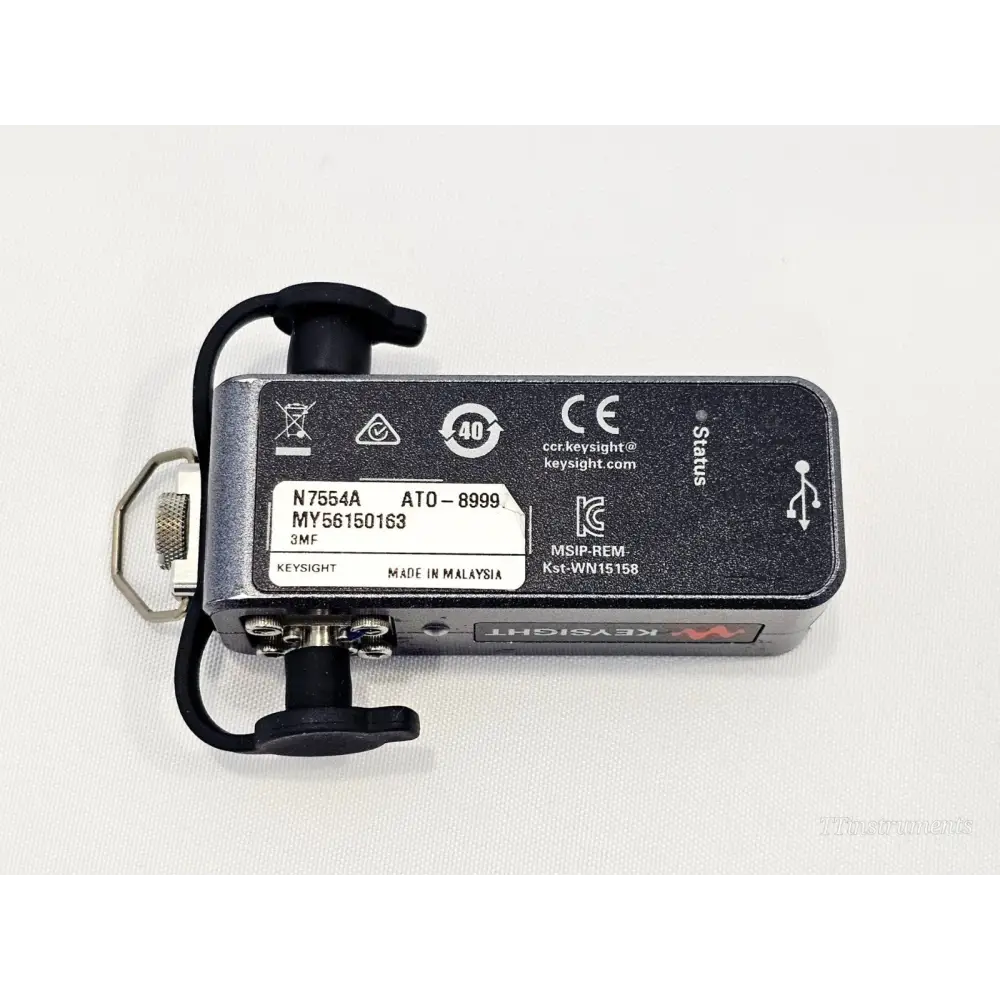

Model: N7554A
Product Family: N755xA Series 2-port Economy ECal Module
Frequency Range: DC to 18 GHz
Number of Ports: 2-port
Impedance: 50 Ω

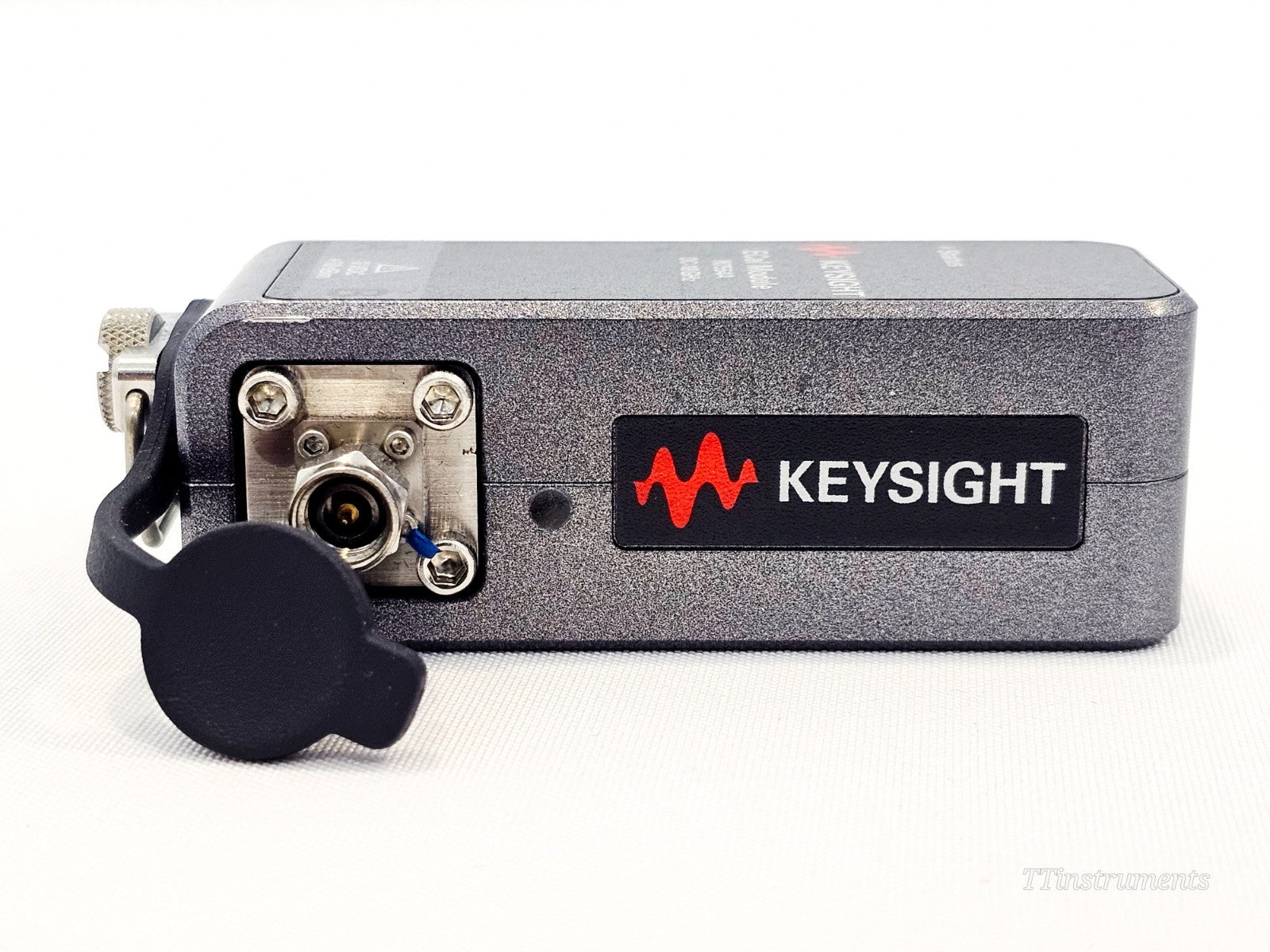

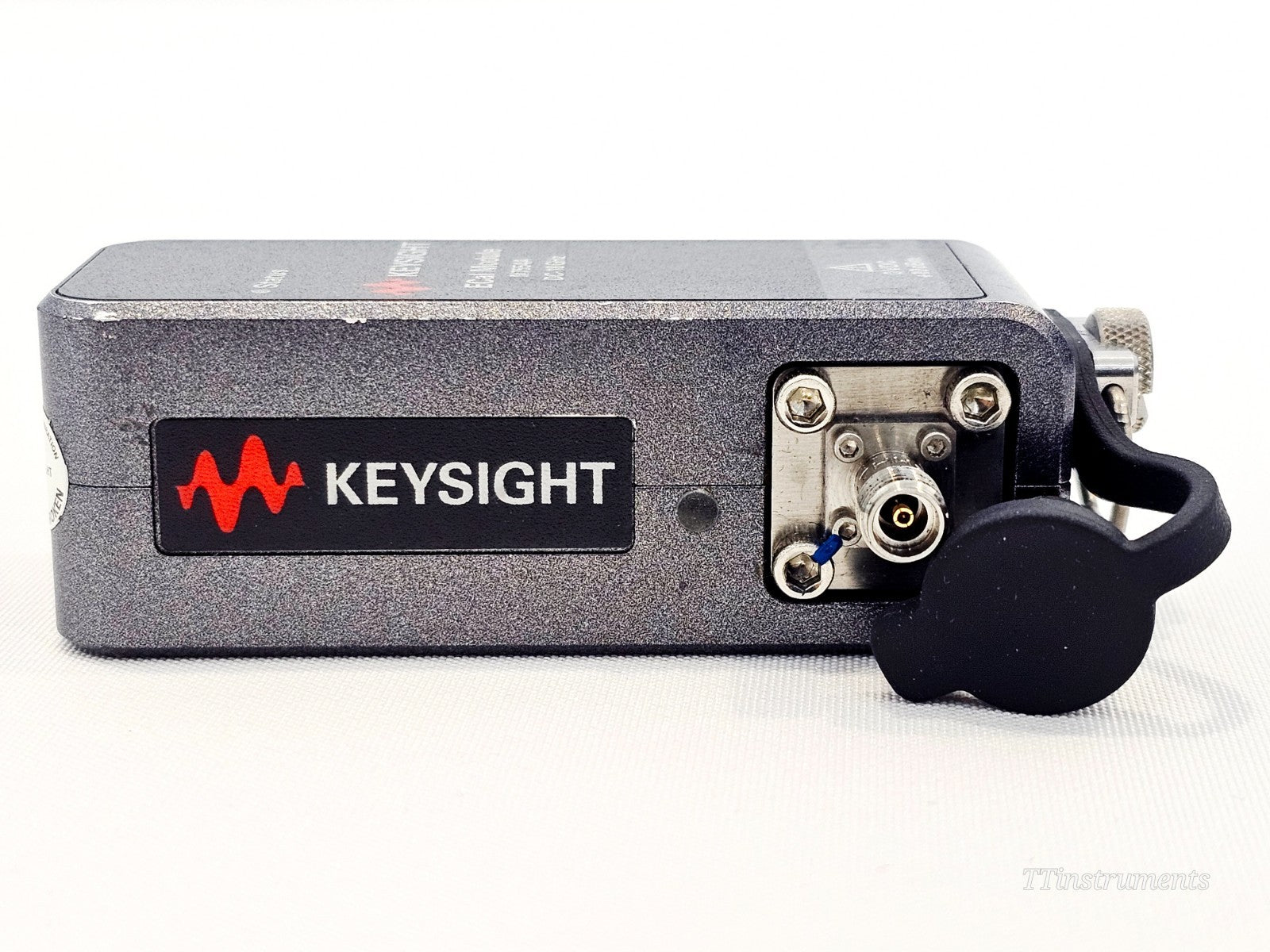

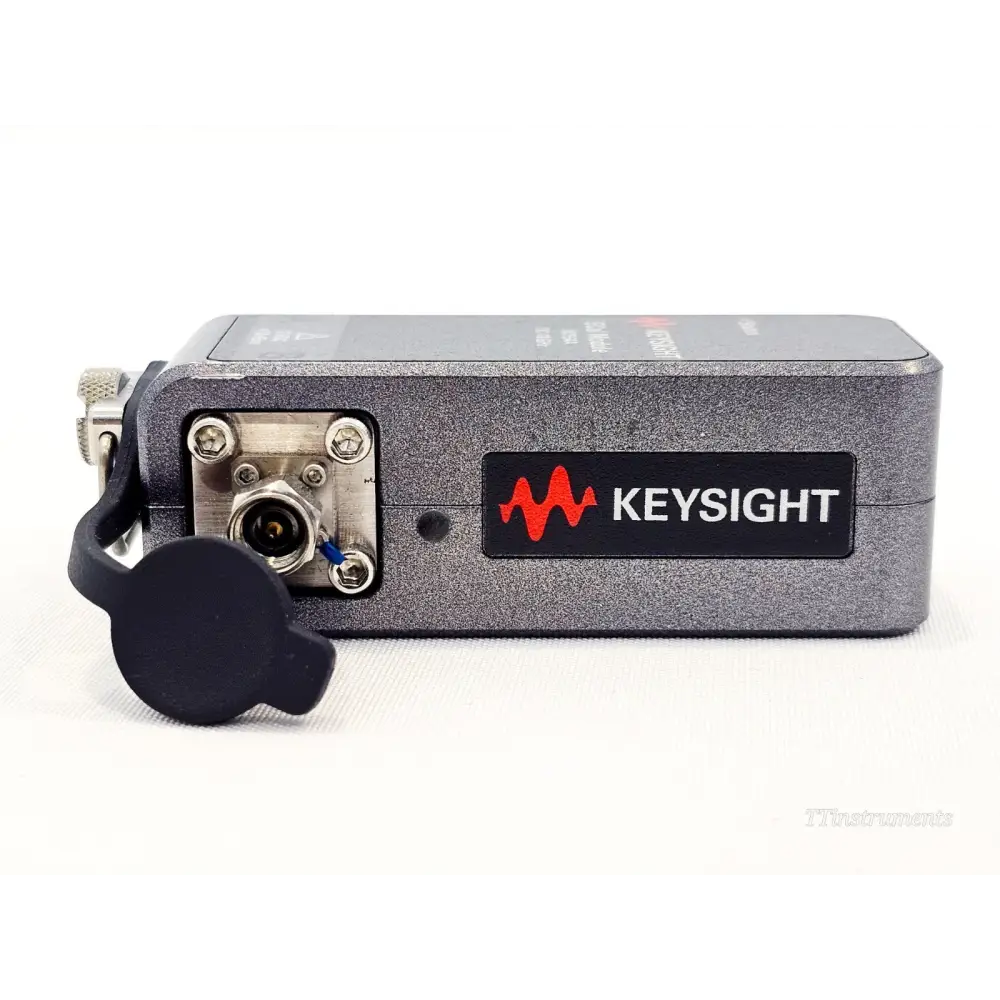

Connector Types: 3.5 mm or Type-N 50 Ω

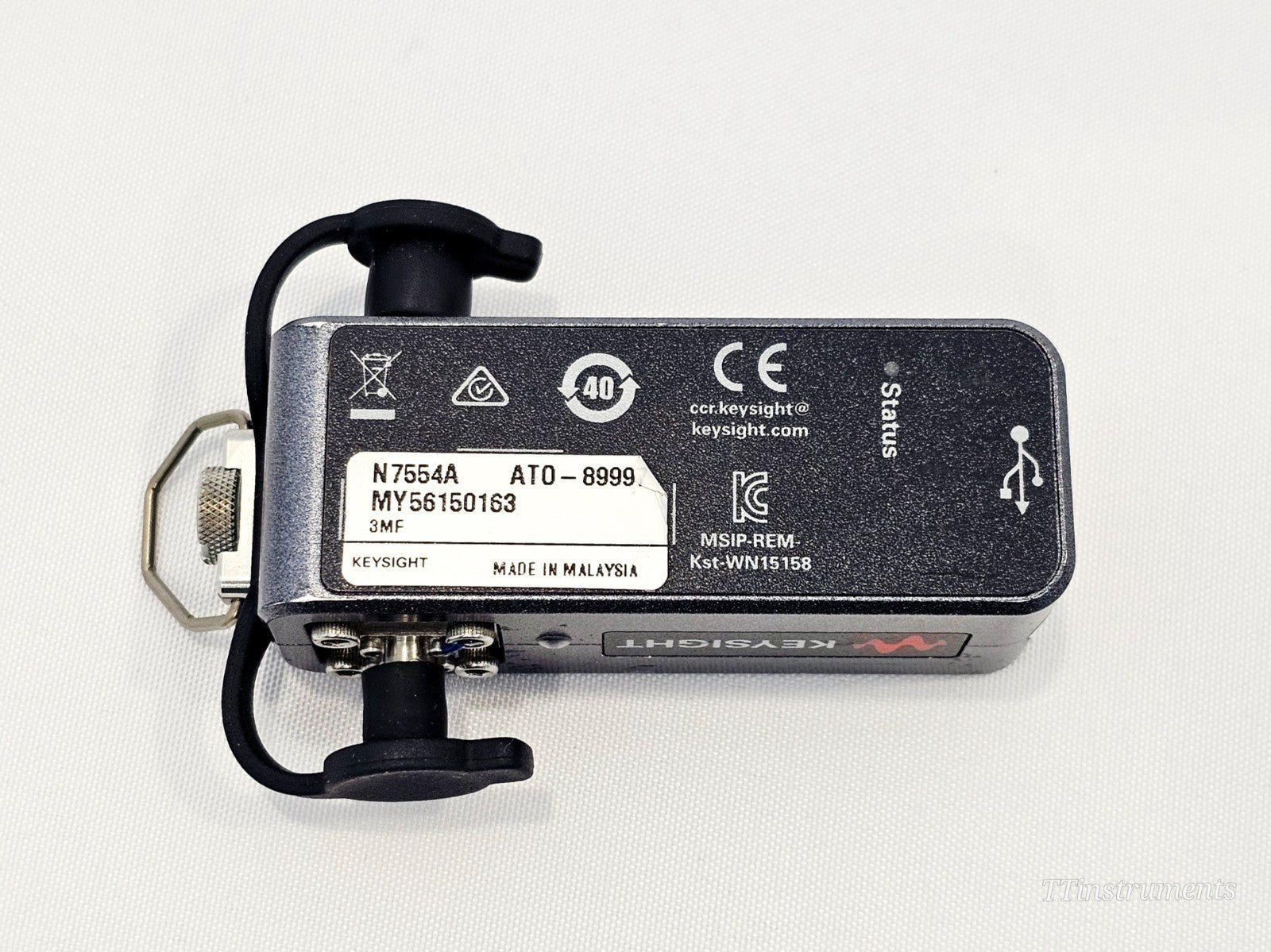

Connector Options: Option 3FF (both 3.5 mm female), Option 3MF (one 3.5 mm female, one male), Option 3MM (both 3.5 mm male), Option NFF (both Type-N female)

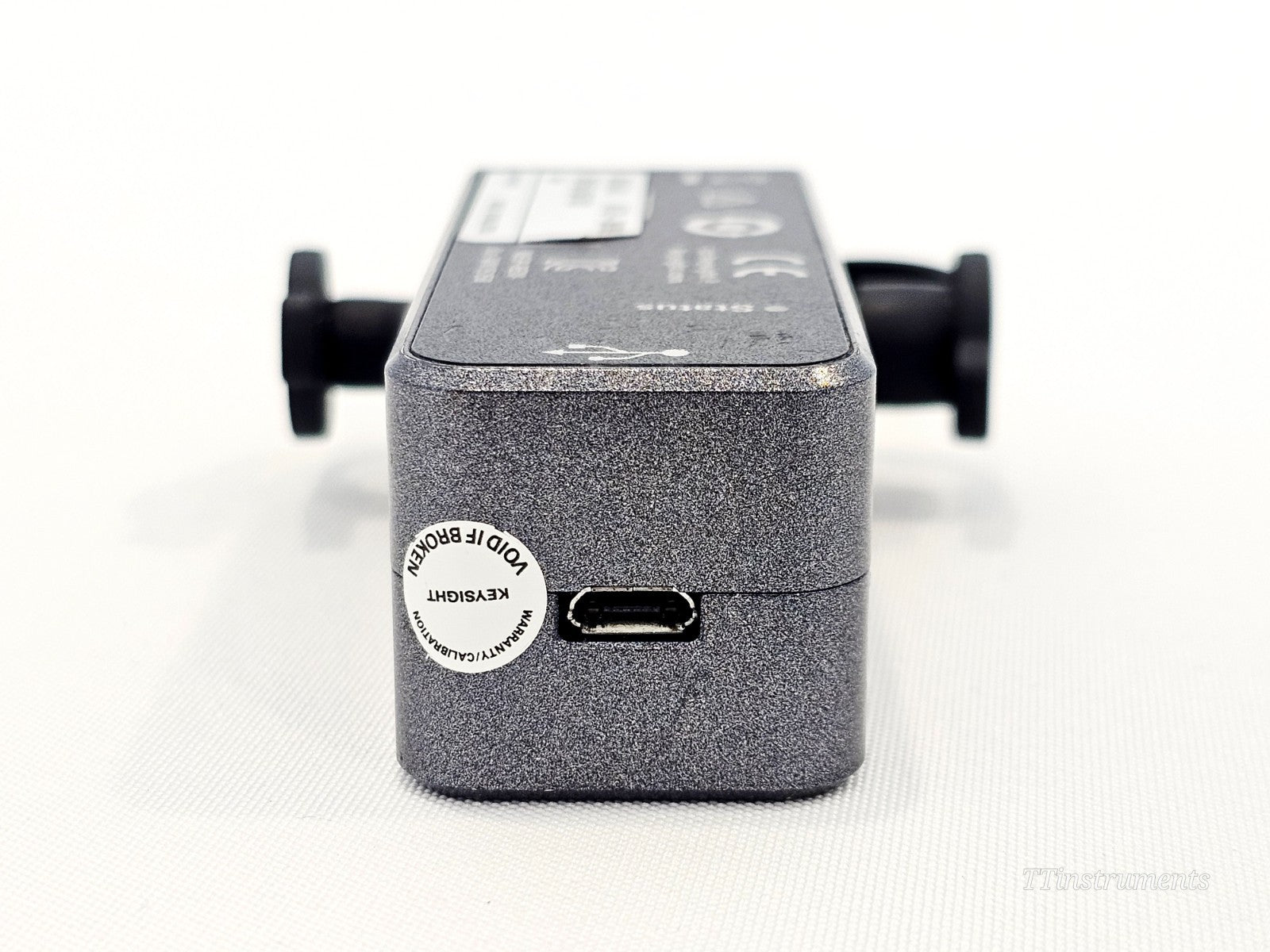

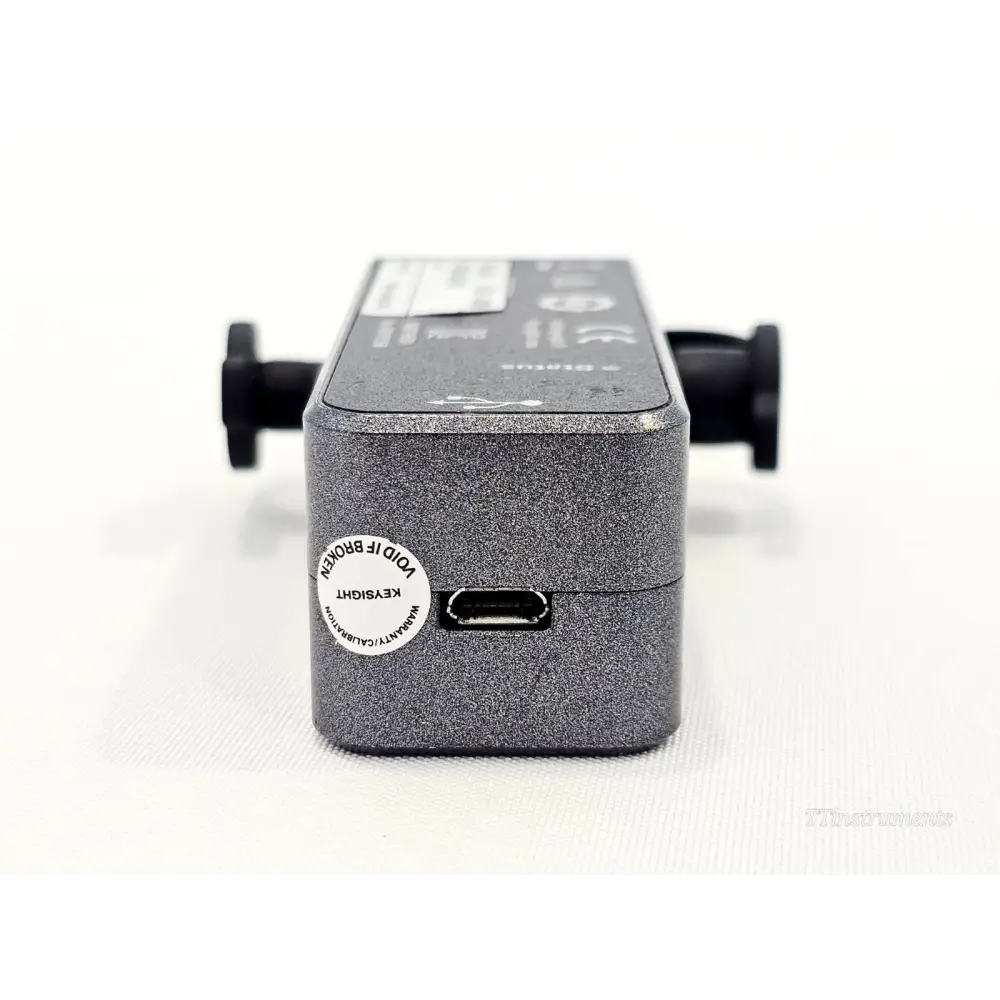

Interface: USB 2.0 Micro
Dimensions (H x W x D): 77 x 29 x 27 mm
Compatible VNAs: Keysight PNA-X, PNA, ENA, PXI VNA, FieldFox
Calibration Control: Instrument firmware (no standalone software required)

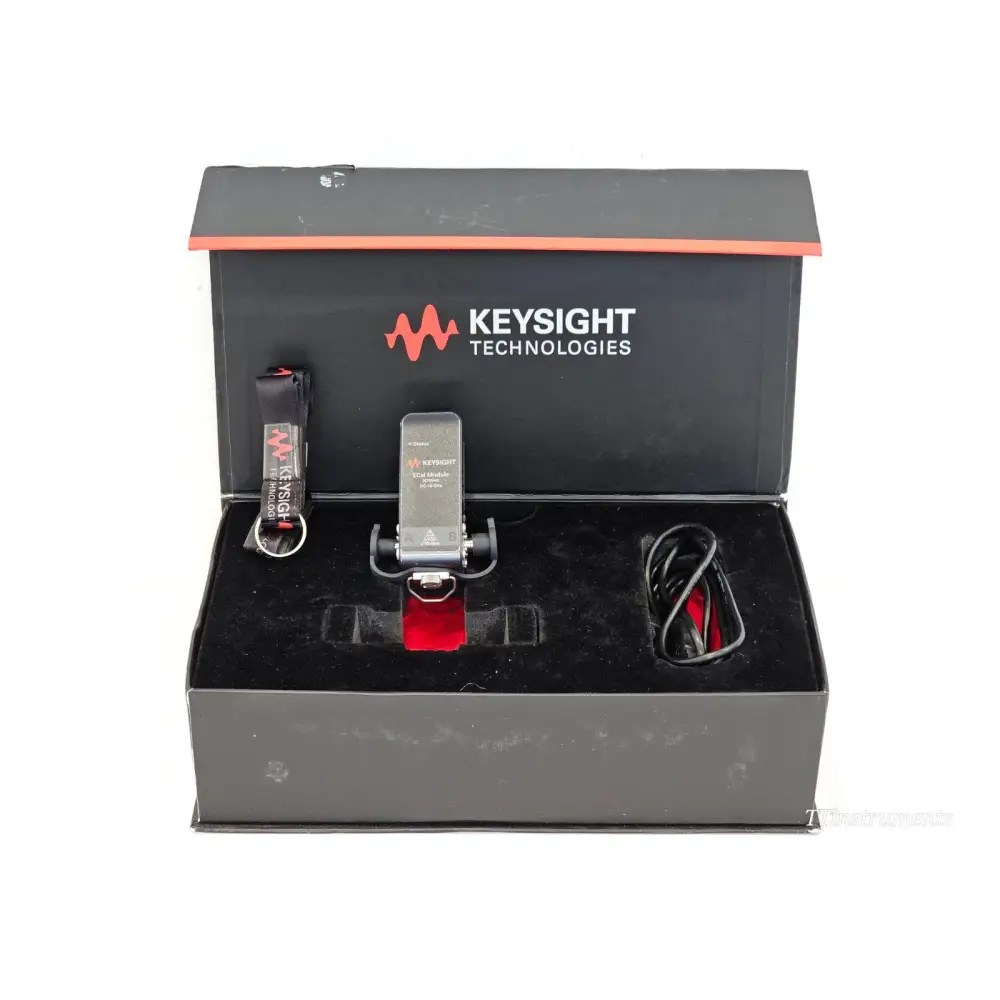

Storage Option: Option 150 — ruggedised plastic storage box (optional accessory)

As a value-line product, the N7554A is designed to be cost-effective to replace rather than recertify. For higher precision and accuracy requirements, Keysight recommends the N44xx and N469x family of ECal products.

Keysight Electronic Calibration Modules Reference Guide (covers N7554A) — PDF: Download PDF

Keysight ECal Modules Technical Overview (covers N755xA series including N7554A) — PDF: Download PDF

Keysight Electronic Calibration Modules Reference Guide (TestEquity hosted, covers N7554A) — PDF: Download PDF

Keysight N7554A ECal Modules Product Fact Sheet — PDF: Download PDF
