Keysight Agilent N4866A PCI Express High Speed Interconnect N4866-66401

Name: Keysight Agilent N4866A PCI Express High Speed Interconnect N4866-66401
Brand: Keysight Agilent
SKU: 5861 7C02 ER50
Price: 63.75 GBP
Availability: OutOfStock

The Keysight N4866A is a PCI Express High Speed Interconnect designed to dramatically accelerate waveform capture and analysis between a PC and the DSO/DSA 90000 Series Infiniium oscilloscope.
• Up to 96 MB/sec transfer rate with as low as 1.4 microsecond latency
• Enables capture and analysis up to 4x faster than previously available solutions
• Fiber optic cabling supports distances up to 10 metres between PC and oscilloscope

Manufacturer

Keysight Agilent

Model

N4866A

Condition

Used

In stock

SKU

5861 7C02

£63.75

Electronic T&M
Oscilloscopes & Accessories

Make an Offer

Condition: Used

The Keysight (Agilent) N4866A PCI Express High Speed Interconnect (part number N4866-66401) is compatible with Keysight DSO/DSA 90000 Series oscilloscopes purchased after December 2009, requiring operating software revision 1.1 or higher. It delivers up to 96 MB/sec transfer rates and as low as 1.4 microsecond latency, enabling significantly faster waveform offload and analysis workflows.

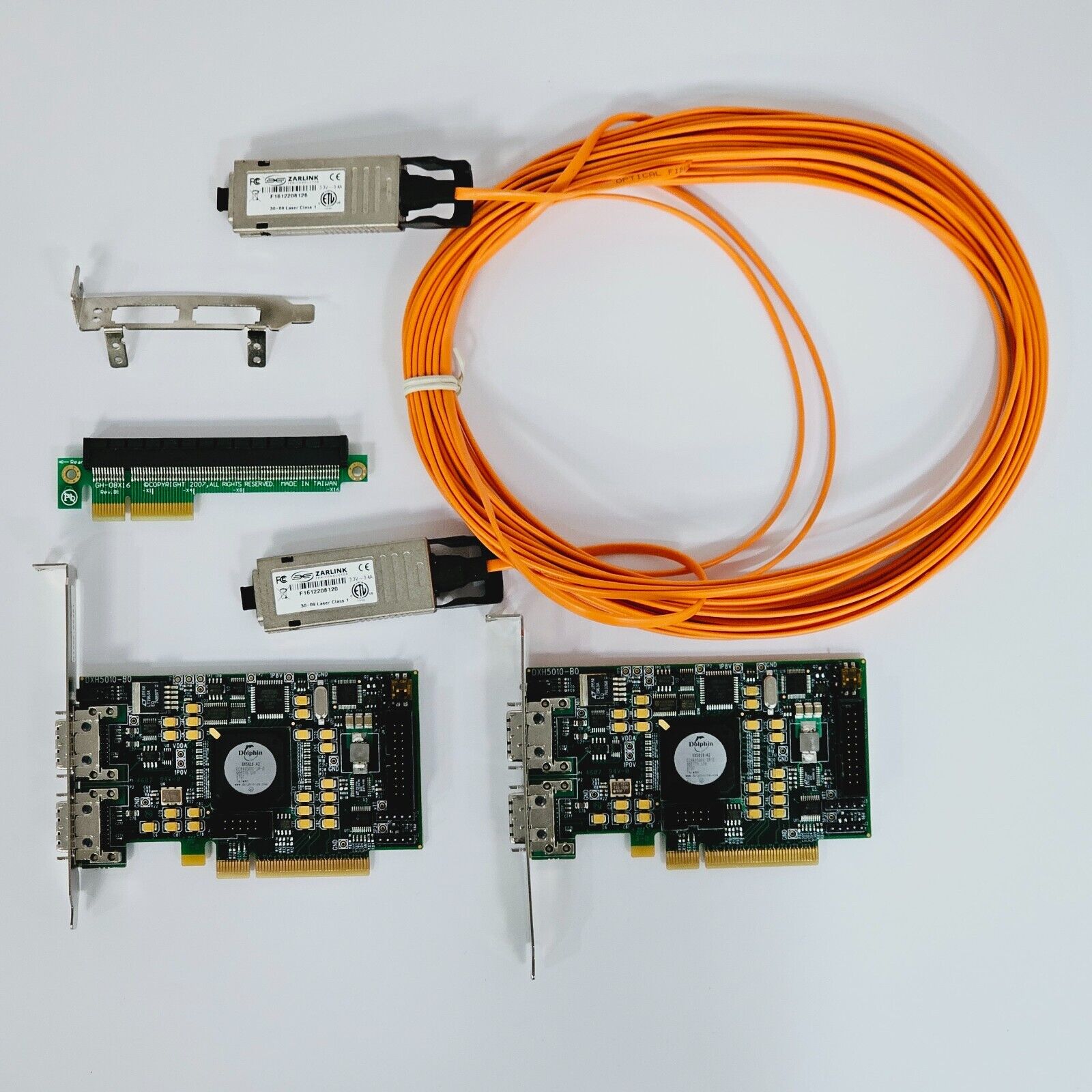

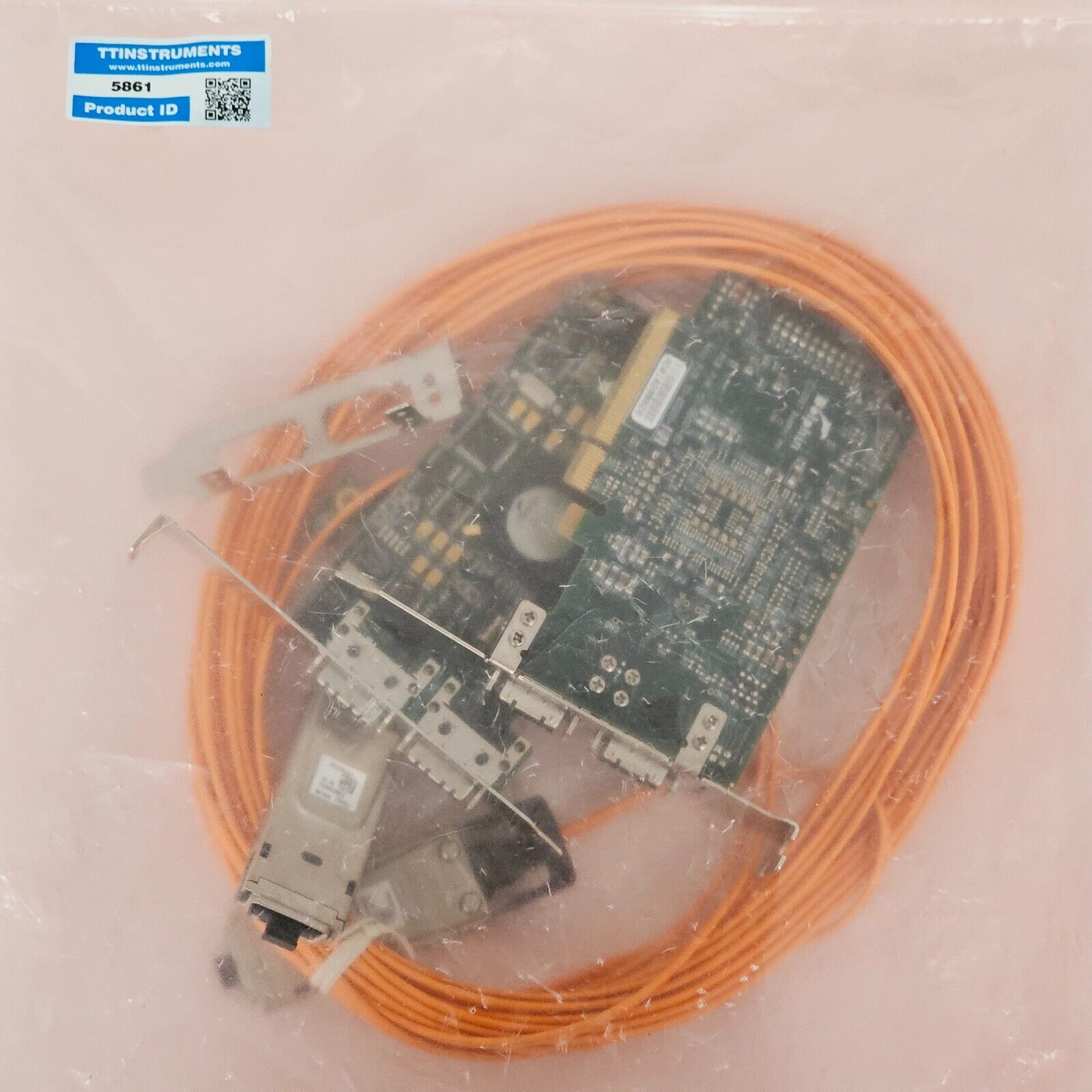

Included items (as described):

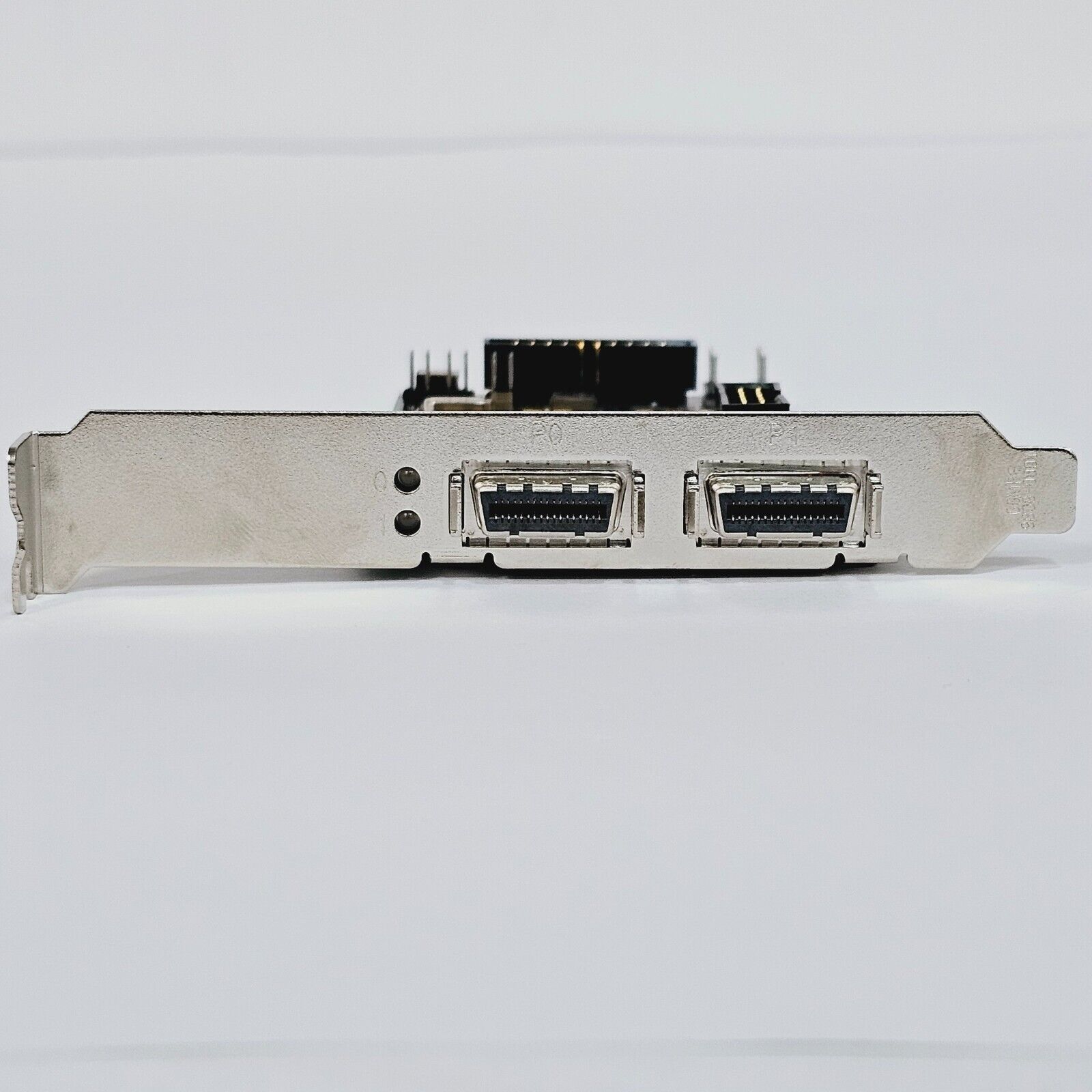

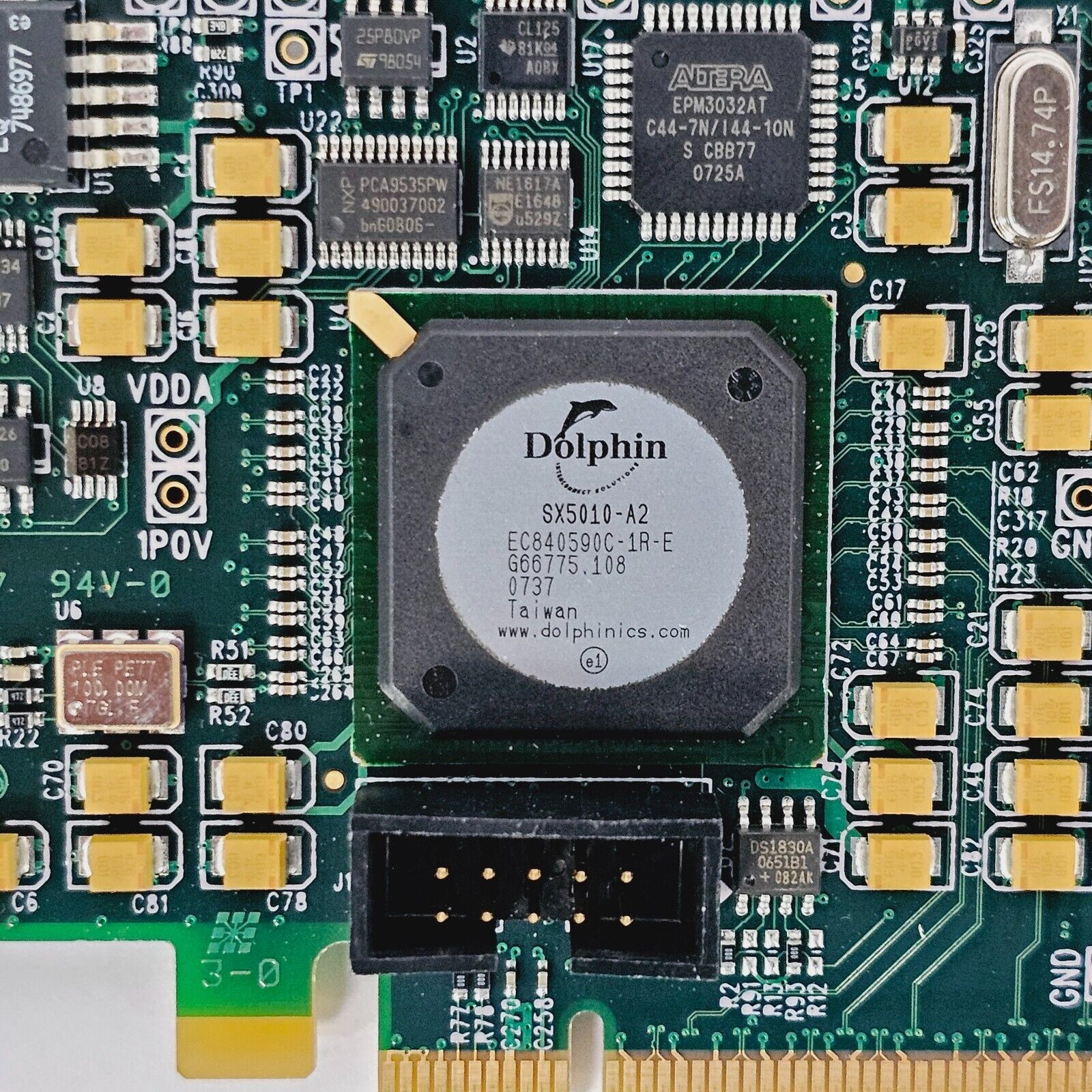

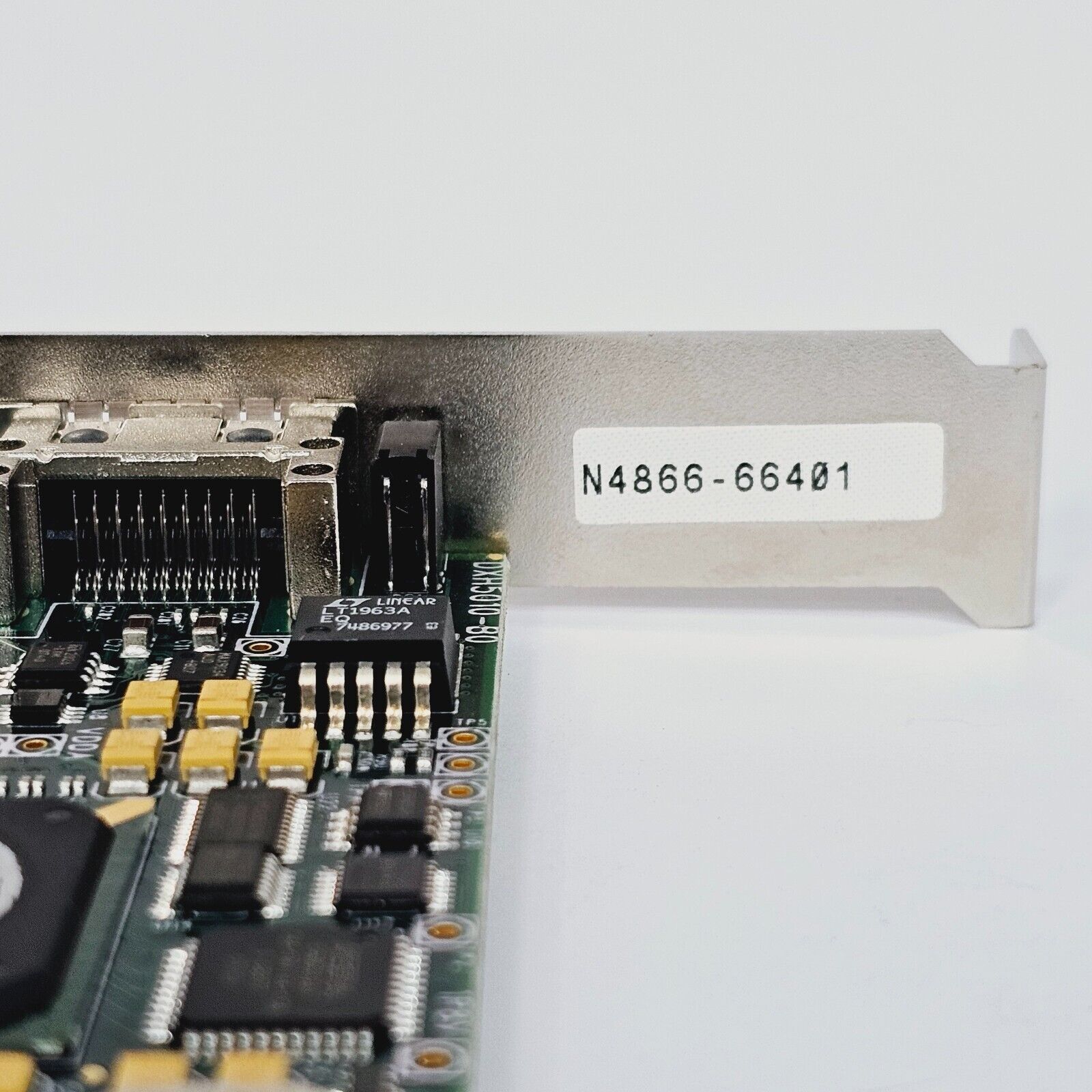

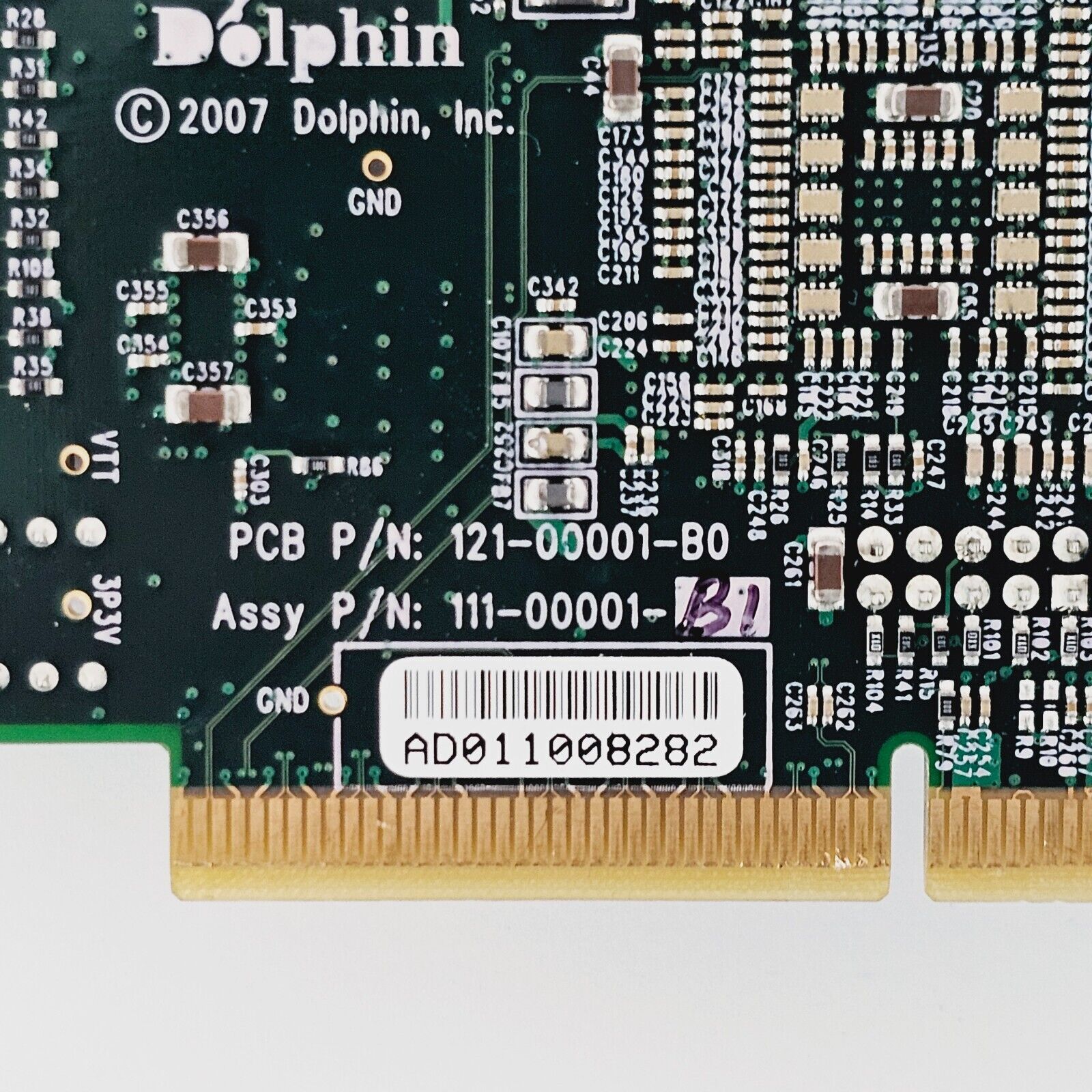

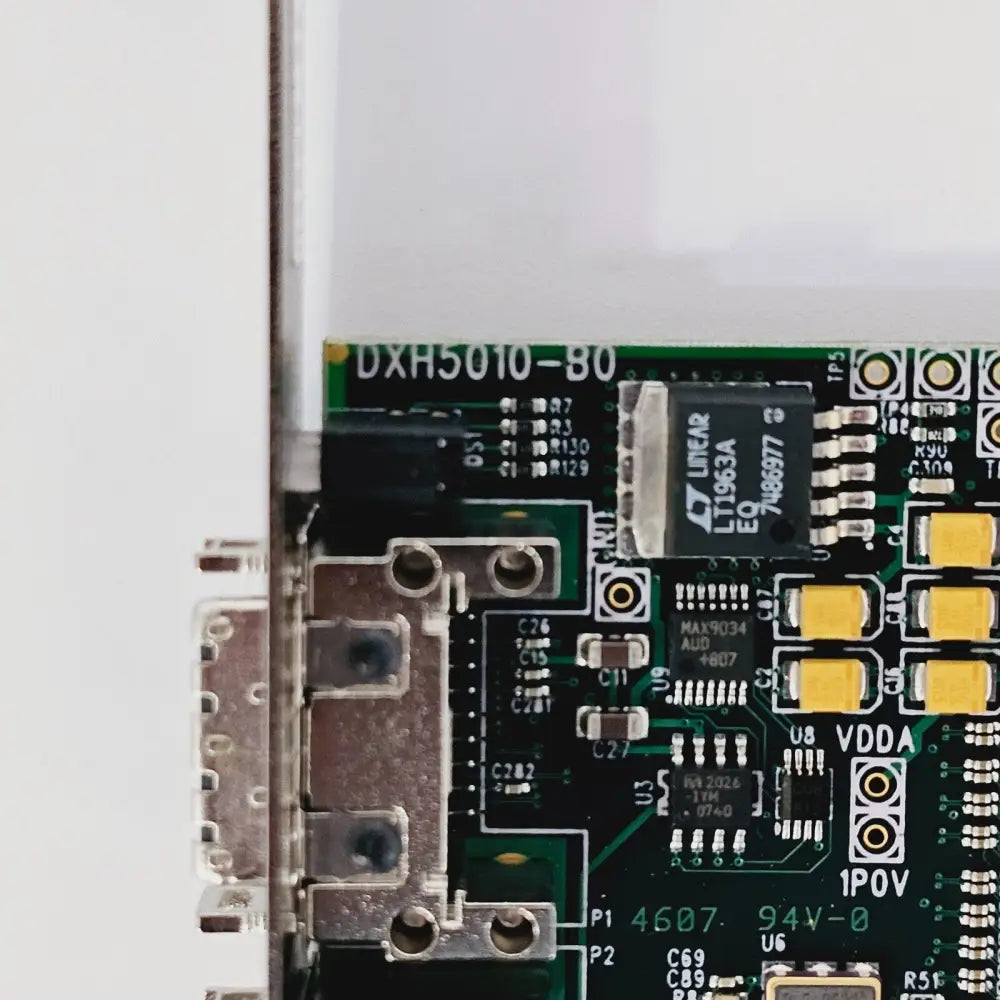

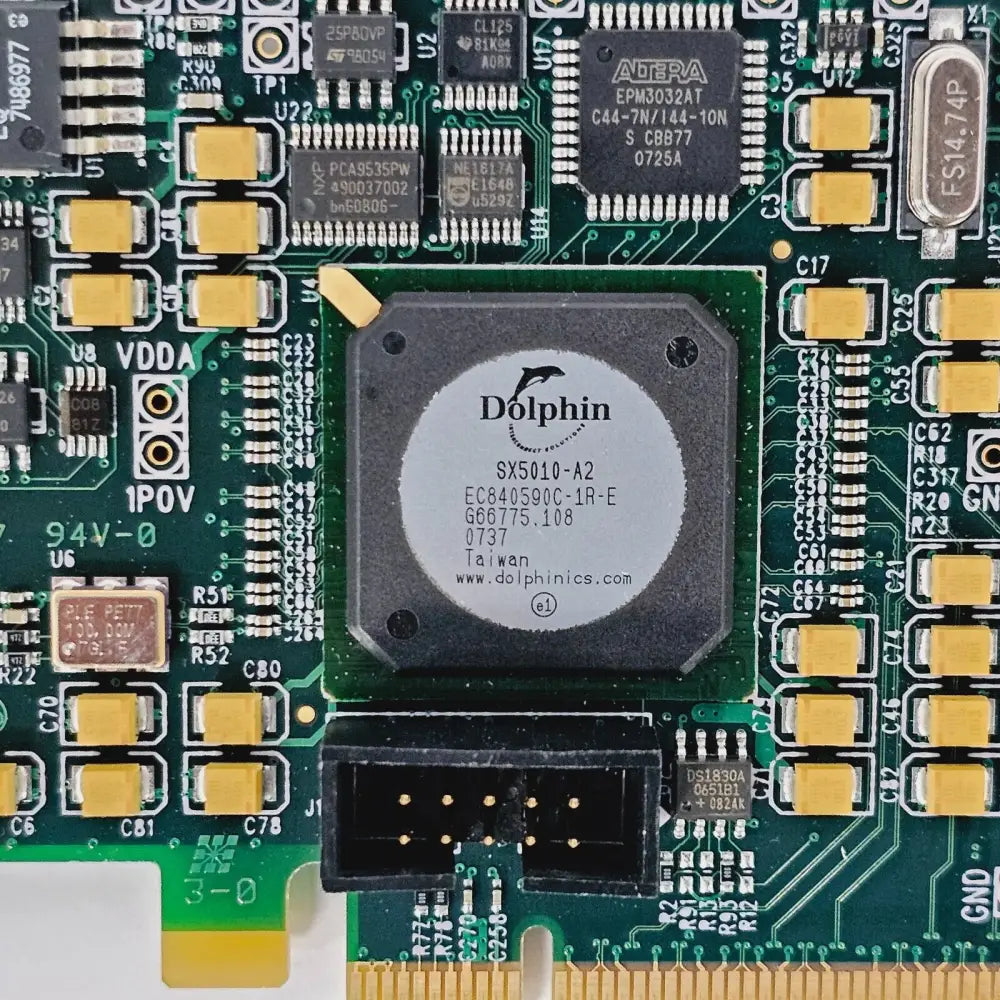

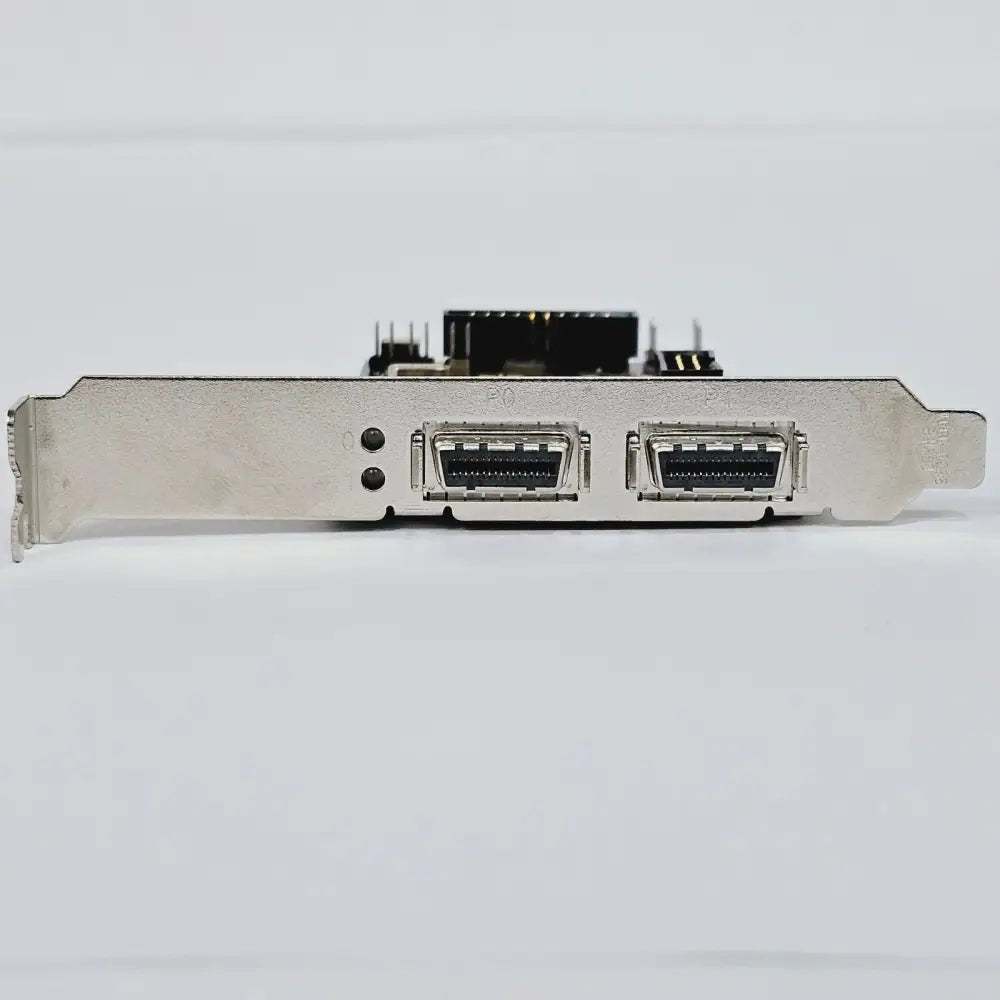

• One PCIe PC host card

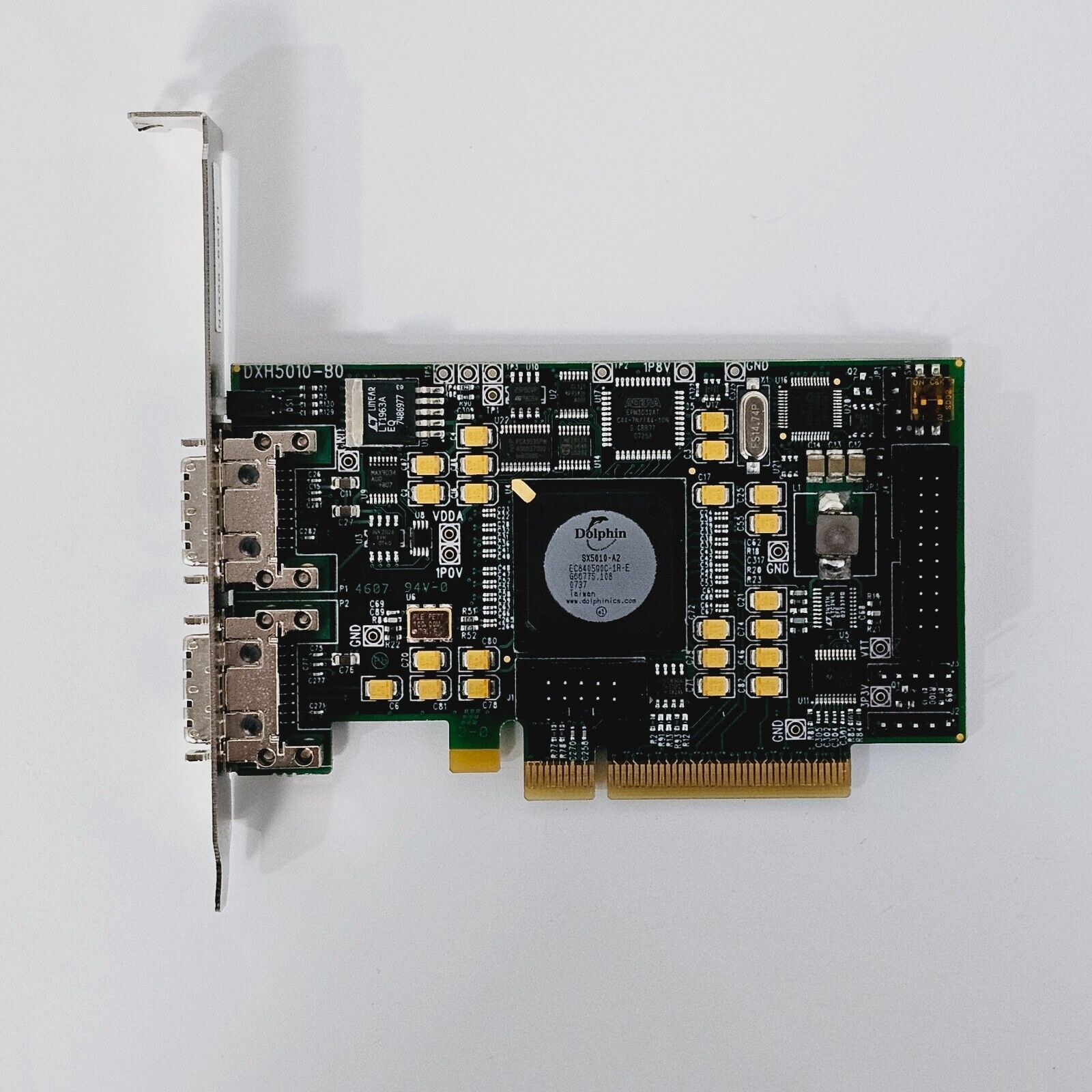

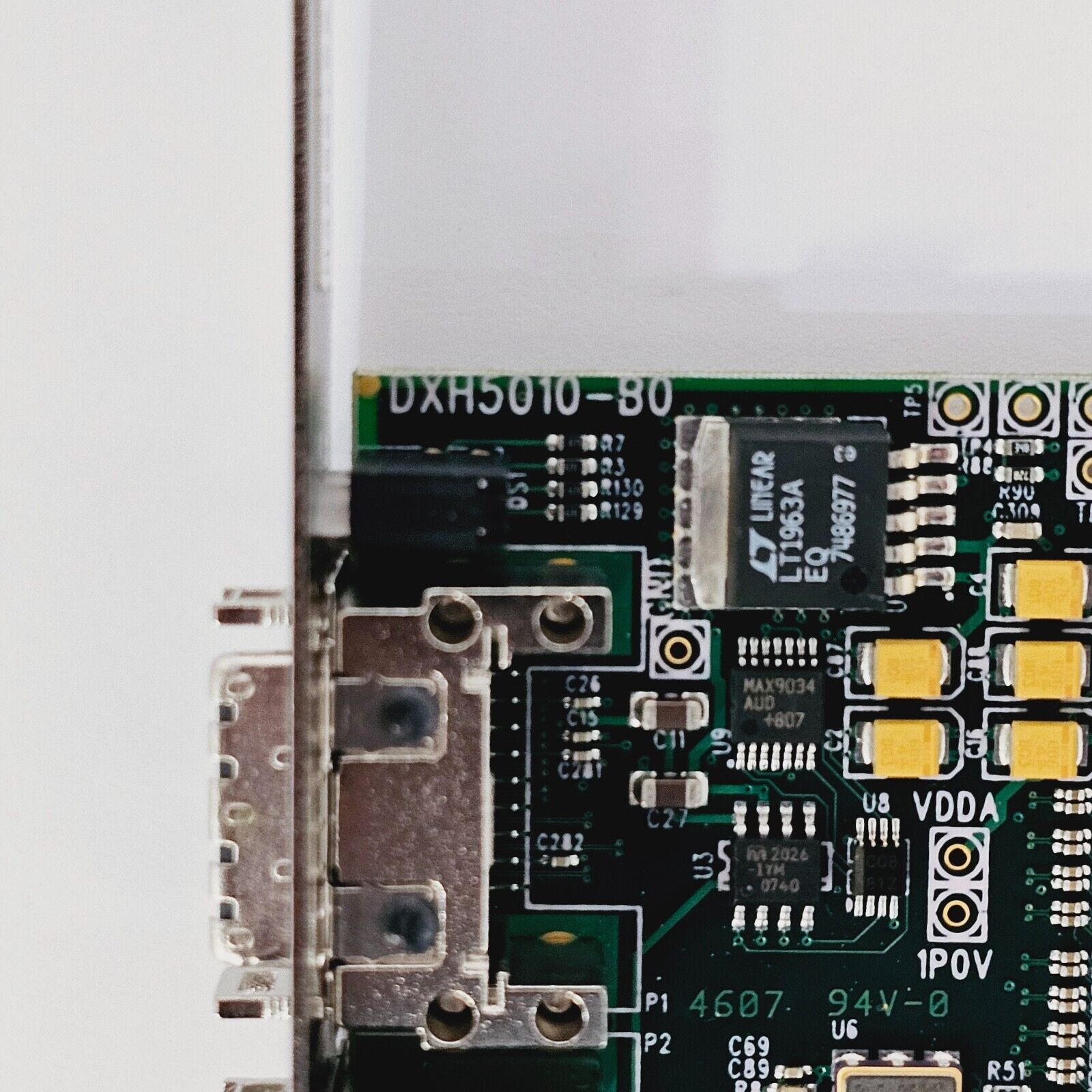

• One oscilloscope host card

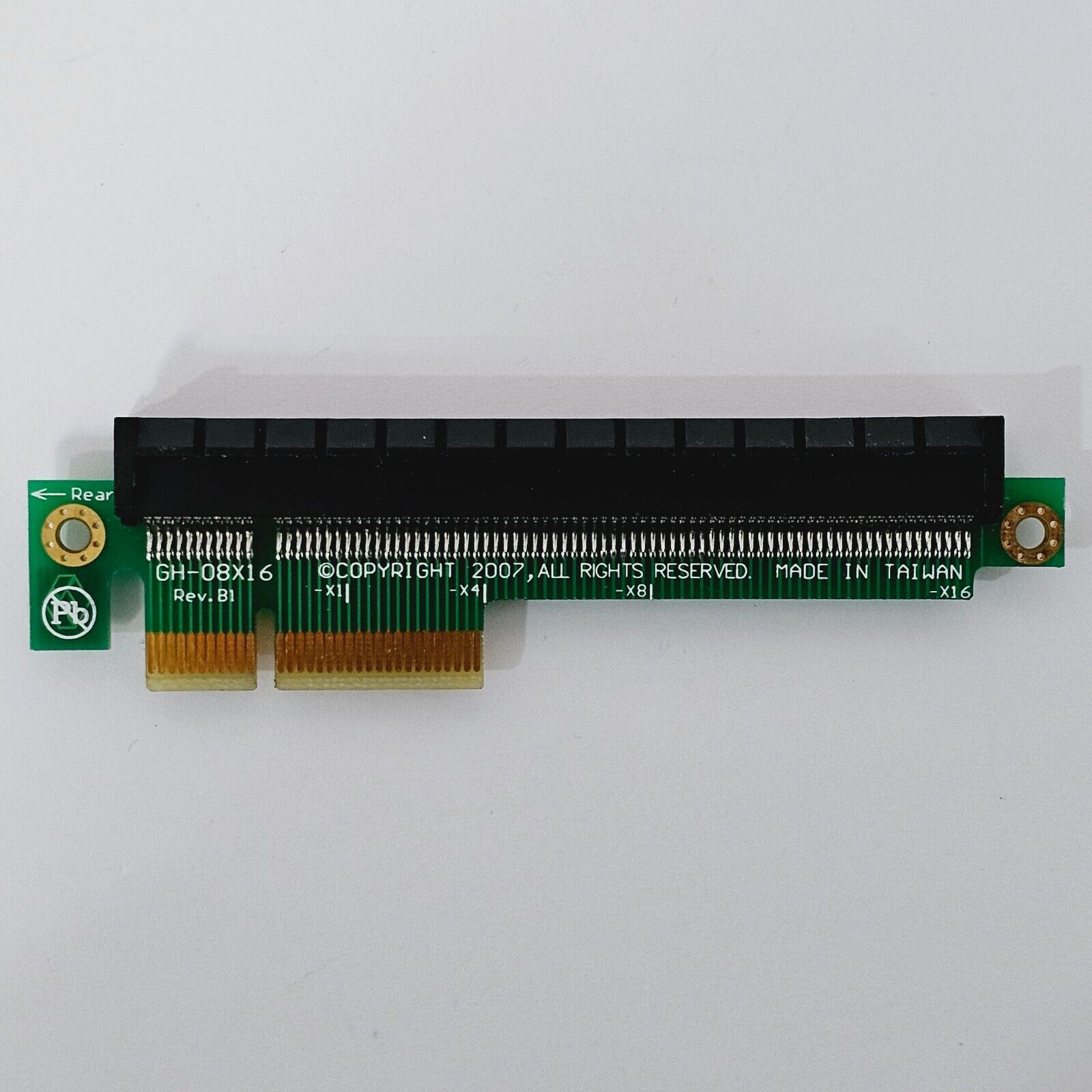

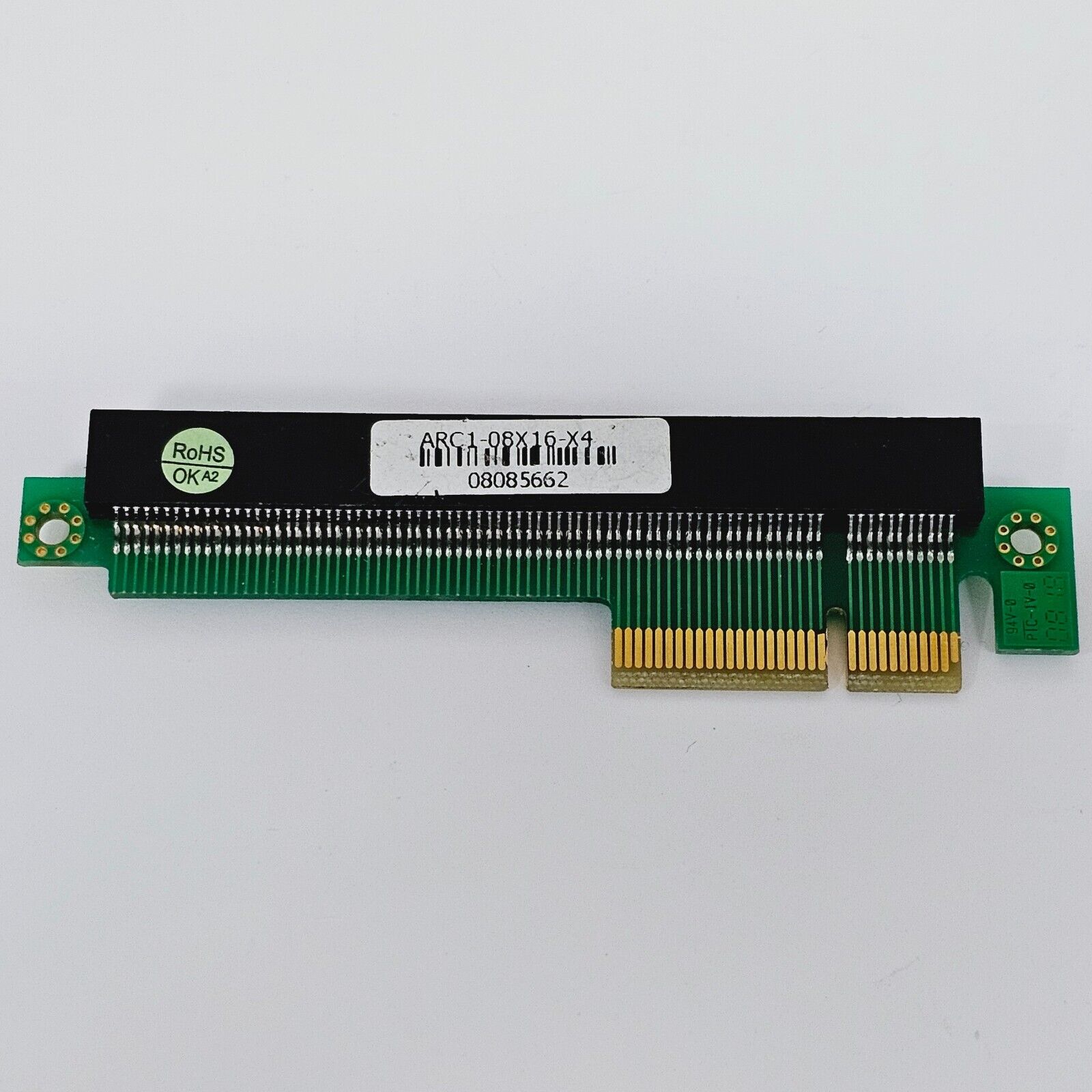

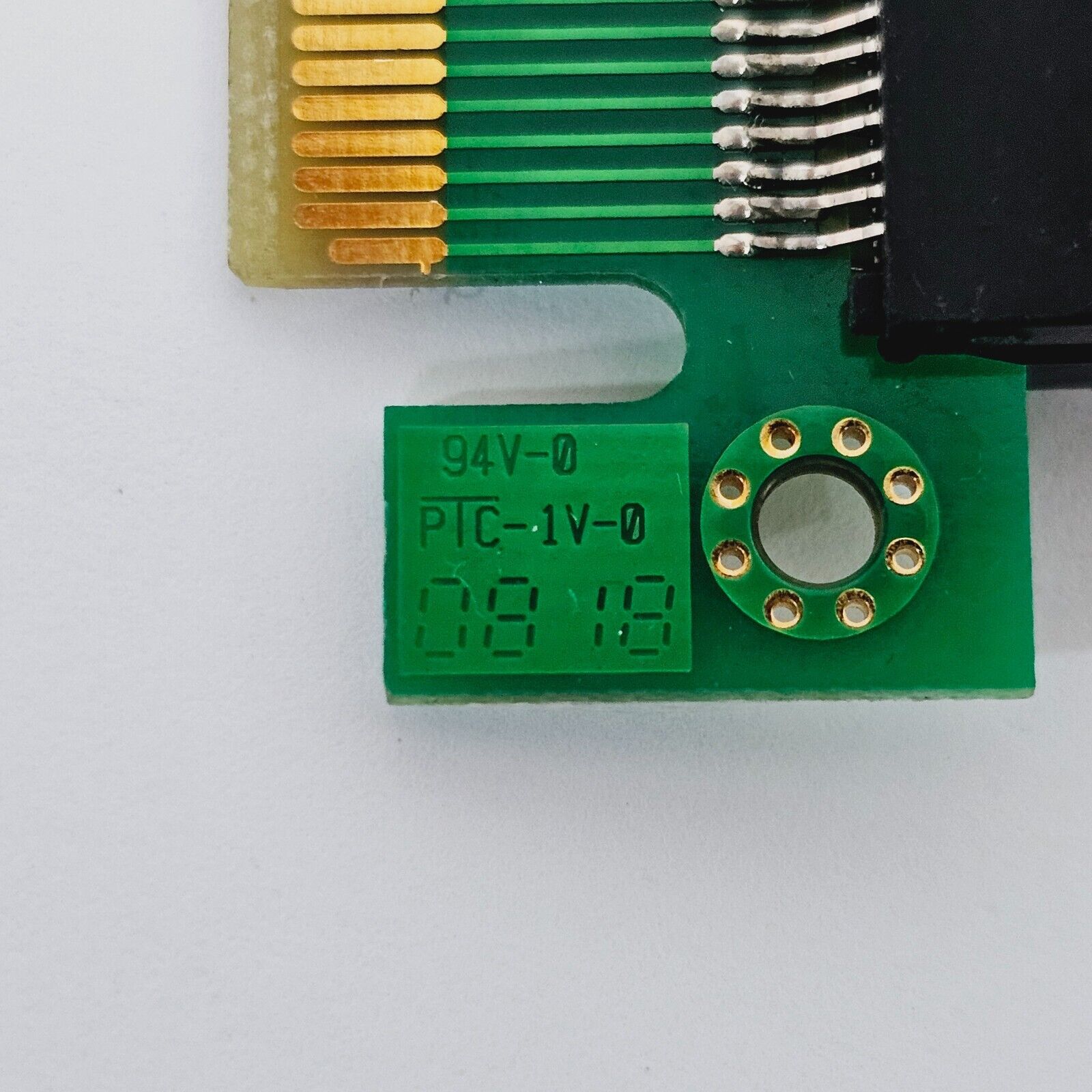

• One riser card

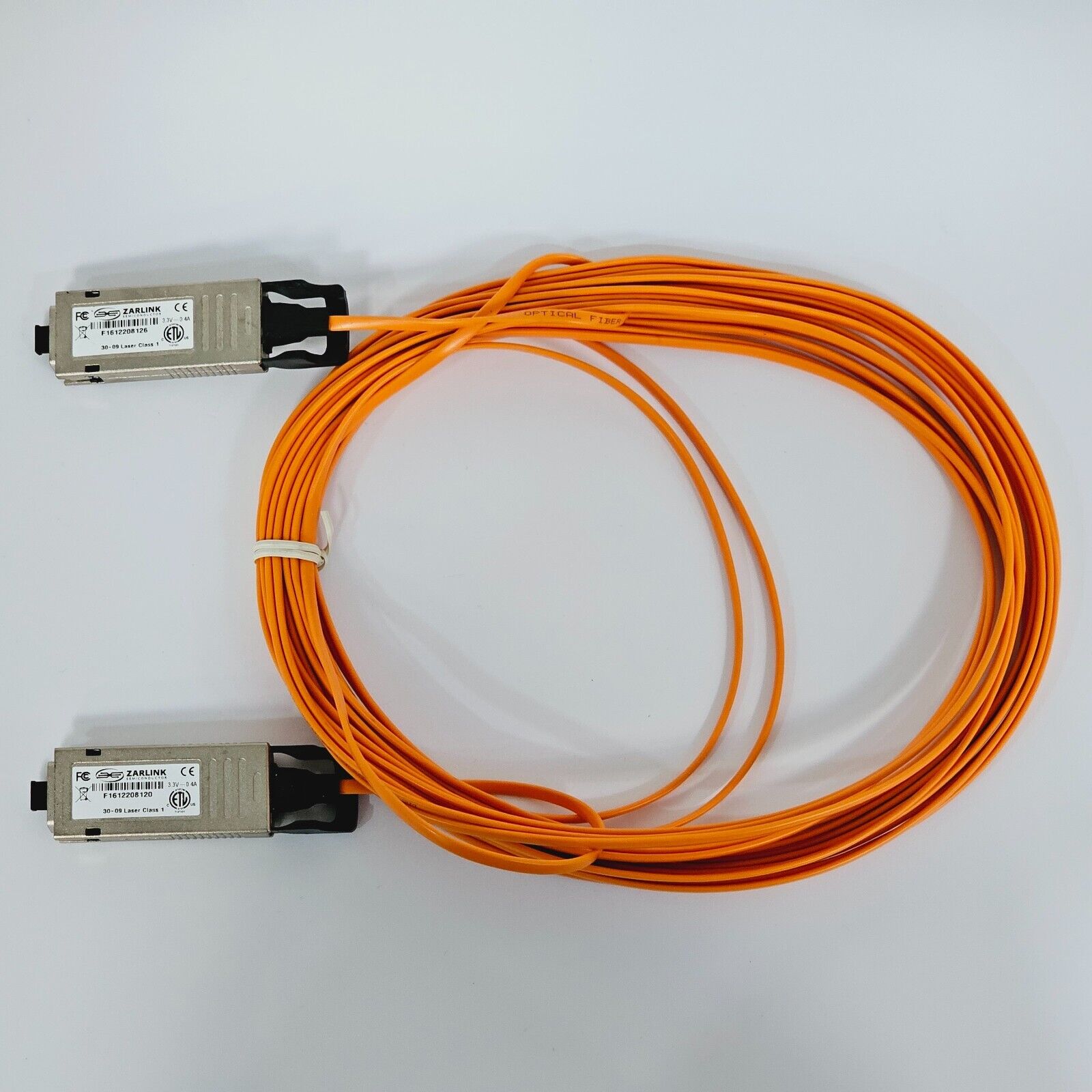

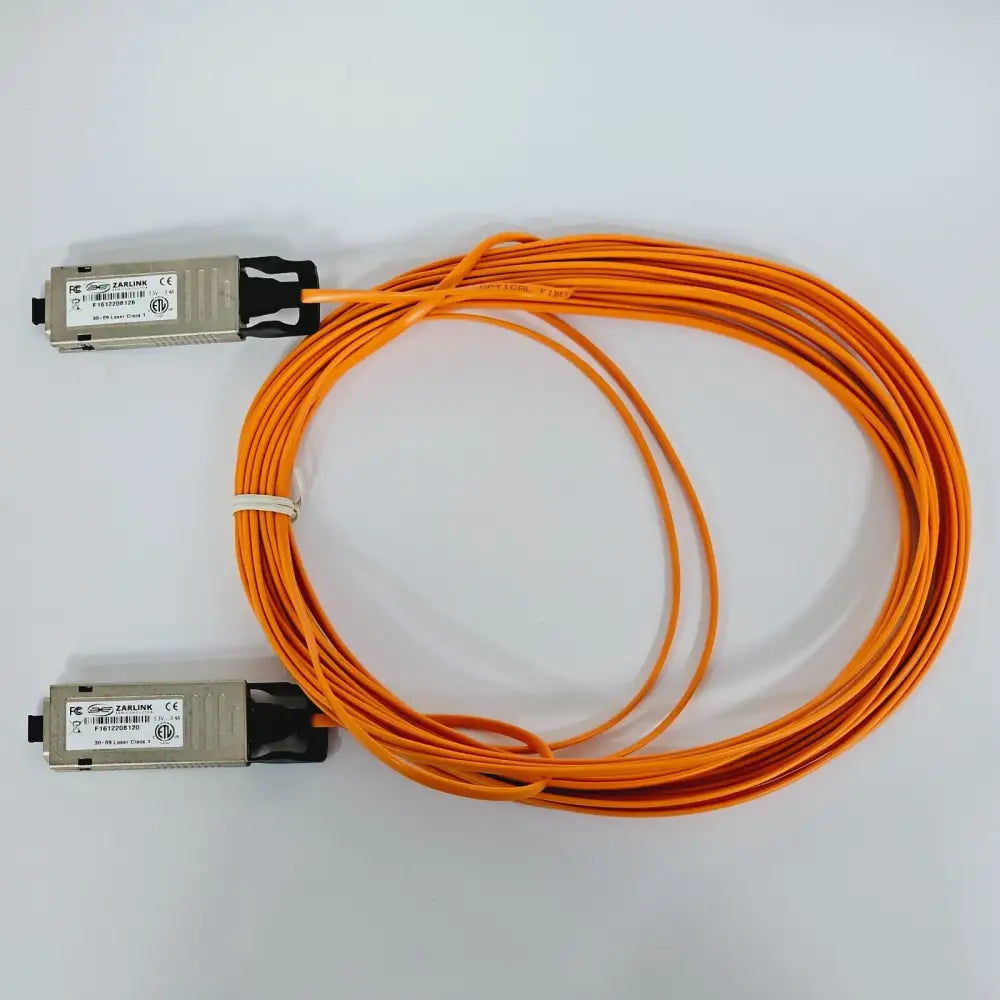

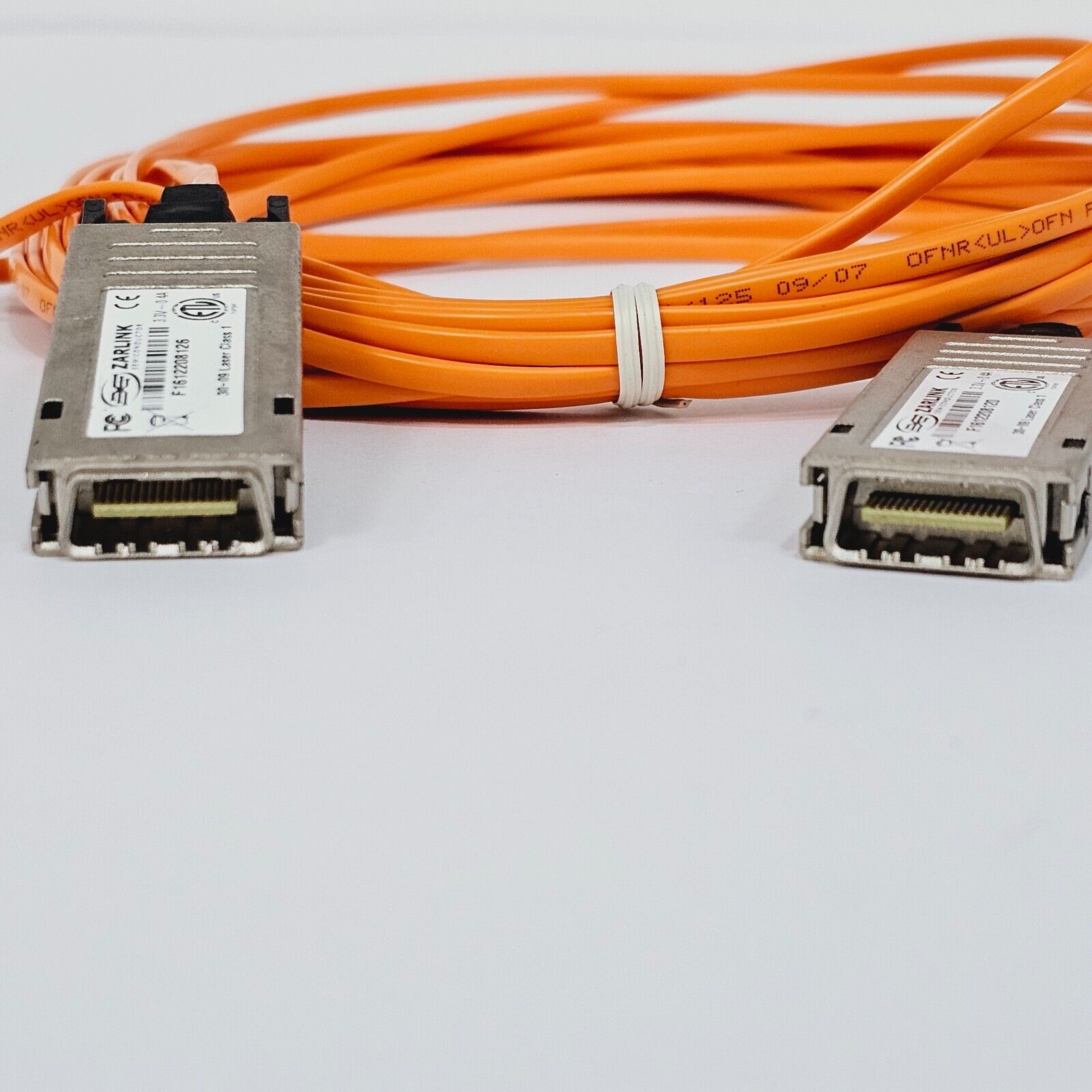

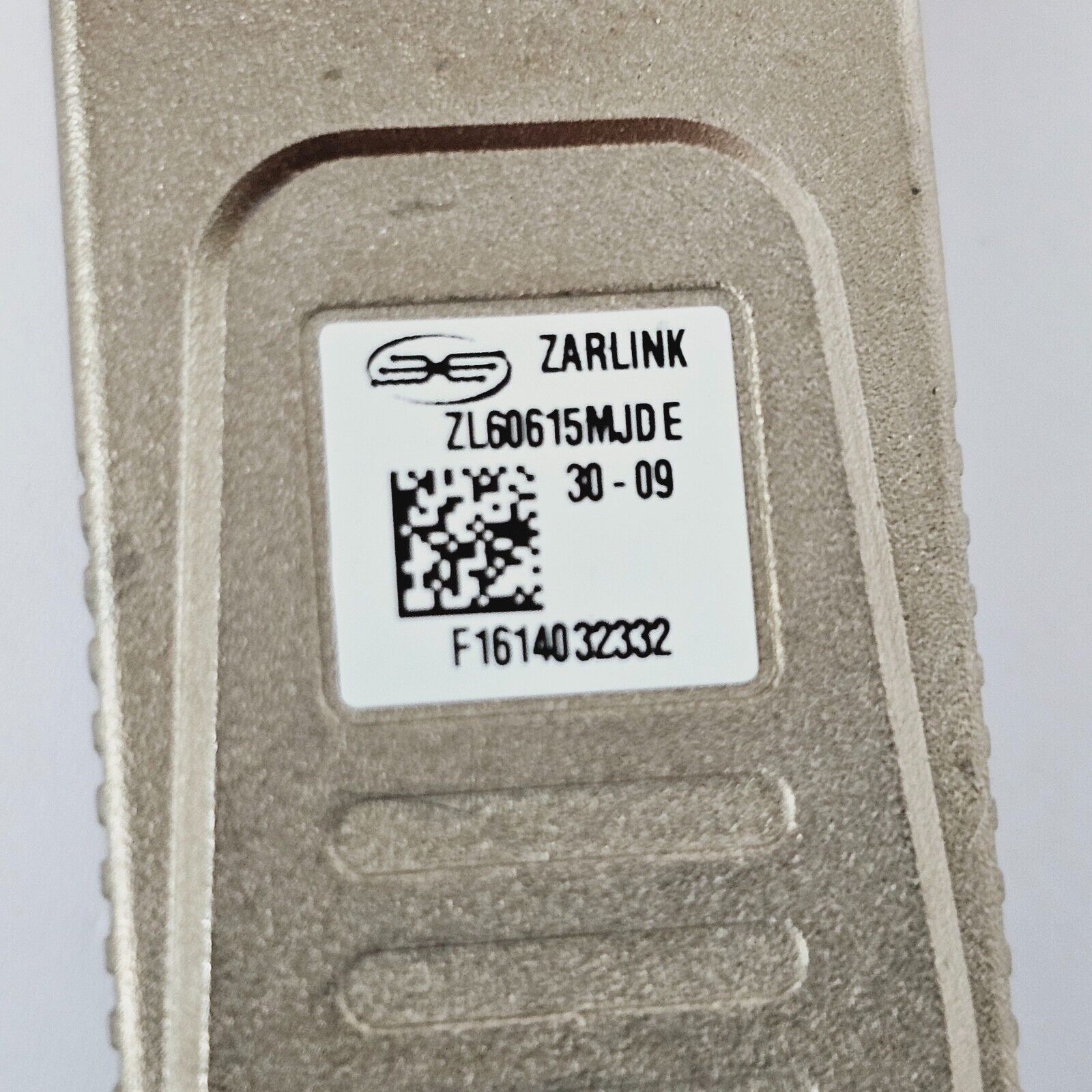

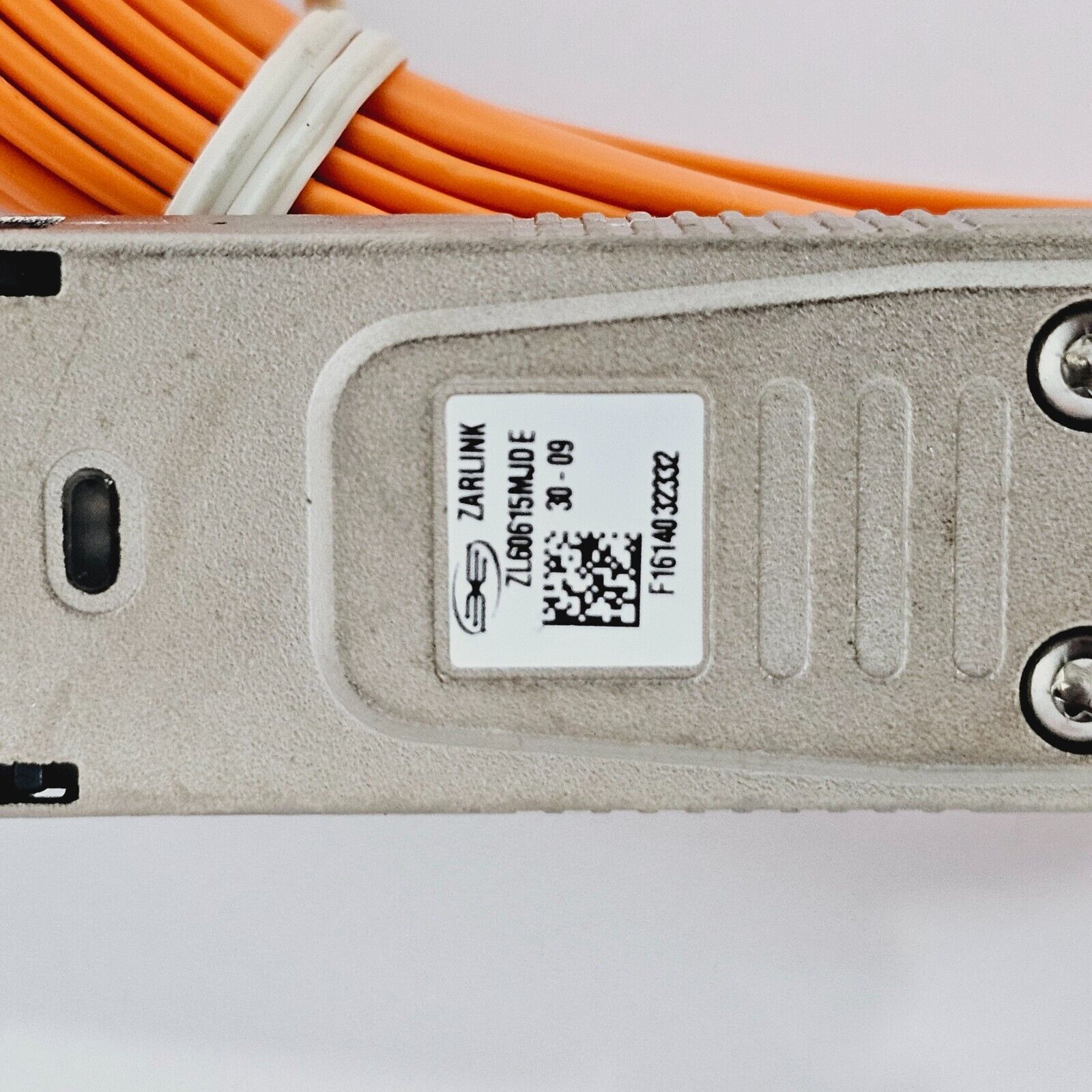

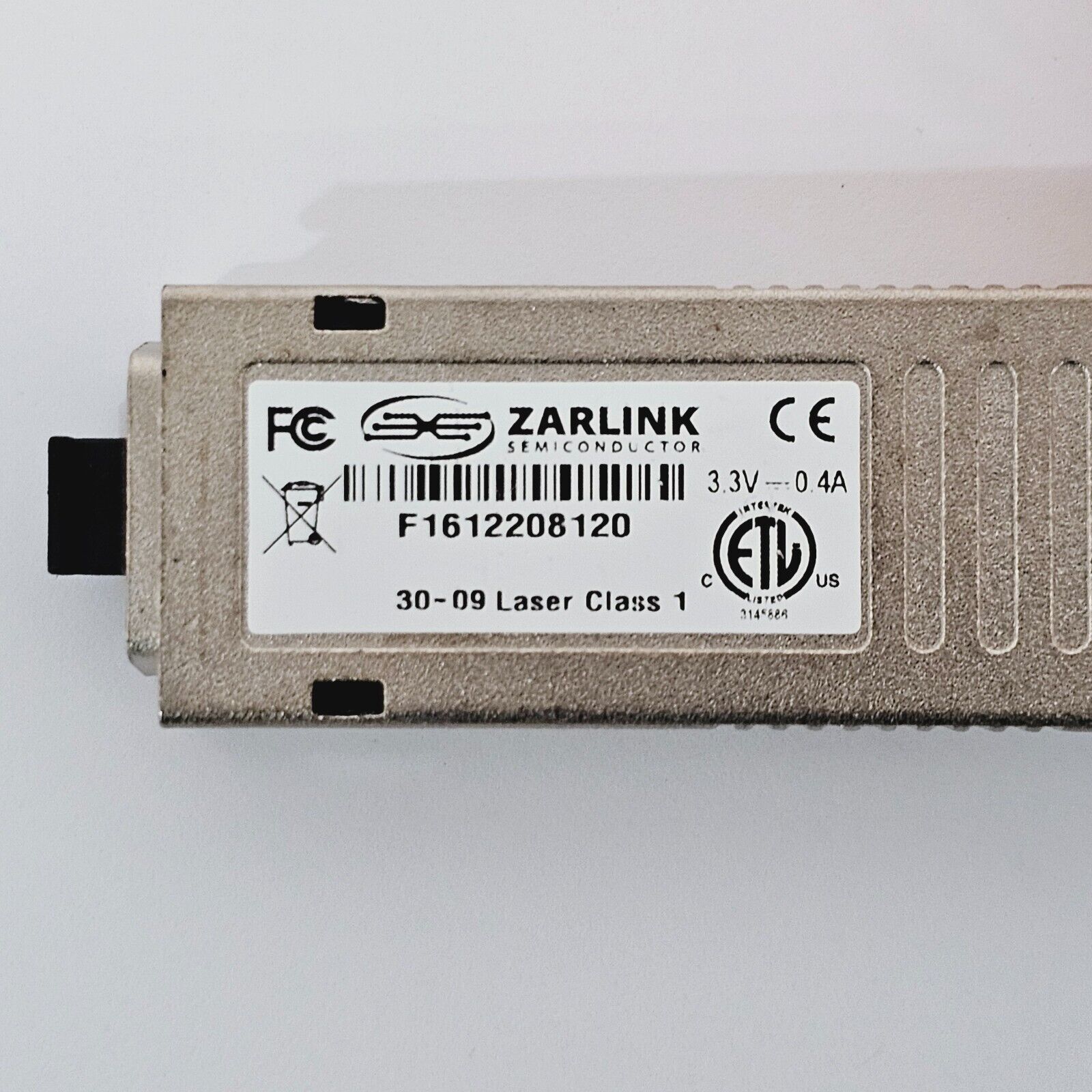

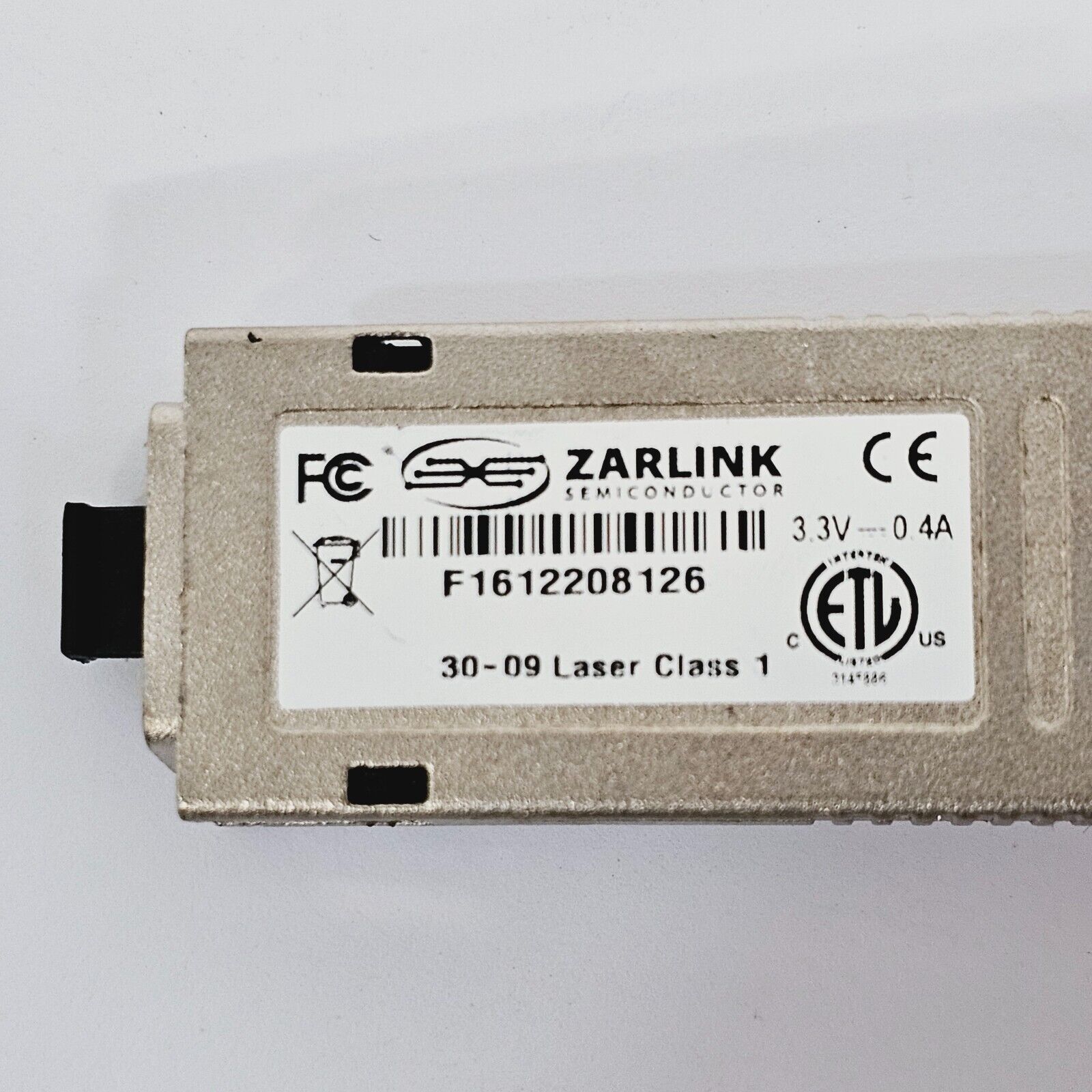

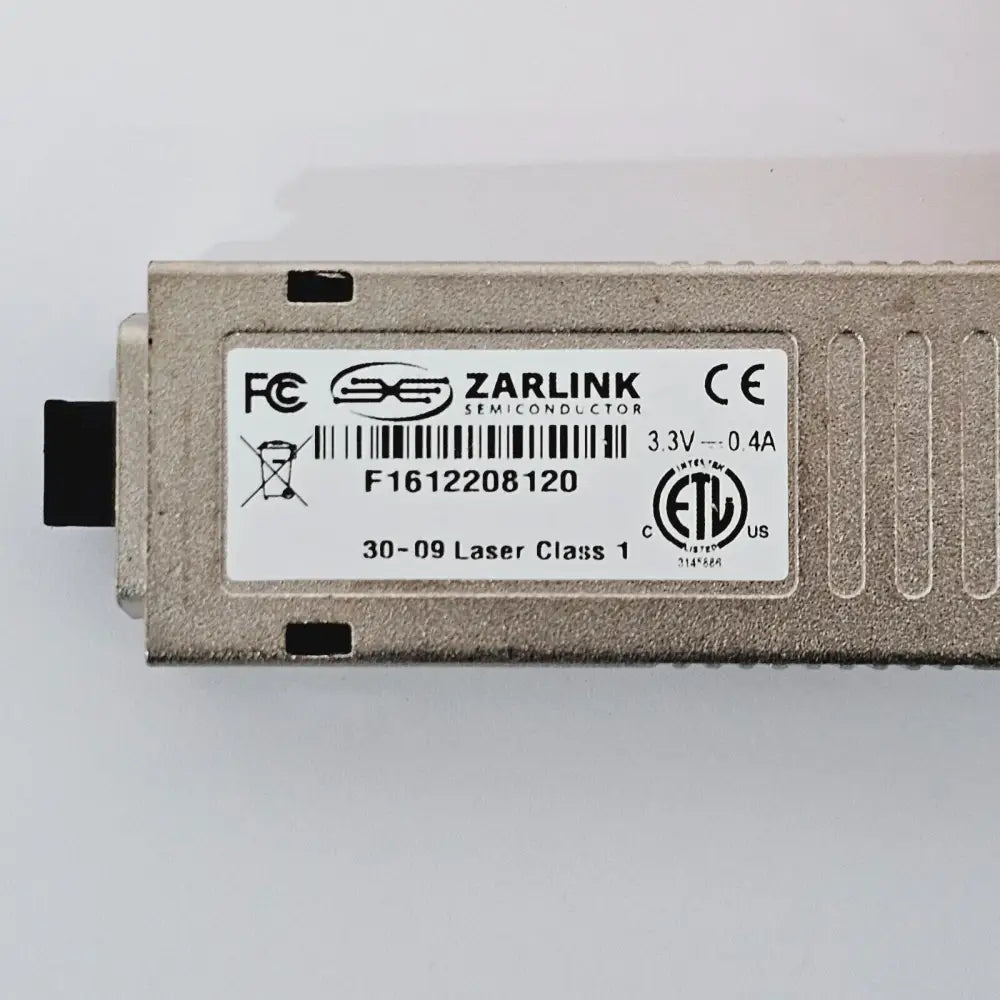

• Fiber optic cabling (up to 10 metres)

Product Overview

Condition: Used

Included items (as described):
• One PCIe PC host card
• One oscilloscope host card
• One riser card
• Fiber optic cabling (up to 10 metres)

Manufacturer's Description

The Keysight N4866A PCI Express High Speed Interconnect is an accessory designed for use with the Keysight (Agilent) DSO/DSA 90000 Series Infiniium oscilloscopes. The 90000 Series offers the longest high-bandwidth time capture of any oscilloscope on the market, and when combined with the N4866A PCIe interconnect, engineers benefit from waveform capture and analysis speeds up to 4x faster than previously available methods.

The N4866A replaces slower LAN or GPIB connections with a dedicated PCIe fiber optic link, dramatically reducing data transfer latency and increasing throughput for deep-memory waveform offload to a connected PC.

Key Specifications:
Transfer Rate: Up to 96 MB/sec
Latency: As low as 1.4 microseconds
Cabling: Fiber optic, up to 10 metres
Included Cards: One PCIe PC host card, one oscilloscope (scope) host card, one riser card
Compatibility: Keysight DSO/DSA 90000 Series oscilloscopes purchased after December 2009
Minimum Software Revision: Operating software revision 1.1 or higher
Installation: If ordered separately after oscilloscope purchase, must be returned to a Keysight service centre for installation

This interconnect is particularly valuable for engineers working with deep-memory, high-bandwidth captures who need to rapidly transfer large waveform datasets from the oscilloscope to a PC for post-processing and analysis. It is now listed as an obsolete/discontinued product by Keysight Technologies.

Resources

Keysight N4866A PCI Express High Speed Interconnect User's Guide (official Keysight PDF): Download PDF

Keysight N4866A PCI Express High Speed Interconnect Datasheet for Infiniium 90000 Series Oscilloscopes (PDF): Download PDF
