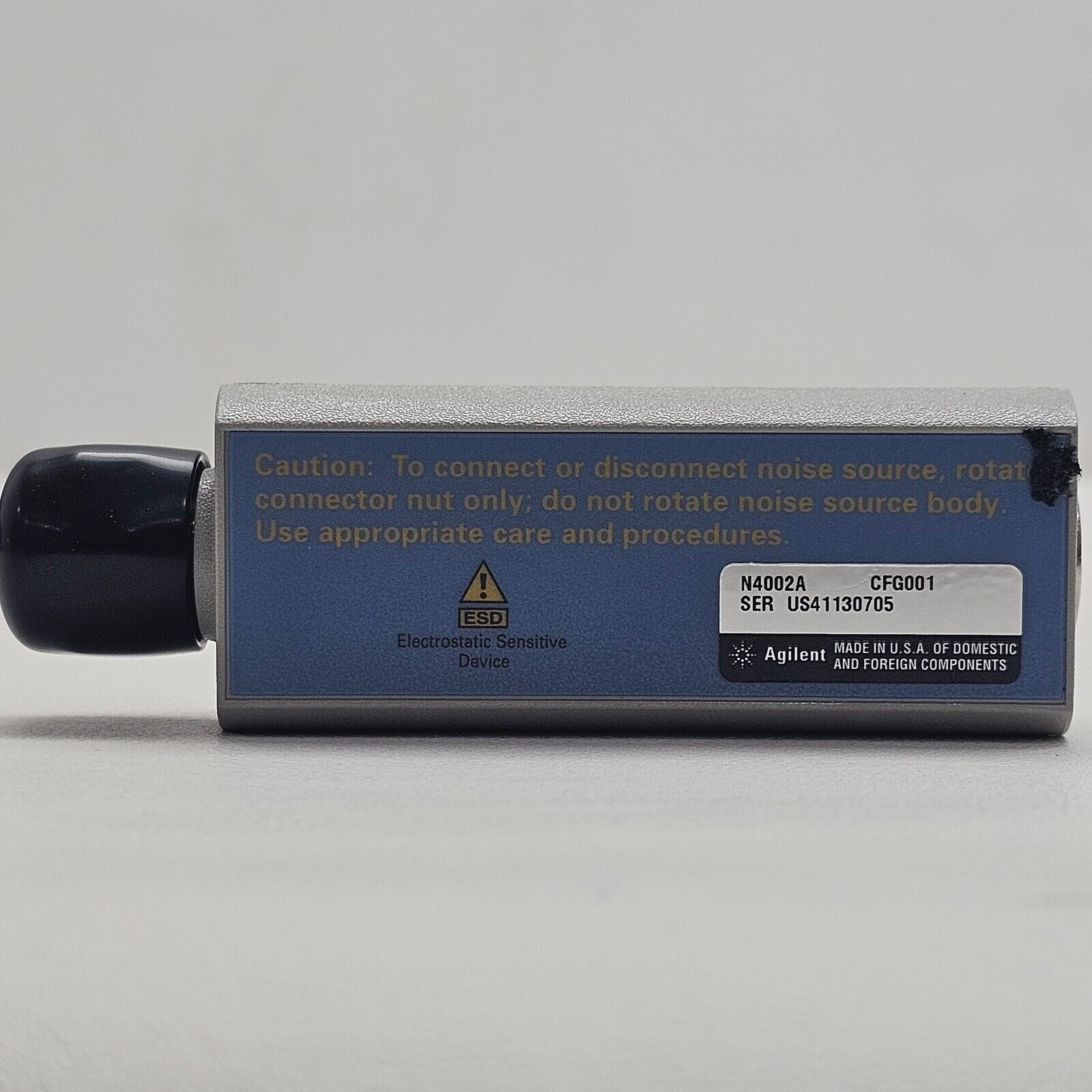

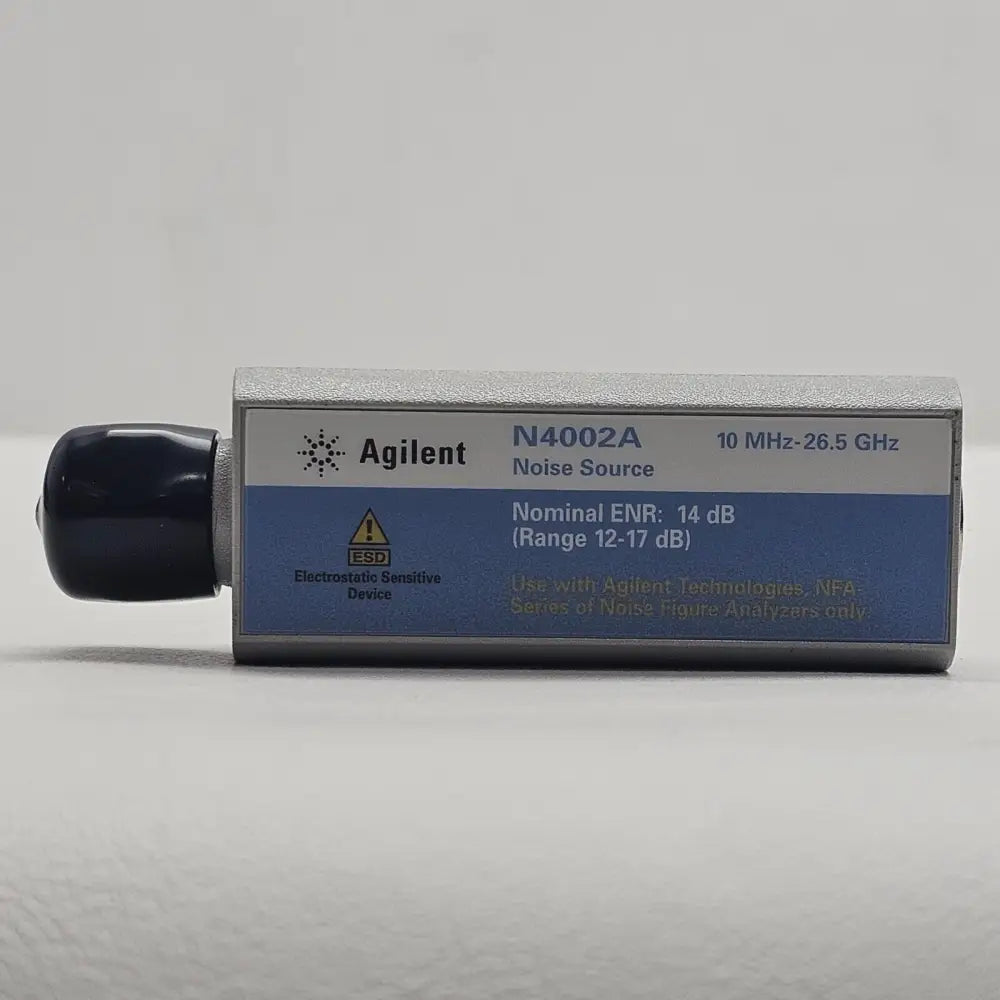

Keysight Agilent N4002A Noise Source 10 MHz - 26.5 GHz
Model: N4002A
Condition: Used
In stock: 0
SKU: 3157 7A02
- Detectors
- Meters & Counters
- RF & Microwave
Choose options
Condition: Used
The Keysight Agilent N4002A SNS Series Smart Noise Source covers 10 MHz to 26.5 GHz and is supplied in excellent working condition. It is suitable for general-purpose noise figure measurements of amplifiers, mixers, receivers, and other RF/microwave devices up to 30 dB noise figure.
Typically includes:
• Keysight N4002A SNS Series Noise Source unit
The Keysight (formerly Agilent) N4002A is part of the SNS (Smart Noise Source) Series, designed to simplify and improve noise figure measurement accuracy across a broad microwave frequency range. It is intended for general-purpose measurements from 10 MHz to 26.5 GHz and supports devices with noise figures up to 30 dB.
The SNS series works in conjunction with Keysight NFA Series noise figure analysers, X-Series signal analysers, and ESA/E-Series spectrum analysers. ENR calibration data, ENR uncertainty, and reflection coefficients at each frequency point are stored in internal EEPROM and automatically downloaded to compatible analysers, reducing setup time and the risk of user error. An integrated digital temperature sensor enables automatic temperature compensation, improving measurement accuracy across the full operating range.
Key Specifications:
Frequency Range: 10 MHz to 26.5 GHz
Nominal ENR: 15 dB
ENR Range (10 MHz to 12 GHz): 12–16 dB
ENR Range (12 GHz to 26.5 GHz): 14–17 dB
ENR Stability: ±0.25 dB (0 to 50 °C)
Maximum Measurable DUT Noise Figure: 30 dB
VSWR: < 1.6
ENR Variation with Temperature: < 0.01 dB/°C (30 MHz to 26.5 GHz)
Temperature Sensing Resolution: 0.25 °C
Temperature Sensing Accuracy: ±1 °C at 25 °C; ±2 °C over 0–55 °C

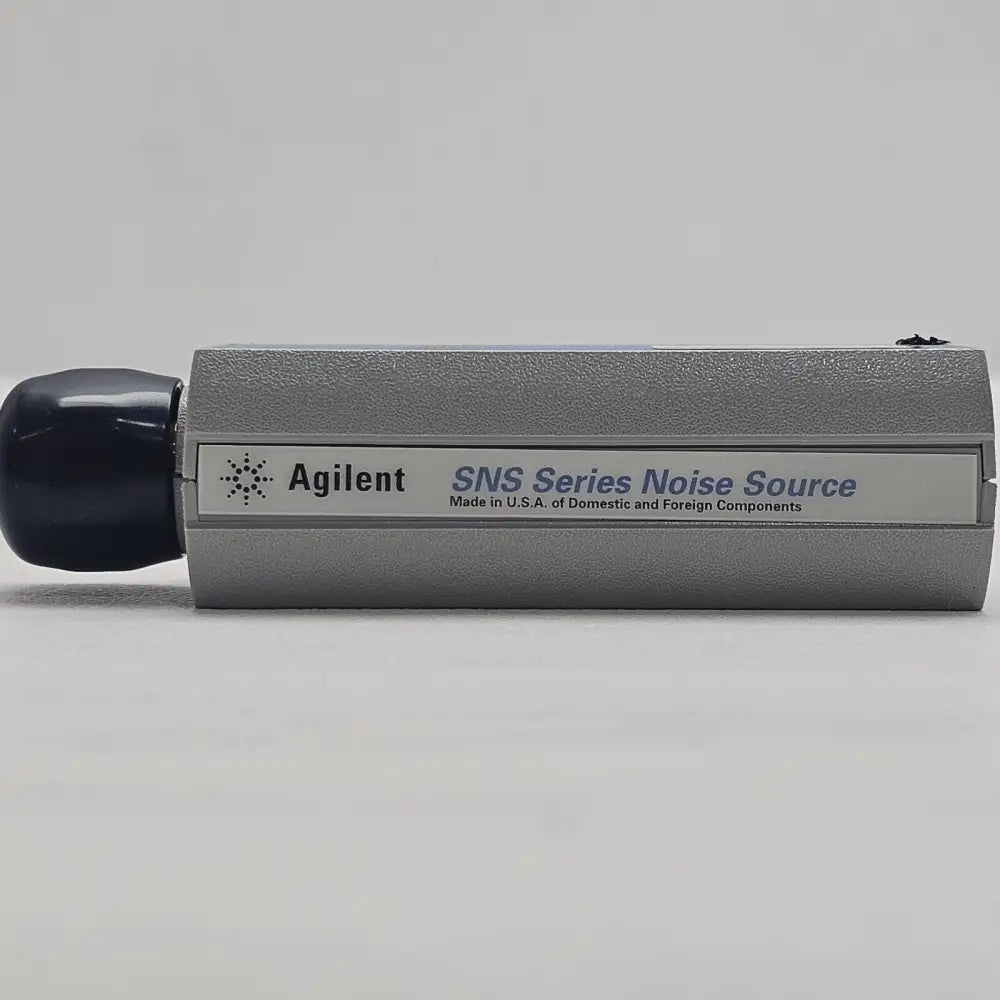

Output Connector: APC 3.5 mm (male) — standard
Calibration Data Storage: Internal EEPROM (model, serial number, ENR data)
Operating Temperature: 0 °C to 55 °C
Dimensions: 182 mm x 107 mm x 51 mm
Weight: 0.9 kg
Typical Applications:
- Noise figure measurement of amplifiers, mixers, transistors, and receivers
- RF and microwave component characterisation
- Telecommunications, aerospace, and research laboratory testing
- Use with Keysight NFA Series and X-Series signal analysers
Keysight N4000A, N4001A, N4002A SNS Series Noise Sources Technical Overview (PDF): Download PDF
Keysight N4000A, N4001A & N4002A SNS Series Smart Noise Sources Operating and Service Manual (PDF): Download PDF
Agilent N4000A, N4001A, N4002A SNS Series Noise Sources Technical Overview — Axiom Test (PDF): Download PDF
Product Overview
Condition: Used
The Keysight Agilent N4002A SNS Series Smart Noise Source covers 10 MHz to 26.5 GHz and is supplied in excellent working condition. It is suitable for general-purpose noise figure measurements of amplifiers, mixers, receivers, and other RF/microwave devices up to 30 dB noise figure.
Typically includes:
• Keysight N4002A SNS Series Noise Source unit
Manufacturer's Description
The Keysight (formerly Agilent) N4002A is part of the SNS (Smart Noise Source) Series, designed to simplify and improve noise figure measurement accuracy across a broad microwave frequency range. It is intended for general-purpose measurements from 10 MHz to 26.5 GHz and supports devices with noise figures up to 30 dB.
The SNS series works in conjunction with Keysight NFA Series noise figure analysers, X-Series signal analysers, and ESA/E-Series spectrum analysers. ENR calibration data, ENR uncertainty, and reflection coefficients at each frequency point are stored in internal EEPROM and automatically downloaded to compatible analysers, reducing setup time and the risk of user error. An integrated digital temperature sensor enables automatic temperature compensation, improving measurement accuracy across the full operating range.
Key Specifications:
Frequency Range: 10 MHz to 26.5 GHz
Nominal ENR: 15 dB
ENR Range (10 MHz to 12 GHz): 12–16 dB
ENR Range (12 GHz to 26.5 GHz): 14–17 dB
ENR Stability: ±0.25 dB (0 to 50 °C)
Maximum Measurable DUT Noise Figure: 30 dB
VSWR: < 1.6
ENR Variation with Temperature: < 0.01 dB/°C (30 MHz to 26.5 GHz)
Temperature Sensing Resolution: 0.25 °C
Temperature Sensing Accuracy: ±1 °C at 25 °C; ±2 °C over 0–55 °C
Output Connector: APC 3.5 mm (male) — standard
Calibration Data Storage: Internal EEPROM (model, serial number, ENR data)
Operating Temperature: 0 °C to 55 °C
Dimensions: 182 mm x 107 mm x 51 mm
Weight: 0.9 kg
Typical Applications:
- Noise figure measurement of amplifiers, mixers, transistors, and receivers
- RF and microwave component characterisation
- Telecommunications, aerospace, and research laboratory testing
- Use with Keysight NFA Series and X-Series signal analysers
Resources
Keysight N4000A, N4001A, N4002A SNS Series Noise Sources Technical Overview (PDF): Download PDF
Keysight N4000A, N4001A & N4002A SNS Series Smart Noise Sources Operating and Service Manual (PDF): Download PDF
Agilent N4000A, N4001A, N4002A SNS Series Noise Sources Technical Overview — Axiom Test (PDF): Download PDF
