Keysight Agilent N2756A 16-Channel MSO Cable Kit
Model: N2756A
Condition: New other (see details)
In stock: 0
SKU: 5495 7G05
- Electronic T&M
- Oscilloscopes & Accessories
Choose options
Condition: New other (see details)
The Keysight N2756A is a 16-channel MSO logic cable kit for InfiniiVision Series oscilloscopes. Supplied as a complete accessory kit, it provides all the connectivity needed to add or replace digital probing capability on a compatible MSO.

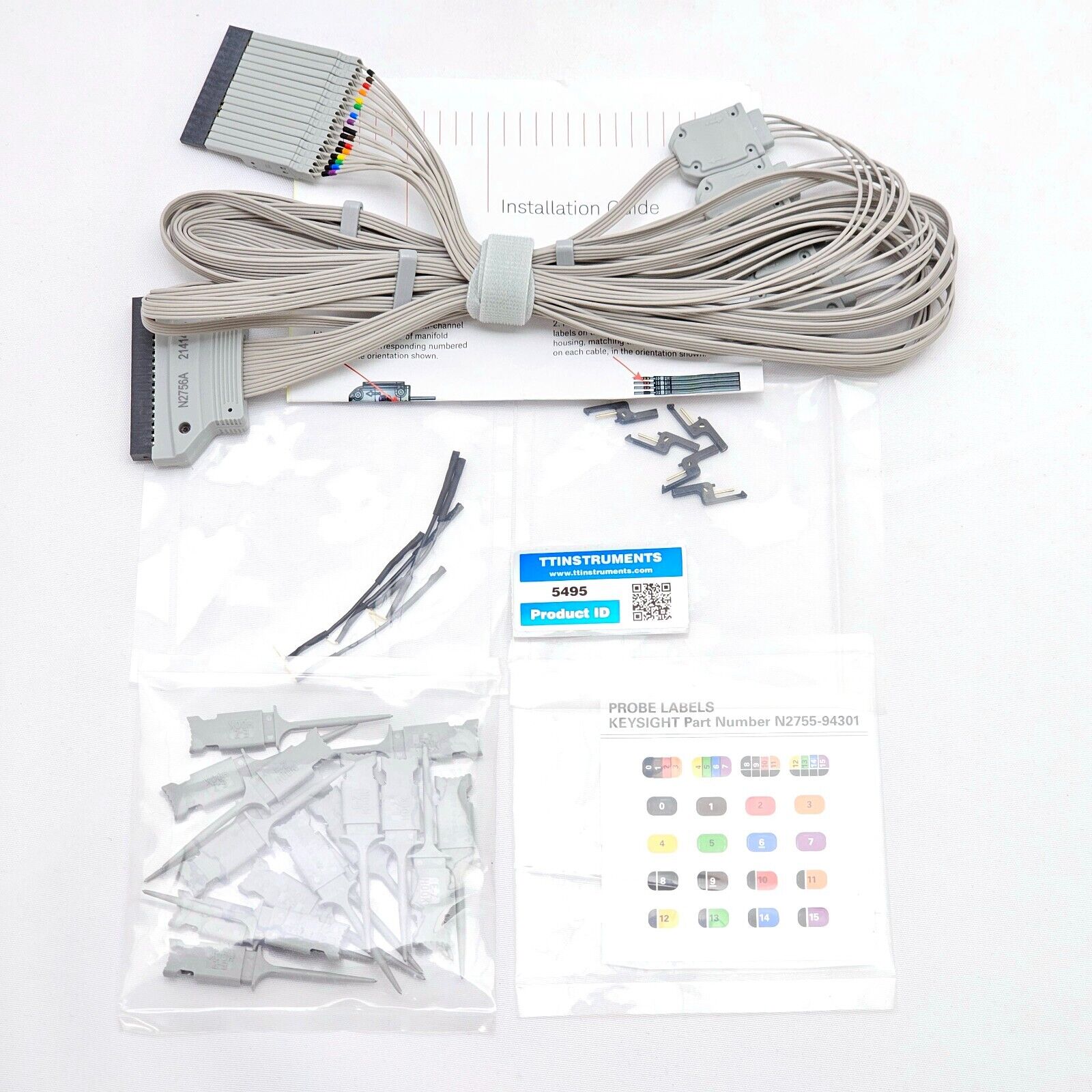

What is typically included:
• 1 x Flying lead cable
• 5 x Right-angle grounds
• 5 x Ground extenders
• 18 x Grabbers
The Keysight (formerly Agilent) N2756A is a 16-channel MSO (Mixed Signal Oscilloscope) logic cable kit designed for use with the InfiniiVision Series of oscilloscopes. It serves as both a standard-fit accessory on MSO models and as a standalone replacement cable for existing users.
The kit is divided into 4 sets of 4 channels, allowing engineers to conveniently probe signal pins that are physically far apart on a device under test. Flying leads offer flexibility and convenience for a wide range of connection scenarios, while direct compatibility with 0.1-inch header connectors makes interfacing with common digital boards straightforward.
The N2756A delivers great signal fidelity through low probe loading, making it suitable for digital logic analysis across embedded systems, microcontroller debugging, and mixed-signal circuit development.
Key Features:
Channels: 16 digital channels
Channel Grouping: 4 groups of 4 channels
Input Impedance: 100 kΩ
Connector Type: Direct connection to 0.1 inch (2.54 mm) header connectors
Compatible Oscilloscope Families: InfiniiVision 1000 X-, 2000 X-, 3000 X-, 3000A X-, 3000T X-, 4000 X-, 5000, 6000, 6000 X-, and 7000 Series MSOs; Infiniium EXR-Series (with EXR2MSO upgrade)
Included Accessories: 1 x flying lead cable, 5 x right-angle grounds, 5 x ground extenders, 18 x grabbers
Primary Use Cases: Digital logic analysis, embedded system debugging, mixed-signal measurement, protocol triggering and decode (I²C, SPI, RS-232, JTAG, and more)
Note: To enable MSO functionality on DSO (digital storage oscilloscope) models, a separate MSO upgrade licence product is required in addition to this cable kit. Please refer to the Keysight website for the full compatibility list and applicable upgrade part numbers.
Keysight InfiniiVision Oscilloscope Probes and Accessories Selection Guide (includes N2756A) — Mouser hosted PDF: Download PDF
Keysight InfiniiVision Oscilloscope Probes and Accessories Selection Guide — TestEquity hosted PDF: Download PDF
Product Overview
Condition: New other (see details)
The Keysight N2756A is a 16-channel MSO logic cable kit for InfiniiVision Series oscilloscopes. Supplied as a complete accessory kit, it provides all the connectivity needed to add or replace digital probing capability on a compatible MSO.
What is typically included:
• 1 x Flying lead cable
• 5 x Right-angle grounds
• 5 x Ground extenders
• 18 x Grabbers
Manufacturer's Description
The Keysight (formerly Agilent) N2756A is a 16-channel MSO (Mixed Signal Oscilloscope) logic cable kit designed for use with the InfiniiVision Series of oscilloscopes. It serves as both a standard-fit accessory on MSO models and as a standalone replacement cable for existing users.
The kit is divided into 4 sets of 4 channels, allowing engineers to conveniently probe signal pins that are physically far apart on a device under test. Flying leads offer flexibility and convenience for a wide range of connection scenarios, while direct compatibility with 0.1-inch header connectors makes interfacing with common digital boards straightforward.
The N2756A delivers great signal fidelity through low probe loading, making it suitable for digital logic analysis across embedded systems, microcontroller debugging, and mixed-signal circuit development.
Key Features:
Channels: 16 digital channels
Channel Grouping: 4 groups of 4 channels
Input Impedance: 100 kΩ
Connector Type: Direct connection to 0.1 inch (2.54 mm) header connectors
Compatible Oscilloscope Families: InfiniiVision 1000 X-, 2000 X-, 3000 X-, 3000A X-, 3000T X-, 4000 X-, 5000, 6000, 6000 X-, and 7000 Series MSOs; Infiniium EXR-Series (with EXR2MSO upgrade)
Included Accessories: 1 x flying lead cable, 5 x right-angle grounds, 5 x ground extenders, 18 x grabbers
Primary Use Cases: Digital logic analysis, embedded system debugging, mixed-signal measurement, protocol triggering and decode (I²C, SPI, RS-232, JTAG, and more)
Note: To enable MSO functionality on DSO (digital storage oscilloscope) models, a separate MSO upgrade licence product is required in addition to this cable kit. Please refer to the Keysight website for the full compatibility list and applicable upgrade part numbers.
