Condition: Used

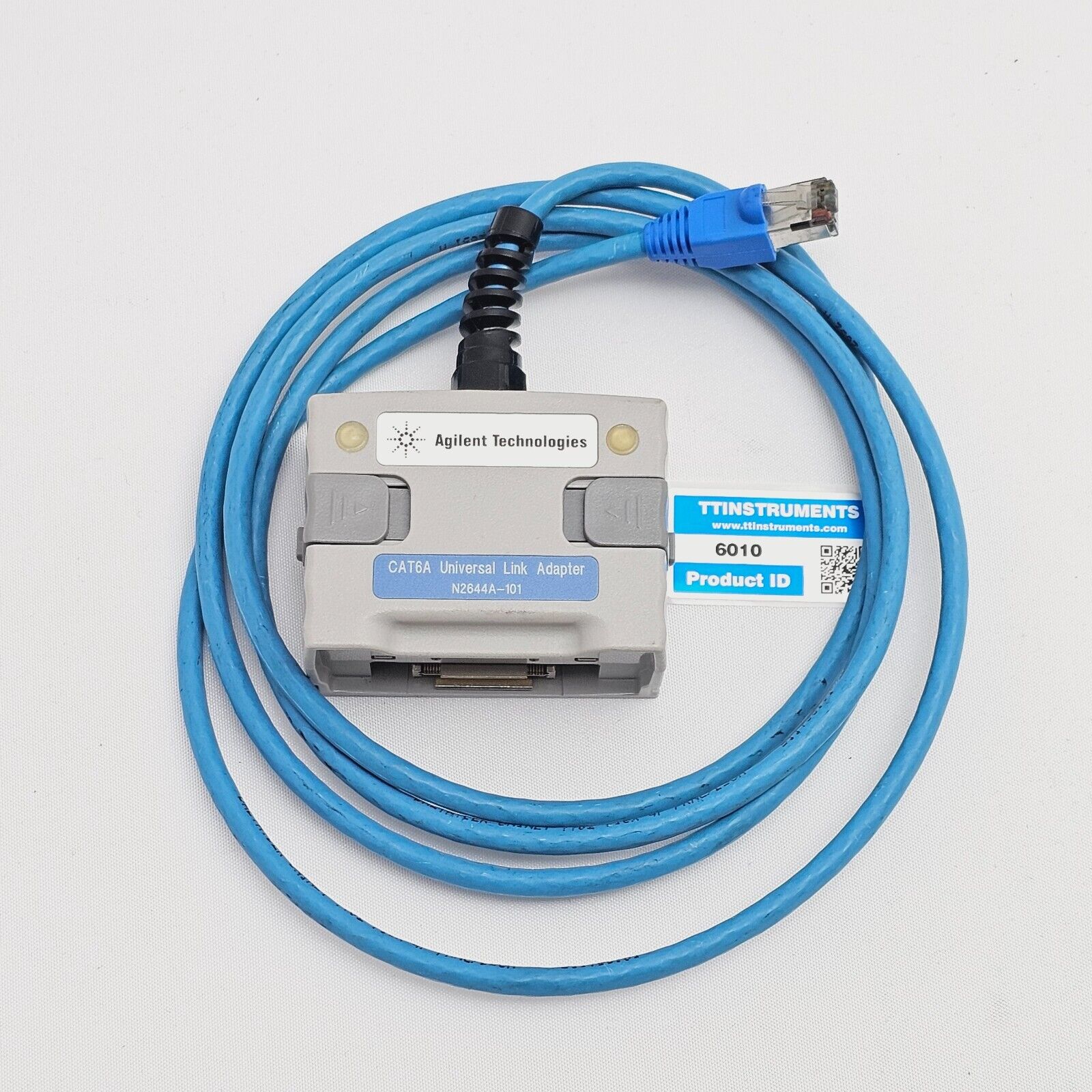

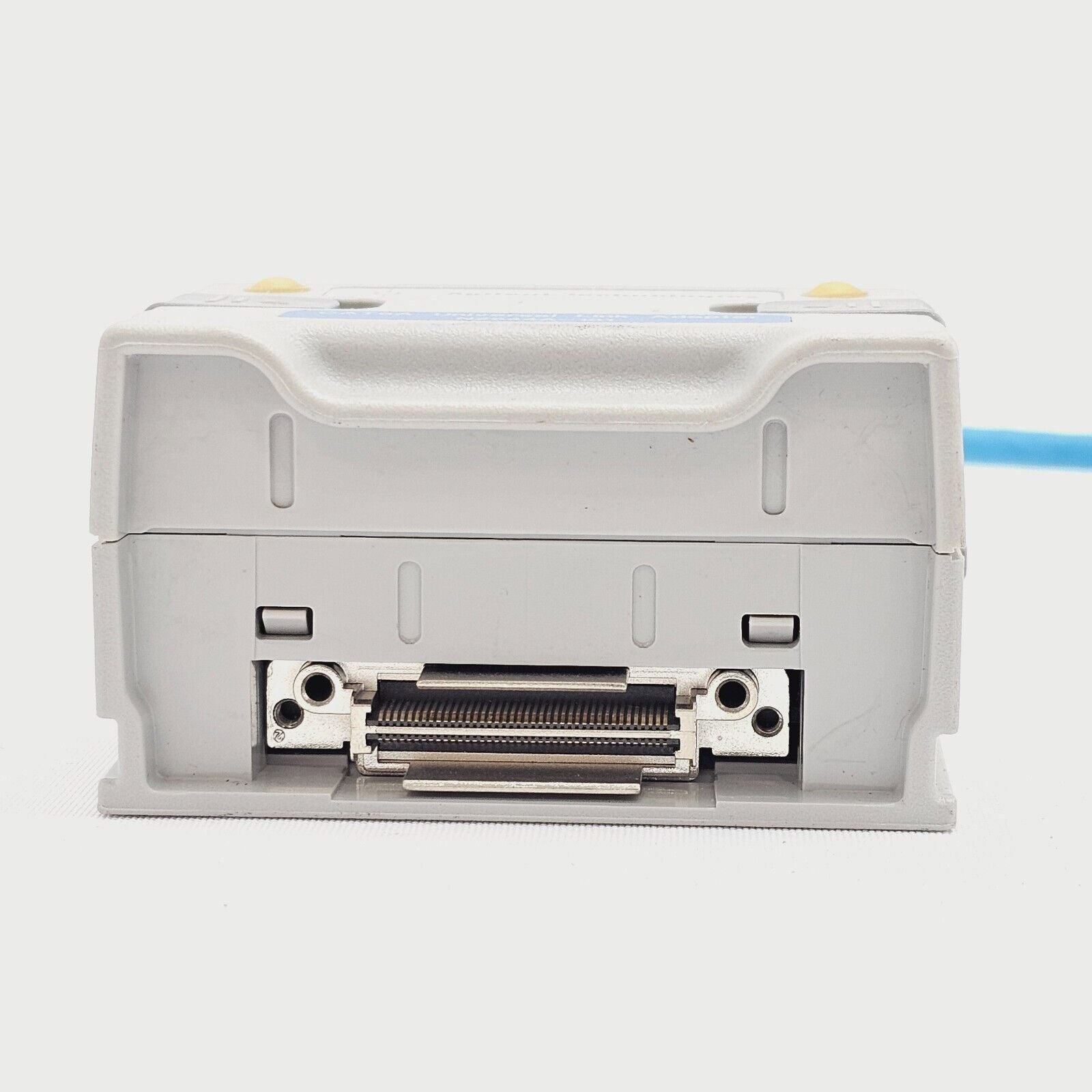

The Keysight Agilent N2644A-101 is a Category 6A Universal Permanent Link SmartProbe (sold individually), supplied as pictured with no additional accessories. No calibration documentation or accessories are included beyond what is shown.

What is typically included:
• N2644A-101 CAT6A Universal Link SmartProbe adapter (single unit)

The Agilent / Keysight N2644A-101 is a Category 6A / Class EA Universal Permanent Link SmartProbe, part of the N2644A series designed for use with the Agilent WireScope Pro (N2640A) cable certification platform. The N2644A-101 is the Permanent Link variant (as opposed to the N2644A-100 Channel variant) and connects directly to wall plate and telecommunications panel jacks to perform permanent link certification tests. Once inserted into the SmartProbe module bay of the WireScope Pro or DualRemote Pro, the instrument automatically detects the probe and configures itself to the appropriate test parameters. The WireScope software compensates for the probe's own transmission characteristics to ensure they do not affect test results.

The N2644A series SmartProbes enable the WireScope Pro to certify LAN cables, permanent links, and channel configurations to TIA Category 6A and ISO Class EA and Class F limits.

Probe General Specifications:
Probe Type: Category 6A / Class EA Universal Permanent Link SmartProbe
Compatible Instrument: Agilent / Keysight WireScope Pro (N2640A)
Interface: SmartProbe module bay (USB 1.1 connection to host instrument)
Size: 79.5 mm x 60.5 mm x 44 mm (3.1" x 2.4" x 1.7"), excludes cable
Operating Temperature: 0°C to +40°C
Storage Temperature: -40°C to +55°C
Length Measurement Range: 0 – 180 m (NVP > 0.6); 0 – 330 m single ended (NVP > 0.6)
Length Resolution: 0.5 m (at NVP = 0.7)
Length Accuracy: ± 1 m
Supported Standards: TIA Categories 3 / 5 / 5e / 6 / 6A; ISO Classes C, D, E, EA, F
Measurement Accuracy: ISO / IEC Level IV
Test Configuration: Permanent Link (connects to wall plate / patch panel jacks)
Sold As: Single unit (set of two required for full two-ended certification)

Use Cases:
The N2644A-101 is used by network installers and cable certification engineers to qualify CAT6A permanent link installations in commercial, enterprise, and data centre environments. It is an essential replacement or spare probe for WireScope Pro users carrying out 10 Gigabit Ethernet infrastructure validation and structured cabling certification to current TIA-568 and ISO/IEC 11801 standards.

Agilent / Keysight N2640A WireScope Pro Series Datasheet (5989-5203EN) — covers N2644A SmartProbe specifications: Download PDF

Agilent N2640A WireScope Pro User's Manual — includes N2644A-101 probe setup and specifications: Download PDF

Agilent WireScope Pro N2640A Technical Specifications Sheet (5989-4699EN): Download PDF
