Condition: Used

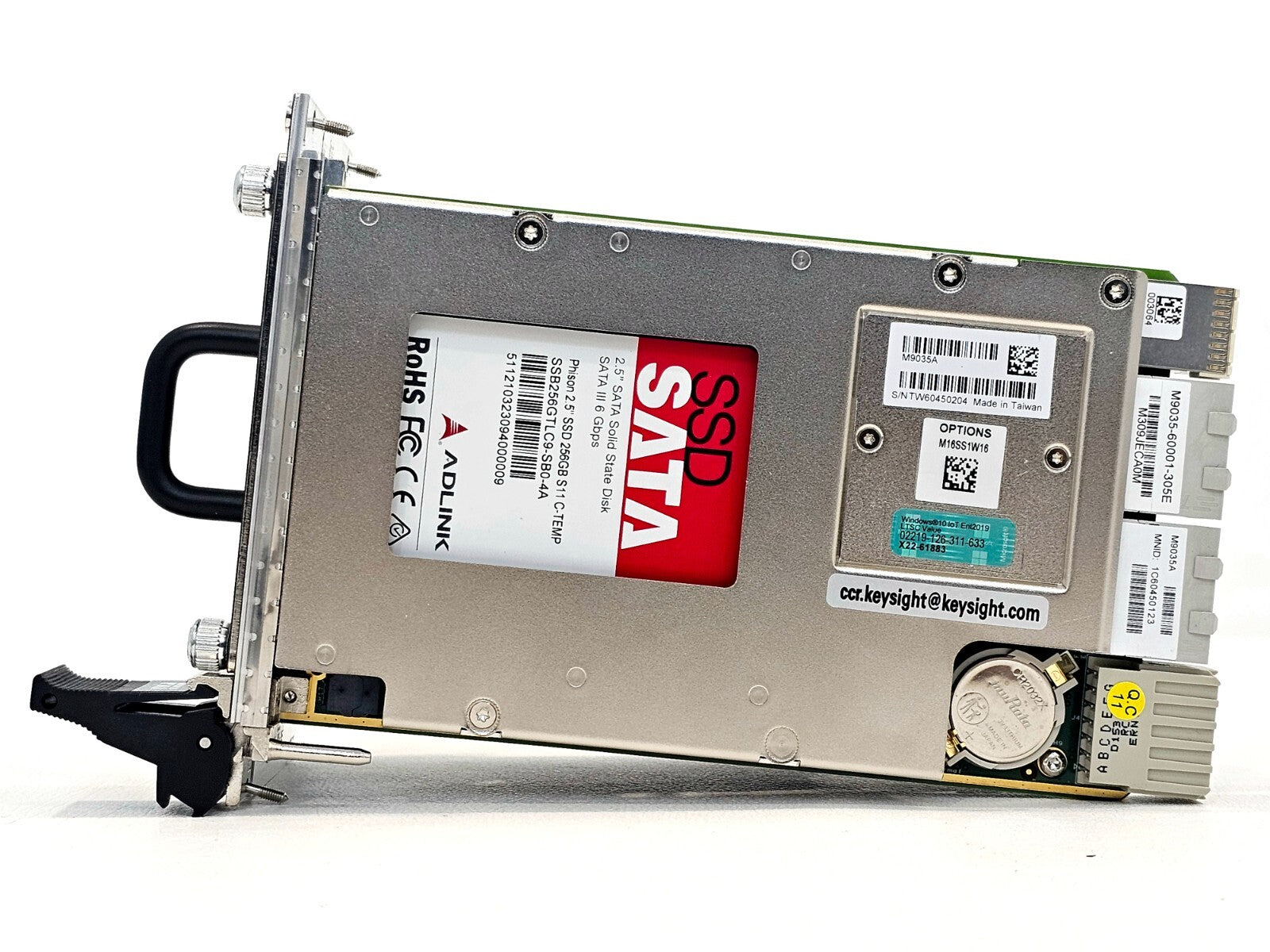

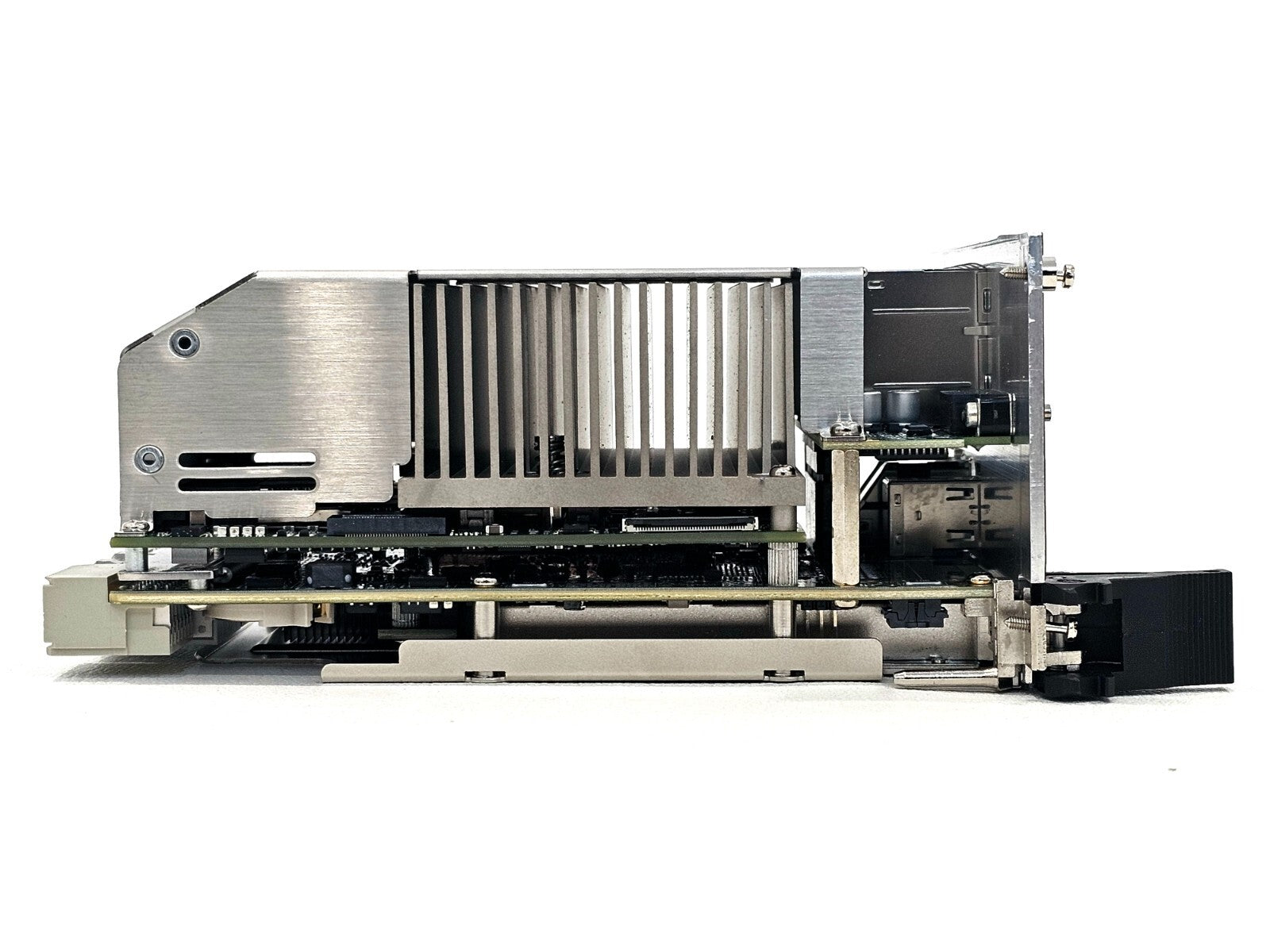

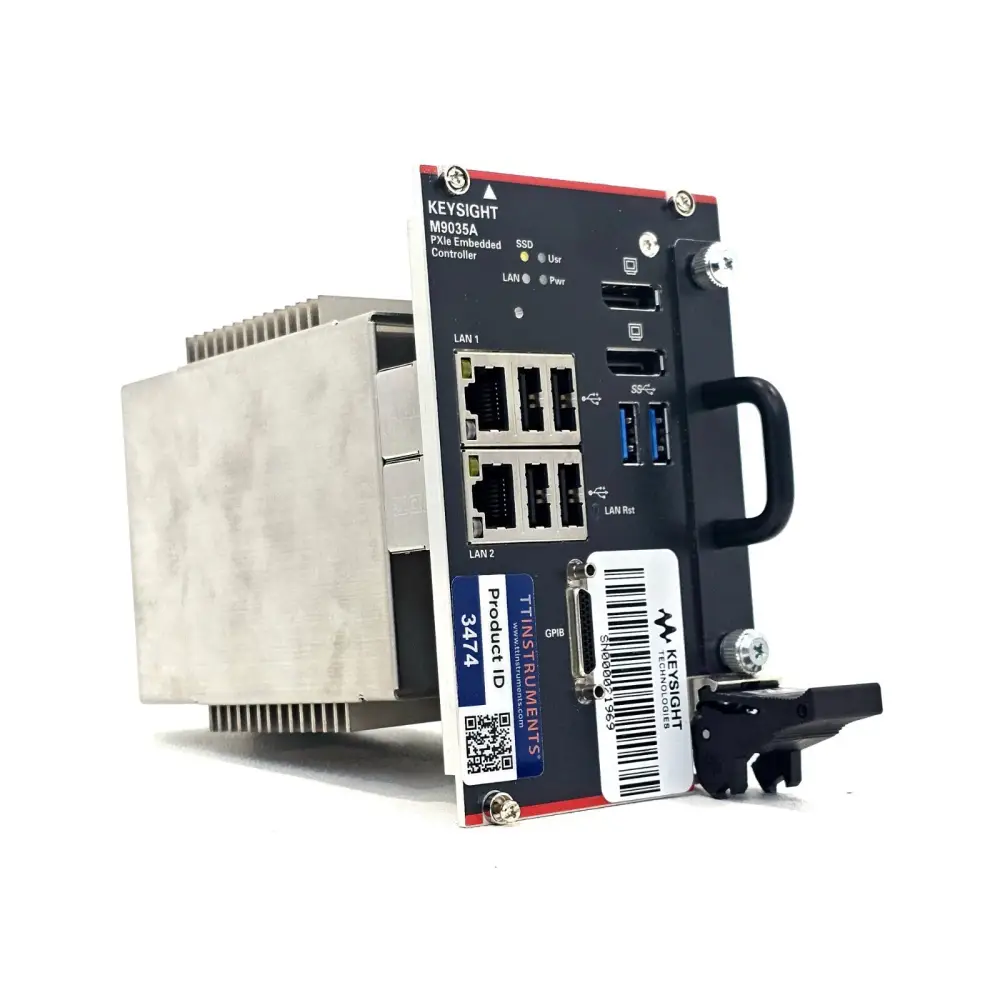

Keysight M9035A PXIe Embedded Controller configured with an Intel Quad-Core i3-8100H 3.0 GHz processor, 16 GB of DDR4 RAM, and a 256 GB solid state drive. A capable mid-performance PXIe controller well-suited for single-chassis automated test applications.

What's typically included:
• M9035A PXIe Embedded Controller module
• Intel Quad-Core i3-8100H 3.0 GHz processor (integrated)
• 16 GB RAM
• 256 GB solid state drive

The Keysight M9035A is a low-cost, four-slot PXIe embedded PC controller designed for mid-performance automated test systems. It is also well-suited for secure environments thanks to its front-panel, removable solid-state drive secured with thumb screws. Built on the Intel Core i3-8100H quad-core processor clocked at 3.0 GHz, the controller supports up to four simultaneous threads and memory configurations up to 32 GB of DDR4 2400 SODIMM. Graphics are handled by the integrated Intel UHD 630 iGPU with two Dual Mode DisplayPort++ connectors supporting DisplayPort or HDMI (via user-supplied adapter). The Gen 3 PCIe backplane switch operates in a 2- or 4-link configuration (up to x24), providing up to 16 GB/s maximum data bandwidth from the CPU to the PXIe backplane. Pre-installed software includes Windows 10 64-bit, Keysight PXIe chassis and controller drivers, Keysight I/O Libraries, VISA, Keysight Connection Expert, and I/O Monitor.

Processor: Intel Core i3-8100H, Quad-Core, 3.0 GHz
Threads: 4
RAM (Standard): 16 GB DDR4 2400 SODIMM
RAM (Maximum): 32 GB DDR4 2400 SODIMM

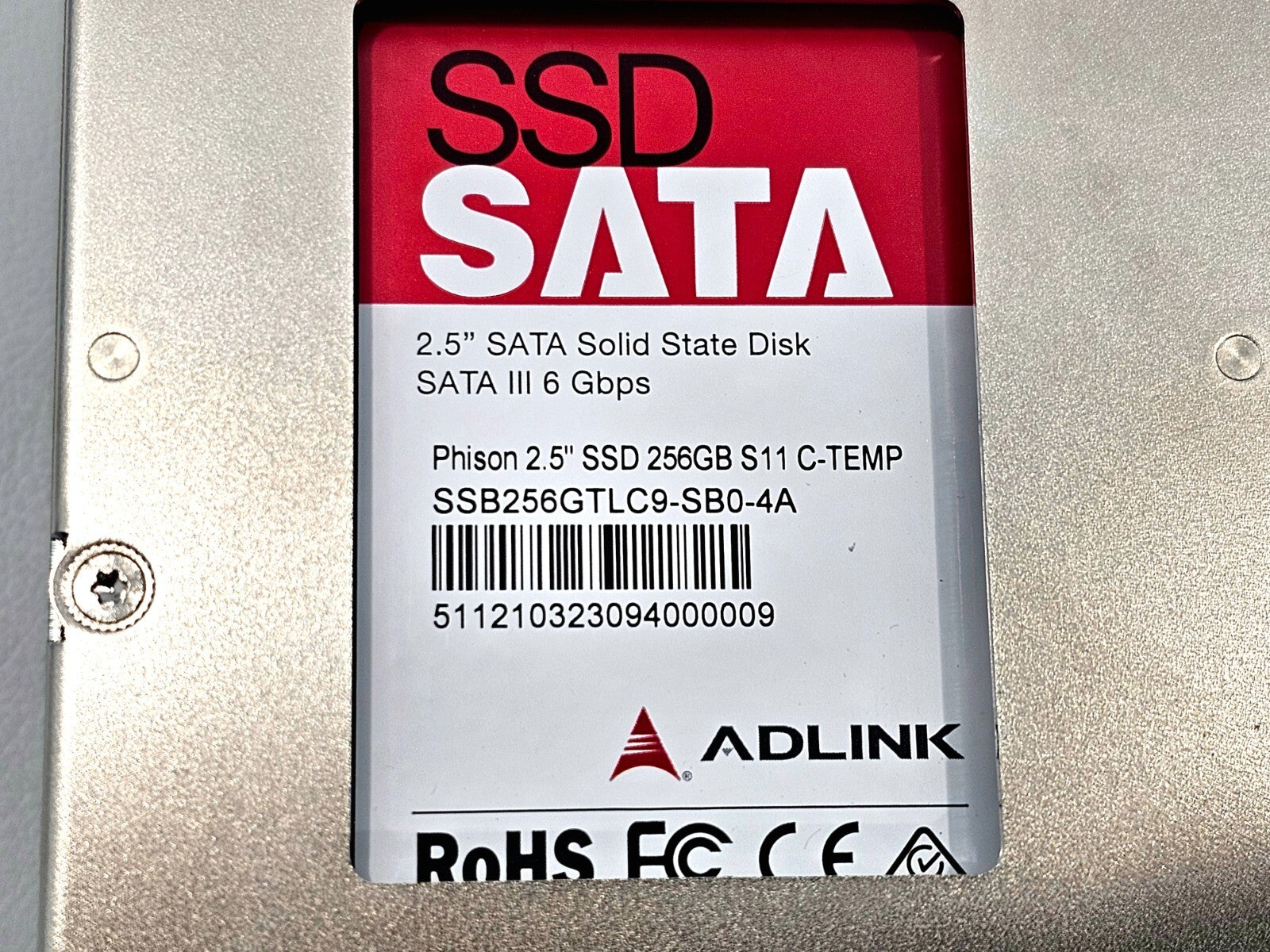

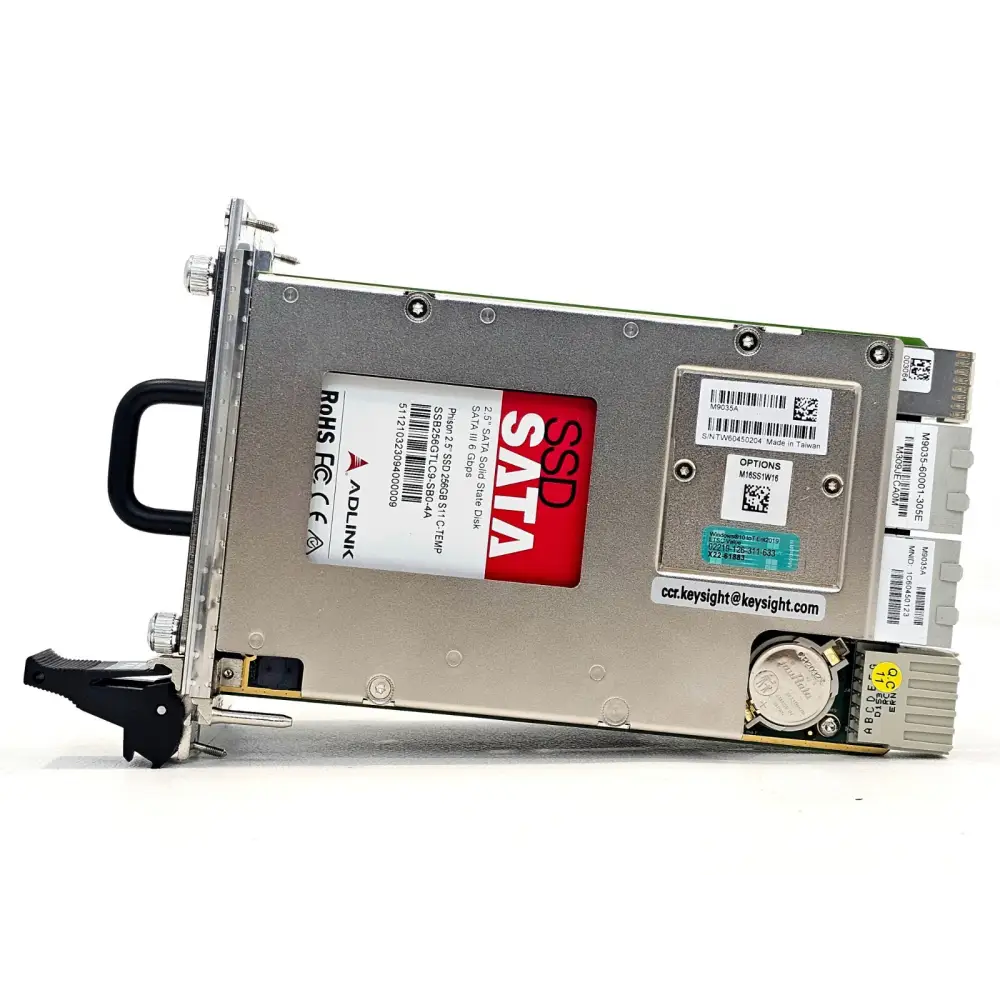

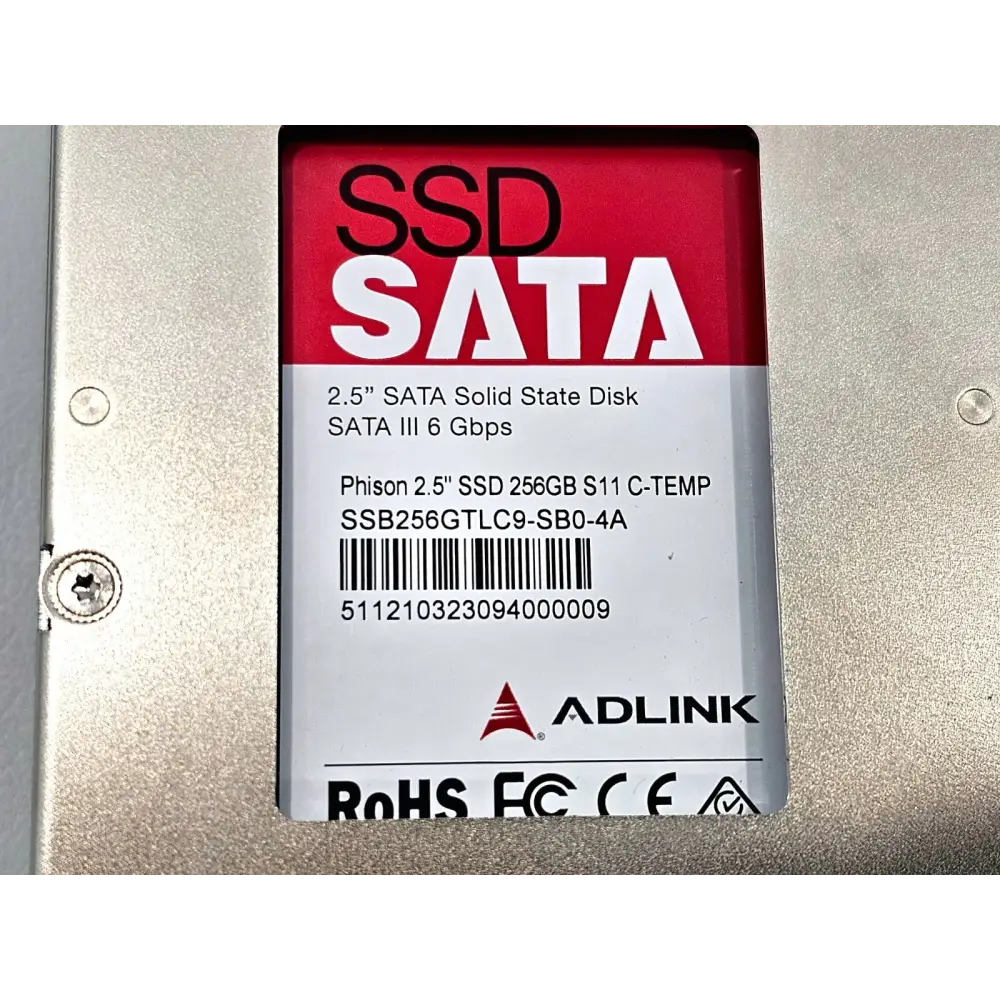

Storage: 256 GB front-panel removable SSD
Graphics: Intel UHD 630 iGPU
Display Outputs: 2× Dual Mode DisplayPort++ (DisplayPort or HDMI via adapter)

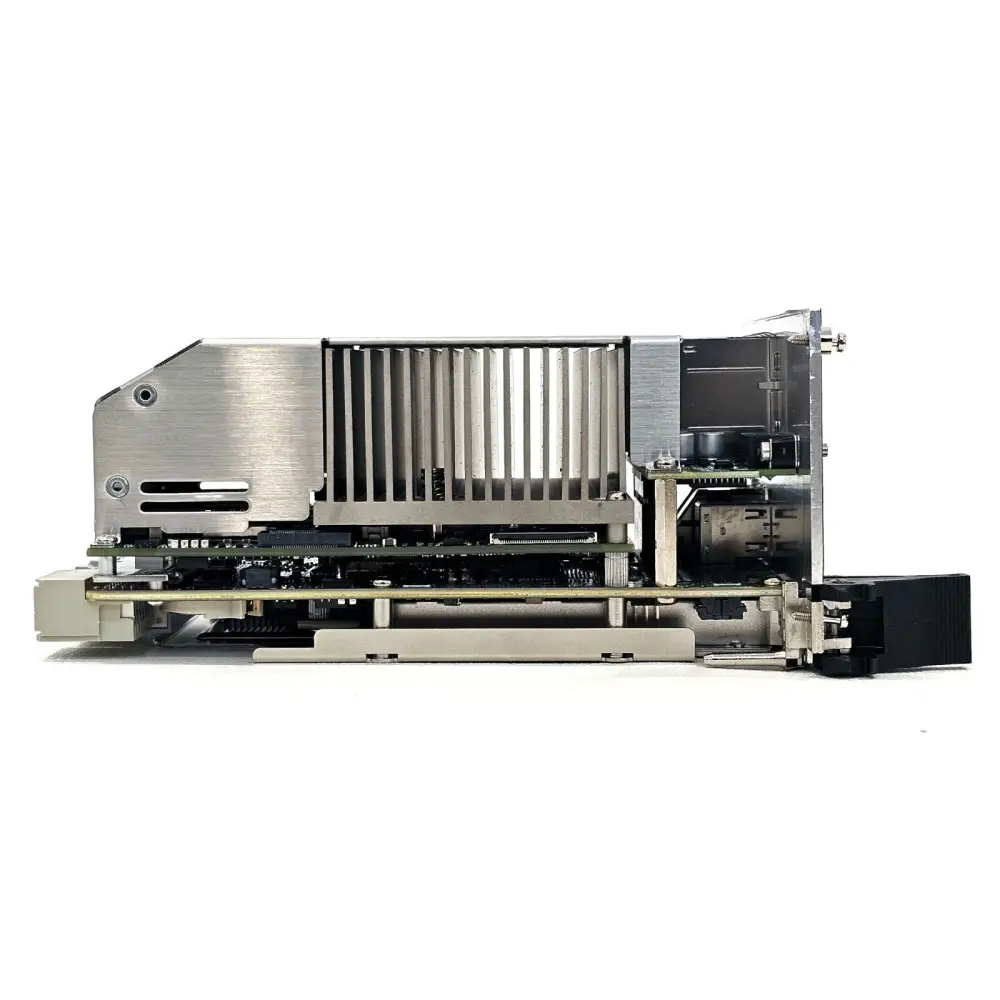

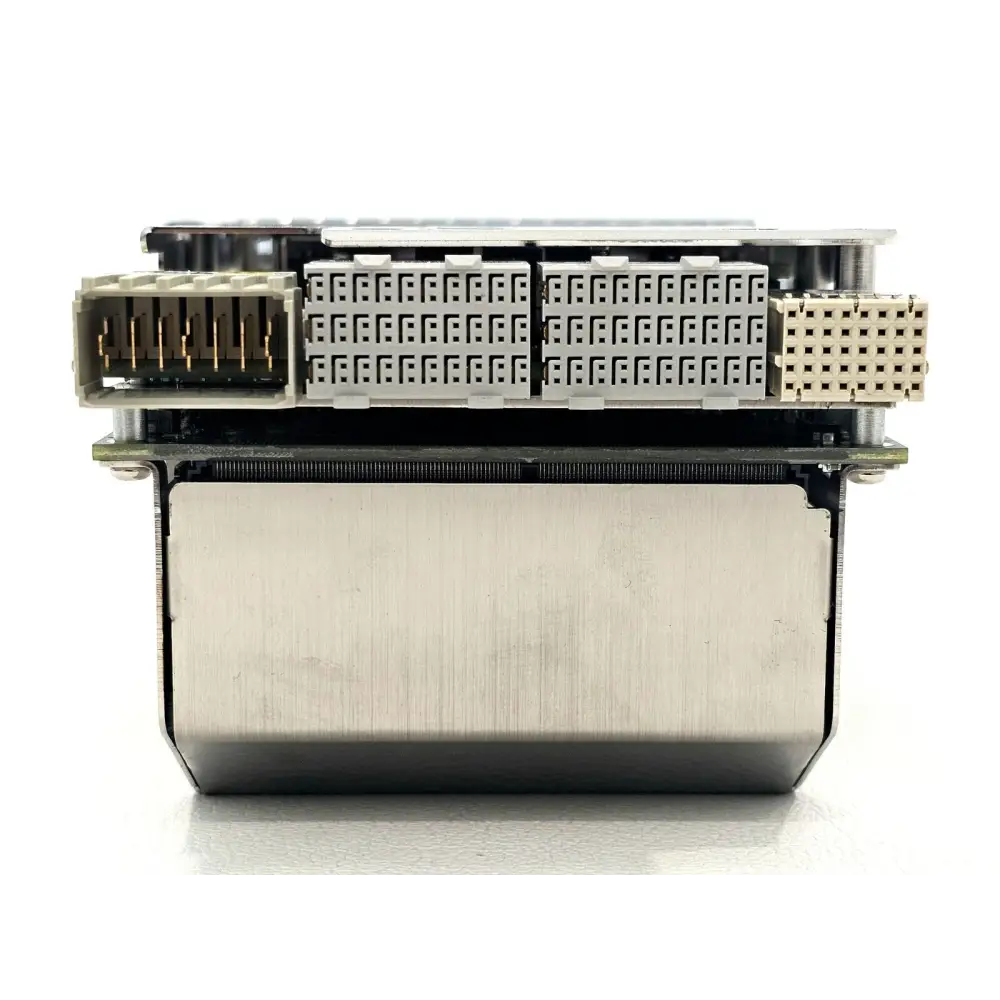

PCIe Interface: Gen 3, 2- or 4-link, up to x24
Max Backplane Bandwidth: Up to 16 GB/s (CPU to PXIe backplane)
PXIe Slots Occupied: 4

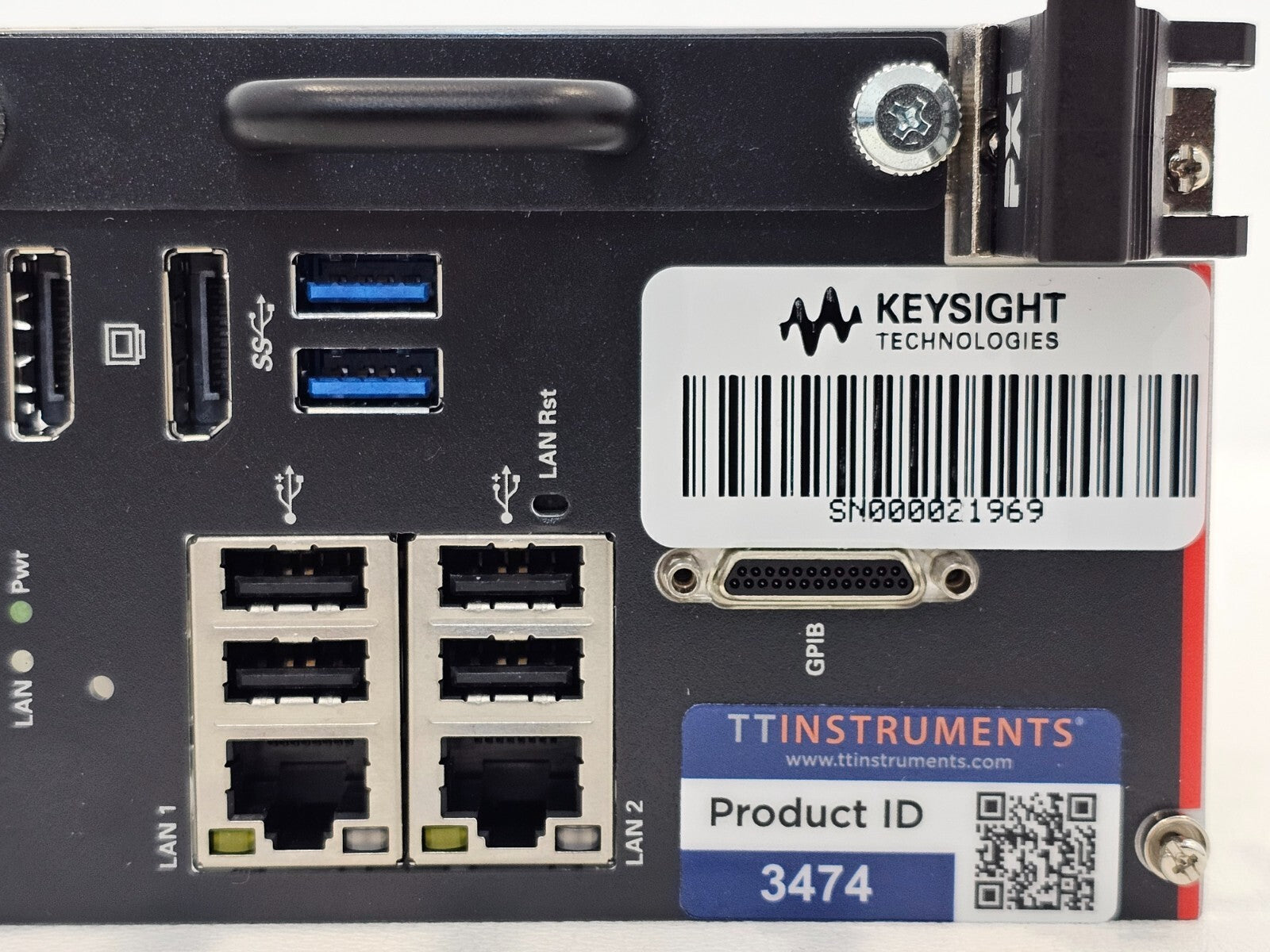

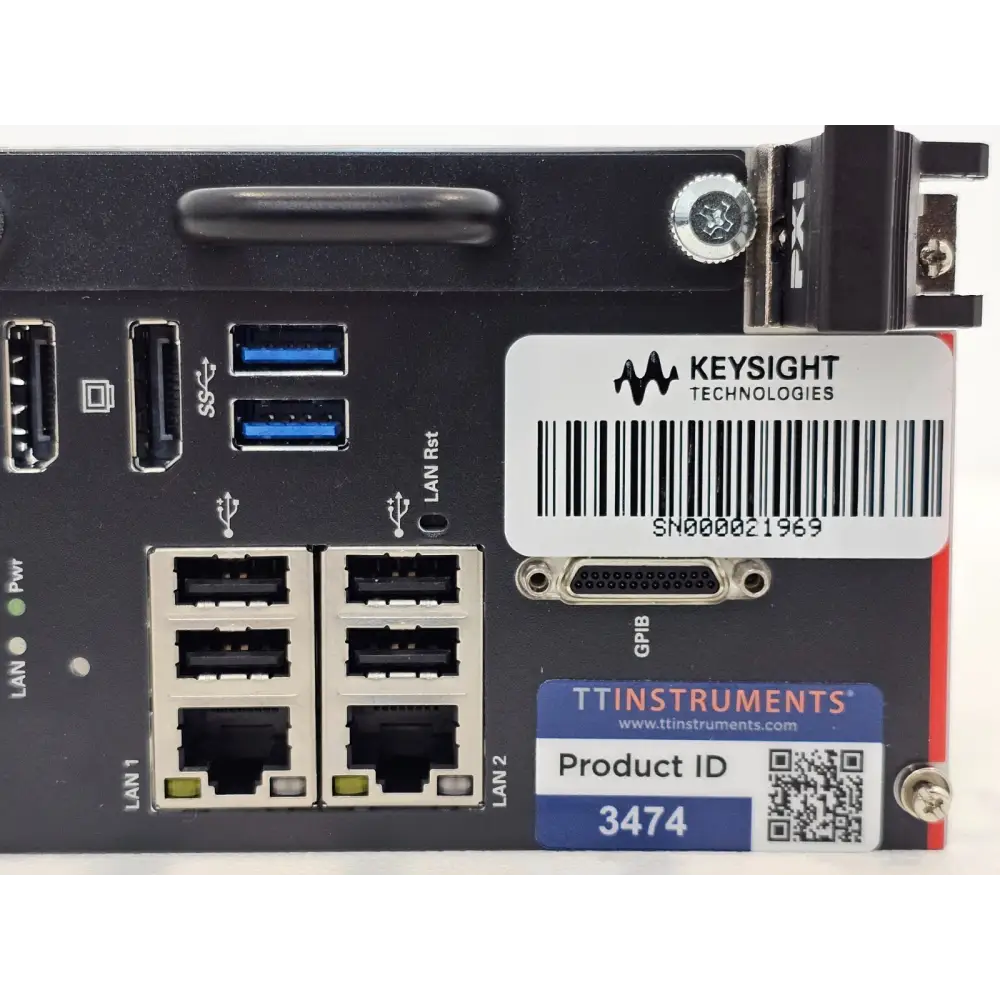

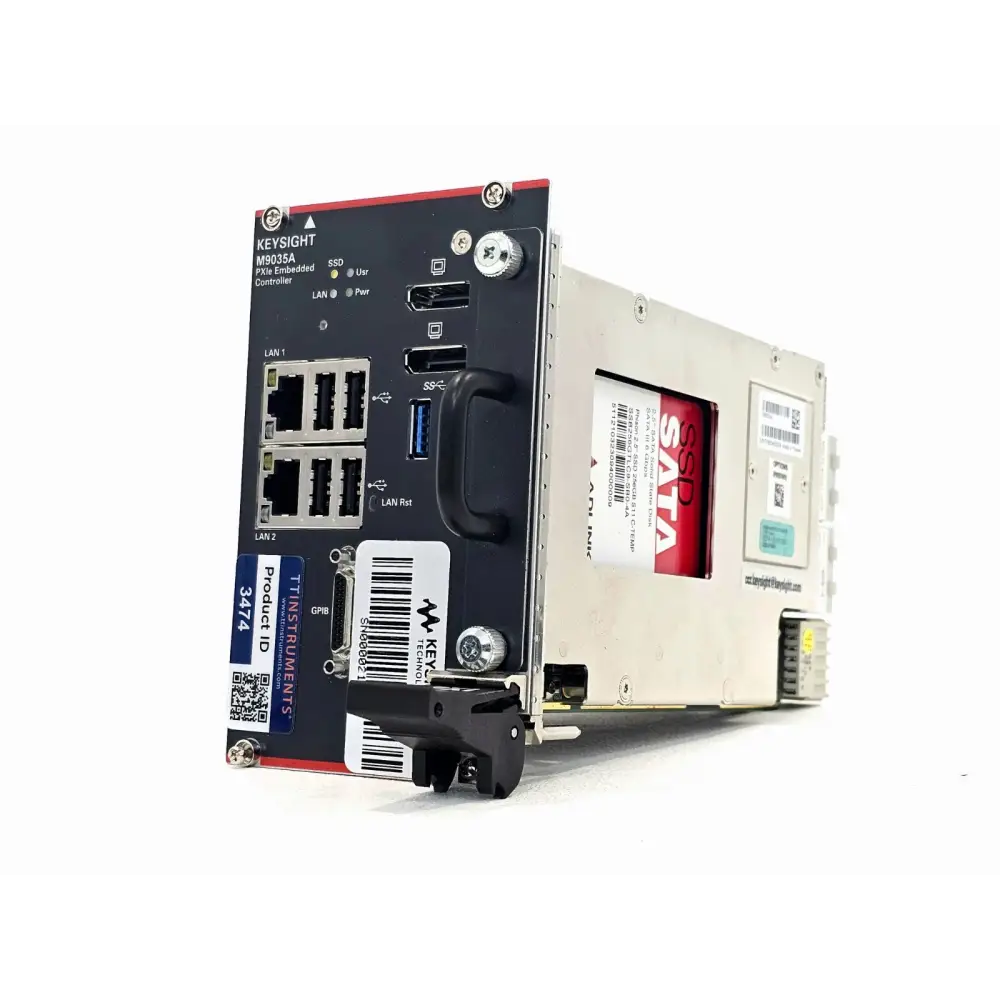

USB (Front Panel): 4× USB 2.0, 2× USB 3.0
LAN (Front Panel): 2× RJ-45, 10/100/1000 Mbps
GPIB (Front Panel): 1× GPIB
Operating System: Windows 10 (64-bit) / Windows 11
Driver Support: IVI-C, IVI-COM, MATLAB, LabVIEW
Form Factor: PXIe Embedded Controller Module

Keysight M9035A PXIe Embedded Controller Data Sheet (PDF): Download PDF

Keysight M9035A PXIe Embedded Controller Specification Guide (PDF): Download PDF

Keysight M9035A PXIe Embedded Controller User Guide (PDF): Download PDF

Keysight M9035A PXIe Embedded Controller Startup Guide (PDF): Download PDF
