Condition: Used

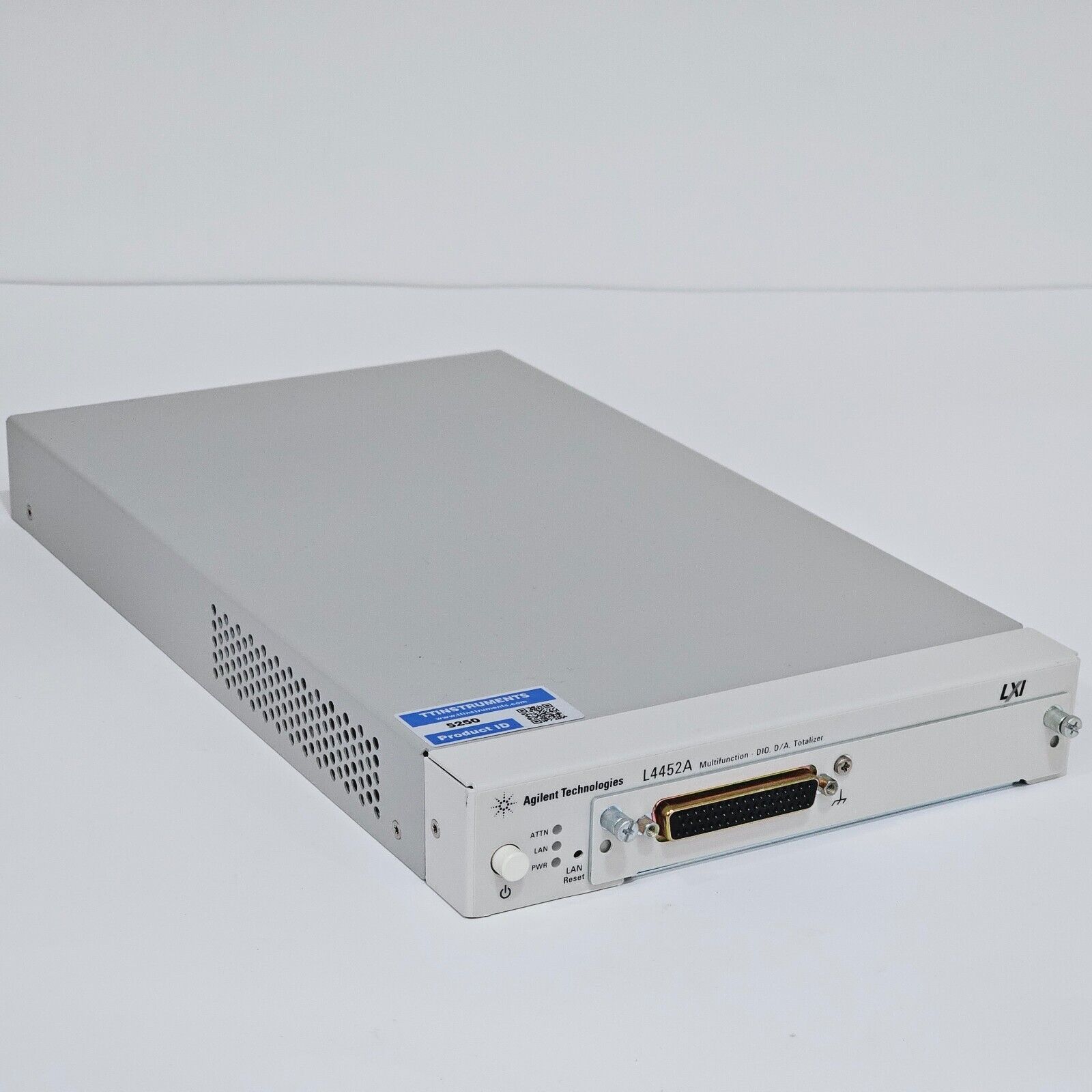

The Keysight L4452A is a multifunction LXI Class C module combining four 8-bit channels of digital I/O, a 100 kHz gated totalizer, and two ±12V analog outputs on a single earth-referenced module. This unit is supplied with one 34952T slot accessory. Alarm limits for digital and event counter inputs are evaluated continuously, capturing and logging alarm conditions even between scans. The digital I/Os support TTL levels up to 42V and can be used with an external power supply to control external devices or sense limit switch and digital bus status. The analog outputs deliver up to ±12V or 10 mA DC with 1 mV of resolution, suitable for sourcing bias voltages, controlling programmable power supplies, or providing setpoints for control systems. Standard 50-pin D-Sub connectors support standard cables, terminal blocks, or mass interconnect solutions.

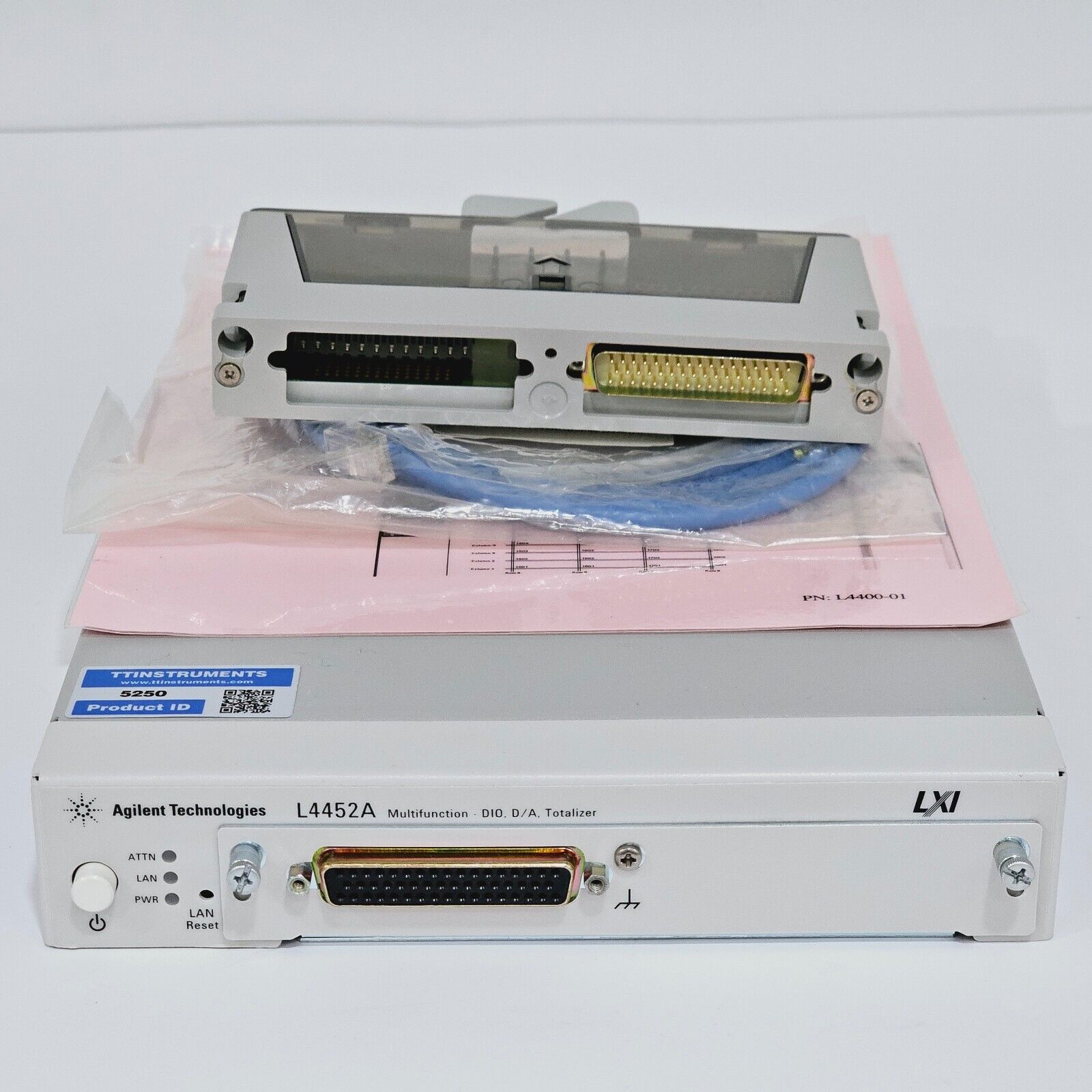

Included in the sale:
• Keysight Agilent L4452A Multifunction module

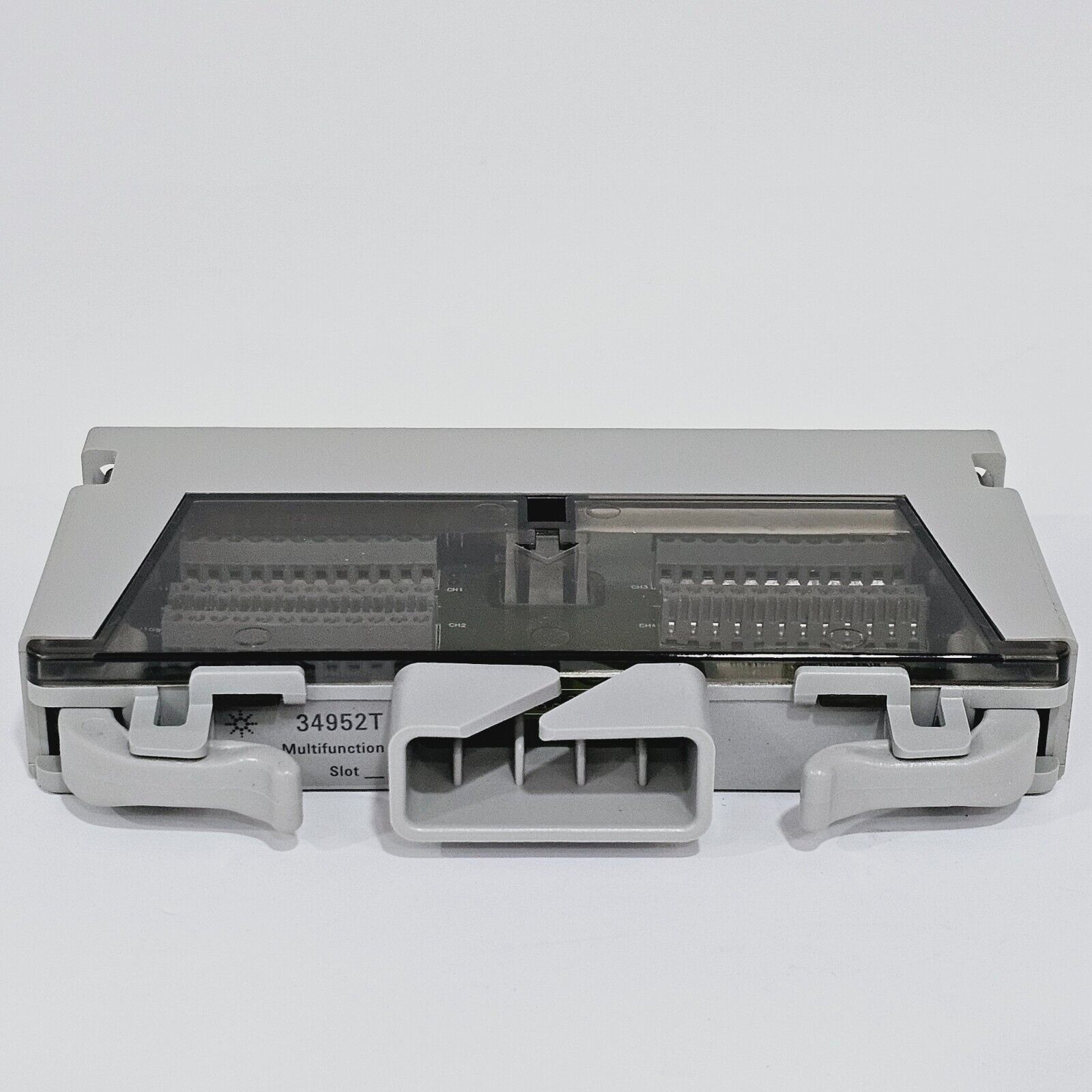

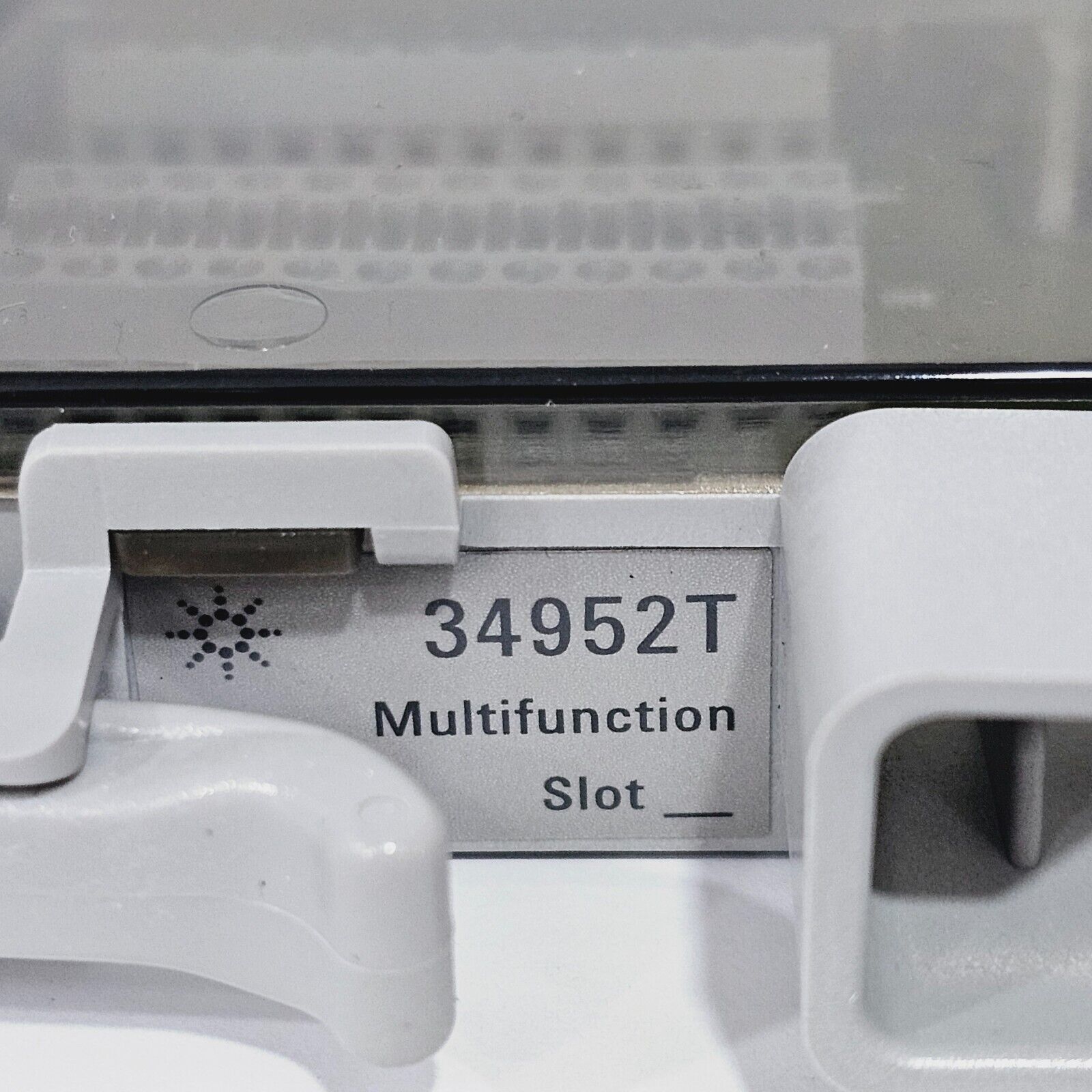

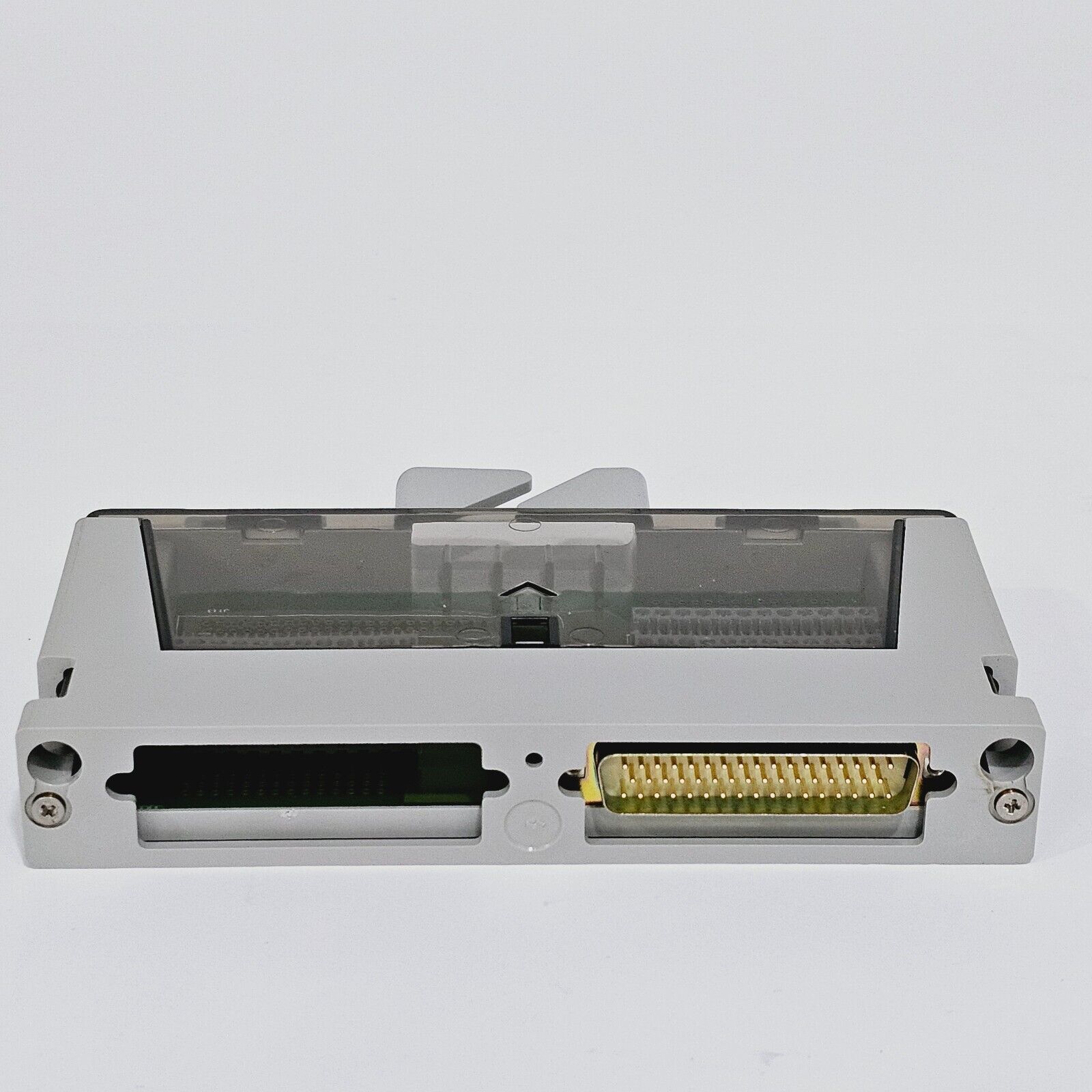

• 1x 34952T slot

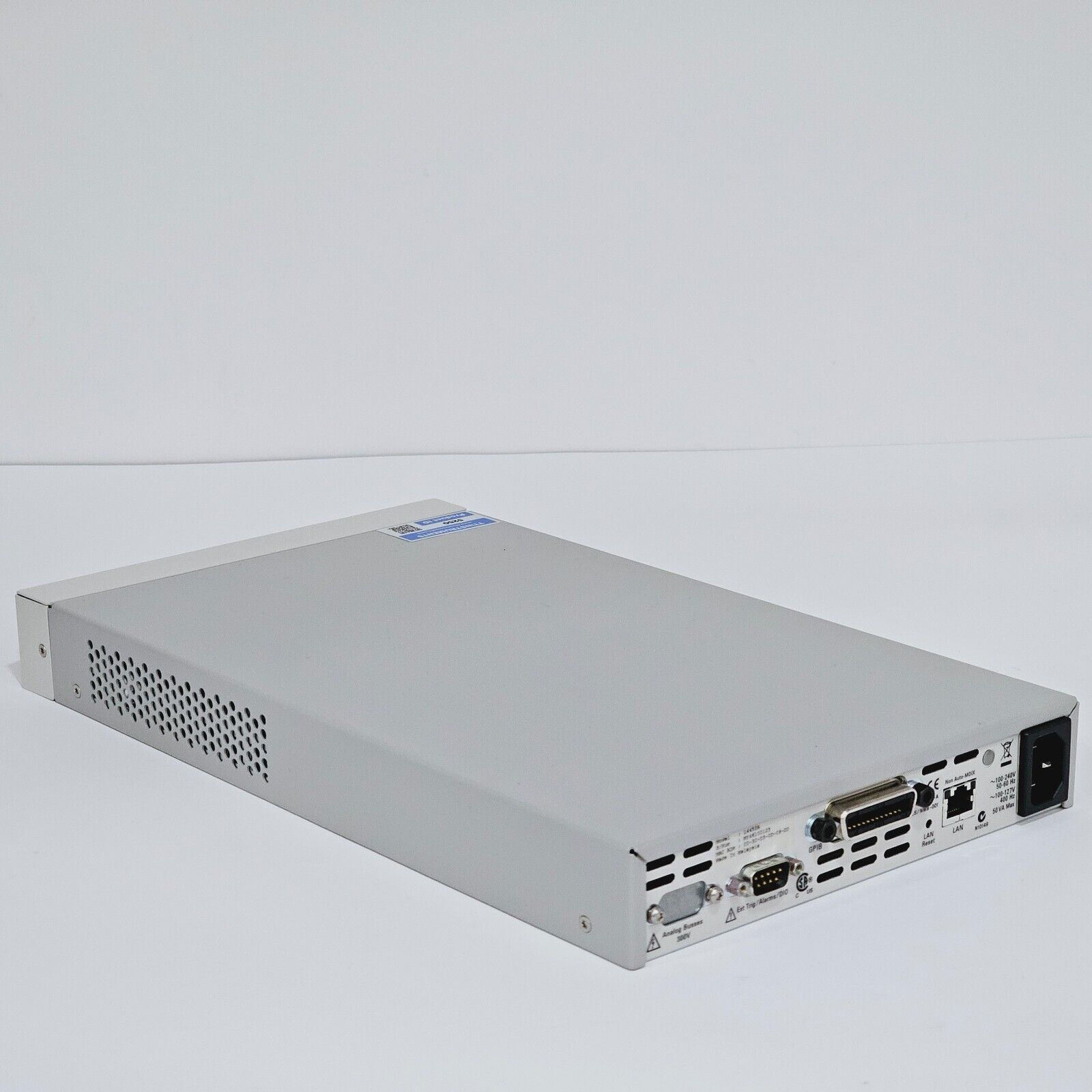

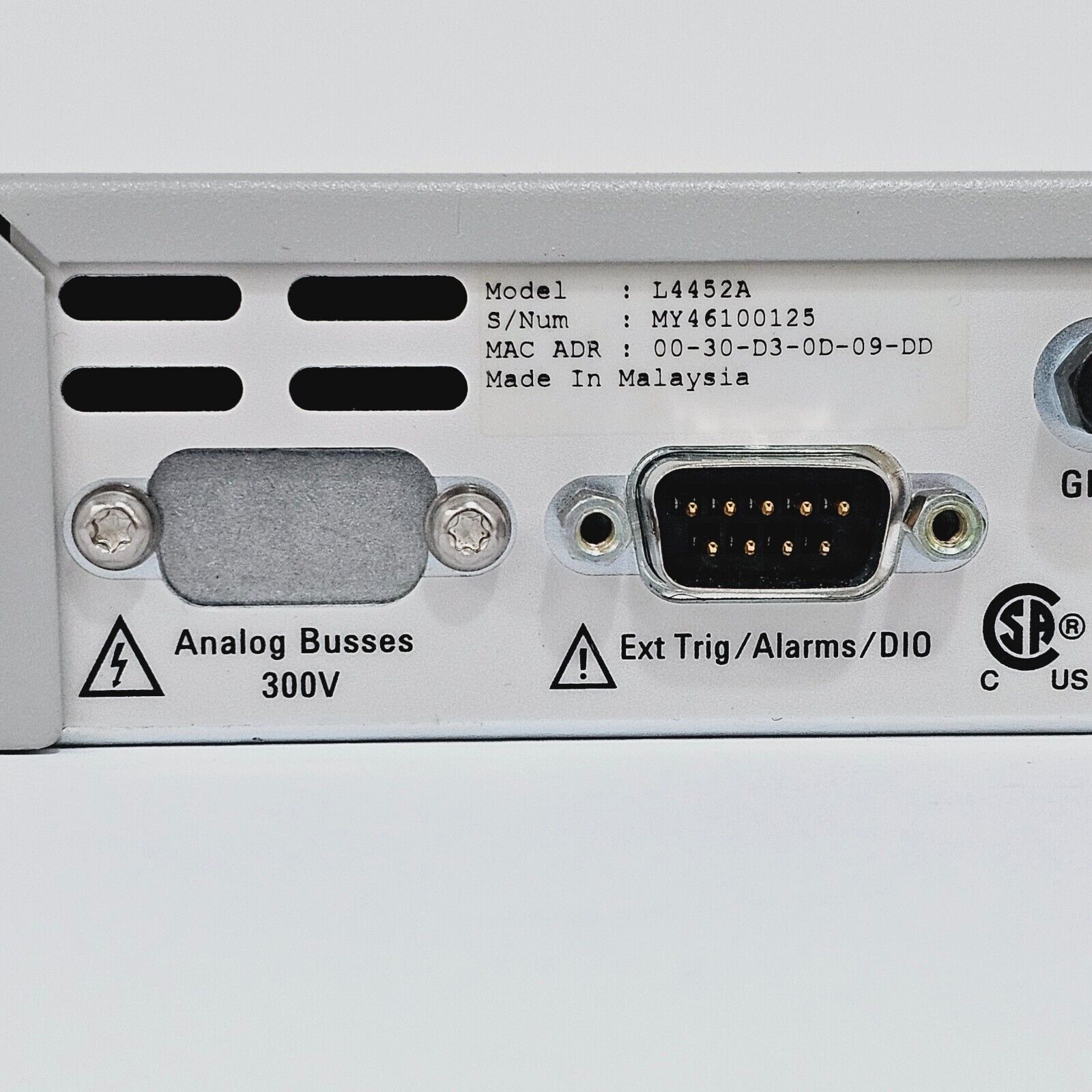

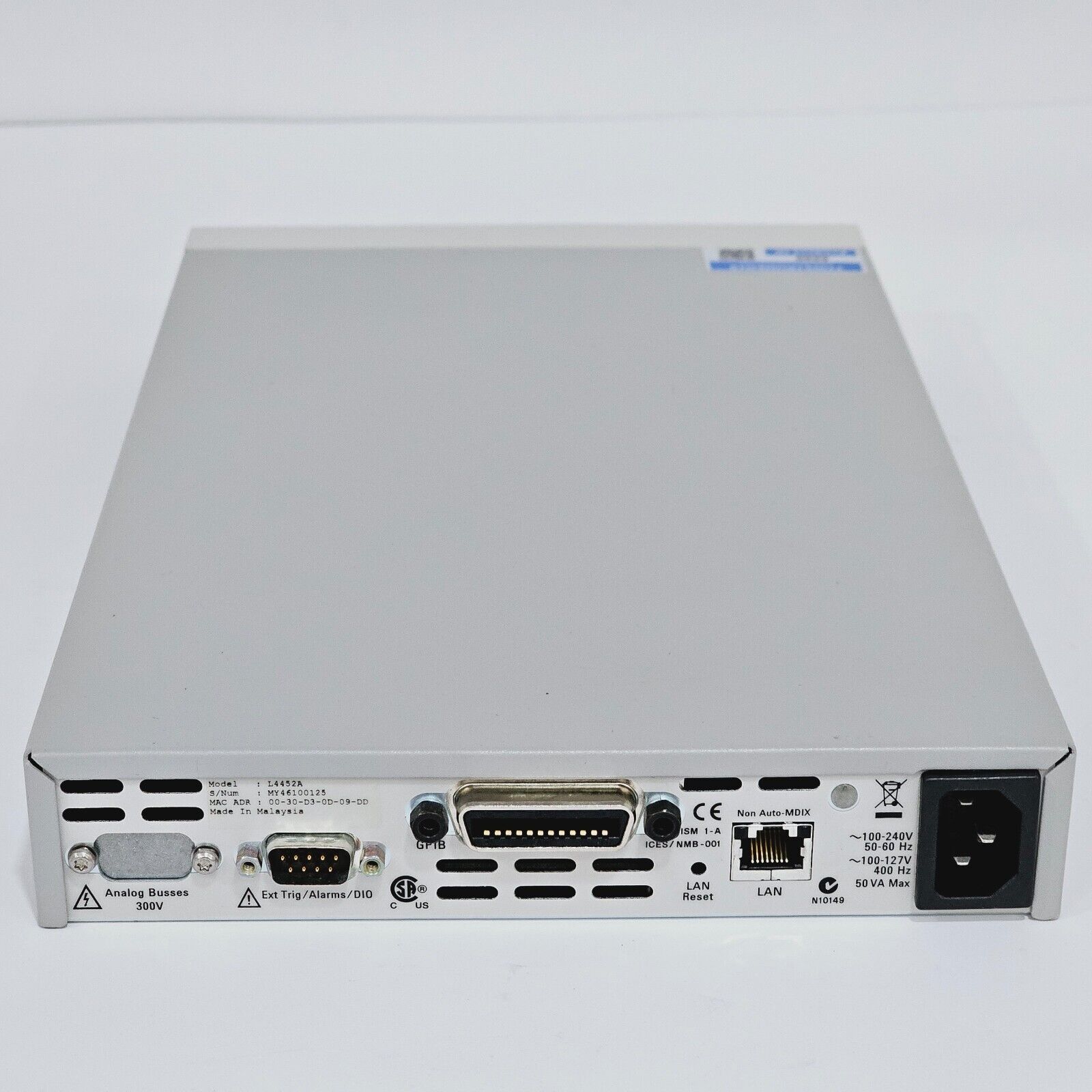

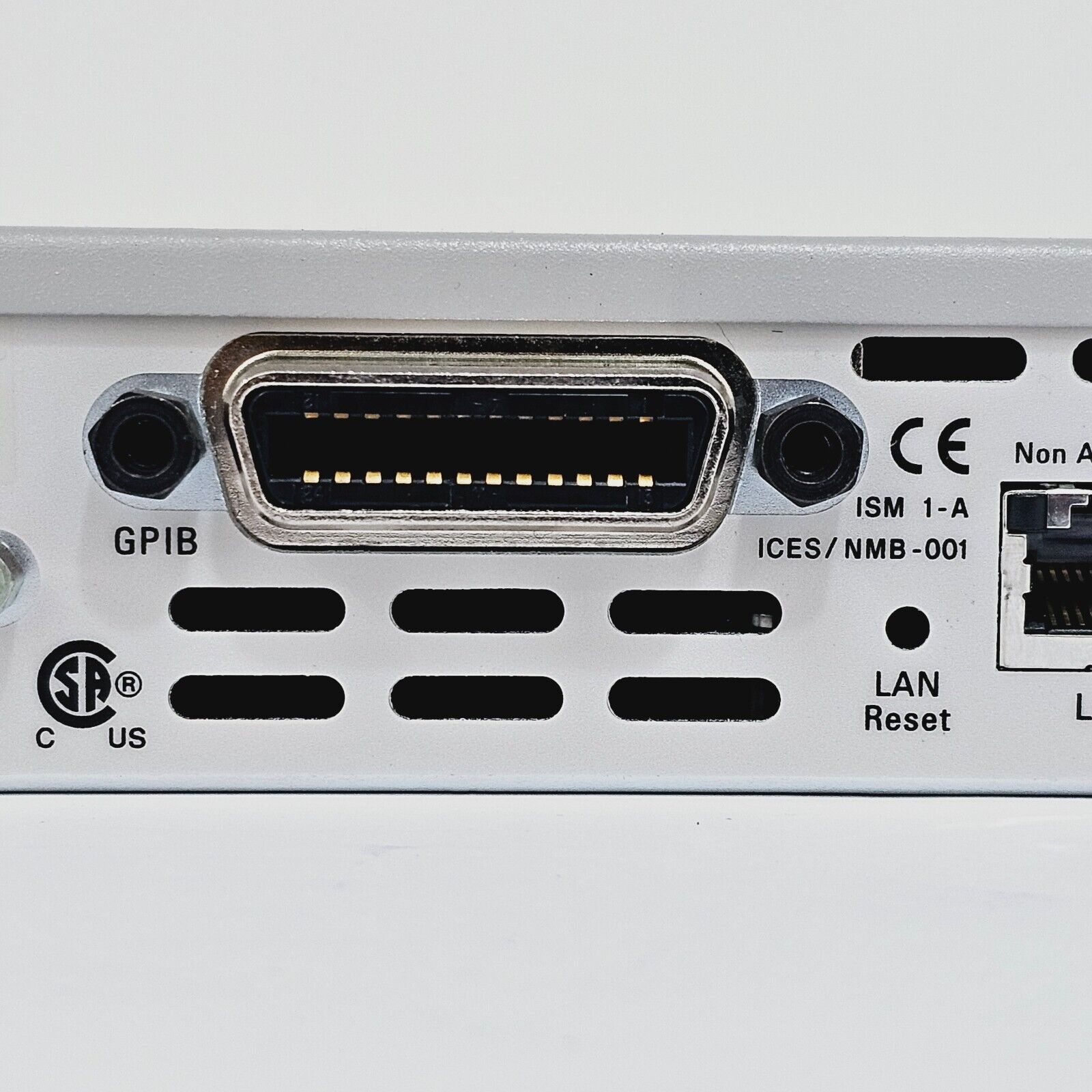

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

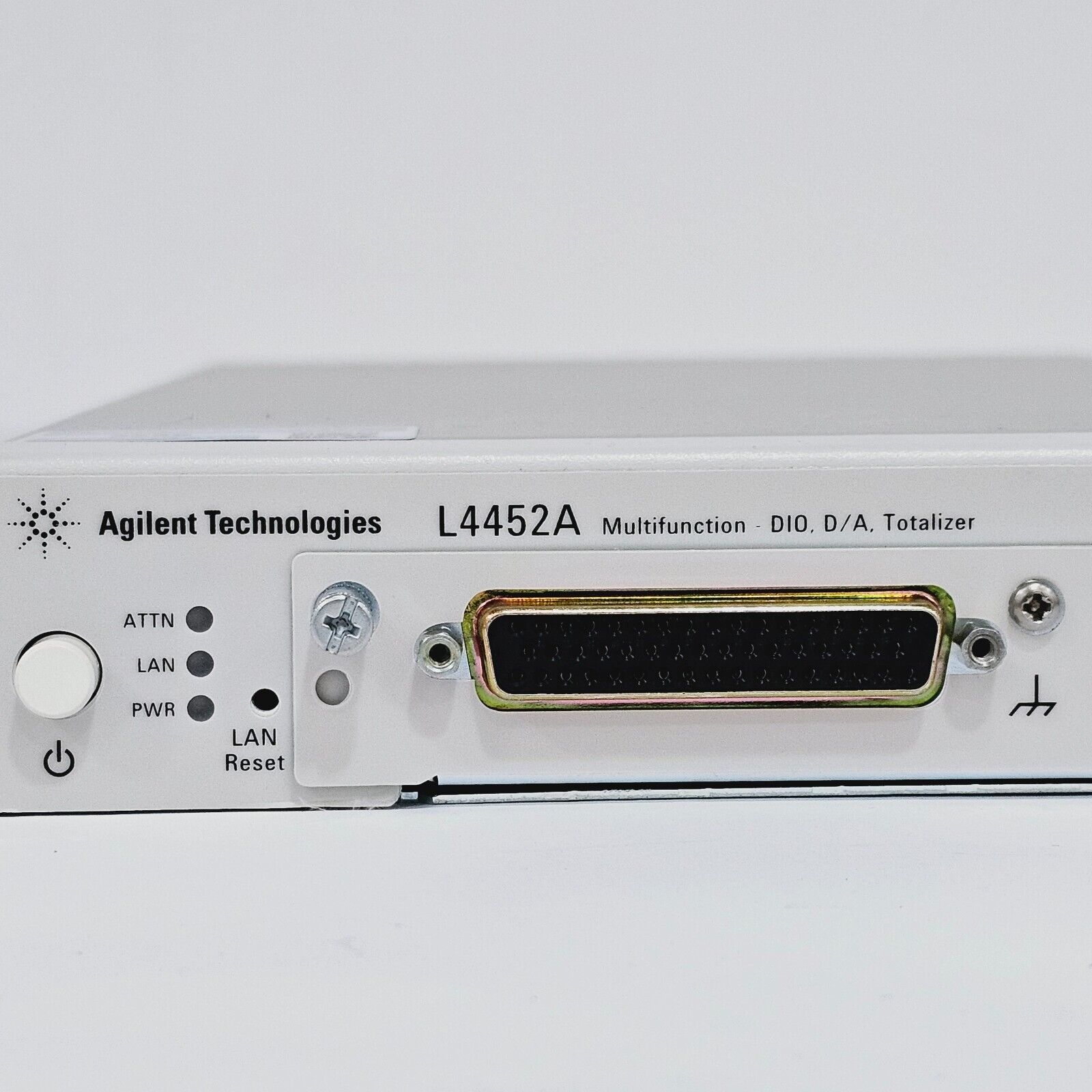

The Keysight L4452A is a Multifunction LXI Class C instrument designed to provide system control functionality wherever an application demands it. It combines digital I/O, a gated totalizer, and dual analog outputs on a single earth-referenced module, making it well suited for a wide variety of sense, control, and data acquisition applications.

Key Features:
- LXI Class C compliant with built-in Ethernet connectivity
- Fully-featured graphical web interface for remote setup, monitoring, and troubleshooting
- Password protection and LAN lockout for additional security
- External trigger capability for timing and synchronisation of measurements and events
- Standard 50-pin D-Sub connector with 30 micro-inches of gold contacts for reliable, repeatable connections
- Software drivers for most common programming environments including IVI-COM, IVI-C, and LabVIEW

Specifications:
Digital I/O Channels: 32-bit (four 8-bit channels)
Digital I/O Logic Levels: TTL, up to 42V with external supply
Totalizer Input: 100 kHz gated
Analog Outputs: 2x ±12V
Analog Output Current: 10 mA DC maximum
Analog Output Resolution: 1 mV

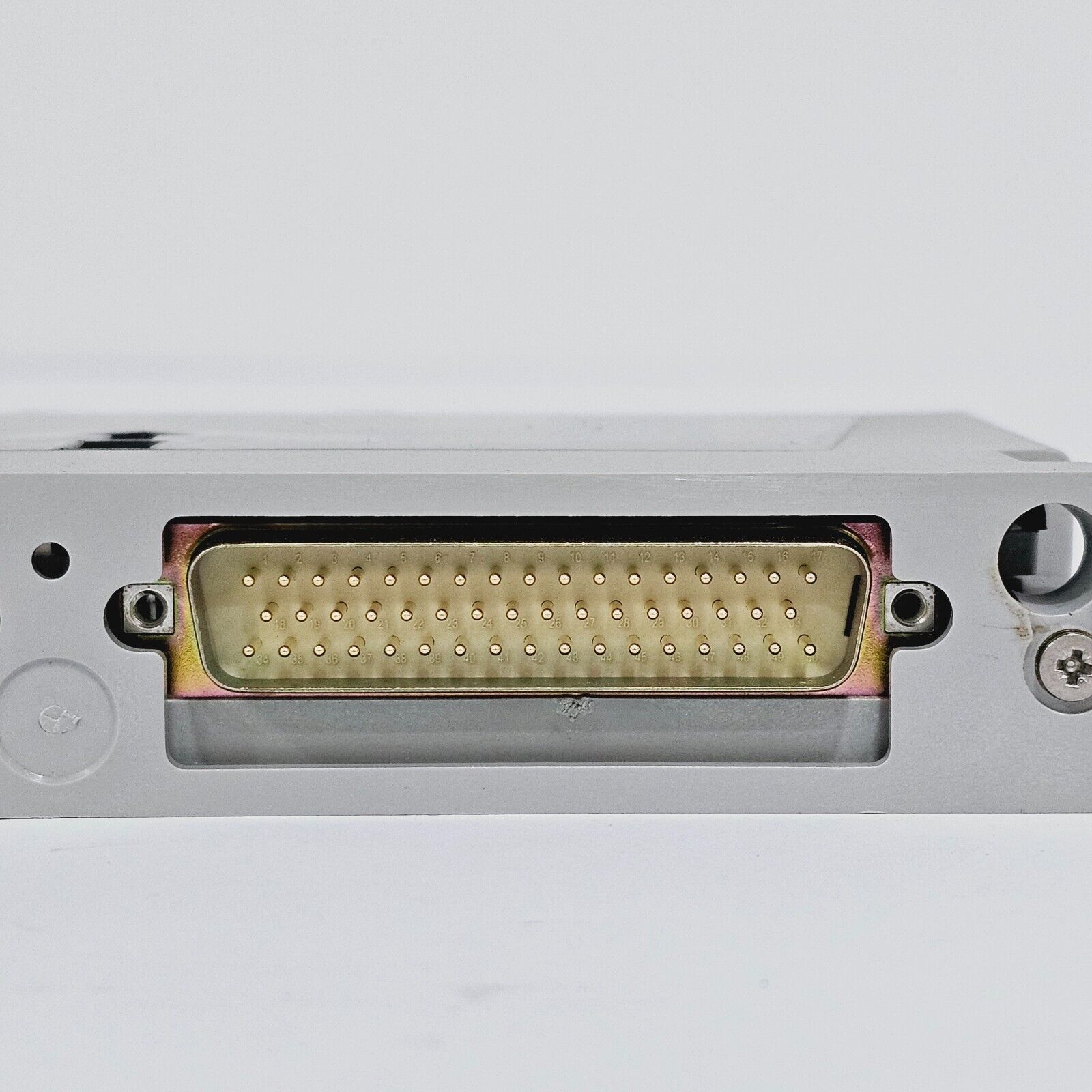

Connector Type: Standard 50-pin D-Sub

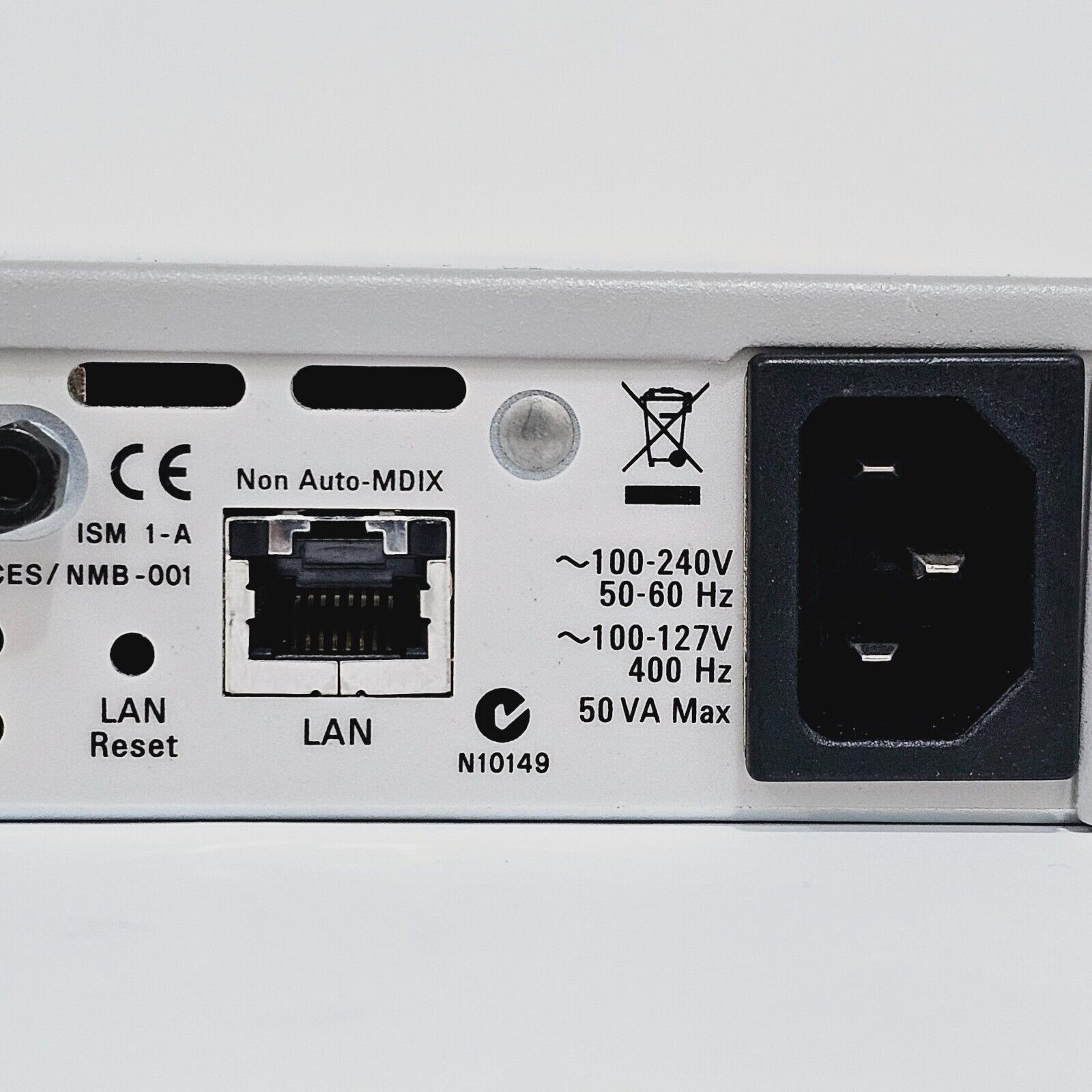

Interface: LXI Class C (Ethernet)
Form Factor: Single earth-referenced module
Compatibility: 34980A 8-slot switch/measure unit

Keysight L4452A Multifunction Module Data Sheet (PDF): Download PDF
