Condition: Used

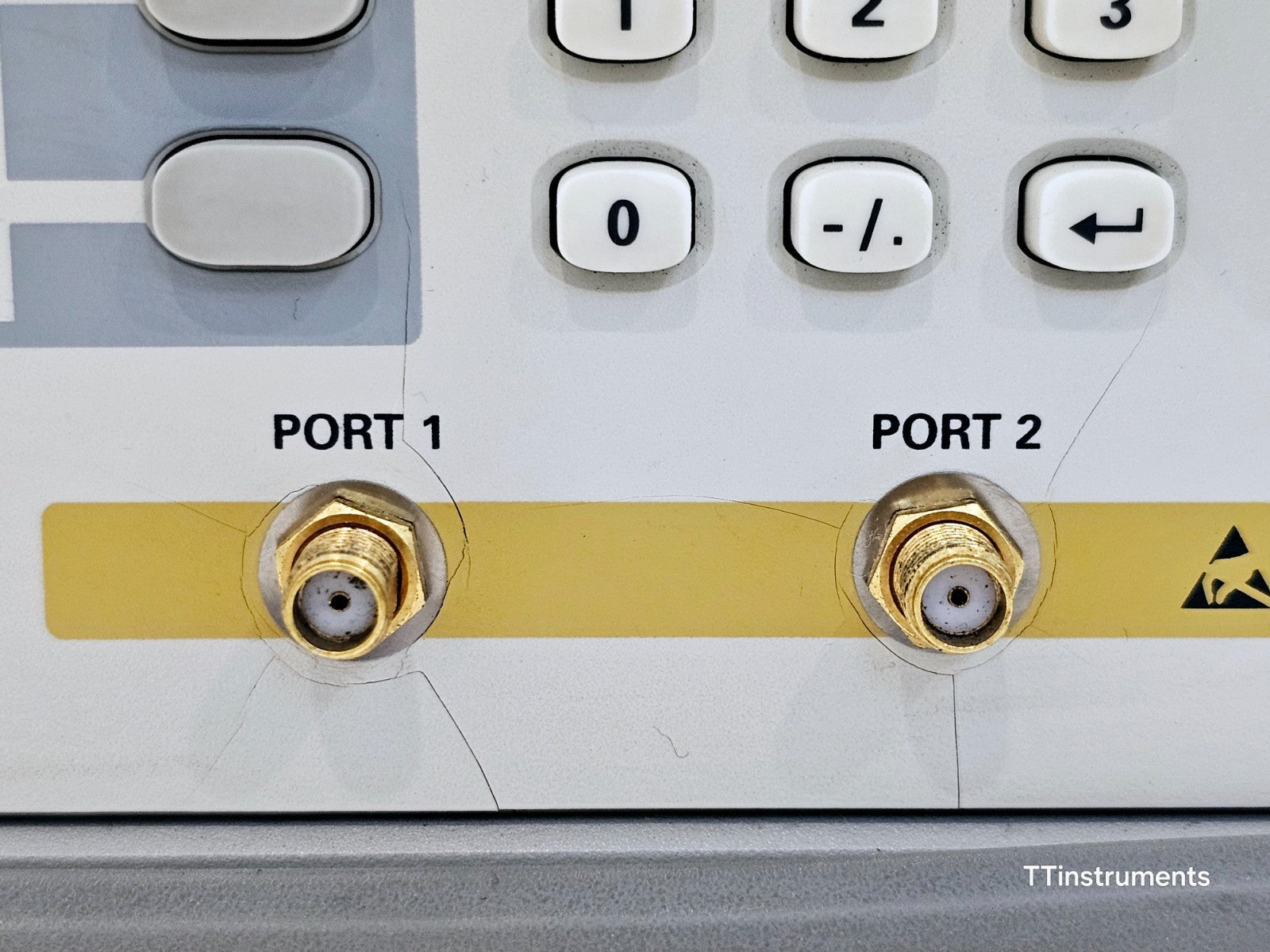

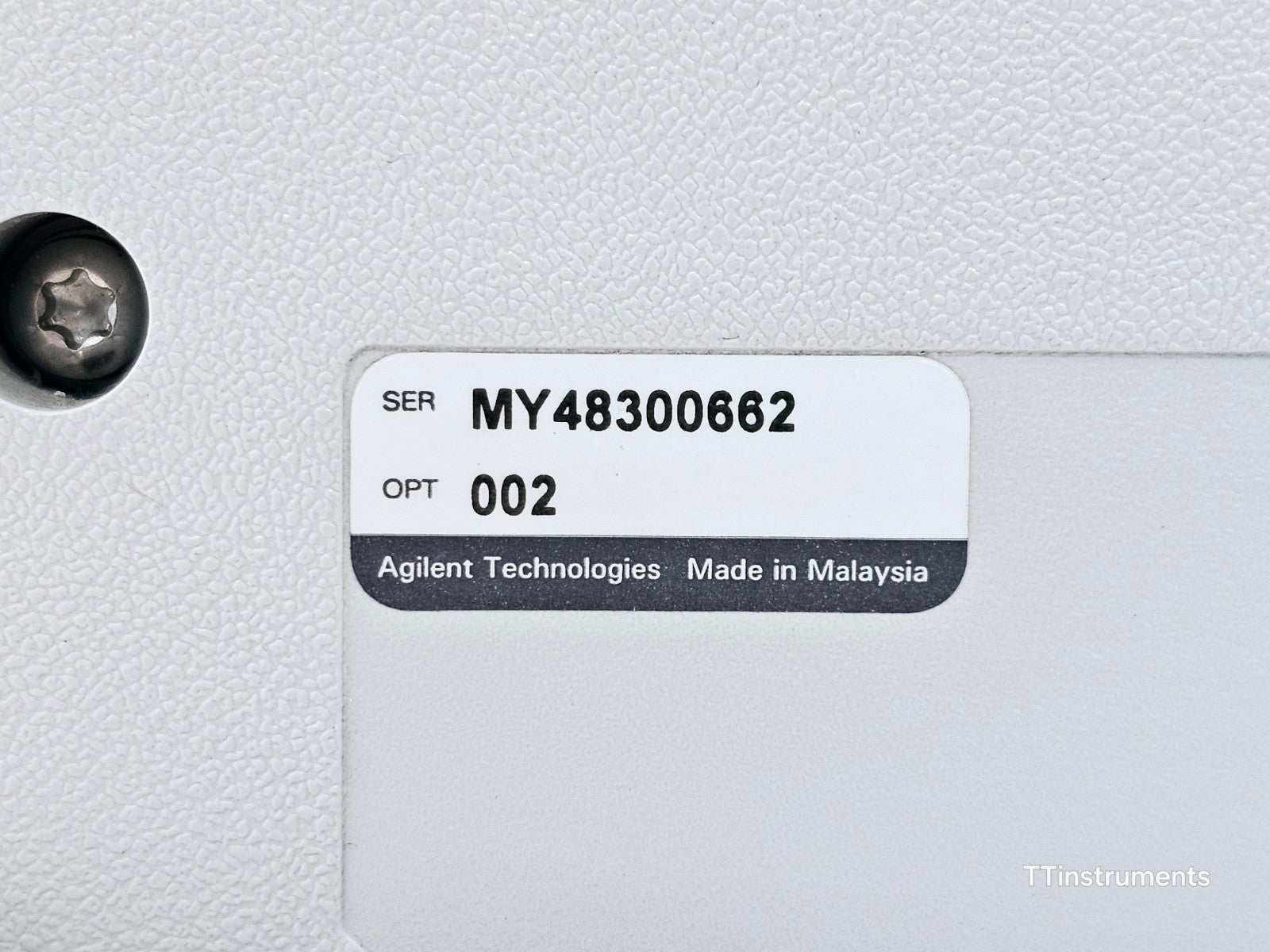

Tested and fully functional. Cosmetic imperfections are present but do not affect performance. This unit is fitted with Option 002 (SMA female connectors), as confirmed by the serial label (OPT: 002). Both SMA front-panel RF ports are present and in good condition.

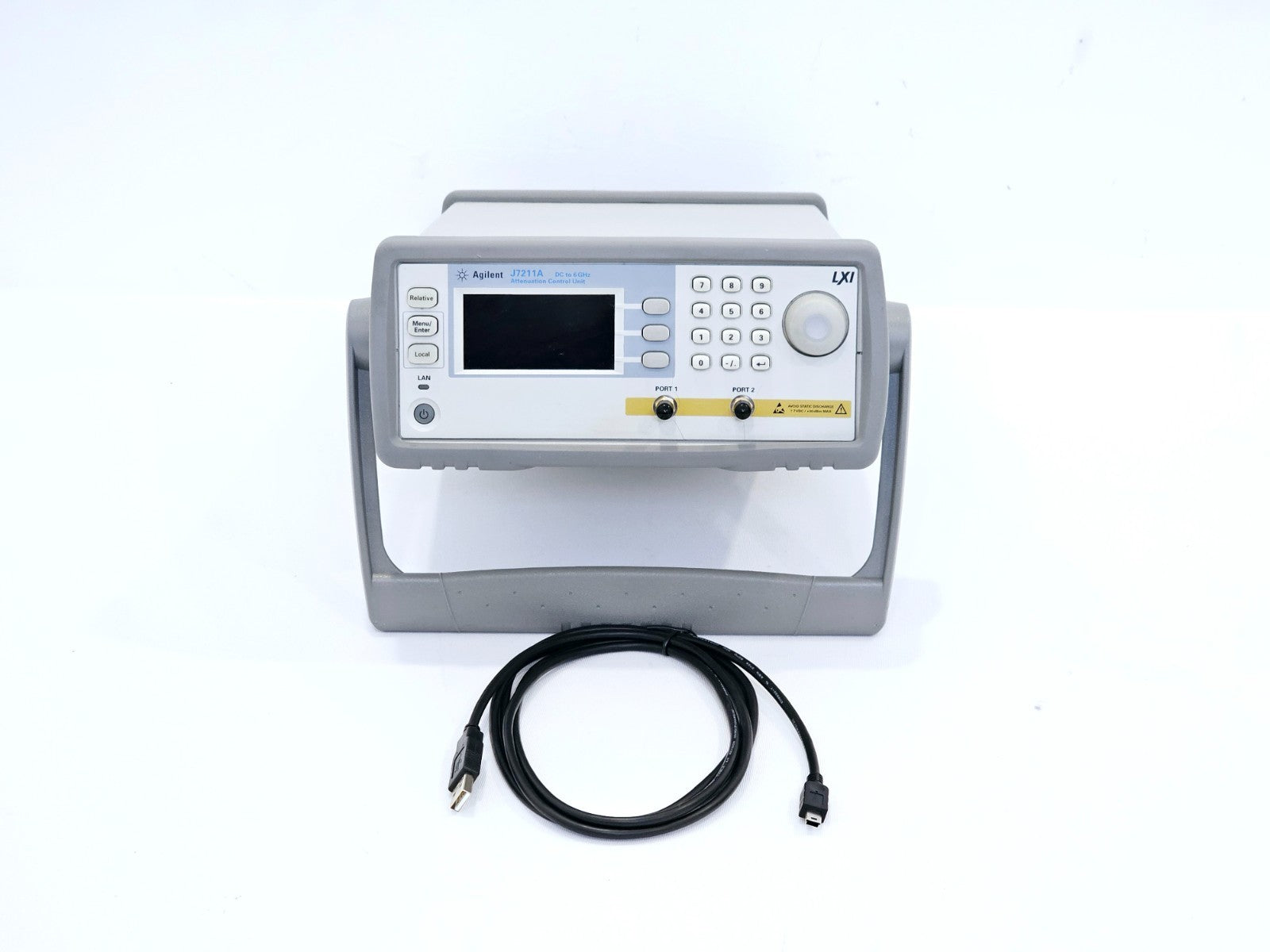

Included in the sale:
• Keysight Agilent J7211A Attenuation Control Unit (Option 002 — SMA (f) connectors)
• USB Mini-B cable

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

The Keysight (Agilent) J7211A is an integrated Attenuation Control Unit designed for R&D and manufacturing engineers in wireless communications, aerospace and defence, and electronic component test industries. Operating from DC to 6 GHz, it provides a wide attenuation range of 0 to 121 dB with a 1 dB step resolution. Its unique attenuation sweep function allows users to define start/stop attenuation levels, step size, dwell time, and the number of sweep cycles, making it ideal for handover testing and component characterisation.

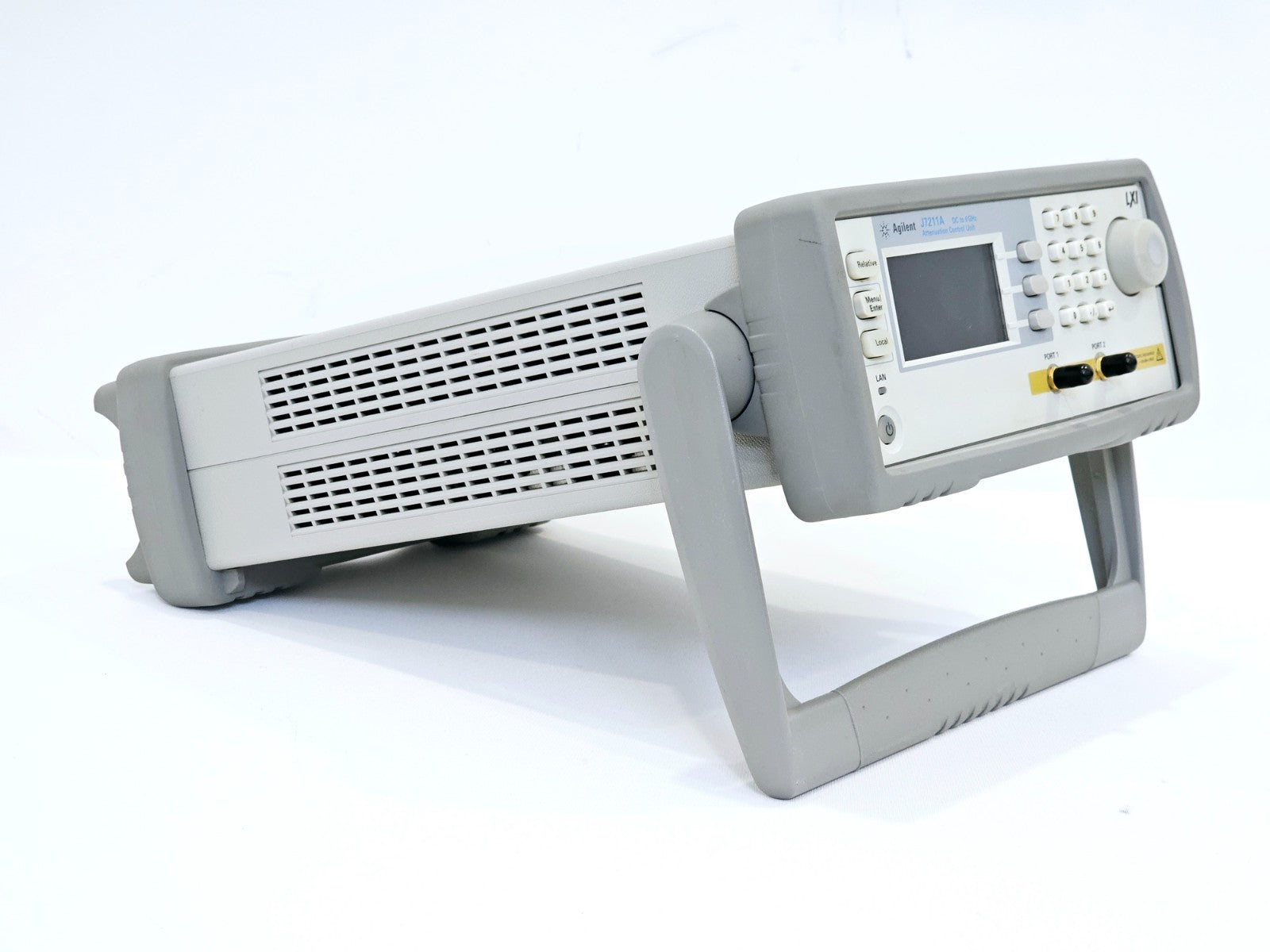

The J7211A is built in a compact half-rack, 2U form factor suitable for both benchtop and ATE rack integration. GPIB, USB, and LAN interfaces are all standard, with LXI Class C compliance enabling straightforward remote control and system integration.

Key Features:
• <0.03 dB insertion loss repeatability per section over 5 million cycles
• Excellent attenuation accuracy and flatness across the full frequency range
• Calibrated data correction displays the exact corrected attenuation value
• Attenuation sweep function with user-defined dwell time, step size, and number of cycles (up to 1000)
• Relative attenuation step function — set attenuation relative to any reference value
• LXI Class C compliant — GPIB, USB, and LAN connectivity

Technical Specifications:
Frequency Range: DC to 6 GHz
Attenuation Range: 0 to 121 dB
Attenuation Step Size: 1 dB
Insertion Loss Repeatability: <0.03 dB per section (over 5 million cycles)
Sweep Time: 50 ms to 10 s (50 ms increments)
Attenuation Cycles: 1 to 1000
Connector Type (Option 001): Type-N 50 ohm female
Connector Type (Option 002): SMA female
Impedance: 50 ohm

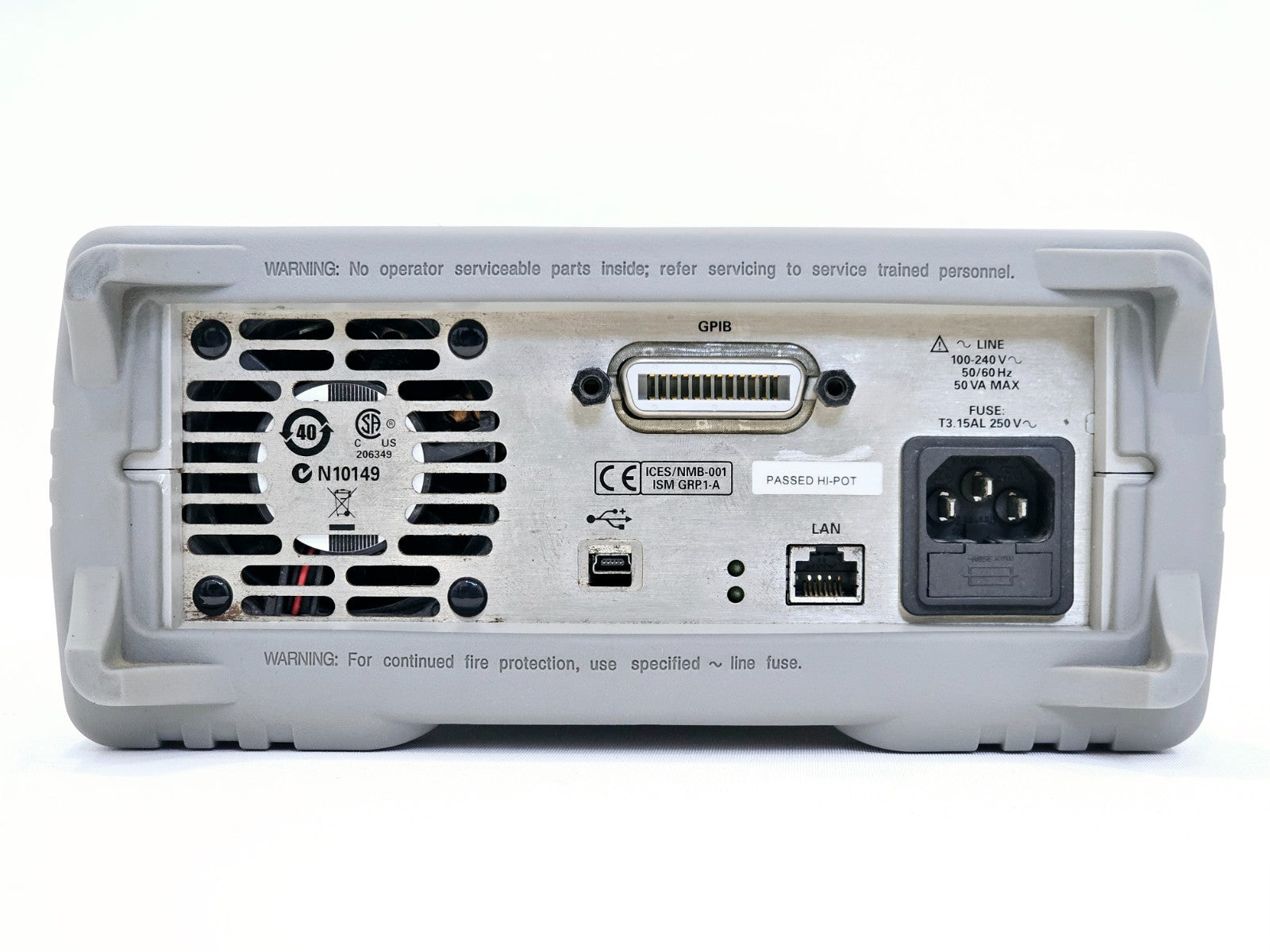

Remote Interfaces: GPIB, USB, LAN (LXI Class C)
Power Supply: 100 to 240 Vac, 50/60 Hz, 50 VA maximum (automatic selection)
Fuse: T3.15AL 250V
Form Factor: Half-rack, 2U

Typical Applications:
• WLAN and WiMAX component design and manufacturing test
• Mobile handset base transceiver station (BTS) handover testing
• Aerospace and defence receiver sensitivity and dynamic range testing
• Electronic component attenuation characterisation

J7211A/B/C Attenuation Control Units technical overview — specifications, features, and application information: Download PDF

J7211A/B/C Attenuation Control Unit Operating and Service Manual: Download PDF
