Condition: Used — Excellent condition.

The Keysight Agilent E4991B-010 is a probe station connection kit (Option 010) for the E4991B impedance analyser, providing an accurate on-wafer or micro-component impedance measurement solution up to 3 GHz. The kit replaces the standard furnished test head with a compact test head that connects via an extended 7-mm port, maintaining guaranteed impedance measurement specifications at the port end — avoiding the accuracy degradation typically associated with cable extensions. The small form factor of the test head allows it to be positioned close to the probe station, minimising measurement error introduced by the extended connection.

Please note: a probe station and probe heads must be purchased separately. This kit is compatible with any probe station; the Cascade Microtech probe station is recommended.

Supplied items:

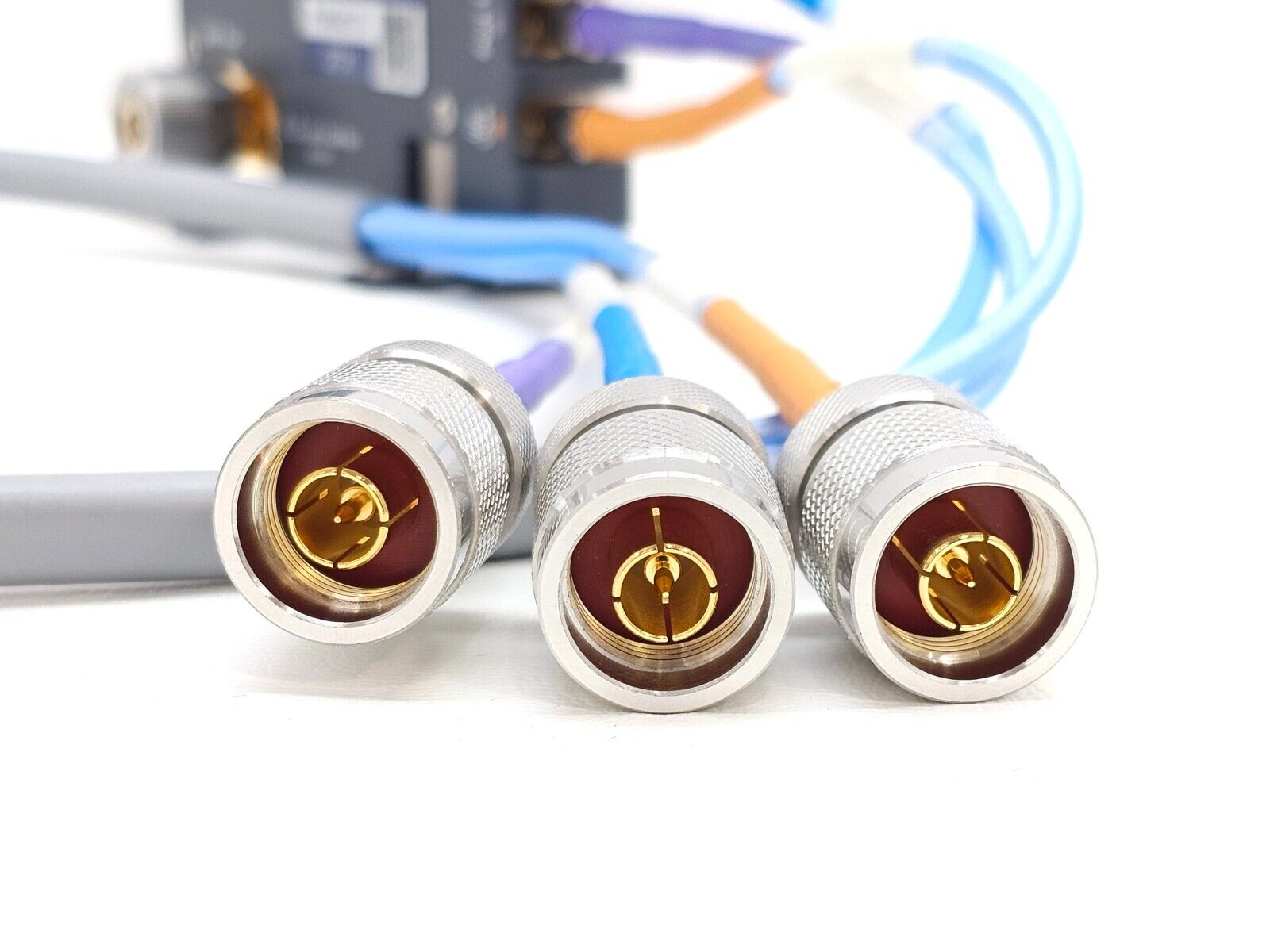

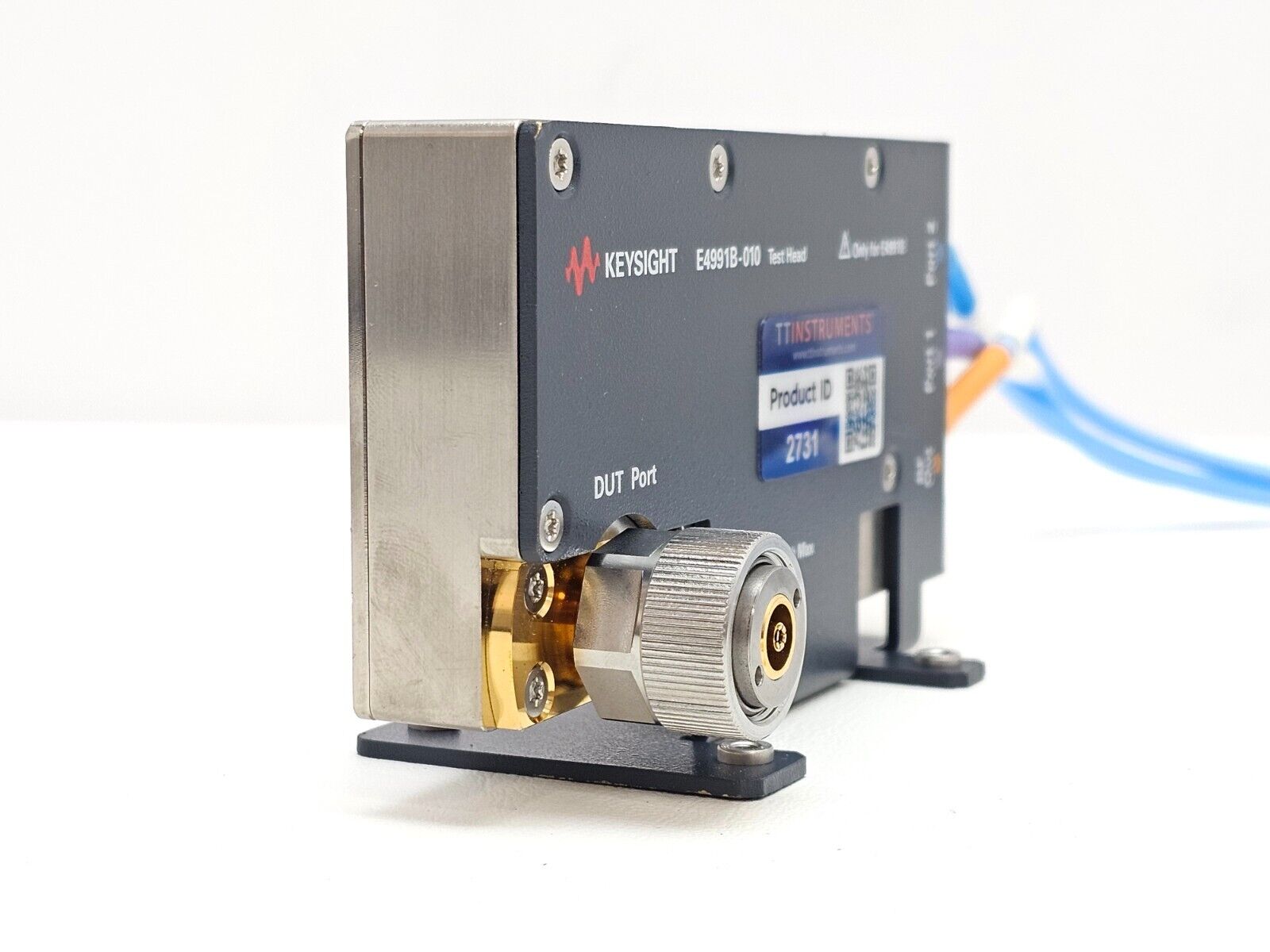

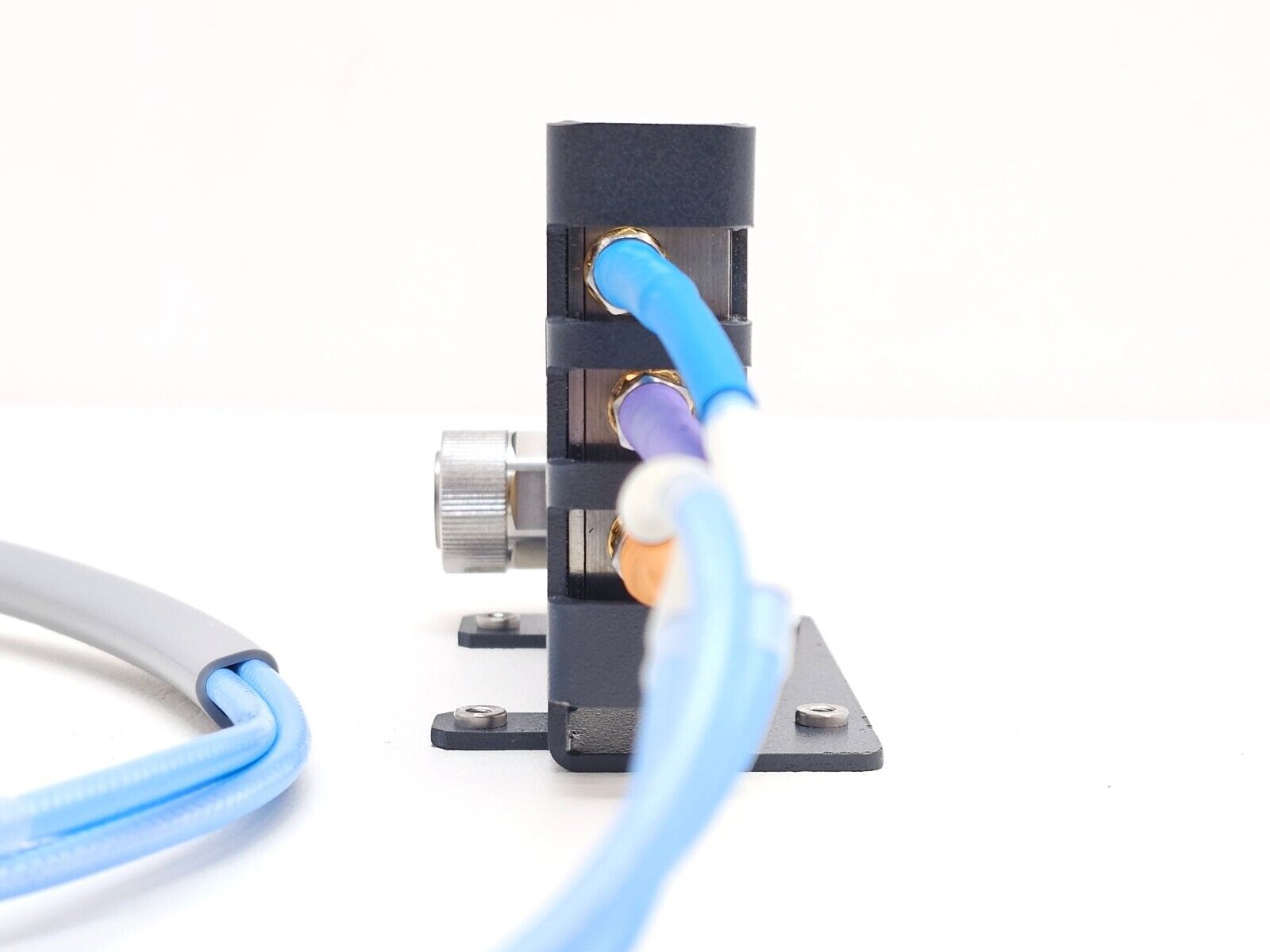

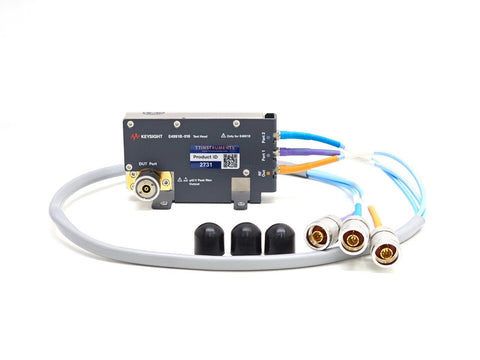

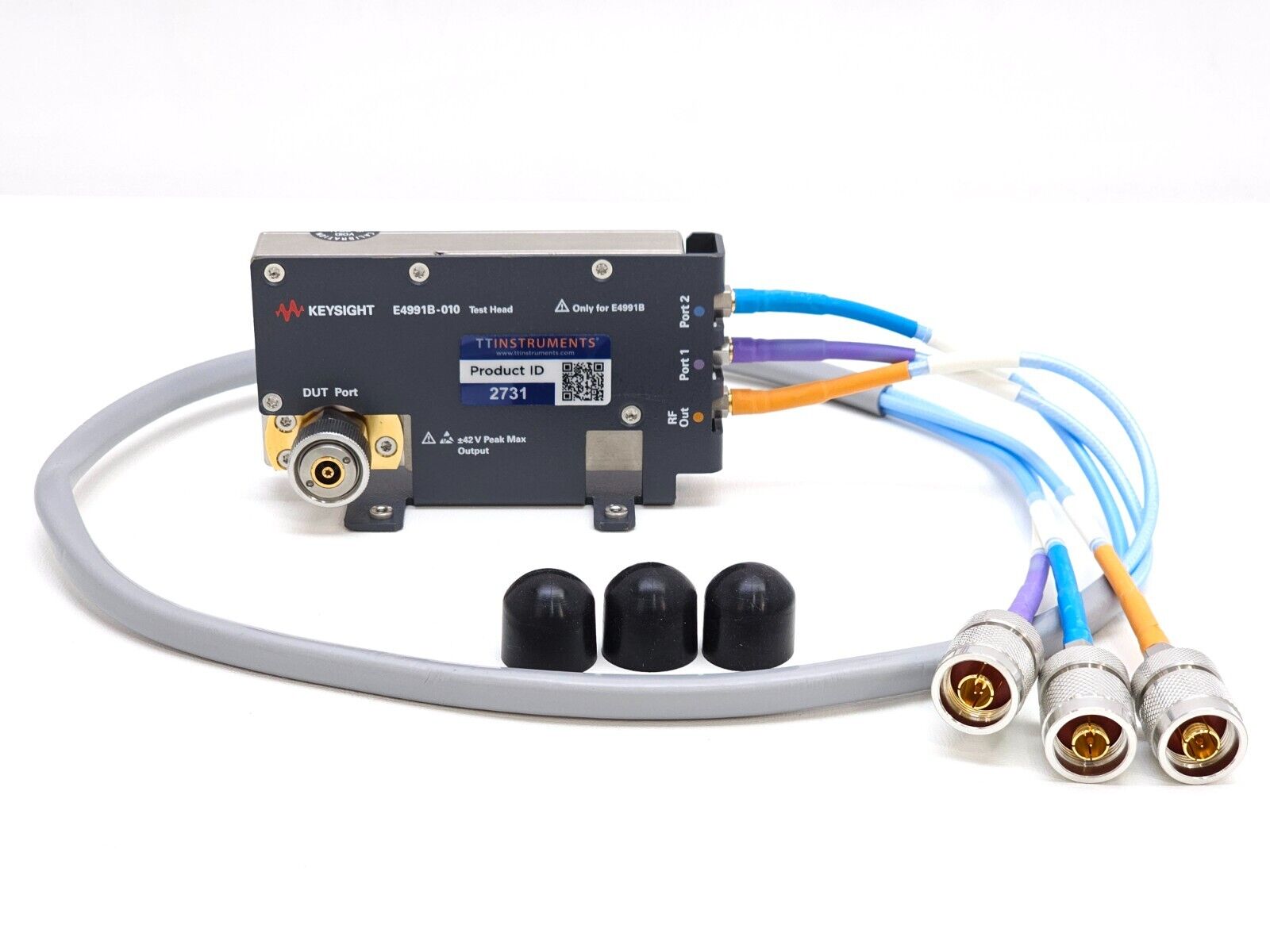

• E4991B-010 probe station connection kit test head (as pictured)

No additional accessories are included. The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Keysight E4991B with Option 010 probe station connection kit provides an accurate on-wafer or micro-component impedance measurement solution up to 3 GHz. A compact test head replaces the standard furnished test head, connecting to the E4991B via an extended 7-mm coaxial port.

The E4991B with Option 010 carries a guaranteed impedance measurement specification at the end of the extended 7-mm test head port. This is critical for accurate impedance measurements, as port extensions typically degrade measurement accuracy — particularly when cable characteristics are not tightly controlled. The supplied extension cables and dedicated test head are engineered to solve this problem.

The compact test head can be positioned close to the probe station, minimising the measurement error introduced by the additional connection length. This makes the kit well suited to on-wafer device characterisation, MEMS, passive component evaluation, and other microwave impedance measurement applications.

A probe station and probe heads must be purchased separately. The kit is compatible with any probe station, though the Cascade Microtech probe station is recommended for best results.

Key Specifications:
Frequency Range: DC to 3 GHz
Test Port Connector: 7-mm coaxial (extended test head port)
Measurement Type: Impedance (|Z|, R, X, |Y|, G, B, L, C, D, Q, θ)
Compatibility: Keysight E4991B Impedance Analyser
Probe Station Compatibility: Universal (Cascade Microtech recommended)
Option: 010 — Probe Station Connection Kit

For the manufacturer datasheet, please click here
