Condition: Used

The Keysight Agilent E2649-68705 is a specialist USB droop and drop test fixture used in conjunction with Keysight oscilloscopes and USB compliance test systems. It is designed to facilitate precise measurement of USB power rail droop and drop characteristics as part of USB electrical compliance testing workflows.

Included in the sale:
• Keysight Agilent E2649-68705 USB Droop Drop Test Fixture (as pictured)

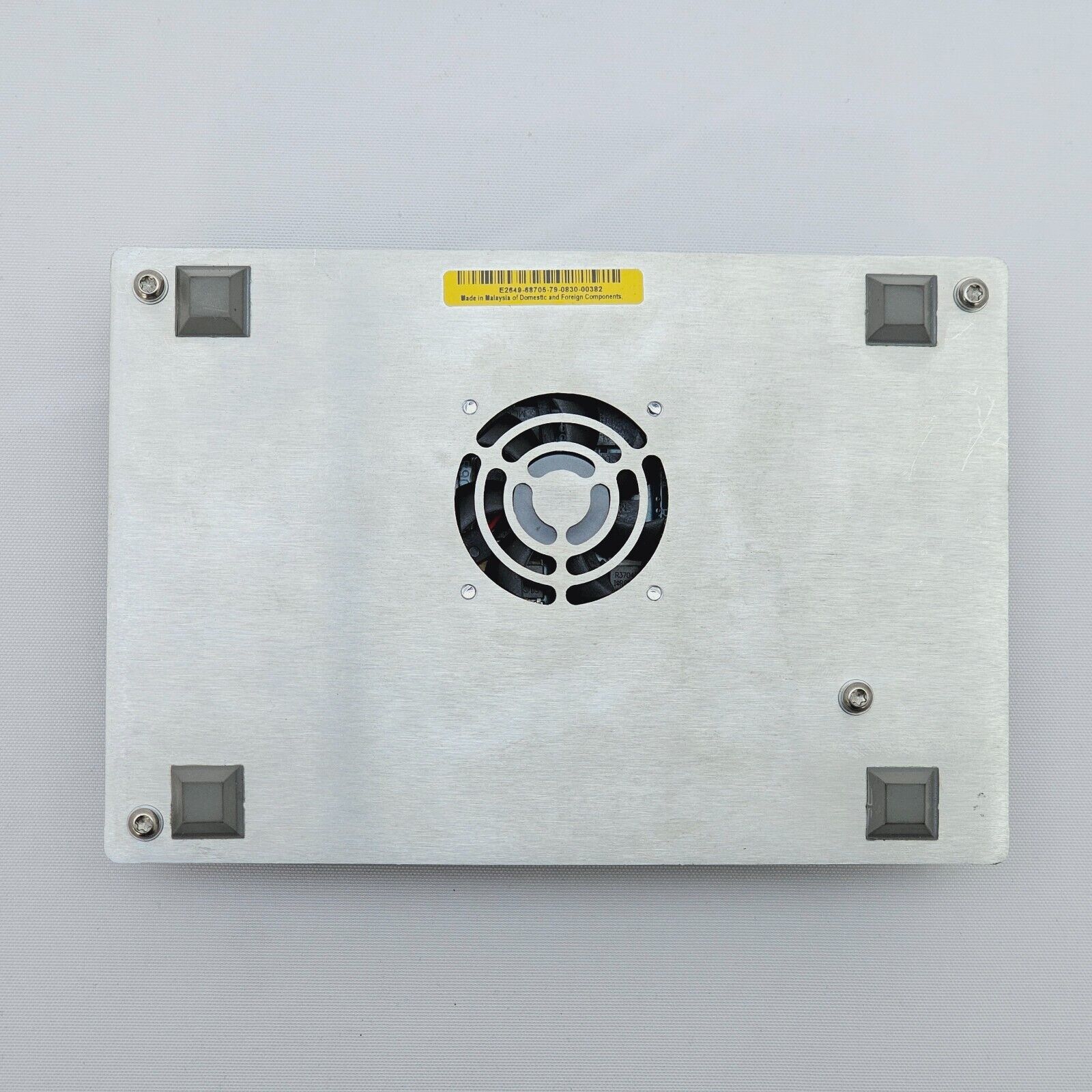

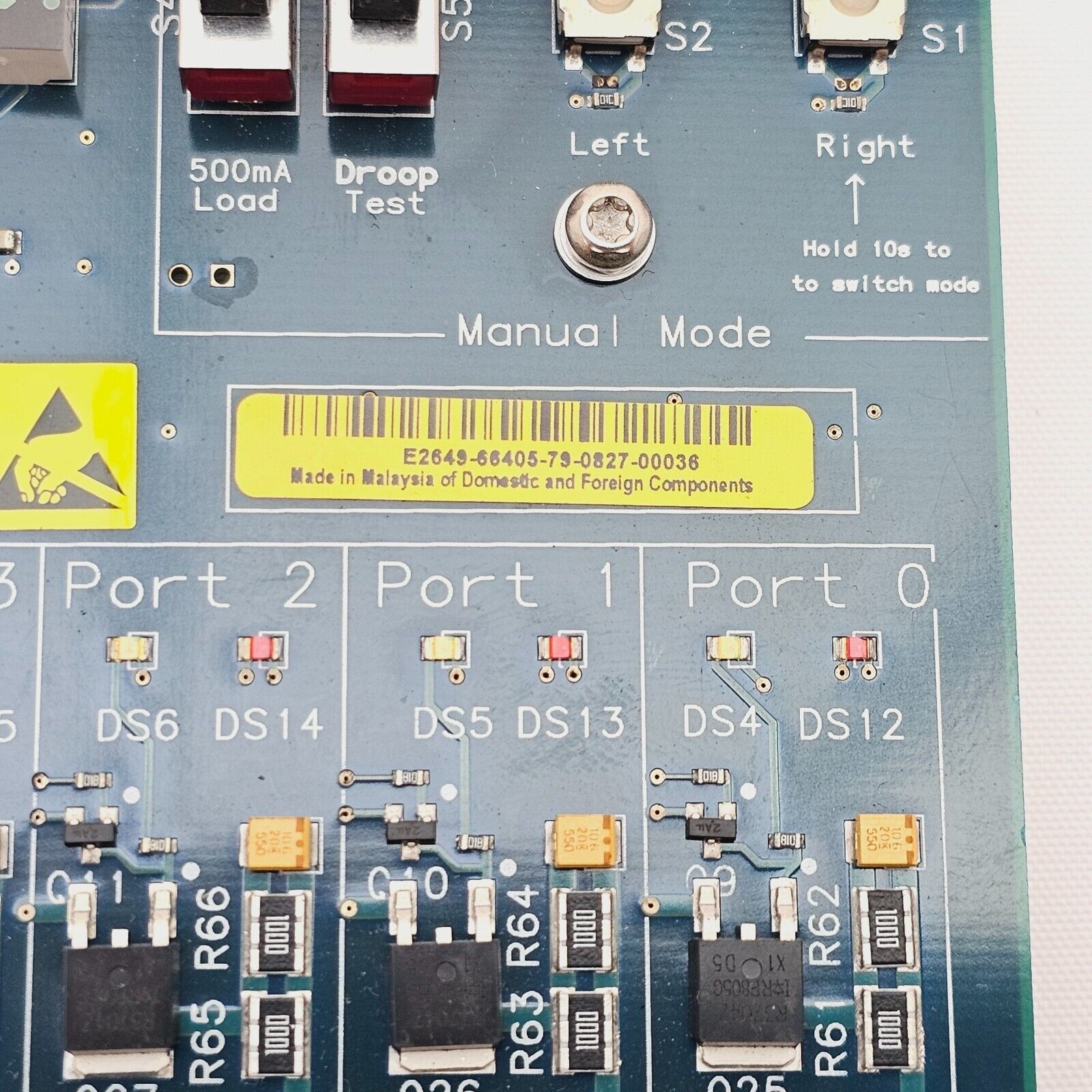

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Keysight (Agilent) E2649-68705 is a USB droop and drop test fixture designed to support USB compliance testing, specifically targeting power rail characterisation. It is used in combination with Keysight oscilloscopes and associated USB test software to perform droop and drop measurements that are required as part of the USB Implementers Forum (USB-IF) compliance test specification.

This fixture provides a standardised interface between the device under test and the measurement instrument, ensuring repeatable and accurate power delivery transient measurements. It is a key accessory for engineers performing USB 2.0 electrical compliance testing.

Product Type: USB Droop and Drop Test Fixture
Manufacturer: Keysight Technologies (formerly Agilent Technologies)
Model Number: E2649-68705
Application: USB power rail droop and drop compliance testing
Compatibility: Keysight/Agilent USB compliance test systems and oscilloscopes
Standard: USB-IF electrical compliance test specification

Please refer to the Keysight manufacturer website for full technical specifications and compatibility information.
