Condition: New other (see details)

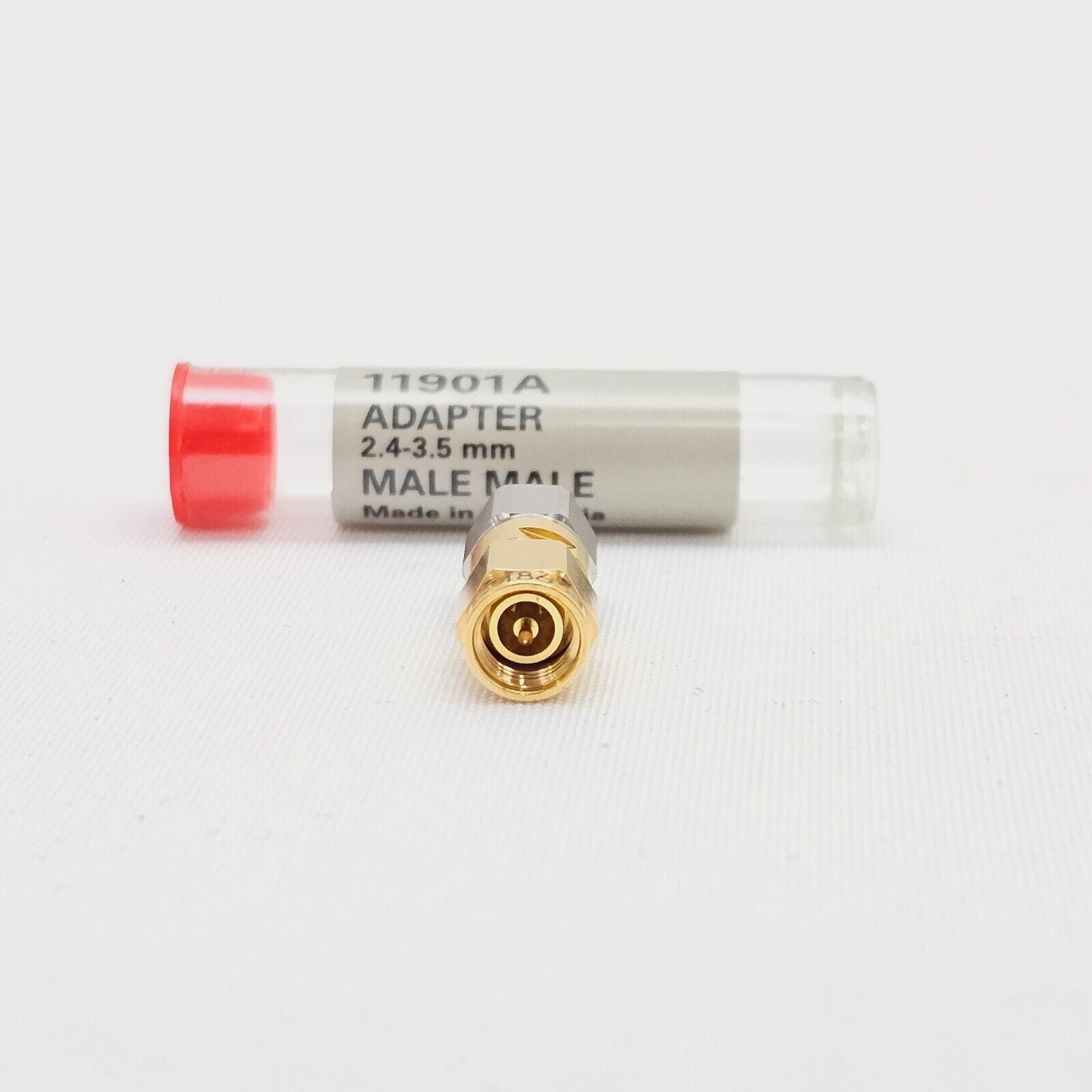

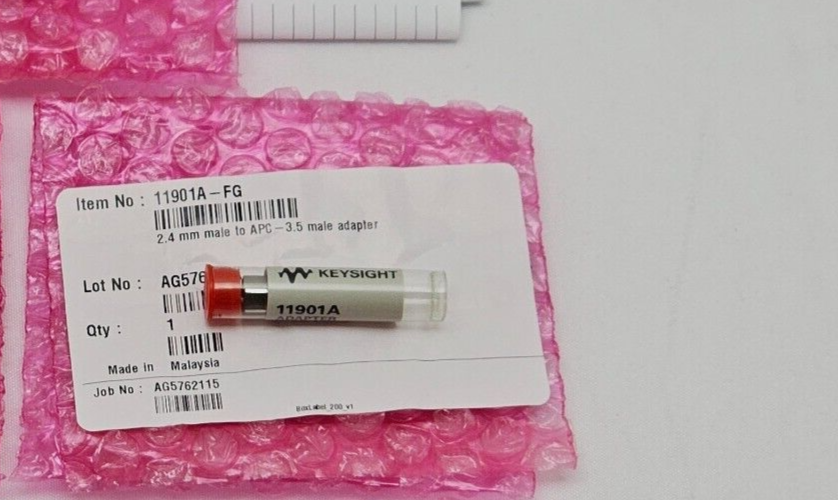

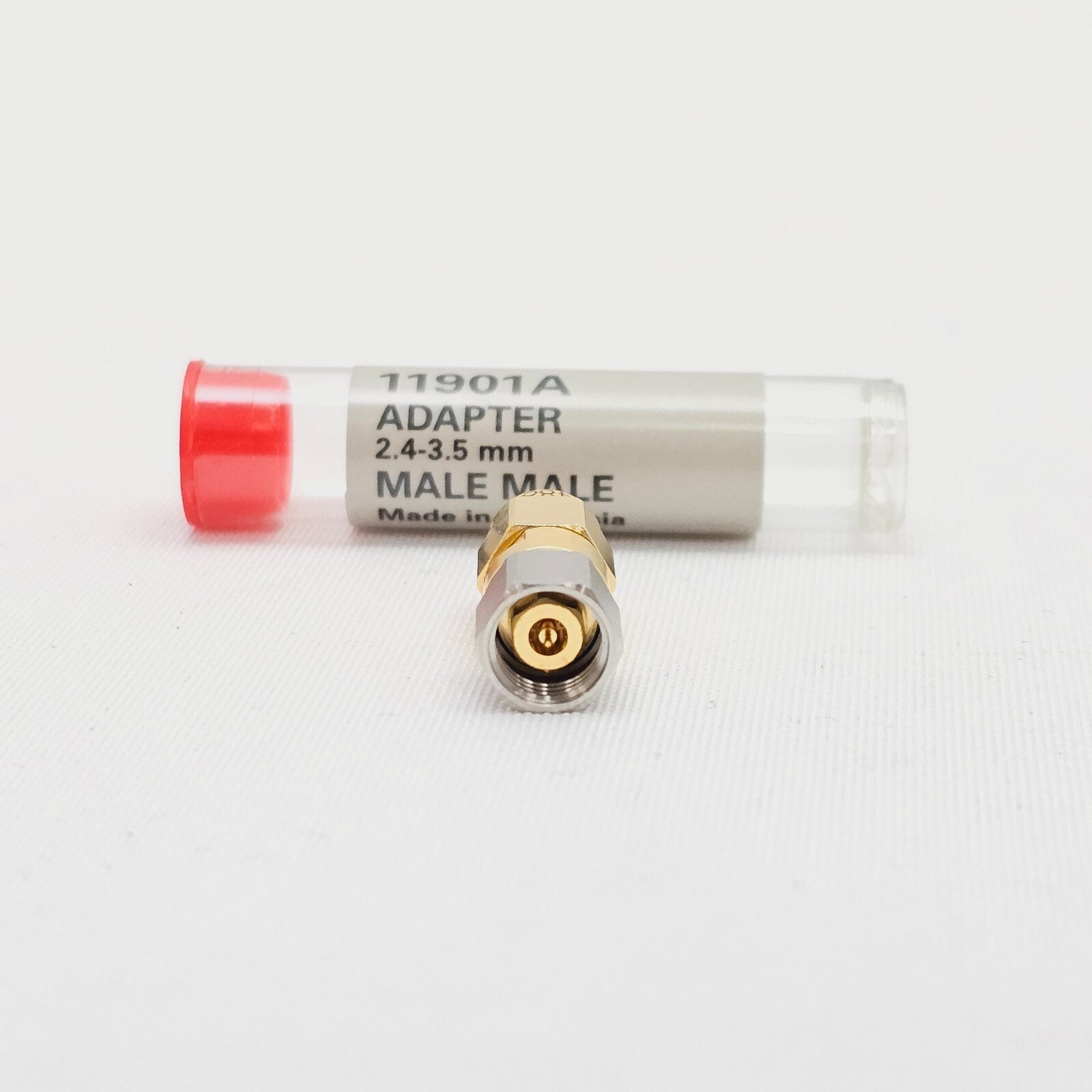

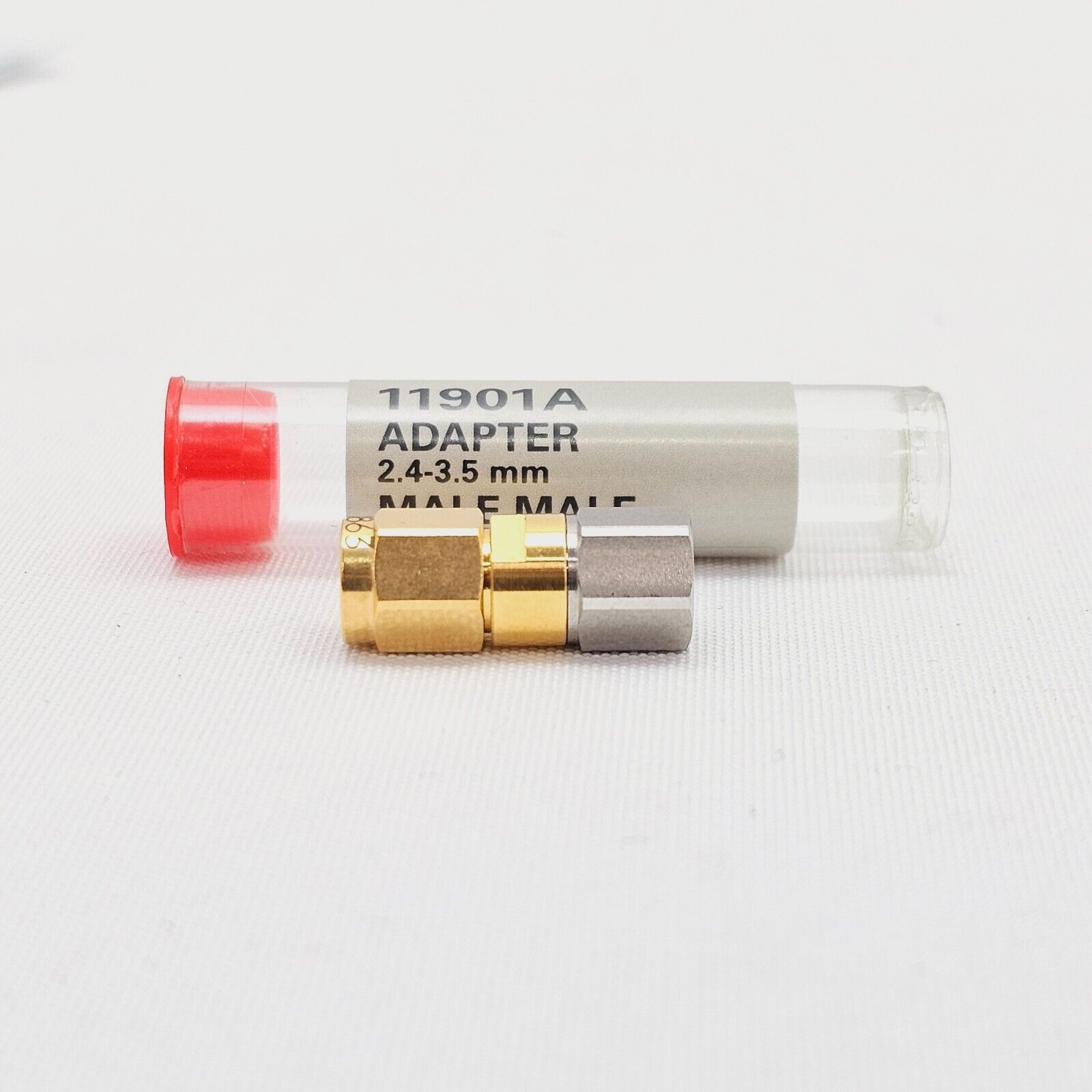

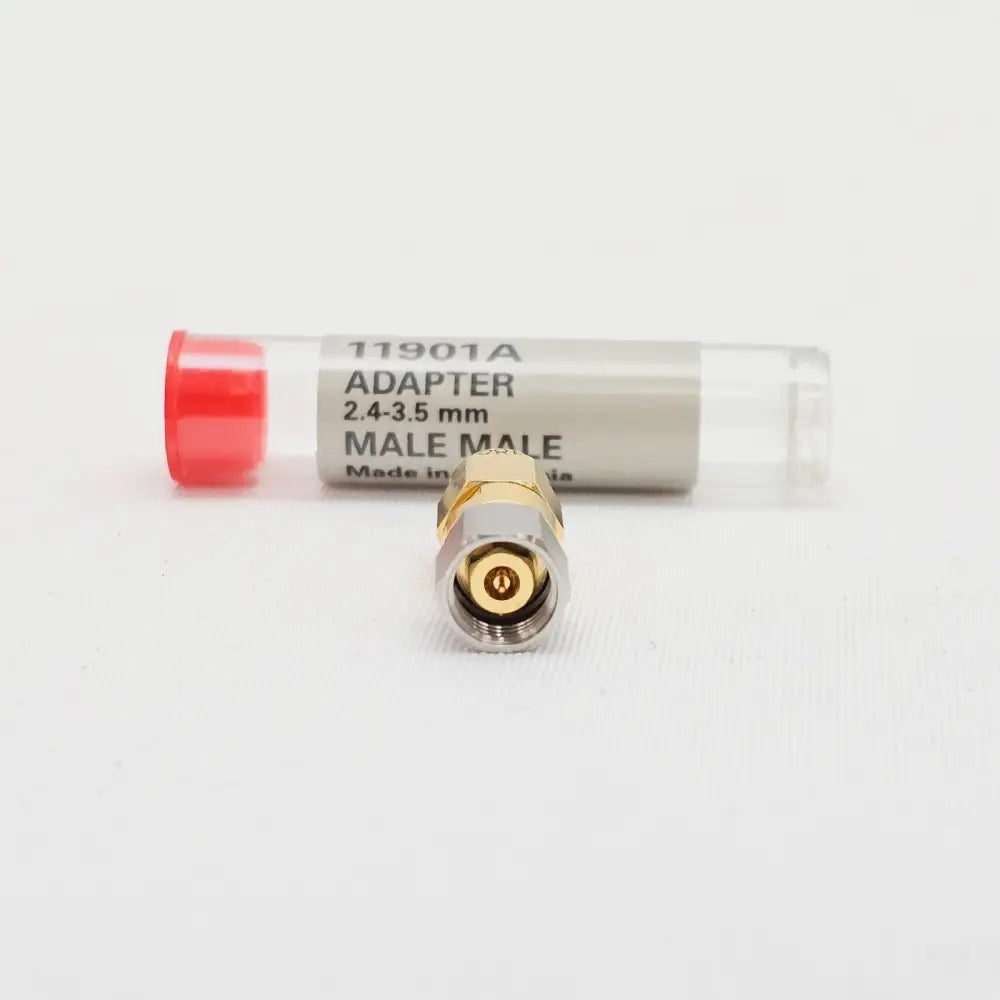

Keysight 11901A 2.4 mm male to APC-3.5 mm male metrology-grade coaxial adapter. Supplied in its original labelled protective tube (red-capped), appearing unused and in like-new condition. Made in Malaysia. Item number 11901A-FG.

Included in the sale:
• 1 x Keysight 11901A 2.4 mm male to APC-3.5 mm male adapter
• Original Keysight protective storage tube with red cap

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

The Keysight 11901A is a 2.4 mm male to 3.5 mm (APC-3.5) male metrology-grade coaxial adapter, designed for use in precision RF and microwave test environments where the highest levels of performance and repeatability are required. It enables seamless interfacing between instruments and devices using 2.4 mm and 3.5 mm connector interfaces, making it ideal for vector network analyser (VNA) setups, signal path connections, and calibration applications across the DC to 26.5 GHz frequency range.

Metrology-grade quality ensures this adapter is suited to the most demanding calibration and measurement applications, where connector repeatability and low reflection are critical. The 2.4 mm connector is mechanically compatible with 1.85 mm connectors, adding further versatility to the adapter's use in high-frequency test systems.

Specifications:
Connector Type (Port 1): 2.4 mm male
Connector Type (Port 2): 3.5 mm (APC-3.5) male
Frequency Range: DC to 26.5 GHz
Return Loss (minimum): > 26 dB
Repeatability: -54 dB
Overall Length (nominal): 20.9 mm (0.82 in)
Ref. Plane to Ref. Plane Length (nominal): 16.1 mm (0.63 in)
Diameter (nominal): 9.0 mm (0.35 in)
Grade: Metrology
Country of Manufacture: Malaysia
Series: 11900 Series

Keysight RF and Microwave Test Accessories Catalog — includes 11901A specifications and adapter selection guide: Download PDF

Keysight RF and Microwave Test Accessories Catalog (third-party hosted) — full specifications table including 11901A: Download PDF
