Condition: Used

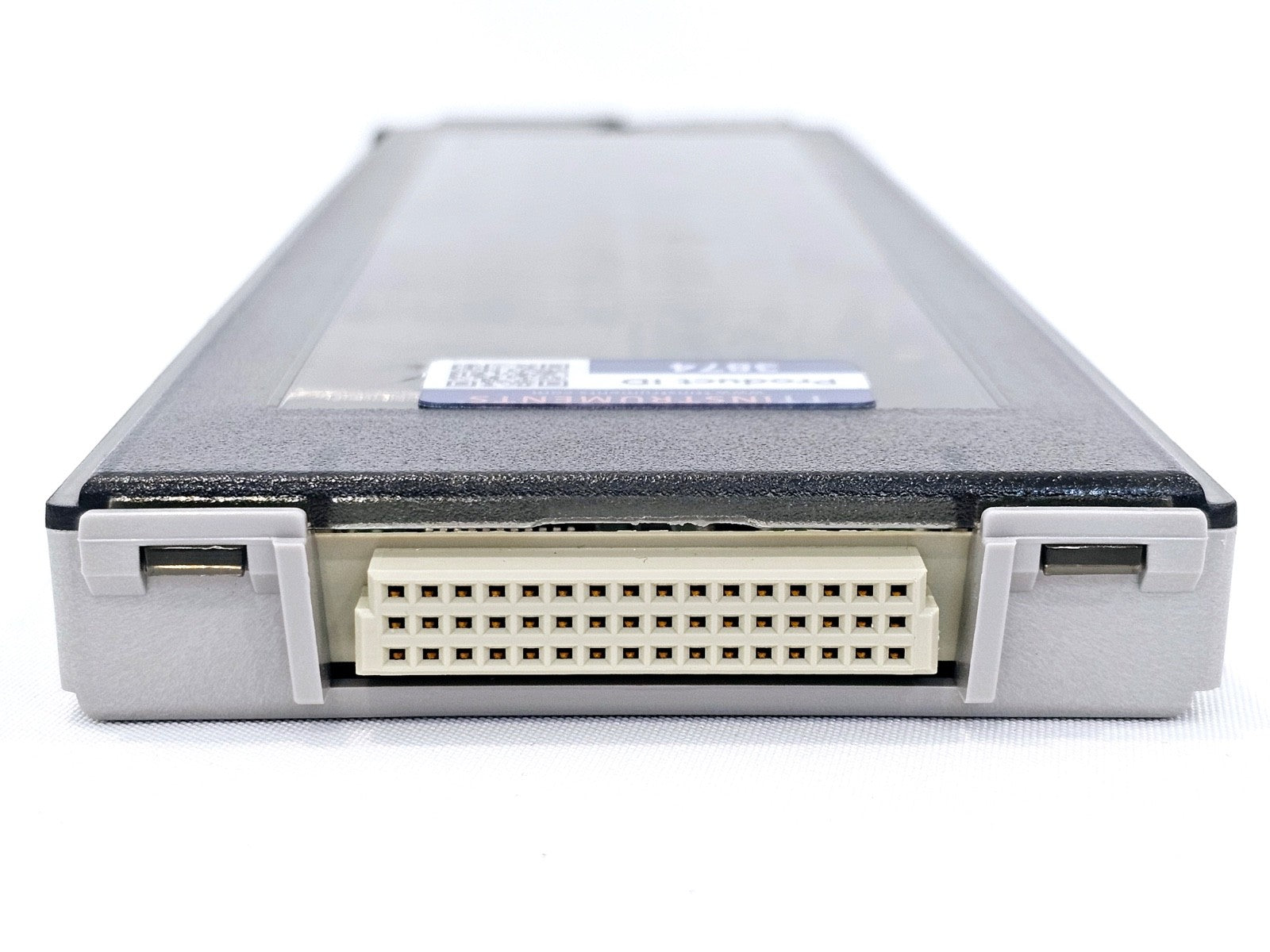

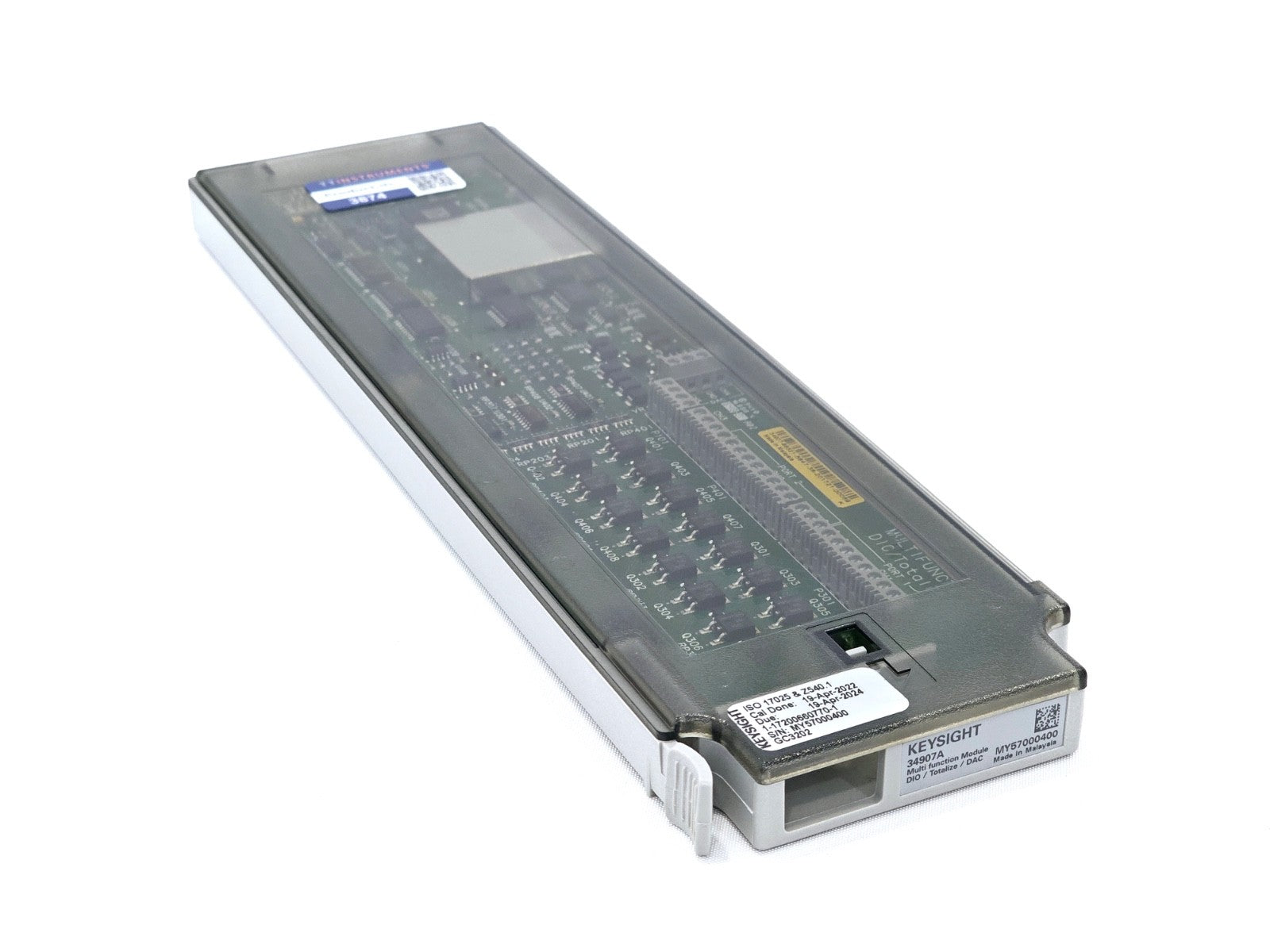

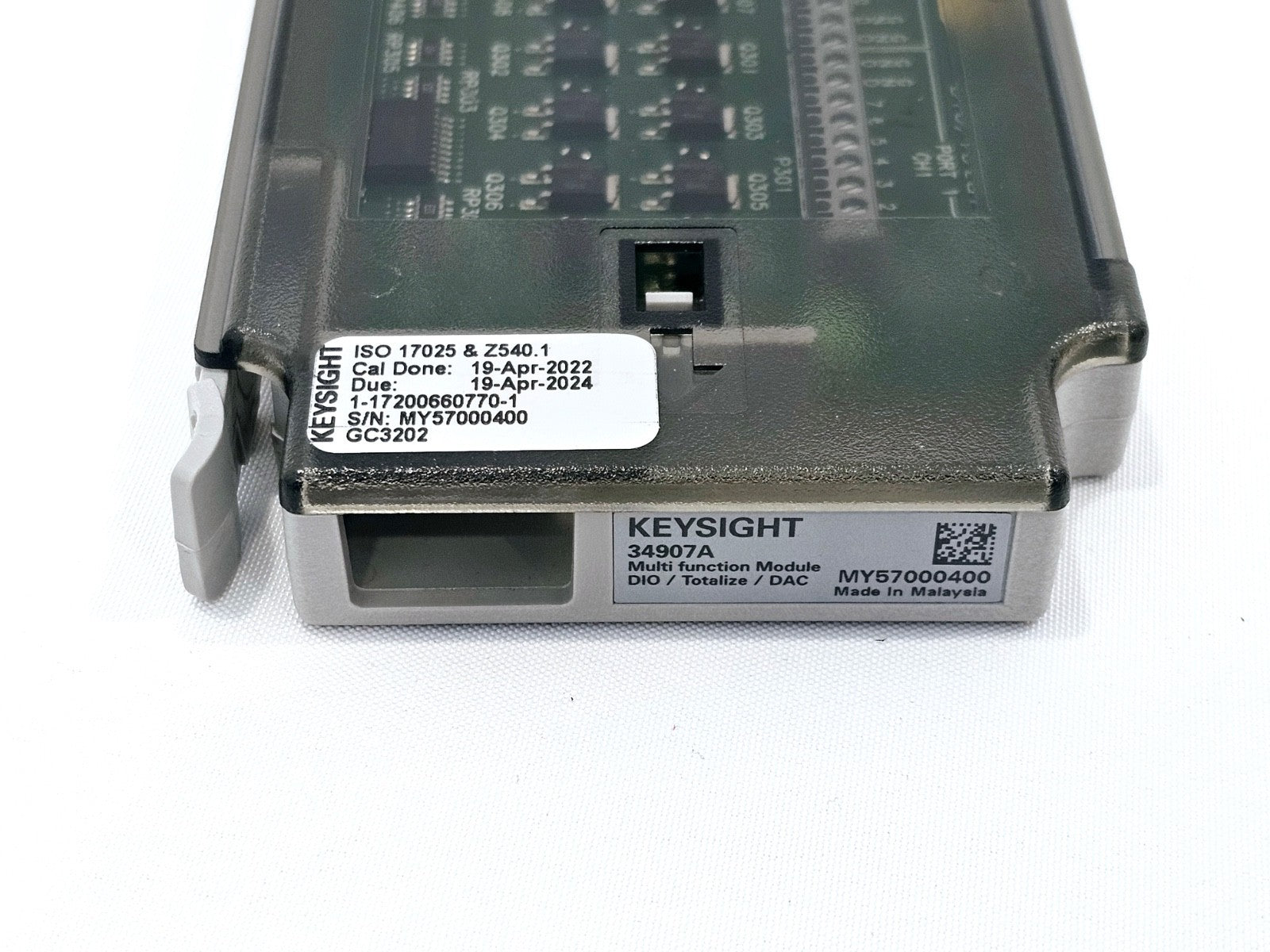

The Keysight 34907A is a multifunction plug-in module for the 34970A data acquisition/switch unit. It provides two 8-bit digital I/O ports, a 100 kHz totalizer input, and two ±12 V analogue outputs. Digital inputs and the totalizer can be scanned and alarmed, enabling simple sense and control tasks without external hardware. The module is earth-referenced and suited to flexible automation and monitoring applications.

Included in the sale:
• Keysight 34907A multifunction module (DIO / Totalize / DAC)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

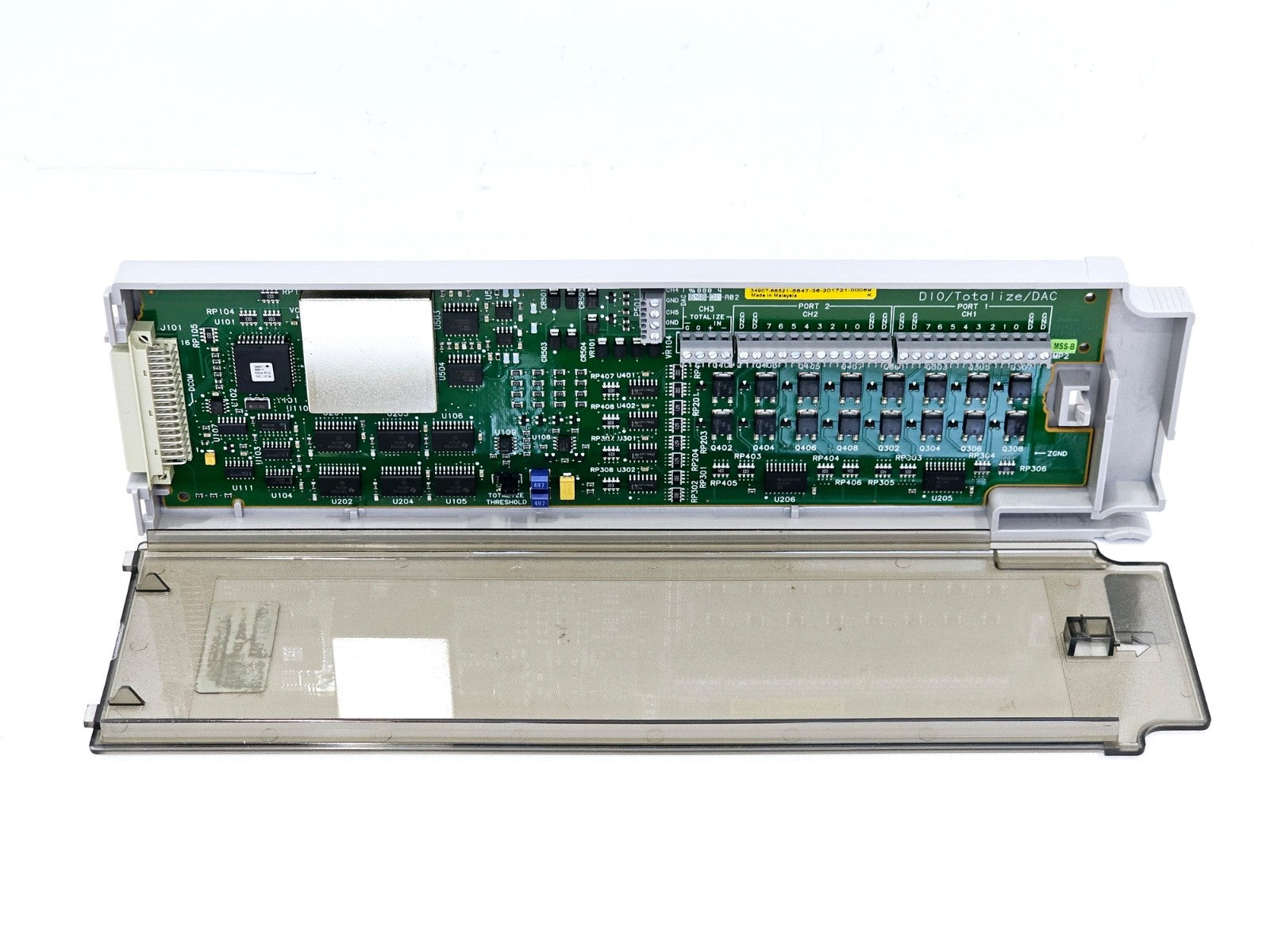

The Keysight (formerly Agilent) 34907A is a multifunction plug-in module designed for use with the 34970A Data Acquisition/Switch Unit. It occupies a single slot and provides a combination of digital I/O, totalising, and analogue output capabilities in one compact module, reducing the need for external signal conditioning hardware.

Key features include two independently configurable 8-bit digital I/O ports (TTL/CMOS compatible), a 100 kHz gated totalizer with threshold-configurable input, and two 16-bit ±12 V analogue output (DAC) channels. Digital input ports and the totalizer channel can be included in the instrument scan list, with threshold-based alarm outputs assignable to the 34970A alarm outputs. The DAC outputs are earth-referenced and can be used to drive setpoints, actuators, or analogue control signals.

Specifications:
Digital I/O Ports: 2 × 8-bit (16 channels total)
I/O Logic Levels: TTL/CMOS compatible
Totalizer Input: 1 channel, max 100 kHz
Totalizer Count Range: 0 to 2^26 (67,108,864)
Analogue Output (DAC) Channels: 2
DAC Output Range: ±12 V
DAC Resolution: 16-bit
DAC Output Current: ±10 mA max
Reference: Earth-referenced
Compatible Mainframes: Keysight/Agilent 34970A
Form Factor: Single plug-in module

Product datasheet
