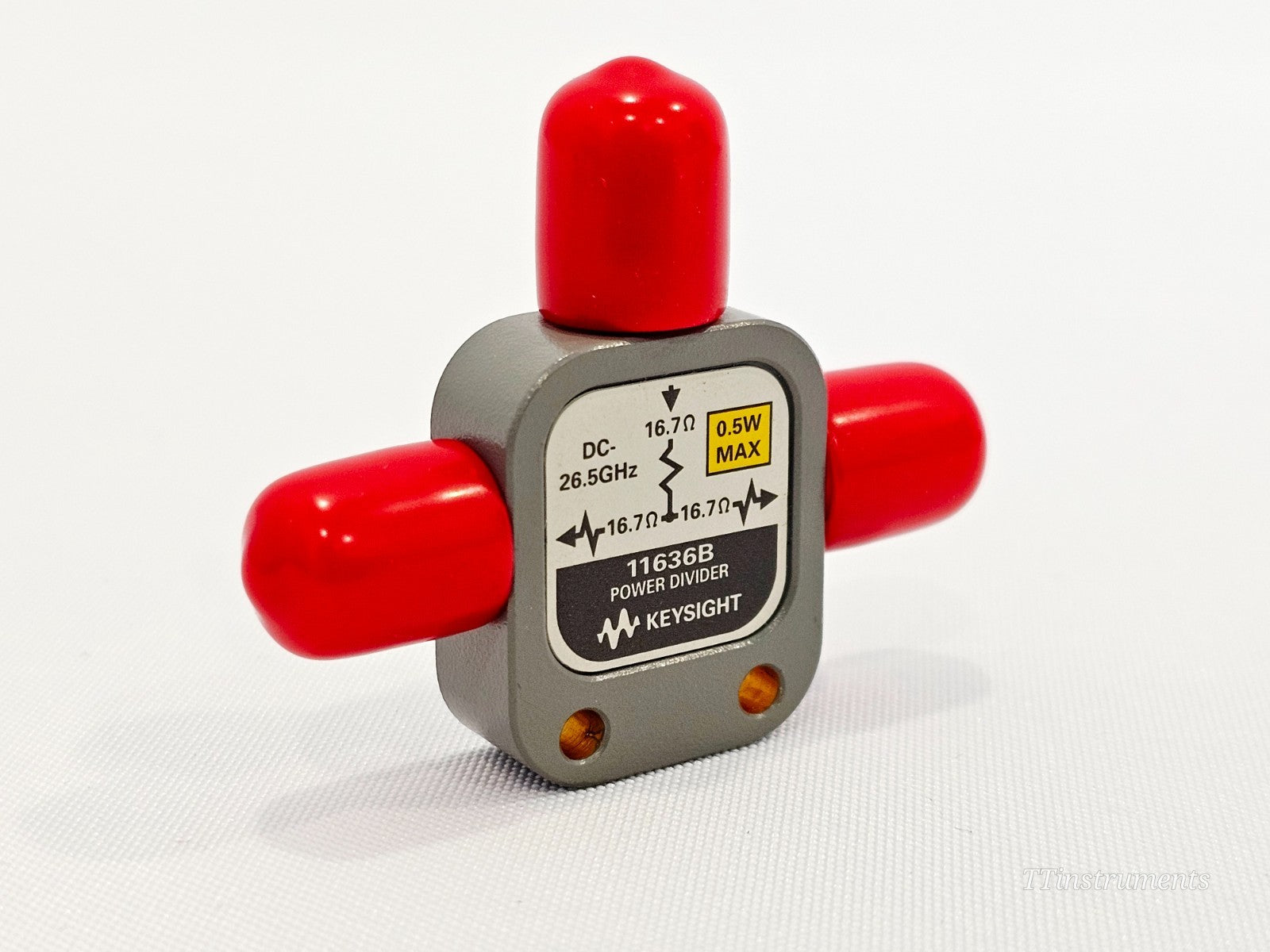

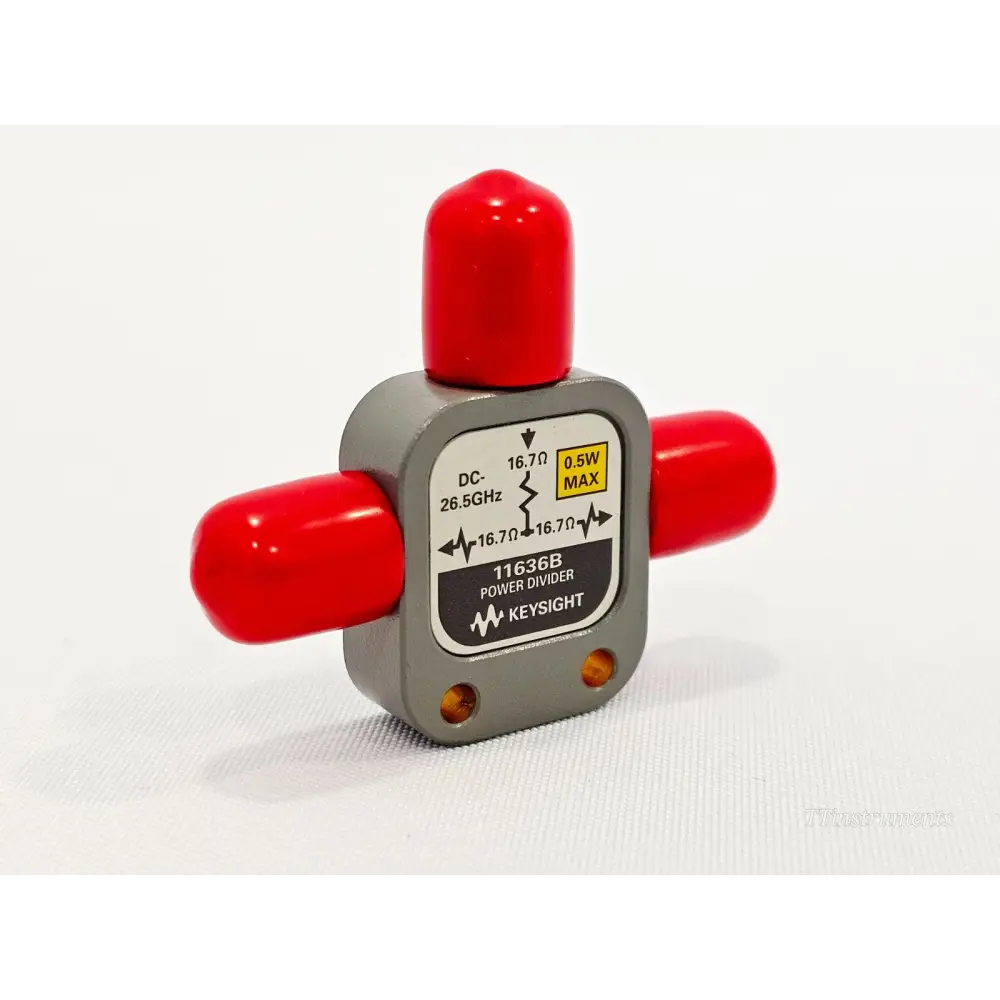

Keysight 11636B Power Divider front label view showing DC-26.5GHz, 16.7Ω, 0.5W MAX, red port caps fitted

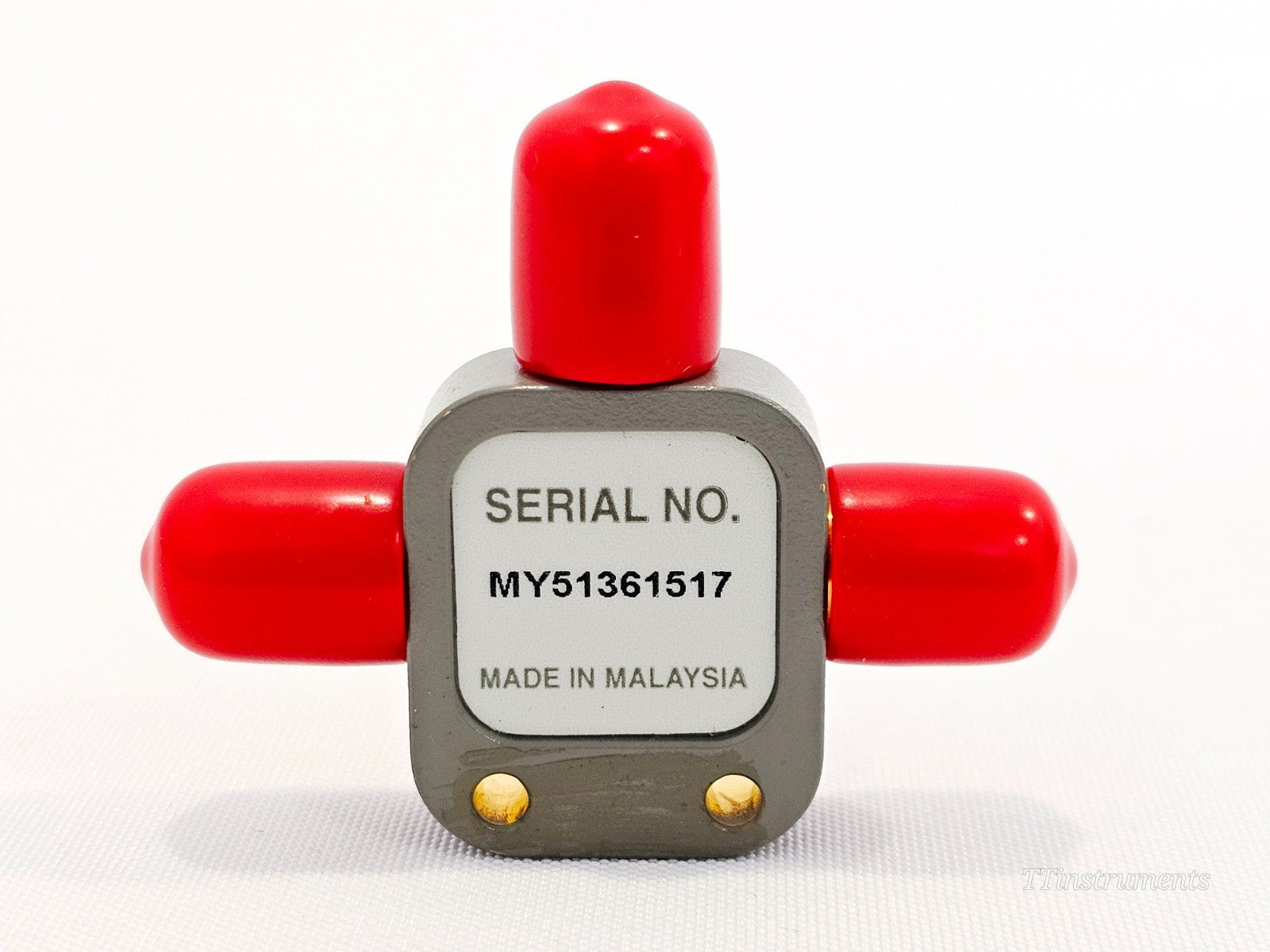

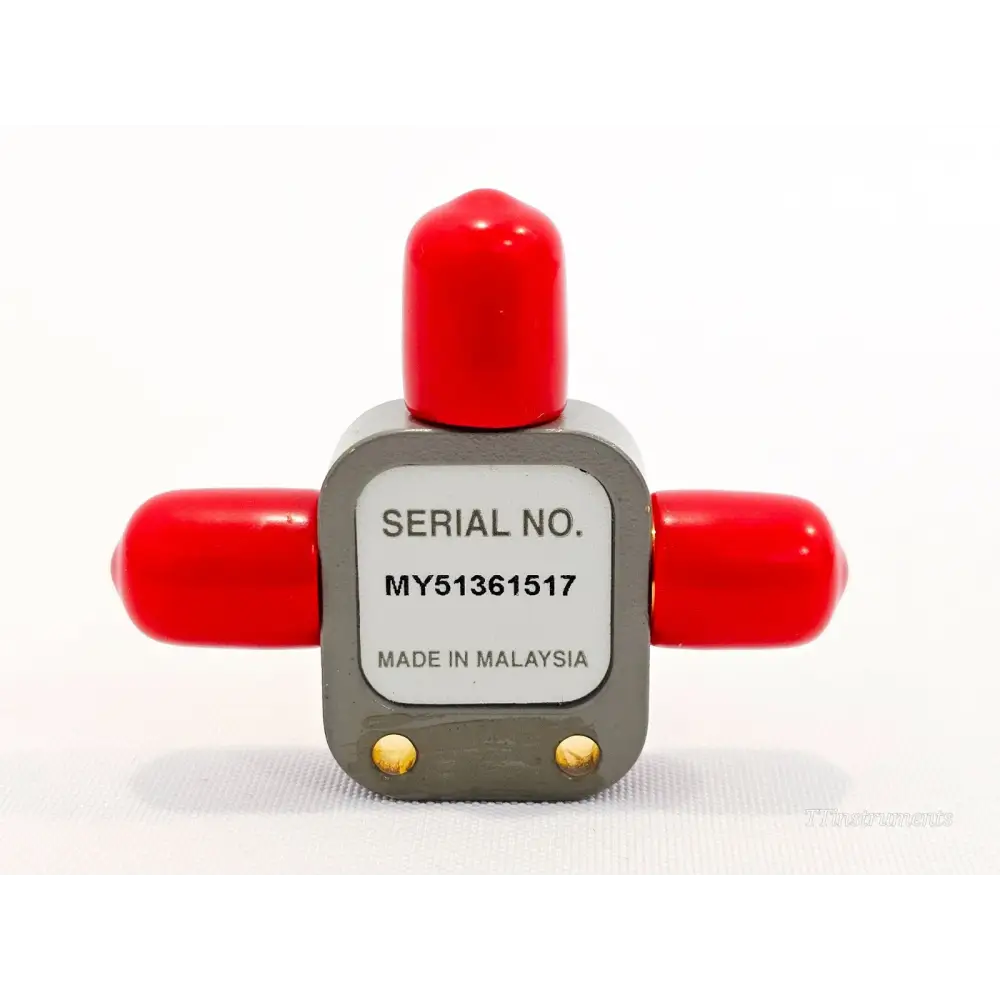

Keysight 11636B Power Divider rear serial number label showing MY51361517, Made in Malaysia, red port caps

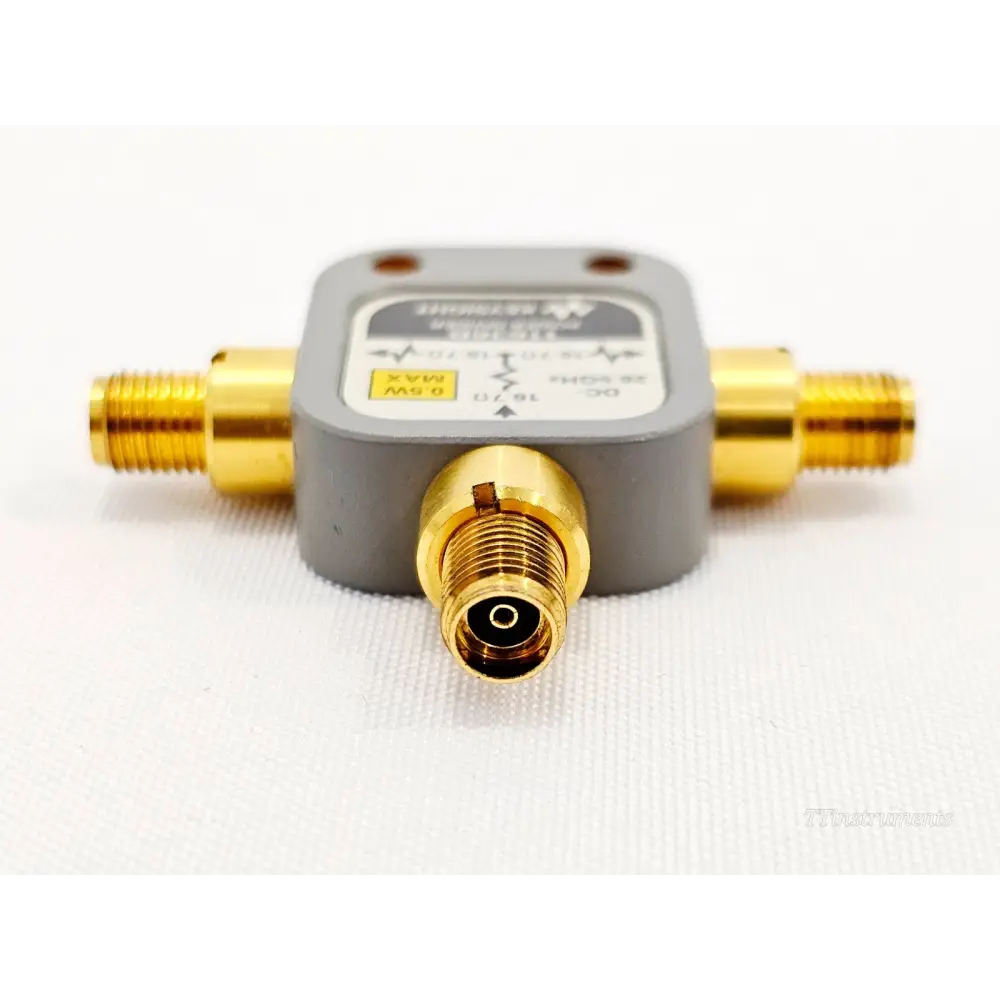

Keysight 11636B Power Divider top-down view showing all three gold-plated 3.5mm APC female SMA connectors

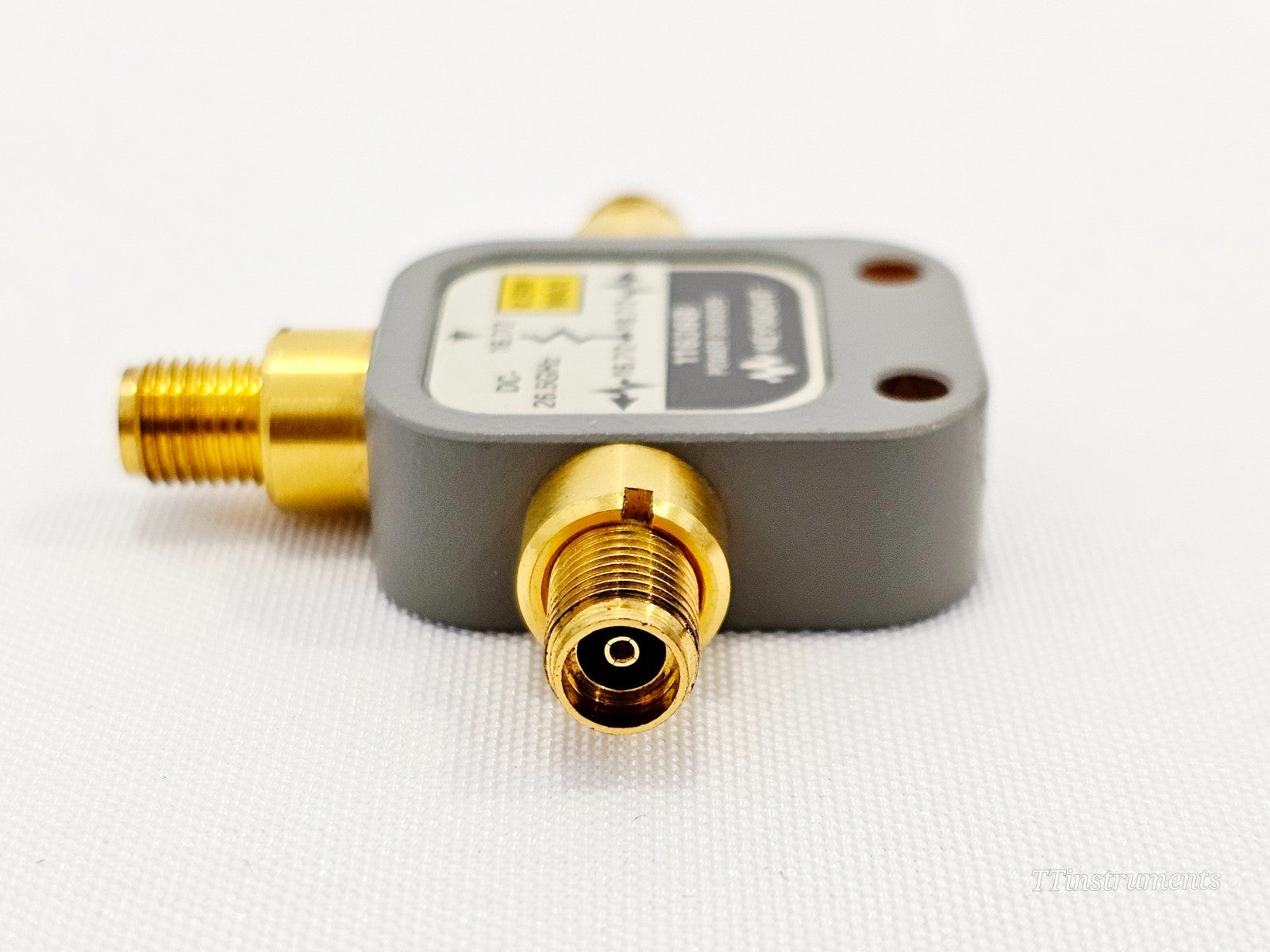

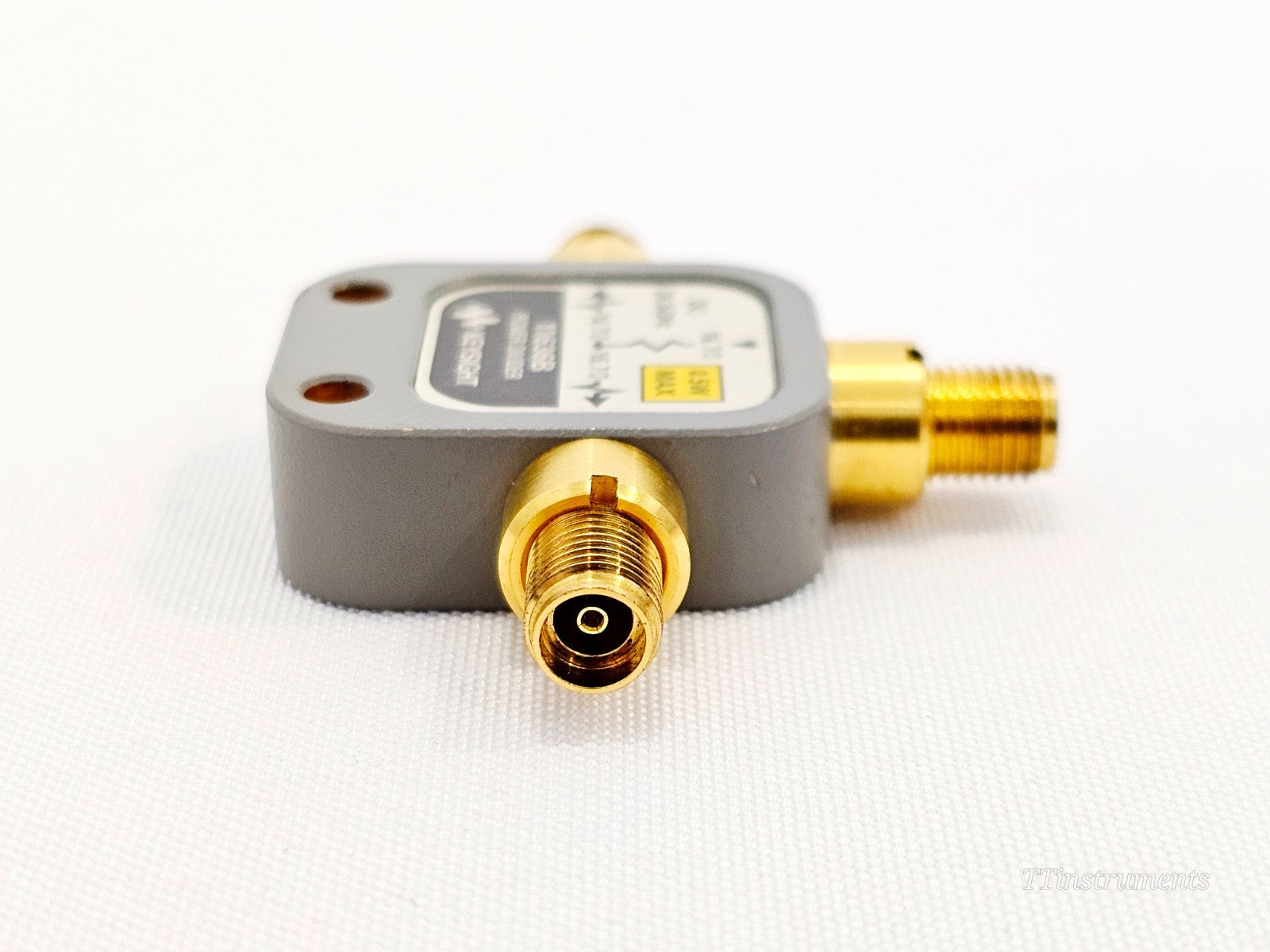

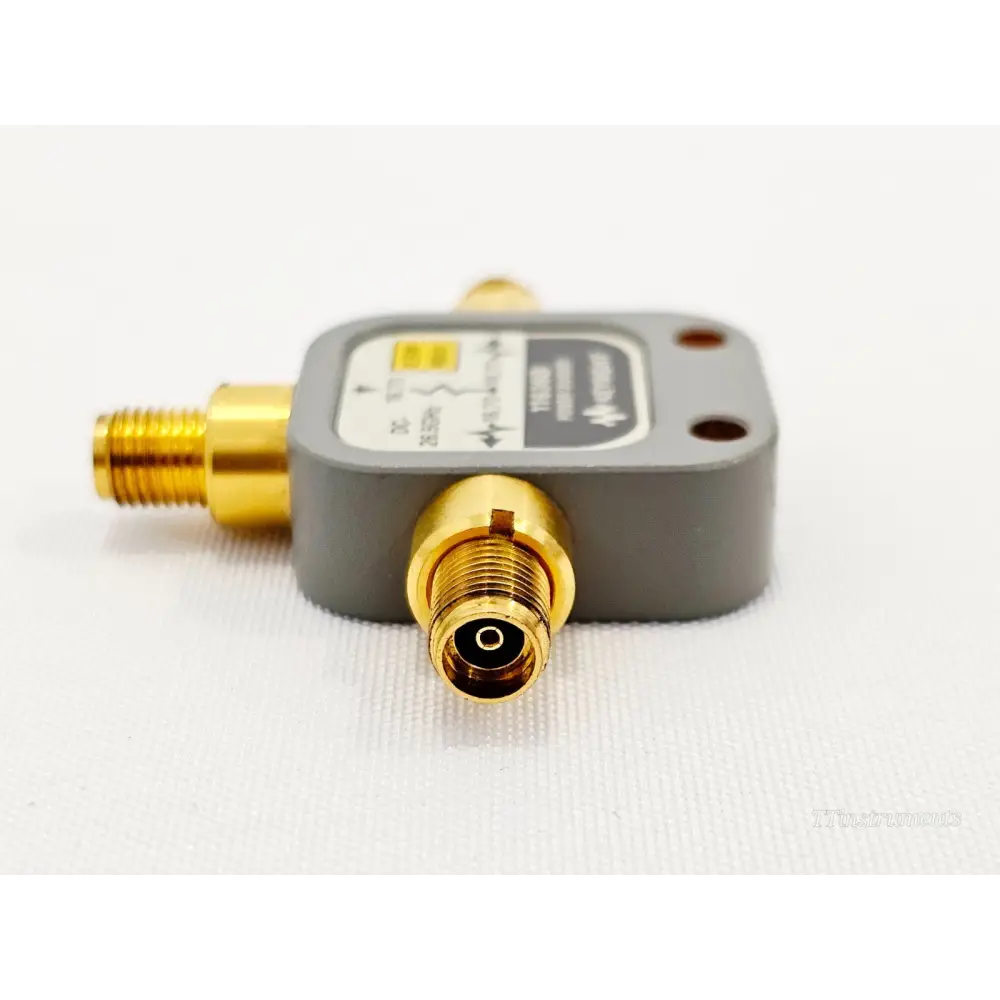

Keysight 11636B Power Divider angled side view showing input SMA port and grey body with product label

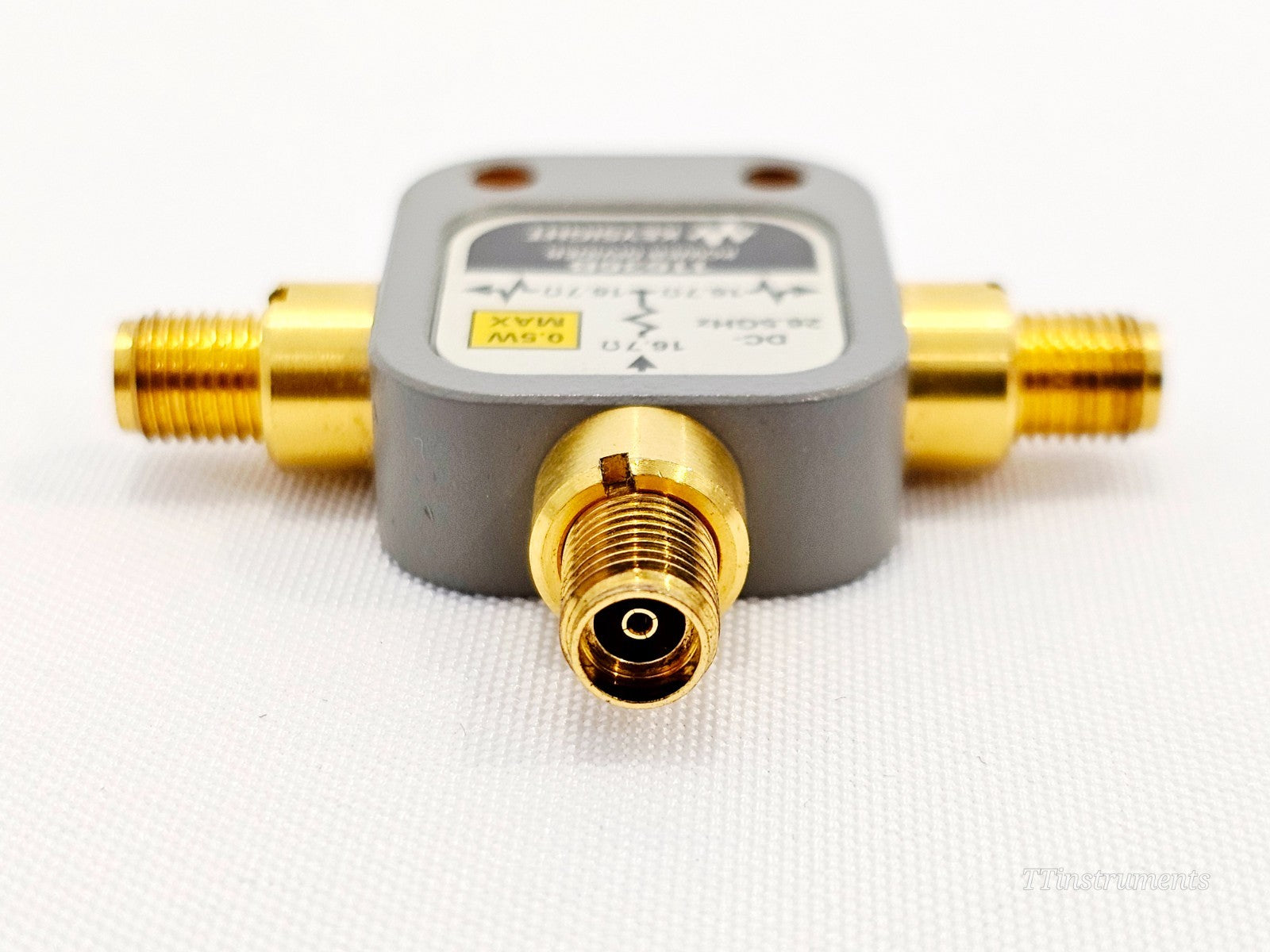

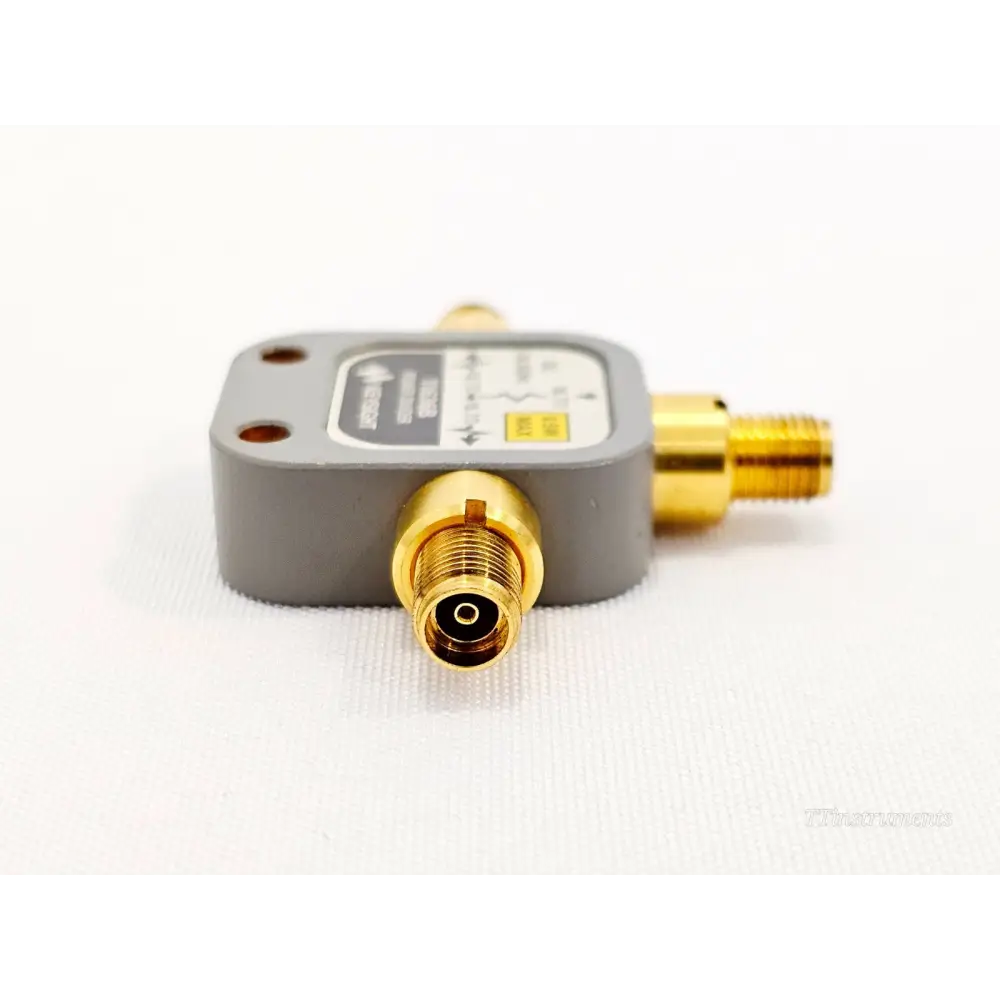

Keysight 11636B Power Divider low-angle side view showing gold SMA input connector and one output port

Tested

14 Day Money Back Guarantee

Great Value

Global Shipping

Keysight 11636B Power Divider DC-26.5GHz 16.7 Ohms 0.5W

Name: Keysight 11636B Power Divider DC-26.5GHz 16.7 Ohms 0.5W
Brand: Keysight Agilent
SKU: 7843 4E02 ER60
Price: 250.75 GBP
Availability: OutOfStock

The Keysight 11636B is a precision DC to 26.5 GHz three-port power divider/combiner designed for accurate wideband signal splitting and combining in RF and microwave test environments.
• Wideband DC to 26.5 GHz coverage with 3.5 mm (APC-3.5) female connectors on all three ports
• Symmetrical 6 dB power division with max 0.25 dB amplitude tracking and ±2° phase tracking
• Excellent impedance match across all ports — reduces re-reflections for accurate fault location

Manufacturer

Keysight Agilent

Model

11636B

Condition

Used

In stock

SKU

7843 4E02

£250.75

Accessories / Misc.
RF & Microwave

Make an Offer

Condition: Used

The Keysight 11636B is a DC to 26.5 GHz three-port power divider using three 16.7 Ω resistors for direct power division. Serial number MY51361517, made in Malaysia. Max input power is 0.5 W (+27 dBm). All three gold-plated 3.5 mm female SMA connectors are present and in clean condition.

Included in the sale:
• 1x Keysight 11636B Power Divider DC to 26.5 GHz (S/N: MY51361517)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

Product Overview

Condition: Used

Included in the sale:
• 1x Keysight 11636B Power Divider DC to 26.5 GHz (S/N: MY51361517)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

Manufacturer's Description

The Keysight 11636B is a DC to 26.5 GHz power divider designed for direct power dividing and combining applications. It is recommended for wideband comparison measurements with scalar and vector network analysers such as the Keysight 8757 series. The 11636B uses three 16⅔ Ω resistors to achieve a symmetrical 6 dB power division with excellent output power symmetry between the two output ports. The excellent impedance match across all three ports reduces re-reflections, improving fault location measurement accuracy. The 11636B can also be operated in reverse as a power combiner.

Key applications include power dividing, signal routing, matrix testing, power combining, and transmission line fault testing using a network analyser.

Specifications:
Frequency Range: DC to 26.5 GHz
Connector Type: APC-3.5 mm (3.5 mm female) on all three ports
Resistor Network: Three 16.7 Ω (16⅔ Ω) resistors
Maximum Input Power: 0.5 W (+27 dBm)
Maximum SWR: 1.29
Maximum Insertion Loss: 7.5 dB
Power Division: 6 dB (symmetrical)
Maximum Amplitude Tracking: 0.25 dB (at 18 GHz)
Maximum Phase Tracking: ±2° typical
System Impedance: 50 Ω

Resources

Keysight 11636x Power Divider series technical overview — specifications, performance data and application guidance: Download PDF

Keysight 11636B Power Divider product fact sheet — key specifications and model comparison: Download PDF
