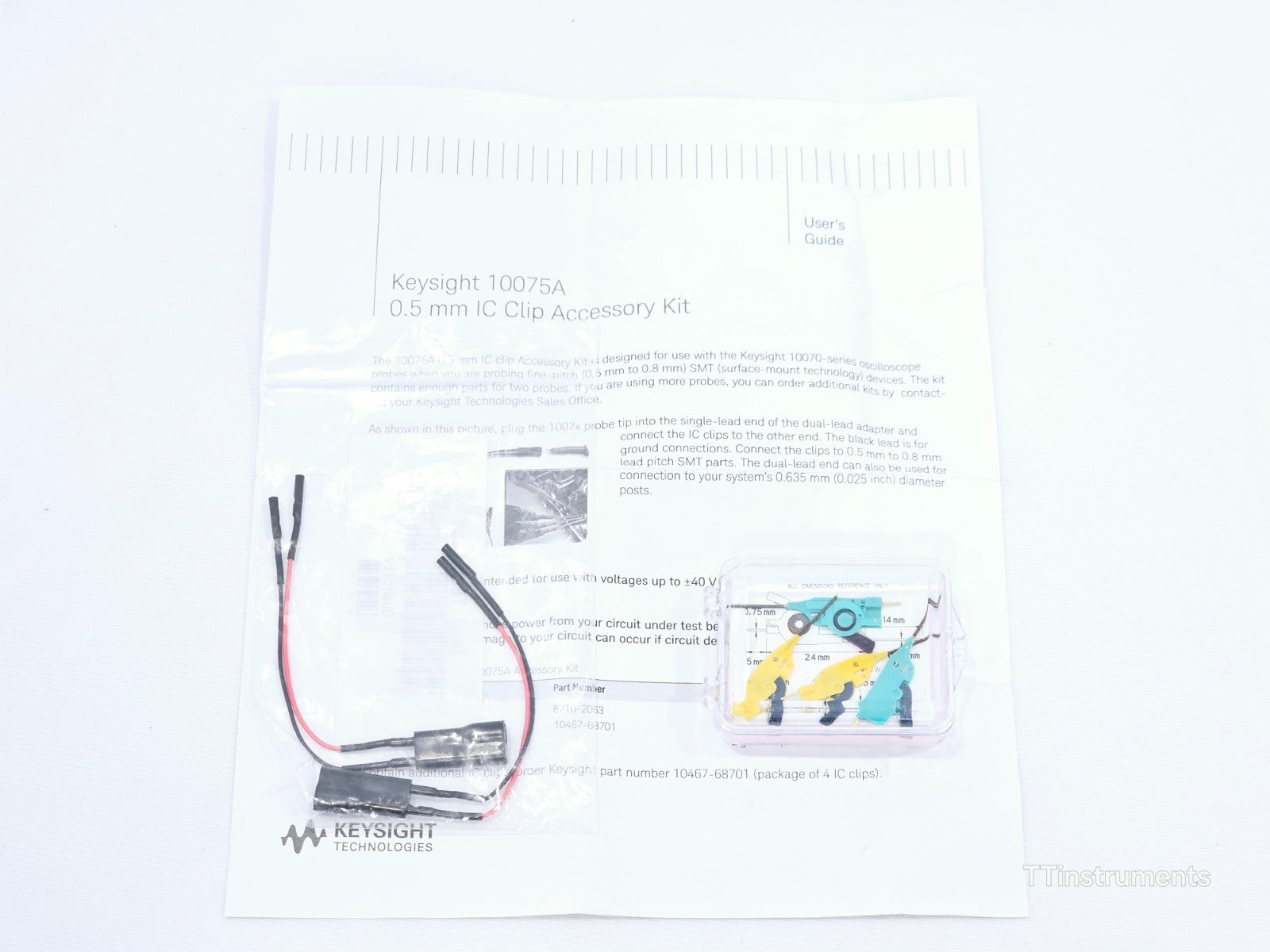

Keysight 10075A 0.5mm IC Clip Accessory Kit laid out with User's Guide, dual-lead adapters and colour-coded IC clips

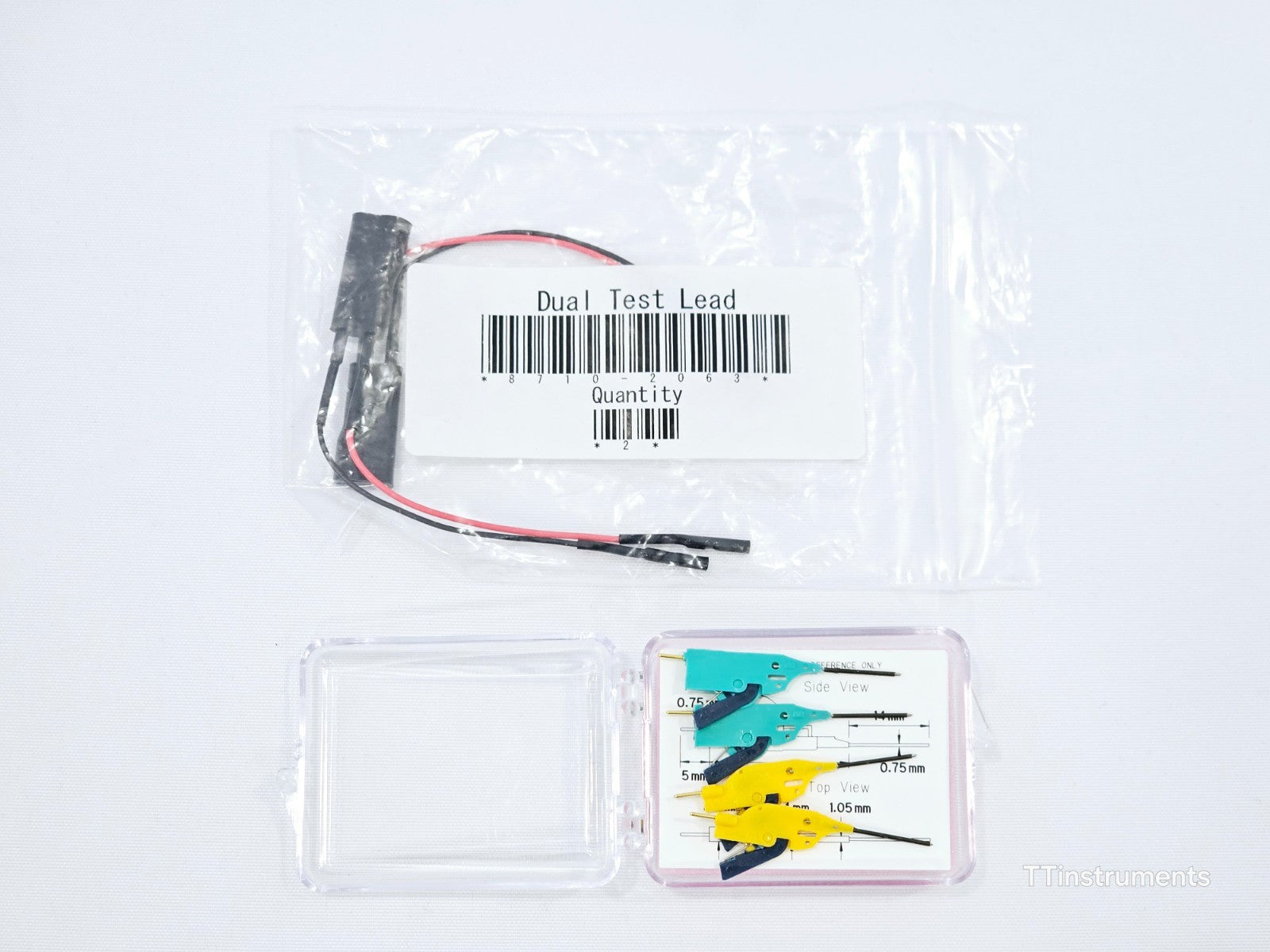

Keysight 10075A kit contents: sealed bag with dual-lead adapters labelled Qty 2, and open case with teal and yellow IC clips

Tested

14 Day Money Back Guarantee

Great Value

Global Shipping

Keysight 10075A 0.5mm IC Clip Acessory Kit

Name: Keysight 10075A 0.5mm IC Clip Acessory Kit
Brand: Keysight Agilent
SKU: 3987 7D04 ER88
Price: 51.0 GBP
Availability: OutOfStock

The Keysight 10075A is a 0.5 mm IC Clip Accessory Kit designed for probing fine-pitch SMT devices with Keysight 10070-series oscilloscope probes.
• Ultra-small IC clips for PQFP and SOIC packages — handles 0.5 mm to 0.8 mm lead pitch
• Thin clip body allows multiple clips to be mounted side by side for dense IC probing
• Dual-lead adapters connect directly to 10070-family probe tips or 0.635 mm diameter posts

Manufacturer

Keysight Agilent

Model

10075A

Condition

Used

In stock

SKU

3987 7D04

£51.00

RF & Microwave
RF Components

Make an Offer

Condition: Used

This Keysight 10075A 0.5 mm IC Clip Accessory Kit is in used condition. The kit includes its original User's Guide and all components appear to be present as supplied, including the colour-coded IC clips in their clear storage case and the dual-lead adapters in their original sealed bag.

Included in the sale:
• 4 x 0.5 mm IC clips (colour-coded: teal and yellow) in clear plastic storage case
• 2 x dual-lead adapters (red and black leads) in sealed bag
• Original Keysight 10075A User's Guide

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

Product Overview

Condition: Used

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

Manufacturer's Description

The Keysight 10075A is a 0.5 mm IC Clip Accessory Kit designed for use with the Keysight 10070-series oscilloscope probes when probing fine-pitch (0.5 mm to 0.8 mm) SMT (surface-mount technology) devices. These ultra-small IC clips are the smallest in the industry and are ideal for connecting to fine-pitch ICs as small as 0.5 mm lead pitch. The thin clip body design allows many clips to be mounted side by side, enabling probing of densely packed PQFP and SOIC SMT packages.

The dual-lead adapter simplifies connection of the IC clips to your probe — simply install the tip of the Keysight 10070-family probe into the single-lead end of the dual-lead adapter, then connect the IC clips to the other end. The dual-lead end can also be used for connection to 0.635 mm (0.025 inch) diameter posts. The black lead is for ground connections.

Specifications:
Compatible Probes: Keysight 10070-series (10070C, 10073D, 10074D and similar)
IC Clip Lead Pitch: 0.5 mm to 0.8 mm
Post Compatibility: 0.635 mm (0.025 inch) diameter posts
IC Clip Dimensions (Side View): 14 mm length, 0.75 mm tip
IC Clip Dimensions (Top View): 5 mm width, 1.05 mm jaw, 0.75 mm tip
Voltage Rating: Up to ±40 V
Kit Contents: Four 0.5 mm IC clips and two dual-lead adapters
Accessory Type: IC Probing Kit
Compatible Packages: PQFP, SOIC SMT
Additional IC Clips Part Number: 10467-68701 (package of 4 IC clips)
