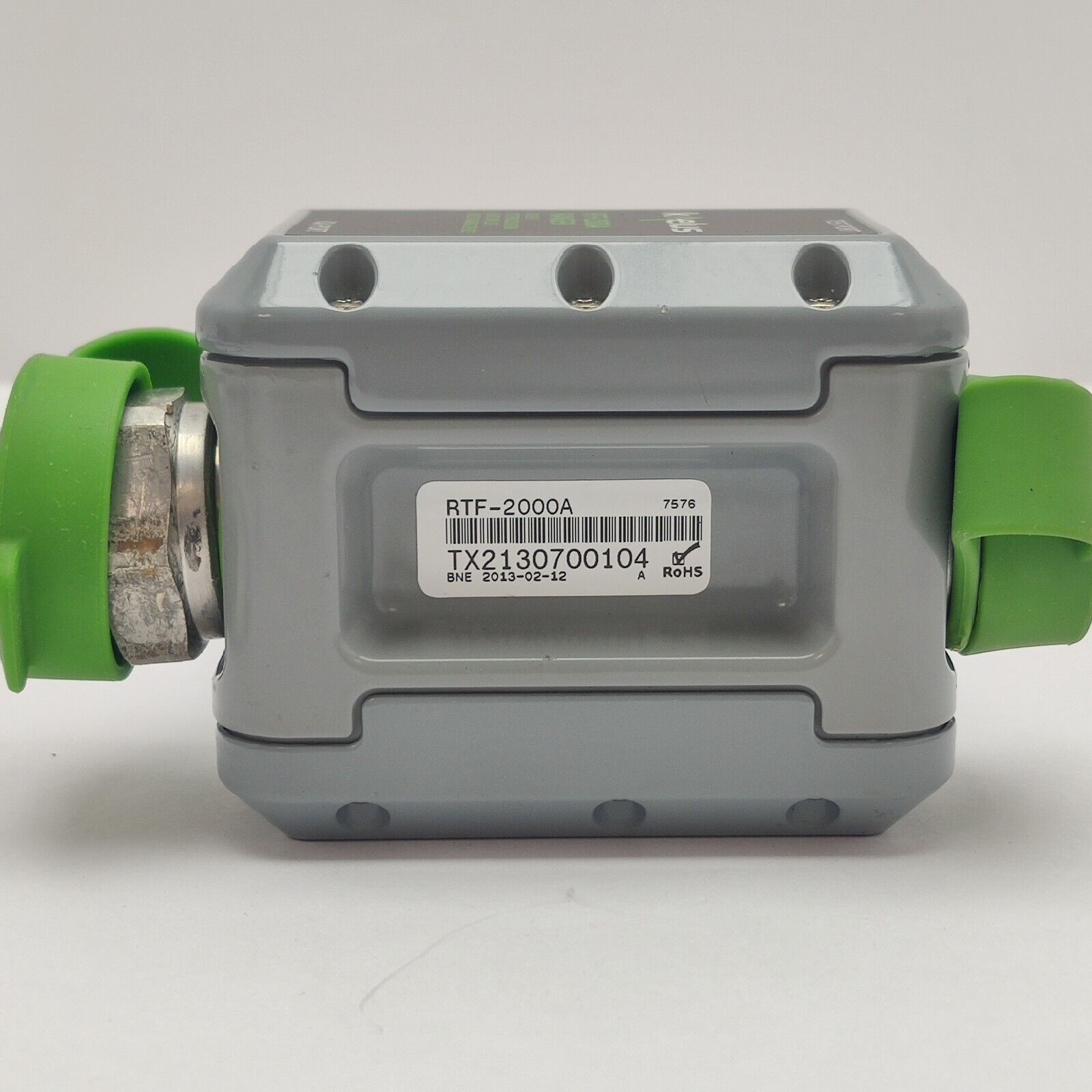

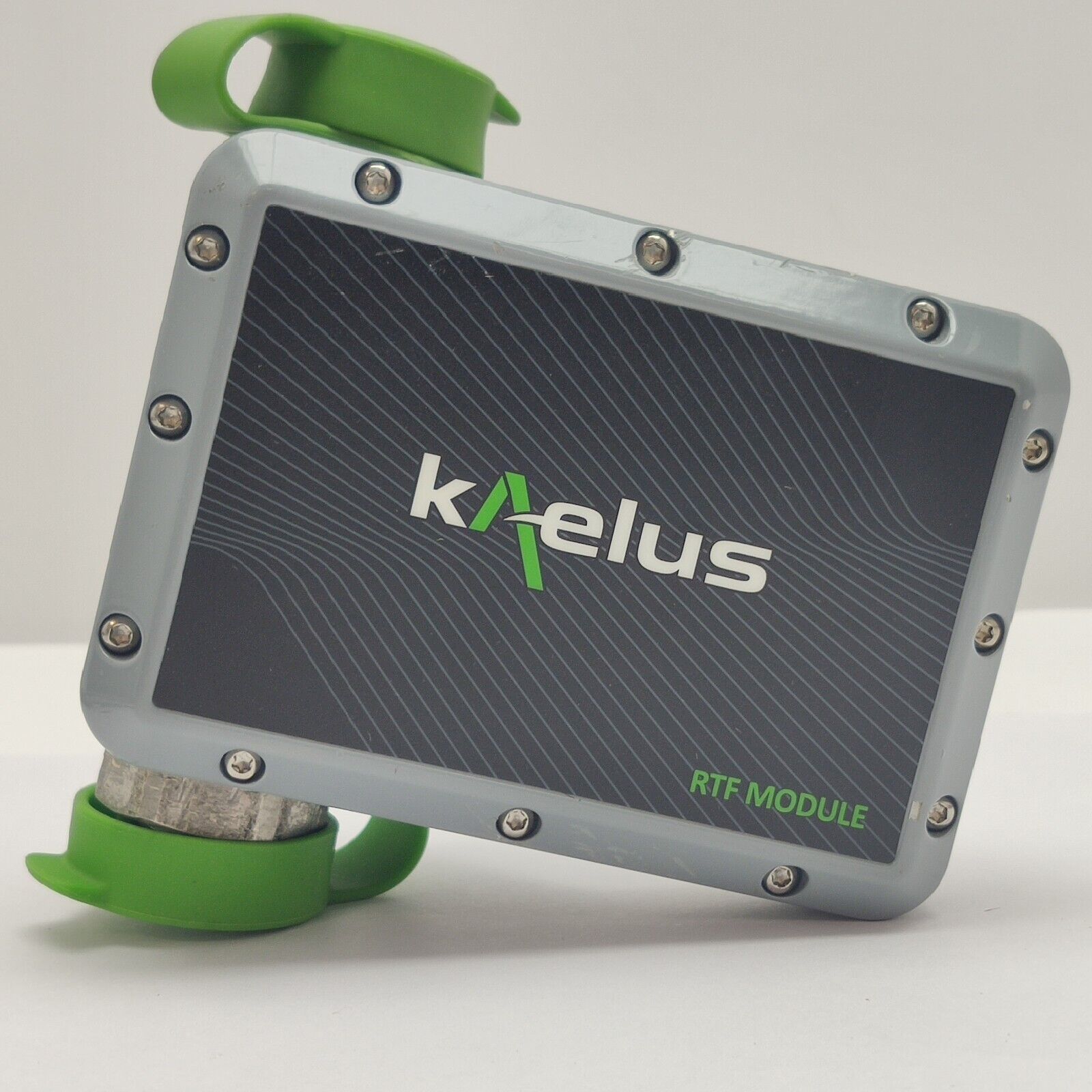

Kaelus RTF-2000A Ranger Passive Intermodulation & Return Loss Ranging Device PIM

Model: RTF-2000A

Condition: Used

In stock: 2

SKU: 4687 6D05

Sale price£165.75
  • PIM Analysers & Accessories
  • RF & Microwave
Product Overview

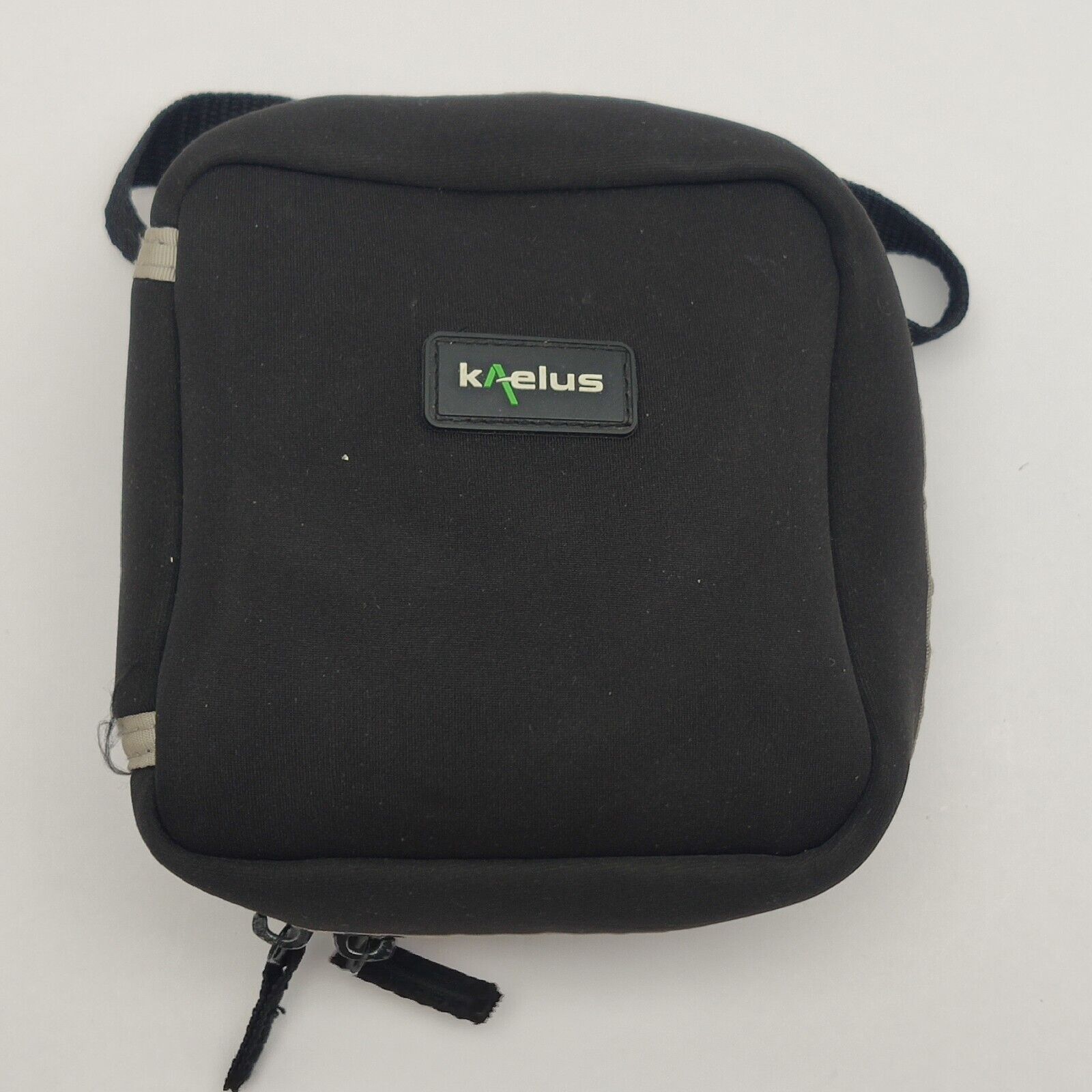

Supplied as pictured, no additional accessories.

KAELUS RFT-2000A RTF MODULE FEATURES

Accurately identify the location of PIM and Return Loss faults in the RF path

Simple to operate, highly intuitive touch screen user interface

Overlay PIM and Return Loss vs. distance data for enhanced troubleshooting capability

Quickly switch between different test modes without disconnecting the line under test

Compatible with any ?RTF Enabled? series PIM test instrument from Kaelus

Speeds site repairs by guiding operators to the location of PIM faults

Before PIM testing, the RTF Module performs a Return Loss safety check to warn the operator before transmitting high RF power into a poor match

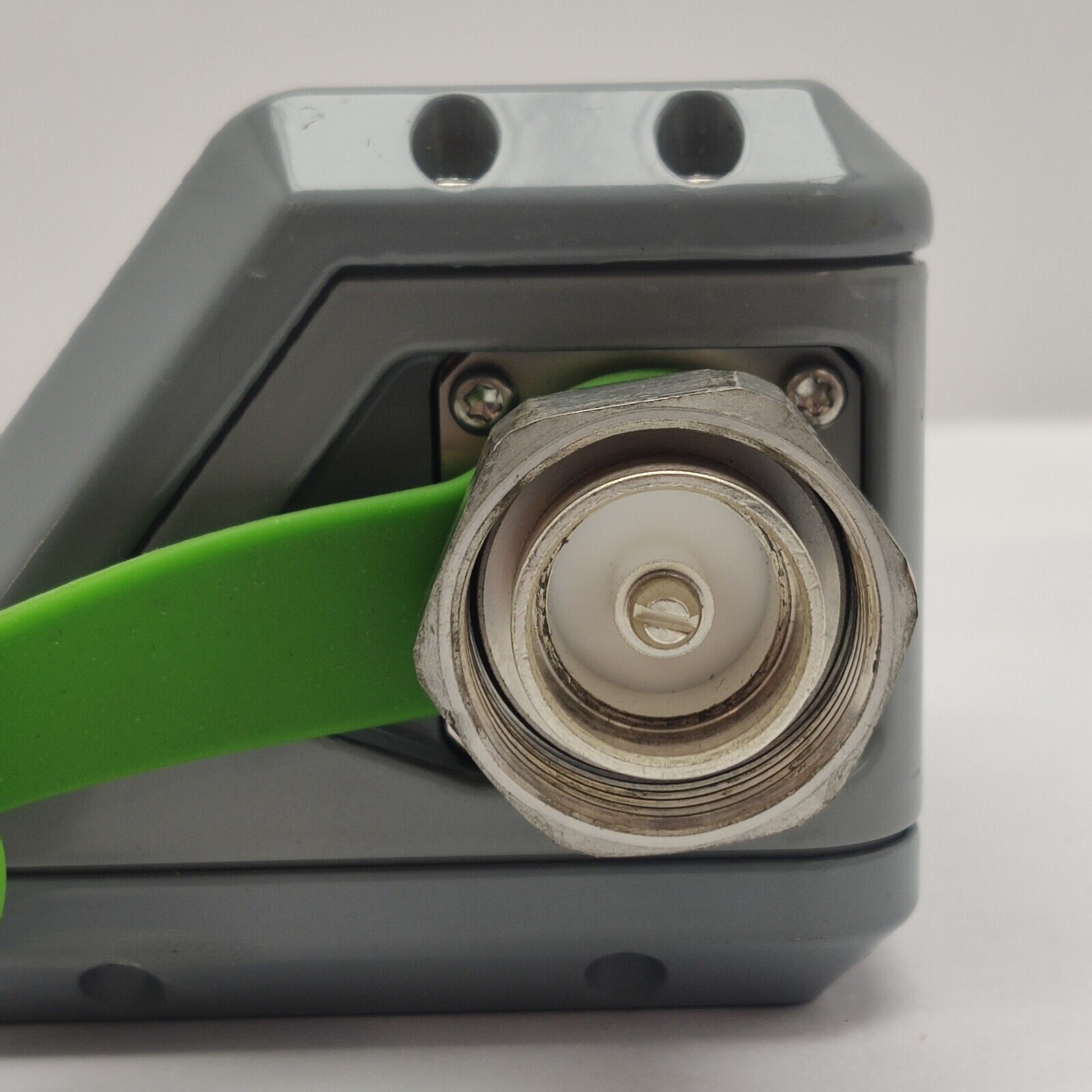

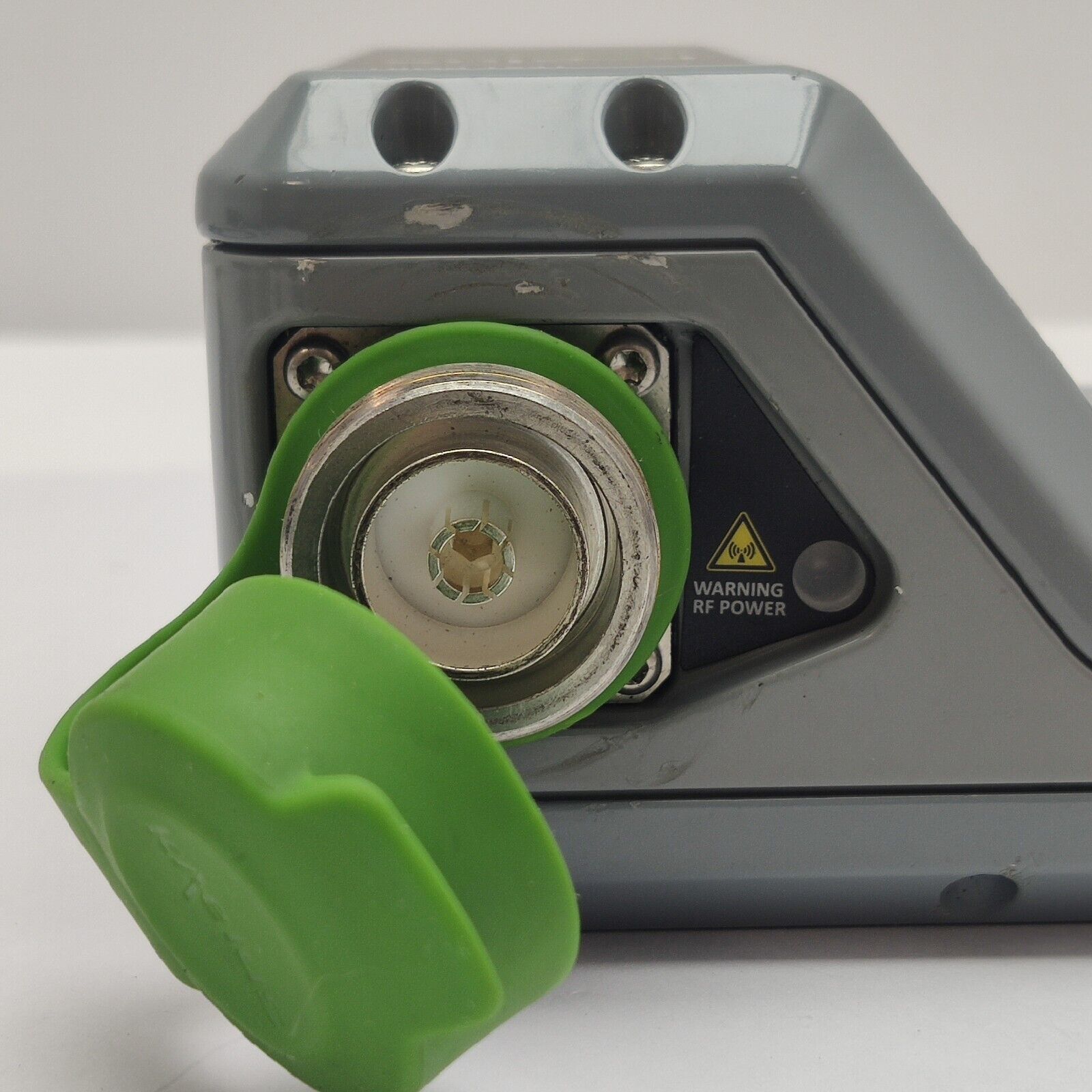

KEY SPECIFICATIONSRTF analysis modesNumeric: Distance to maximum PIM + PIM Magnitude Graphical: PIM vs. Distance, Return Loss vs. Distance, PIM + RL vs. DistanceReturn lossMax Return Loss (from FFT analysis) is displayed on the main PIM test screen when the RTF module is attachedResidual PIM< -120dBm/-163dBc maximum (<-125dBm/-168dBc typical) @ 2 x +43dBm test tonesUser interface ports1x USB, 1x Auxiliary port (Type N female) 1x RF output (7-16 DIN female), 1x RF input (7-16 DIN male)Power+12V DC supplied via auxiliary portRF power (PIM)2x +43dBm supplied by iPA or iBARF power (Return Loss)-20dBm supplied by RTF module
