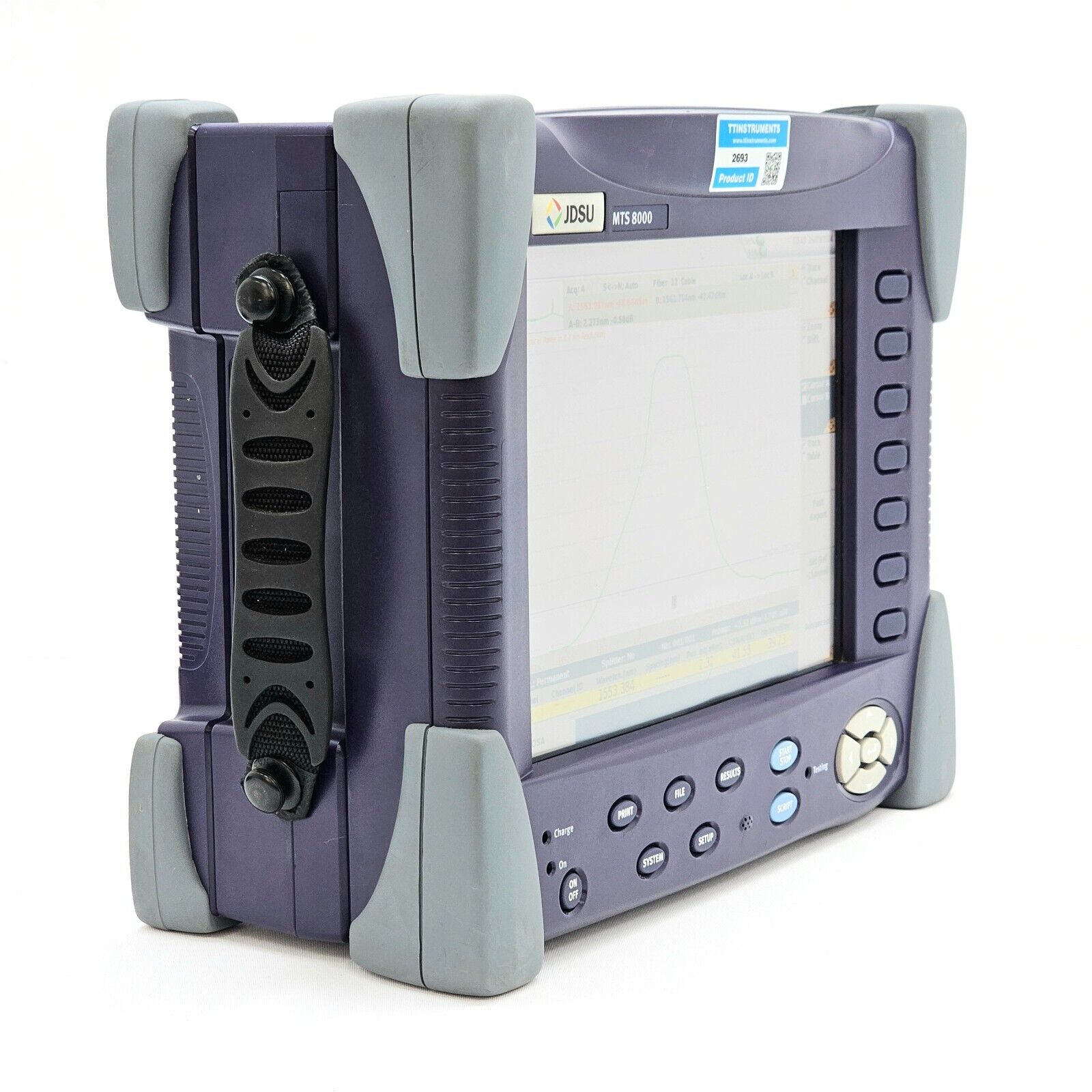

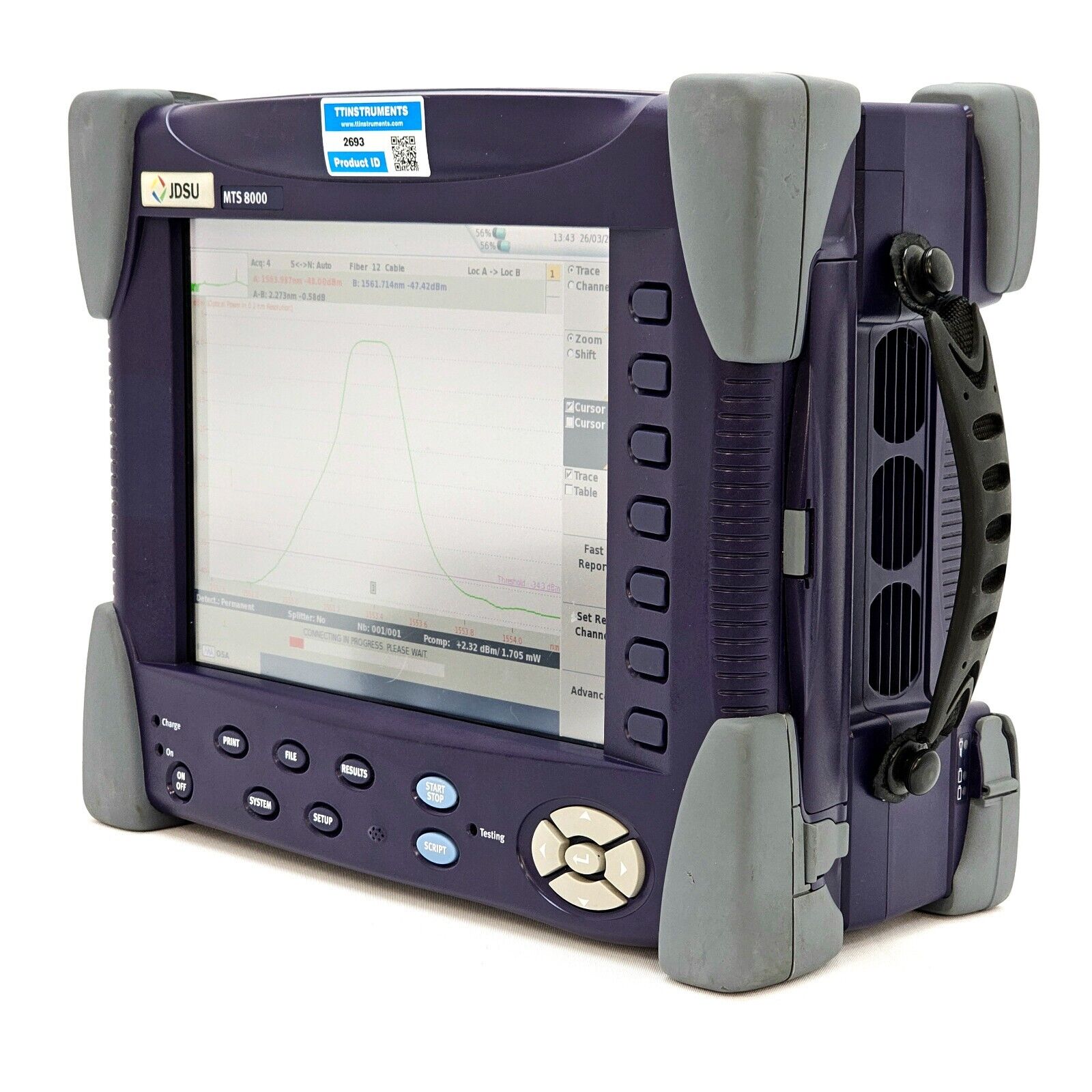

Calibrated Viavi JDSU T-Berd 8000E w/ OSA-500RS 2281/91.57 Optical DWDM Analyzer

Condition: Used

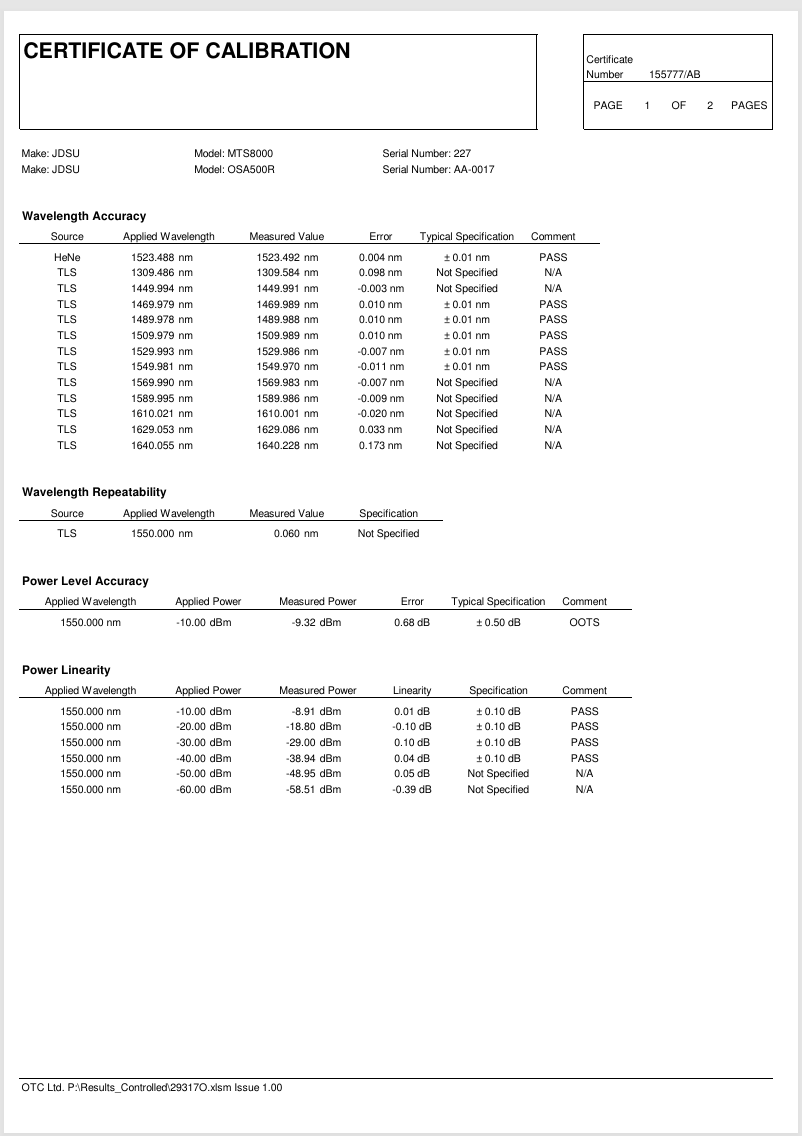

This used Viavi JDSU T-BERD 8000E mainframe with OSA-500RS 2281/91.57 module has been calibrated — wavelength accuracy confirmed within specification, with measured power at -9.32 dBm against a -10.0 dBm input (deviation -0.68 dBm; typical accuracy ±0.5 dBm).

Included in the sale:

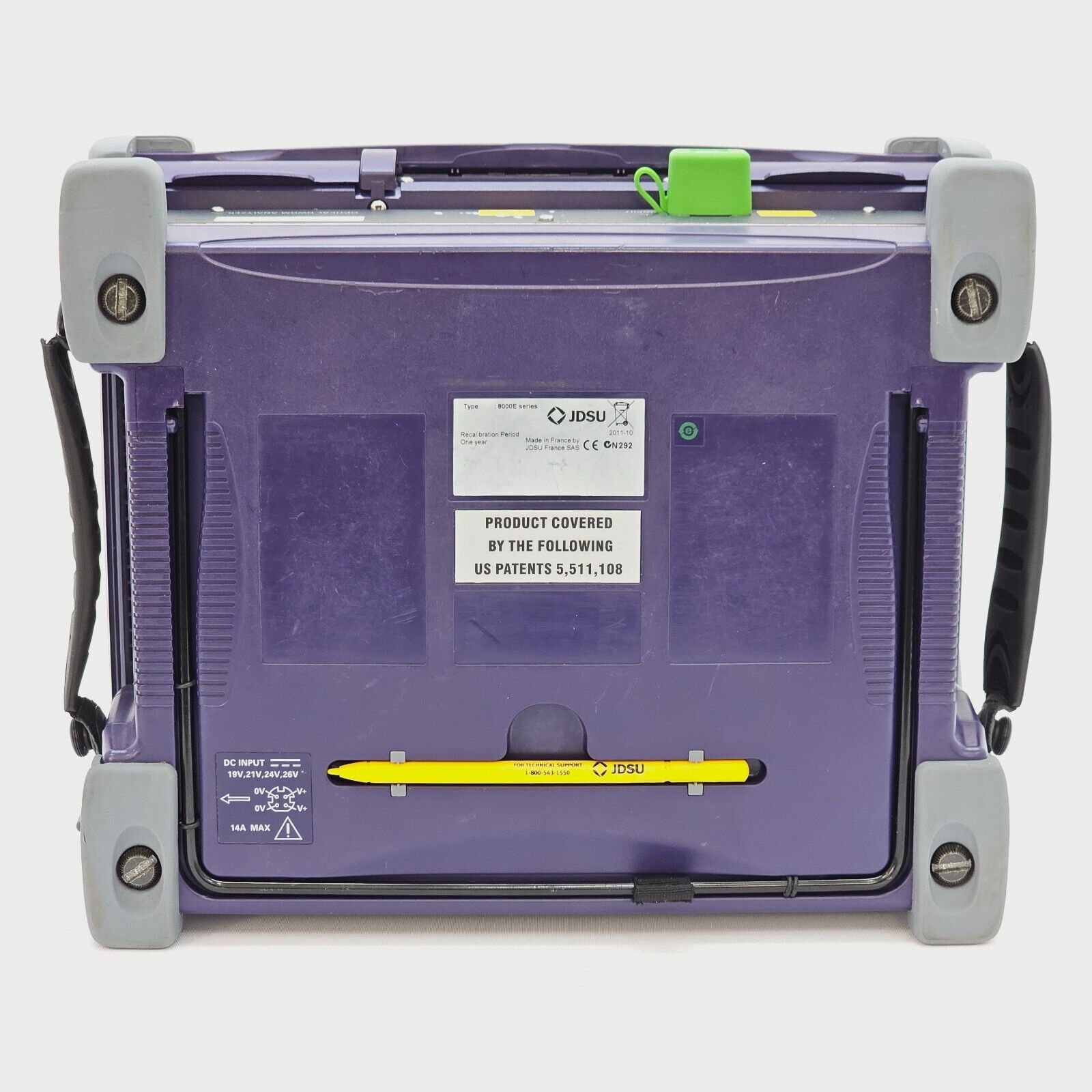

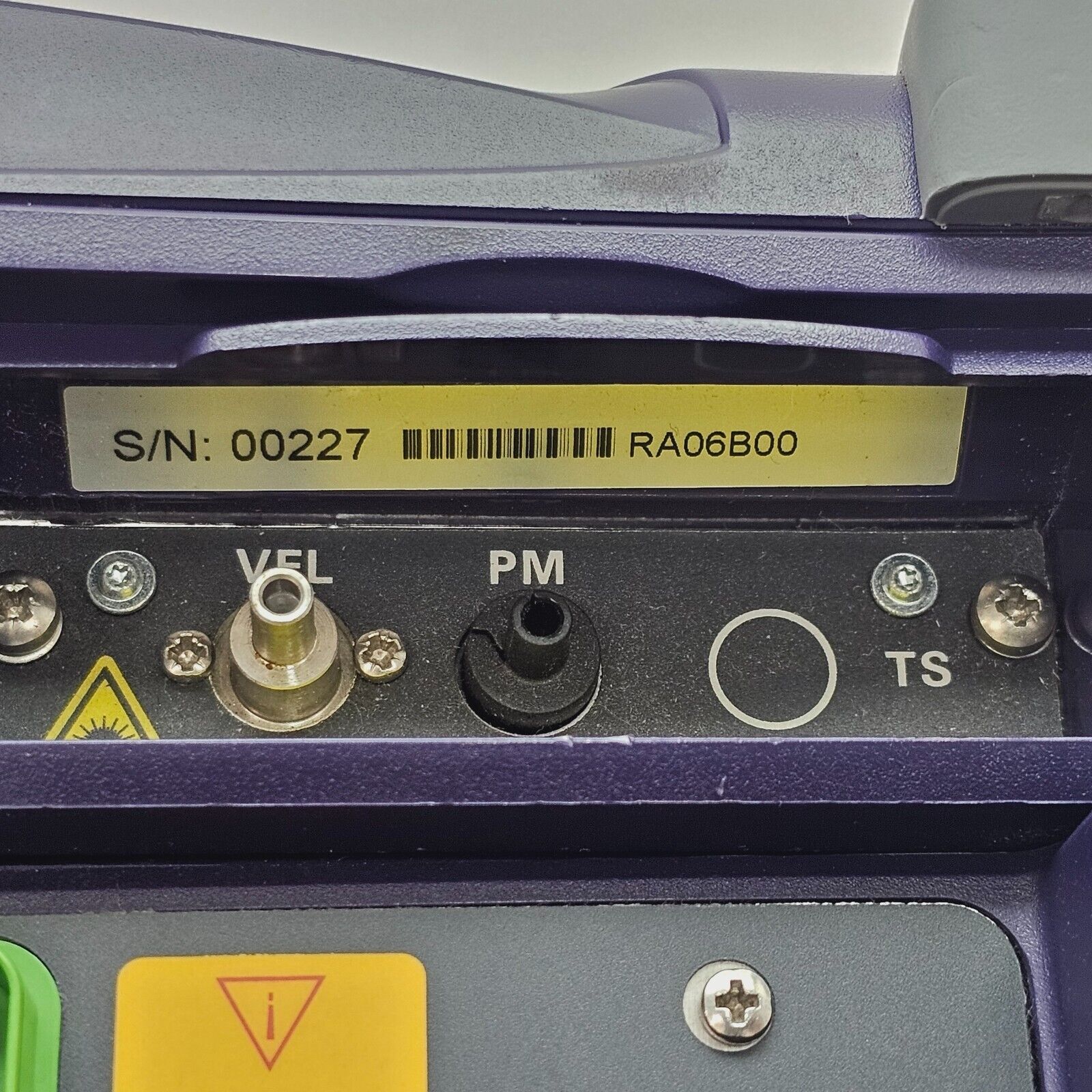

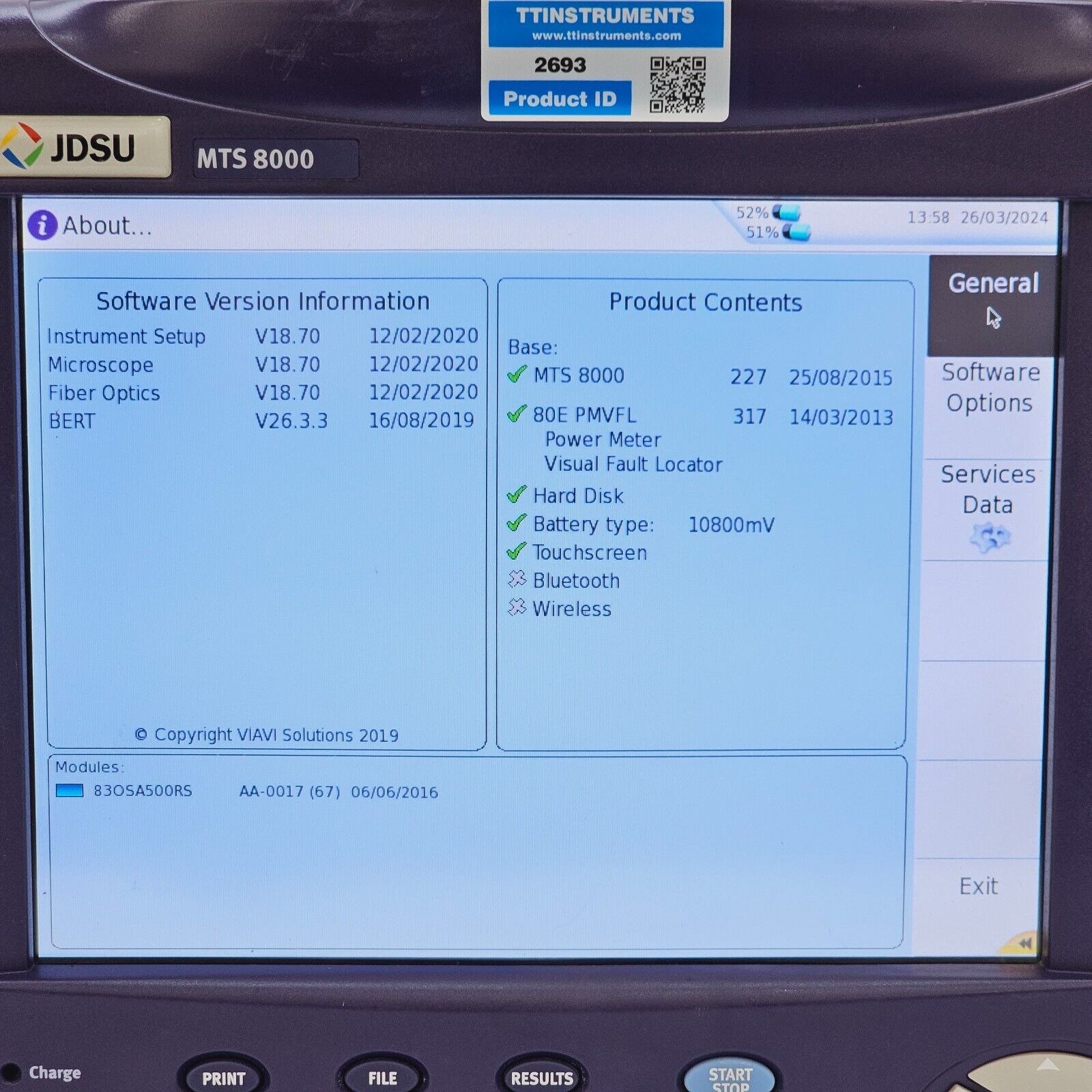

• JDSU T-BERD 8000E Mainframe

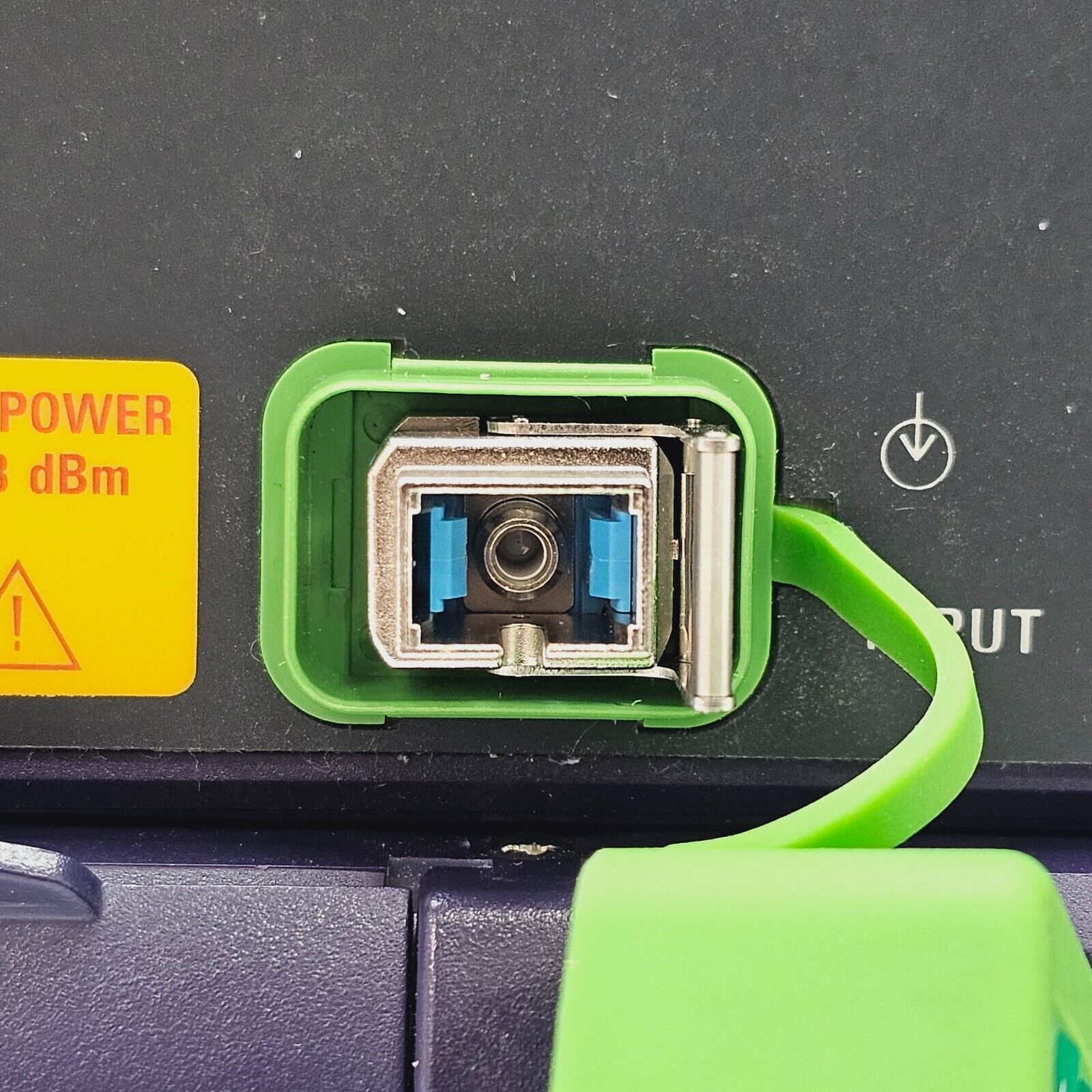

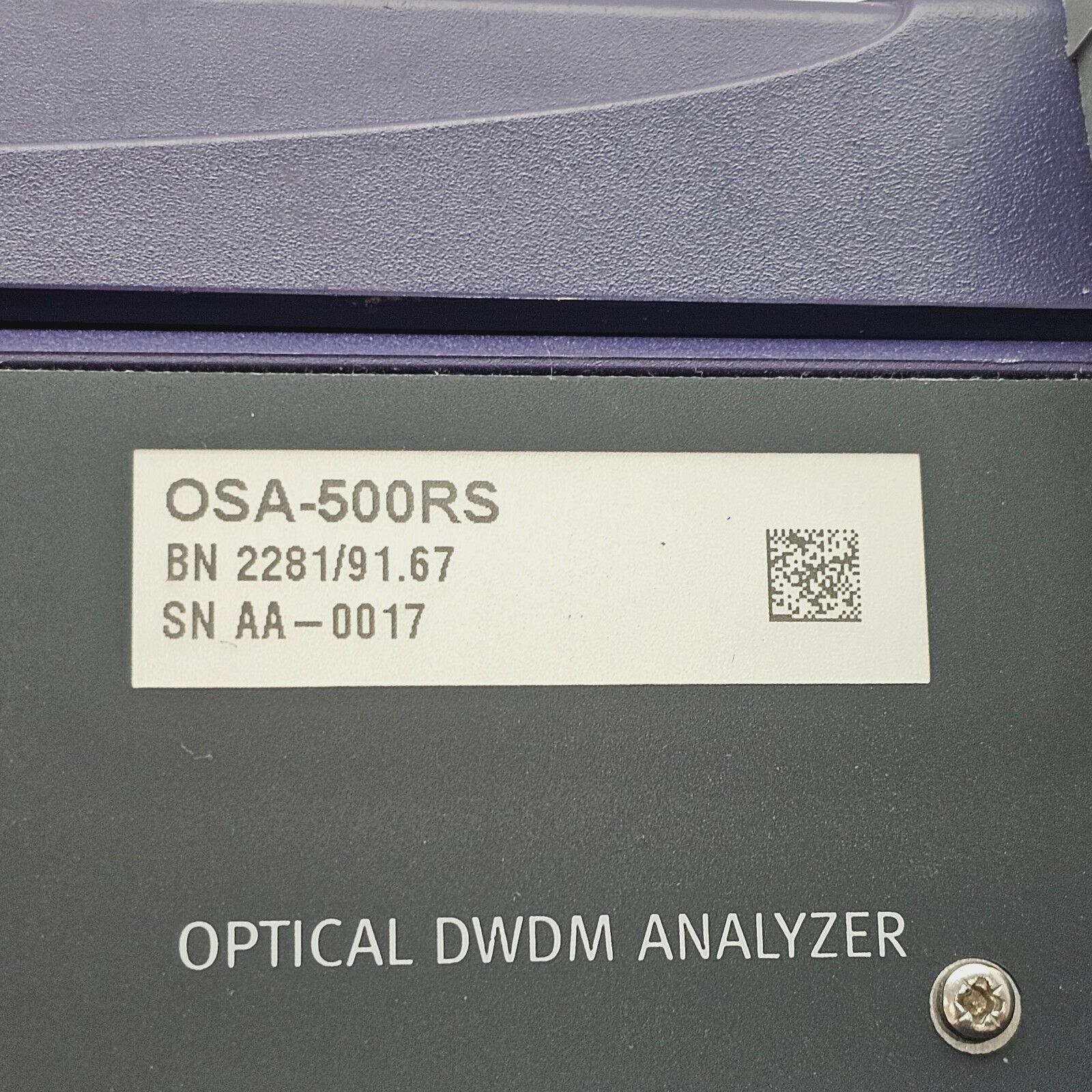

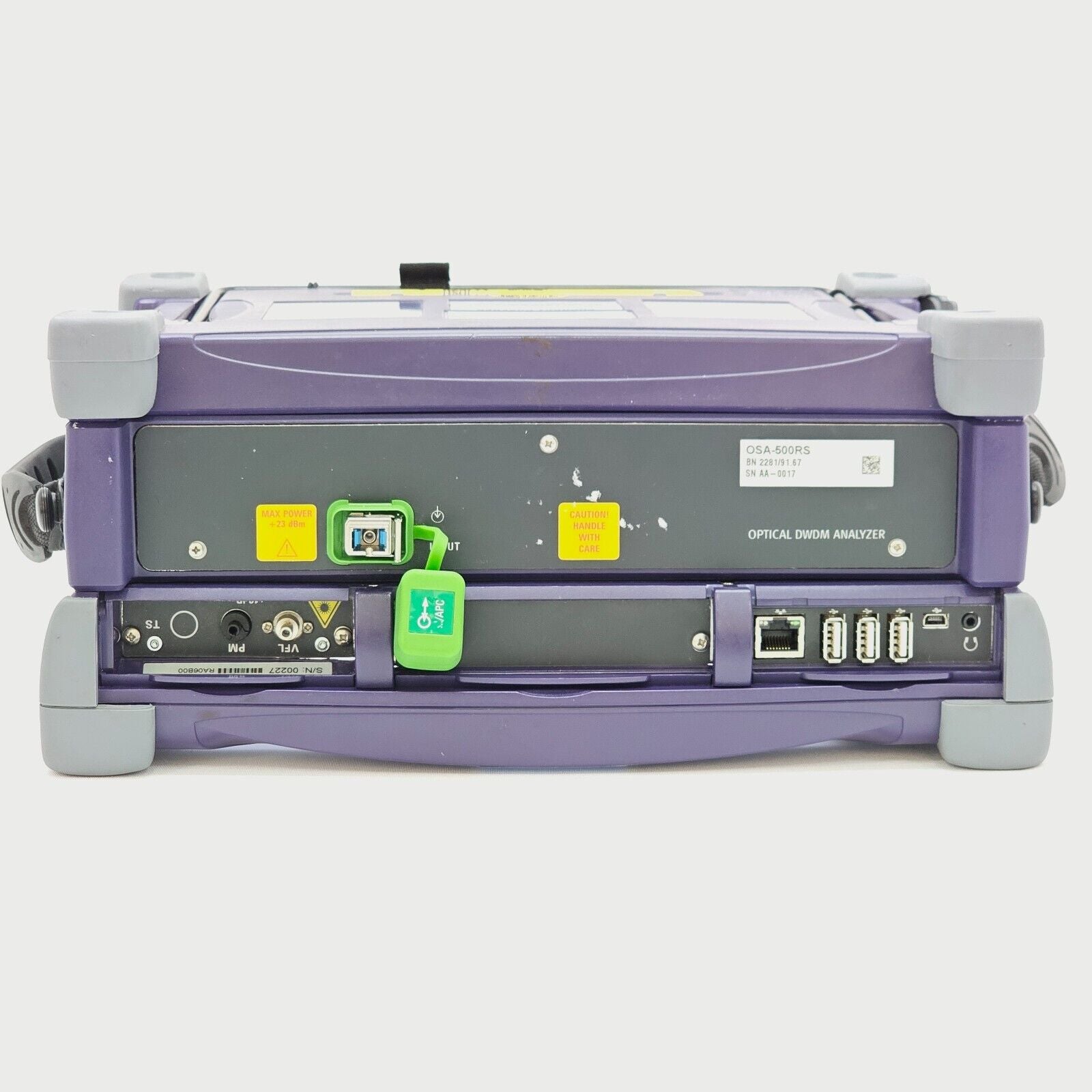

• OSA-500RS 2281/91.57 Optical DWDM Analyzer module
• Stylus
• Power adapter

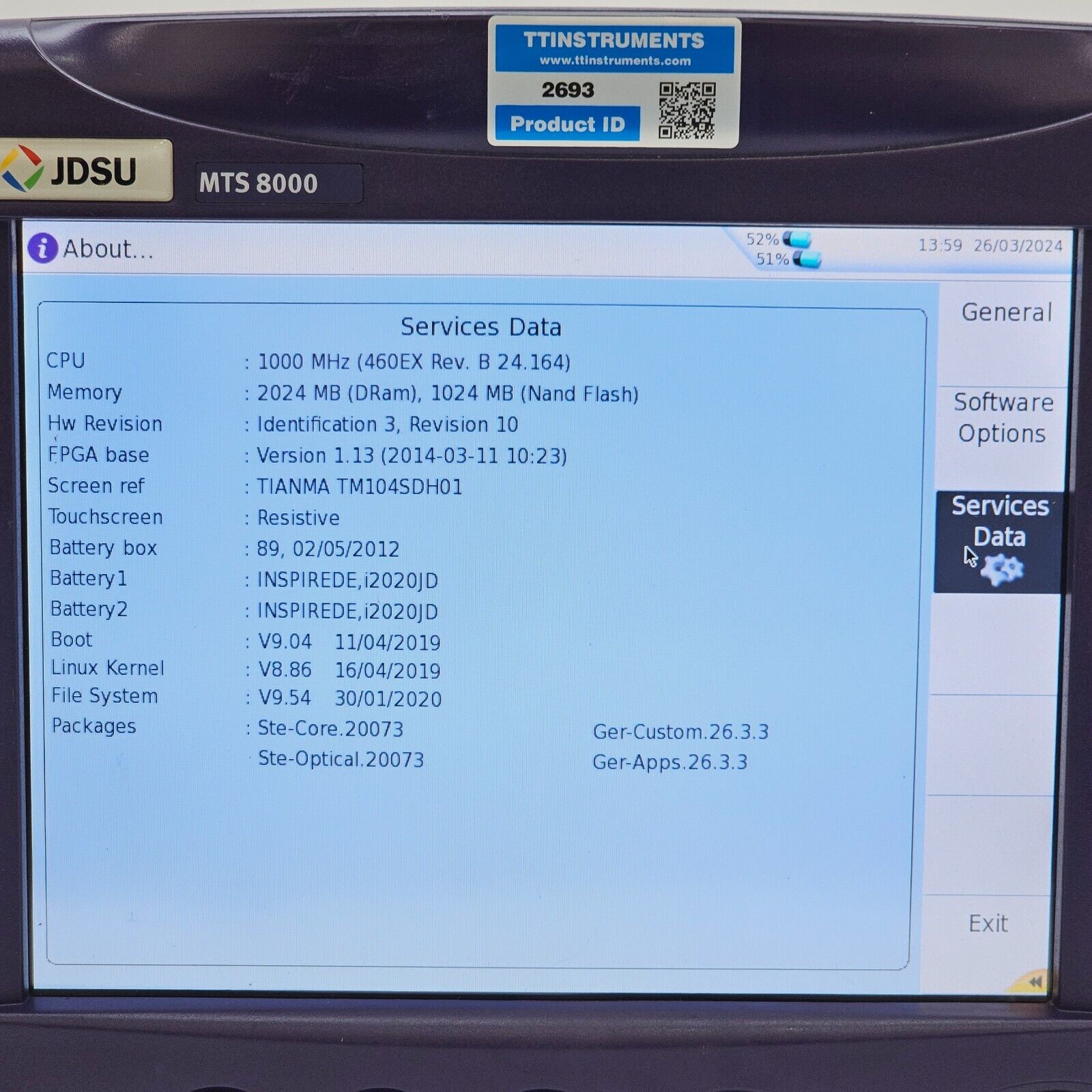

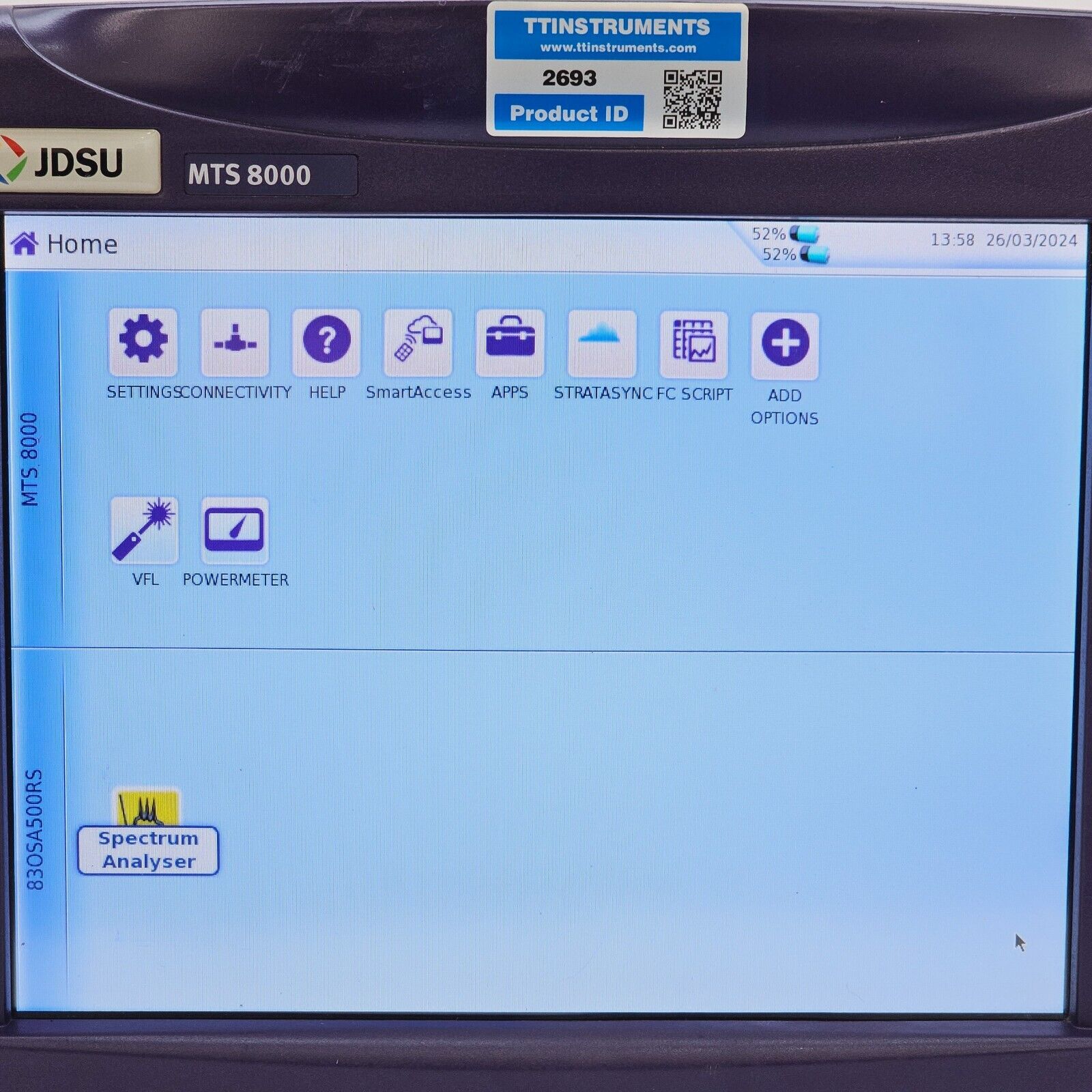

The Viavi (formerly JDSU) T-BERD 8000E is a scalable multitest platform designed for high-speed optical network testing. When paired with the OSA-500RS module (part number 2281/91.57), it provides a high-performance, full-band optical spectrum analyser capability for CWDM, DWDM, and ROADM-based network testing.

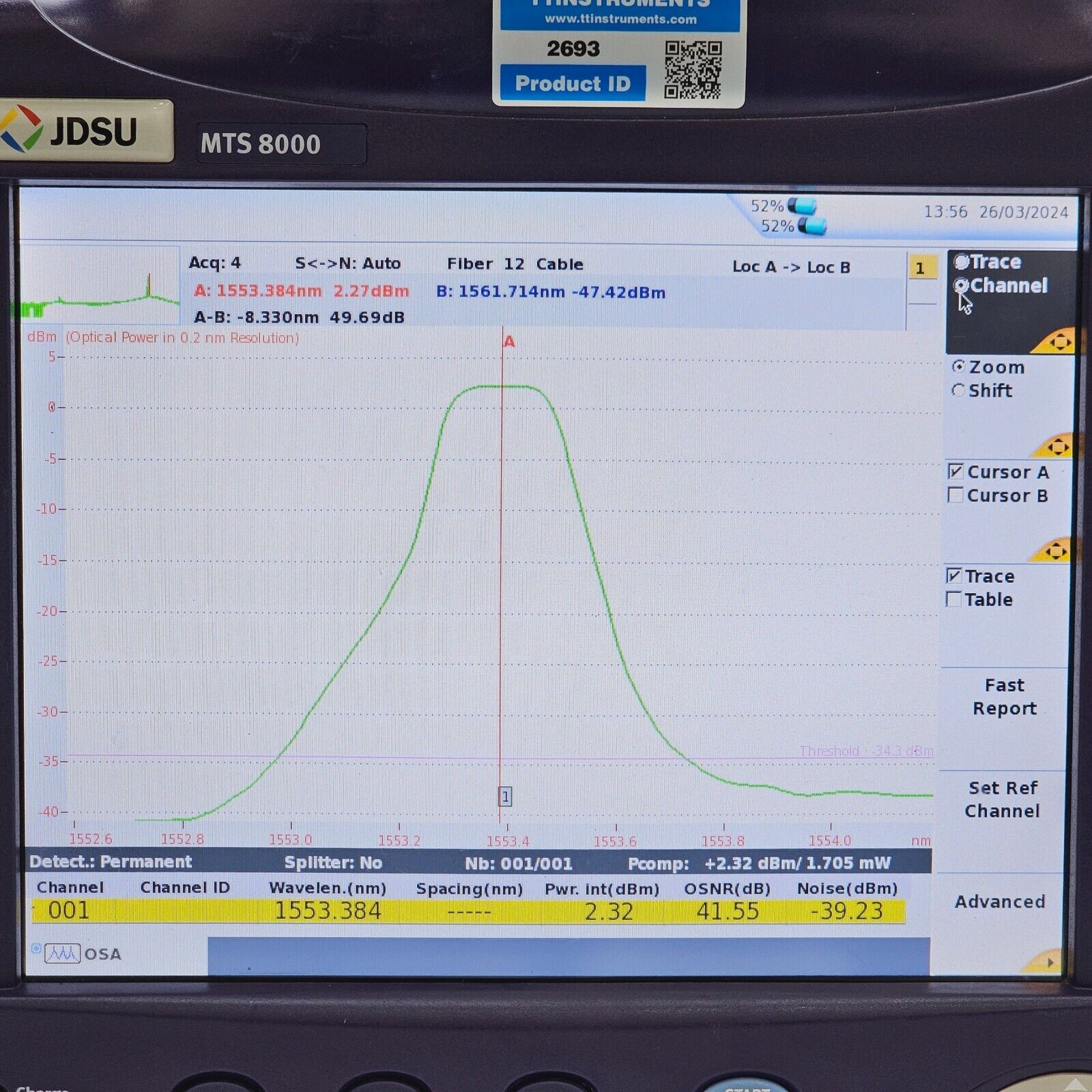

The OSA-500RS is the high-speed variant of the OSA-500R series, capable of completing true in-band OSNR measurements in under 30 seconds using VIAVI's patented Optical Polarization Splitting (OPS) method. It is designed for field use with lab-grade optical performance.

Product Description:
The OSA-500RS is a full-band, ultra-high-resolution optical spectrum analyser module for the MTS-8000 / T-BERD 8000 and MTS-6000 / T-BERD 6000 platforms. It delivers true in-band OSNR measurements in ROADM-based and 40G/100G networks where conventional OSAs cannot correctly resolve overlapping spectra. Internal online wavelength calibration using a physical constant reference eliminates the need for factory recalibration, reducing service costs over the instrument's lifetime.

Key Specifications:

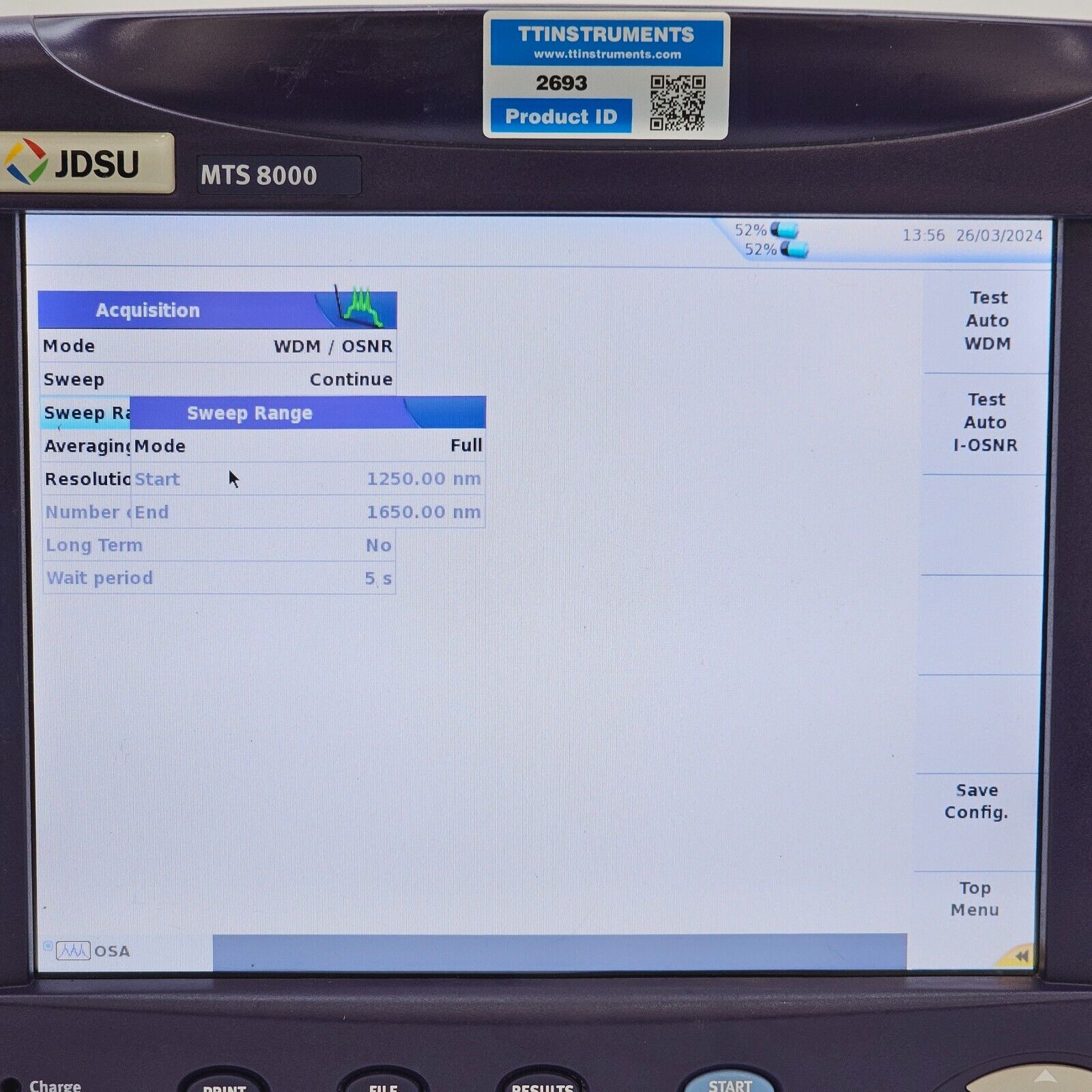

Wavelength Range: 1250 to 1650 nm

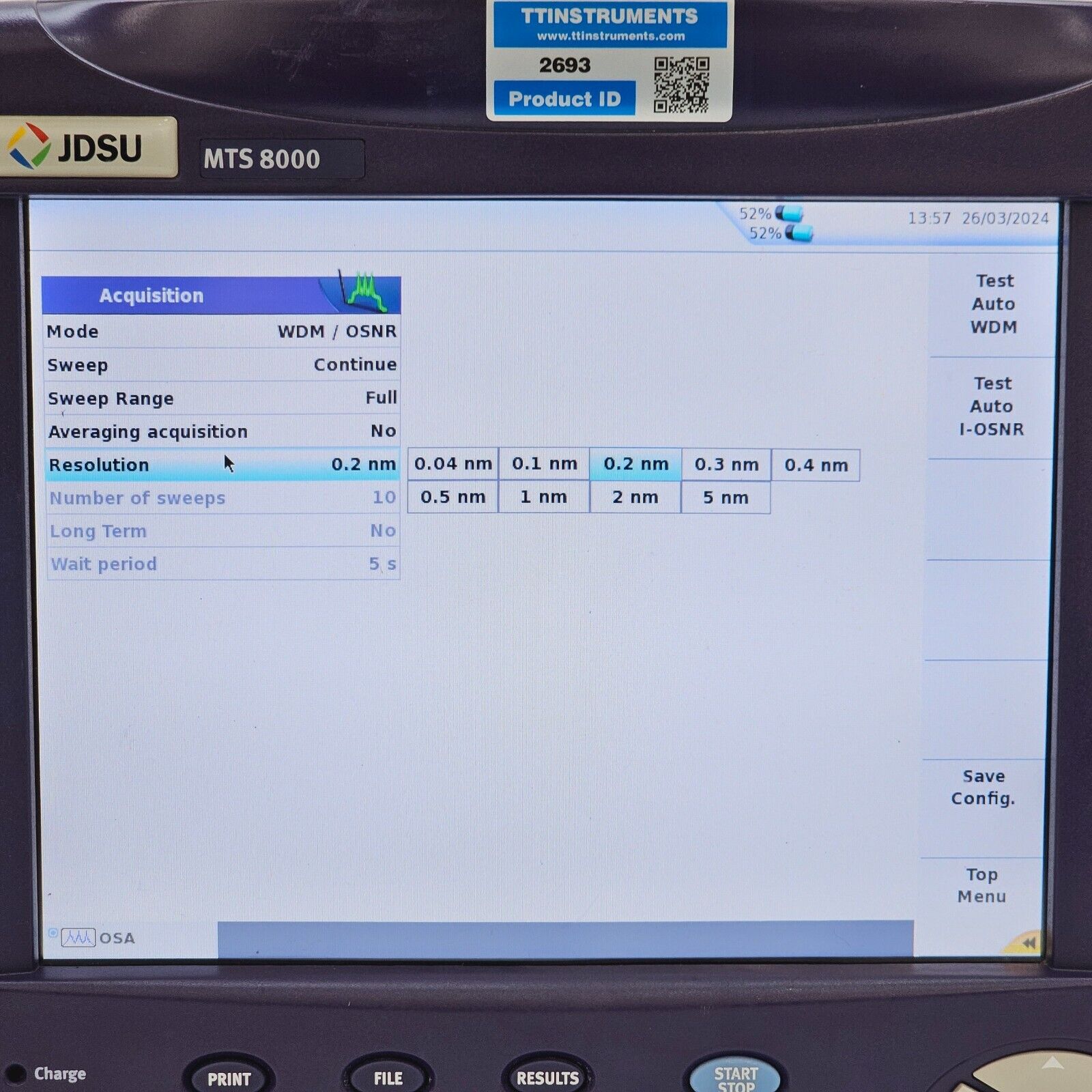

Resolution Bandwidth (FWHM): 0.038 nm
Absolute Wavelength Accuracy: ±0.01 nm
Wavelength Reference: Internal, physical constant (no factory recalibration required)
Readout Resolution (Wavelength): 0.001 nm
Measurement Samples: 120,000
Dynamic Range: -70 to +23 dBm
Absolute Power Accuracy: ±0.5 dB
Total Safe Input Power: +23 dBm
Readout Resolution (Power): 0.01 dB
Linearity: ±0.1 dB
Flatness: ±0.25 dB

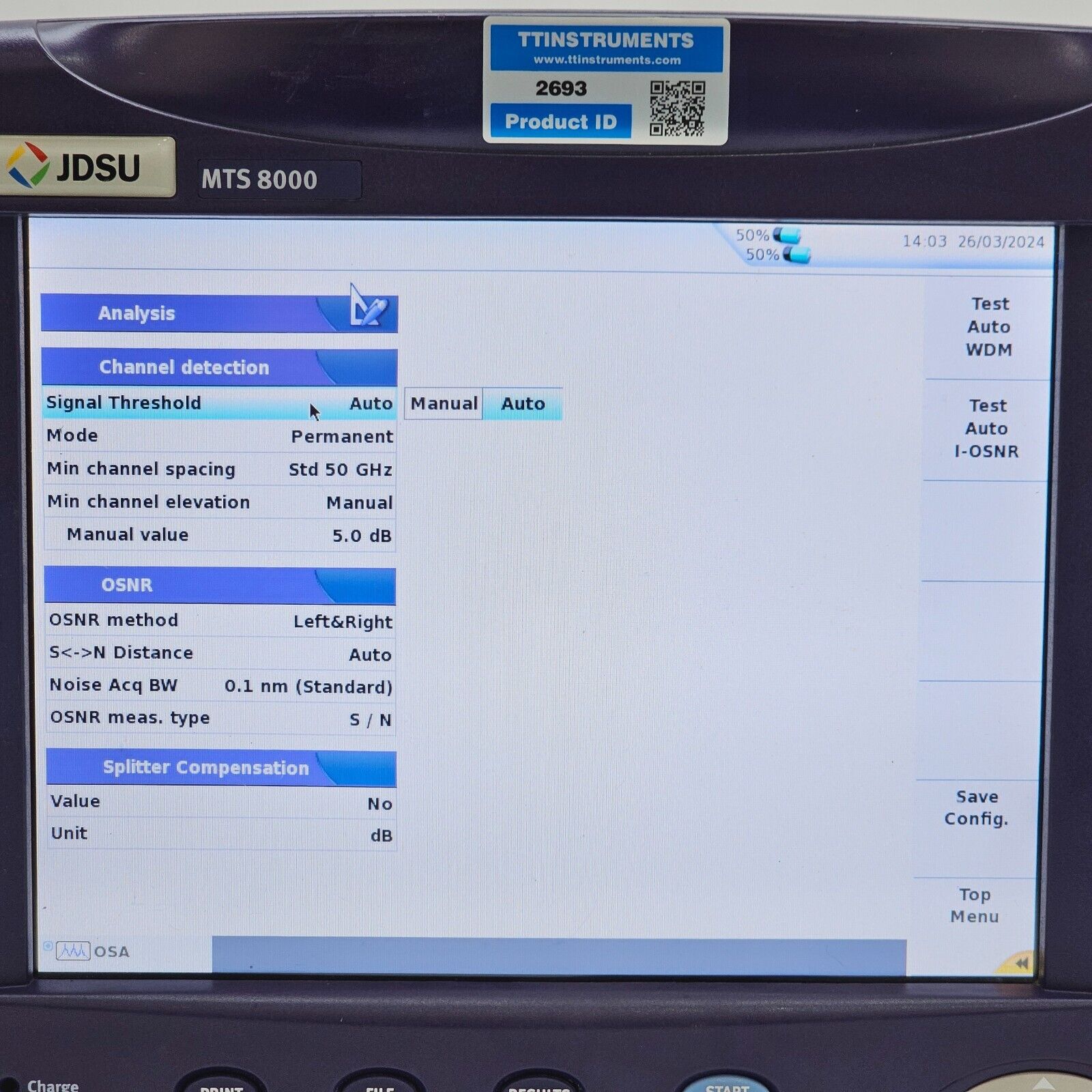

In-Band OSNR Method: Optical Polarization Splitting (OPS), VIAVI patented
In-Band OSNR Measurement Time: Under 30 seconds (OSA-500RS high-speed variant)
Channel Spacing Support: Down to 25 GHz
Max Data Rate Support: Up to 100 Gbps (DWDM/CWDM)

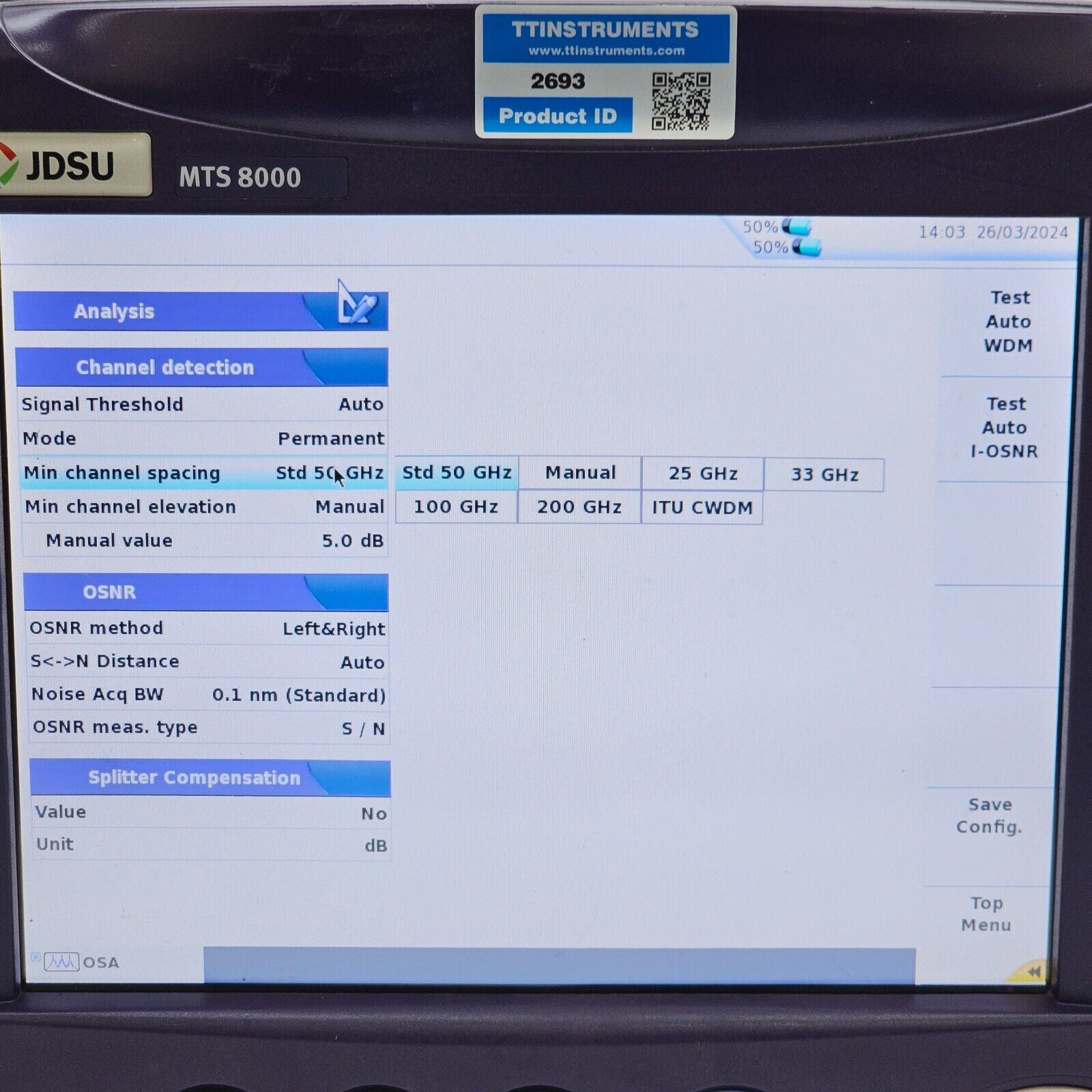

Key Features:
New Optical Polarization Splitting (OPS) method for measuring true in-band OSNR in ROADM-based networks
Full-band 1250–1650 nm tuning range suitable for all DWDM and CWDM (Metro) networks
Internal online wavelength calibration — no external recalibration required
High filter selectivity with lab-grade optical performance in a field-modular design
Channel drop option for single-channel isolation and in-depth signal analysis

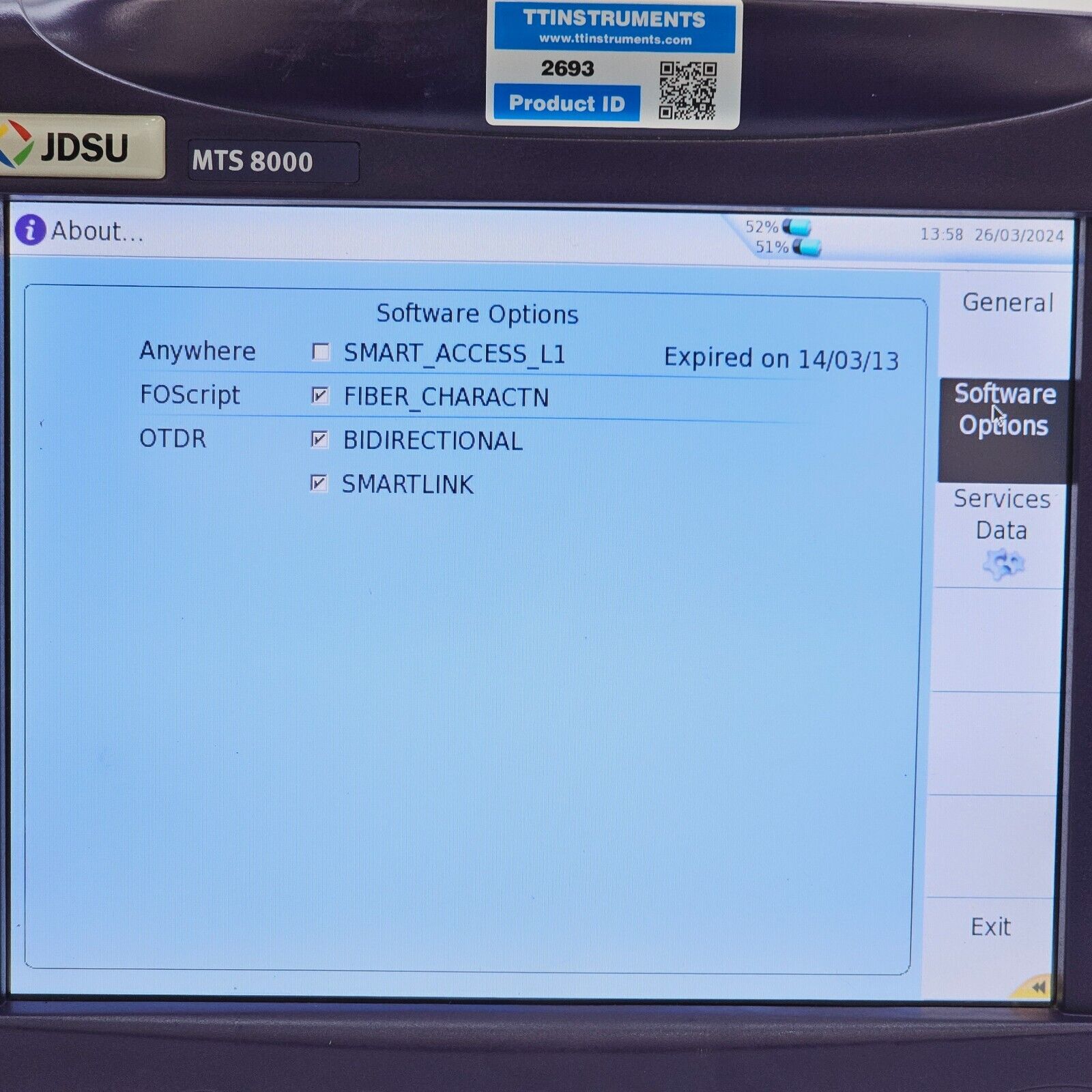

Software option for PMD testing based on the fixed analyser method

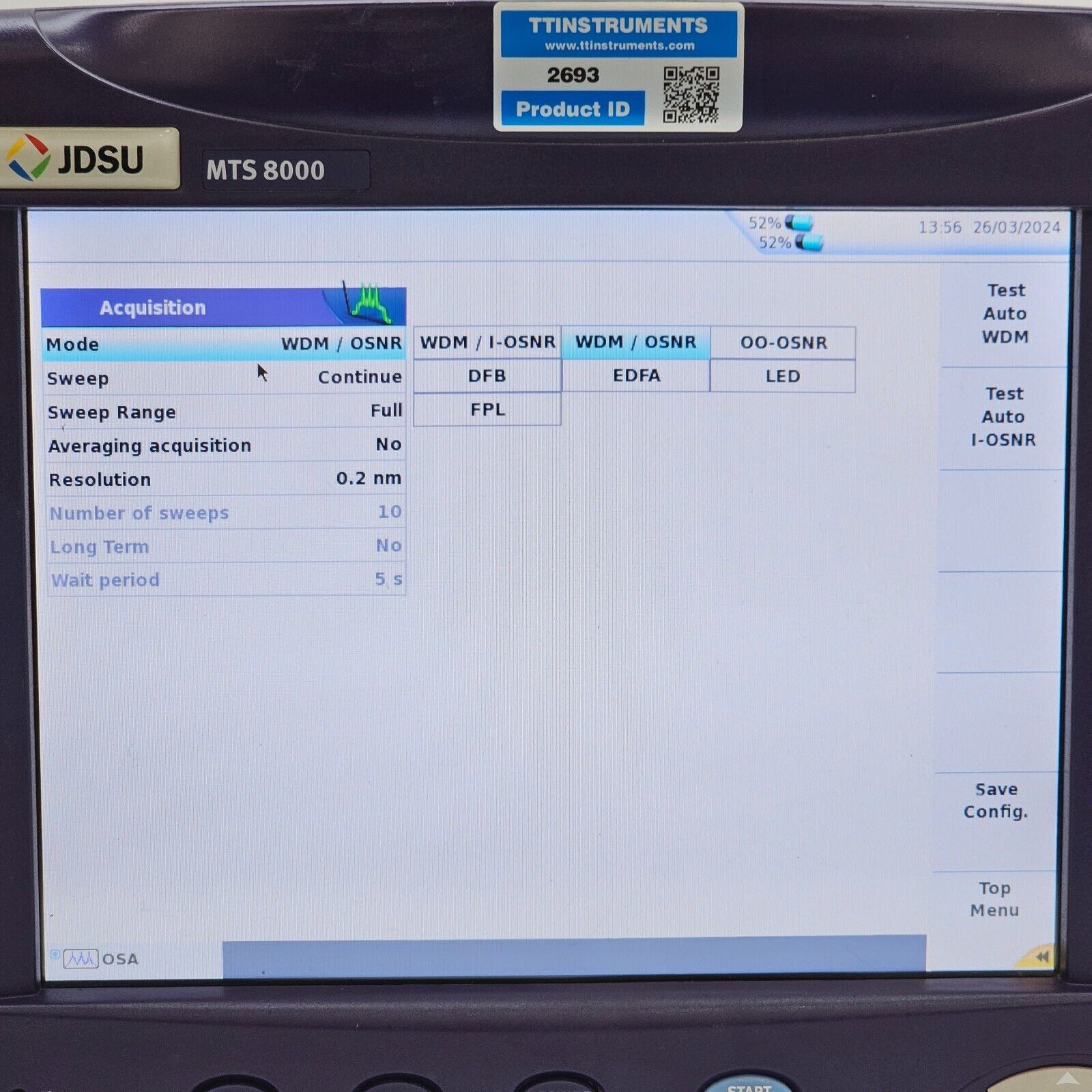

Built-in optical component test applications for laser diodes, LEDs, and optical amplifiers
Auto-Test mode with automatic WDM channel identification, wavelength range selection, and pass/fail evaluation
Drift test application for monitoring power, wavelength, and OSNR over time
Compatible with MTS-8000 / T-BERD 8000 and MTS-6000 / T-BERD 6000 platforms

Applications:
True in-band OSNR measurement in agile optical networks including ROADM testing
DWDM and CWDM system testing during installation, maintenance, and network upgrade
Automated DWDM passive and active component testing
System verification testing against customer-preset limits
Verification of ROADM configurations in agile optical networks
Providing and troubleshooting 100G DWDM Metro and Core networks
Installing and maintaining CWDM systems in CATV, access, and mobile backhaul applications

Viavi OSA-500R/500RS High-Performance Full-Band OSA Data Sheet (official VIAVI PDF): Download PDF

JDSU OSA-500/500M/501M/500R/500RS Product Specifications Data Sheet (PDF): Download PDF

JDSU T-BERD 8000 Platform Specifications Sheet (PDF via AAATesters): Download PDF

JDSU T-BERD 8000 OSA Module User Manual — MTS/T-BERD 8000 Modules Series (PDF): Download PDF

JDSU T-BERD 8000 Datasheet (PDF via ATEC): Download PDF
