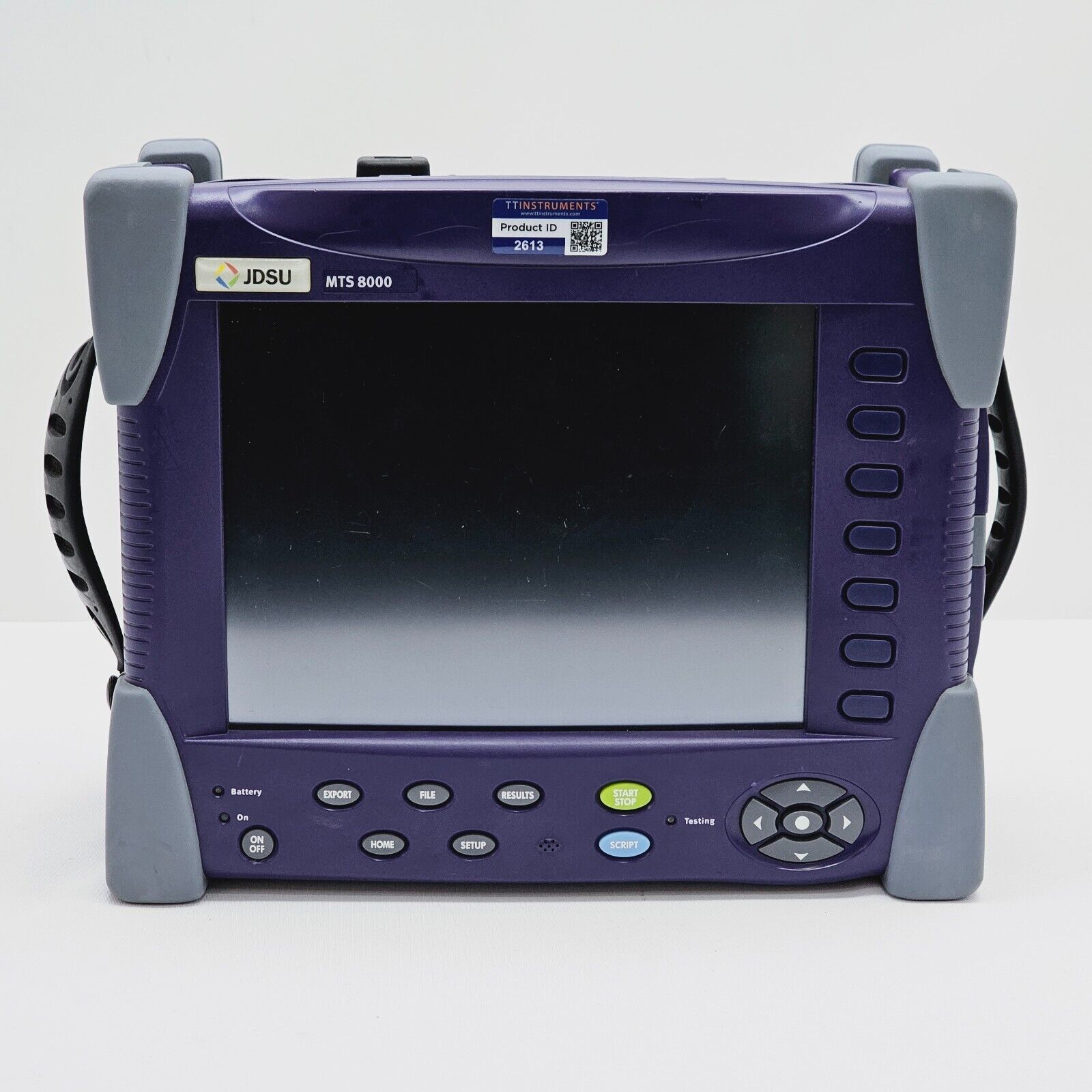

Viavi MTS 8000E V2 mainframe with OSA-500 DWDM analyzer module, front view

Viavi MTS 8000E touchscreen display showing optical spectrum measurement interface

OSA-500 2281/91.51 optical DWDM analyzer module fitted to MTS 8000E mainframe

Viavi MTS 8000E V2 right-side panel showing optical connector ports

Viavi MTS 8000E left-side view showing battery and interface connections

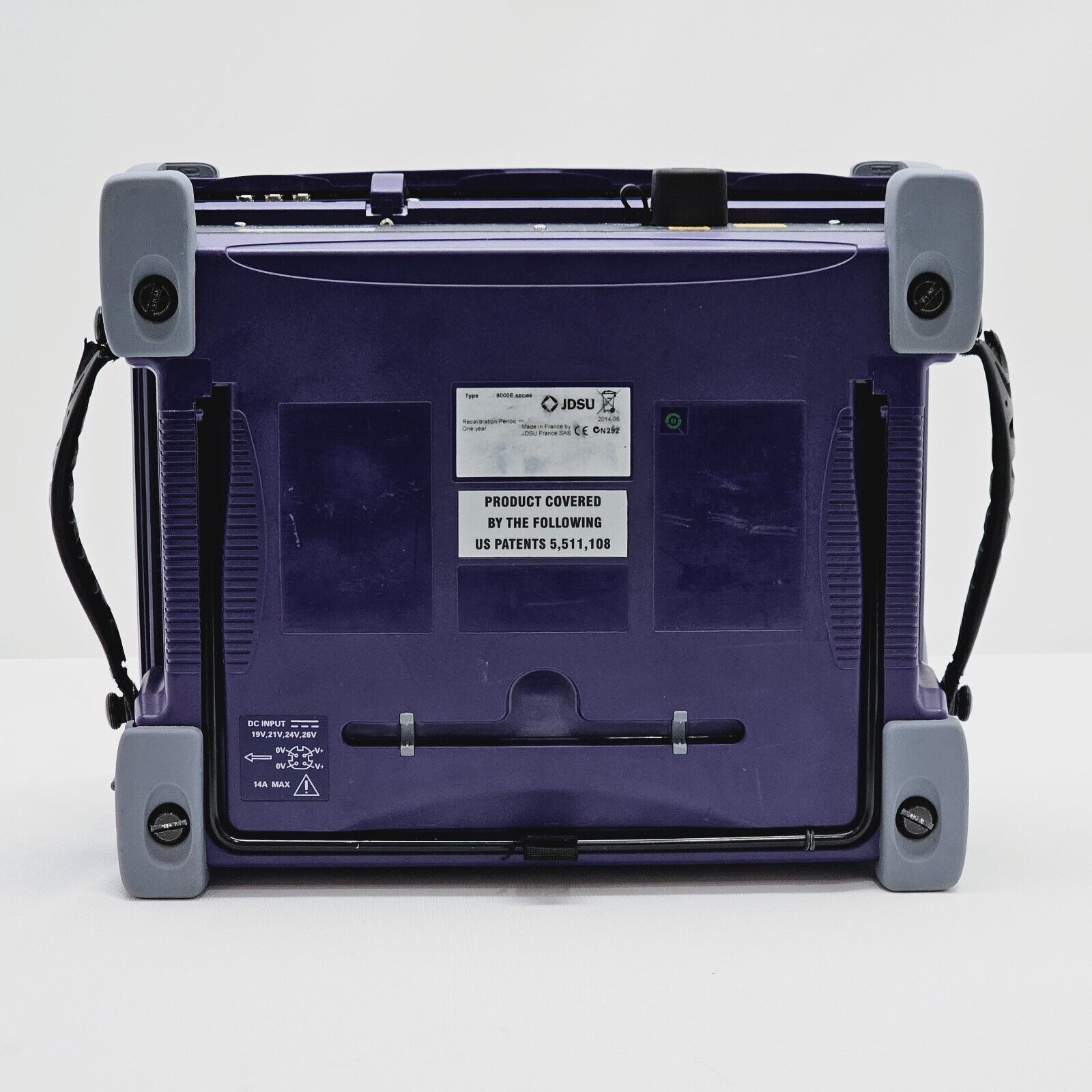

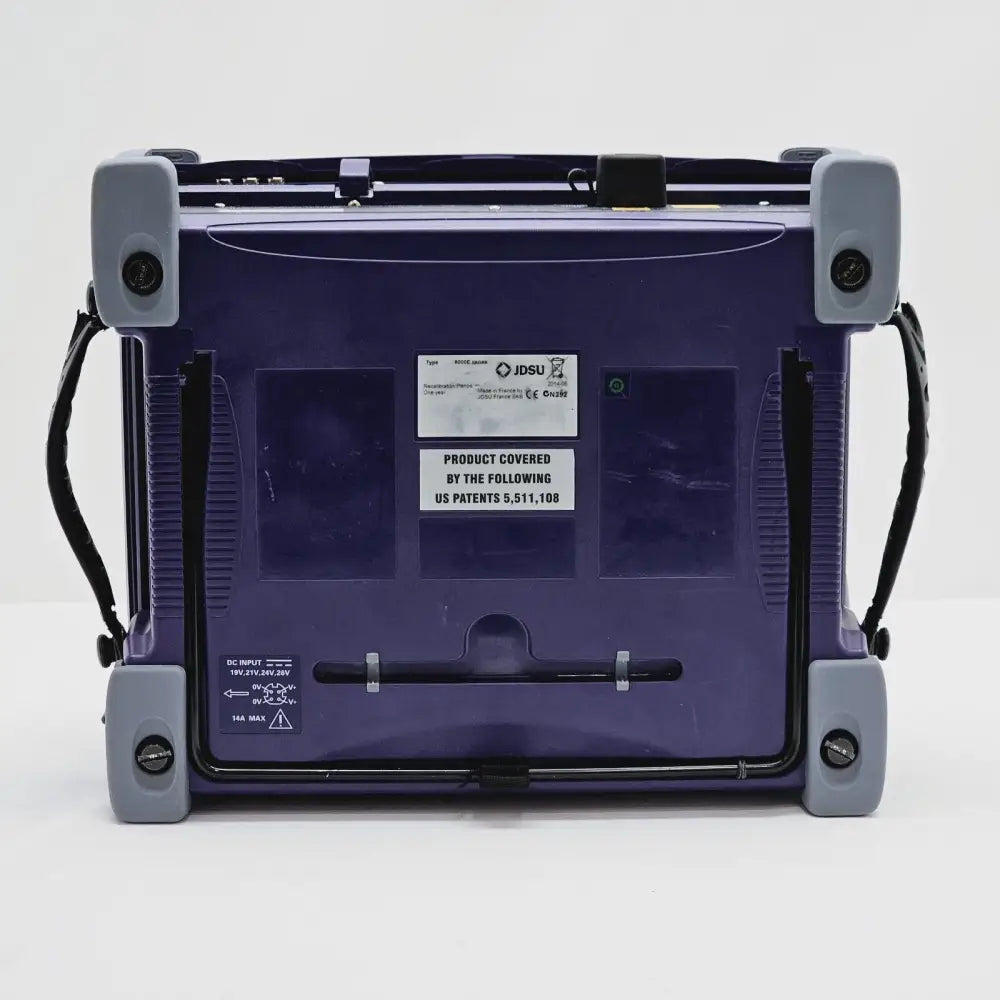

Viavi MTS 8000E rear panel with port and ventilation detail

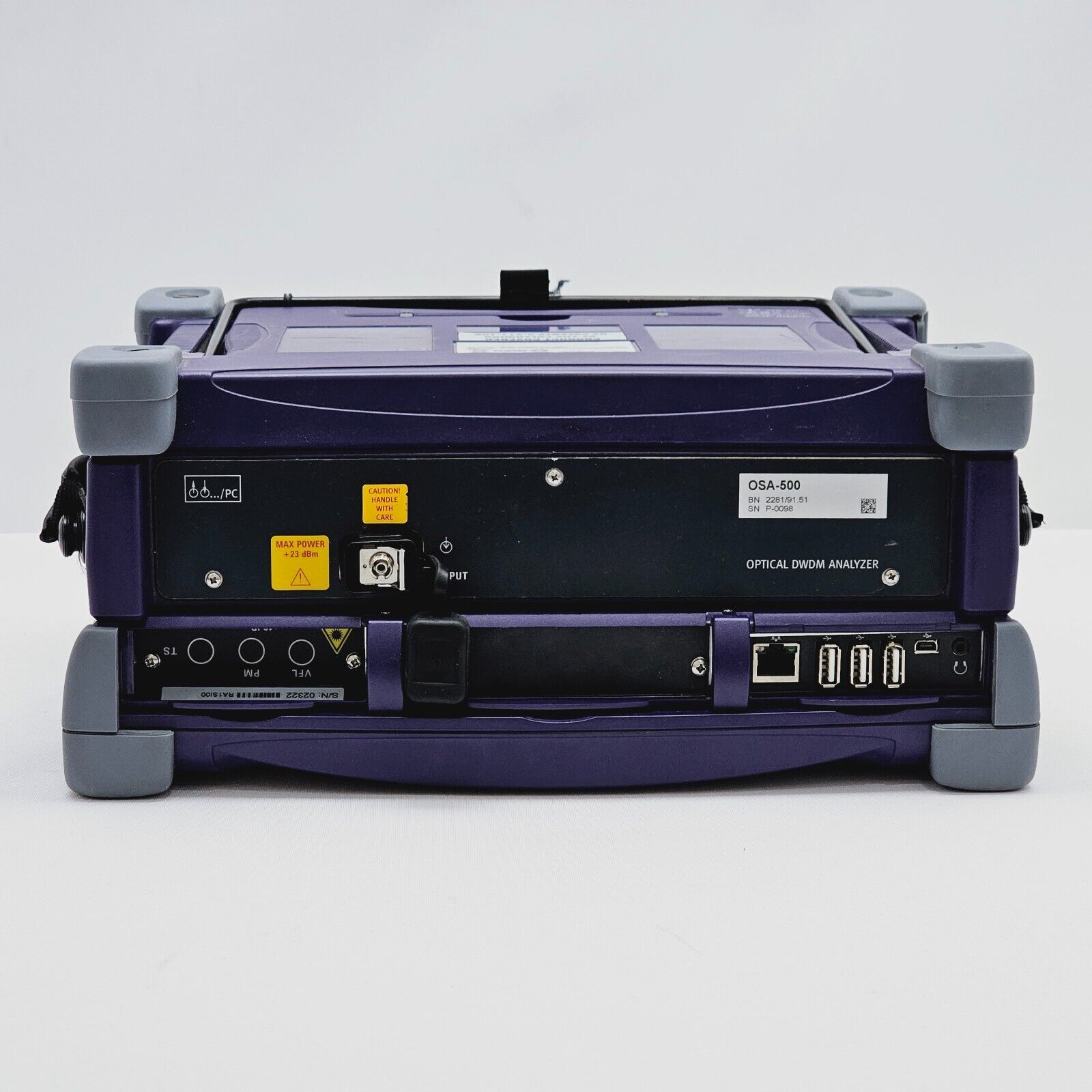

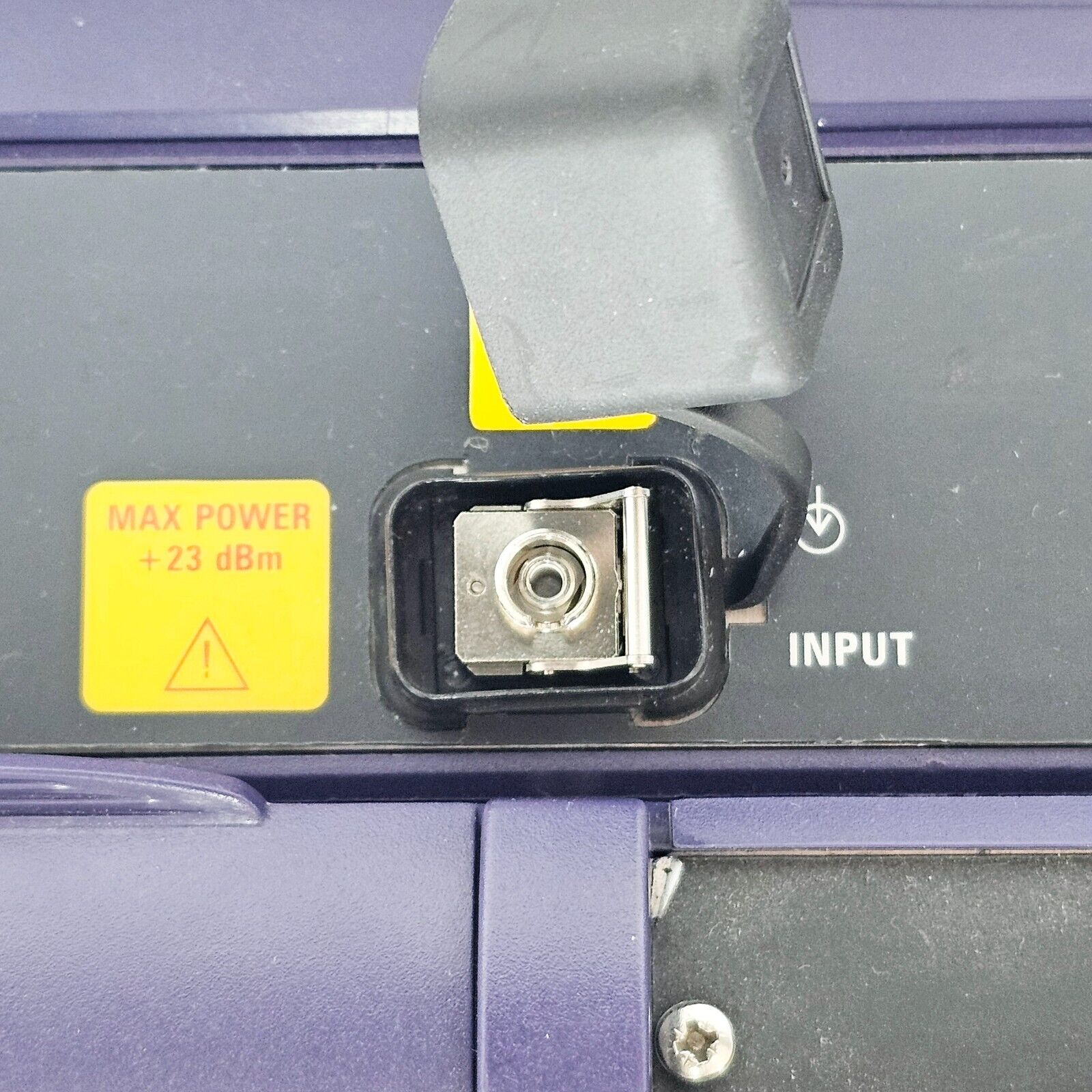

Viavi MTS 8000E OSA-500 module close-up showing optical input connectors

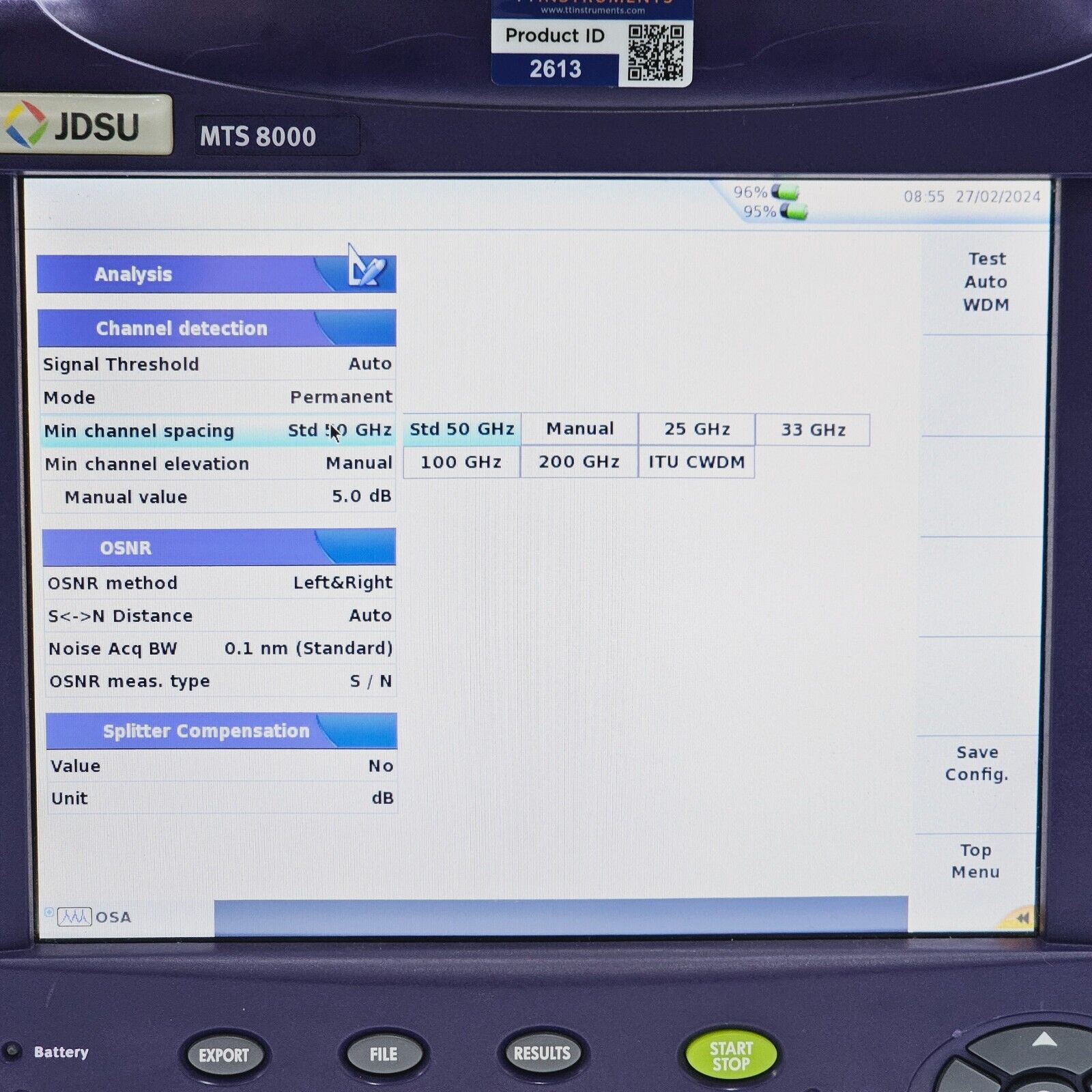

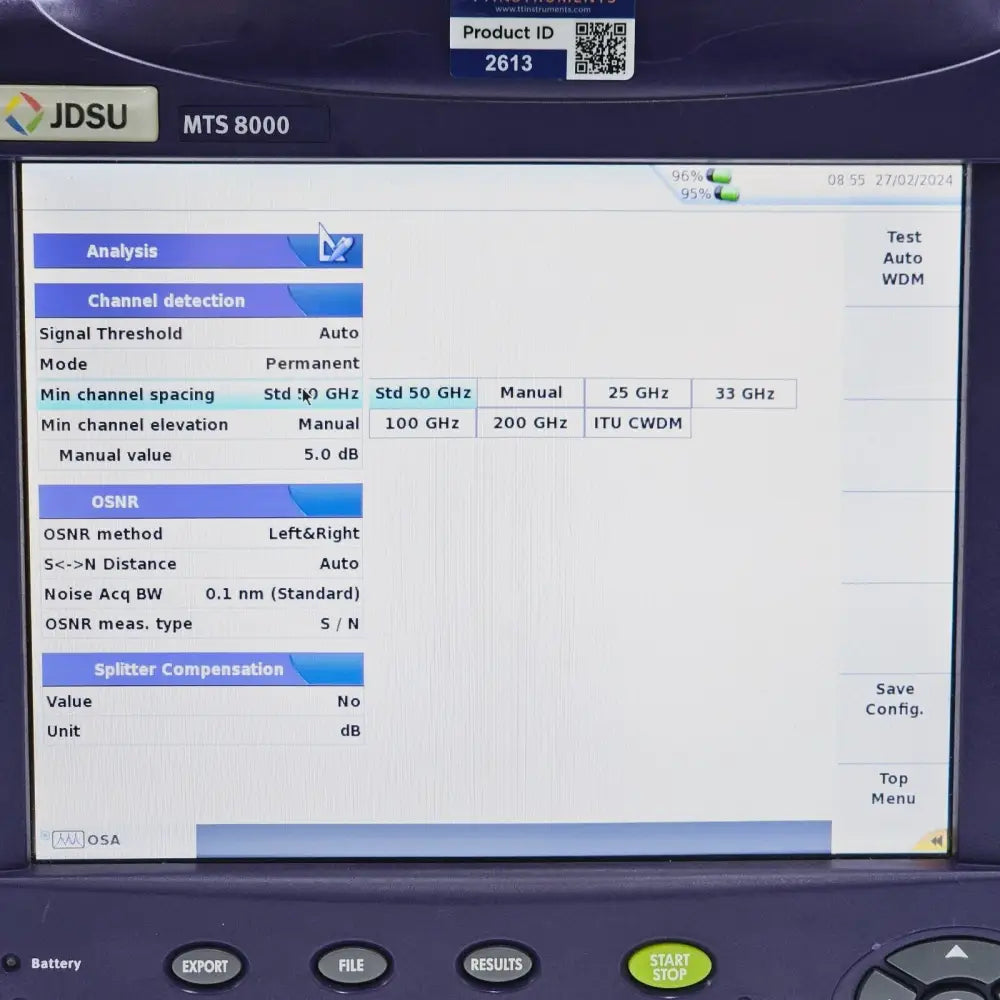

MTS 8000E touchscreen displaying DWDM channel OSNR measurement results

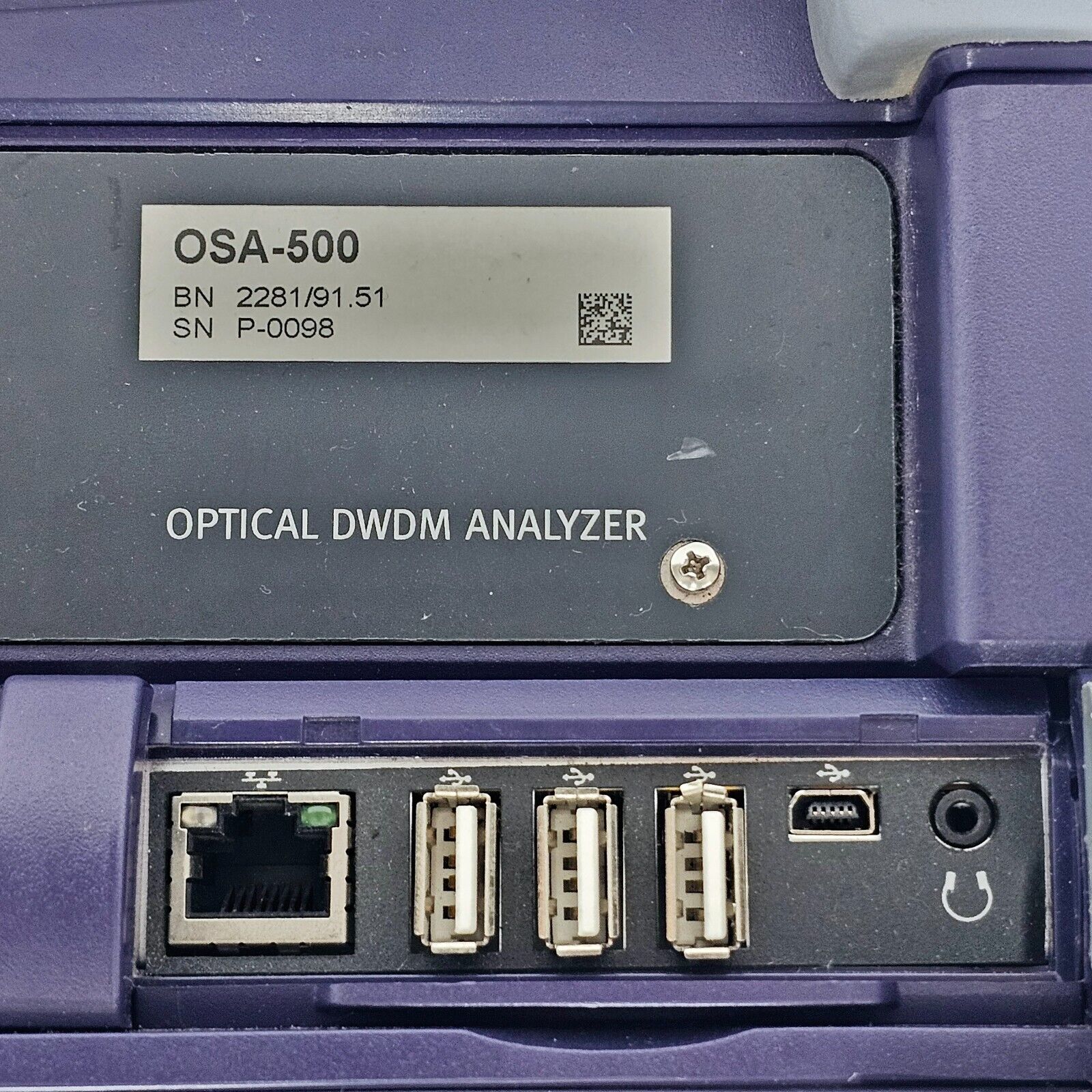

OSA-500 module label showing part number 2281/91.51 on MTS 8000E

Viavi MTS 8000E with stylus and power adapter accessories laid out

MTS 8000E mainframe top panel detail showing module locking and connector area

Viavi MTS 8000E OSA-500 system powered on with live optical spectrum trace on screen

Close-up of Viavi MTS 8000E serial number and certification label

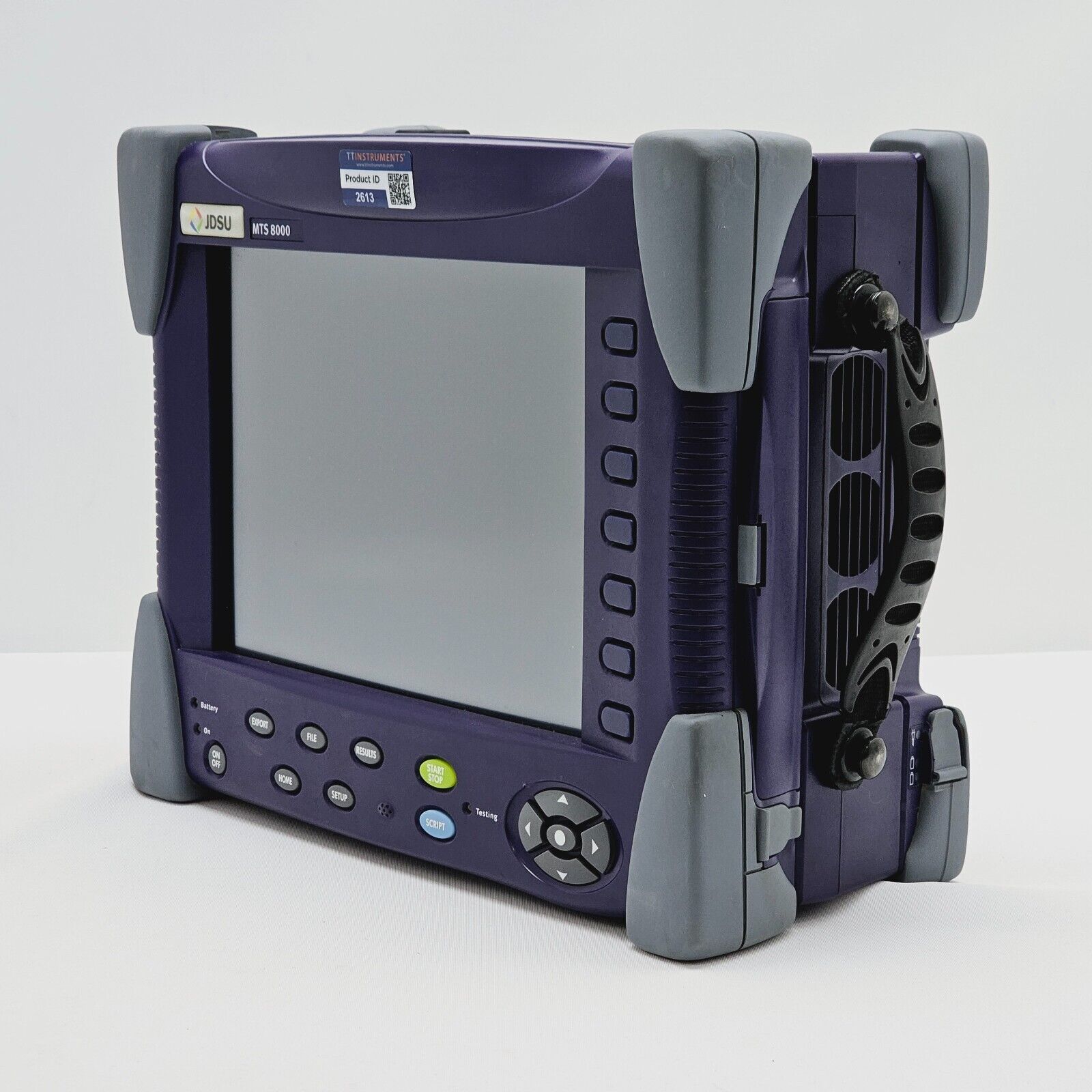

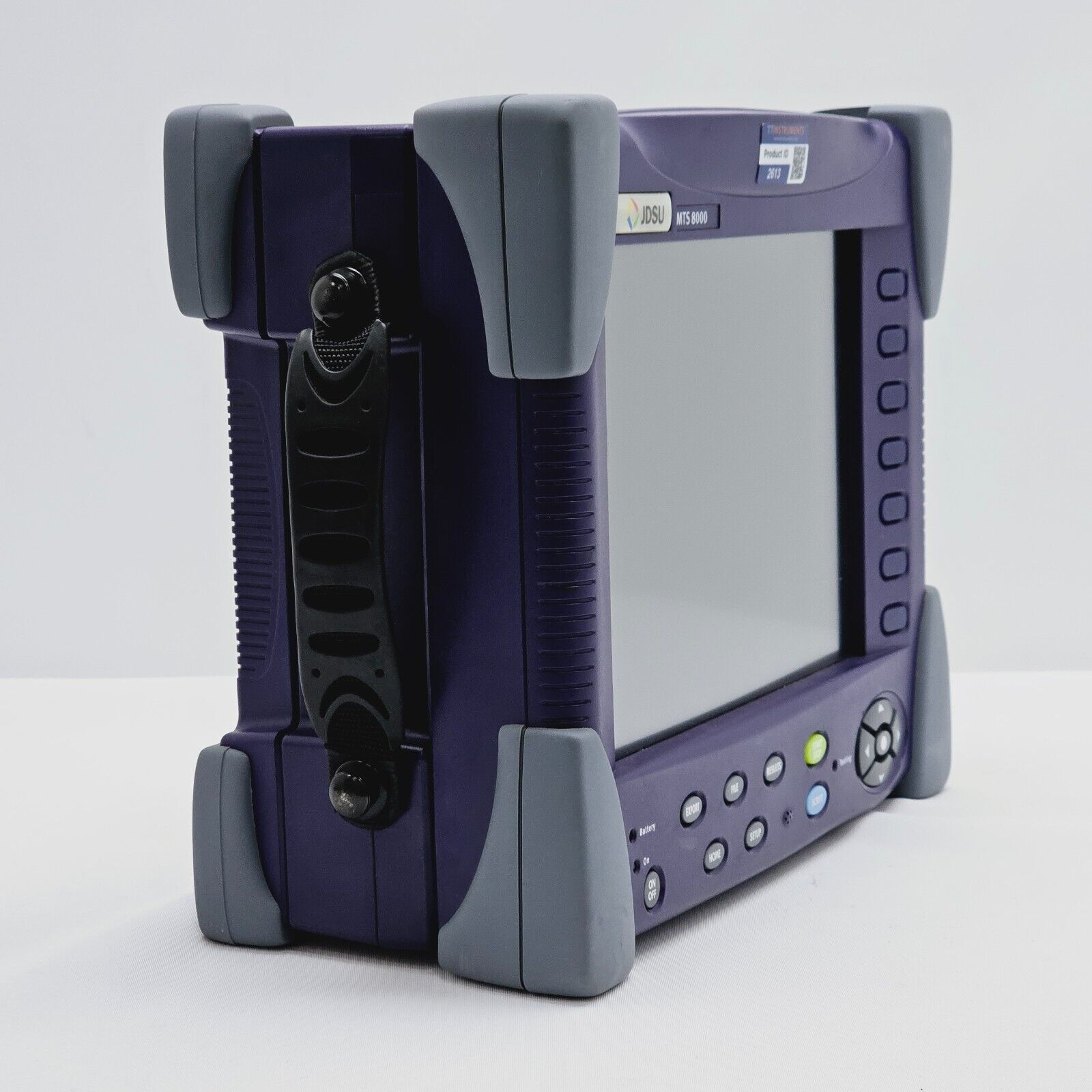

Viavi MTS 8000E V2 angled three-quarter view showing screen and module bay

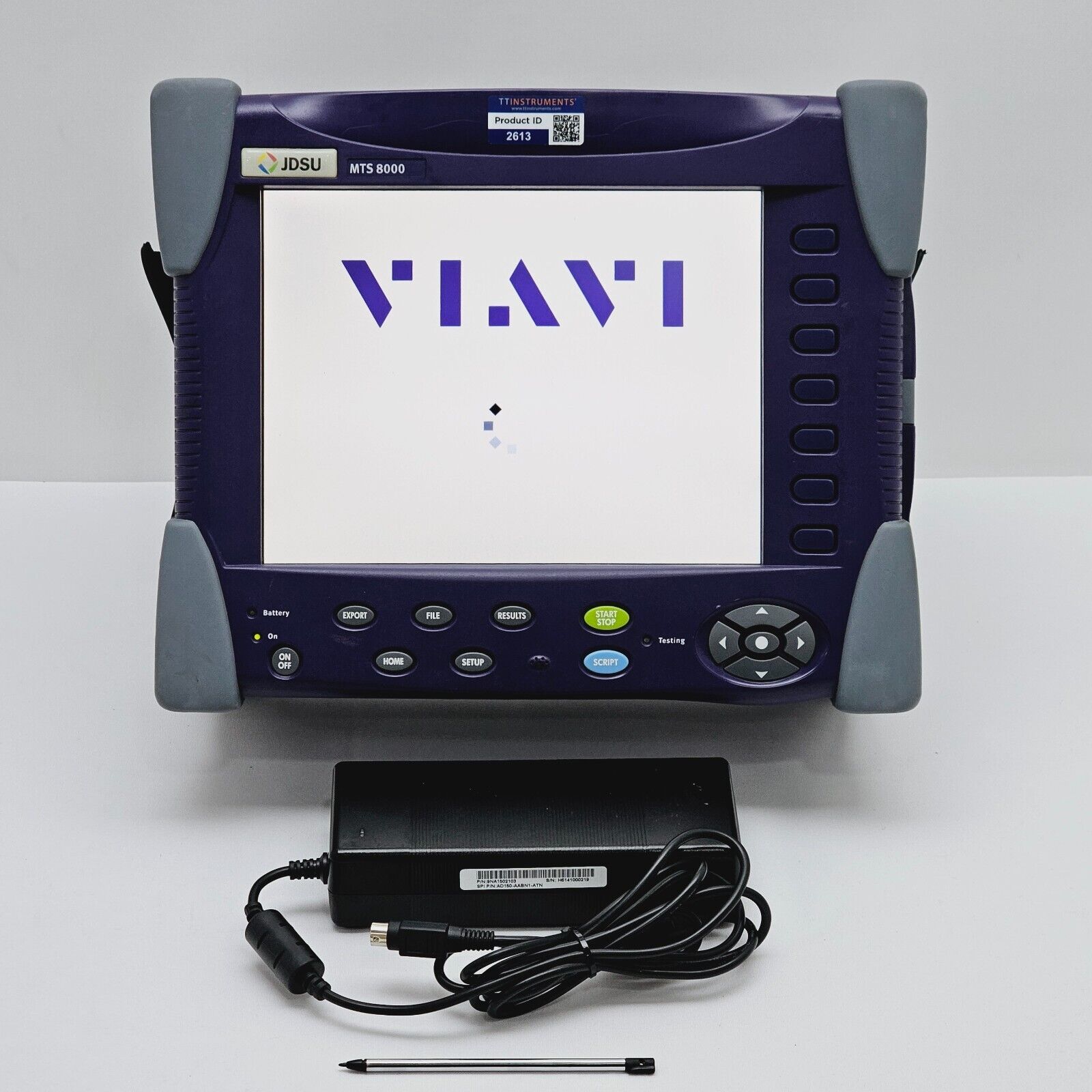

Full contents of the Viavi MTS 8000E OSA-500 sale including mainframe, module, power adapter and stylus

Tested

14 Day Money Back Guarantee

Great Value

Global Shipping

JDSU Viavi MTS 8000E w/ OSA-500 2281/91.51 Optical DWDM Analyzer 2281/91.51 OSA

Name: JDSU Viavi MTS 8000E w/ OSA-500 2281/91.51 Optical DWDM Analyzer 2281/91.51 OSA
Brand: Viavi JDSU
SKU: 2613 7D02 ER25
Price: 1695.75 GBP
Availability: OutOfStock

The Viavi MTS 8000E V2 with OSA-500 2281/91.51 is a professional portable optical spectrum analyser platform for CWDM and DWDM network testing across the full 1250–1650 nm band.
• Full-band DWDM and CWDM spectral analysis supporting data rates up to 100 Gbps
• True in-band OSNR measurement capability for ROADM-based agile optical networks
• Modular field design combining a touchscreen mainframe with high-performance OSA module

Manufacturer

Viavi JDSU

Model

MTS 8000E w/ OSA-500

Condition

Used

In stock

SKU

2613 7D02

£1,695.75

CD/PMD Analyzers
Fiber Optics
OCA
Offers Accepted
SA

Make an Offer

Condition: Used — tested and in working condition.

The Viavi MTS 8000E V2 Mainframe with the OSA-500 2281/91.51 Optical DWDM Analyzer module is a field-portable modular test platform for high-performance spectral analysis on CWDM and DWDM optical networks. This unit features a touchscreen interface, internal hard disk, and battery for standalone field operation. The OSA-500 module provides full-band coverage from 1250 to 1650 nm and supports DWDM system installation, maintenance, and verification testing including OSNR measurements.

Included in the sale:
• Viavi MTS 8000E V2 Mainframe (with hard disk, touchscreen, battery)
• OSA-500 2281/91.51 Optical DWDM Analyzer module
• Power adapter
• Stylus

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

Product Overview

Condition: Used — tested and in working condition.

Included in the sale:
• Viavi MTS 8000E V2 Mainframe (with hard disk, touchscreen, battery)
• OSA-500 2281/91.51 Optical DWDM Analyzer module
• Power adapter
• Stylus

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

Manufacturer's Description

The Viavi MTS 8000E is a modular, portable mainframe platform designed for testing CWDM and DWDM networks and optical components with full-band, high-performance optical spectrum analysis. The OSA-500 series modules represent VIAVI's advanced field-portable spectral test solutions, combining free-space optics technology with full-band measurement capability across 1250–1650 nm to support both CWDM and DWDM network testing at data rates up to 100 Gbps.

The OSA-500R/500RS variants include VIAVI's unique in-band OSNR method (OPS method) to measure the true in-band OSNR in ROADM-based agile optical networks. Internal online wavelength calibration ensures the highest wavelength accuracy with no recalibration required in the field, significantly reducing service costs.

Key Features:
Wavelength range: 1250 to 1650 nm (full band)
Supported data rates: Up to 100 Gbps (DWDM/CWDM)
OSNR measurement: True in-band OSNR using VIAVI OPS method
Platform: MTS-8000 / T-BERD 8000 modular mainframe
Channel drop option: Isolate a single channel for in-depth signal analysis with BERT or Q-factor meter
PMD testing: Software option based on fixed analyser PMD test method
Built-in component test applications: Laser diodes, LEDs, and optical amplifiers
Internal calibration: Online wavelength calibration, no field recalibration required
Filter selectivity: High selectivity with lab-grade optical performance across full band

Applications:
True in-band OSNR measurement in agile optical networks including ROADM testing
DWDM and CWDM system testing during installation, maintenance, and network upgrade
Automated DWDM passive and active component testing
System verification testing against customer-preset pass/fail limits
Verification of ROADM configurations in agile optical networks
Dispersion compensating module characterisation

Resources

Viavi OSA-500x Series Optical Spectrum Analyzer Modules Datasheet (PDF): Download PDF
