JDSU JD785B CellAdvisor Base Station Analyzer 9kHz-8GHz w/ JD78050509 OSL
Model: JD785B
Condition: Used
In stock: 0
SKU: 2524 2C01
- Cable & antenna analysers
- RF & Microwave
Choose options
Condition: Used

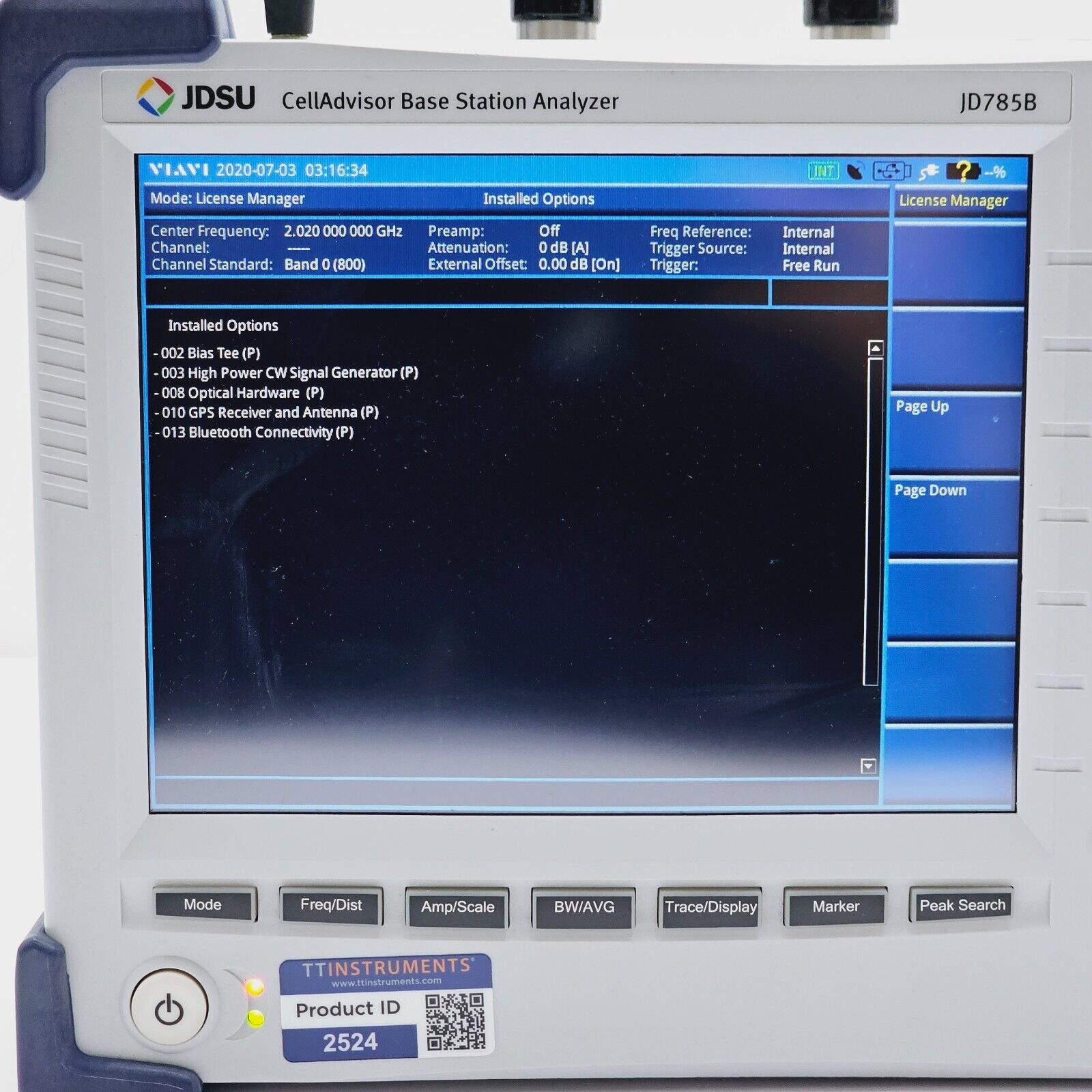

This JDSU JD785B CellAdvisor Base Station Analyzer covers 9 kHz to 8 GHz and is supplied as pictured with a range of active options and accessories. The unit includes the JD78050509 OSL (Open/Short/Load) calibration kit and has the following options licensed and active:
• Option 002 – Bias Tee
• Option 003 – High Power CW Signal Generator
• Option 008 – Optical Hardware
• Option 010 – GPS Receiver & Antenna
• Option 013 – Bluetooth Connectivity

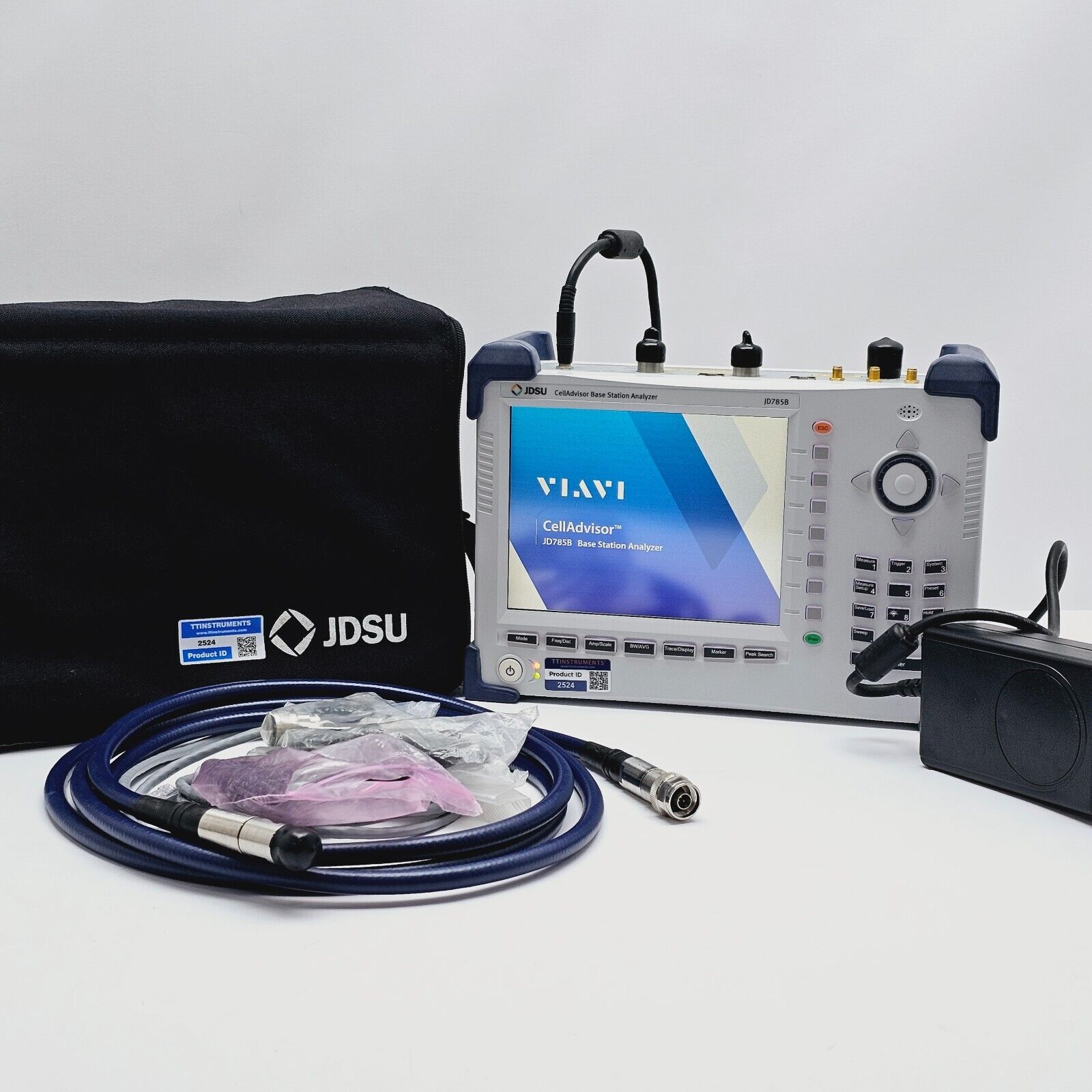

Included in the sale:

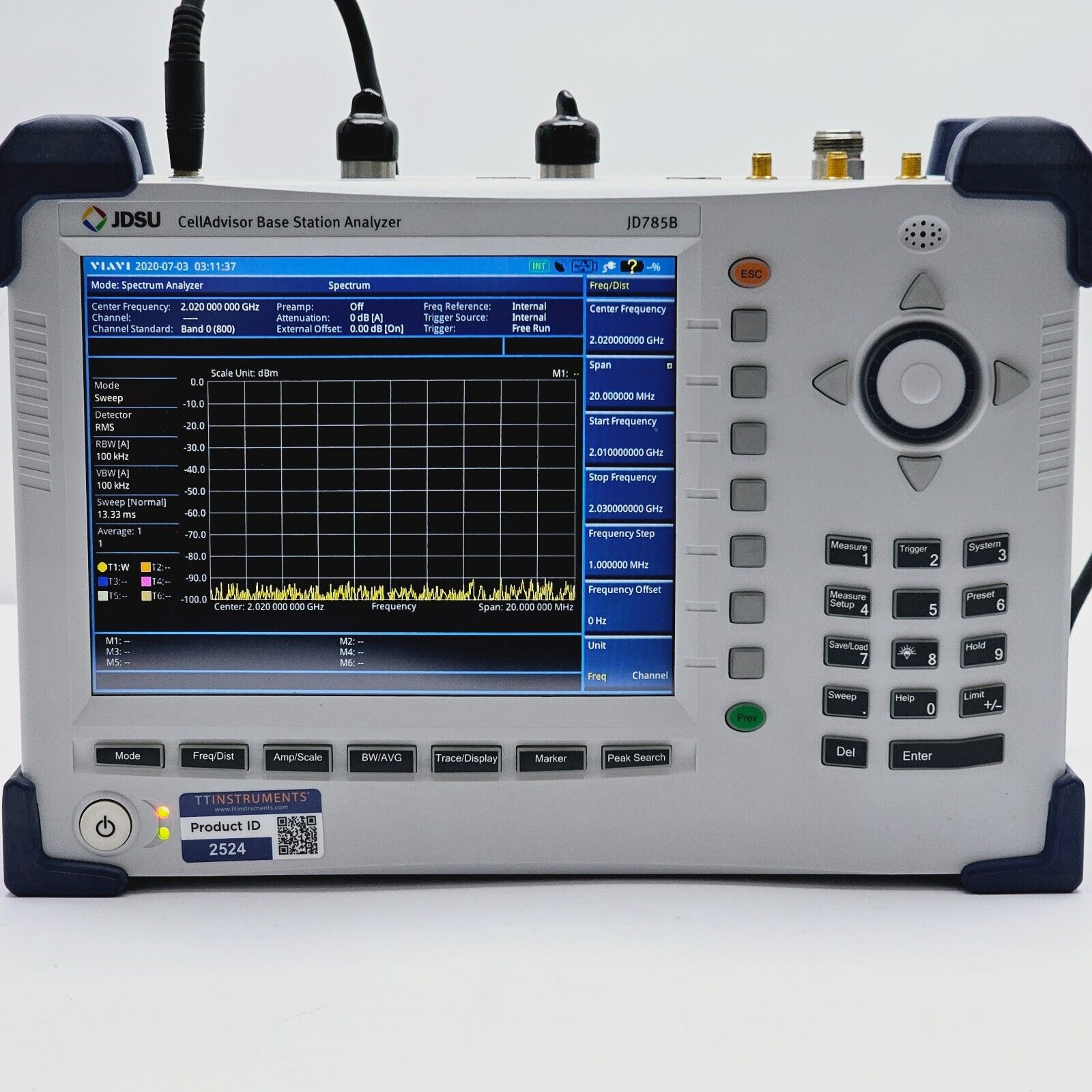

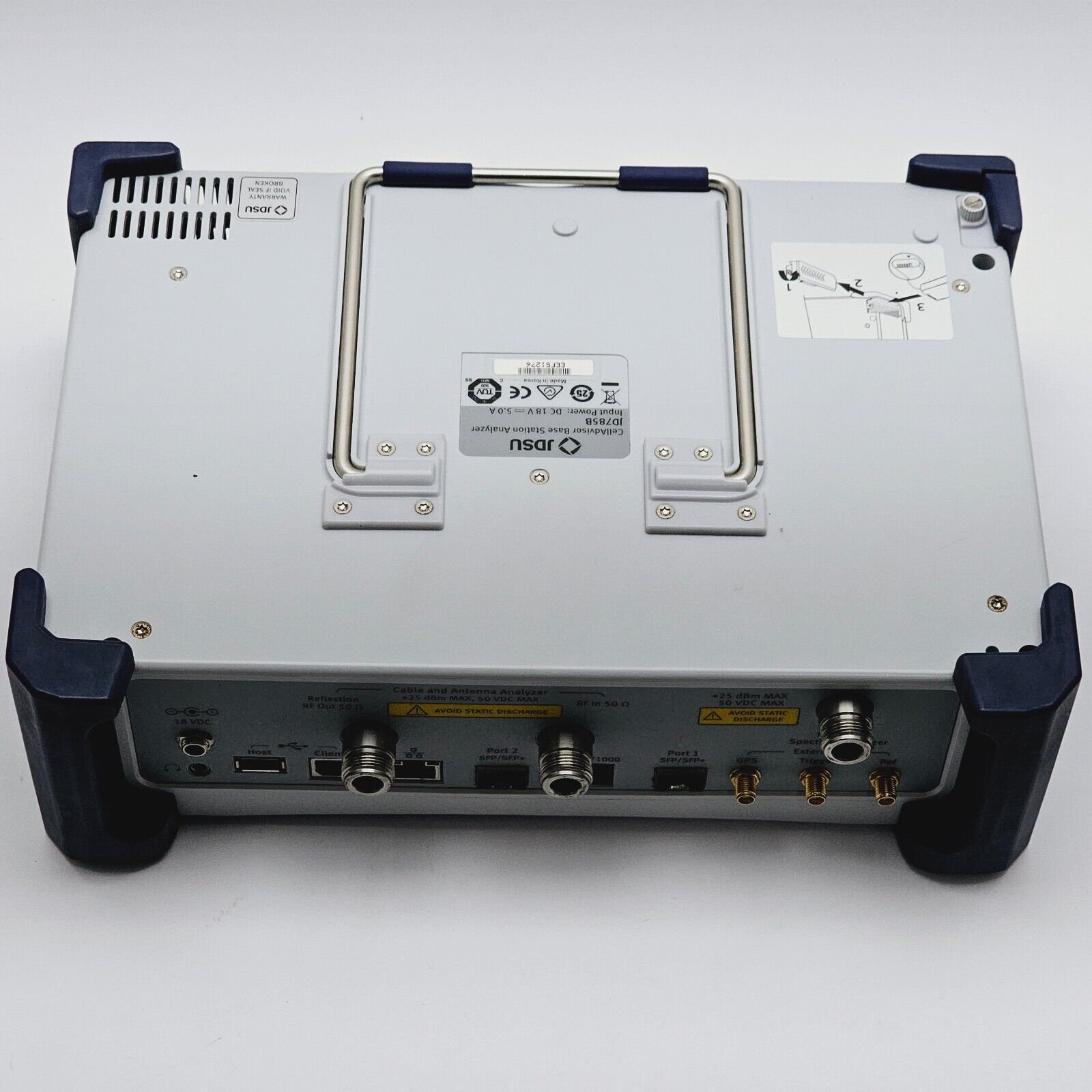

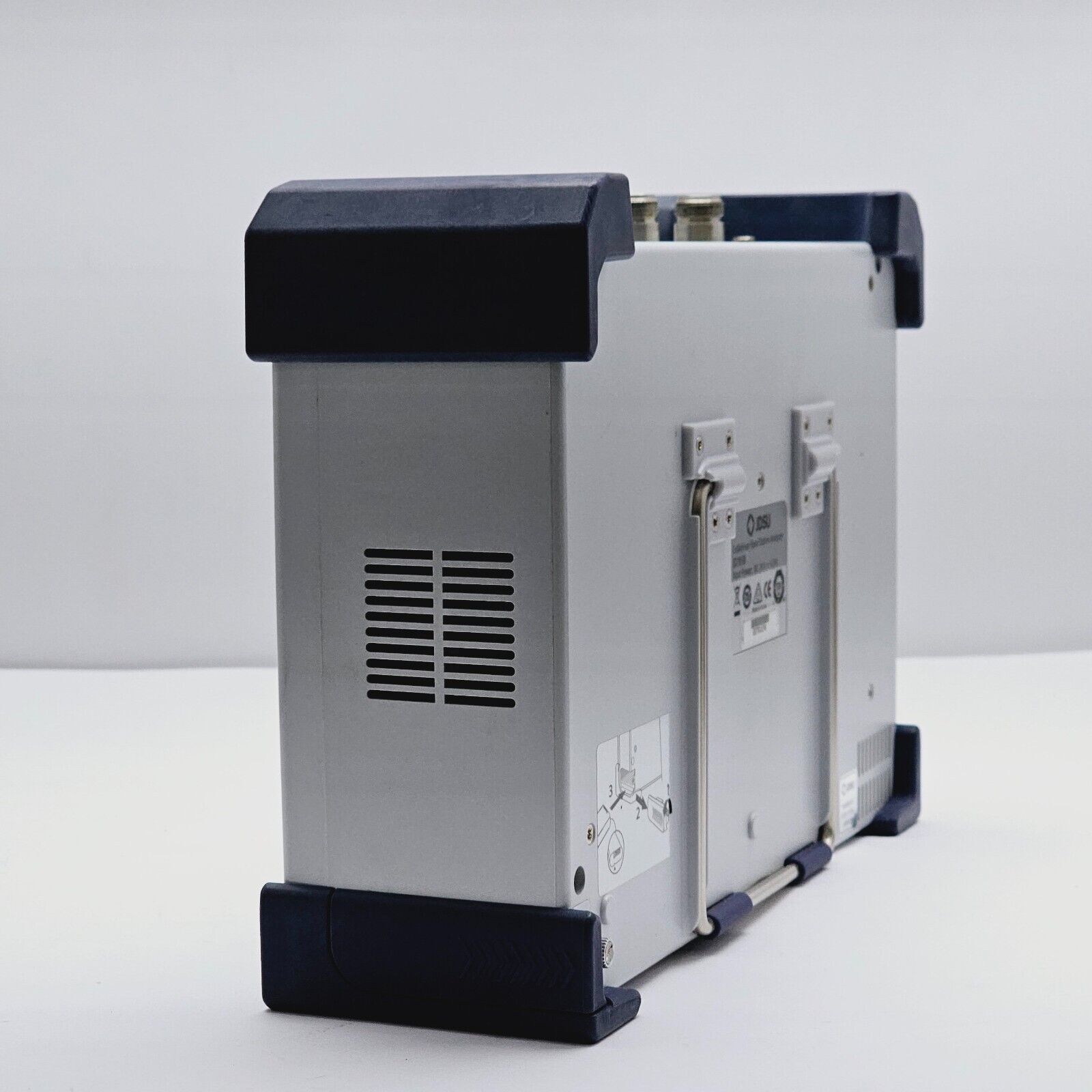

• JDSU JD785B CellAdvisor Base Station Analyzer

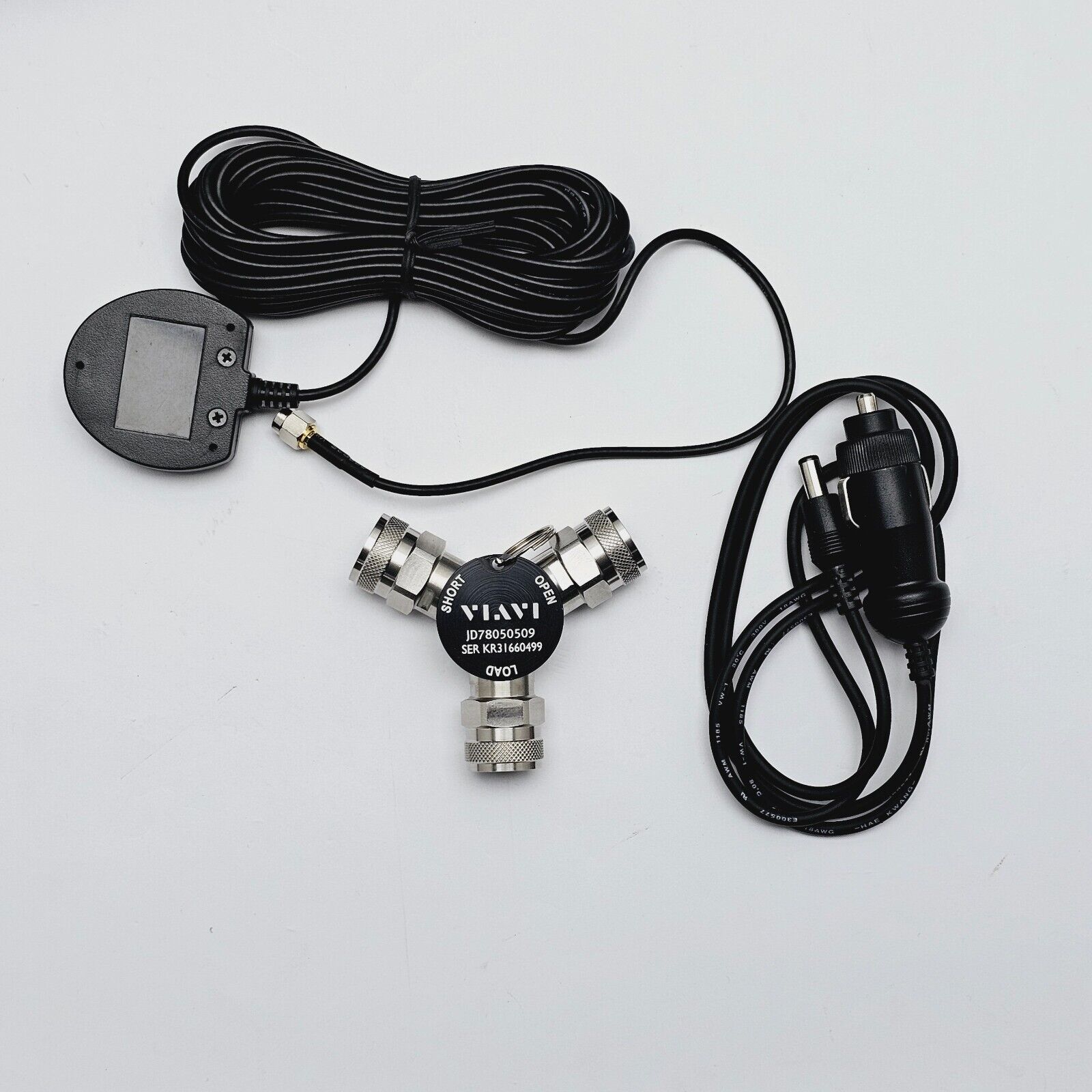

• JD78050509 OSL Calibration Kit

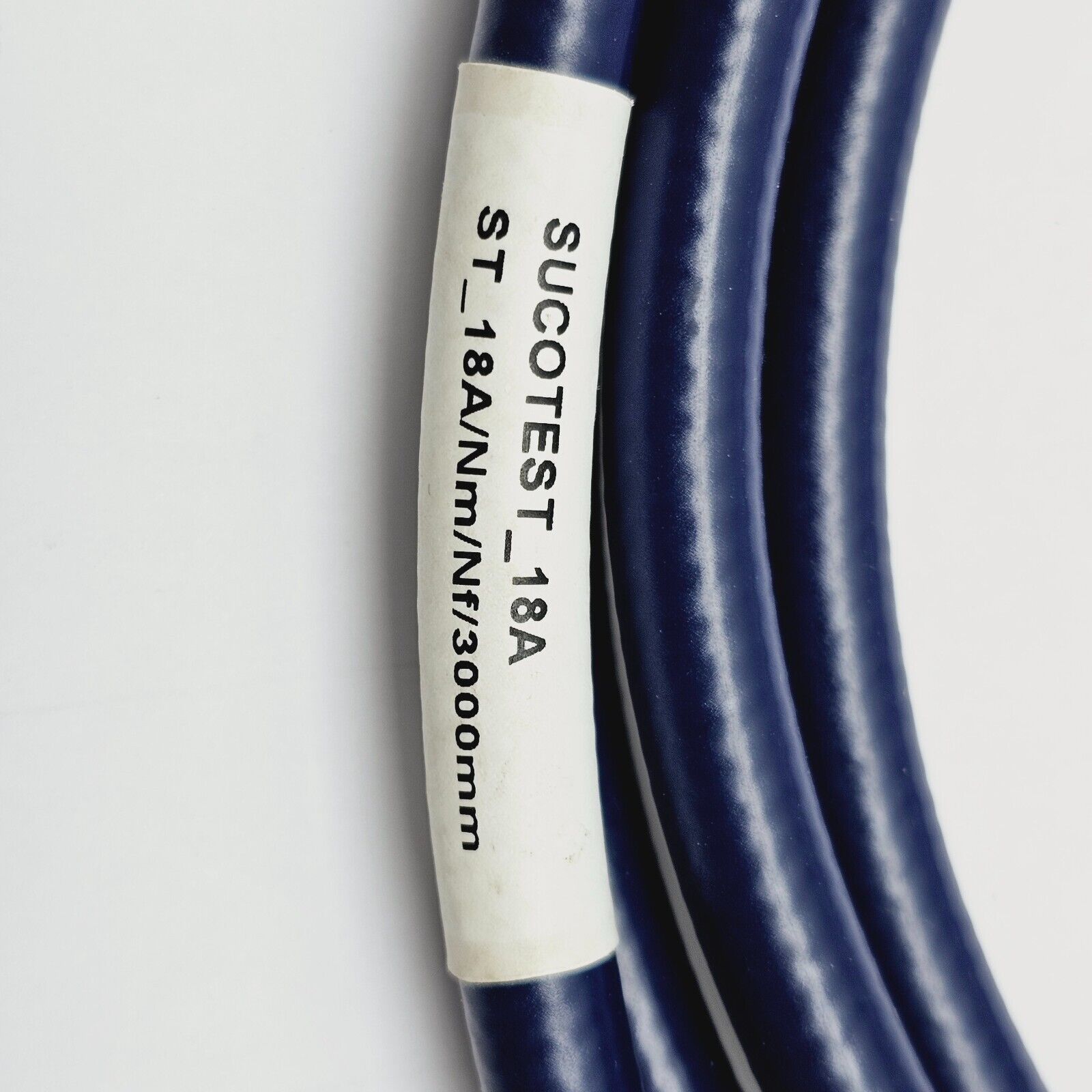

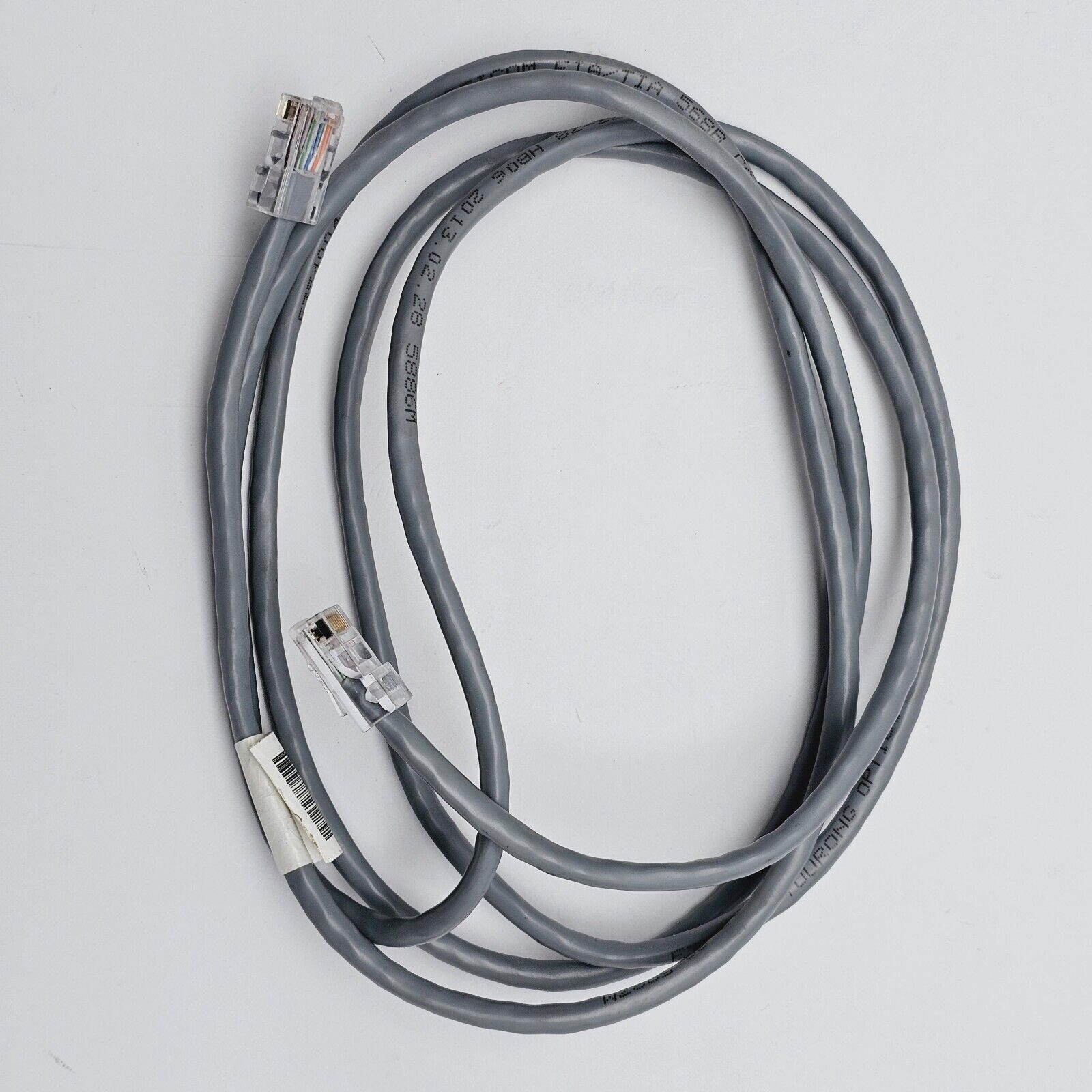

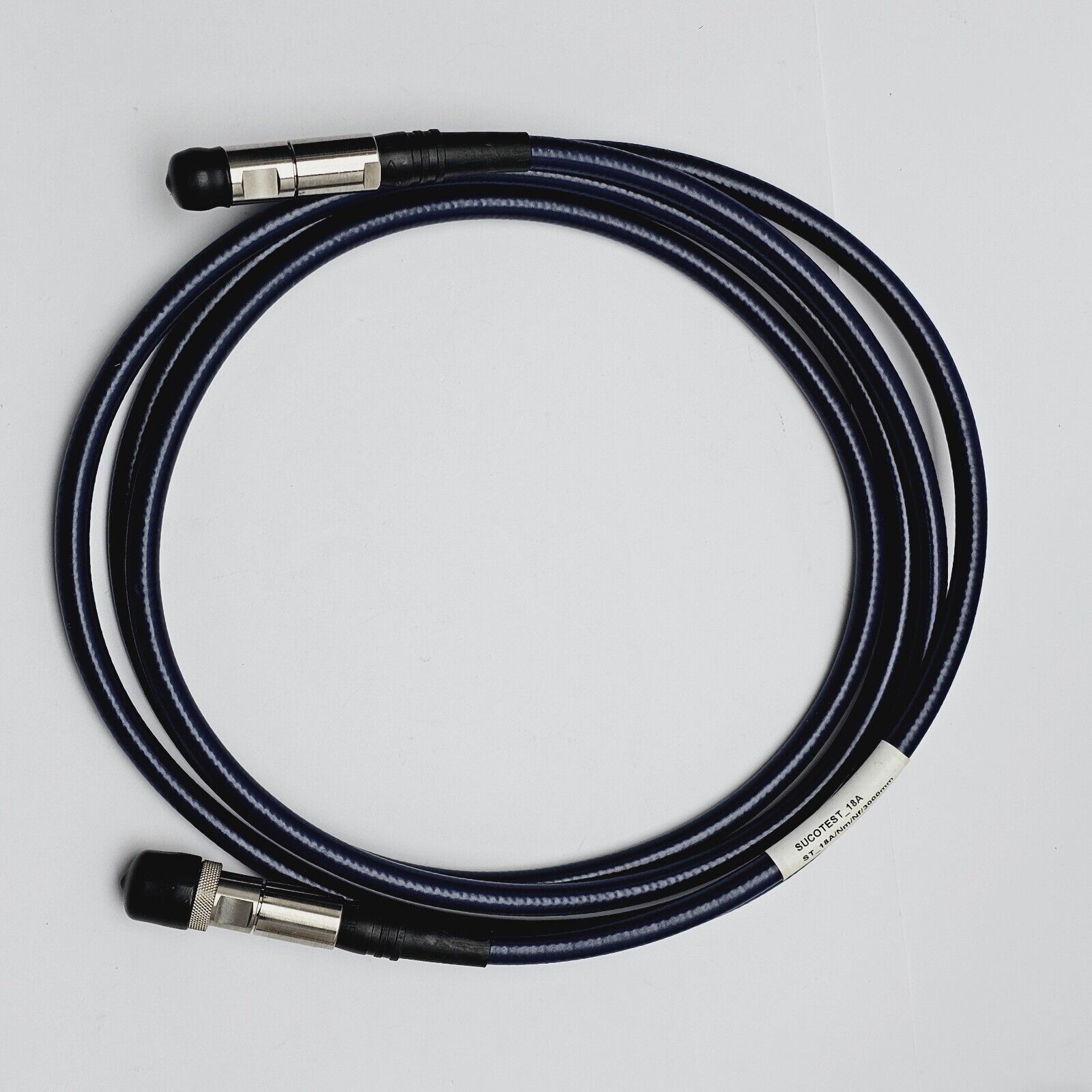

• Accessories as pictured

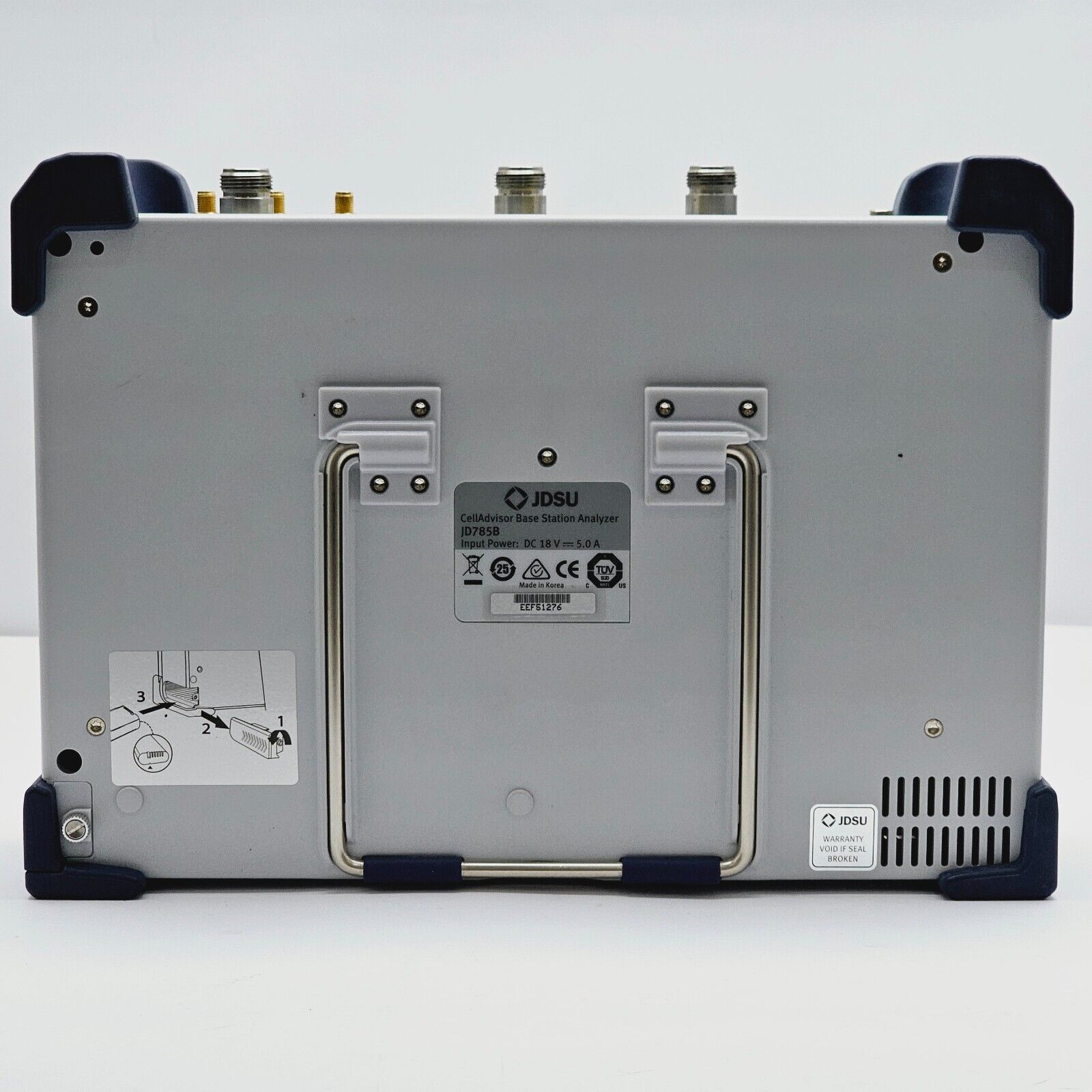

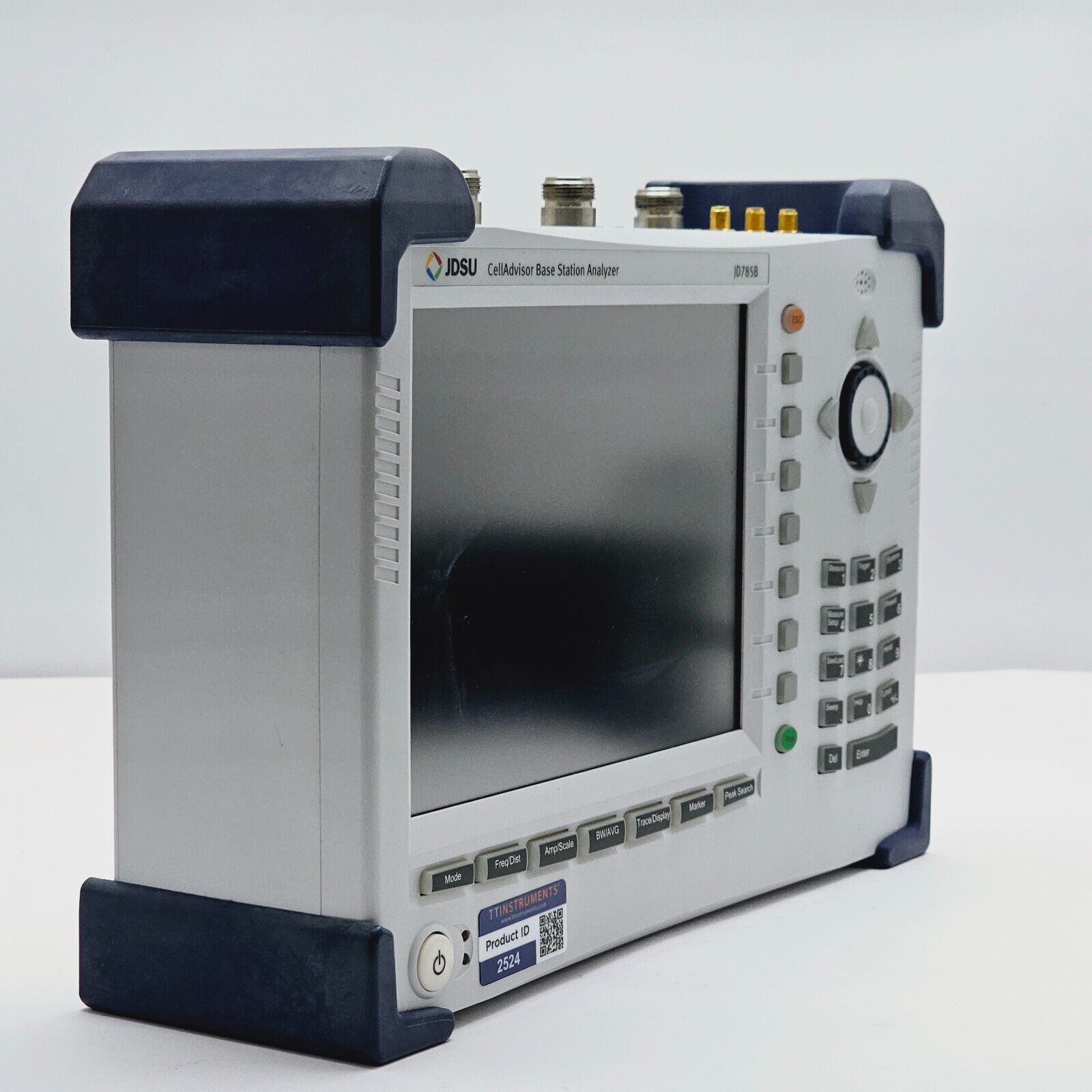

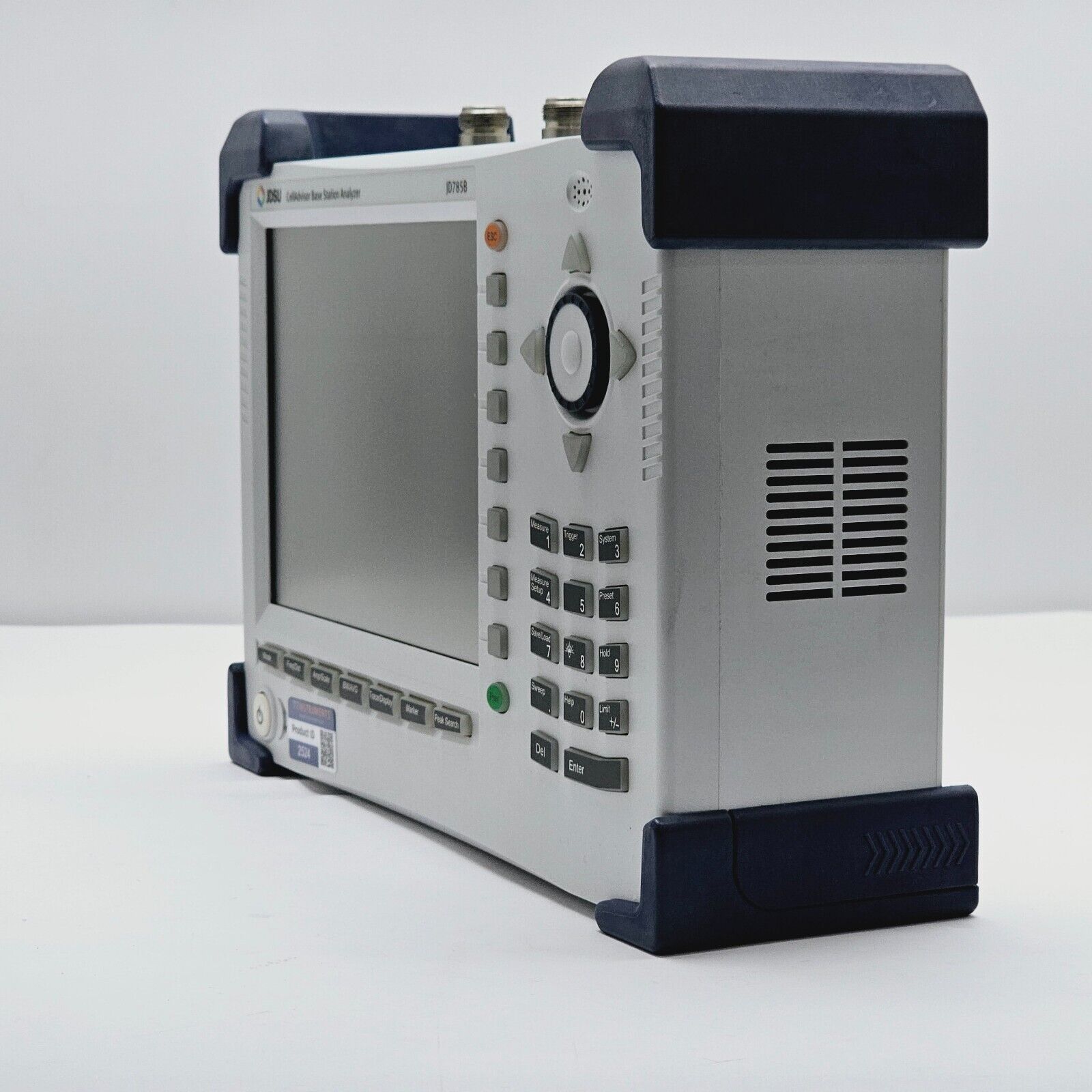

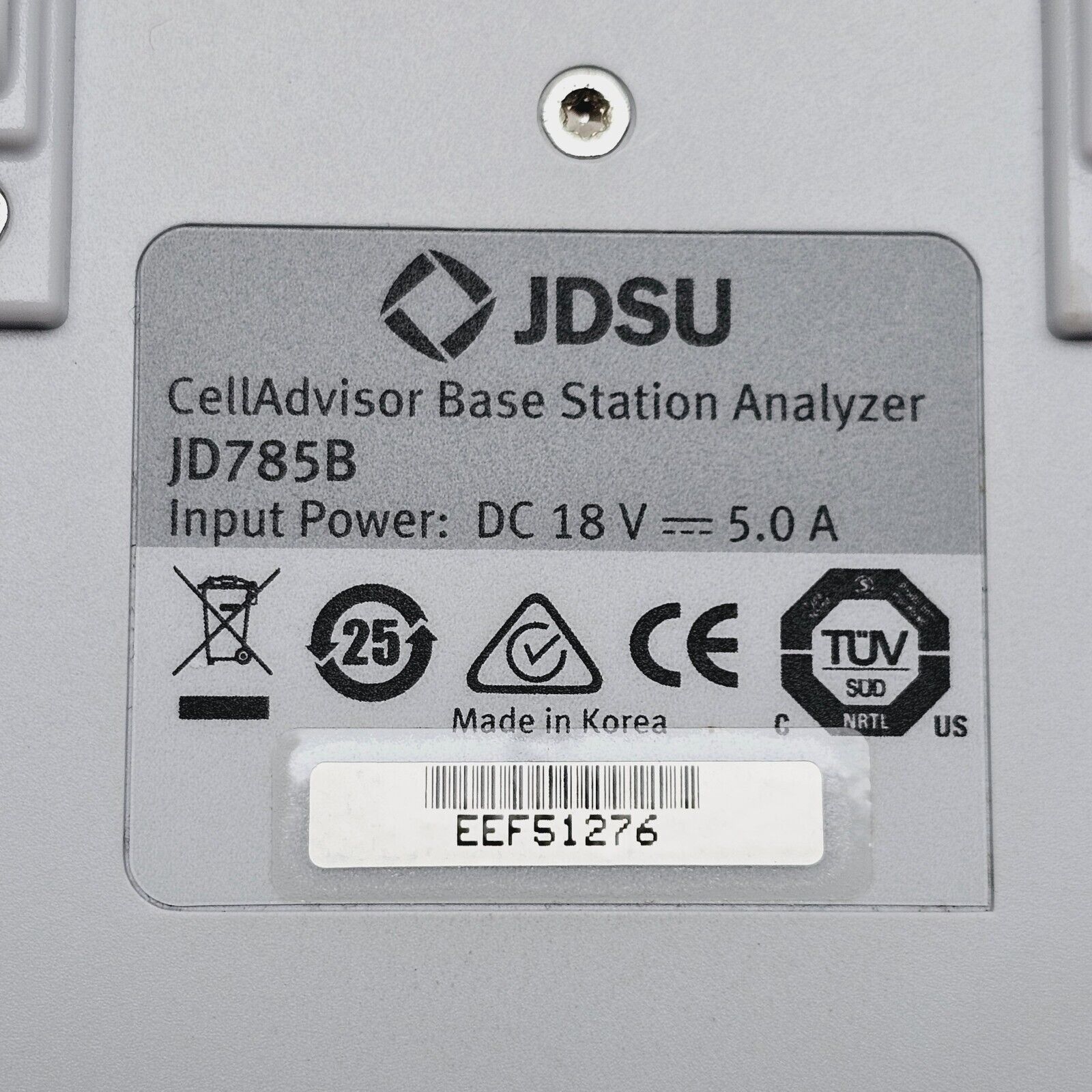

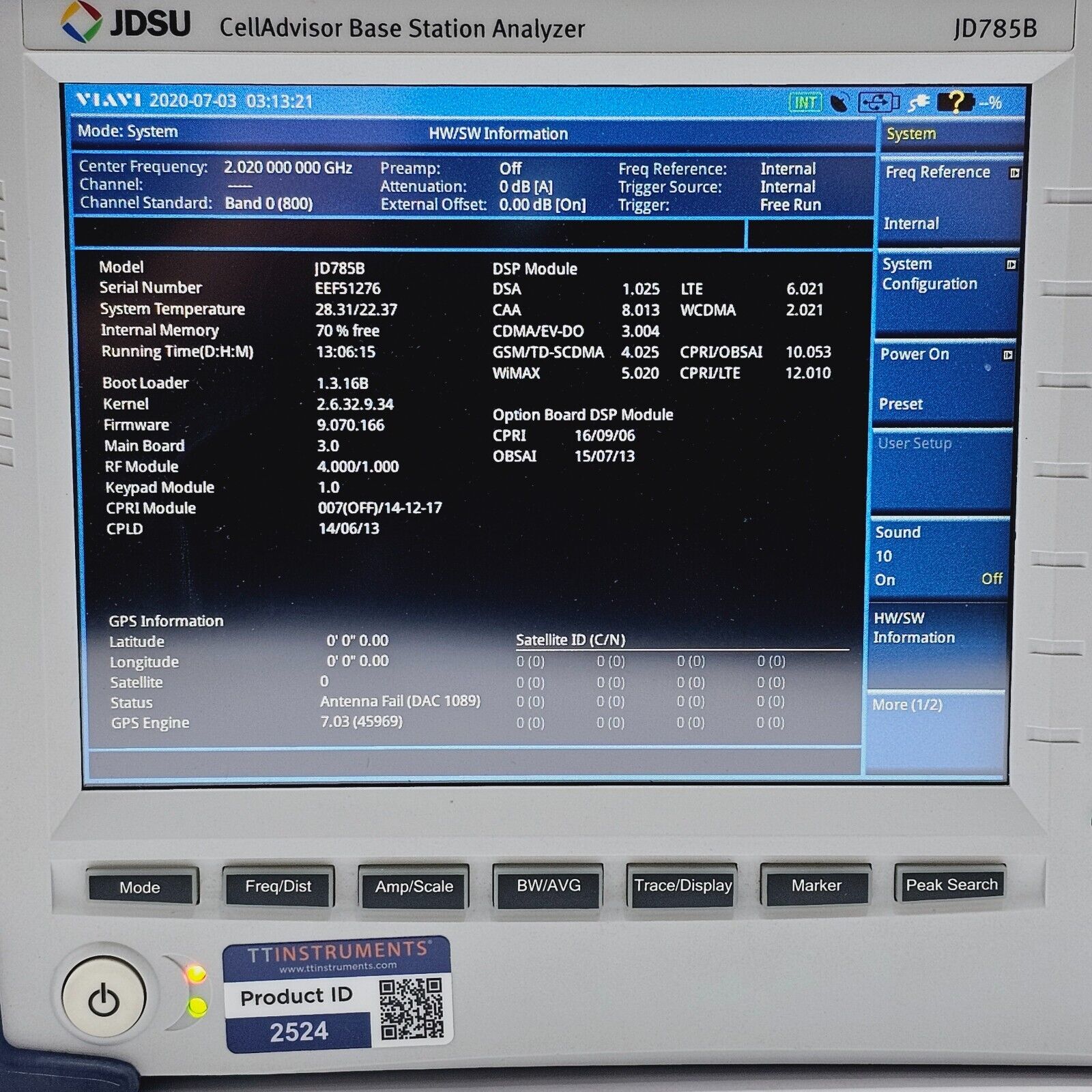

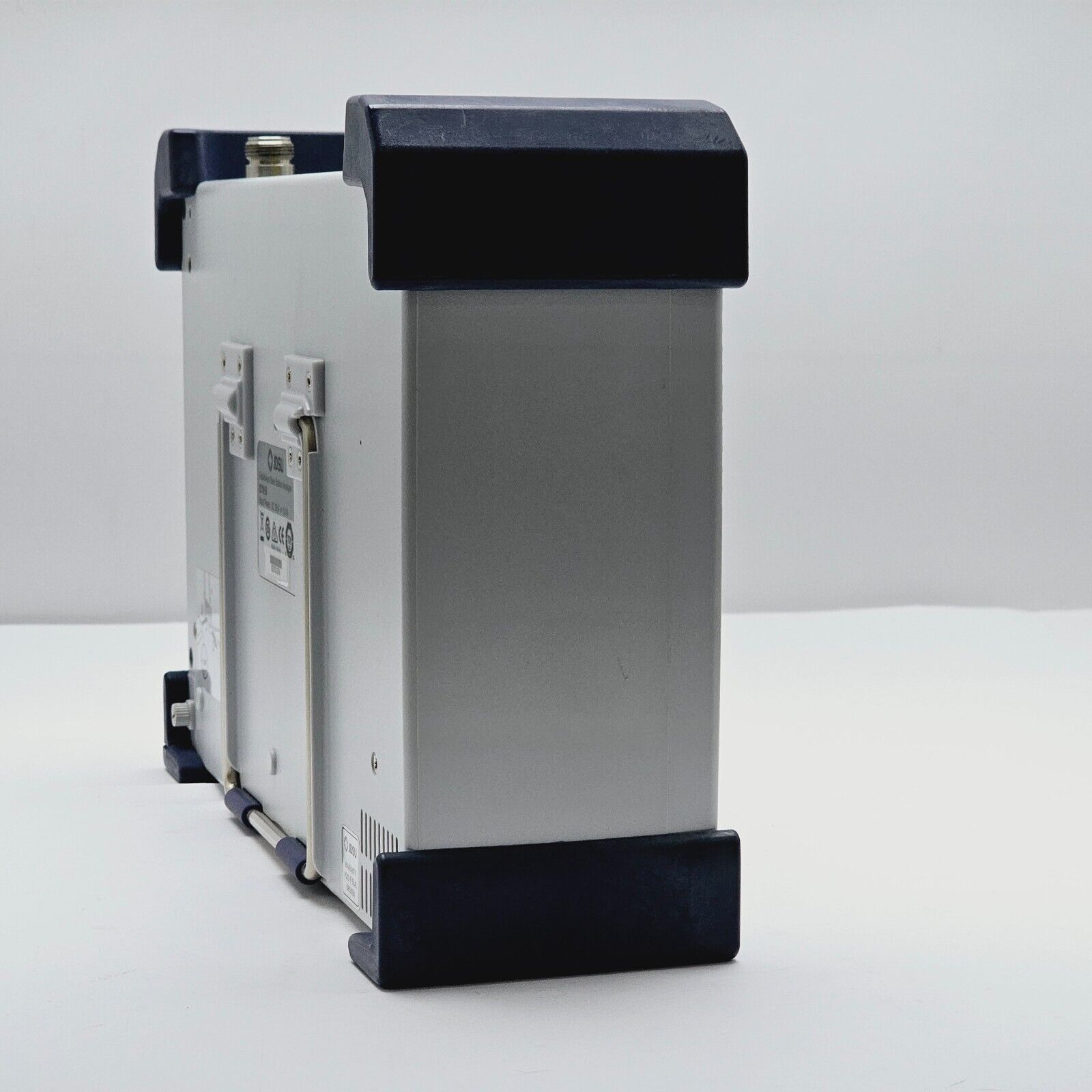

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.
The JDSU (now Viavi Solutions) CellAdvisor JD785B is a high-performance, multi-function base station analyzer designed for the installation, commissioning, and maintenance of wireless cell sites. It combines spectrum analysis, cable and antenna analysis, interference analysis, signal analysis, and RF/optical power metering into a single rugged, portable, cloud-enabled instrument — ideal for harsh field environments.
The JD785B supports all major wireless technologies from 2G through to 4G LTE-Advanced, including WCDMA/HSPA and OTA (Over-the-Air) analysis. Its Auto-Measure function provides one-button standards-based RF and modulation analysis, while the dual spectrogram view aids rapid interference identification. The instrument is cloud-enabled via VIAVI StrataSync for remote management, software updates, and licence delivery.
Key Specifications:
Frequency Range: 9 kHz to 8 GHz
Dynamic Range: >107 dB
Resolution Bandwidth: 1 Hz to 3 MHz
Phase Noise: <-98 dBc/Hz at 10 kHz offset (typical)
Display: 8.4-inch colour sunlight-readable touchscreen

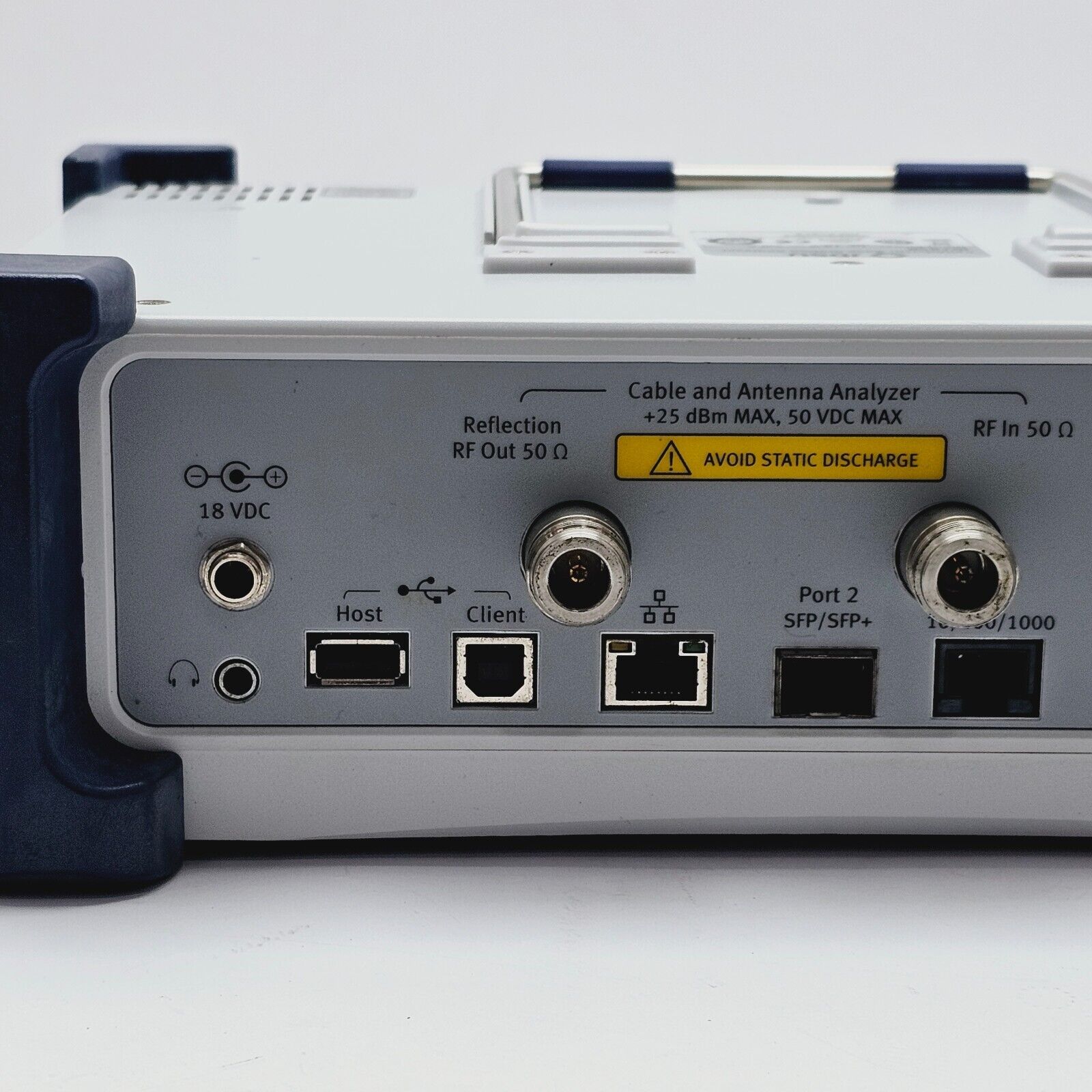

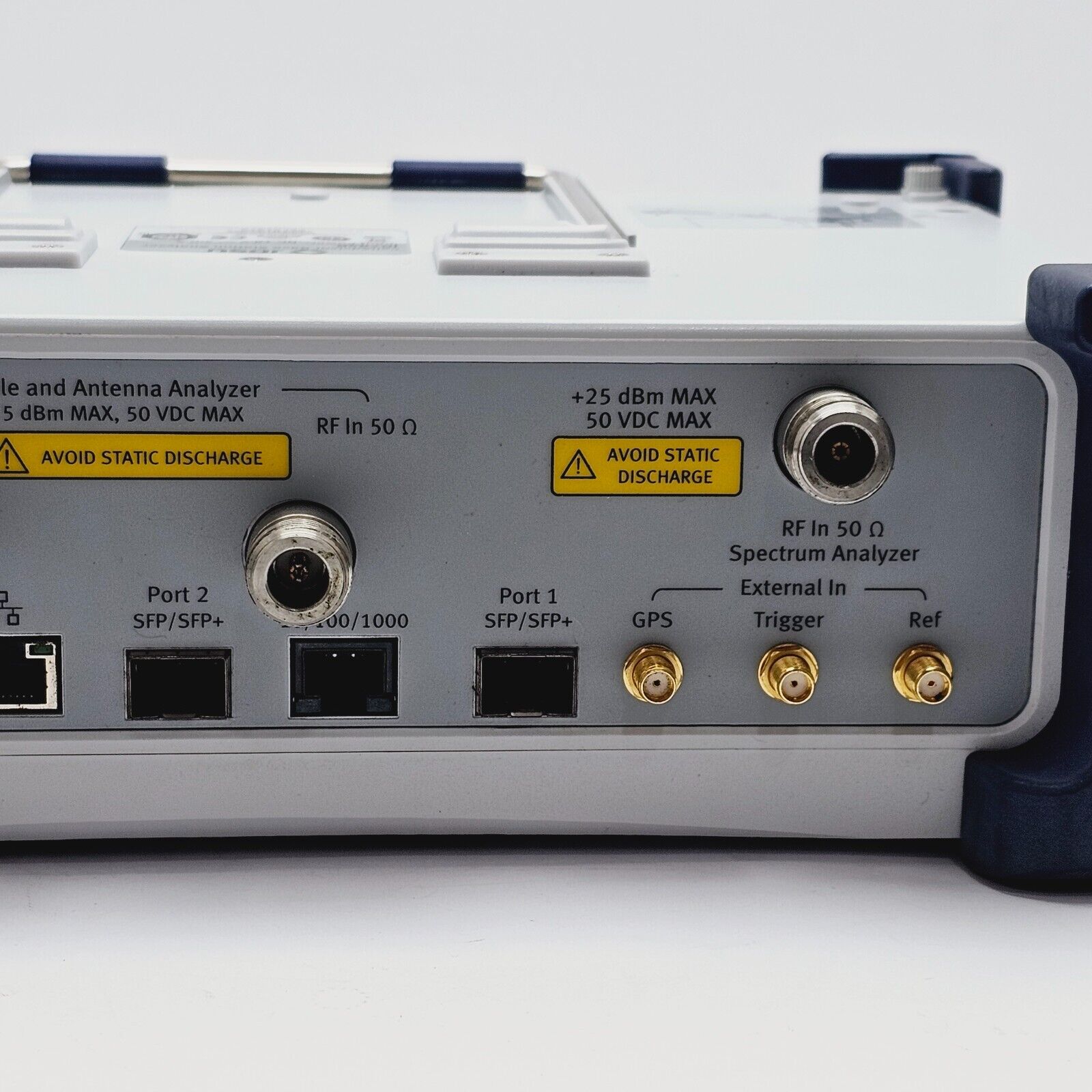

Connectors: N-type RF input, USB, LAN, CPRI optical (with Option 008)
Battery Life: Approximately 4 hours (field-replaceable battery)
GPS: Integrated (with Option 010)
Bluetooth: Integrated (with Option 013)
Operating Temperature: -10°C to +55°C
Weight: Approximately 4.4 kg
Standards Support: GSM, WCDMA/HSPA, LTE, LTE-Advanced, CDMA, EV-DO
Measurement Modes: Spectrum analysis, cable and antenna analysis (CAA), interference analysis, signal analysis, OTA, optical power meter
Cloud Connectivity: VIAVI StrataSync compatible
Product Overview
Condition: Used
This JDSU JD785B CellAdvisor Base Station Analyzer covers 9 kHz to 8 GHz and is supplied as pictured with a range of active options and accessories. The unit includes the JD78050509 OSL (Open/Short/Load) calibration kit and has the following options licensed and active:
• Option 002 – Bias Tee
• Option 003 – High Power CW Signal Generator
• Option 008 – Optical Hardware
• Option 010 – GPS Receiver & Antenna
• Option 013 – Bluetooth Connectivity
Included in the sale:
• JDSU JD785B CellAdvisor Base Station Analyzer
• JD78050509 OSL Calibration Kit
• Accessories as pictured
The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.
Manufacturer's Description
The JDSU (now Viavi Solutions) CellAdvisor JD785B is a high-performance, multi-function base station analyzer designed for the installation, commissioning, and maintenance of wireless cell sites. It combines spectrum analysis, cable and antenna analysis, interference analysis, signal analysis, and RF/optical power metering into a single rugged, portable, cloud-enabled instrument — ideal for harsh field environments.
The JD785B supports all major wireless technologies from 2G through to 4G LTE-Advanced, including WCDMA/HSPA and OTA (Over-the-Air) analysis. Its Auto-Measure function provides one-button standards-based RF and modulation analysis, while the dual spectrogram view aids rapid interference identification. The instrument is cloud-enabled via VIAVI StrataSync for remote management, software updates, and licence delivery.
Key Specifications:
Frequency Range: 9 kHz to 8 GHz
Dynamic Range: >107 dB
Resolution Bandwidth: 1 Hz to 3 MHz
Phase Noise: <-98 dBc/Hz at 10 kHz offset (typical)
Display: 8.4-inch colour sunlight-readable touchscreen
Connectors: N-type RF input, USB, LAN, CPRI optical (with Option 008)
Battery Life: Approximately 4 hours (field-replaceable battery)
GPS: Integrated (with Option 010)
Bluetooth: Integrated (with Option 013)
Operating Temperature: -10°C to +55°C
Weight: Approximately 4.4 kg
Standards Support: GSM, WCDMA/HSPA, LTE, LTE-Advanced, CDMA, EV-DO
Measurement Modes: Spectrum analysis, cable and antenna analysis (CAA), interference analysis, signal analysis, OTA, optical power meter
Cloud Connectivity: VIAVI StrataSync compatible
