Condition: Used

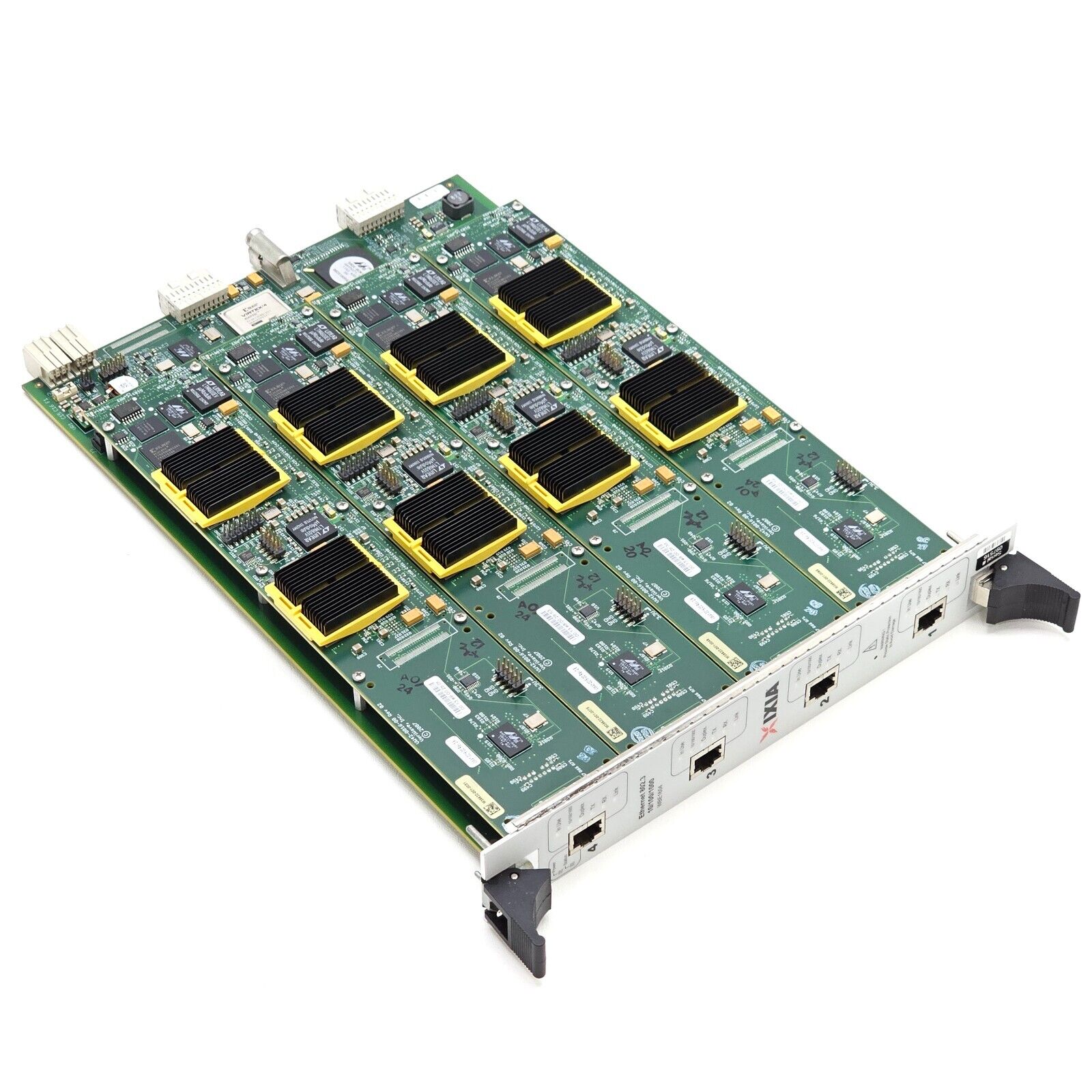

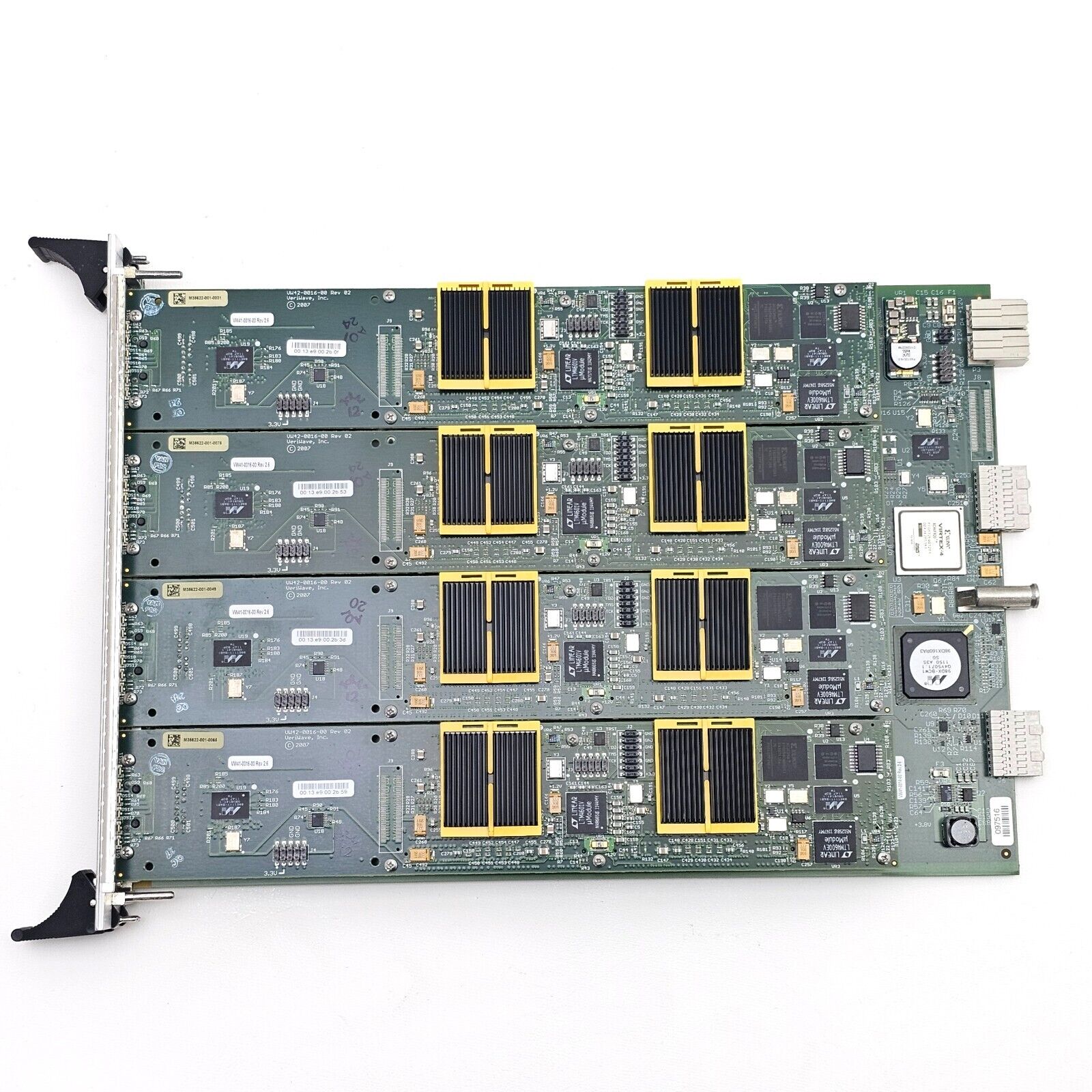

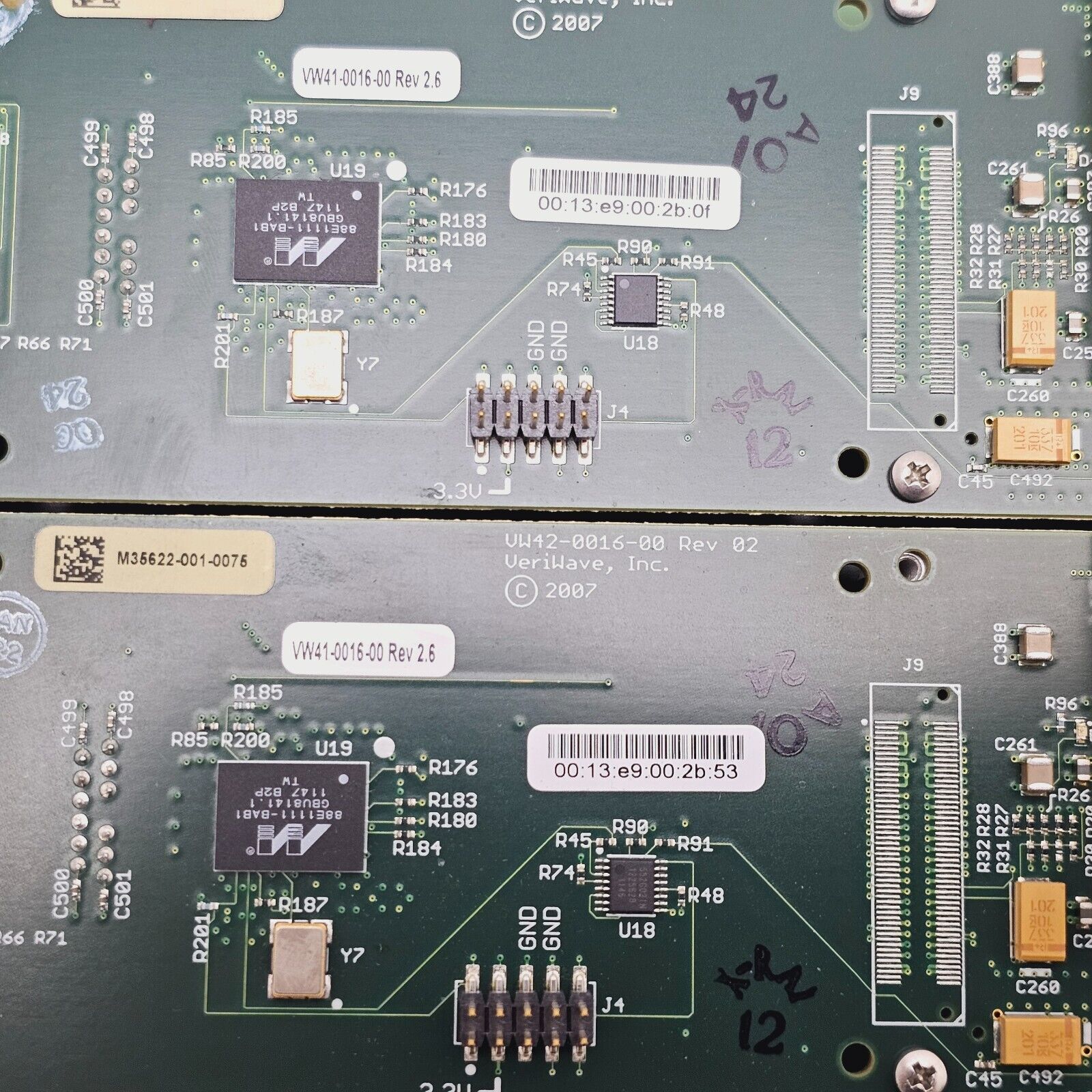

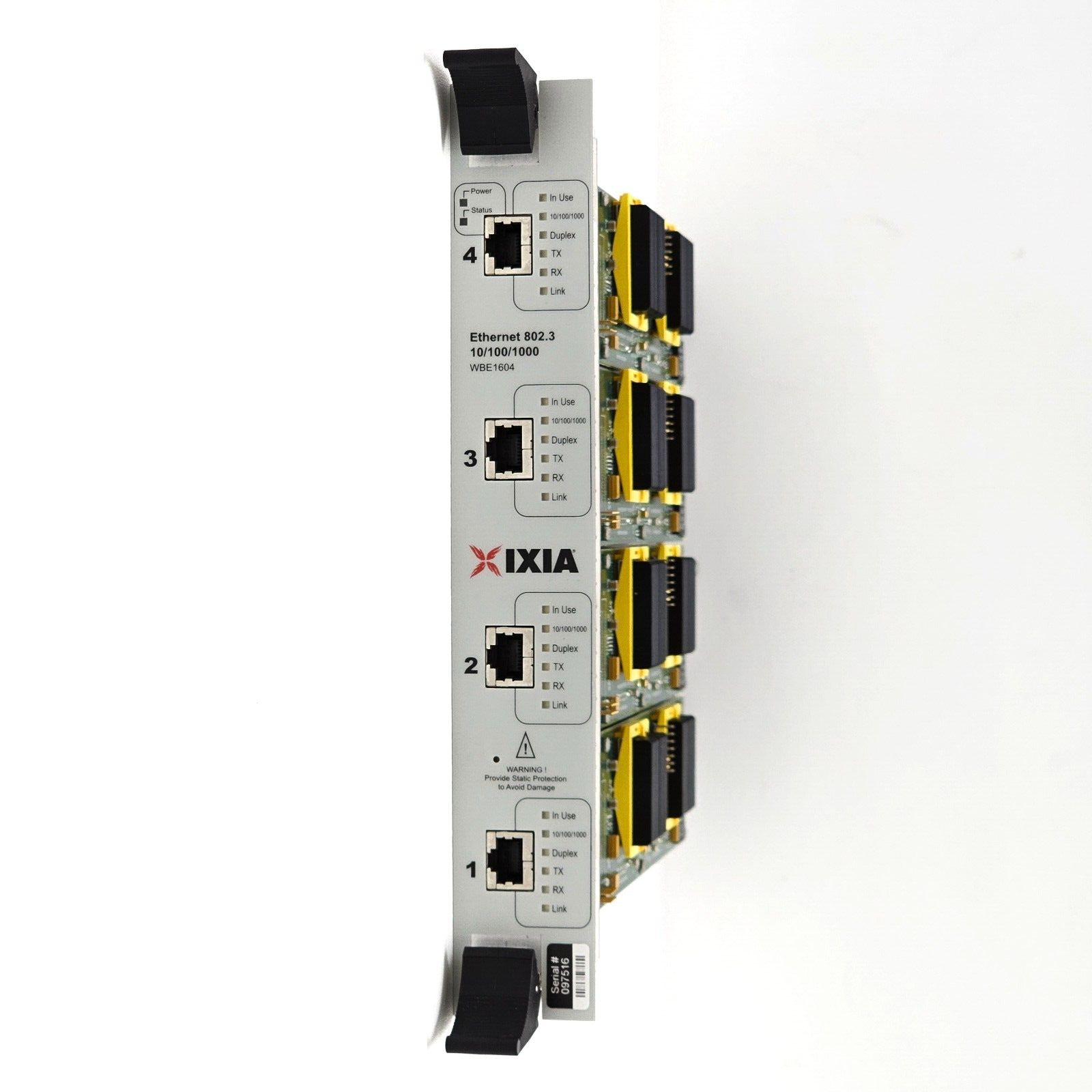

The Ixia IxVeriWave WBE1604 is a 4-port WaveBlade Ethernet line-card removed from a WT20 VeriWave mainframe. Serial number 097516 is visible on the front panel label. Sub-boards carry VeriWave Inc. © 2007 markings (VW42-0016-00 Rev 02) with MAC addresses 00:13:e9:00:2b:0f and 00:13:e9:00:2b:53 visible on individual port sub-assemblies.

What is included in the sale:
• Ixia IxVeriWave WBE1604 4-Port Ethernet WaveBlade module (x1)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Ixia (Keysight) IxVeriWave WBE1604 is a 4-port WaveBlade Ethernet line-card designed for comprehensive Layer 2–7 functional and performance testing of Ethernet-based networking products. It installs into the IxVeriWave WT20 (2-slot) or WT92/WT90 (9-slot) chassis and interworks seamlessly with WaveBlade Wi-Fi (WBW/WBA) modules to simulate complex wired and wireless networking environments.

Each of the four RJ45 Gigabit Ethernet ports generates fully interleaved, multi-protocol IP traffic from hundreds of independent, fully stateful Ethernet clients or servers at wire-speed, enabling large-scale functional and performance validation of APs, broadband home gateways, controllers, switches, and routers.

Product Description:
The IxVeriWave Ethernet Server WaveBlade provides a complete Layer 2–7 test solution to evaluate the functionality and performance of Ethernet-based networking products. Designed for testing network infrastructure devices such as access points, broadband home gateways, controllers, switches, and routers, the Ethernet WaveBlade integrates traffic generation and analysis capabilities on a single platform.

Key Features:
- 4-port WaveBlade Ethernet; multi-client IPv6-capable Traffic Generator and Performance Analyzer
- Supports 10/100/1000 Mbps Ethernet (IEEE 802.3) per port
- Up to 500 fully independent, fully stateful clients per port at wire-speed
- Complete Layer 2–7 traffic generation and analysis
- Full IPv4 and IPv6 dual-stack operation
- Supports UDP, RTP, stateful TCP, and multicast flows
- Up to 32 IPv6 addresses per client (one link-local, up to 31 global)
- Interworks seamlessly with WBW/WBA Wi-Fi WaveBlades for end-to-end WLAN testing
- Fits IxVeriWave WT20 and WT92/WT90 chassis
- Part Number: 980-2012

Physical Specifications (WBE1604):
Weight: 3.0 lbs (1.36 kg)
Height: 10.5 inches (26.7 cm)
Width: 1.6 inches (4.1 cm)
Depth: 15.5 inches (39.4 cm)
Mounting Screw Torque: 3.5 inch-lbs

Environmental Specifications (installed in WT20 or WT92 chassis):
Operating Temperature: 0°C to +40°C
Guaranteed Temperature Specification: +20°C to +30°C ambient
Storage Temperature: -20°C to +70°C
Humidity (Operating): 20% to 80% relative humidity, non-condensing
Humidity (Storage): +40°C at 95% relative humidity, non-condensing
Altitude (Operating): Up to 6,562 ft (2,000 meters)
Vibration (Operating): 5 Hz to 500 Hz, 0.27 Grms
Vibration (Non-operating): 5 Hz to 500 Hz, 2.3 G
Shock: 20 G shock tolerance

Power Consumption: 125 Watts

Certifications:
Product Safety: TUV-USA and TUV-Canada
EMC: EU EMC Directive 89/336/ECC; EN Class B Radiated and Conducted Emissions; FCC Part 15

Calibration:
WaveBlades are calibrated at the factory and maintain advertised specifications. Customers may elect to recalibrate depending on specific requirements.
