Condition: Used

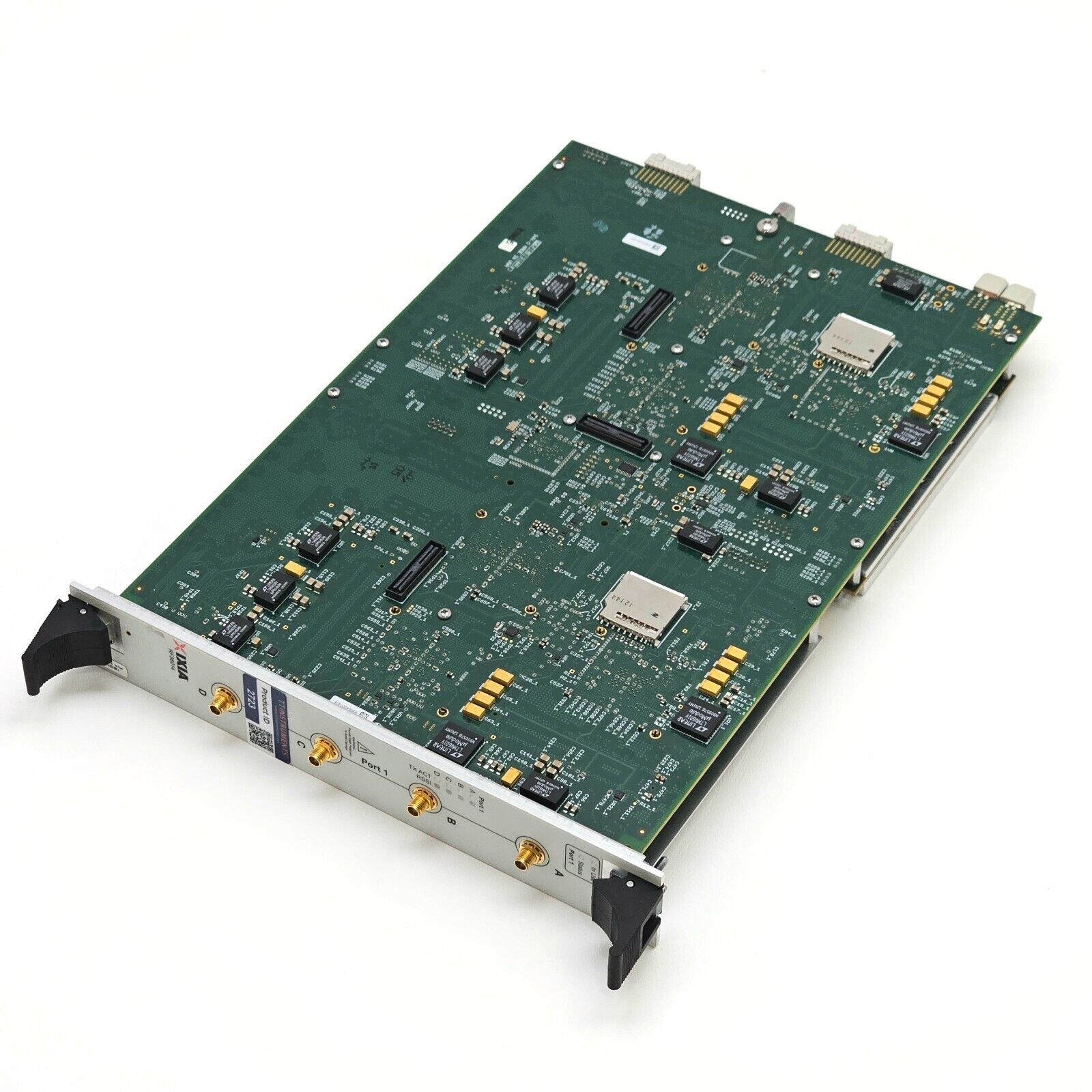

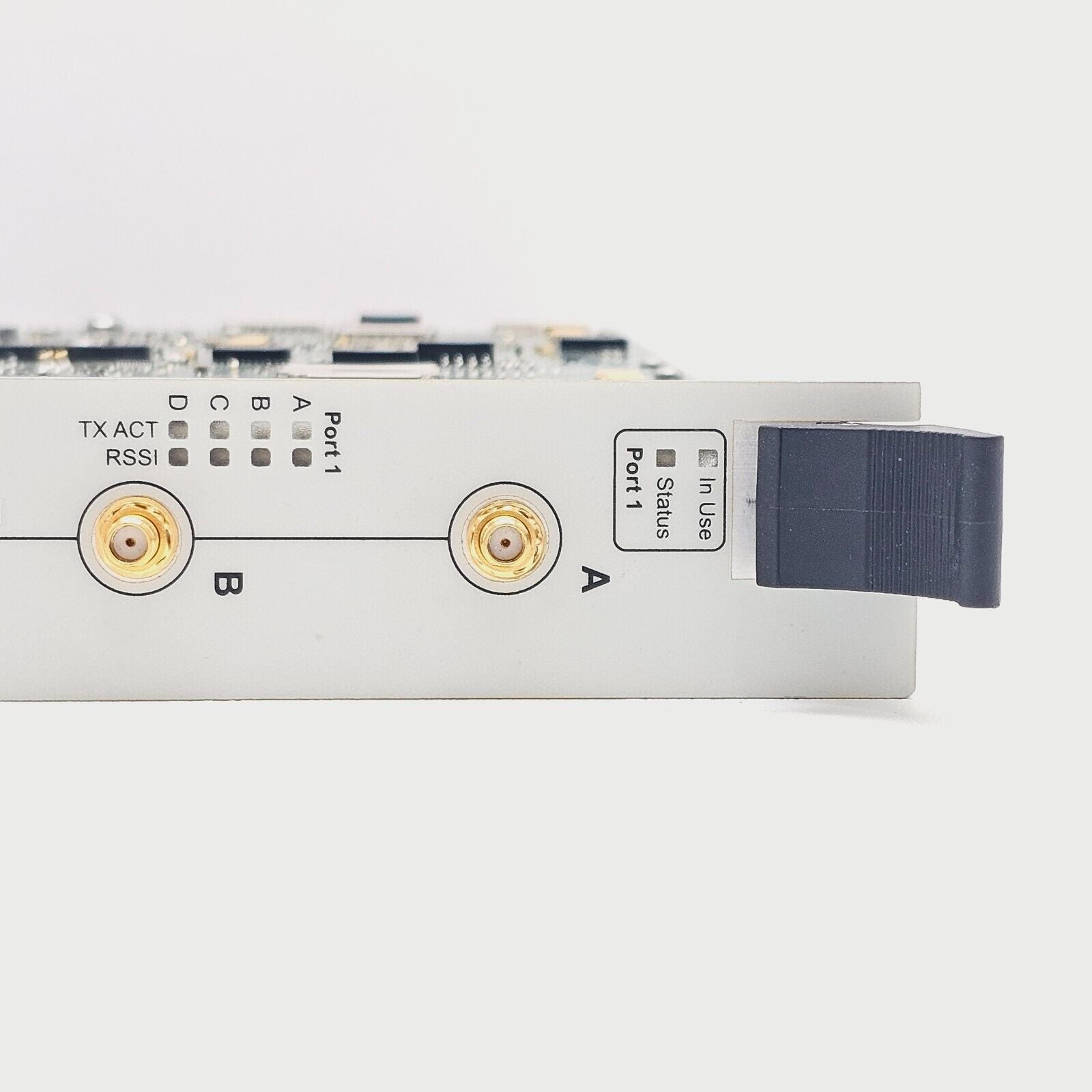

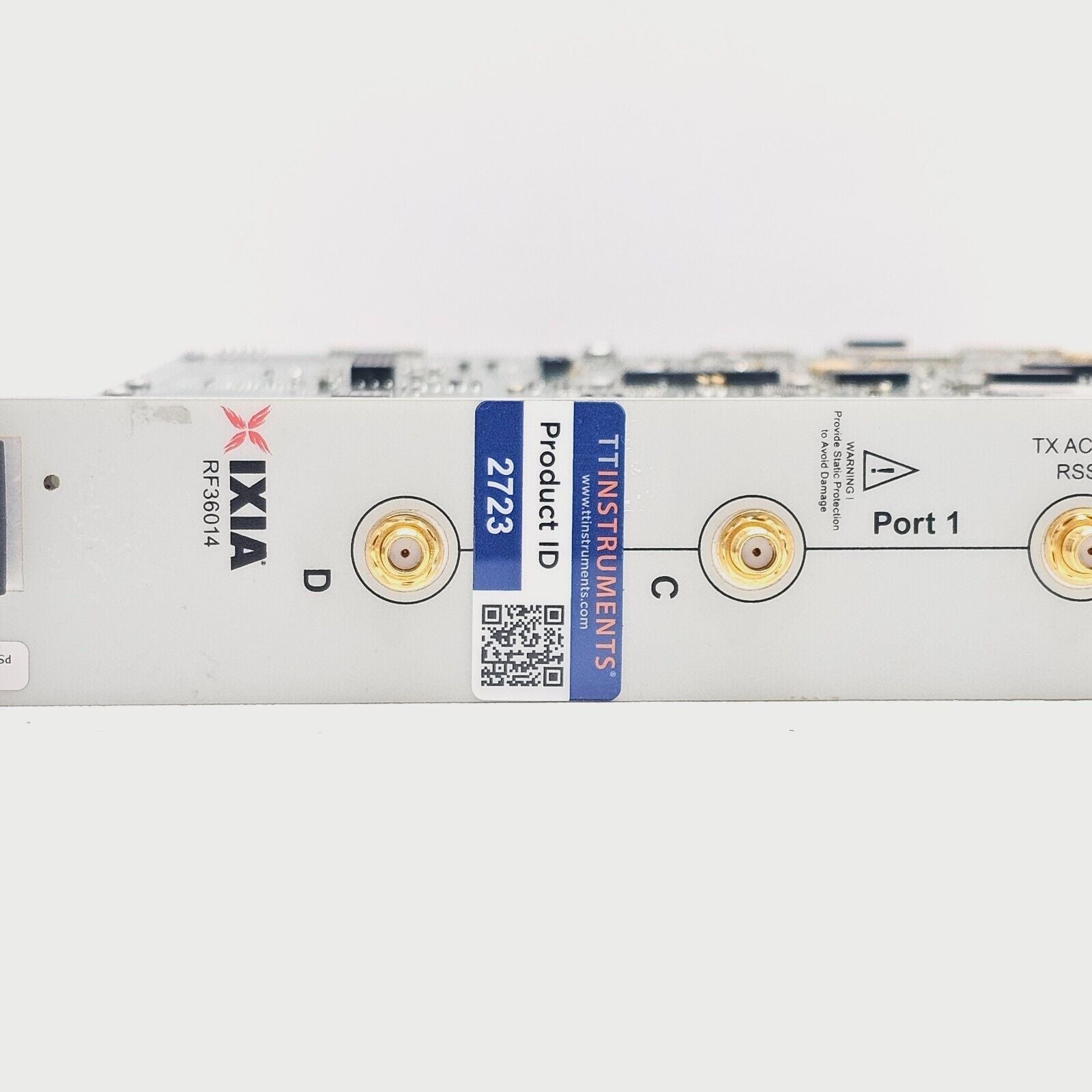

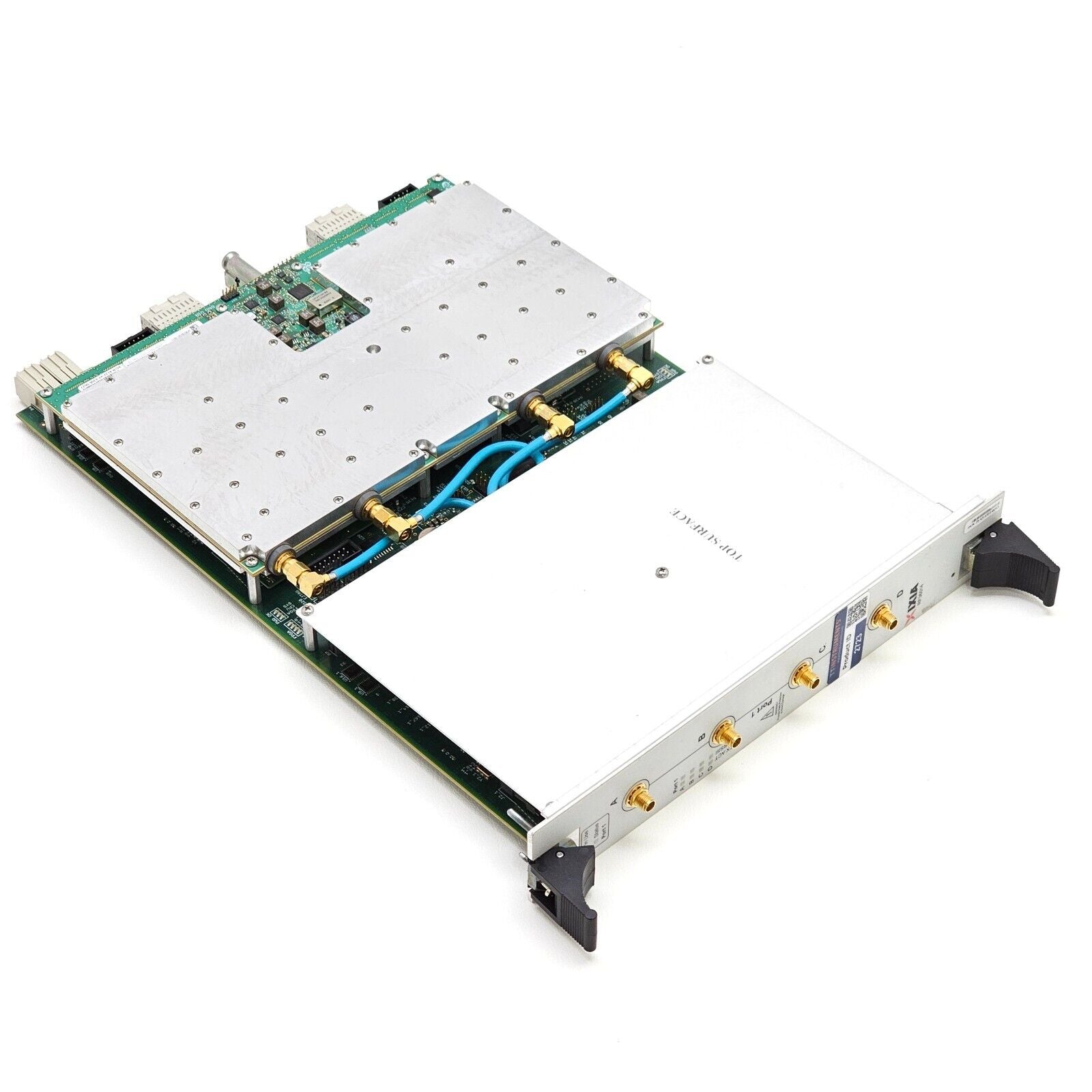

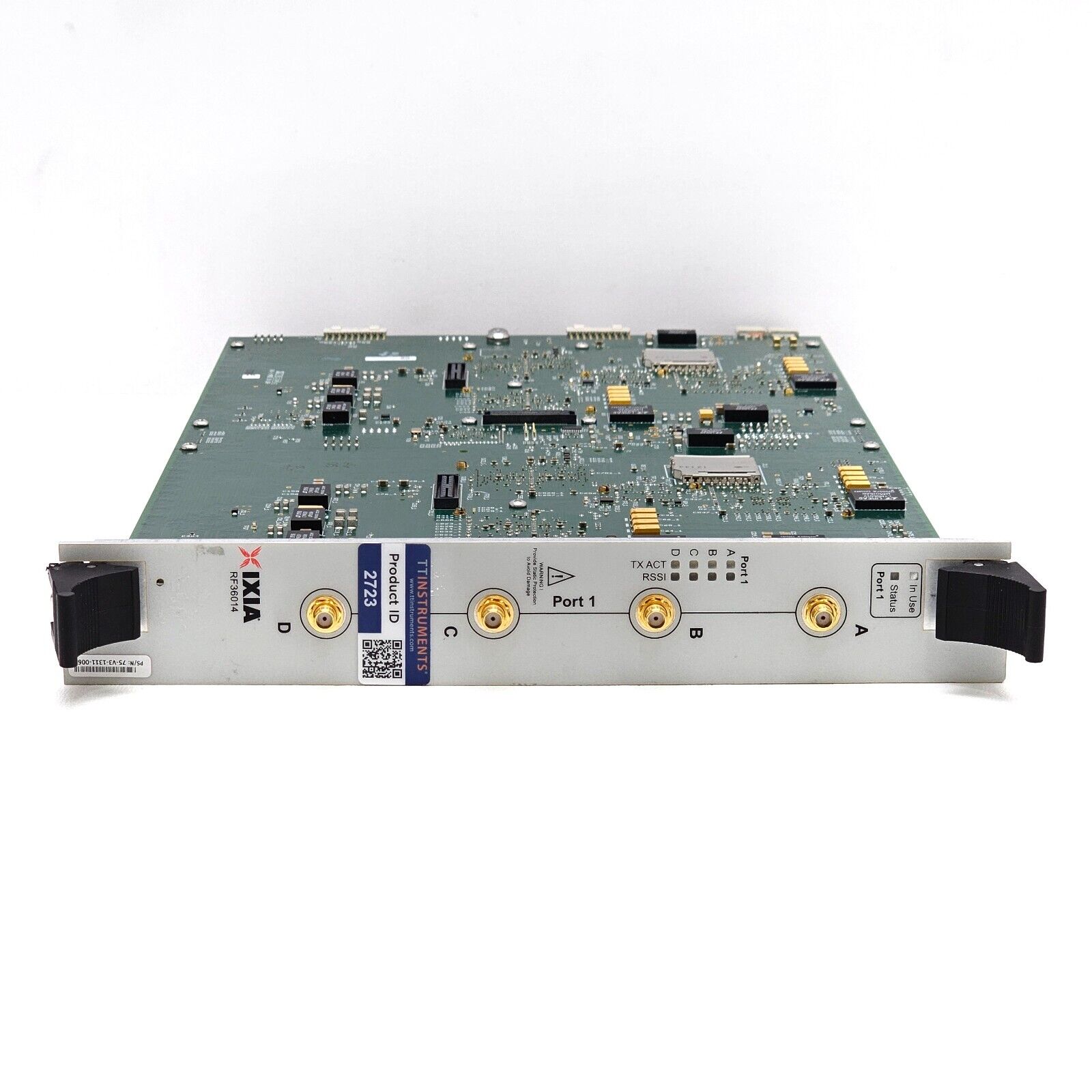

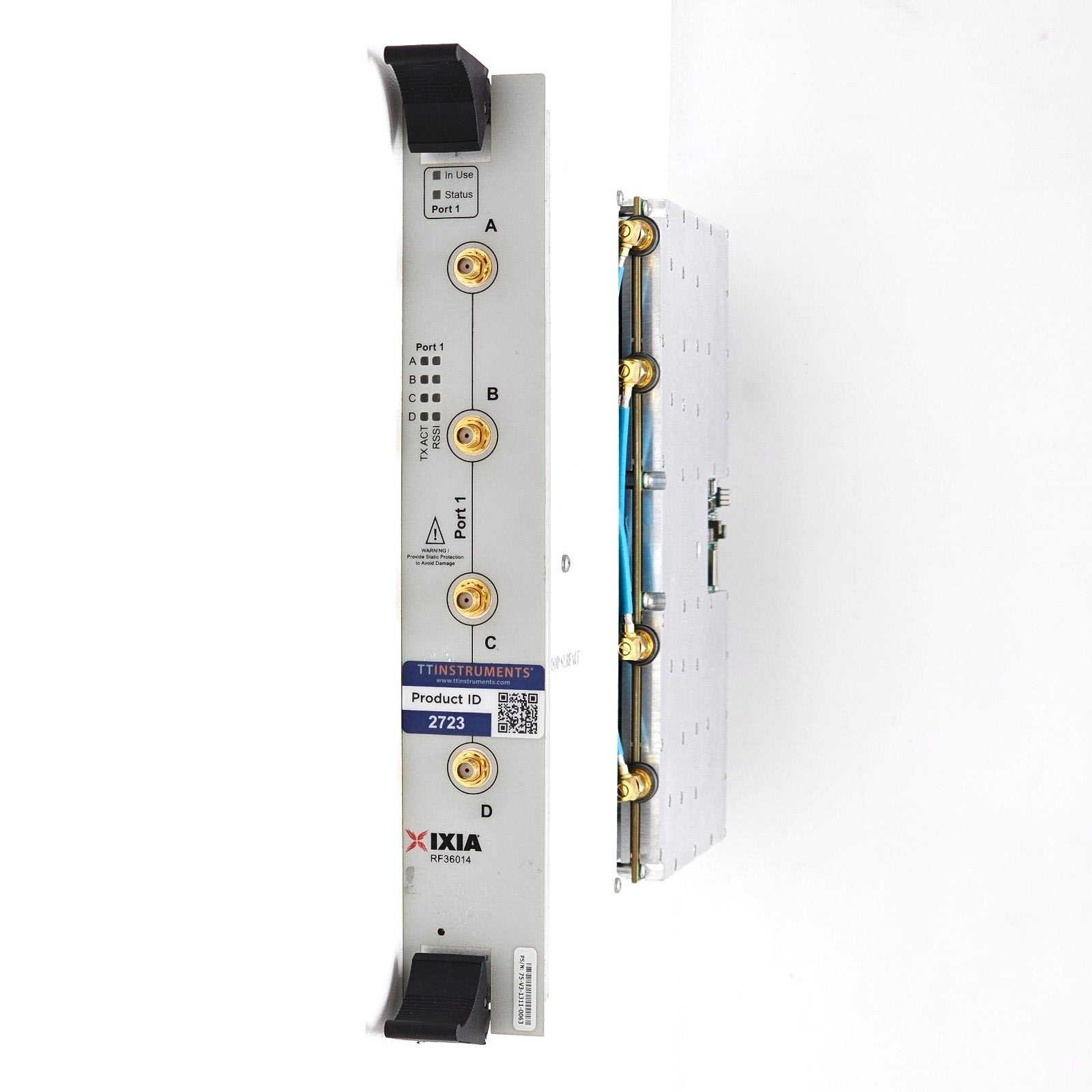

The Ixia VeriWave RF36014 IxVeriWave Wi-Fi WaveBlade is a single-port, 4-spatial-stream 802.11ac MIMO load module that came out of a WT20 VeriWave mainframe. It features four SMA RF ports (labelled A, B, C, D) on the front panel with Port 1 status/activity LEDs, and is supplied as pictured with the module only.

What's included:
• Ixia VeriWave RF36014 WaveBlade module (1x)

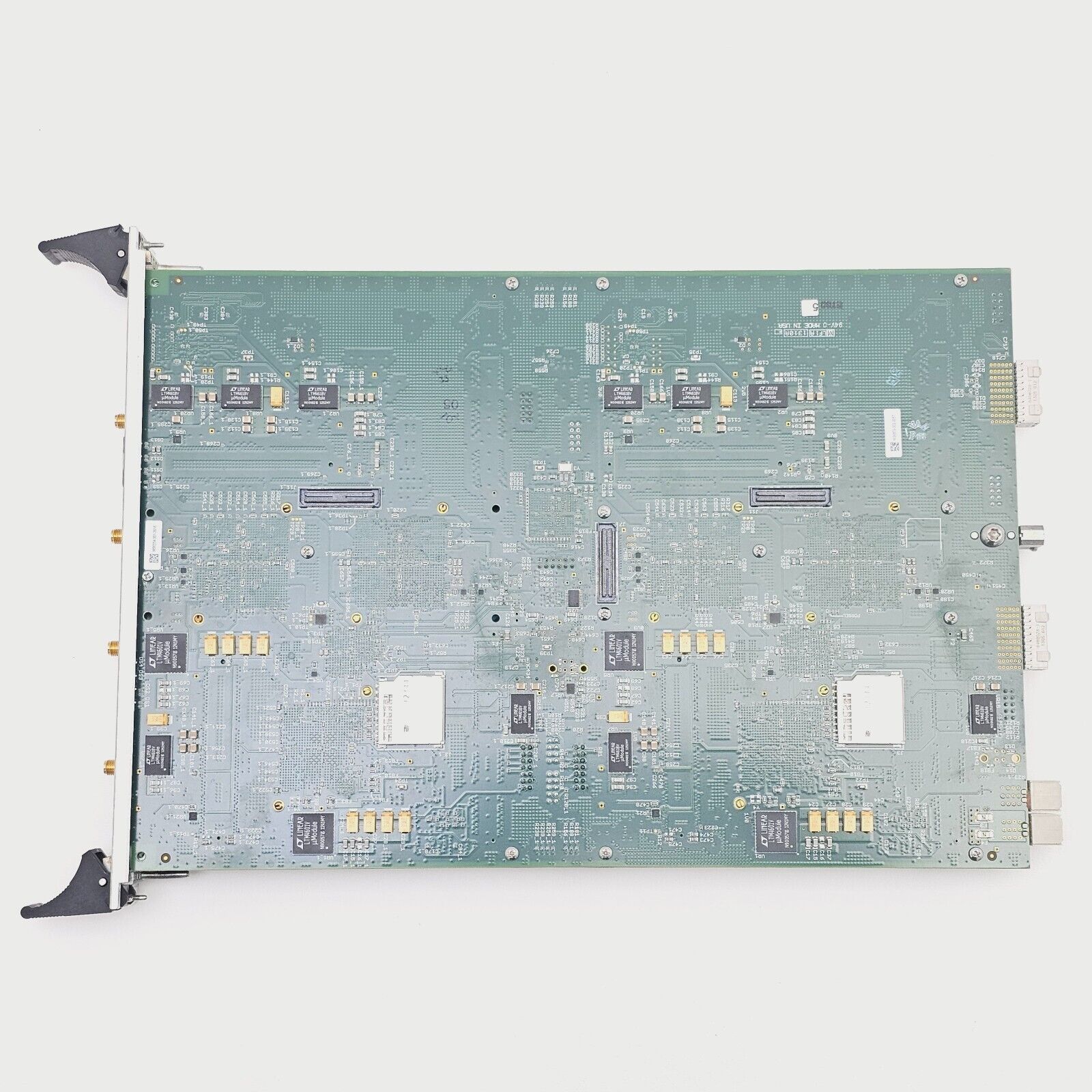

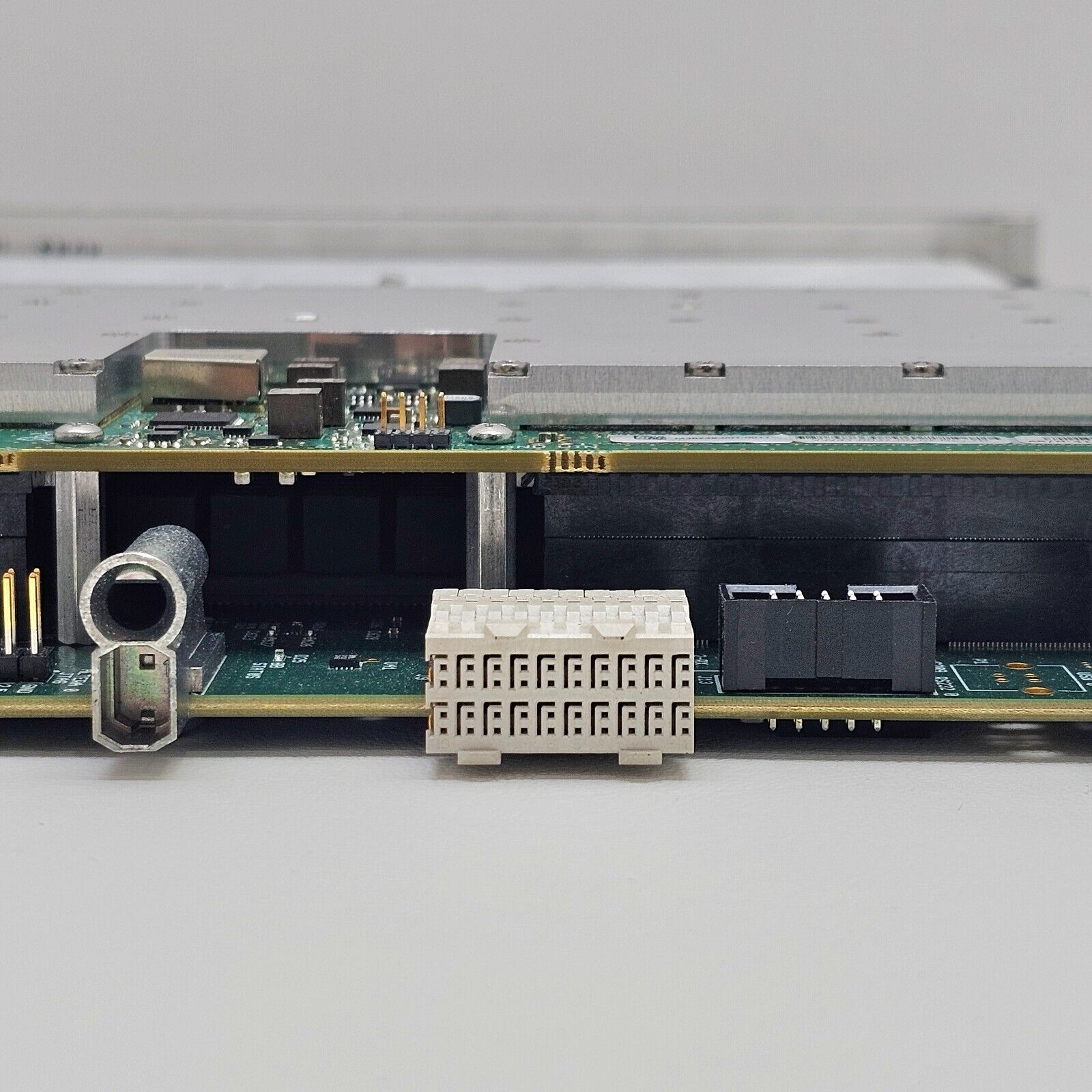

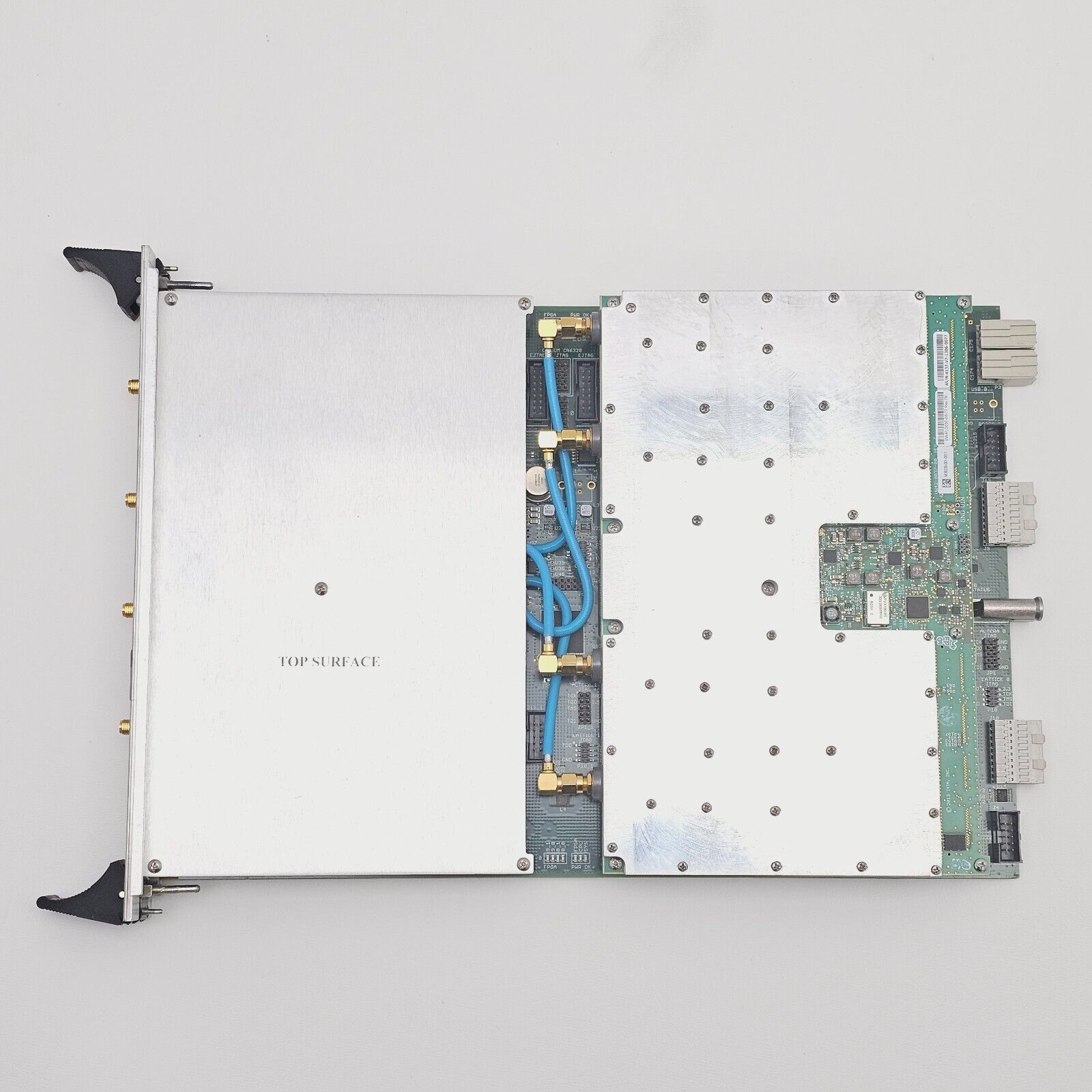

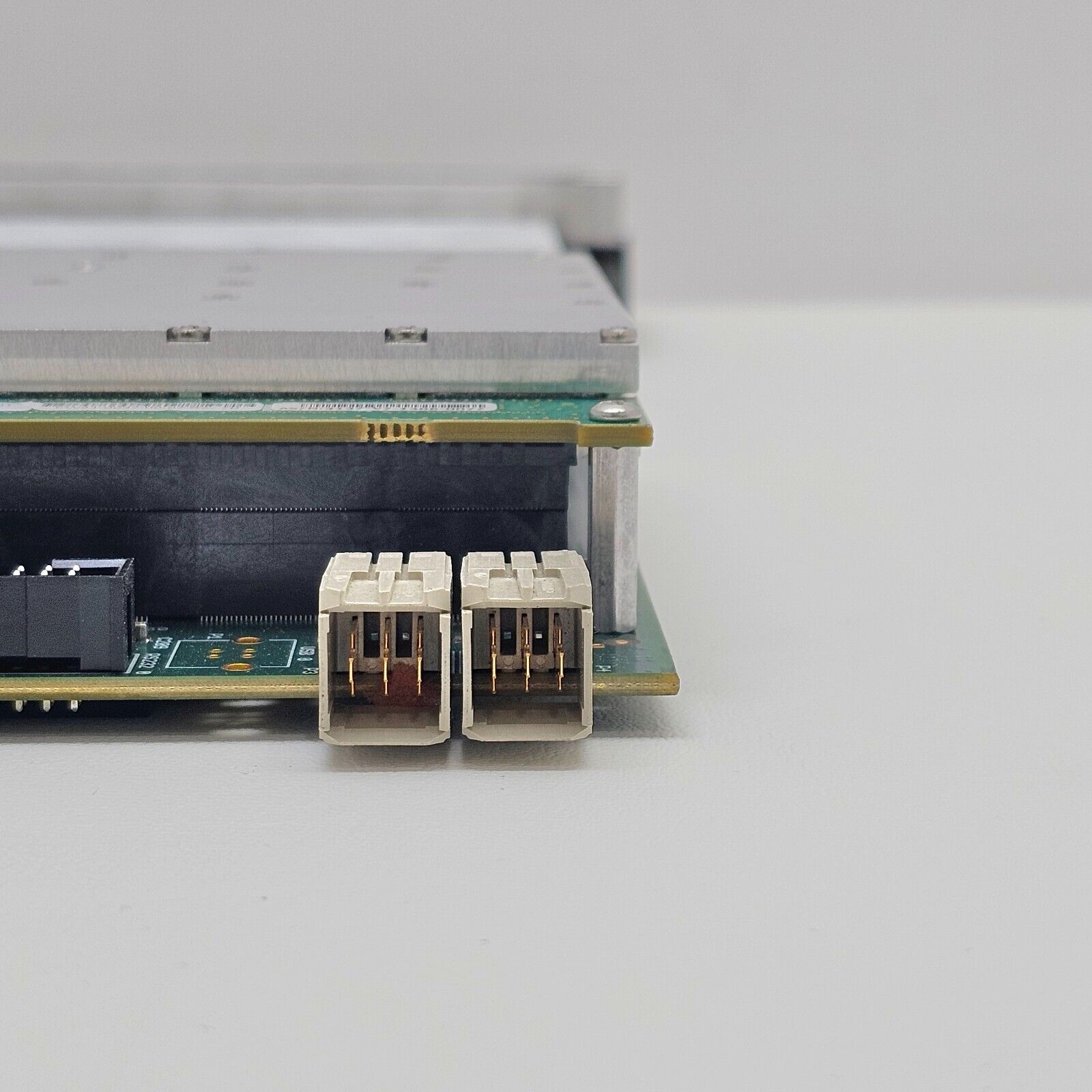

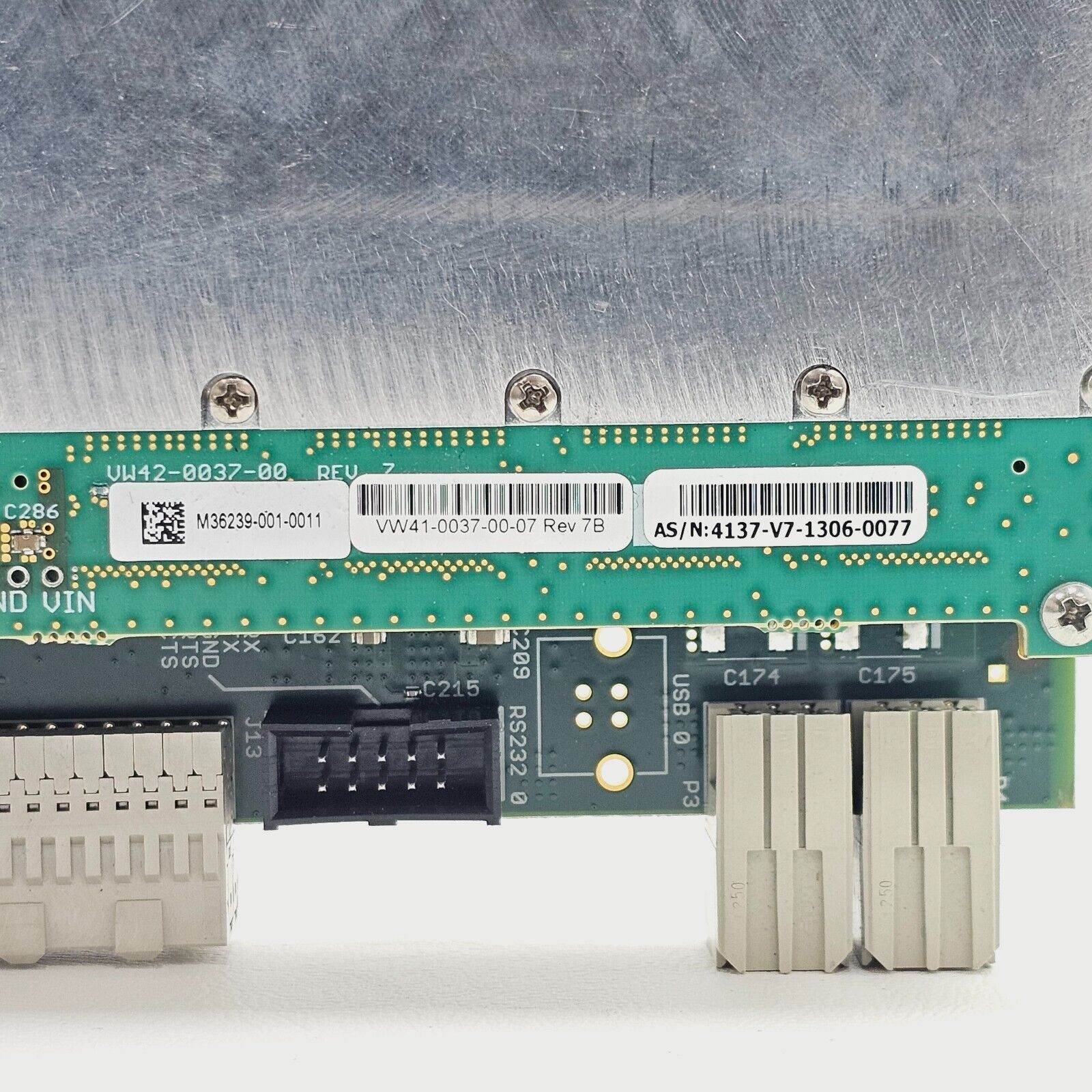

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Ixia (Keysight) IxVeriWave RF36014 is an 802.11ac RF WaveBlade load module designed for industry-leading functional and performance testing of IEEE 802.11-based WLAN networking products. It integrates control-plane simulation, traffic generation and analysis, and multi-path channel emulation capabilities on a single platform, making it a powerful one-stop solution for validating 802.11-based products.

The RF36014 is built around a real-time PHY layer architecture — rather than using memory-buffer techniques common in traditional Vector Signal Generators (VSGs) and Vector Signal Analysers (VSAs), the module processes every frame in real time with no memory-length limitations, enabling worst-case measurements over extended test periods. It is used within the IxVeriWave WT20 and WT92 chassis for Wi-Fi testing ranging from AP-level functional testing and interoperability analysis to large-scale 802.11ac infrastructure testing.

Key Features:
- 4 spatial streams (4x4 MIMO) in a single blade, eliminating the need for multiple single-stream VSGs
- Up to 500 fully independent, stateful 802.11 clients per port
- Line-rate, real-time frame generation and analysis (WaveAnalyze) — measures every frame vs. 1 in 2500 with traditional VSAs
- Real-time traffic generator/analyser supporting full system testing through Layer 7
- Built-in per-client channel emulation — the only tool able to change IEEE channel models on a per-packet, per-client basis
- Six built-in WLAN multi-path channel models per IEEE 802.11n task group recommendations
- Supports all 802.11 a/b/g/n/ac frame generation without DSP programming or I/Q downloads
- Measures RF transmission characteristics including EVM and spectral compliance
- DFS Pulse Generation capability for DFS certification
- Can emulate any STA from 802.11b 1 Mbps to 4x4 802.11ac MU-MIMO 1733 Mbps
- Seamlessly switches between RF metrics and L2–L7 metrics without re-cabling
- Compatible with IxVeriWave WaveAutomation for scripted, automated test execution

Specifications:
Wireless Standards: IEEE 802.11 a/b/g/n/ac
MIMO Configuration: 4x4 (4 spatial streams)
RF Ports: 4 x SMA (A, B, C, D)
Clients Per Port: Up to 500 fully independent stateful clients
Max Throughput (802.11ac): Up to 1733 Mbps (MU-MIMO)
Channel Emulation: Built-in, per-client, per-packet selectable; IEEE 802.11n channel models A–F
Traffic Analysis: Line-rate, real-time Layers 1–7
Frame Generation: Real-time, no memory-buffer limitations, no DSP programming required
Chassis Compatibility: IxVeriWave WT20, WT92
Form Factor: WaveBlade load module (modular card)
Manufacturer: Ixia (now Keysight Technologies)
