Condition: Used

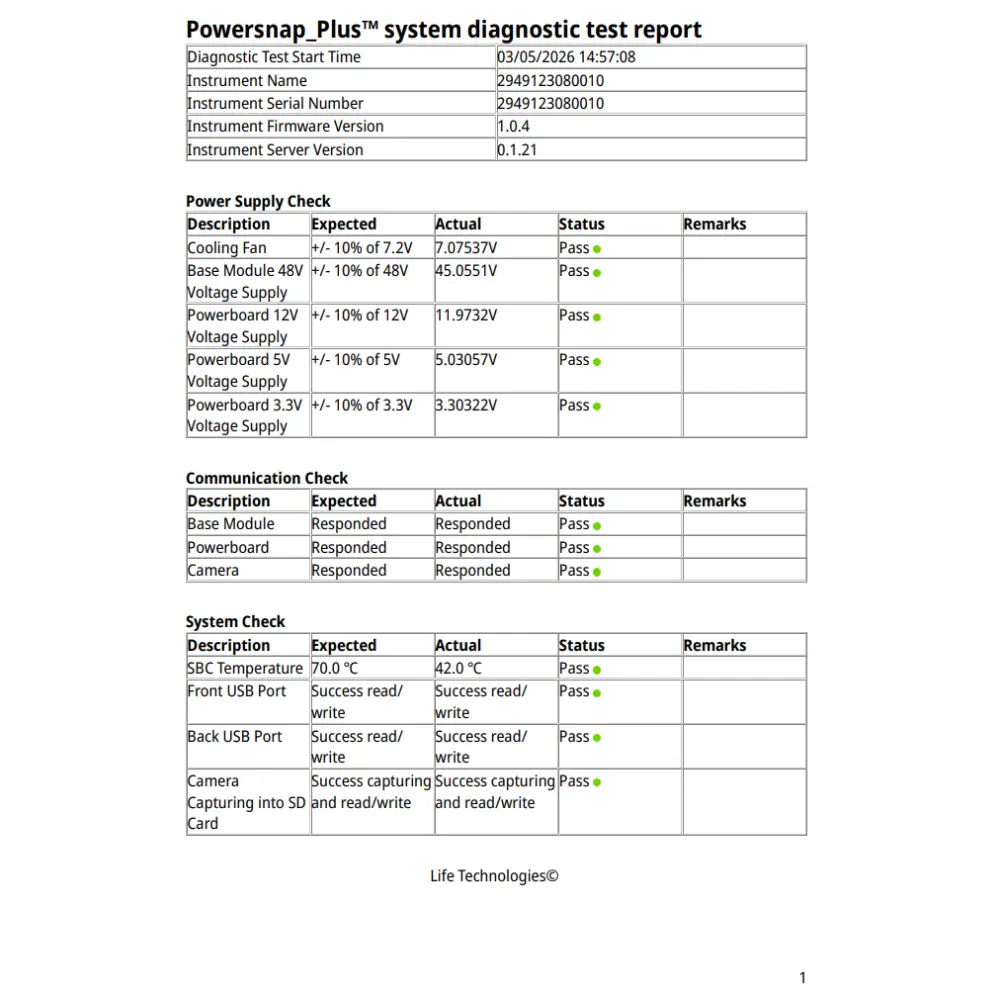

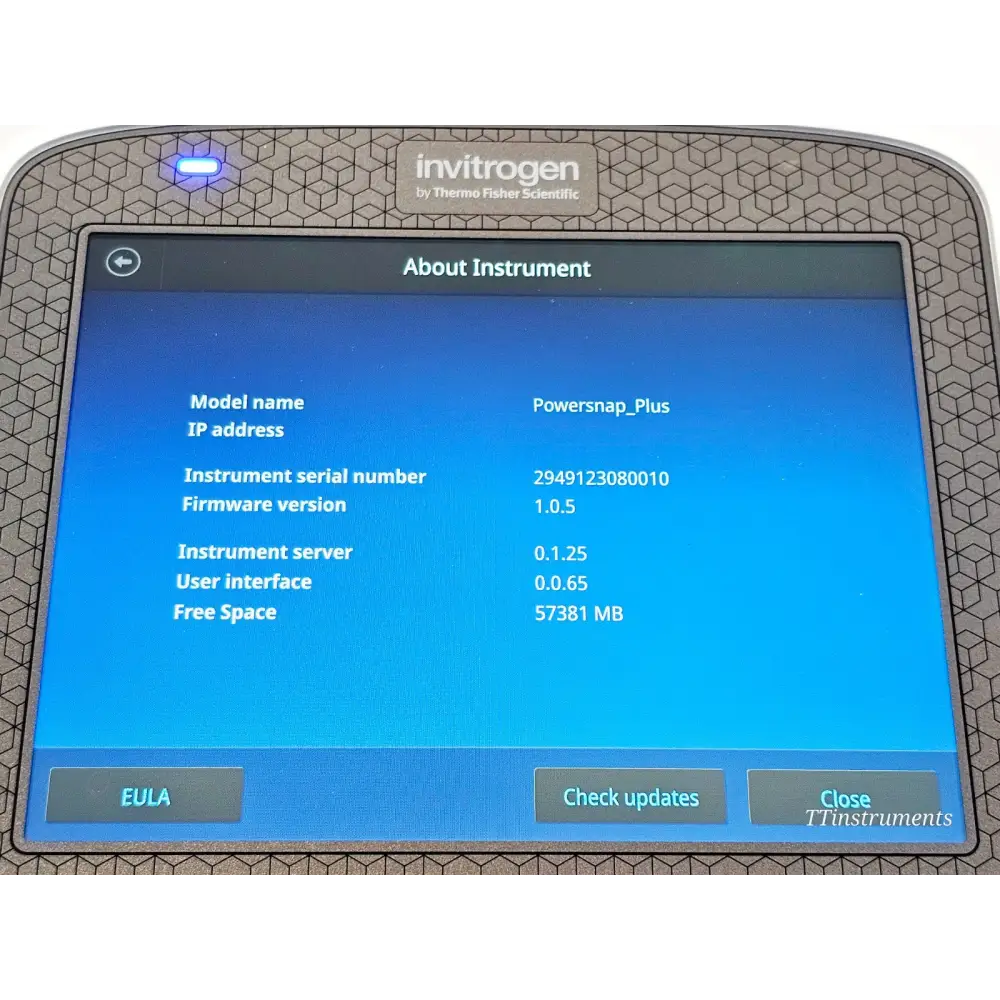

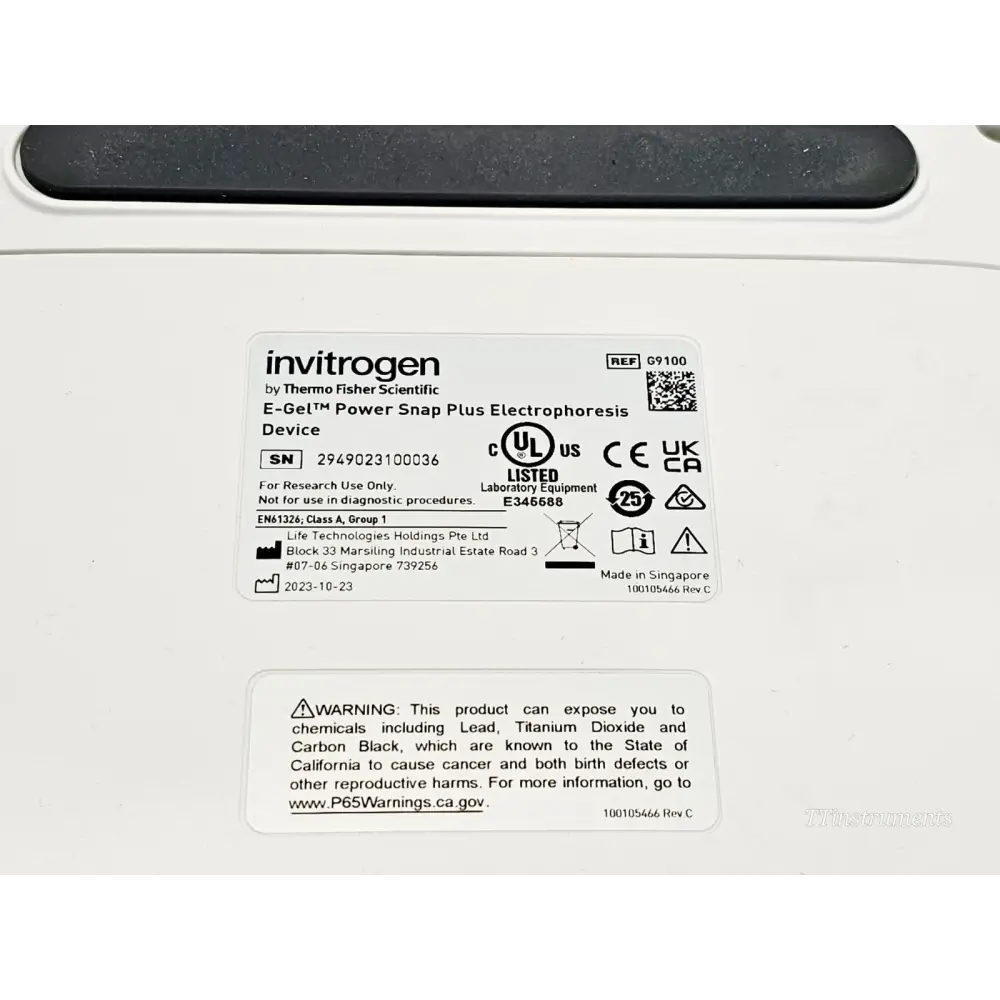

Invitrogen E-Gel Power Snap Plus Electrophoresis System (Cat. No. G9100), manufactured October 2023 (S/N: 2949023100036). This unit powers on and passes all system self-diagnostic tests (power supply, communication, and system checks all passed — report dated 03/05/2026). Firmware version 1.0.5, with 57,381 MB free storage space remaining.

Included in the sale:
• Invitrogen E-Gel Power Snap Plus Electrophoresis Device (base module) — Cat. No. G9100
• E-Gel Power Snap Plus Camera module

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Invitrogen E-Gel Power Snap Plus Electrophoresis System (Cat. No. G9100) is an all-in-one benchtop system designed for fast and convenient high-throughput E-Gel agarose gel electrophoresis, from DNA sample loading to gel imaging. With dry precast E-Gel agarose gel technology, DNA samples can be run in as little as 10 minutes with real-time separation monitoring. It is the only benchtop system that seamlessly integrates high-throughput DNA sample separation and gel imaging into one workflow.

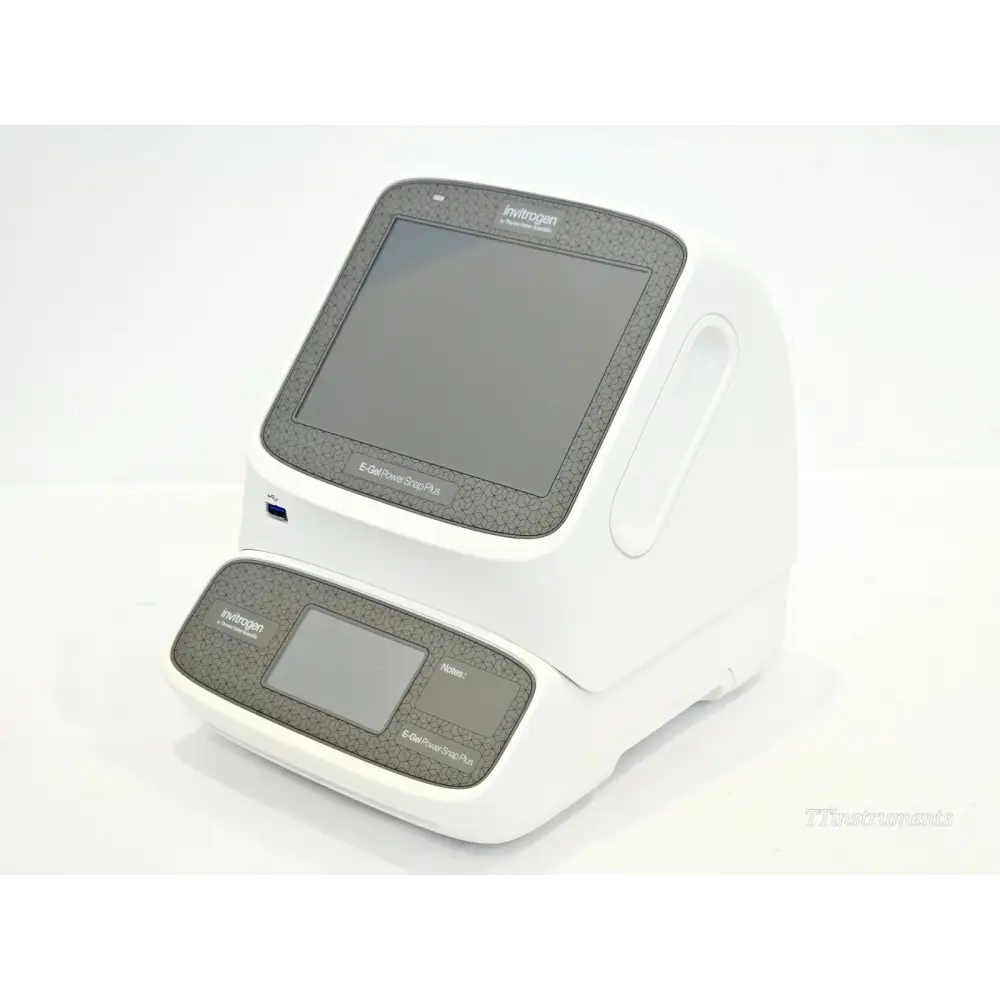

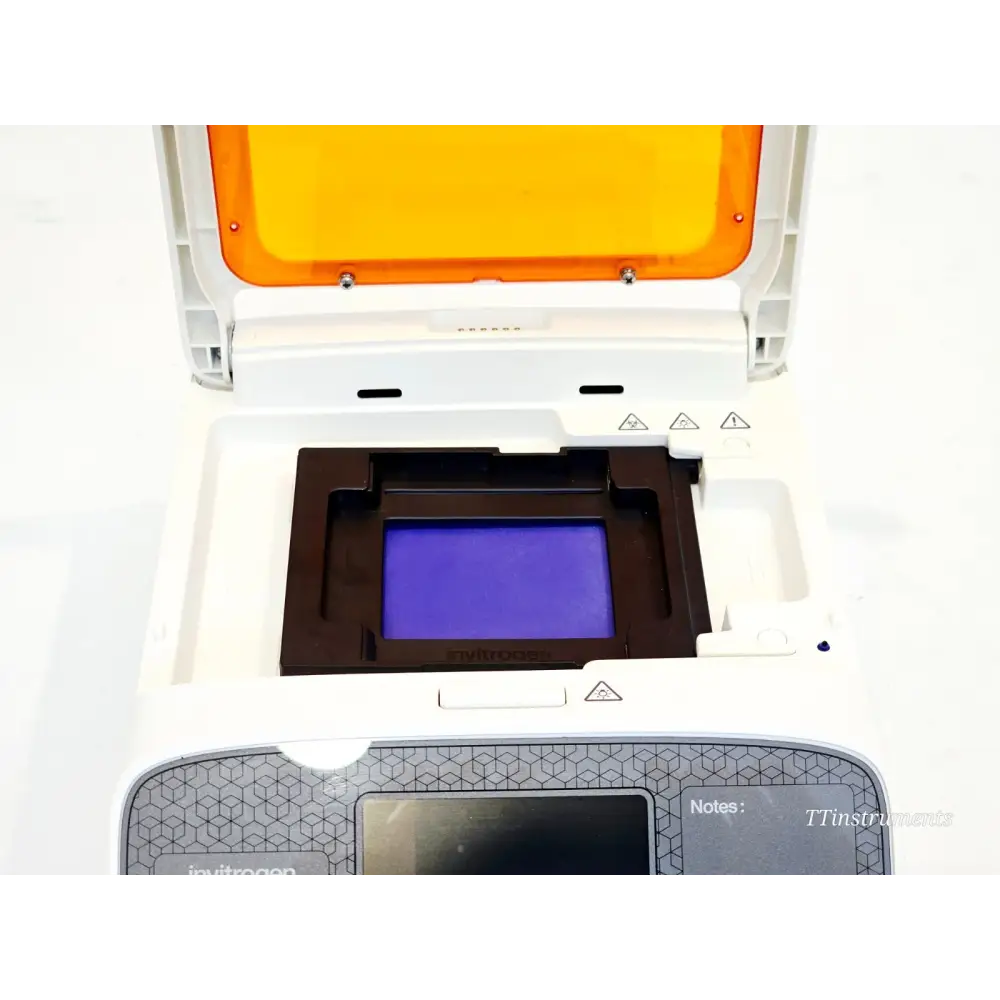

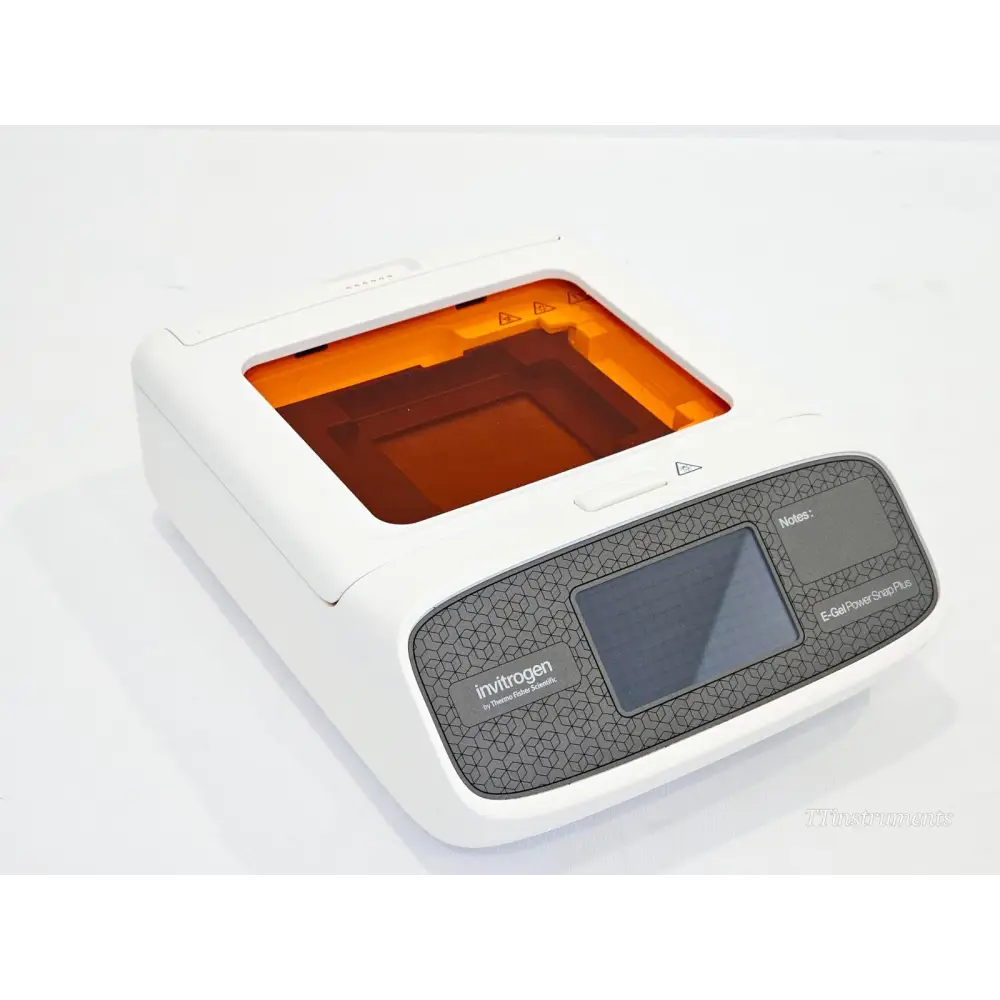

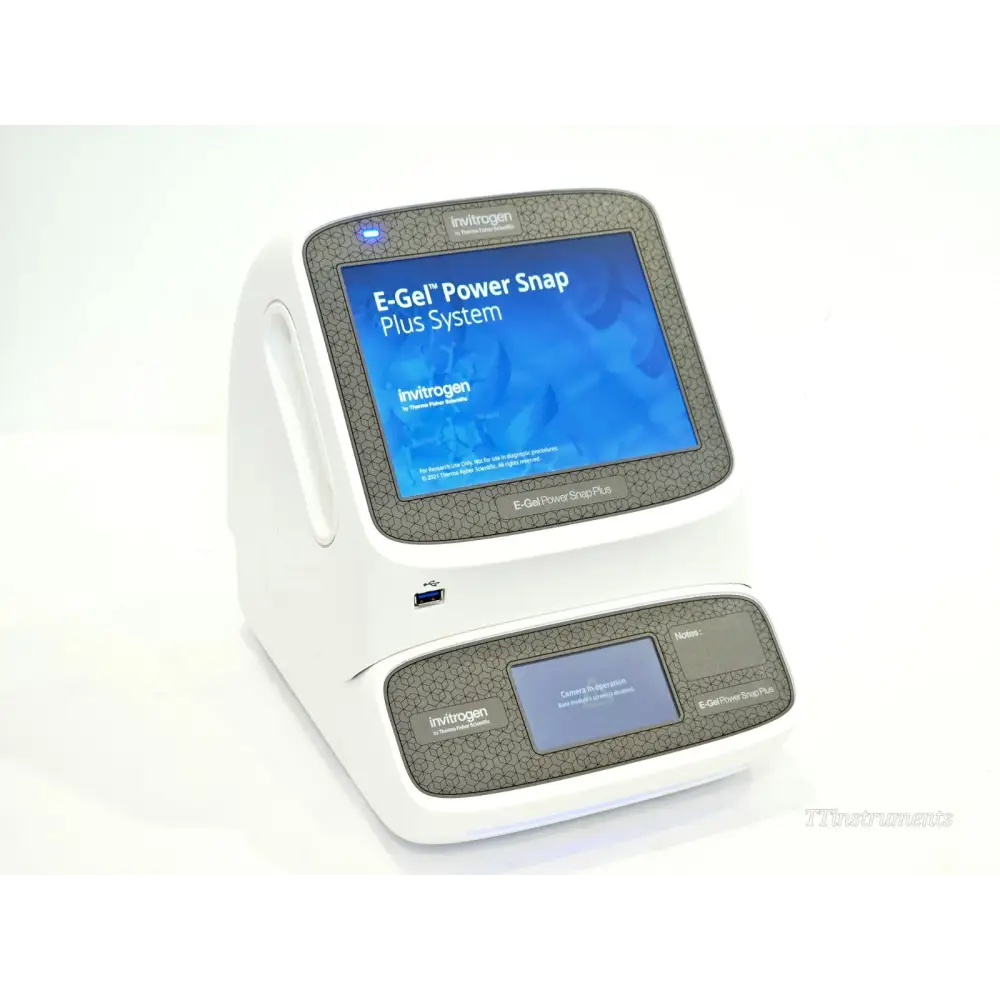

The system consists of a base module containing a power supply, blue-light transilluminator, and amber filter, paired with a camera module capable of high-resolution image capture and documentation. The cable-free camera docks directly onto the electrophoresis base, enabling image capture during a run without interrupting the workflow. High-resolution images are captured digitally without the need for focusing or adjustment.

The 8-inch touchscreen provides an intuitive interface for real-time gel viewing, image capture, editing, and export. The system supports connectivity to cloud platforms, internal servers, and direct printing from the instrument. iBright Image Analysis software is included.

Compatible gel types include E-Gel, E-Gel EX, E-Gel 48, E-Gel 96, and E-PAGE gels. The system supports 11- to 22-well and up to 96-well E-Gel agarose gel formats. Precast gels are pre-stained with SYBR Safe or SYBR Gold II DNA stains, eliminating the need for gel preparation, buffer handling, or post-run staining.

Key Specifications:
Catalog Number: G9100
Detection Method: Fluorescence, blue light
Maximum Voltage: 48 VDC
Illumination: Blue-light transilluminator with amber filter
Display: 8-inch colour touchscreen

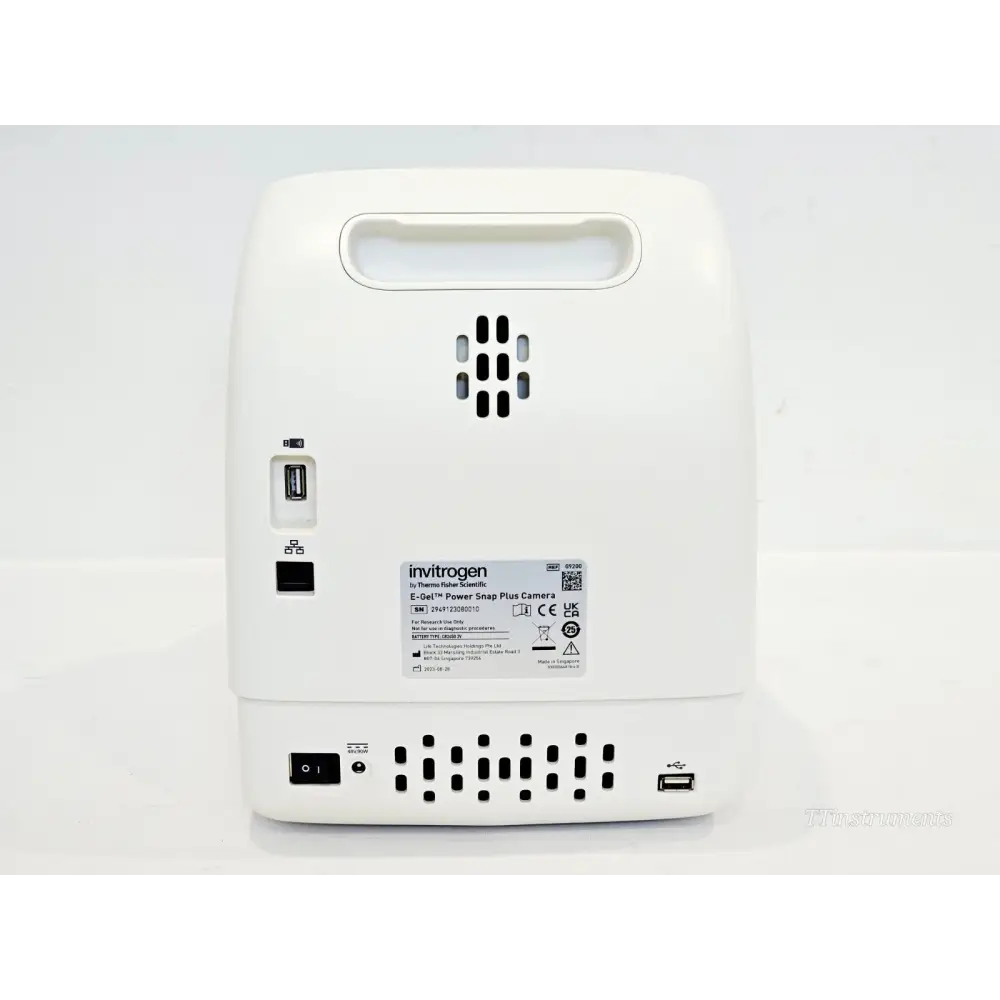

Connectivity: USB (front and rear), Ethernet (RJ45), optional Wi-Fi
Compatible Gels: E-Gel, E-Gel EX, E-Gel 48, E-Gel 96, E-PAGE
Throughput: Up to 96 samples per run
Run Time: As little as 10 minutes
Image Analysis: iBright Image Analysis included
Cloud Connectivity: Thermo Fisher Connect Platform compatible
Installation: Indoor use only
EMC Classification: Class A, Group 1 (EN61326)
Regulatory: CE, UKCA, UL Listed (Laboratory Equipment)
For Research Use Only — Not for use in diagnostic procedures.
Manufacturer: Life Technologies Holdings Pte Ltd, Singapore

E-Gel Power Snap Plus Electrophoresis System — official user guide (MAN0002591): Download PDF

E-Gel Power Snap Electrophoresis System — user guide (MAN0017050): Download PDF

E-Gel Power Snap Electrophoresis Device — quick reference card: Download PDF
