The images provided are of the actual item you will receive. Please review them carefully for cosmetic condition.

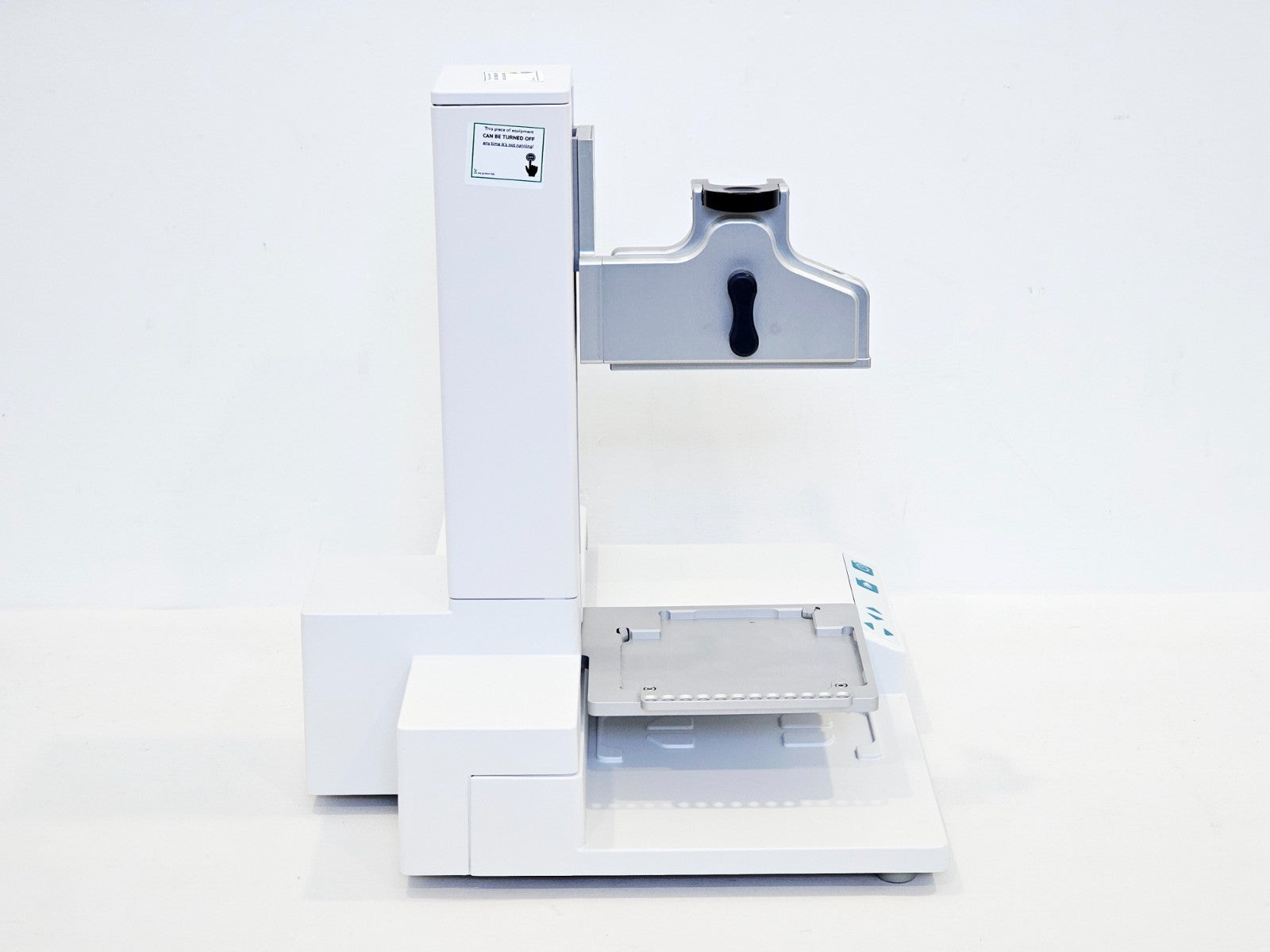

This INTEGRA Biosciences Viaflo Assist automated pipetting station is in very good cosmetic condition and has been fully tested and confirmed working.

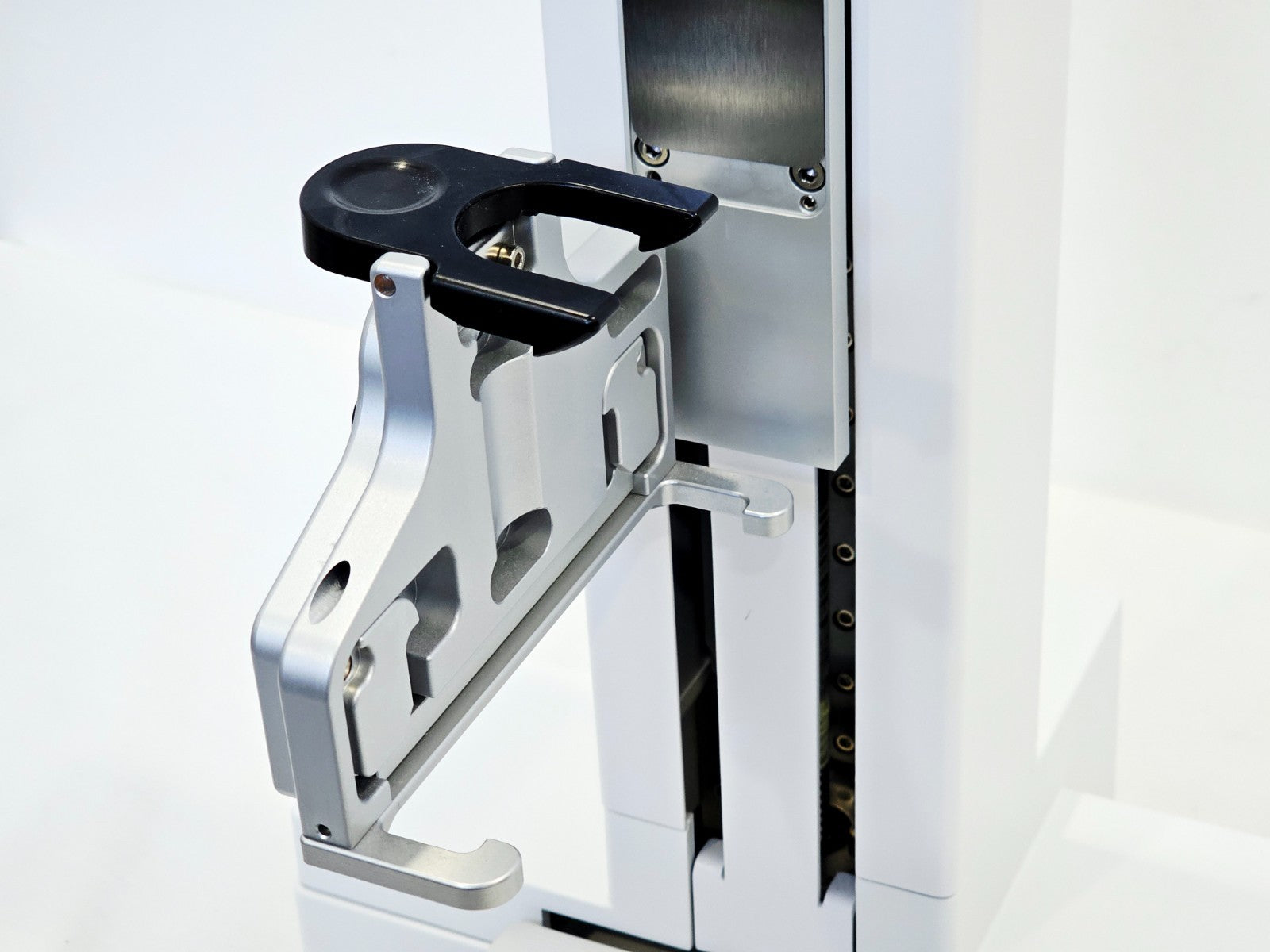

The Viaflo Assist automates compatible VIAFLO II multichannel electronic pipettes (8, 12, and 16-channel) to perform routine pipetting tasks such as serial dilutions, plate filling, and reagent addition automatically. The pipette is mounted onto the smart adapter, its protocol is read via Bluetooth communication, and the station executes the run at the press of a button — ensuring consistent tip immersion depth and pipetting angle for superior reproducibility.

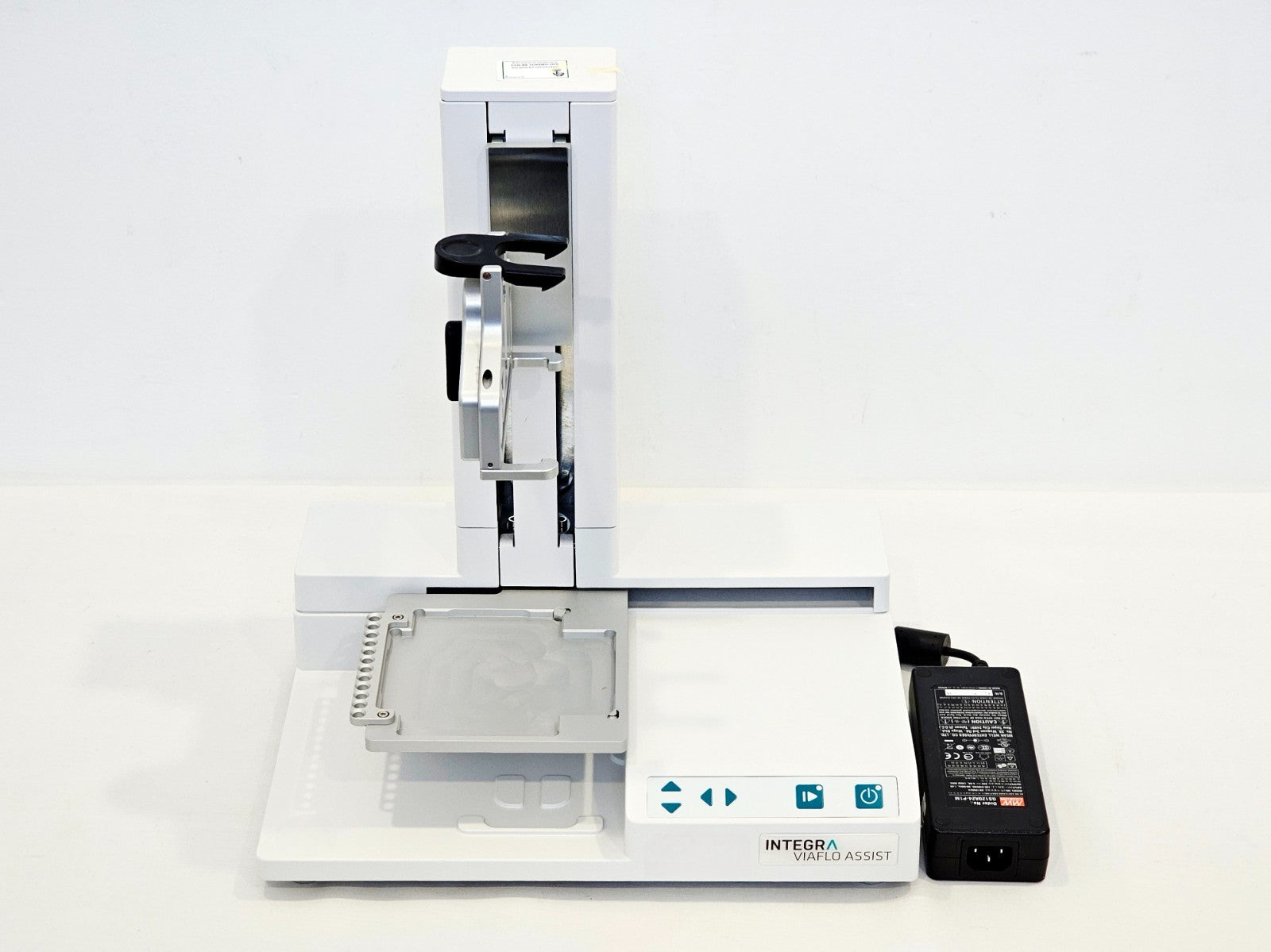

This listing is for the Viaflo Assist base unit. The unit includes:
• Viaflo Assist base station with plate carrier / microplate holder
• External 24 VDC mains power supply adapter

Note: A compatible INTEGRA VIAFLO II electronic multichannel pipette is required to operate this station and is not included in this listing unless stated otherwise.

The INTEGRA Biosciences Viaflo Assist is a personal pipetting assistant designed to automate VIAFLO II electronic multichannel pipettes, freeing laboratory staff from repetitive pipetting tasks and reducing the risk of repetitive strain injuries.

The system mounts directly onto compatible VIAFLO II 8-, 12-, or 16-channel electronic pipettes. The pipette communicates with the Assist station via Bluetooth, transmitting the selected pipetting protocol, which the station then executes automatically. This ensures that critical parameters such as tip immersion depth and pipetting angle are identical on every repeat, dramatically improving reproducibility compared to manual handheld pipetting.

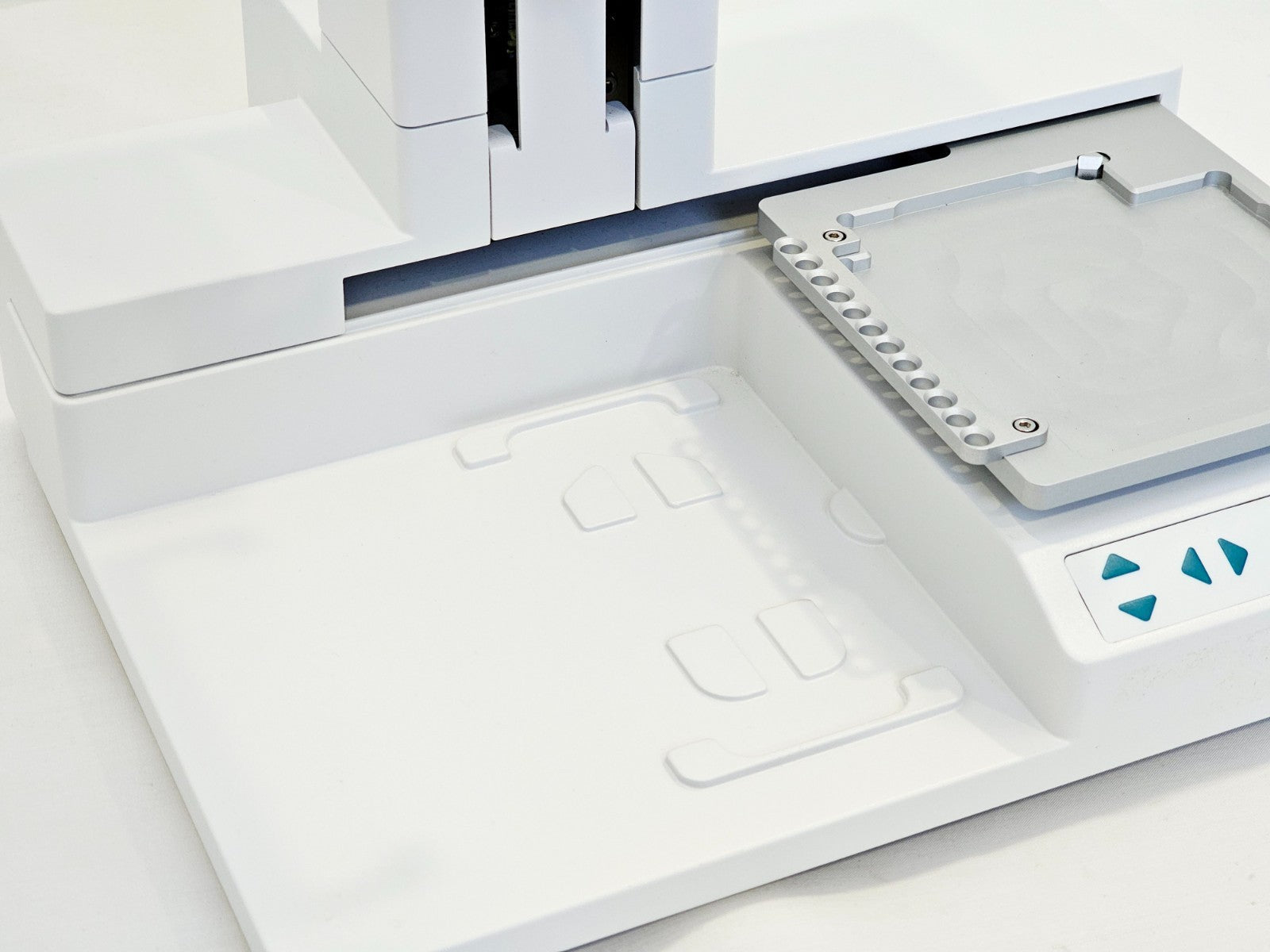

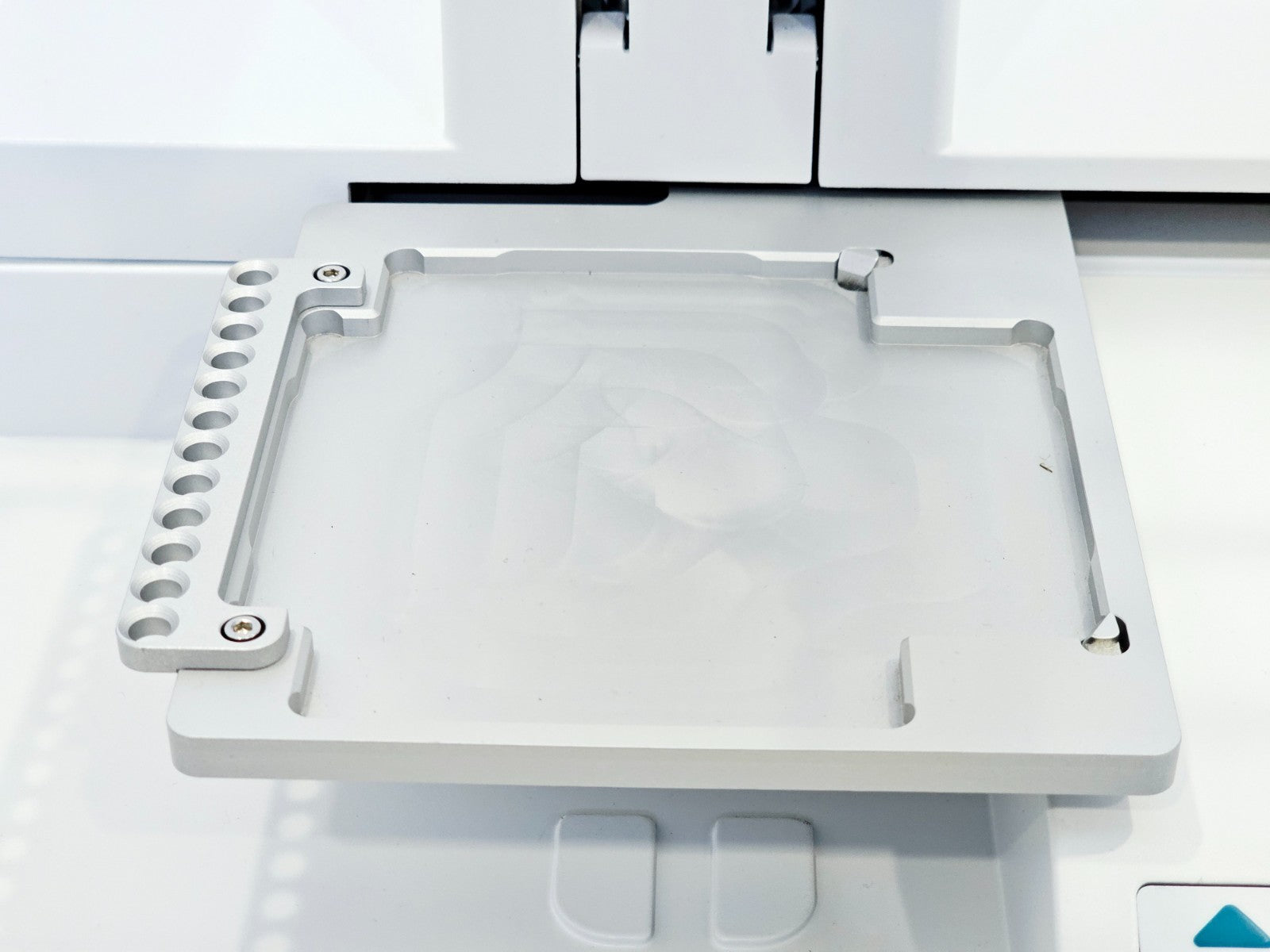

Three built-in predefined protocols — Serial Dilution, Repeat Dispense, and Variable Dispense — allow a rapid start, while custom protocols programmed on the pipette are seamlessly transferred to and executed by the station. The plate sledge accommodates microplates from 6-well to 384-well format in both portrait and landscape orientation. The compact footprint fits on any standard laboratory bench or inside most laminar flow cabinets.

Compatible pipettes: VIAFLO II 8-, 12-, and 16-channel multichannel pipettes
Volume range (pipette dependent): 0.5 – 1250 µl
Plate compatibility: 6-well to 384-well, portrait and landscape
Pipetting technology: Air displacement

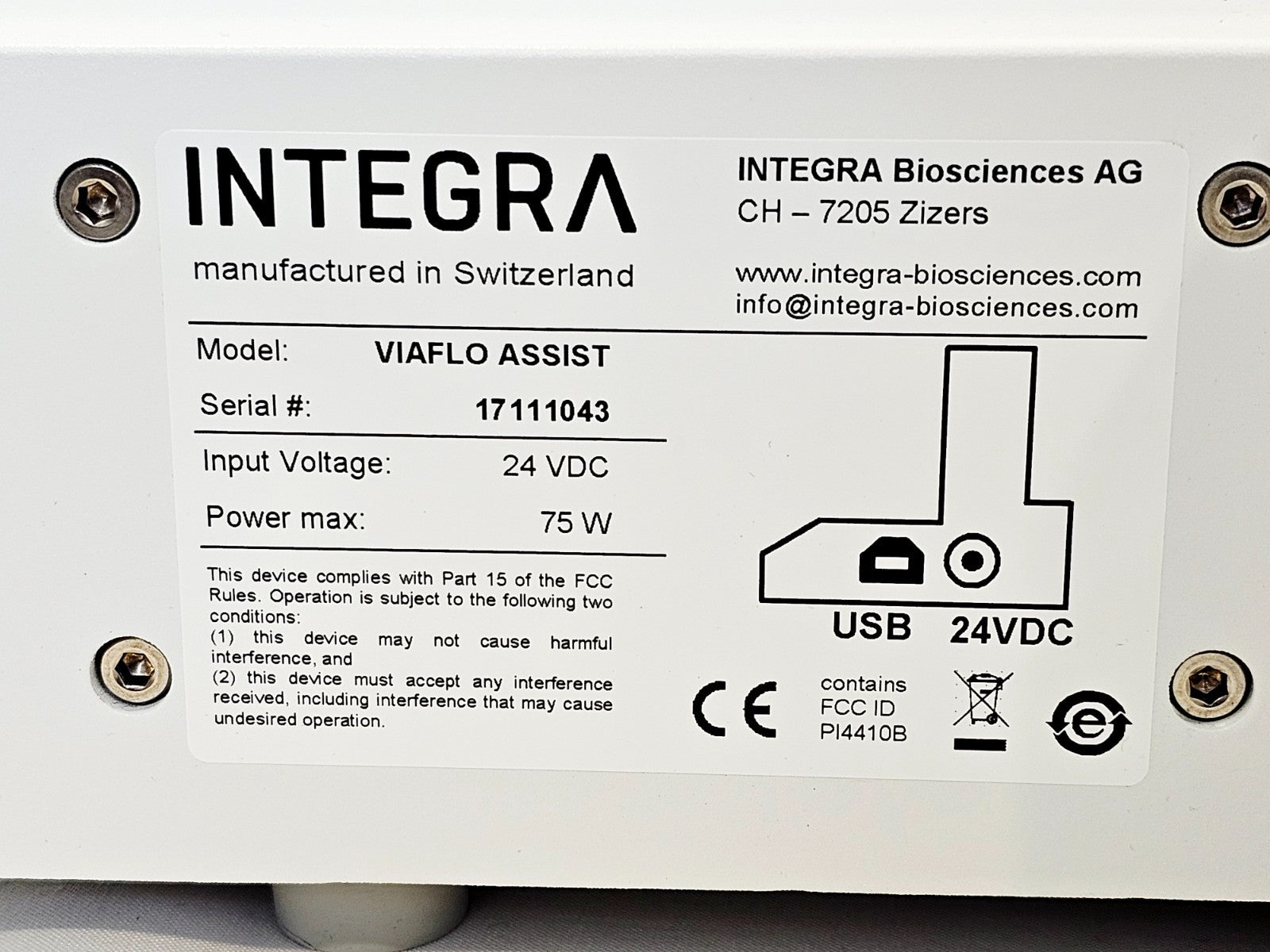

Input voltage: 24 VDC
Power supply input: 100–240 VAC, 50/60 Hz
Max. power: 75 W
Dimensions (W × D × H): 340 × 360 × 400 mm (510 mm with pipette)
Weight: 10 kg
Operating temperature: 5–40 °C
Operating humidity: <85% non-condensing

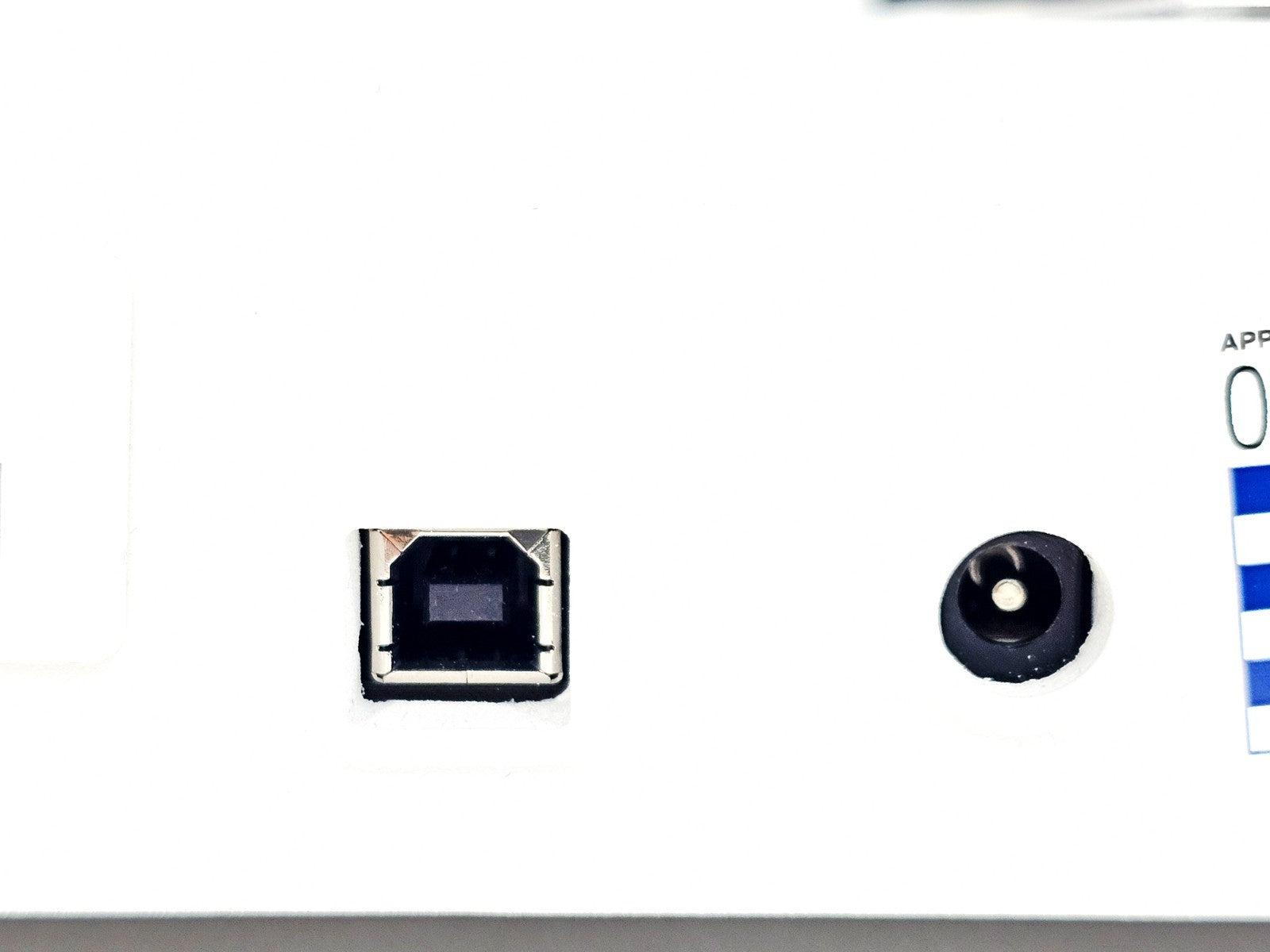

Connectivity: USB Type-B; Bluetooth (pipette communication)
Country of manufacture: Switzerland

Integra Biosciences datasheet: Download PDF
