Condition: Used

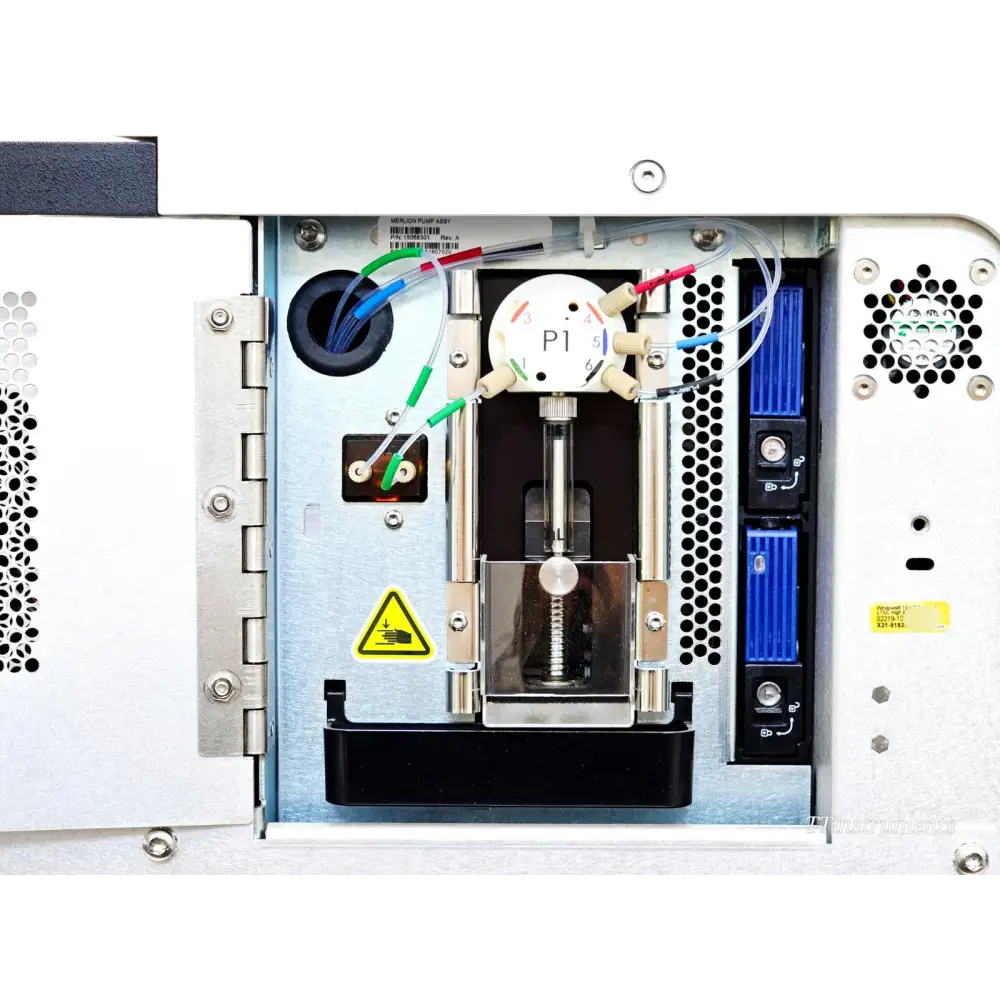

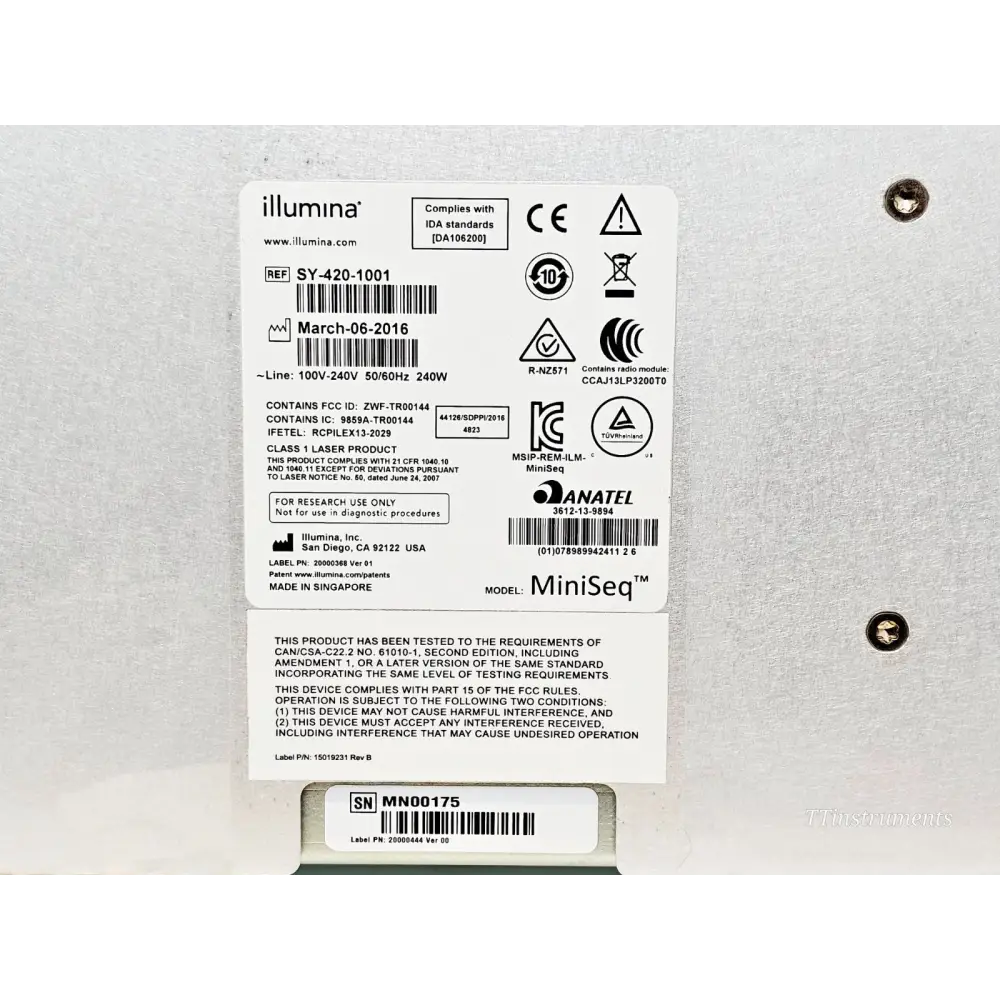

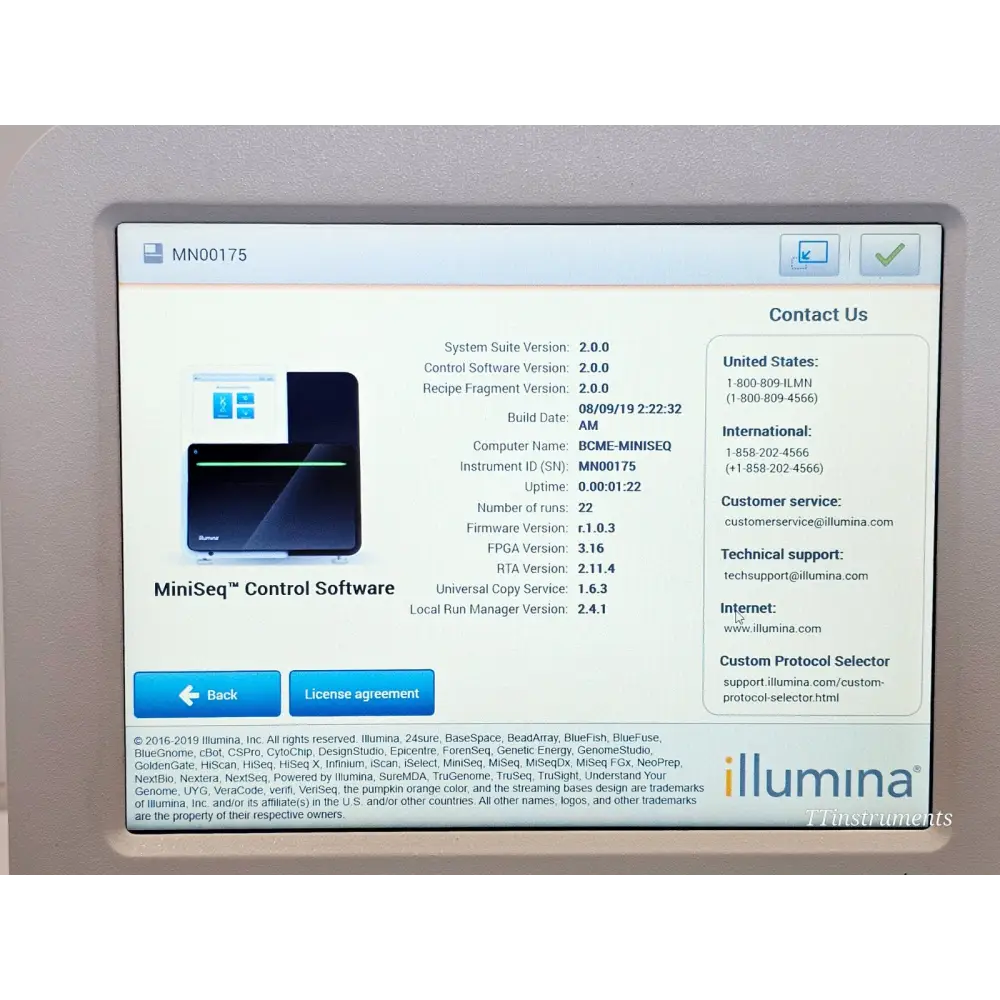

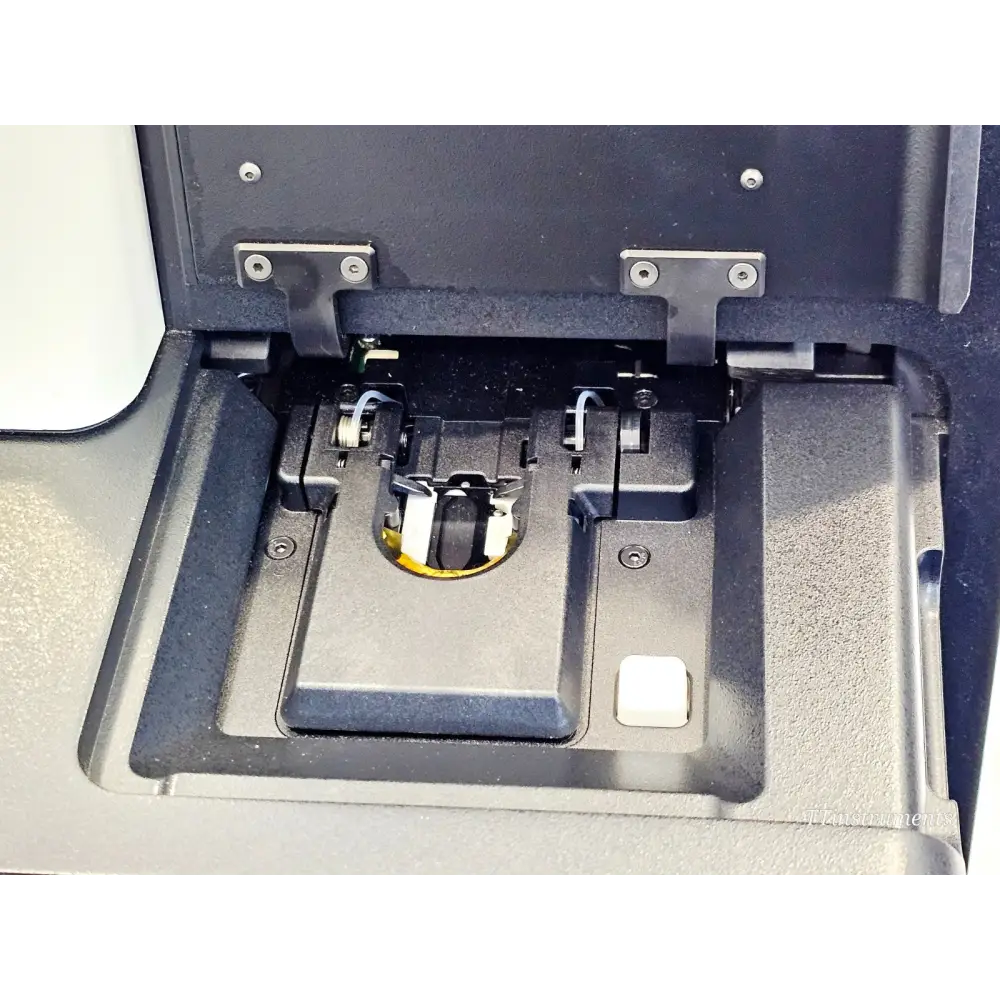

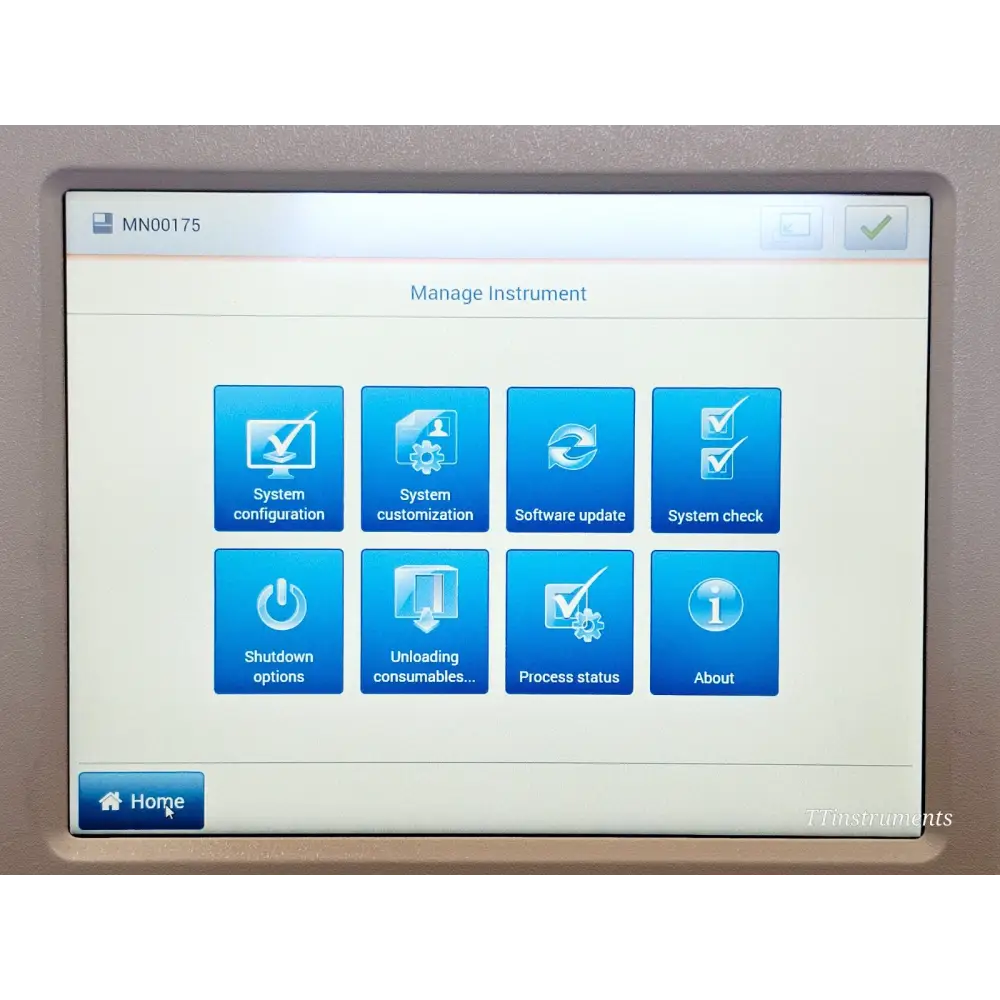

Illumina MiniSeq DNA Sequencer System, REF SY-420-1001, manufactured March 2016, serial number MN00175, with a low run count of just 22. A partial on-screen system check was carried out. Motion (FCLM FAM Mechanical, Stage Tests), Optics (Flow Cell Registration), and Thermal (Fans, Thermal Probes) all passed. Fluidics checks failed (PressureDecay1, Sensor Verify, Flow Rate) — we do not have the equipment or consumables to further test or diagnose these failures. Sold as-is for parts, repair, or by a buyer with the means to service the fluidics system.

Included in the sale:

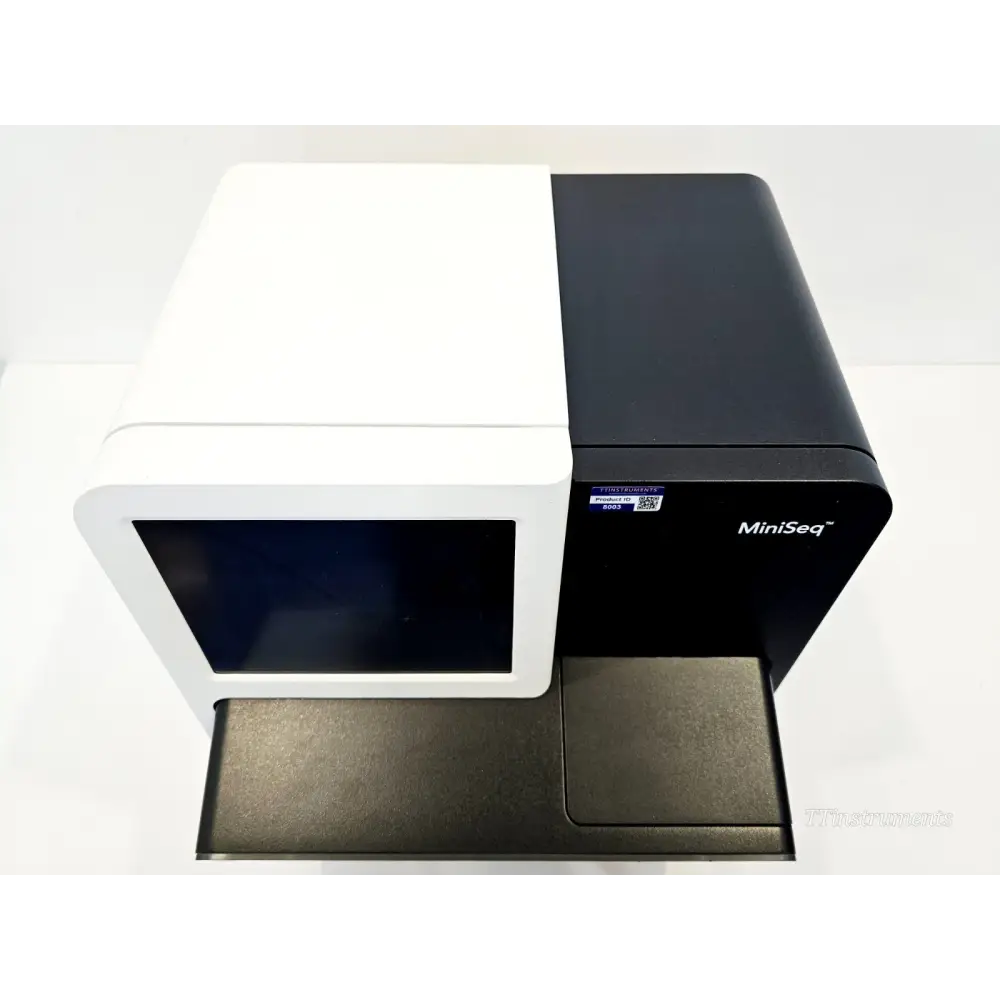

• Illumina MiniSeq instrument (SY-420-1001, S/N MN00175)

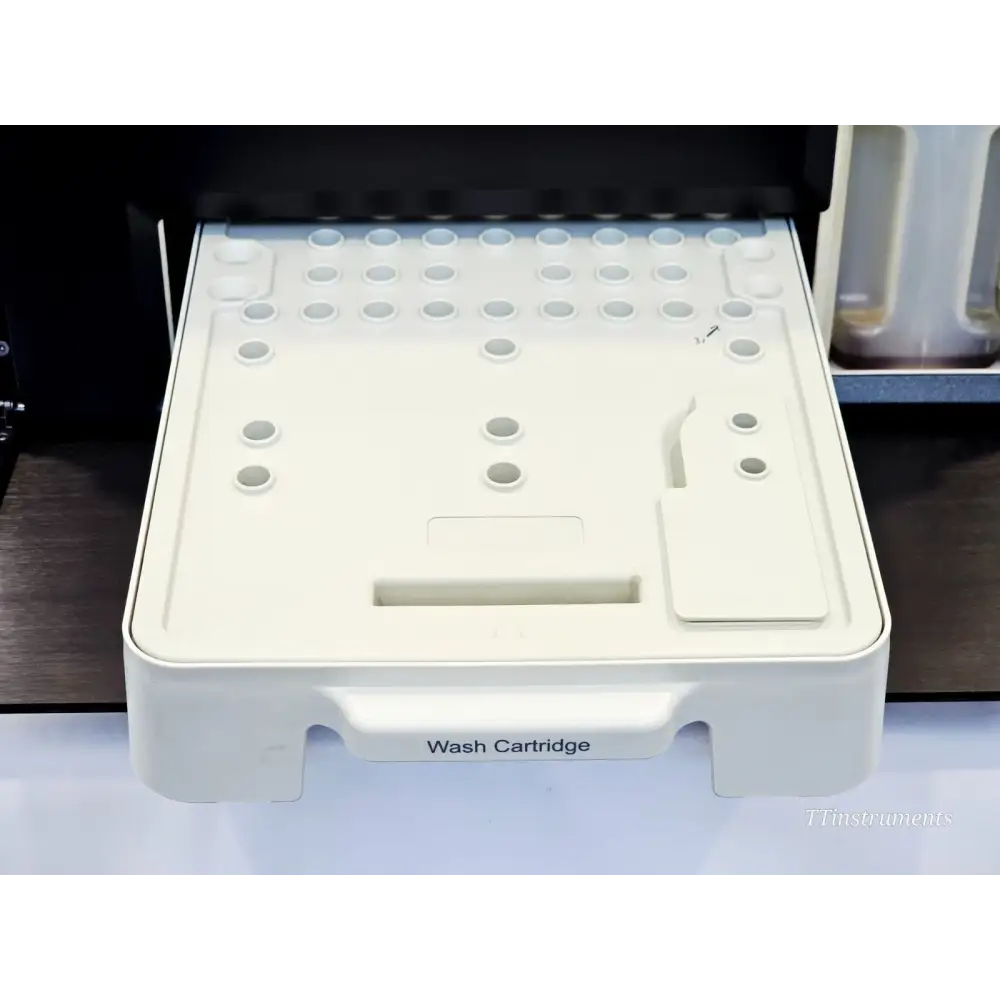

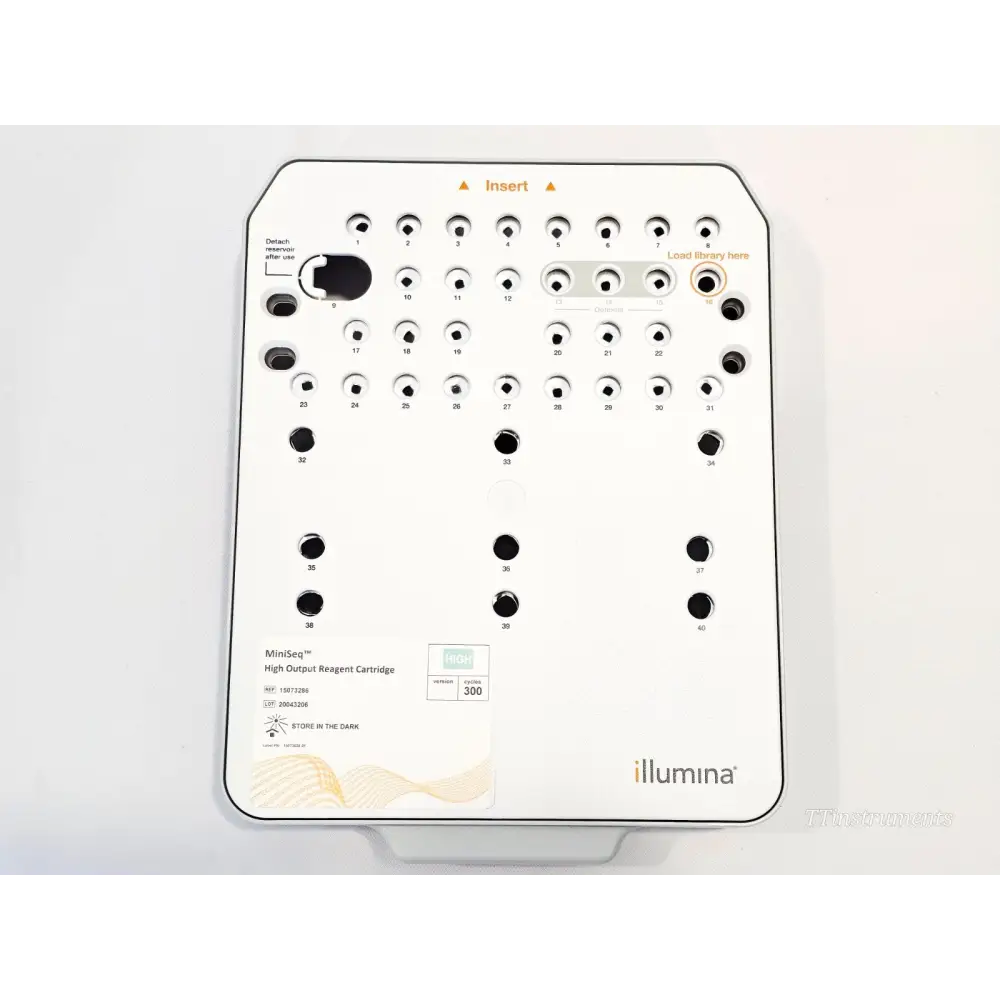

• Illumina MiniSeq High Output Reagent Cartridge insert plate

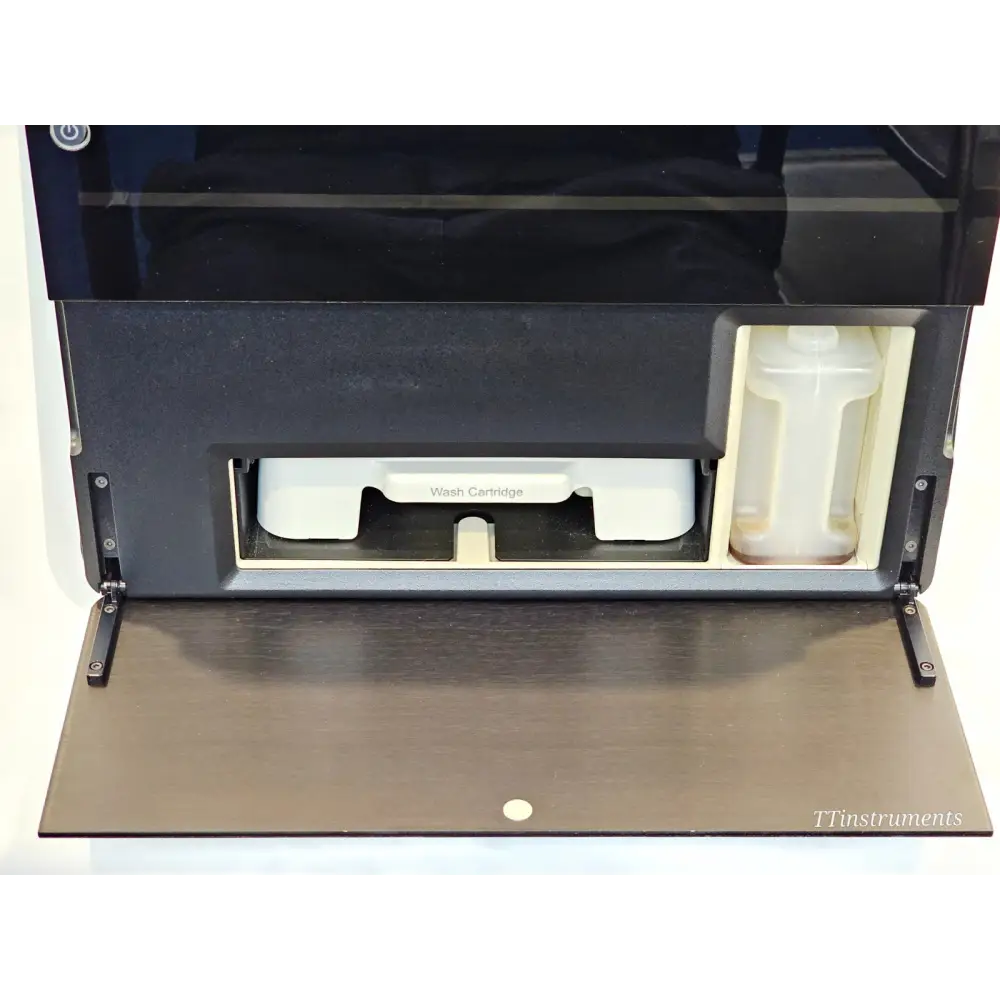

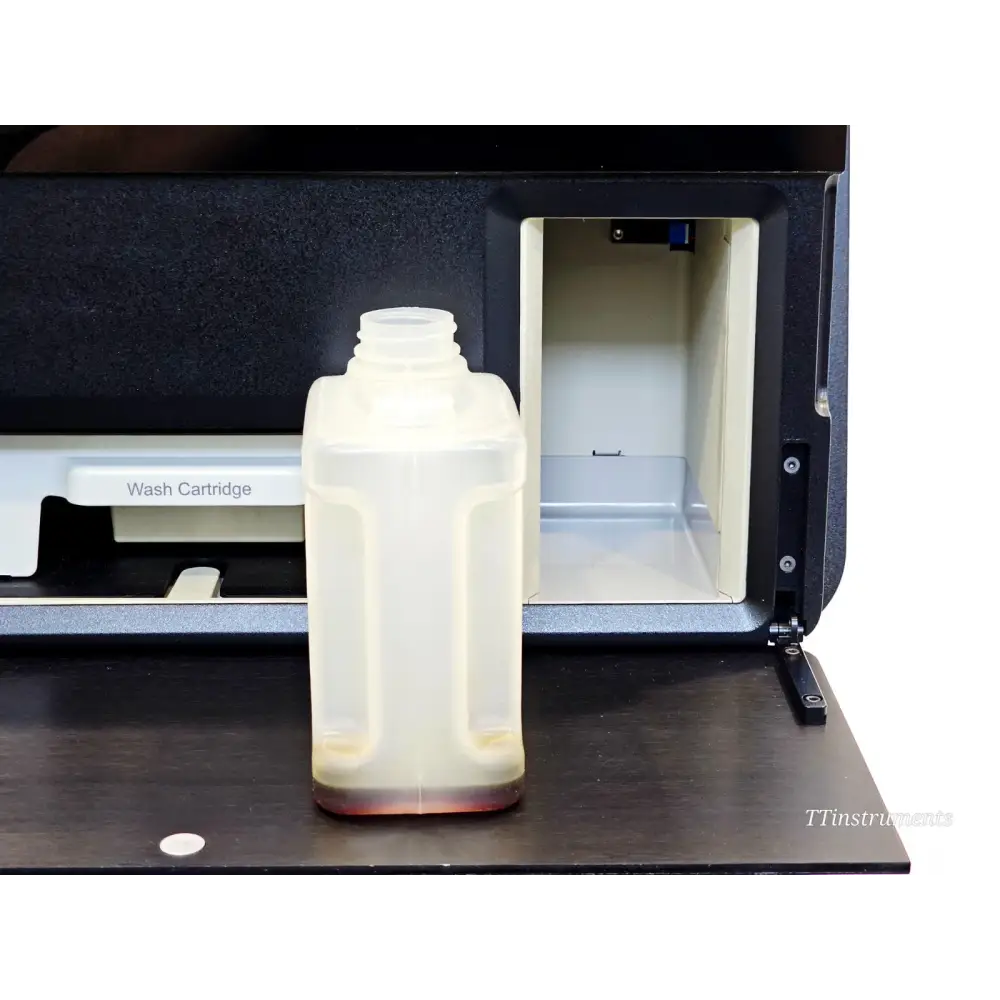

• Illumina Spent Reagent Waste bottle
• Keyboard (as pictured)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

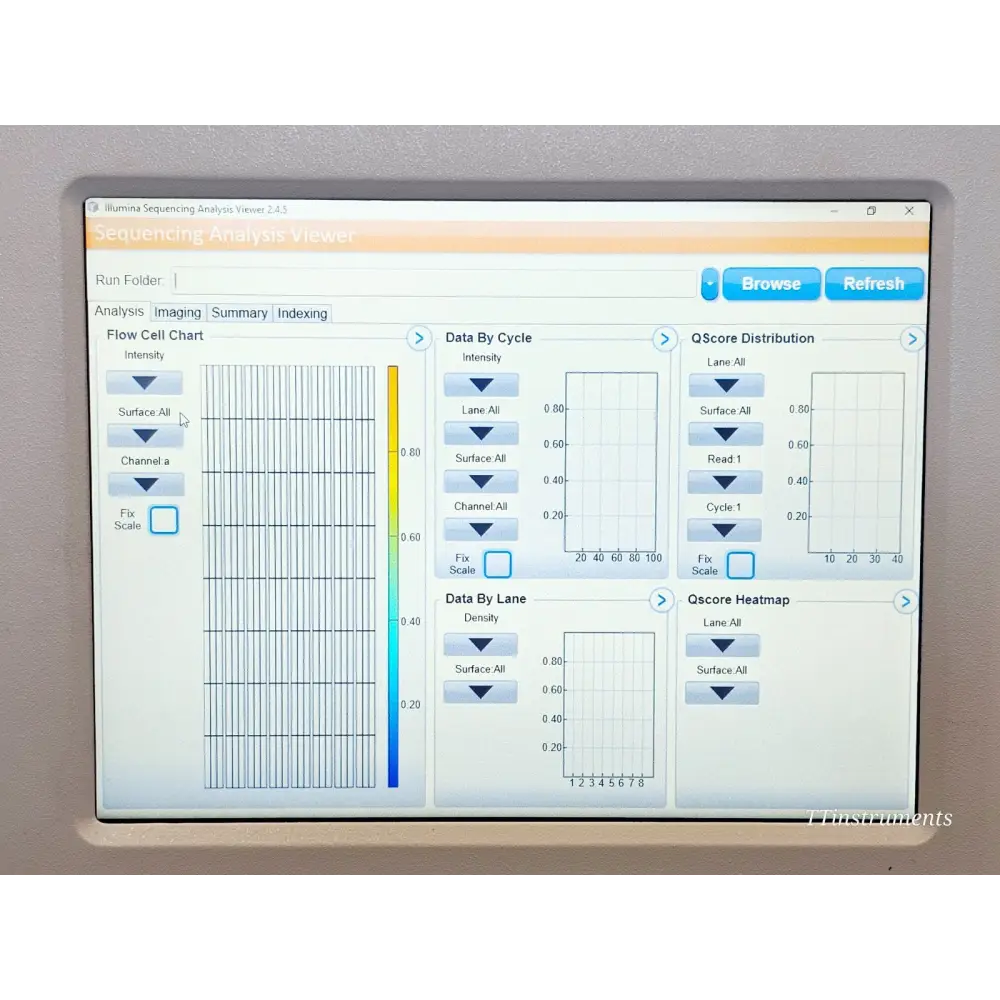

The Illumina MiniSeq System (REF SY-420-1001) is a benchtop next-generation sequencing (NGS) platform that delivers proven Illumina sequencing-by-synthesis (SBS) technology in a compact, accessible format. Designed for on-demand sequencing in research laboratories of all sizes, the MiniSeq integrates clonal amplification, sequencing, and base calling into a single instrument, eliminating the need for additional specialised equipment. The system features a 2-channel SBS chemistry for fast, accurate data generation, a touchscreen interface, and onboard Local Run Manager (LRM) software for run setup, monitoring, and automated data analysis. Data can also be transferred to Illumina's BaseSpace Sequence Hub for cloud-based analysis, archiving, and sharing. The MiniSeq supports a wide range of applications including targeted amplicon sequencing, targeted gene expression profiling, enrichment panel sequencing, small RNA (miRNA) profiling, and small whole-genome sequencing. For Research Use Only. Not for use in diagnostic procedures.

Key Specifications:
Flow Cell Configurations: Mid Output, High Output
Maximum Output (High Output): 1.9–7.5 Gb per run
Clusters Passing Filter (High Output): Up to 25 million
Maximum Read Length: 2 × 150 bp (paired-end)
Run Time: 4–24 hours (depending on kit and cycle number)
>Q30 Score: ≥80% (High Output, 2 × 150 bp)
Sequencing Chemistry: 2-channel sequencing by synthesis (SBS)
LED Wavelengths: 515 nm, 650 nm

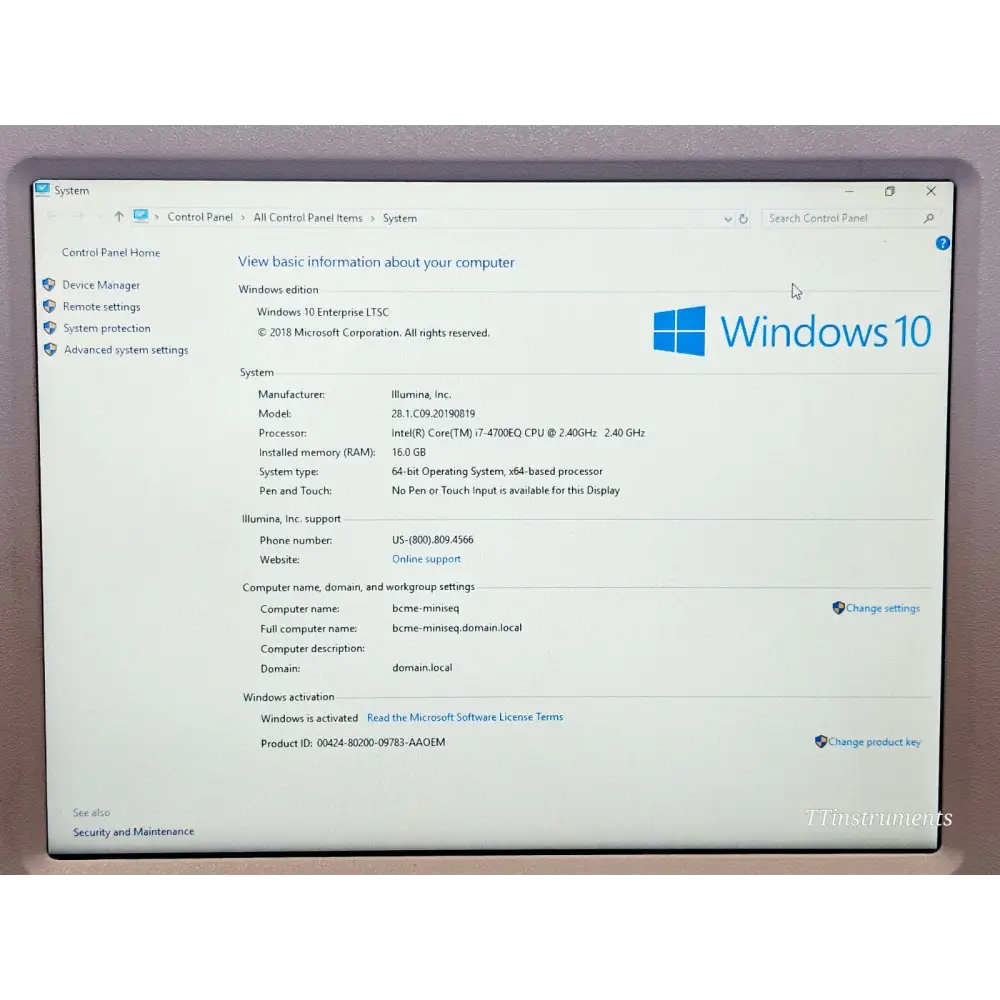

Onboard Computer: Intel Core i7-4700EQ 2.4 GHz CPU
Memory: 16 GB DDR3L RAM
Hard Drive: 1 TB

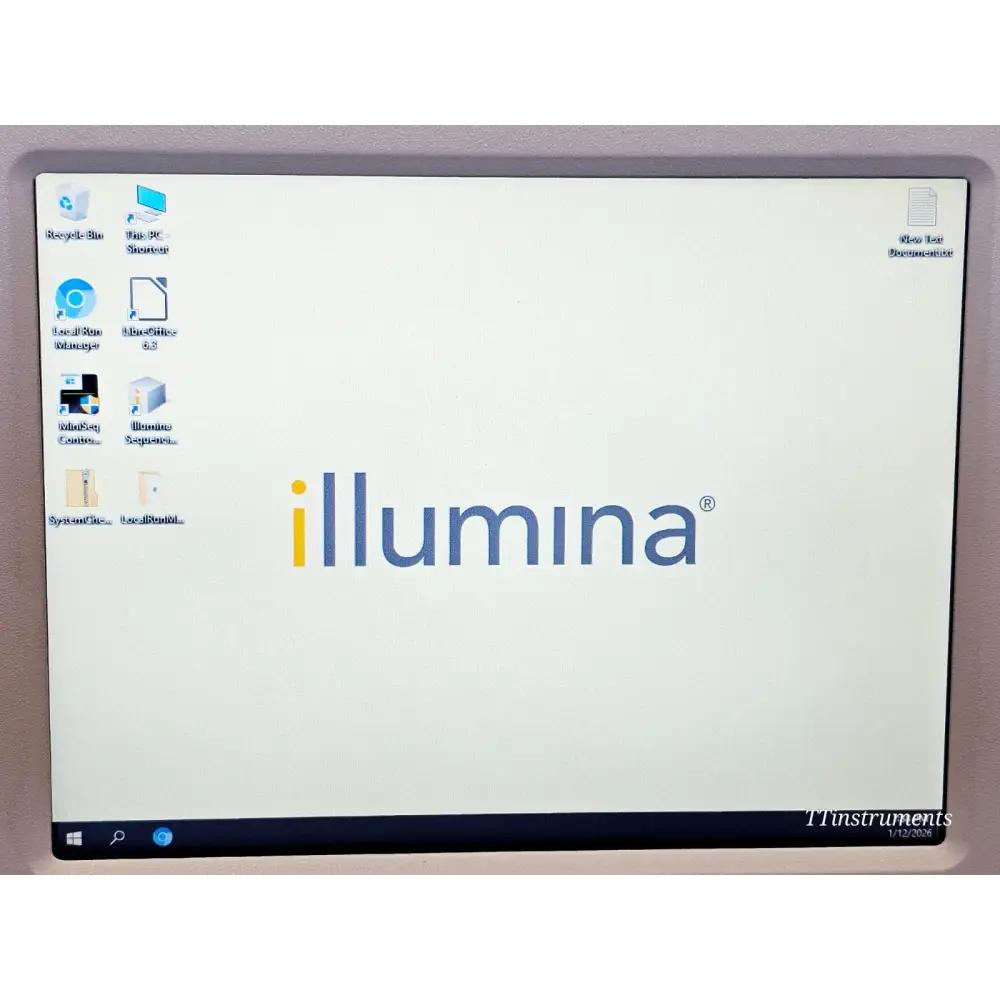

Operating System: Windows 10 Embedded Standard
RFID Tracking: Yes (consumables)
Dimensions (W × D × H): 45.6 × 48 × 51.8 cm (18.0 × 18.9 × 20.4 in)
Weight: 45 kg (99 lb)
Power Requirements: 100–240 V AC, 50/60 Hz, 240 W
Operating Temperature: 19–25°C (22°C ± 3°C)
Relative Humidity: 20–80% non-condensing
Altitude: Less than 2,000 m (6,500 ft)
Laser Classification: Class 1 Laser Product
Intended Use: For Research Use Only

MiniSeq System Specification Sheet — technical performance parameters and application data: Download PDF

MiniSeq System Specification Sheet (archived version) — original system specs and application flexibility data: Download PDF

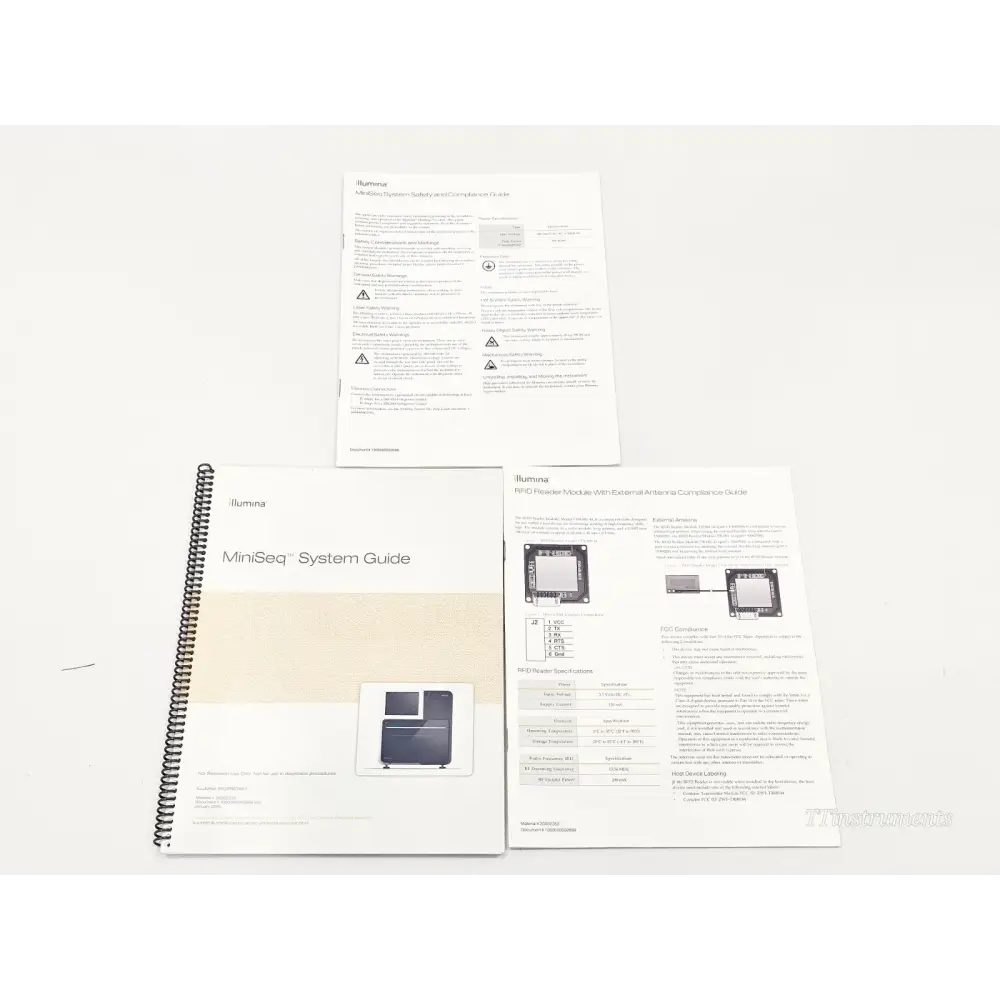

MiniSeq System Guide (v04) — full system operation, maintenance, and sequencing run instructions: Download PDF
