Condition: Used — Tested and fully functional. Cosmetic imperfections are present but do not affect performance.

The HP Agilent Keysight 8496B is a DC to 18 GHz manual step attenuator providing attenuation in 10 dB steps from 0 to 110 dB. Precision gold-plated leaf springs ensure a repeatability of typically 0.01 dB and a service life exceeding 5 million cycles per section. Maximum SWR is rated at 1.5 to 8 GHz, 1.6 to 12.4 GHz, and 1.9 to 18 GHz. Compatible with the Keysight 11716A/B/C interconnect kits for series connection with 8494/8495/8496/8497 attenuators to achieve greater dynamic range with 1 dB resolution. NIST traceable data (SWR and attenuation) is available as Option UK6.

What is included in the sale:
• HP Agilent 8496B manual step attenuator

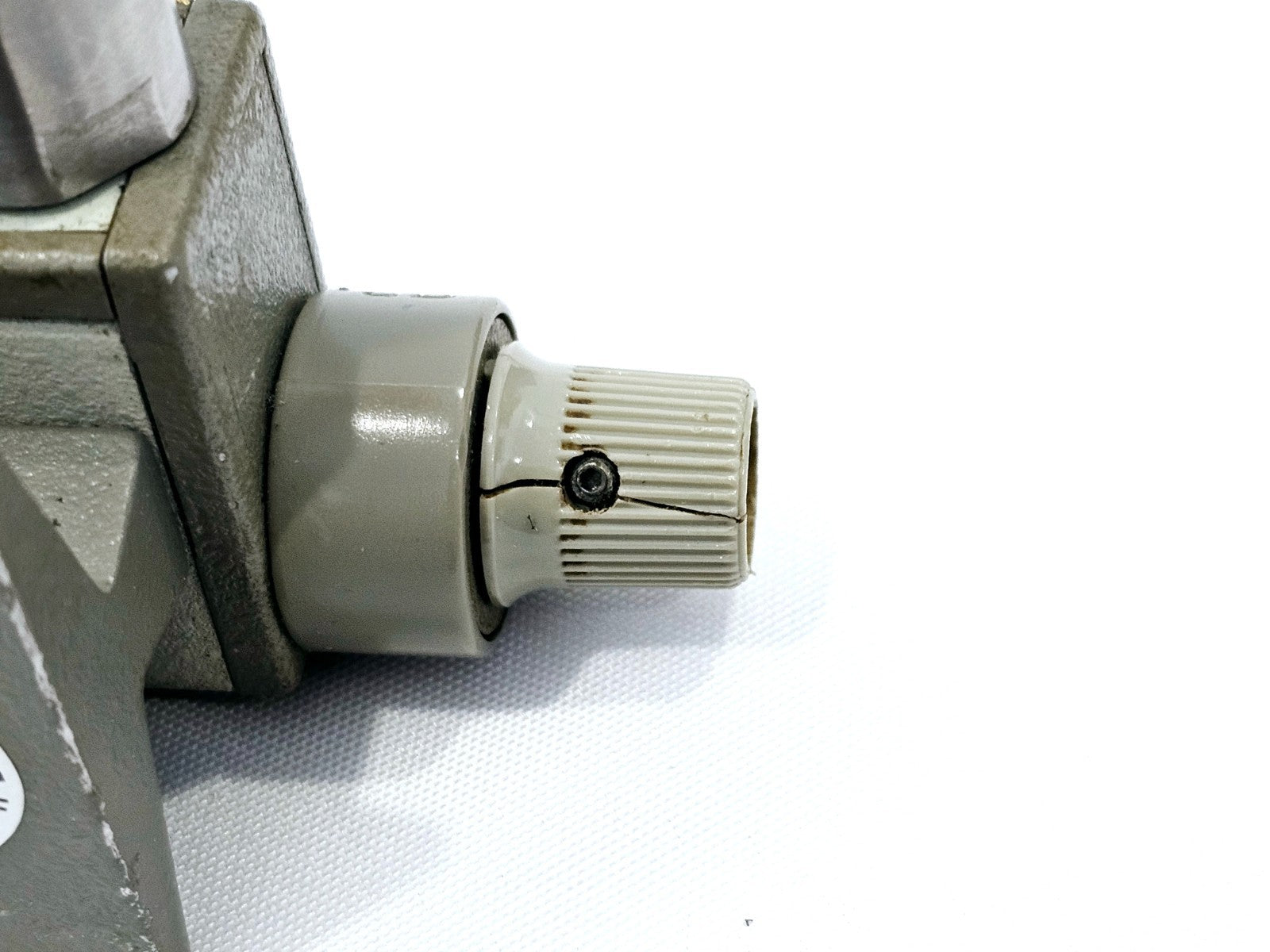

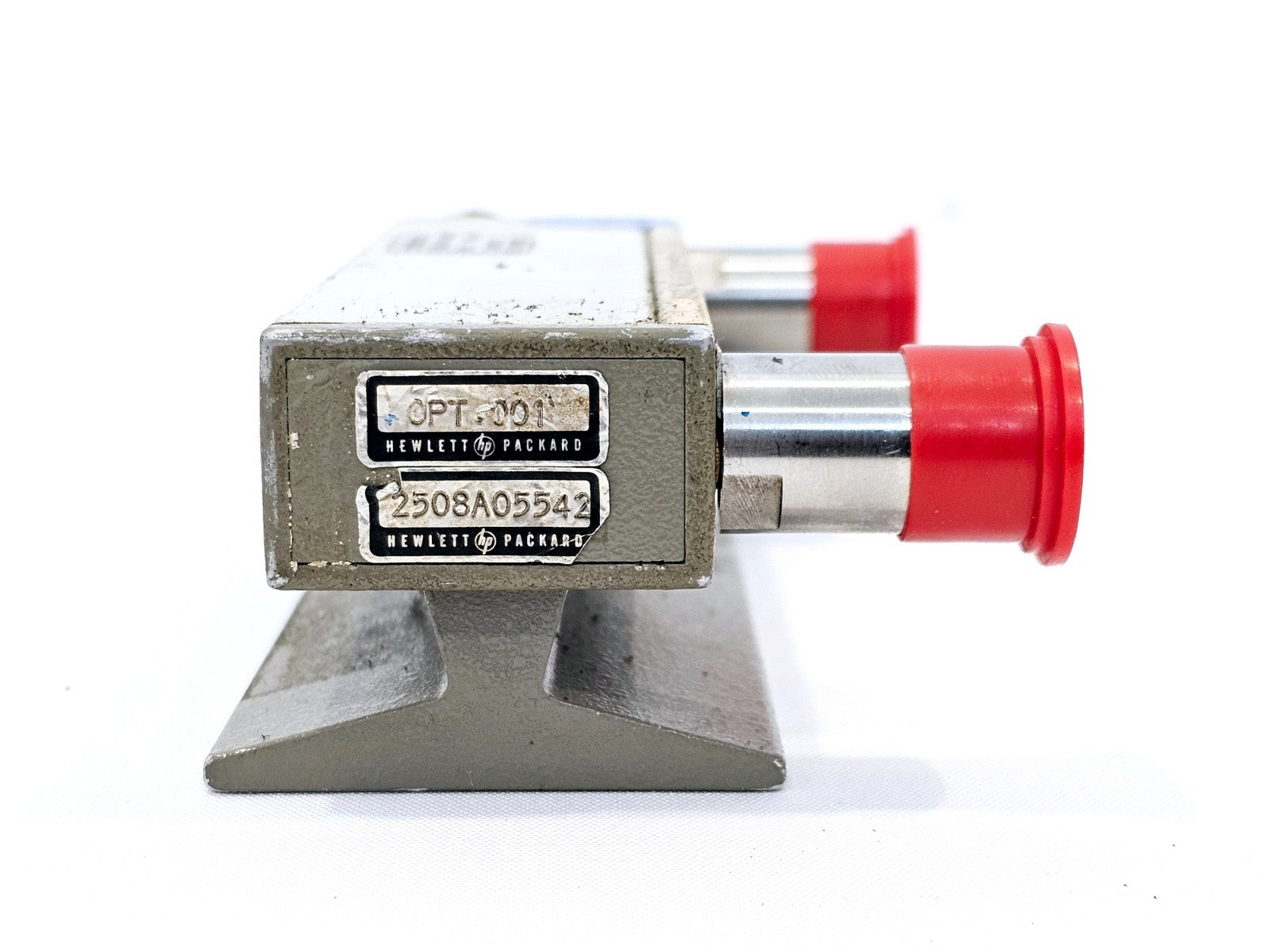

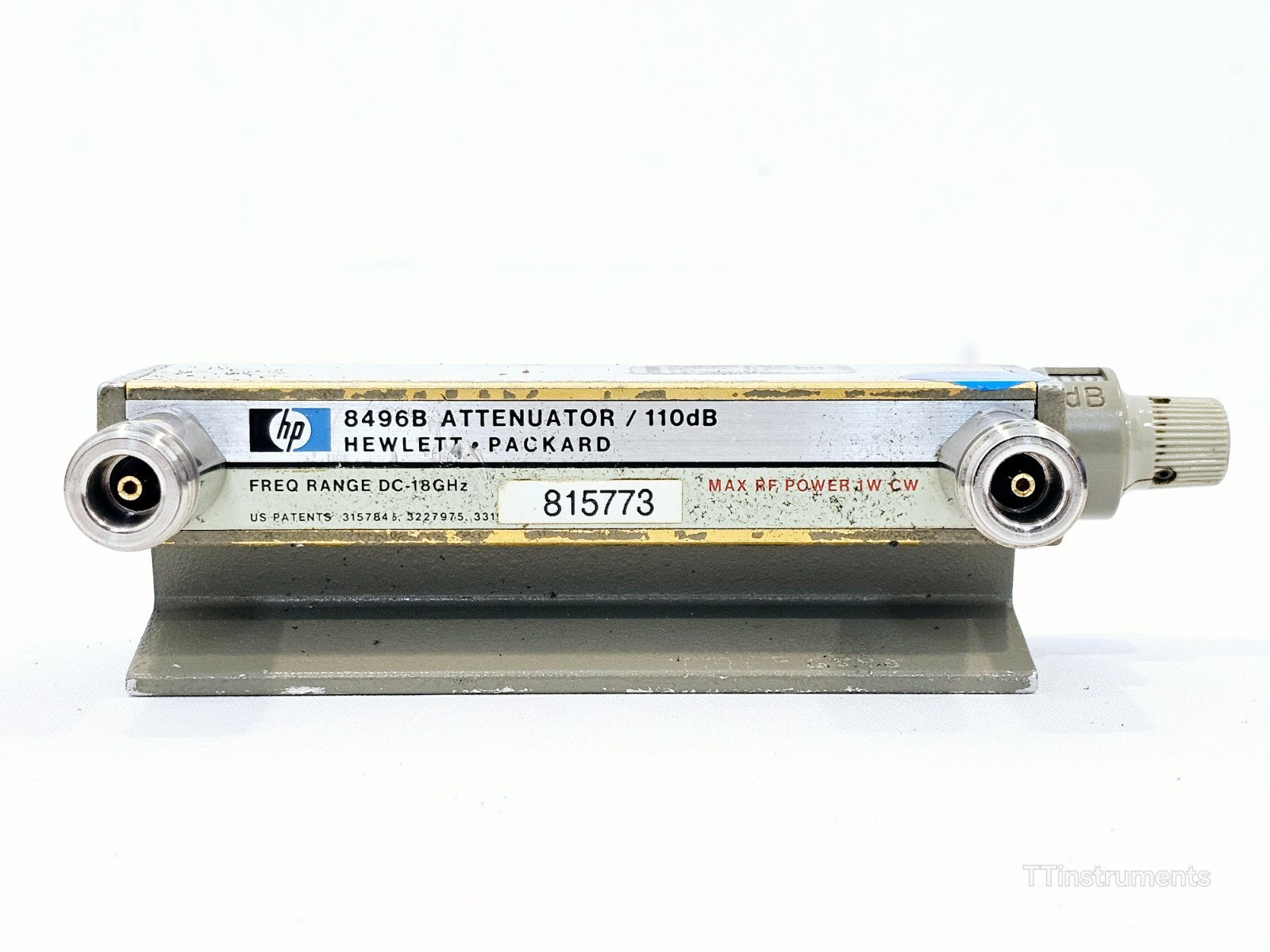

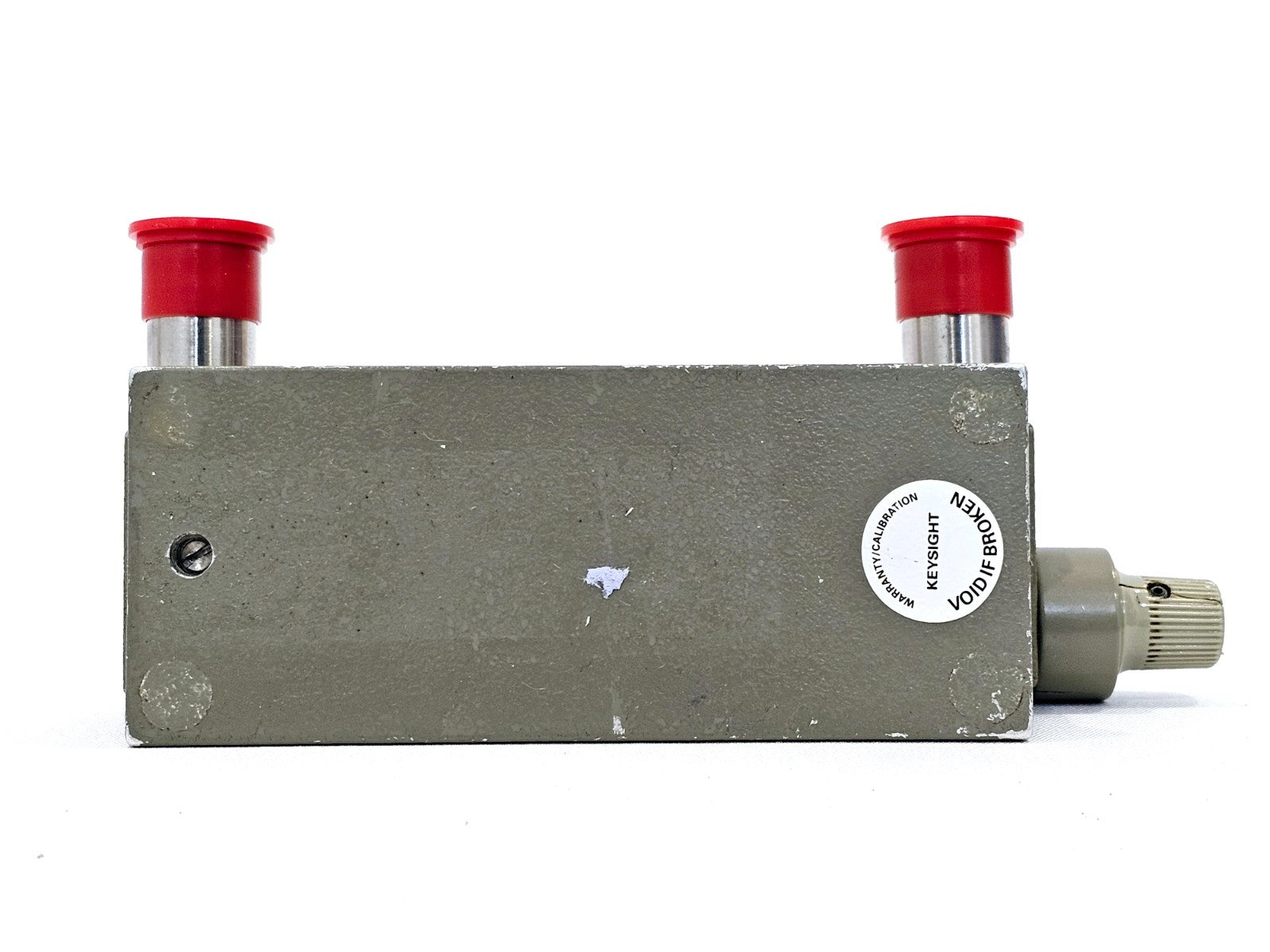

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Keysight (formerly Agilent / HP) 8496B is a high-performance manual step attenuator designed for demanding RF and microwave test applications. It covers a frequency range from DC to 18 GHz and provides precise attenuation in 10 dB steps from 0 to 110 dB. Precision gold-plated leaf springs deliver outstanding repeatability and long service life, making it a reliable choice for laboratory and production test environments. Compatible with the Keysight 11716A/B/C interconnect kits for quick series connection with 8494/8495/8496/8497 step attenuators to achieve greater dynamic range with 1 dB resolution. NIST traceable data (SWR and attenuation) is available as Option UK6. Custom step attenuator/switch combinations are also possible.

Frequency Range: DC to 18 GHz
Attenuation Range: 0 to 110 dB in 10 dB steps
Insertion Loss at 0 dB: 0.6 dB + 0.09 dB/GHz
Maximum SWR: 1.5 (DC to 8 GHz), 1.6 (to 12.4 GHz), 1.9 (to 18 GHz)
Repeatability: 0.03 dB max, 0.01 dB typical
Repeatability Life: 5 million cycles per section
Maximum RF Input Power (Average): 1 W
Maximum RF Input Power (Peak): 100 W
Connector Types: Type-N female, SMA female, or APC-7 (model dependent)
Compatible Interconnect Kits: 11716A (Type-N), 11716C (SMA)
