Condition: Used — Tested and fully functional. Cosmetic imperfections are present but do not affect performance.

The HP Agilent 8496B is a DC to 18 GHz manual step attenuator offering attenuation in 10 dB steps from 0 to 110 dB. Precision gold-plated leaf springs ensure long service life of over 5 million cycles and excellent repeatability of typically 0.01 dB. NIST traceable calibration data (SWR and attenuation) is available as Option UK6. Compatible with Keysight 11716A/B/C interconnect kits for series connection with 8494/5/6/7 attenuators to achieve greater dynamic range with 1 dB steps.

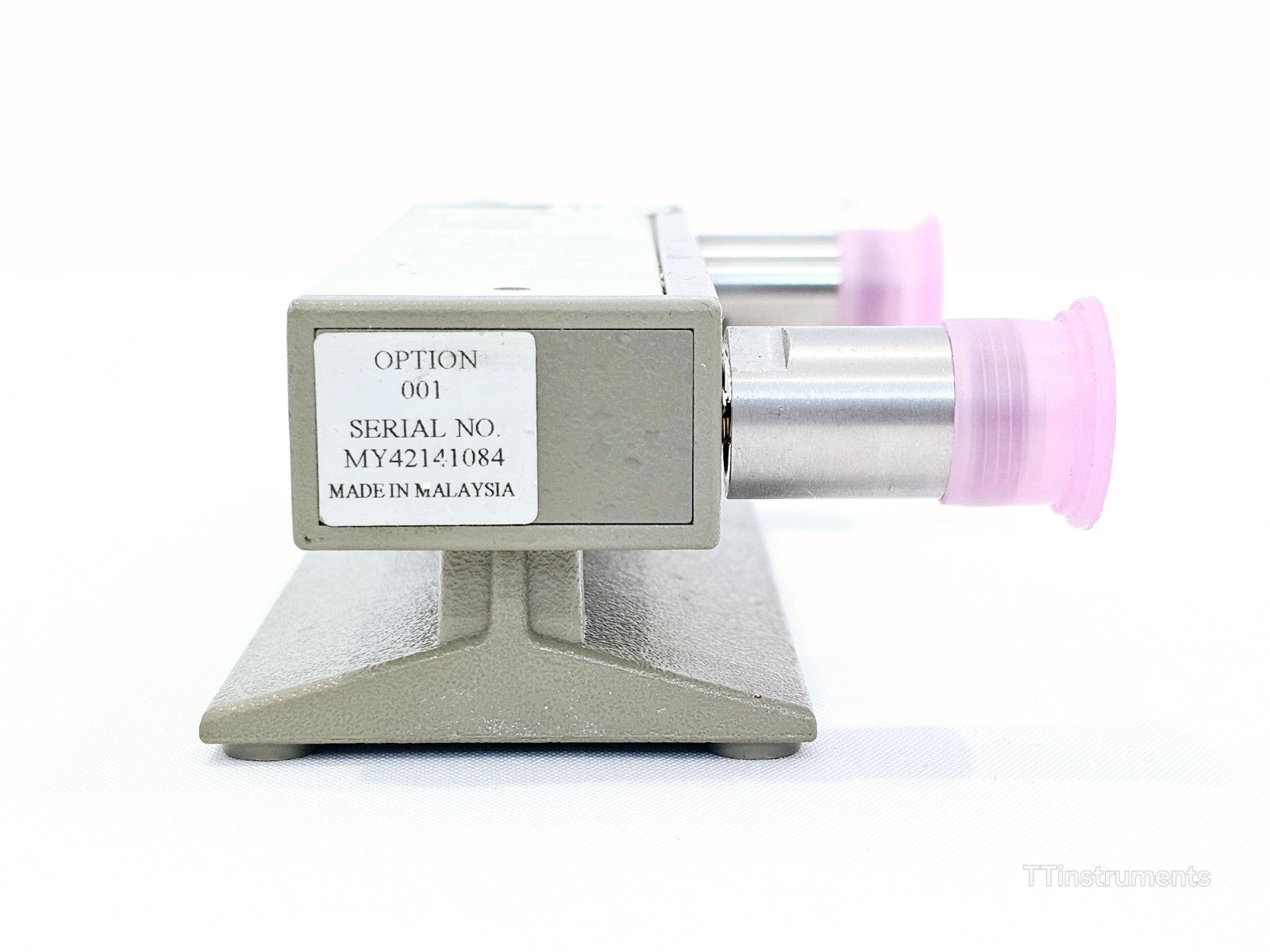

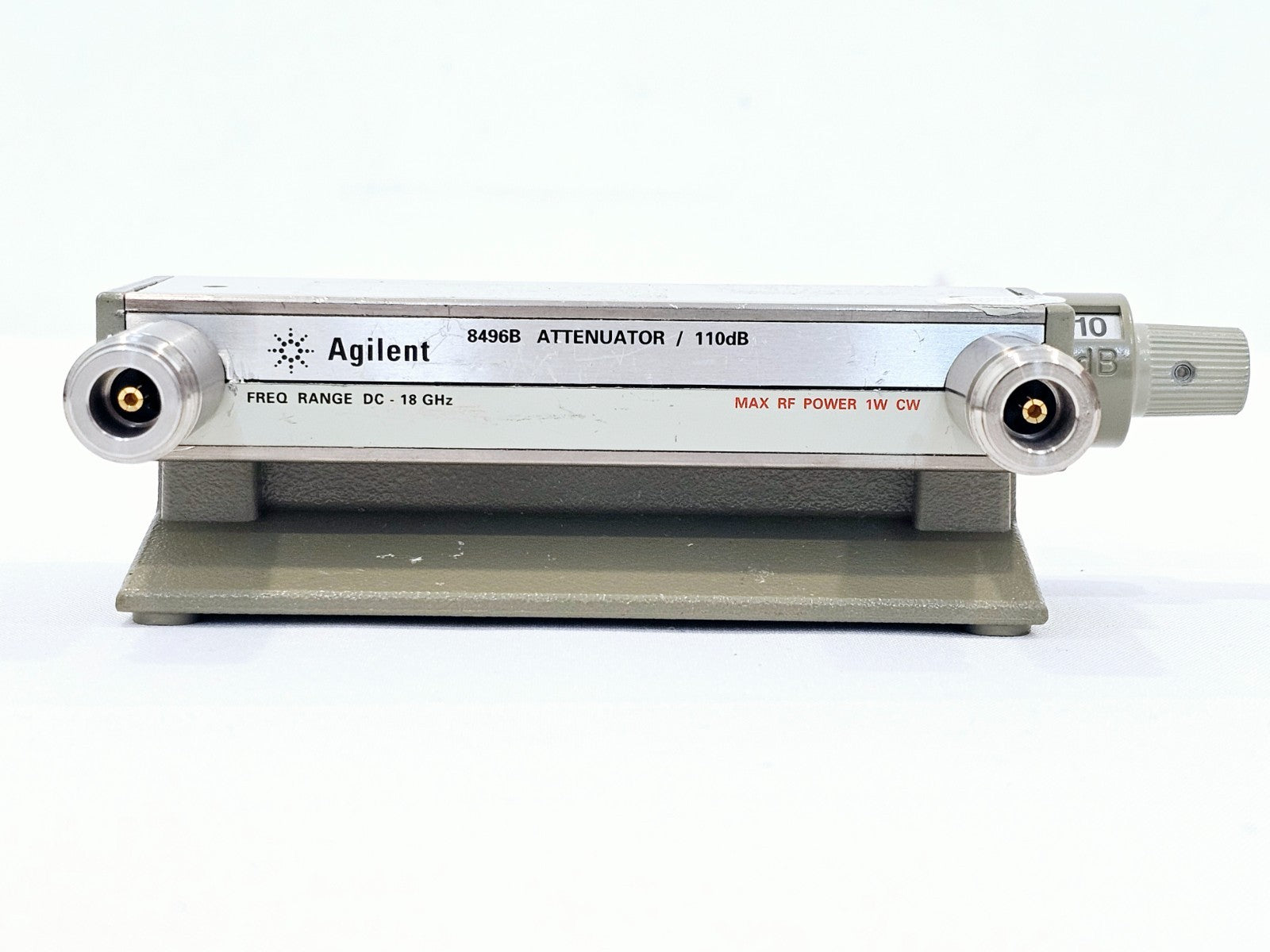

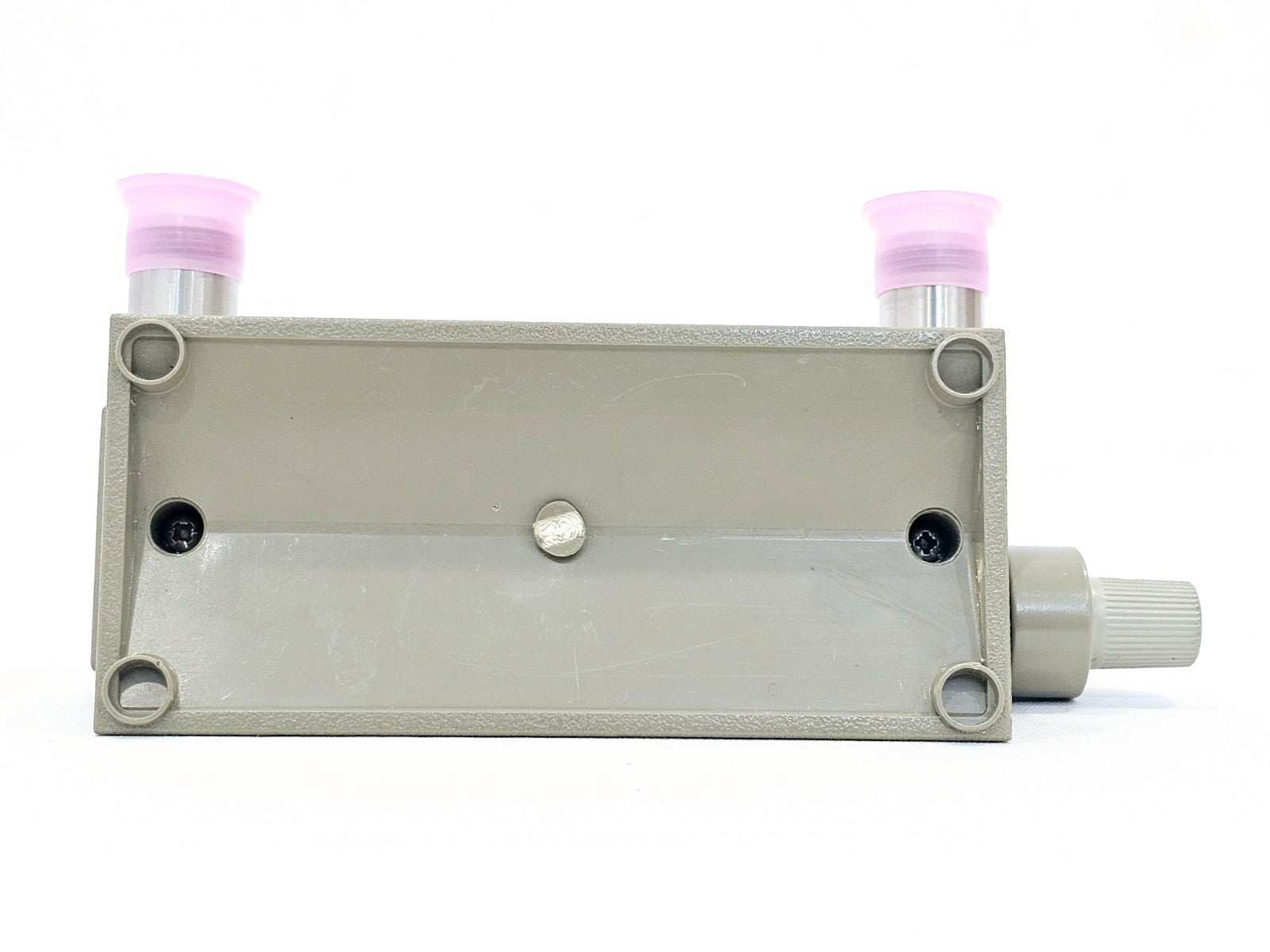

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Keysight (formerly Agilent / HP) 8496B is a high-performance manual step attenuator designed for demanding RF and microwave test applications. It covers a frequency range from DC to 18 GHz and provides precise attenuation in 10 dB steps from 0 to 110 dB. Precision gold-plated leaf springs deliver outstanding repeatability and long service life, making it a reliable choice for laboratory and production test environments. Compatible with the Keysight 11716A/B/C interconnect kits for quick series connection with 8494/8495/8496/8497 step attenuators to achieve greater dynamic range with 1 dB resolution. NIST traceable data (SWR and attenuation) is available as Option UK6.

Frequency Range: DC to 18 GHz
Attenuation Range: 0 to 110 dB in 10 dB steps
Insertion Loss at 0 dB: 0.6 dB + 0.09 dB/GHz
Maximum SWR: 1.5 (DC to 8 GHz), 1.6 (to 12.4 GHz), 1.9 (to 18 GHz)
Repeatability: 0.03 dB max, 0.01 dB typical
Cycle Life: 5 million cycles per section (typical)
Maximum RF Input Power: 1 W average, 100 W peak
Connector Options: Type-N female, SMA female, APC-7
