Condition: Used — Tested and fully functional. Cosmetic imperfections are present but do not affect performance.

The HP Agilent 8494B is a dc to 18 GHz manual step attenuator providing attenuation in 1 dB steps from 0 to 11 dB. Precision gold-plated leaf springs ensure exceptional repeatability (typically 0.01 dB) and a lifespan exceeding 5 million cycles per section. The unit is compatible with Keysight 11716A/B/C interconnect kits for series connection with other 8494/5/6/7 step attenuators to achieve greater dynamic range in 1 dB steps. Option UK6 is available to provide NIST traceable attenuation and SWR data for enhanced measurement accuracy.

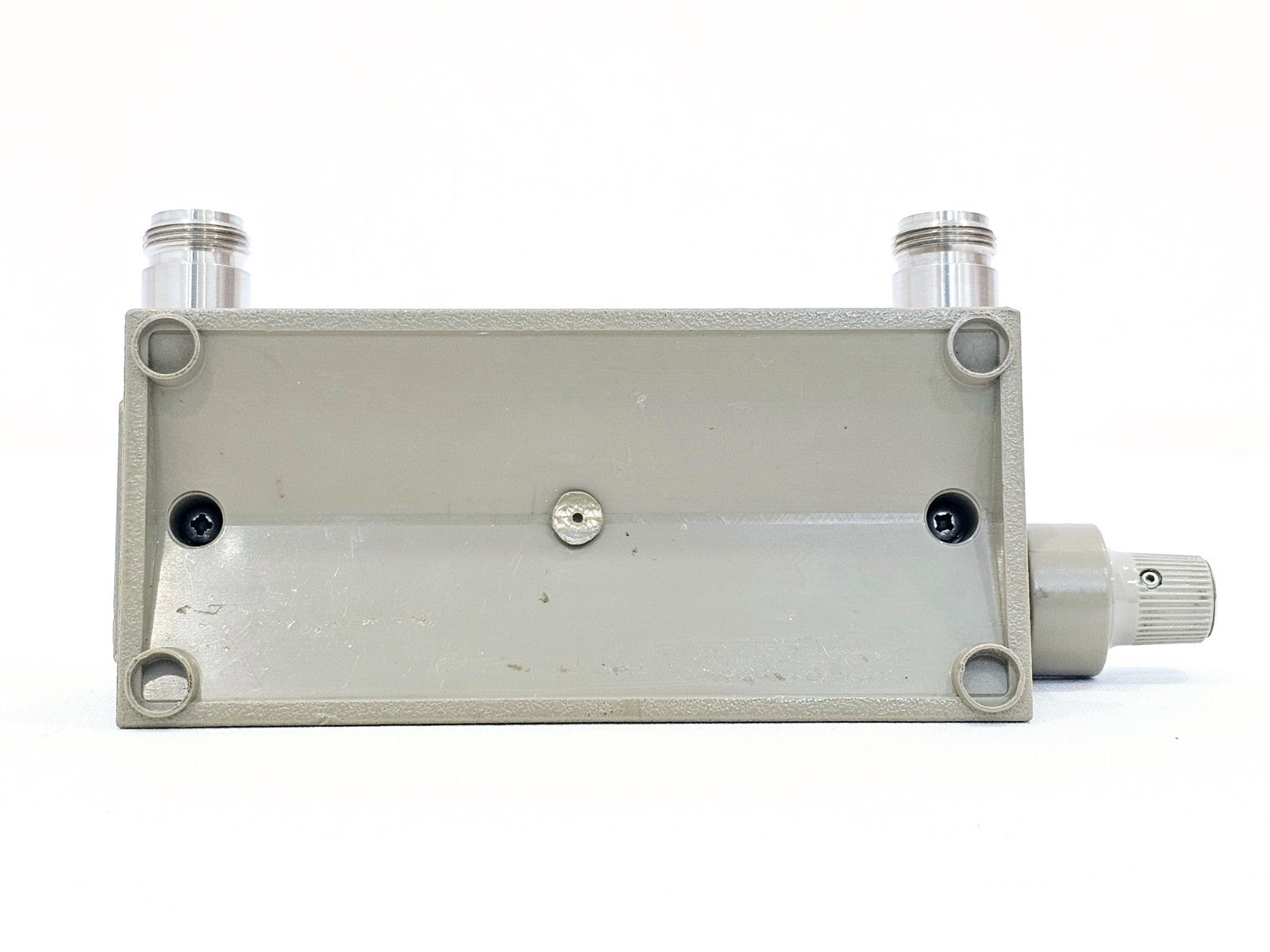

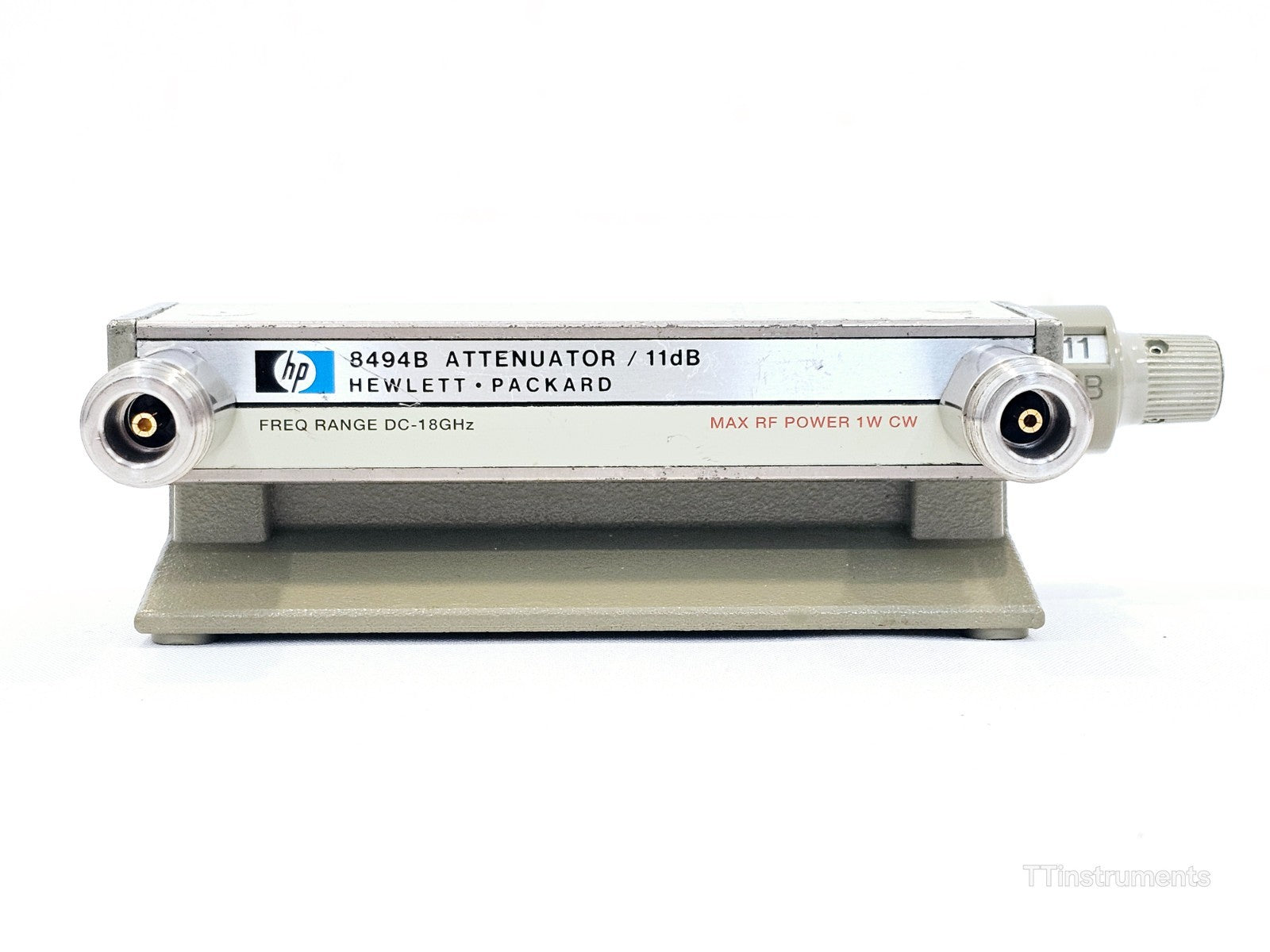

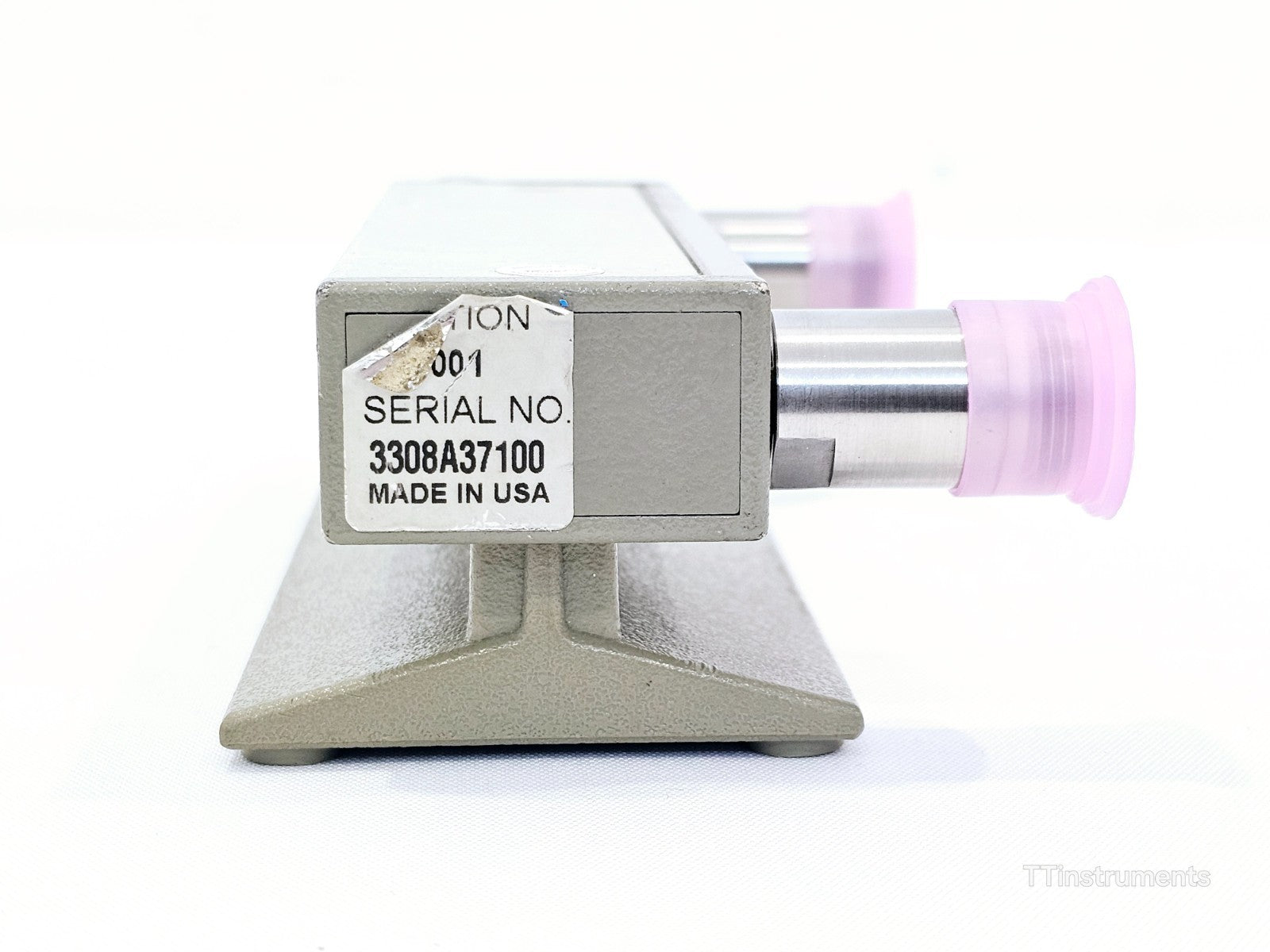

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Keysight (formerly Agilent / HP) 8494B is a high-performance manual step attenuator designed for demanding RF and microwave applications. It covers a frequency range from dc to 18 GHz and provides precise attenuation in 1 dB steps from 0 to 11 dB. The instrument is built around precision gold-plated leaf springs that deliver outstanding repeatability and long service life, making it a reliable choice for laboratory and production test environments.

Frequency Range: dc to 18 GHz
Attenuation Range: 0 to 11 dB in 1 dB steps
Insertion Loss at 0 dB: 0.6 dB + 0.09 dB/GHz
Maximum SWR: 1.5 (dc to 8 GHz), 1.6 (to 12.4 GHz), 1.9 (to 18 GHz)
Repeatability: 0.03 dB max, 0.01 dB typical
Cycle Life: 5 million cycles per section (typical)
Maximum RF Input Power: 1 W average, 100 W peak
Connector Options: Type-N female, SMA female, or APC-7
Option UK6: NIST traceable attenuation and SWR data

The 8494B is compatible with the Keysight 11716A/B/C interconnect kits, allowing it to be connected in series with other 8494/5/6/7 step attenuators (1 dB and 10 dB models) to extend dynamic range while maintaining 1 dB step resolution. Custom step attenuator and switch combinations are also supported.
