Condition: Used

This HP Agilent 6634A DC power supply powers up fine. Cosmetic imperfections are present but do not affect performance.

Included in the sale:
• HP Agilent 6634A DC Power Supply

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

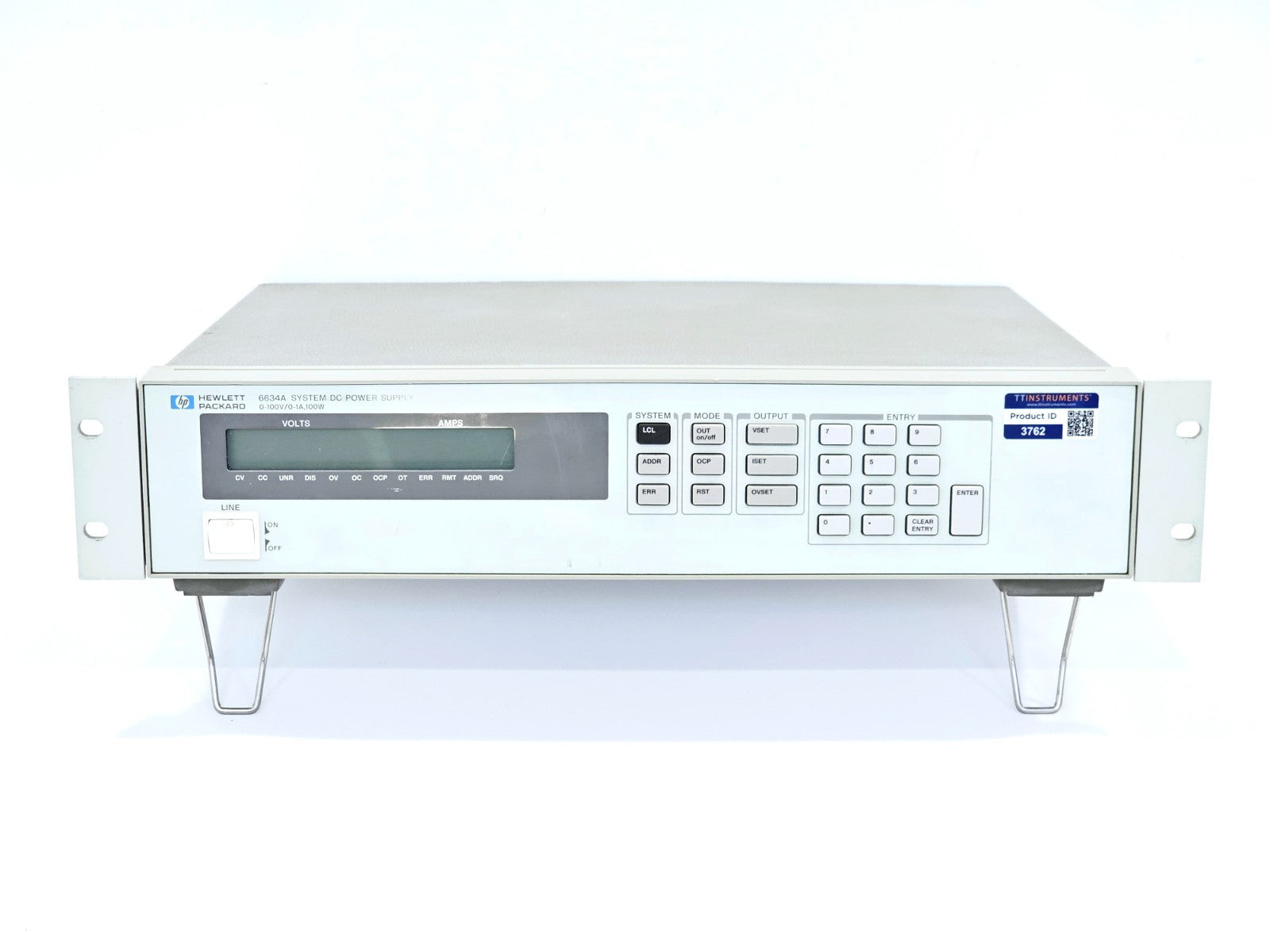

The HP Agilent 6634A is a single-output, programmable DC power supply designed for system and bench use. It is part of the HP 663xA family of high-performance power supplies, offering precise voltage and current control with low ripple and noise, making it well suited for testing sensitive electronic components and subsystems.

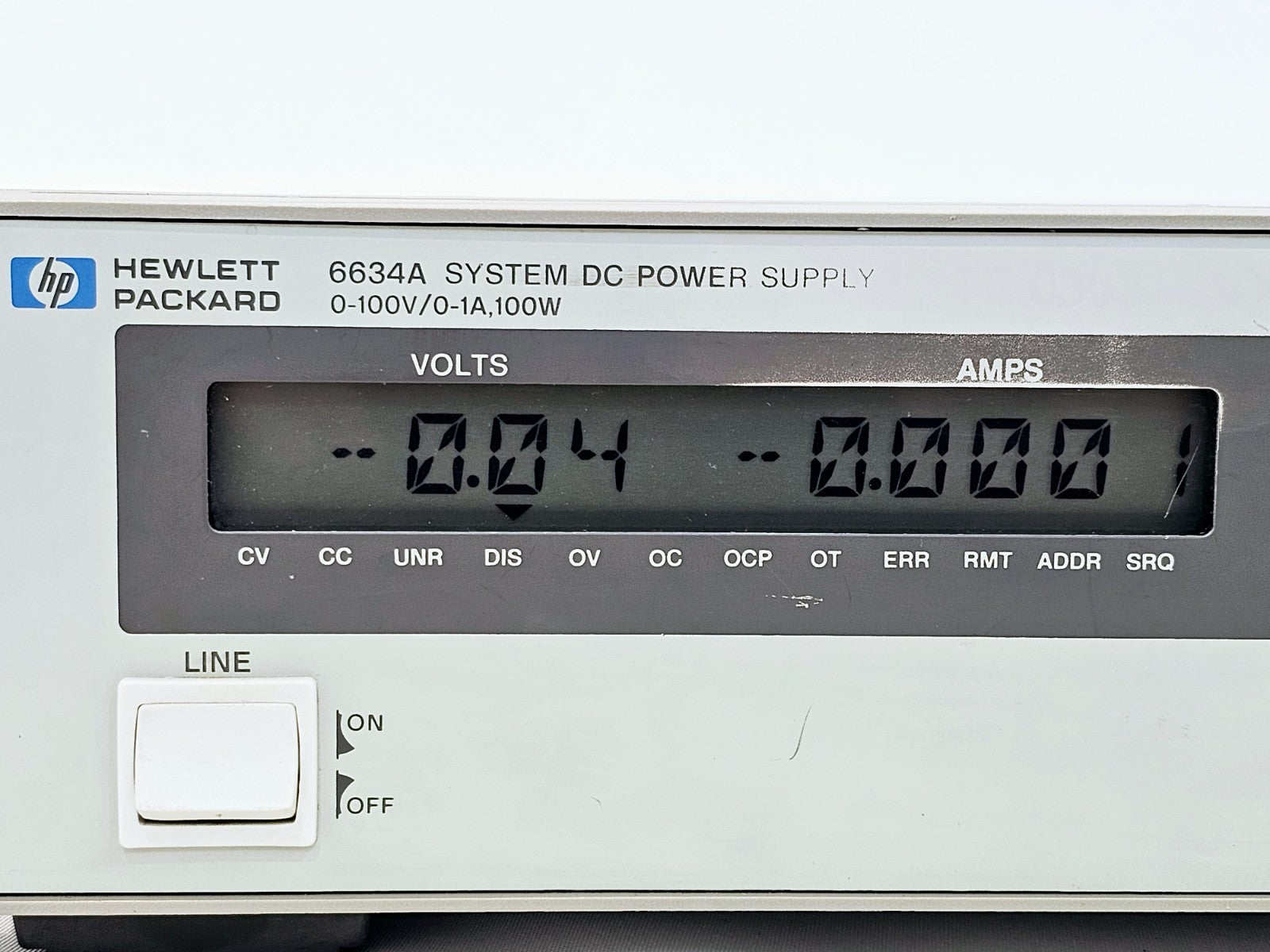

The 6634A features GPIB (IEEE-488.2) programmability, enabling seamless integration into automated test environments. The front panel provides direct readback of output voltage and current, and the unit supports overvoltage and overcurrent protection.

Key Specifications:
Output Voltage Range: 0 to 100 V
Output Current Range: 0 to 1 A
Maximum Output Power: 100 W
Voltage Programming Resolution: 12 mV
Current Programming Resolution: 1.2 mA
Voltage Readback Resolution: 12 mV
Current Readback Resolution: 0.5 mA
Line Regulation (Voltage): 0.003% + 4 mV
Load Regulation (Voltage): 0.005% + 5 mV
Output Ripple and Noise (Voltage): 3 mV rms / 10 mV p-p
Interface: GPIB (IEEE-488.2)
Input Voltage: 115 / 230 V AC, 47–66 Hz
Operating Temperature: 0 to 55 °C
Dimensions (H x W x D): 88.1 mm x 212.1 mm x 488.9 mm
Weight: Approximately 8 kg
