Condition: Used

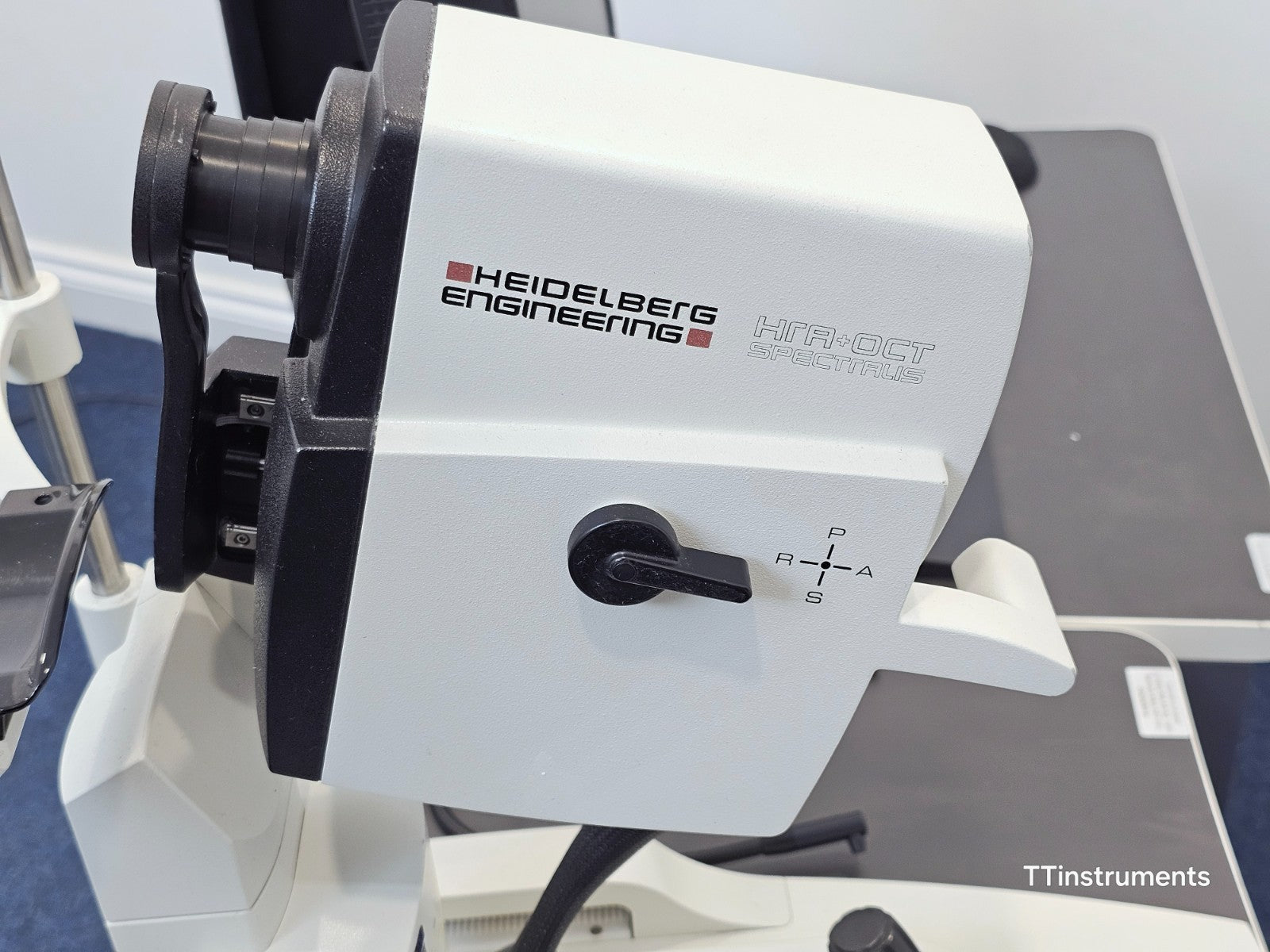

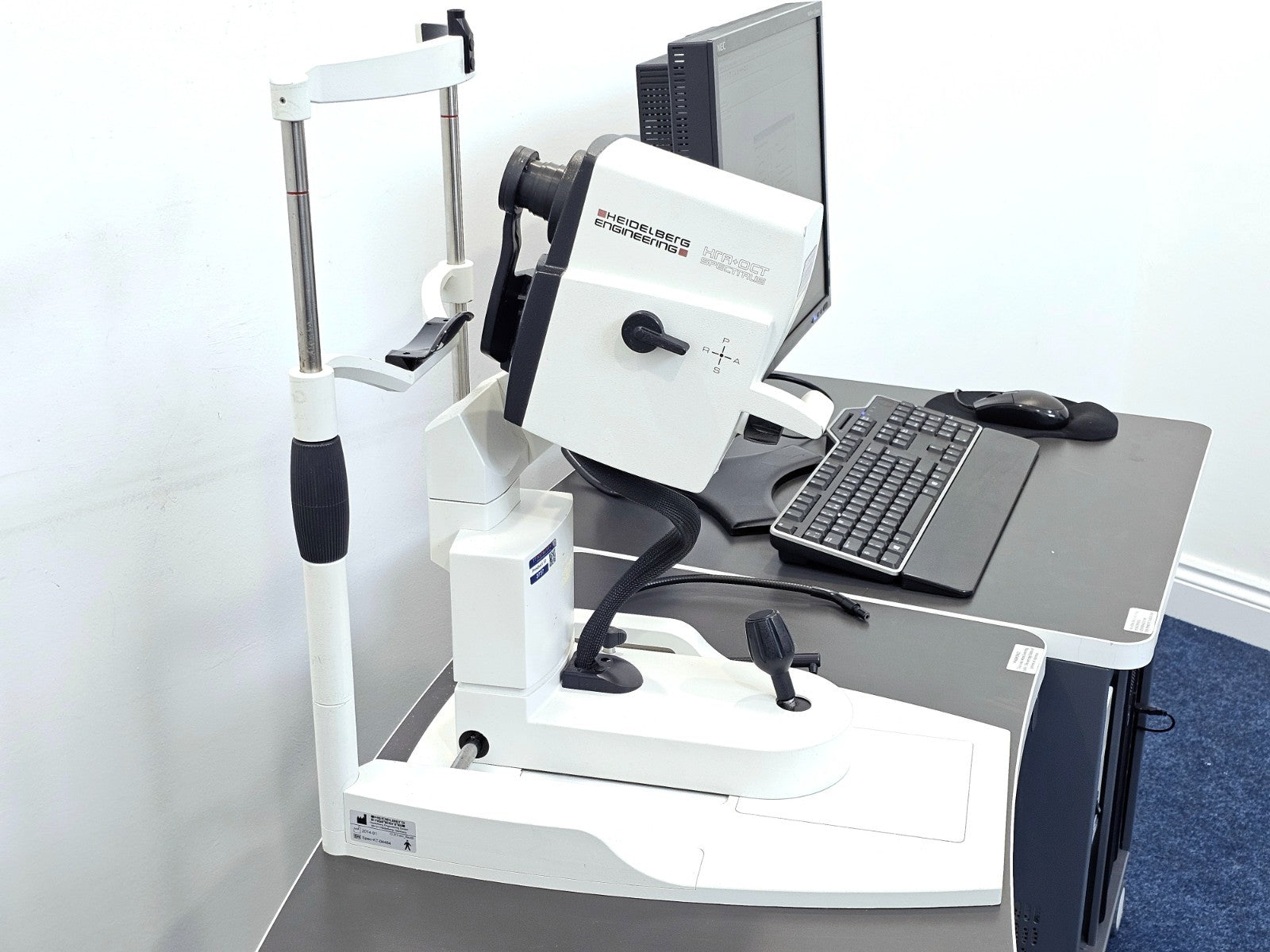

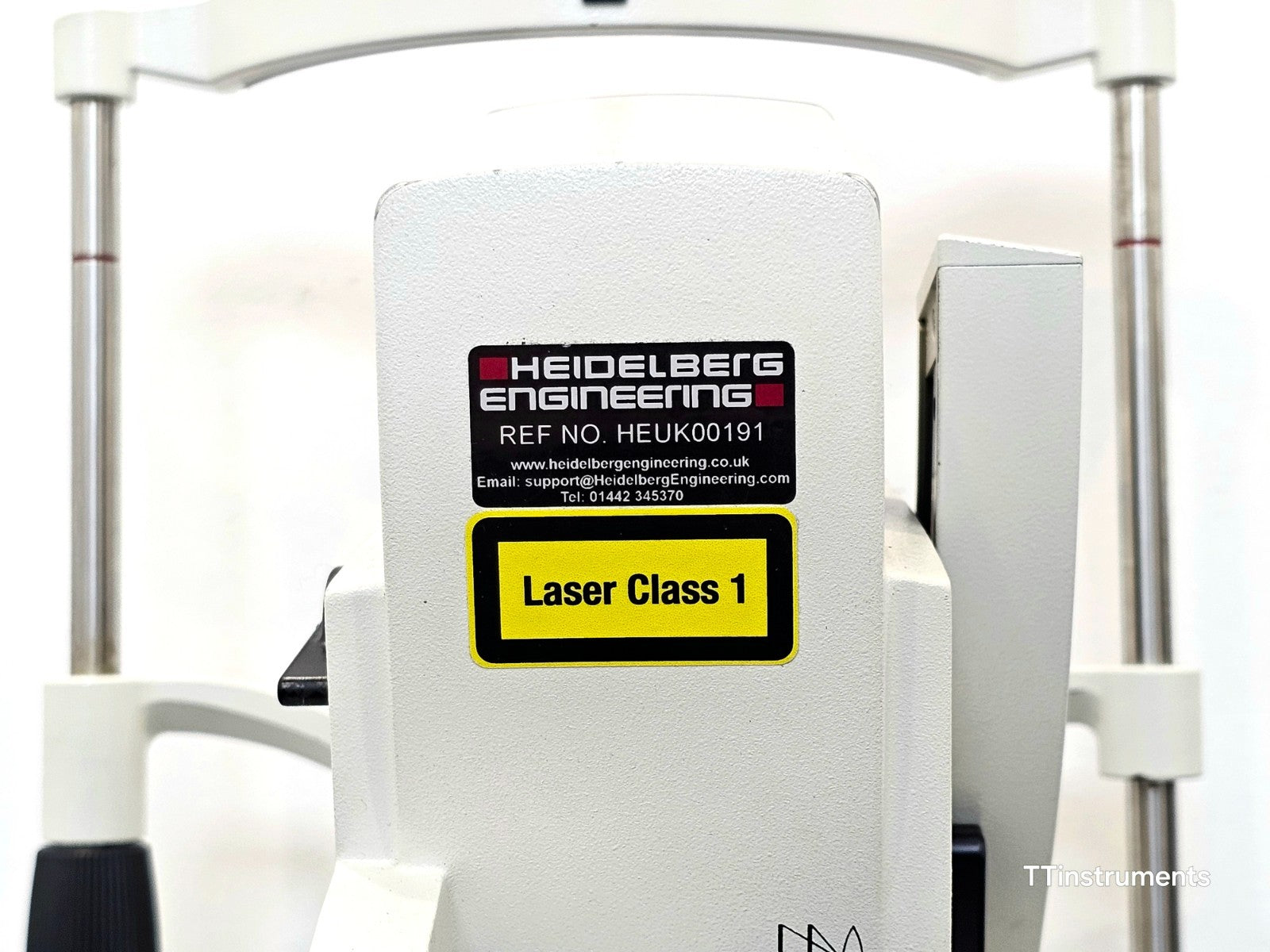

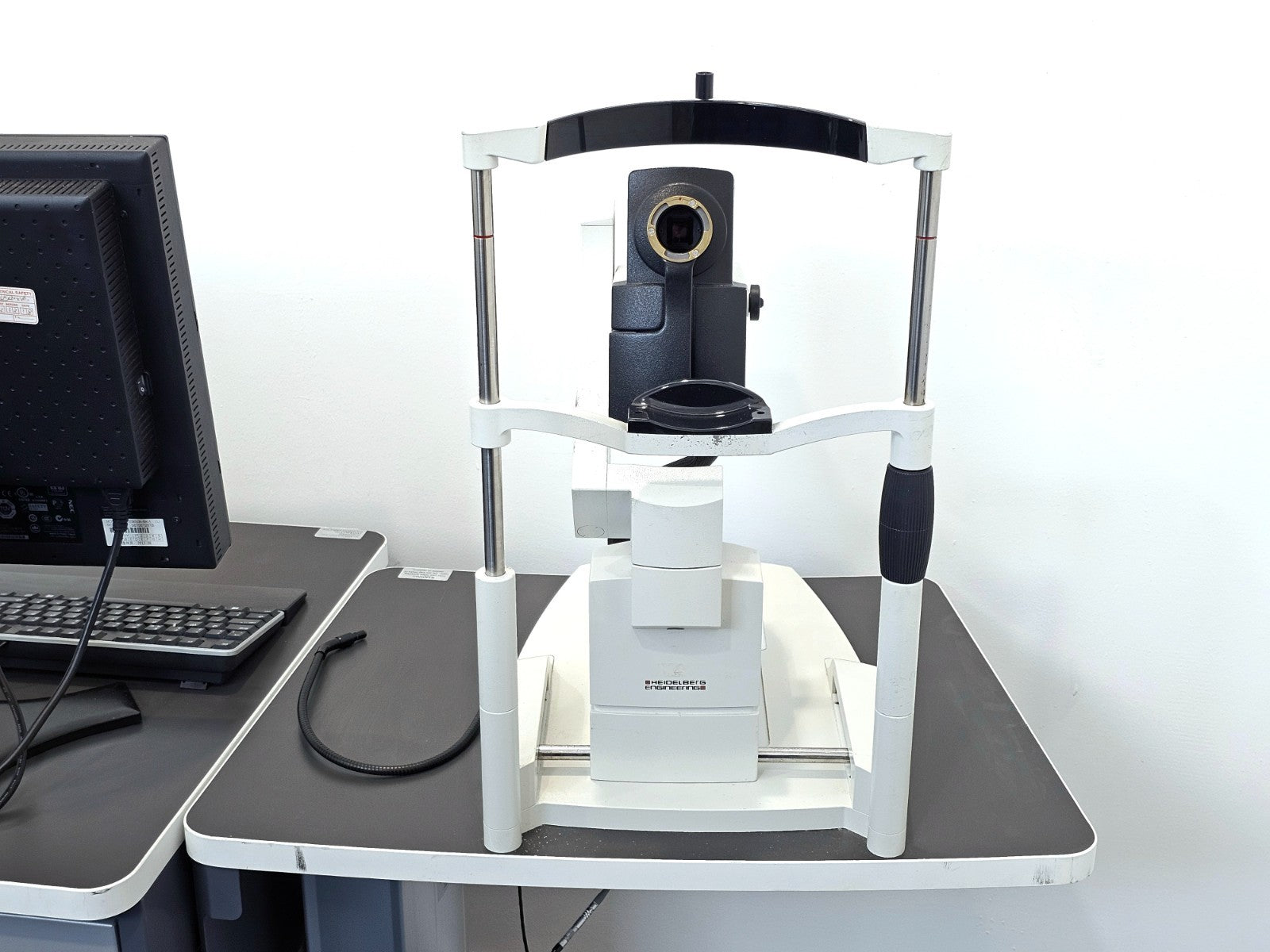

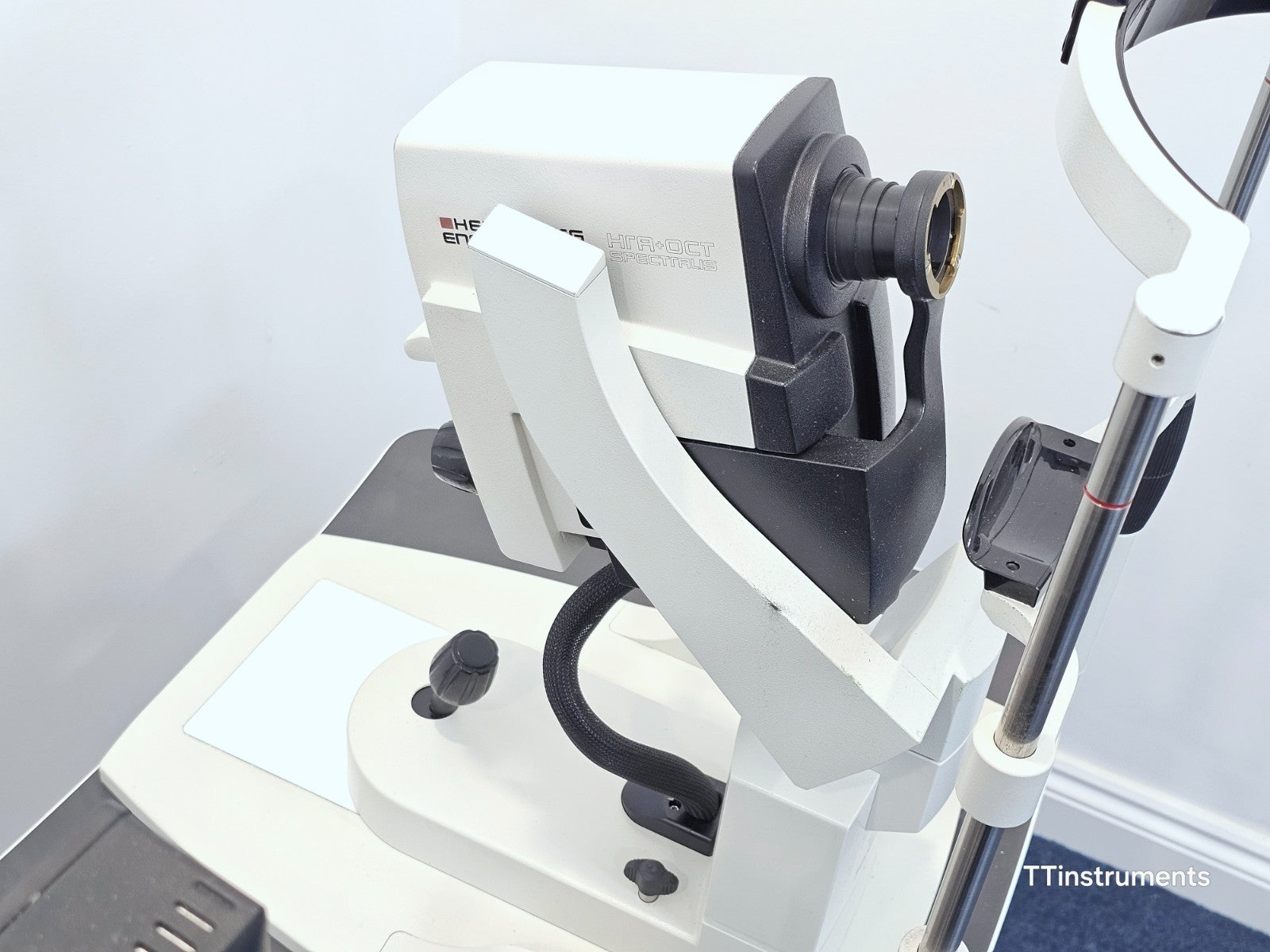

This Heidelberg Engineering HRA+OCT Spectralis is a combined confocal scanning laser ophthalmoscope and OCT retinal imaging system. The unit is working and powers on correctly but should be noted that it requires the following items to be fully operational: a license dongle, a touch panel, and a camera lens.

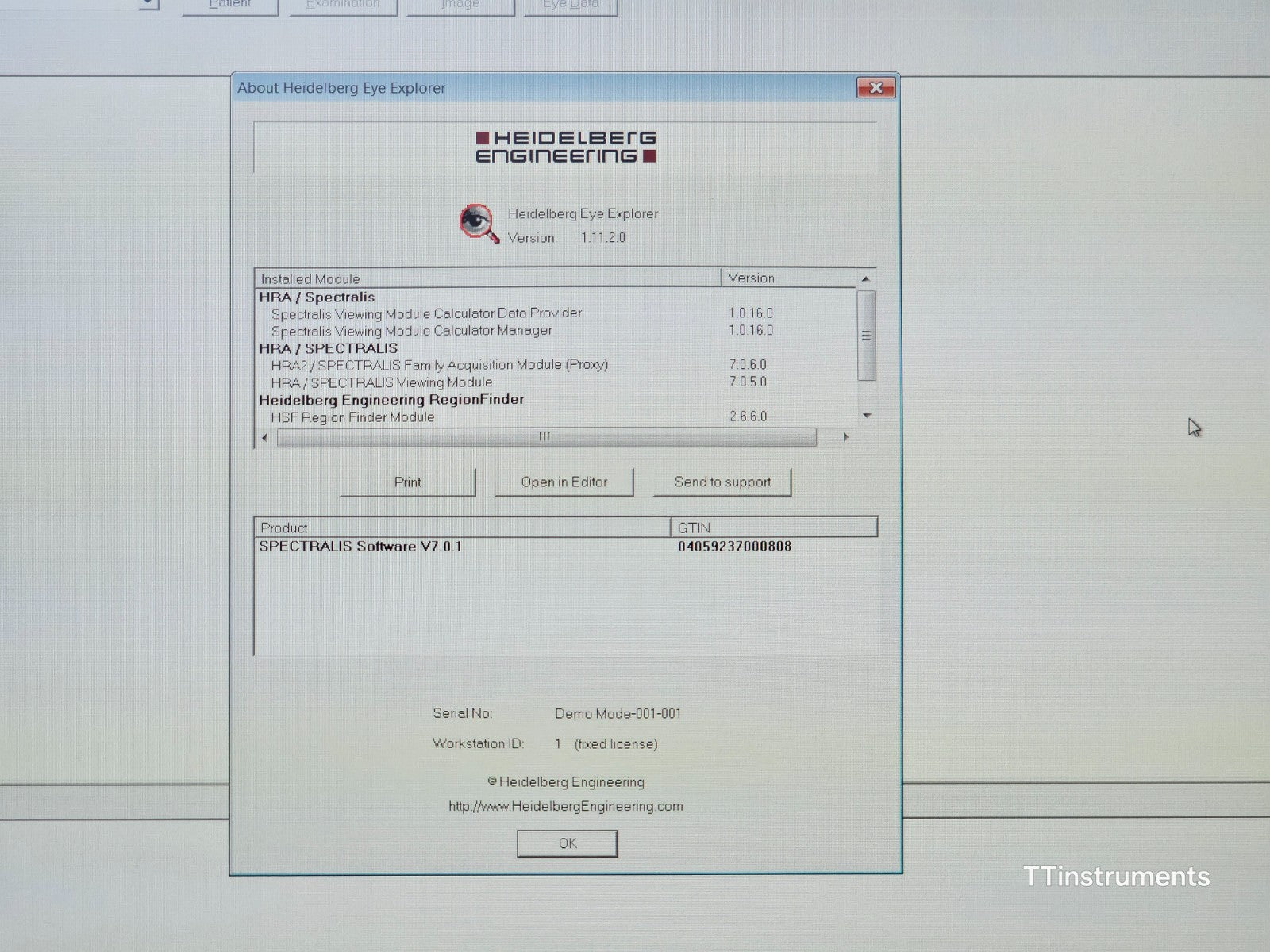

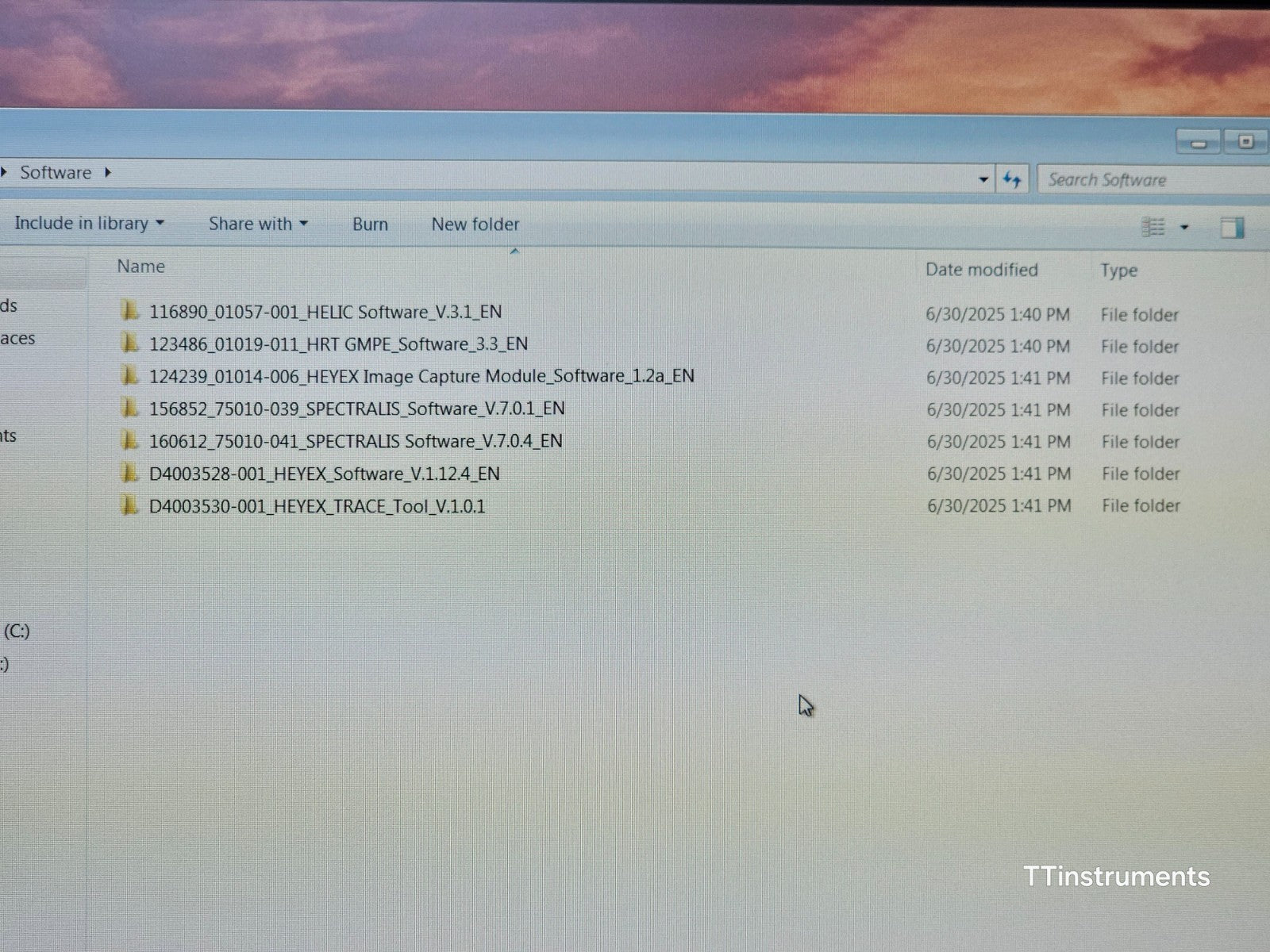

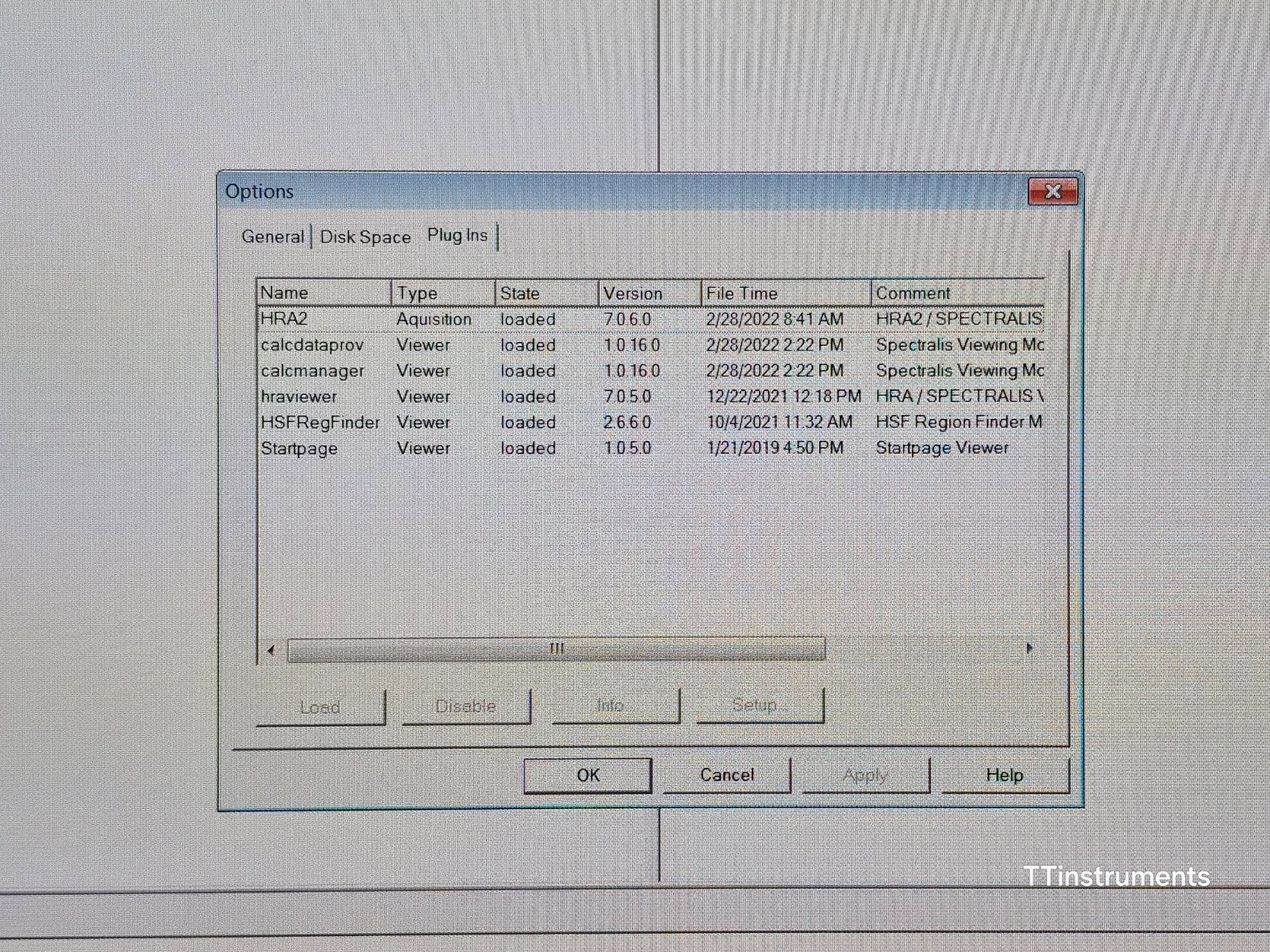

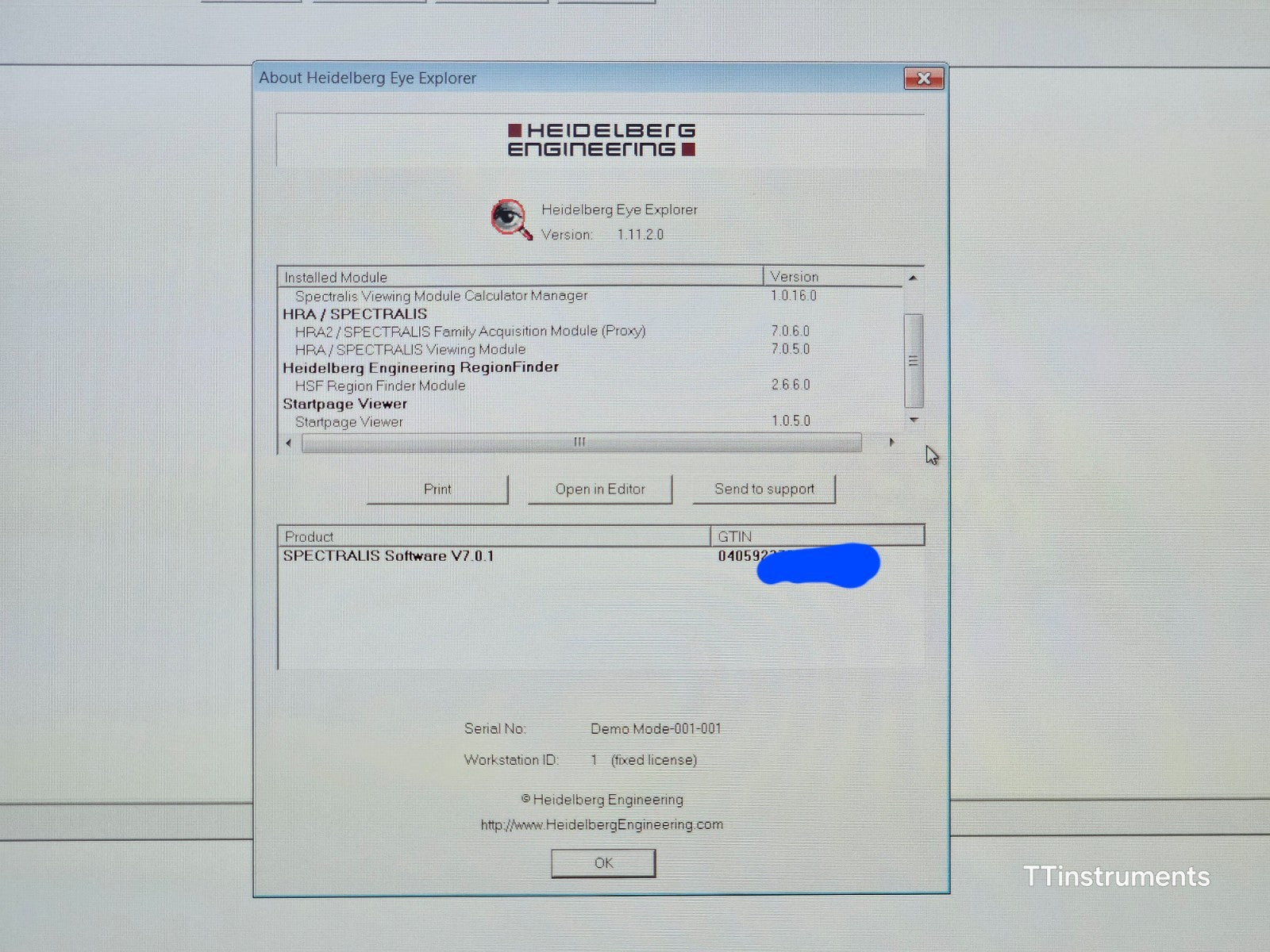

Installed software modules include:
• Spectralis Viewing Module
• Calculator
• Data Provider
• Spectralis Viewing Module Calculator Manager
• HRA2 / SPECTRALIS Family Acquisition Module (Proxy)
• HRA / SPECTRALIS Viewing Module
• HSF Region Finder Module
• Startpage Viewer

Included in the sale:

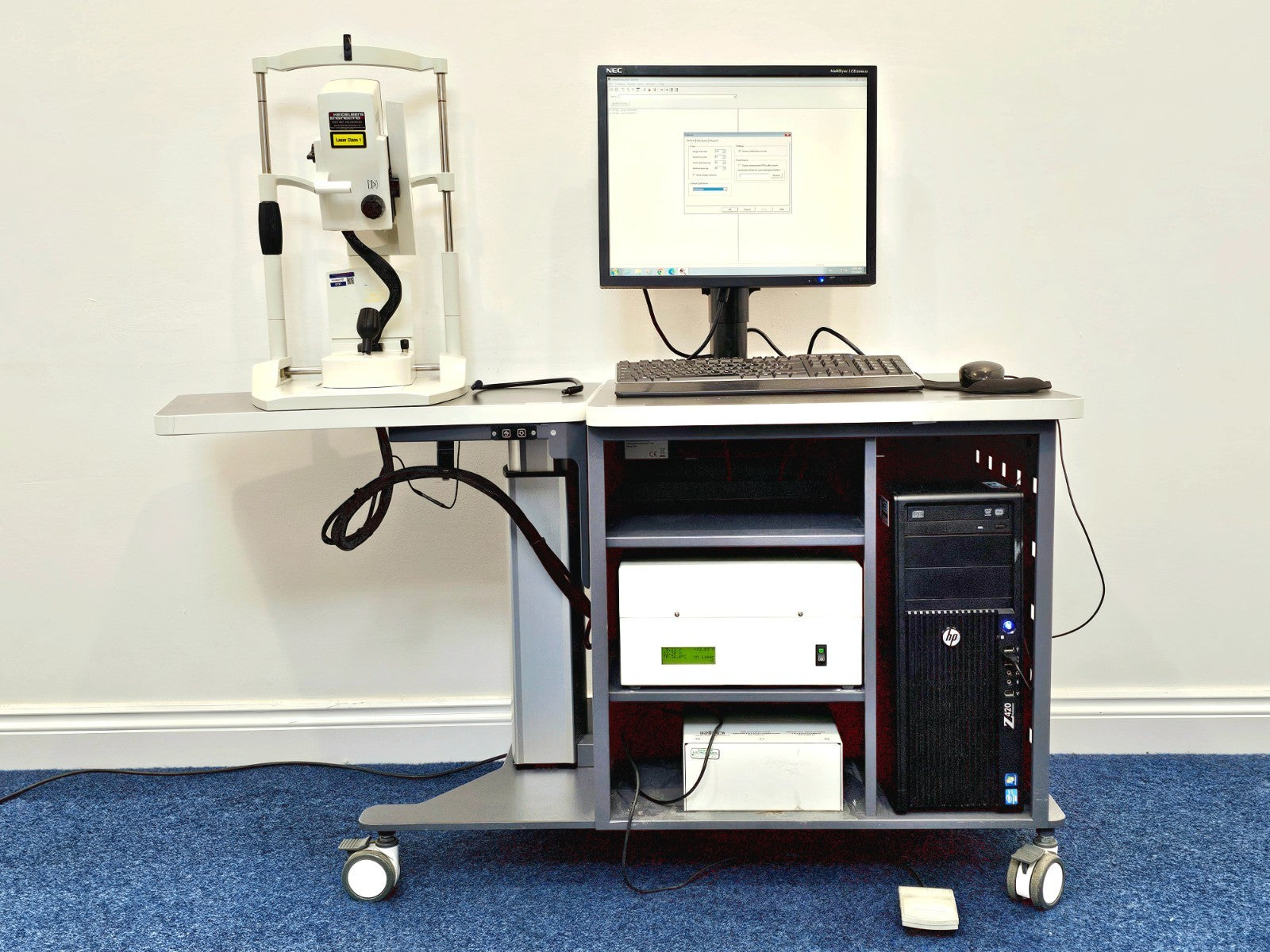

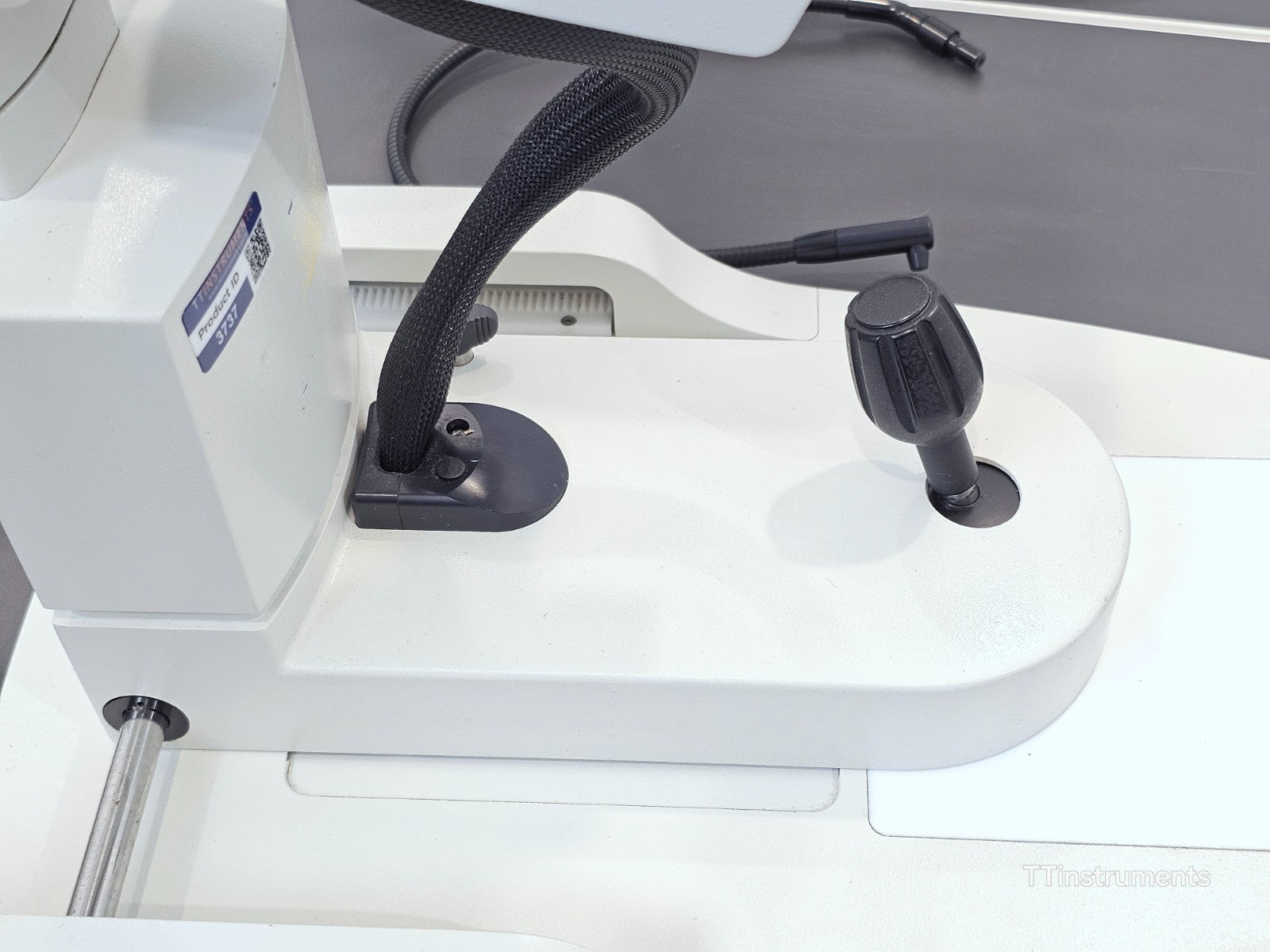

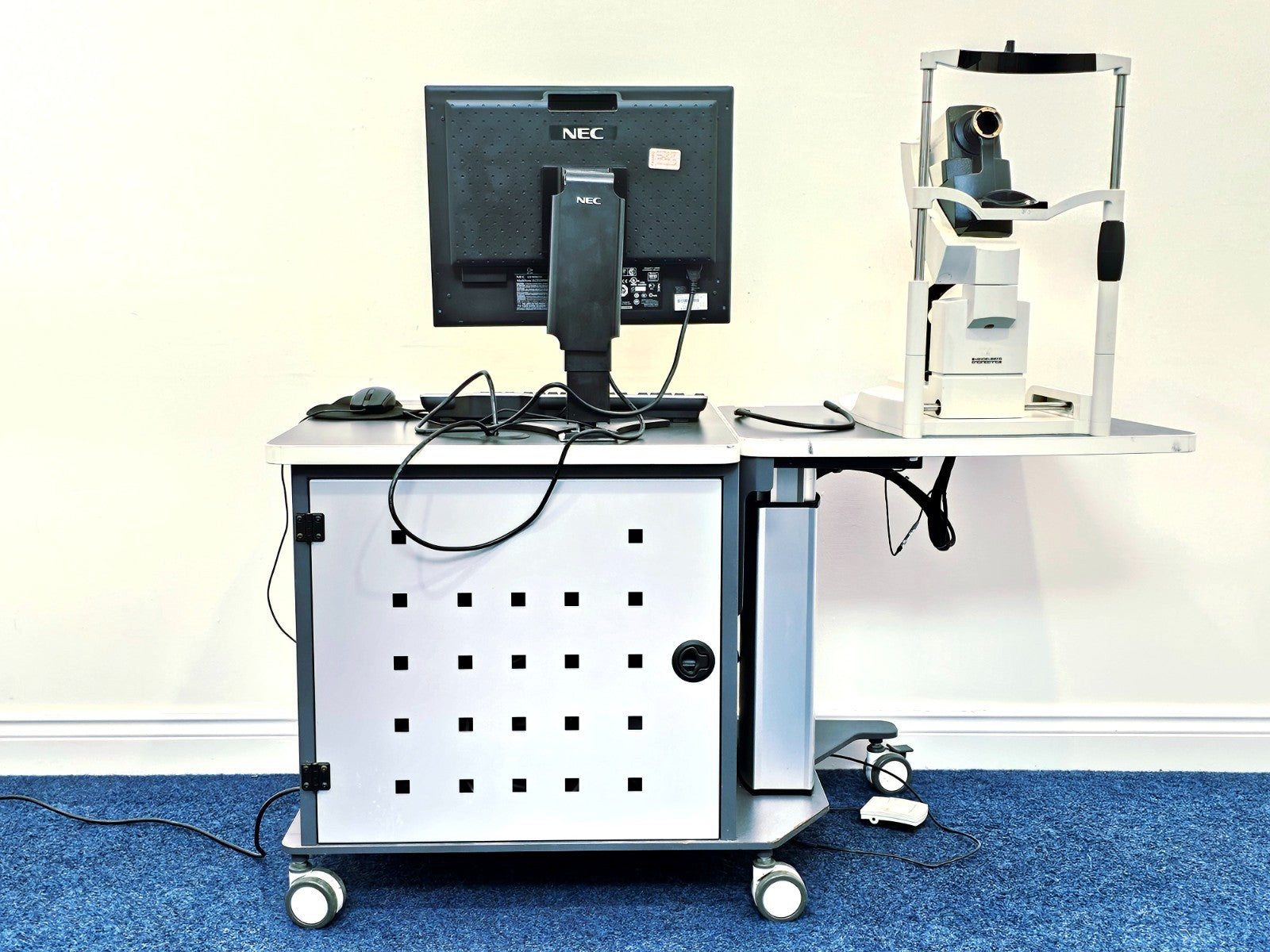

• Heidelberg Engineering HRA+OCT Spectralis Workbench

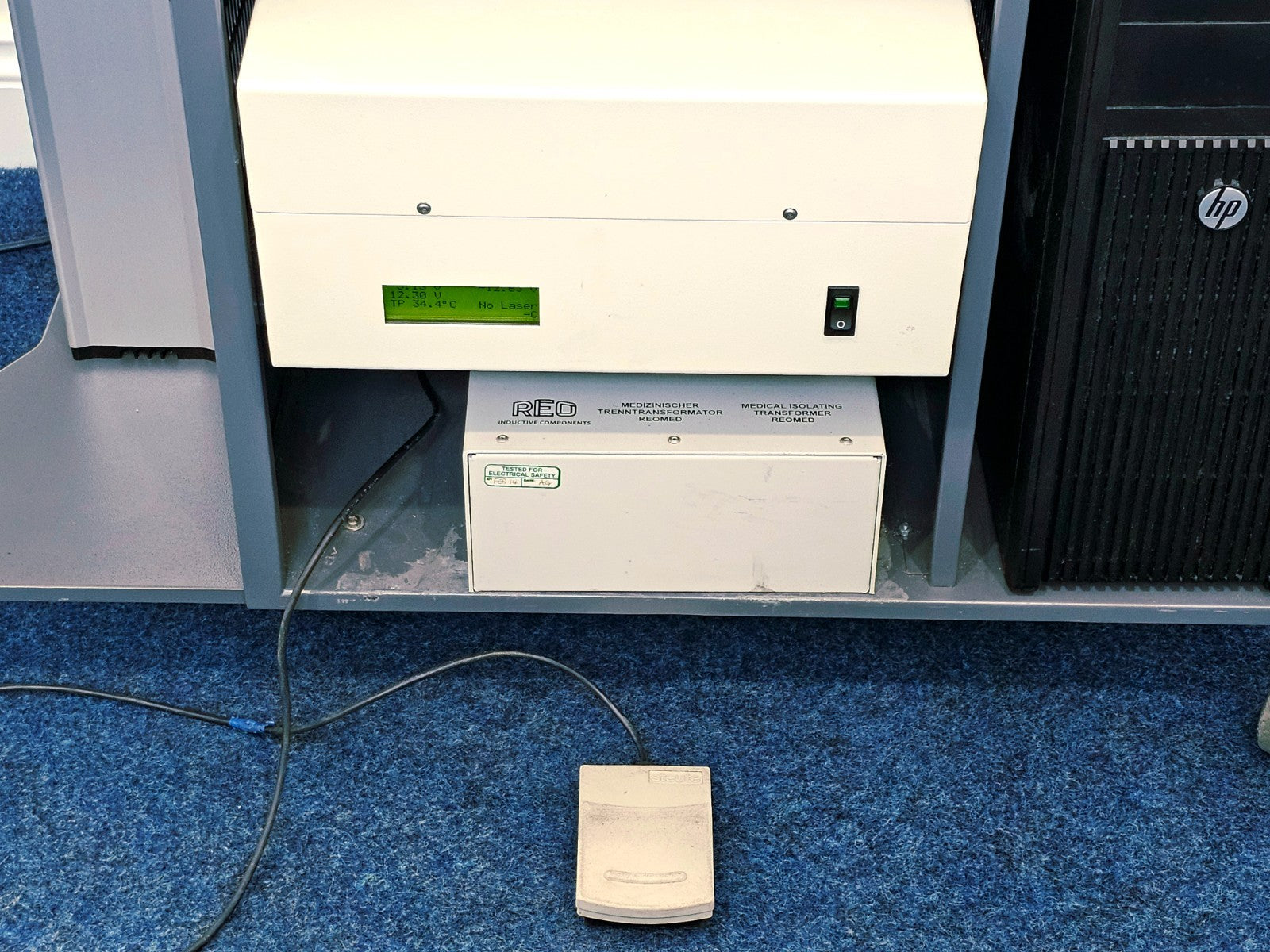

• Foot Switch (MKF 1S-MED)

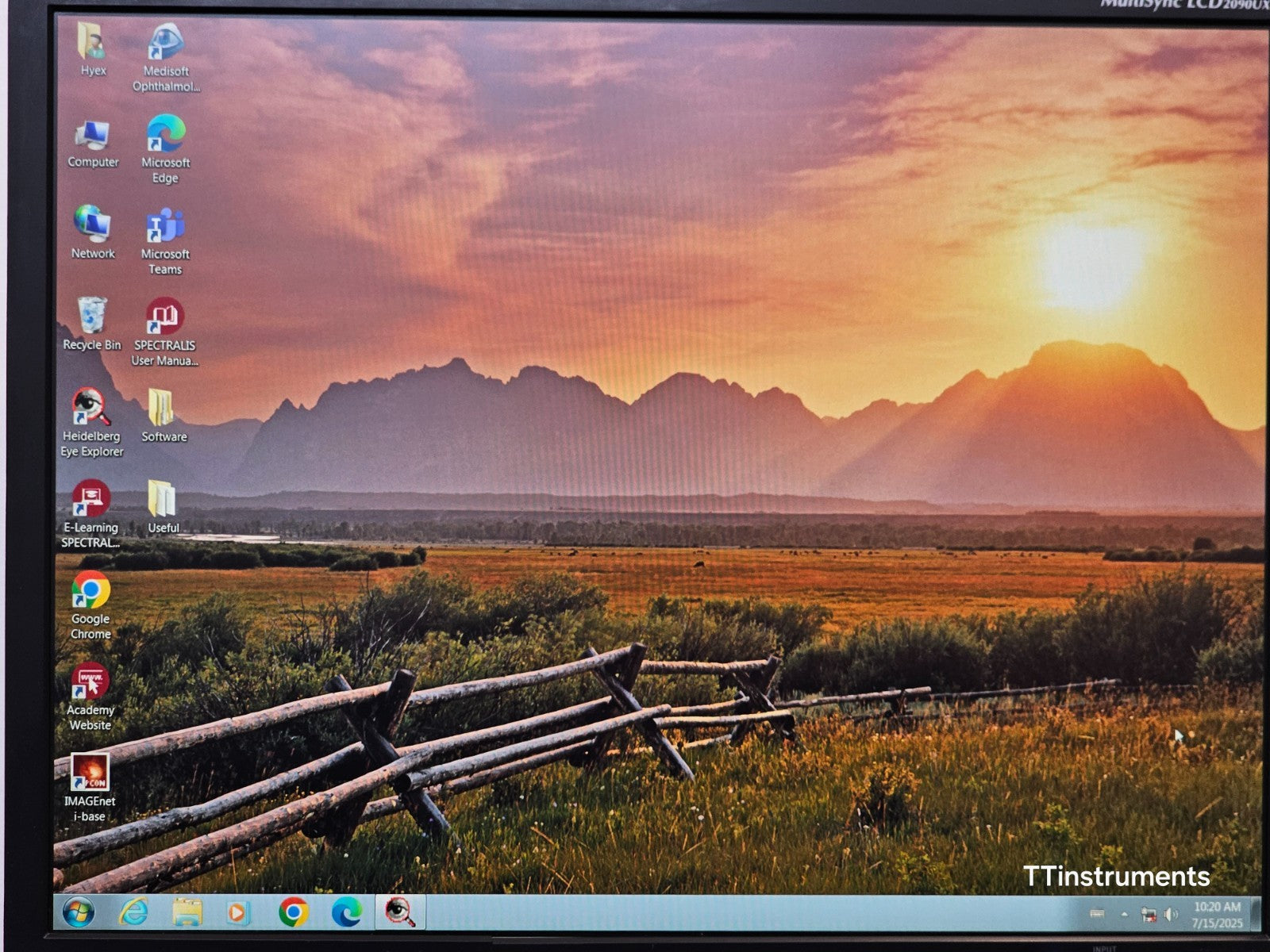

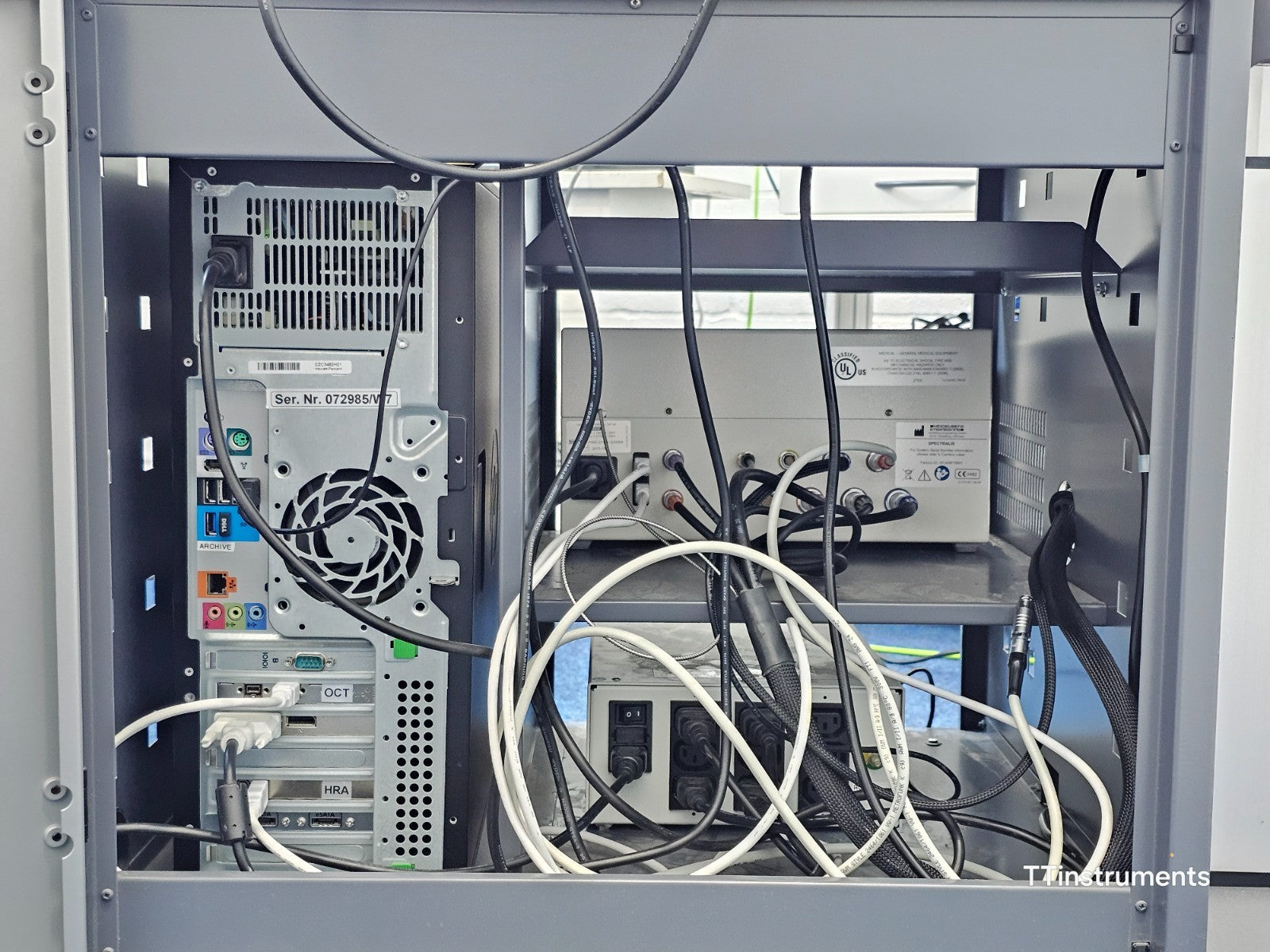

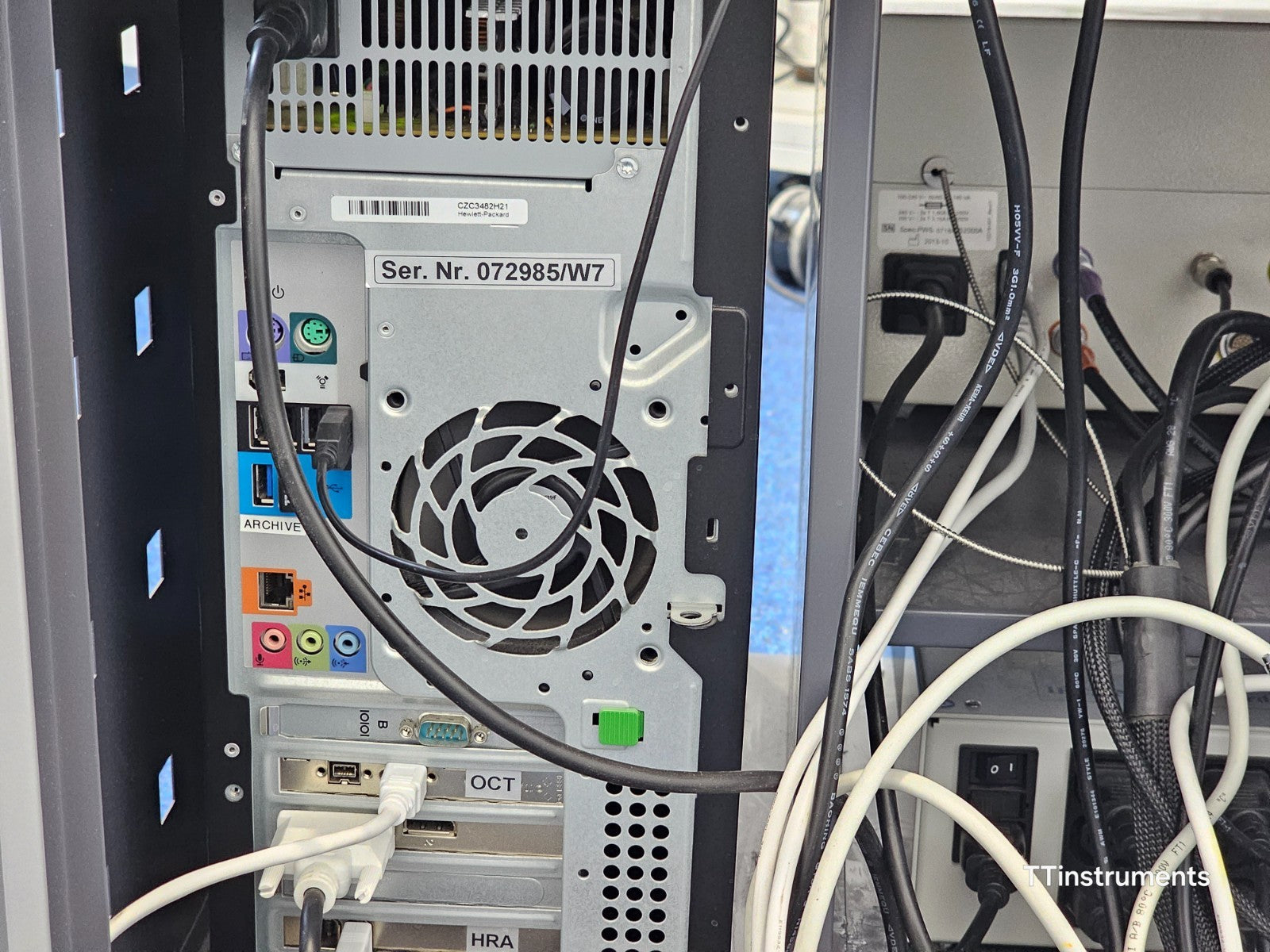

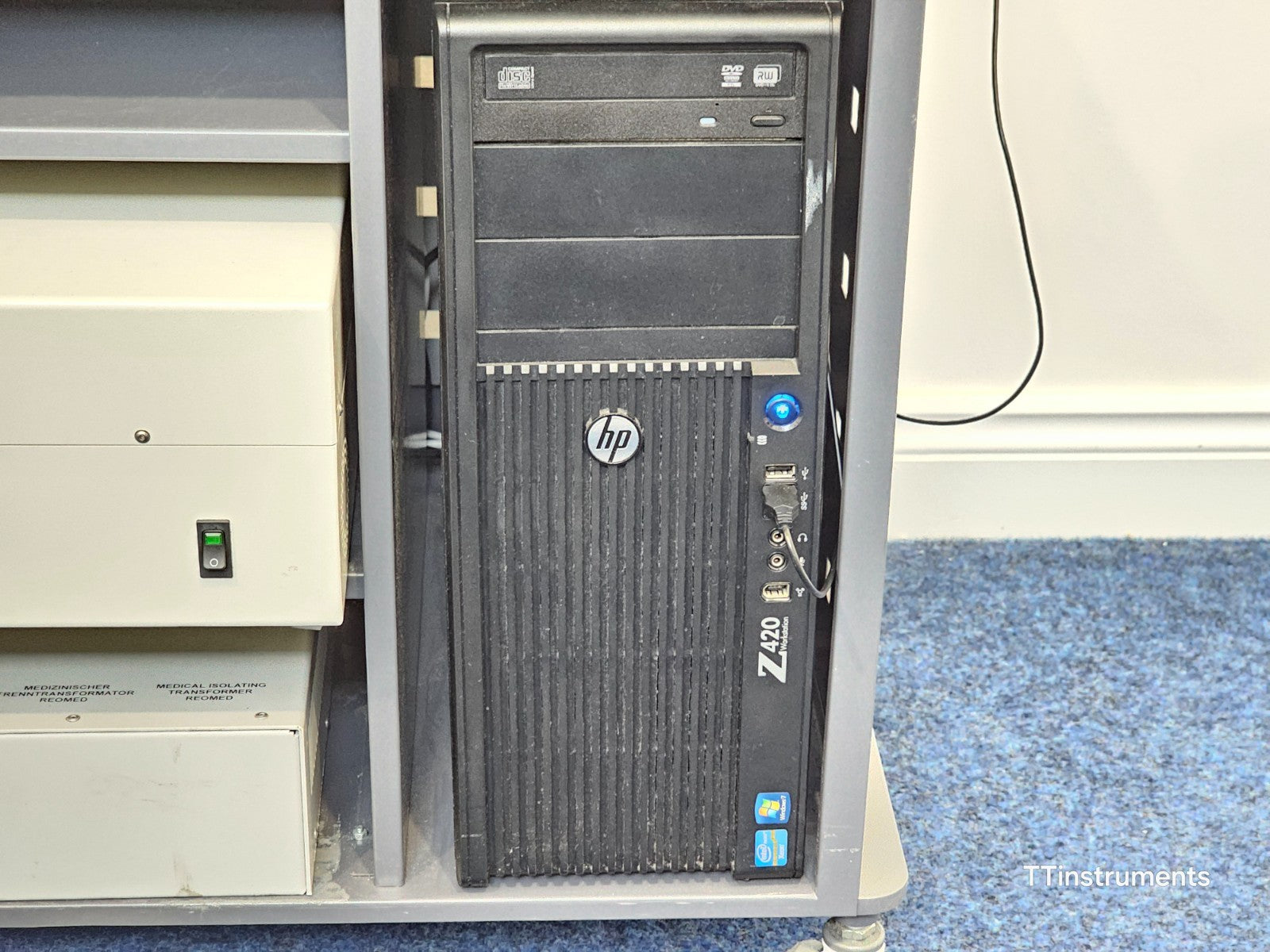

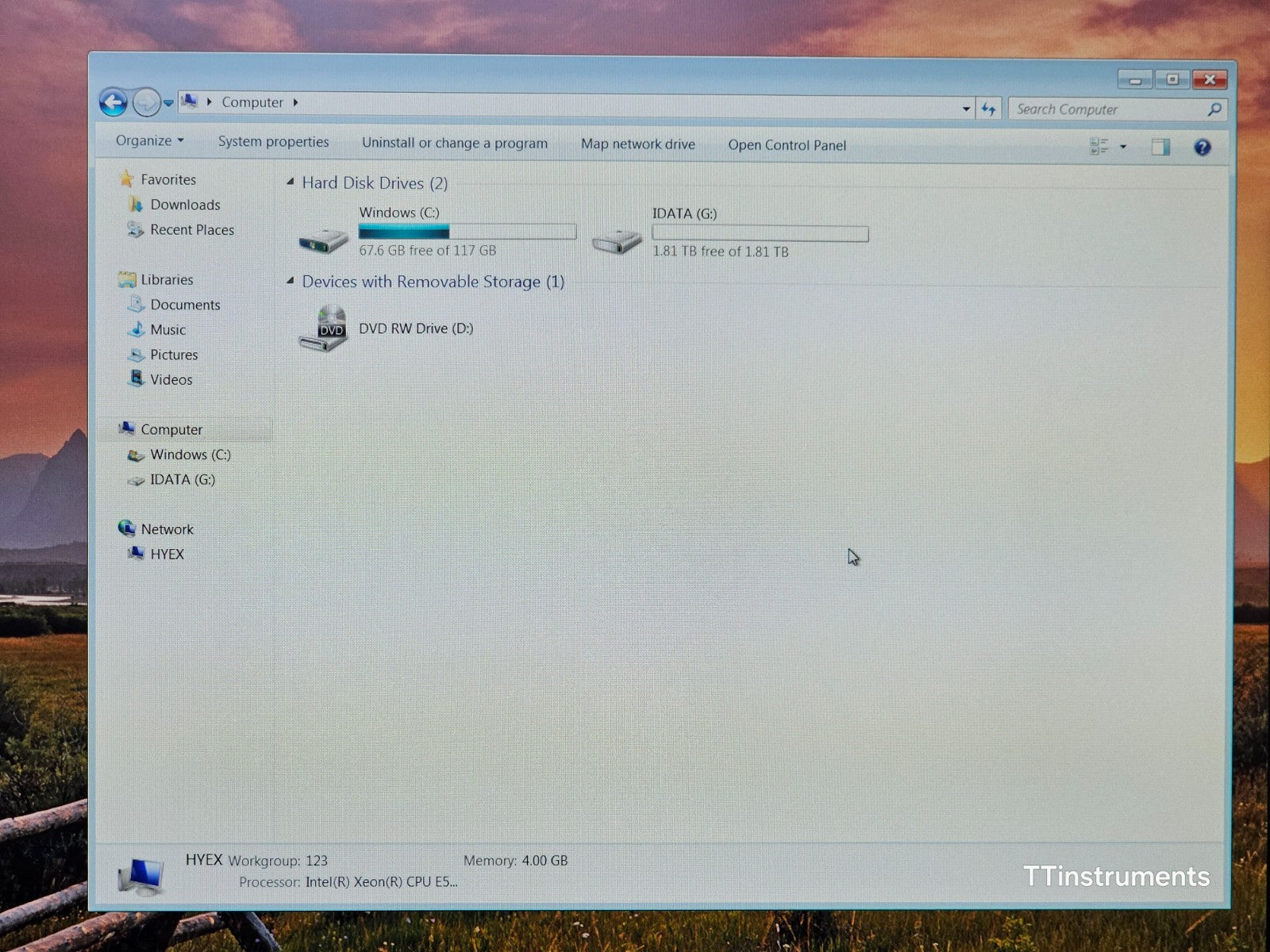

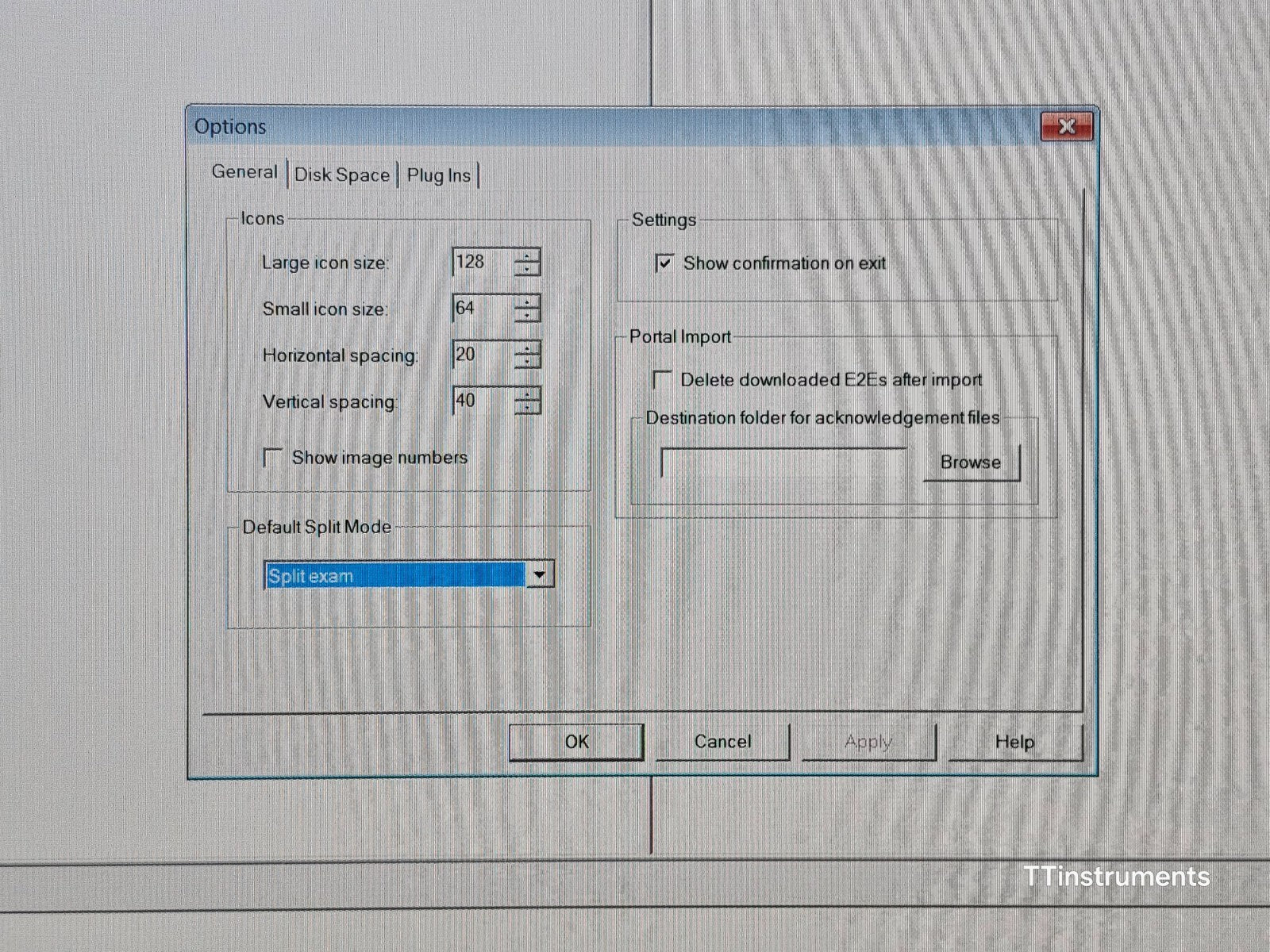

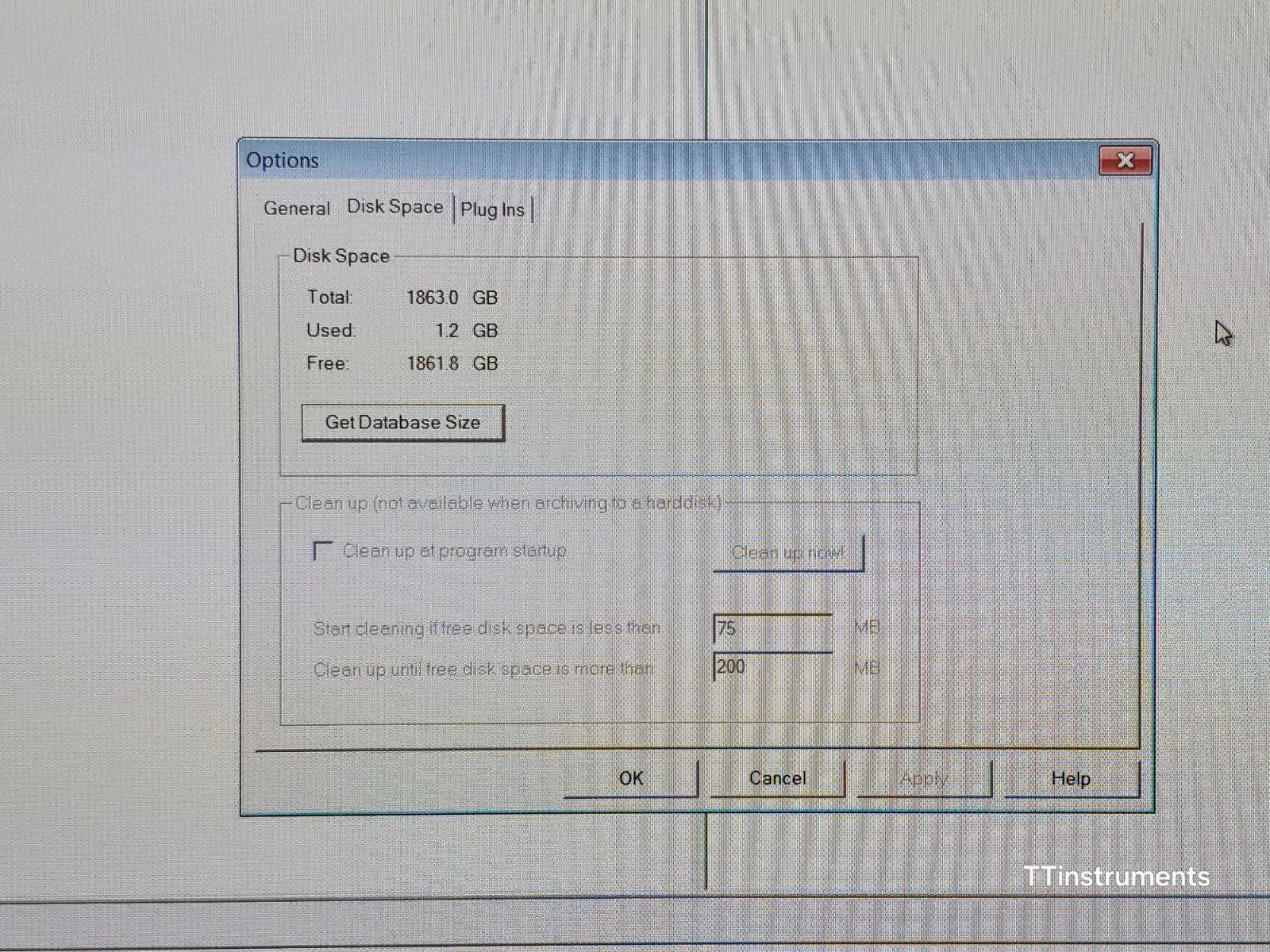

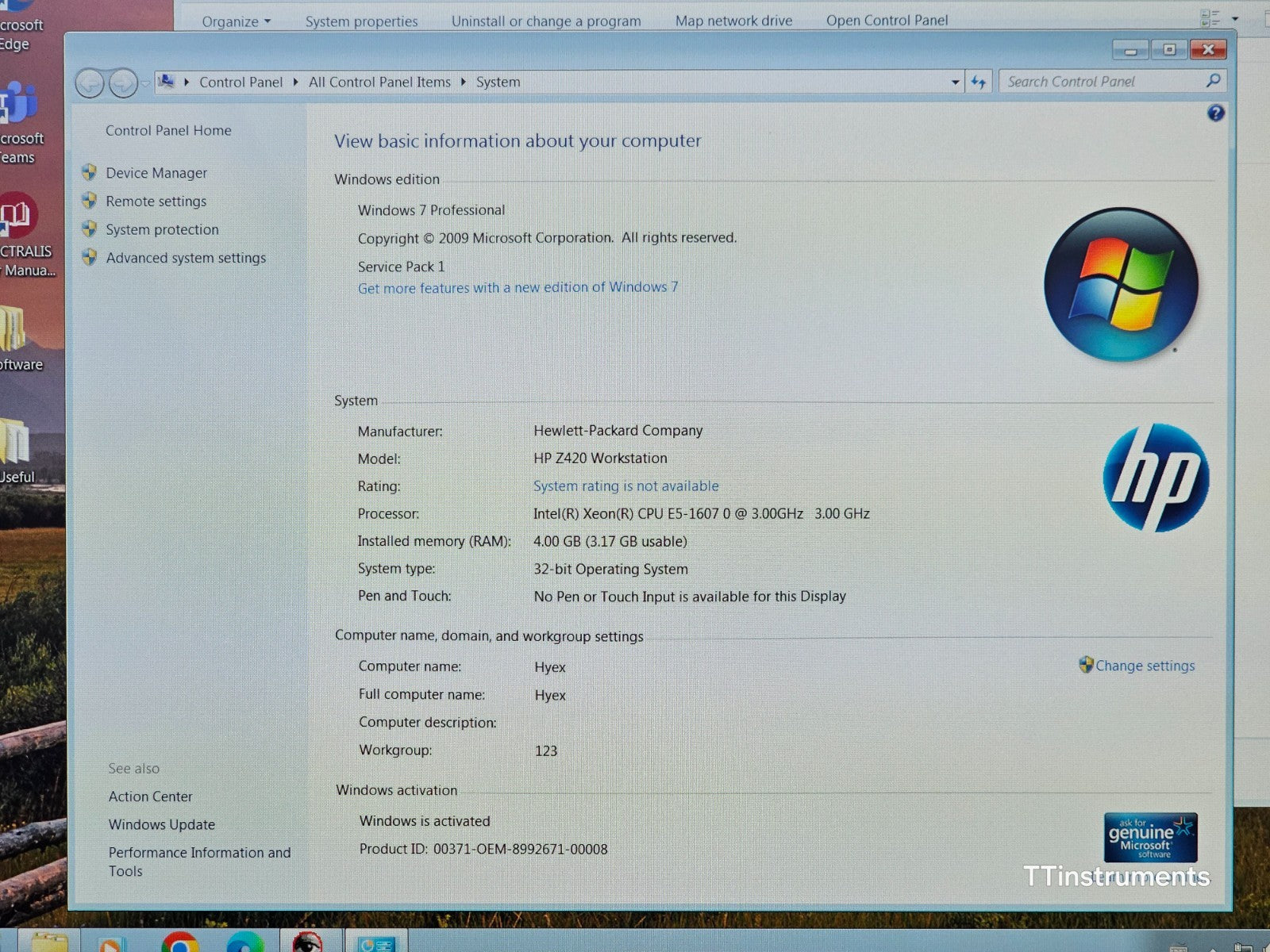

• PC and monitor with Eye Explorer software

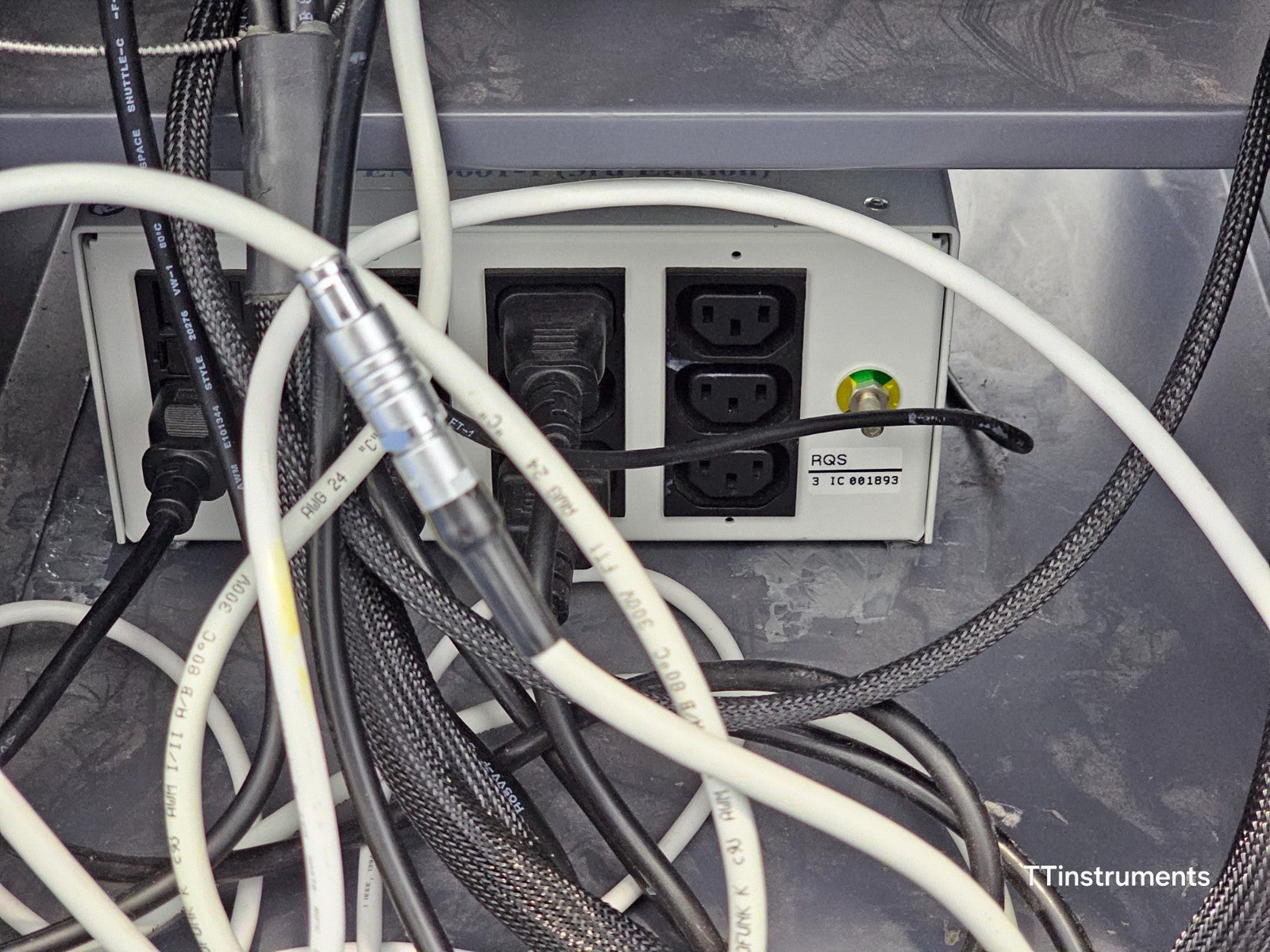

• REOMED Medical Isolation Transformer

Please contact us for an accurate shipping quote prior to purchasing.

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Heidelberg Engineering Spectralis HRA+OCT is a multimodal retinal imaging platform that combines a Heidelberg Retina Angiograph (HRA) with Spectral Domain Optical Coherence Tomography (SD-OCT) in a single instrument. It is widely regarded as a gold standard in retinal diagnostics and is used extensively in ophthalmology clinics and research institutions worldwide.

The system uses confocal scanning laser ophthalmoscopy (cSLO) to provide high-contrast, high-resolution fundus imaging, and its integrated SD-OCT provides cross-sectional retinal layer imaging. A key feature is the TruTrack Active Eye Tracking technology, which ensures OCT scan placement is precisely repeatable across visits — critical for longitudinal disease monitoring.

The Spectralis platform supports a wide range of imaging modes including fluorescein angiography (FA), indocyanine green angiography (ICGA), fundus autofluorescence (FAF), infrared reflectance, and blue-light reflectance imaging, depending on the modules and licences installed.

Key Specifications:
Imaging Technology: Confocal Scanning Laser Ophthalmoscopy (cSLO) + Spectral Domain OCT
OCT A-Scan Rate: 40,000 A-scans per second
OCT Axial Resolution: Approx. 7 µm (tissue)
OCT Imaging Depth: 1.9 mm (in tissue)
Laser Wavelengths: 488 nm (blue), 815 nm (infrared), 790 nm (OCT)
Field of View: 30° standard; optional 55° wide-field
Eye Tracking: TruTrack Active Eye Tracking
Software Platform: Heidelberg Eye Explorer (HEYEX)
Connectivity: DICOM compatible
Intended Use: Retinal imaging, glaucoma assessment, macular degeneration monitoring, diabetic retinopathy screening

Please refer to the Heidelberg Engineering website for full and current specifications.
