Condition: Used

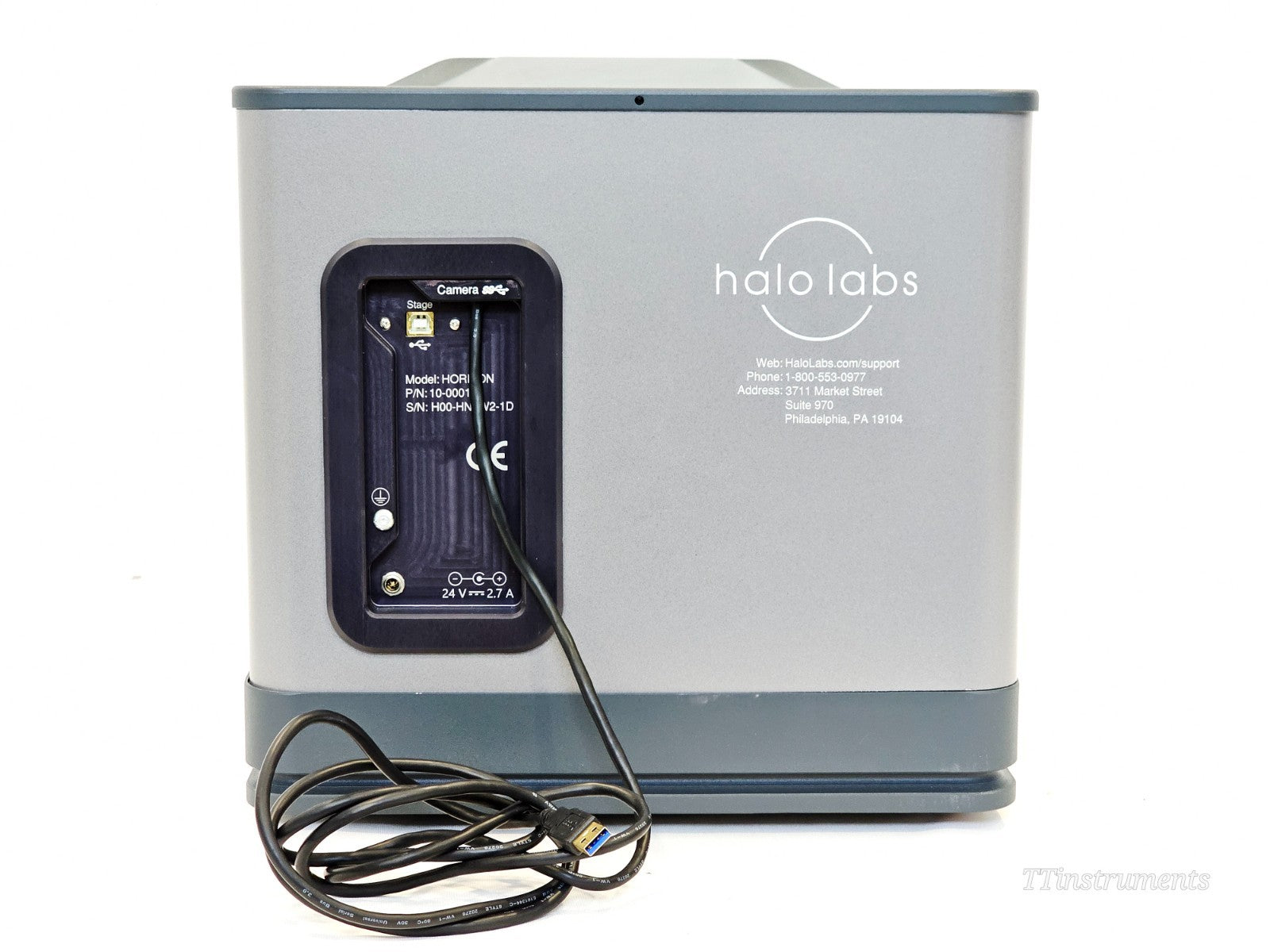

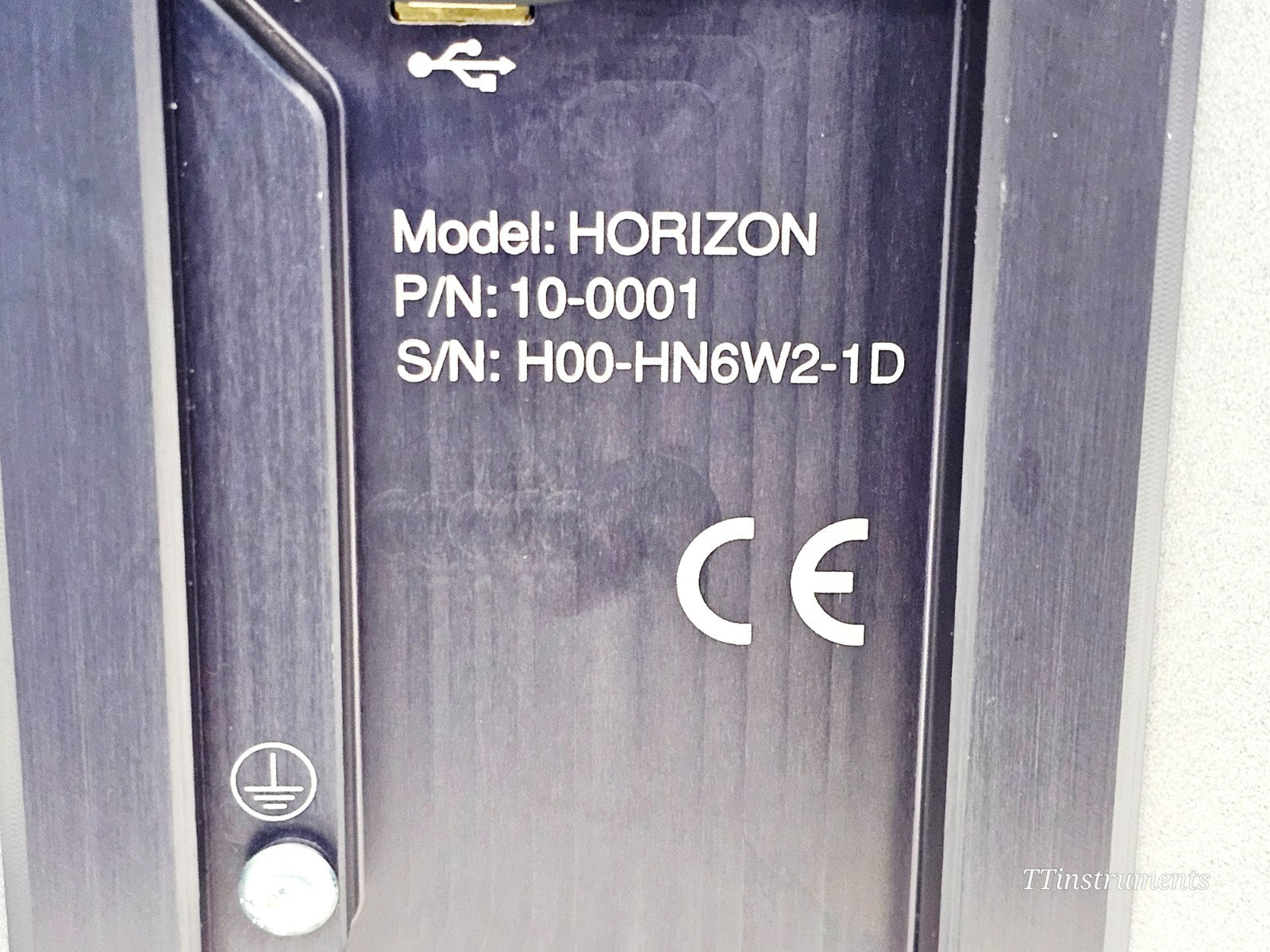

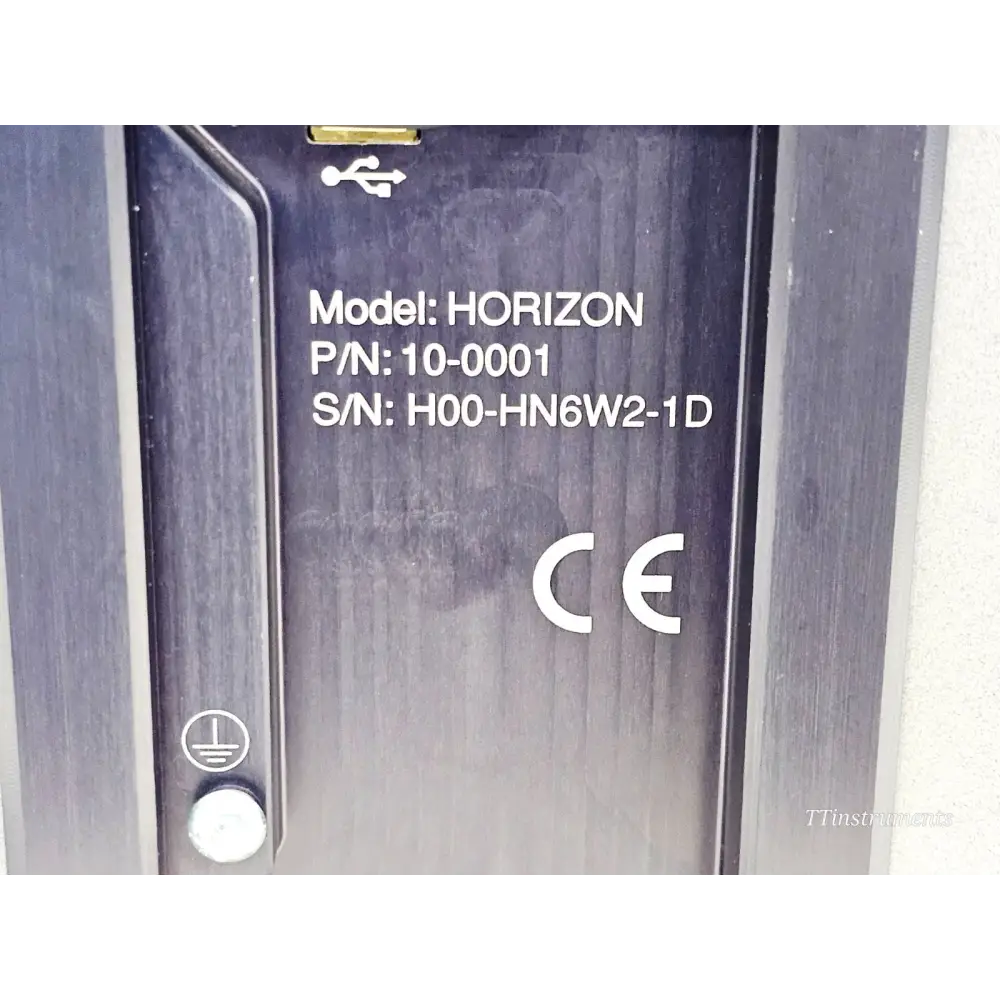

Halo Labs Horizon Particle Analyzer, P/N 10-0001, S/N H00-HN6W2-1D. Removed from a working environment. Powers on but requires a PC with compatible ParticleVue software (v2.x; note ParticleVue v3.0 or newer is not supported on Horizon) to fully test. Supplied with a selection of accessories as seen.

Included in the sale:

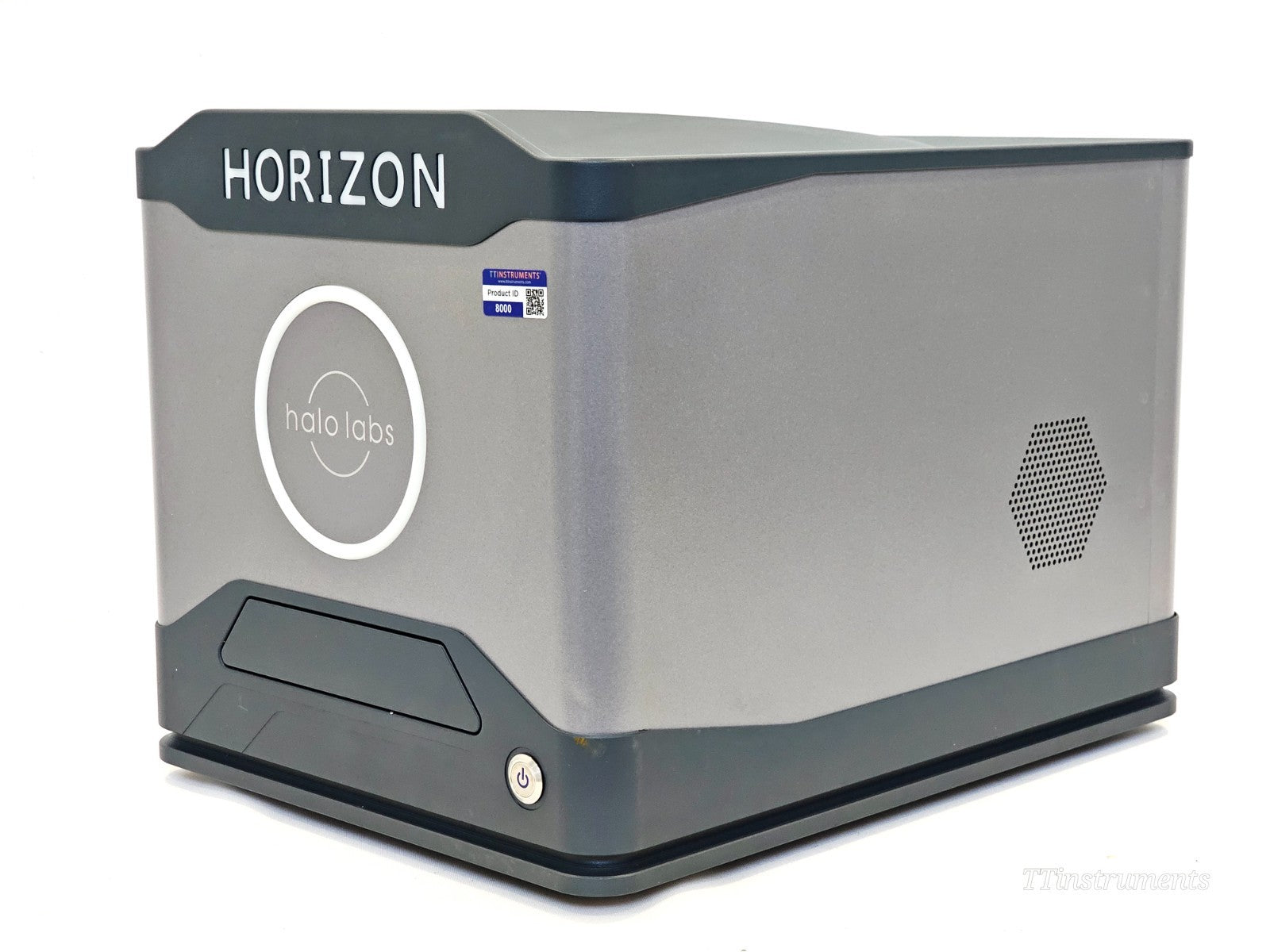

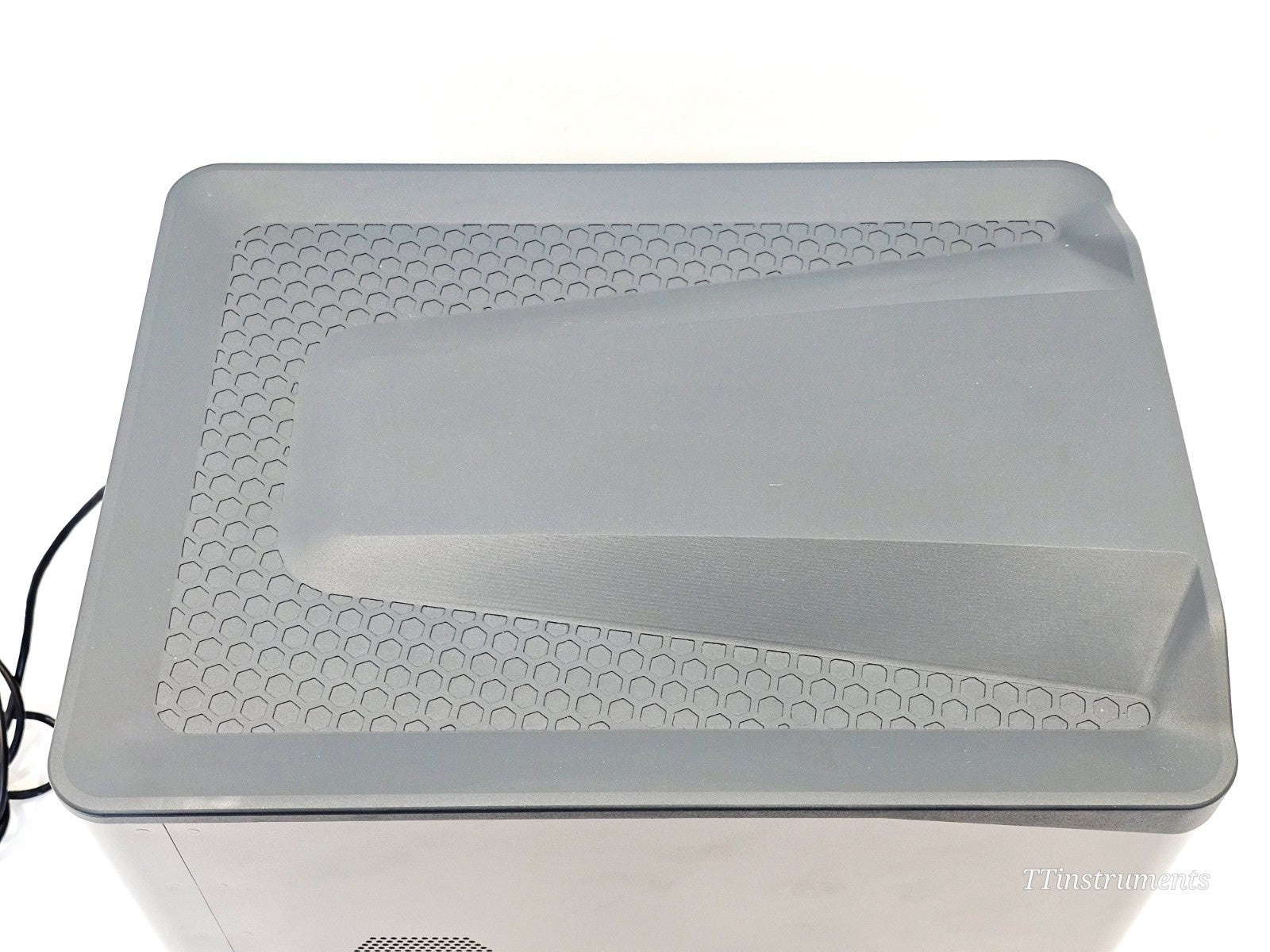

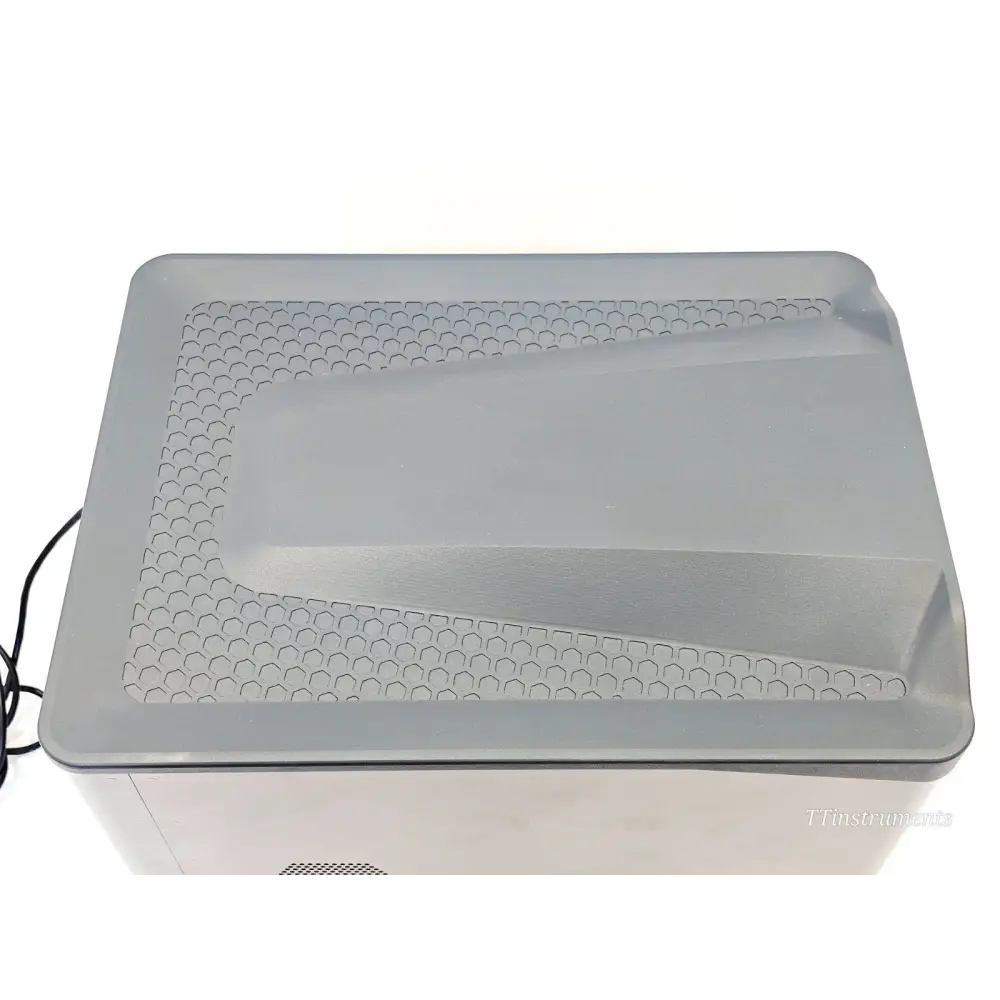

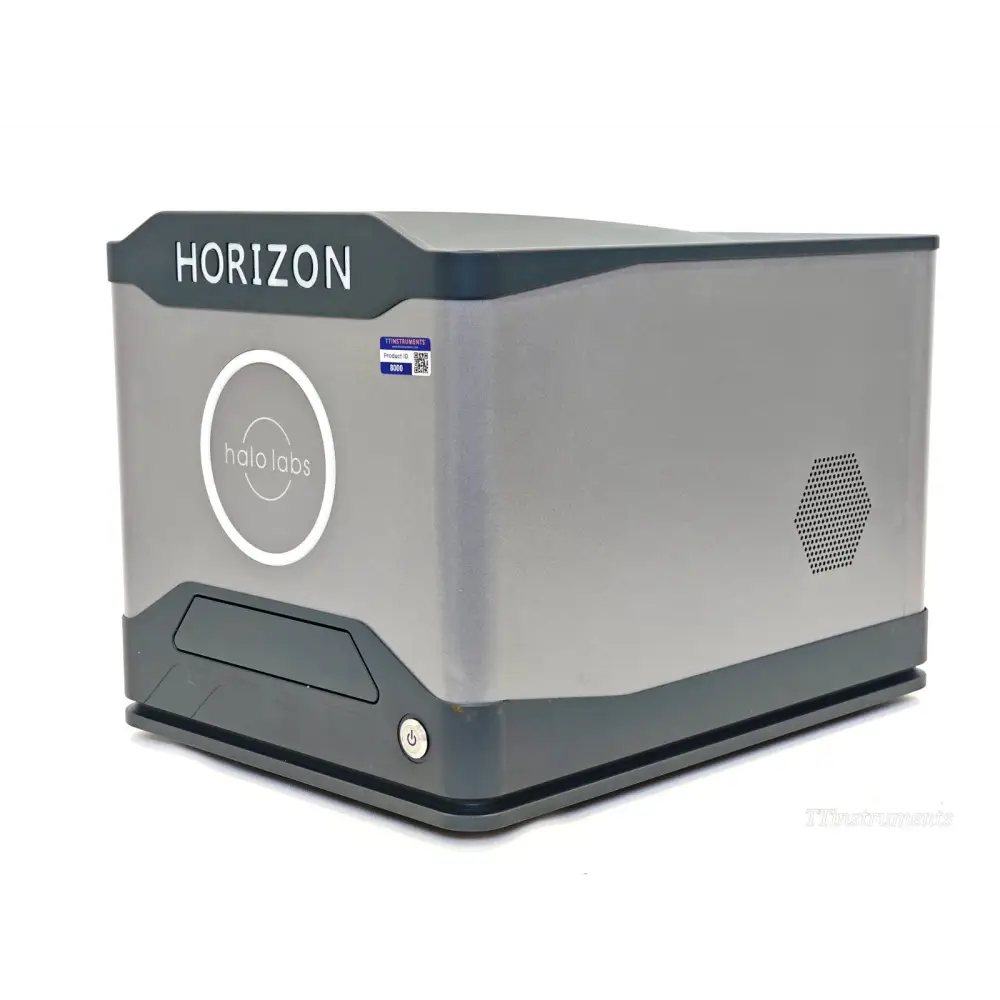

• Halo Labs Horizon Particle Analyzer (P/N 10-0001, S/N H00-HN6W2-1D)
• USB 3.0 interface cable

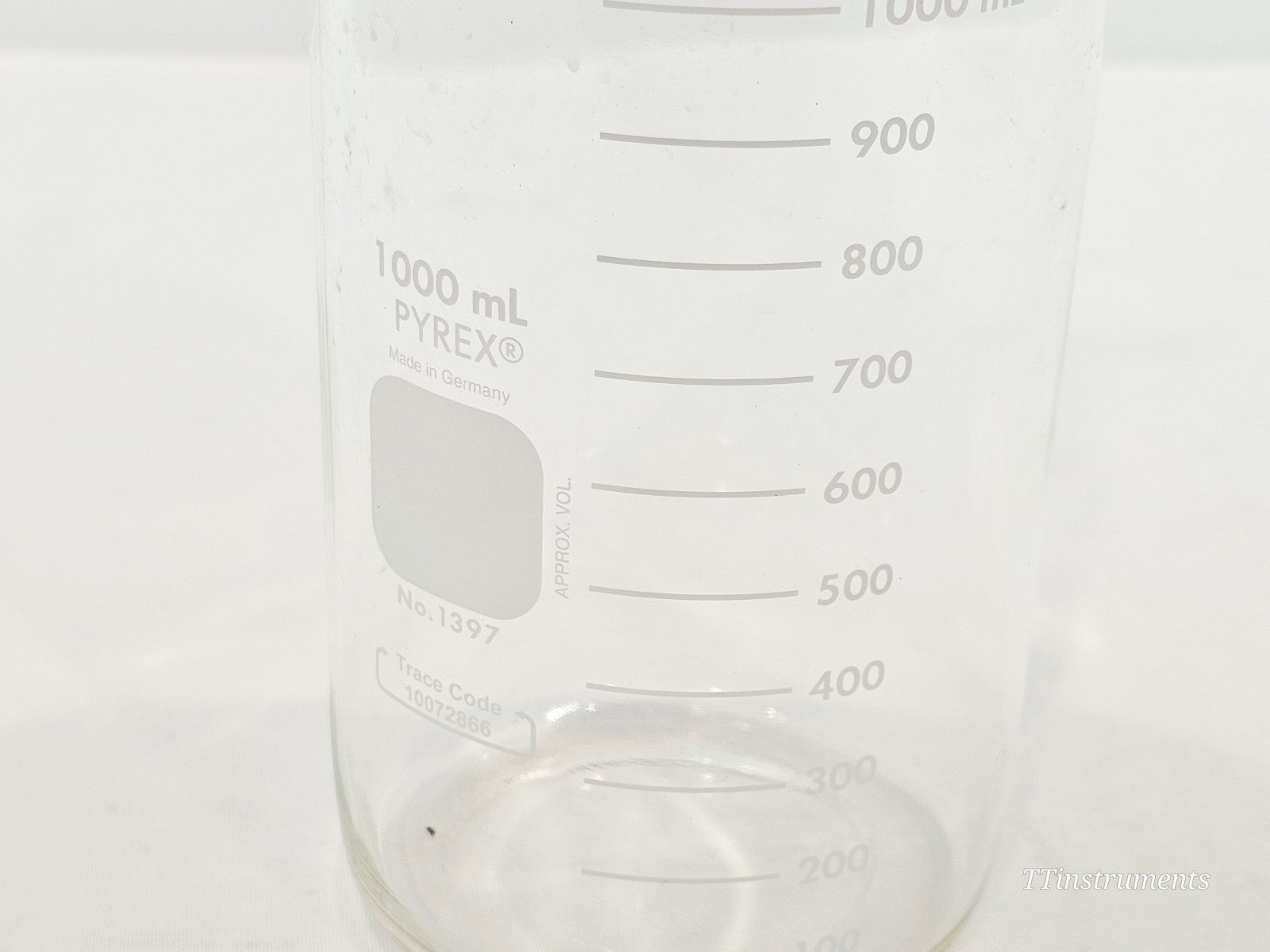

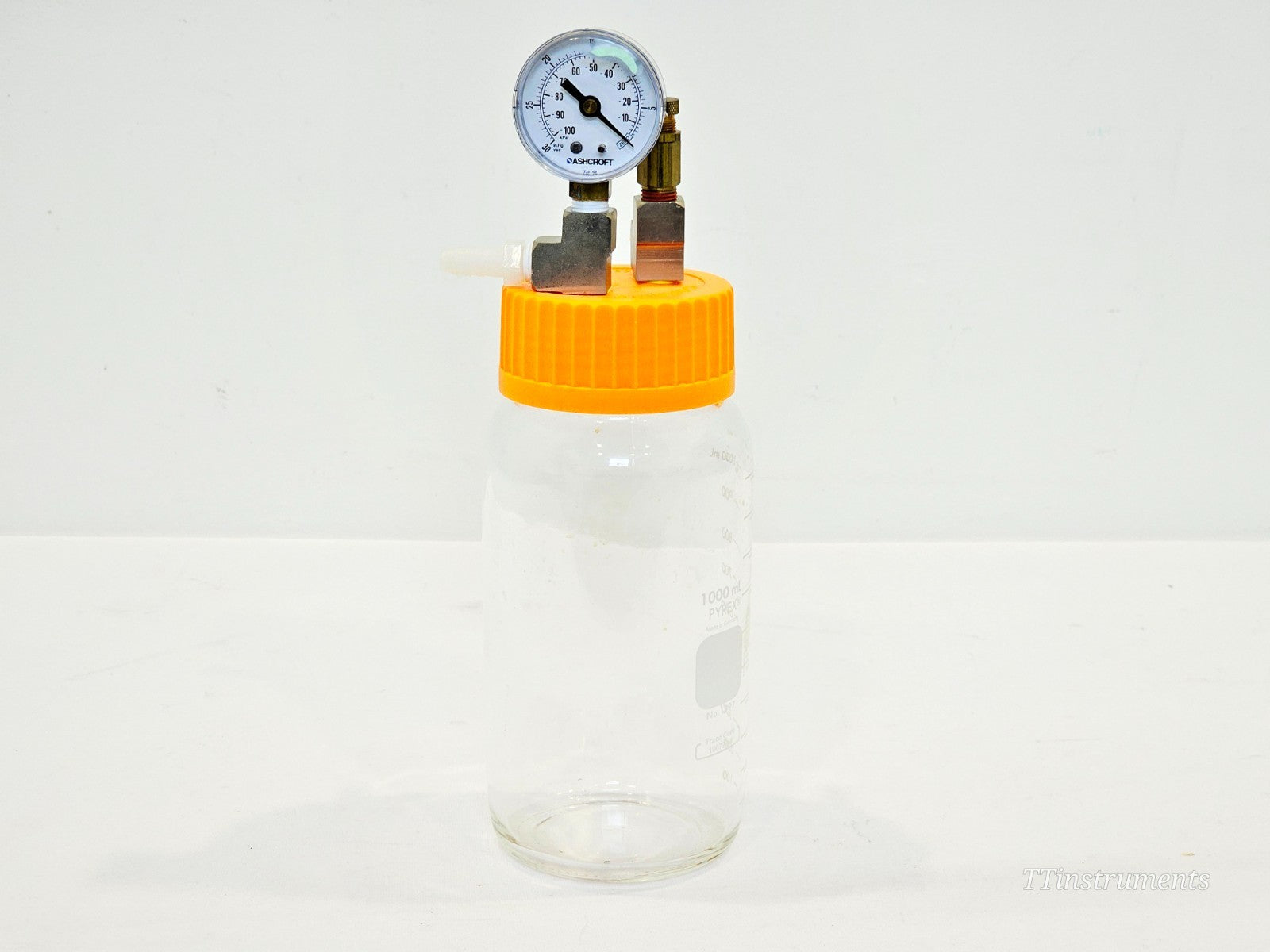

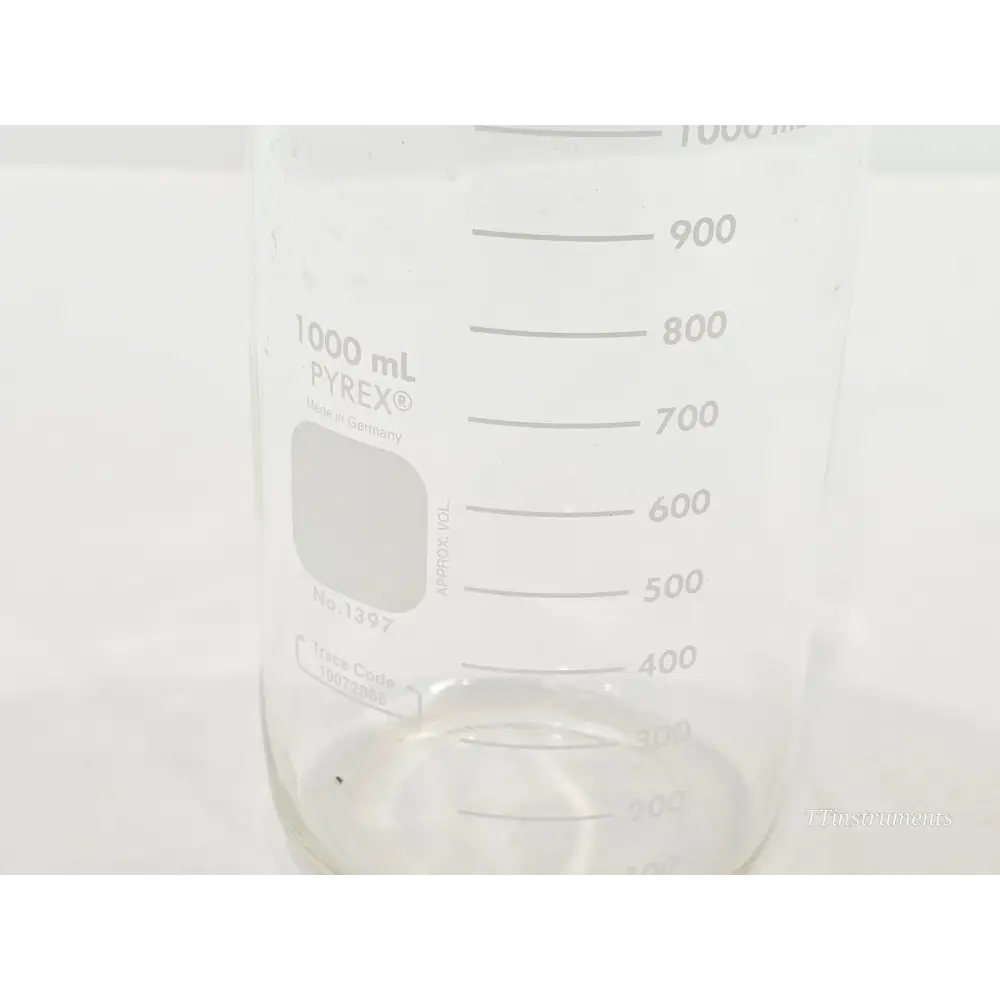

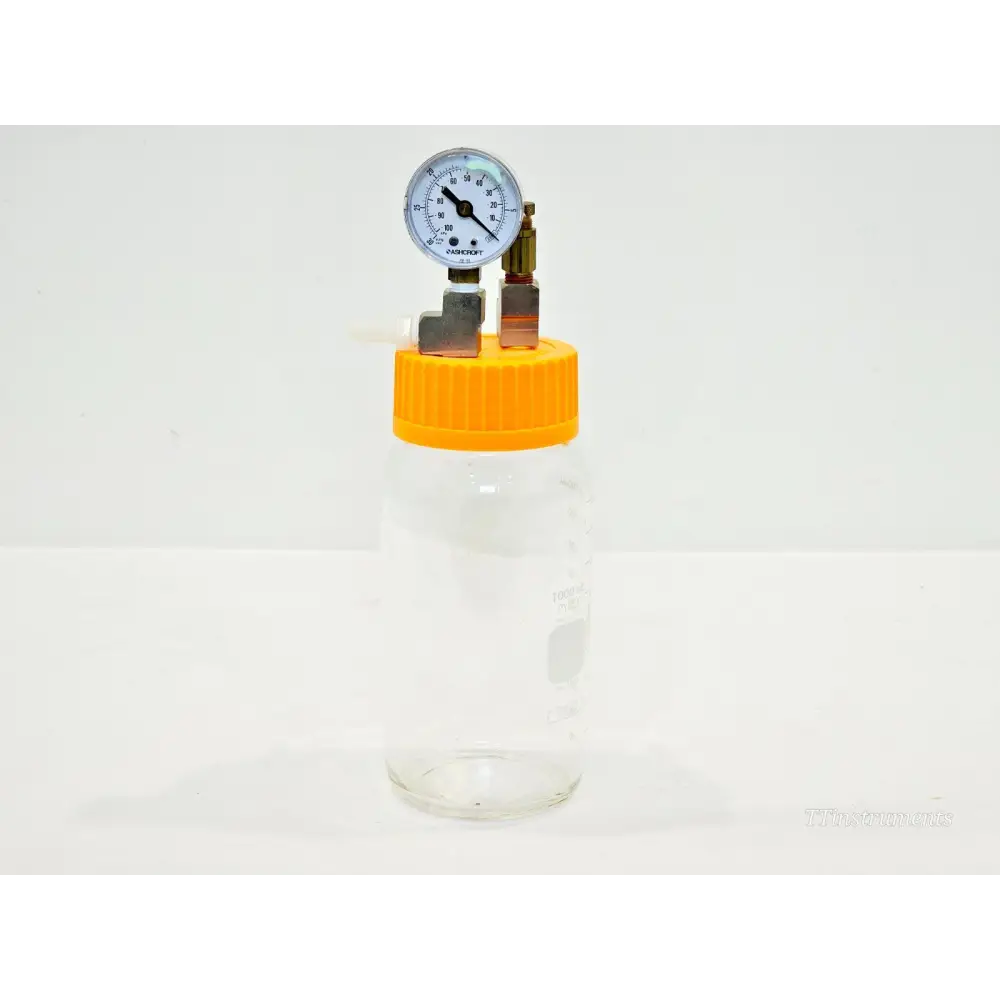

• Vacuum waste bottle assembly with tubing and pressure gauge

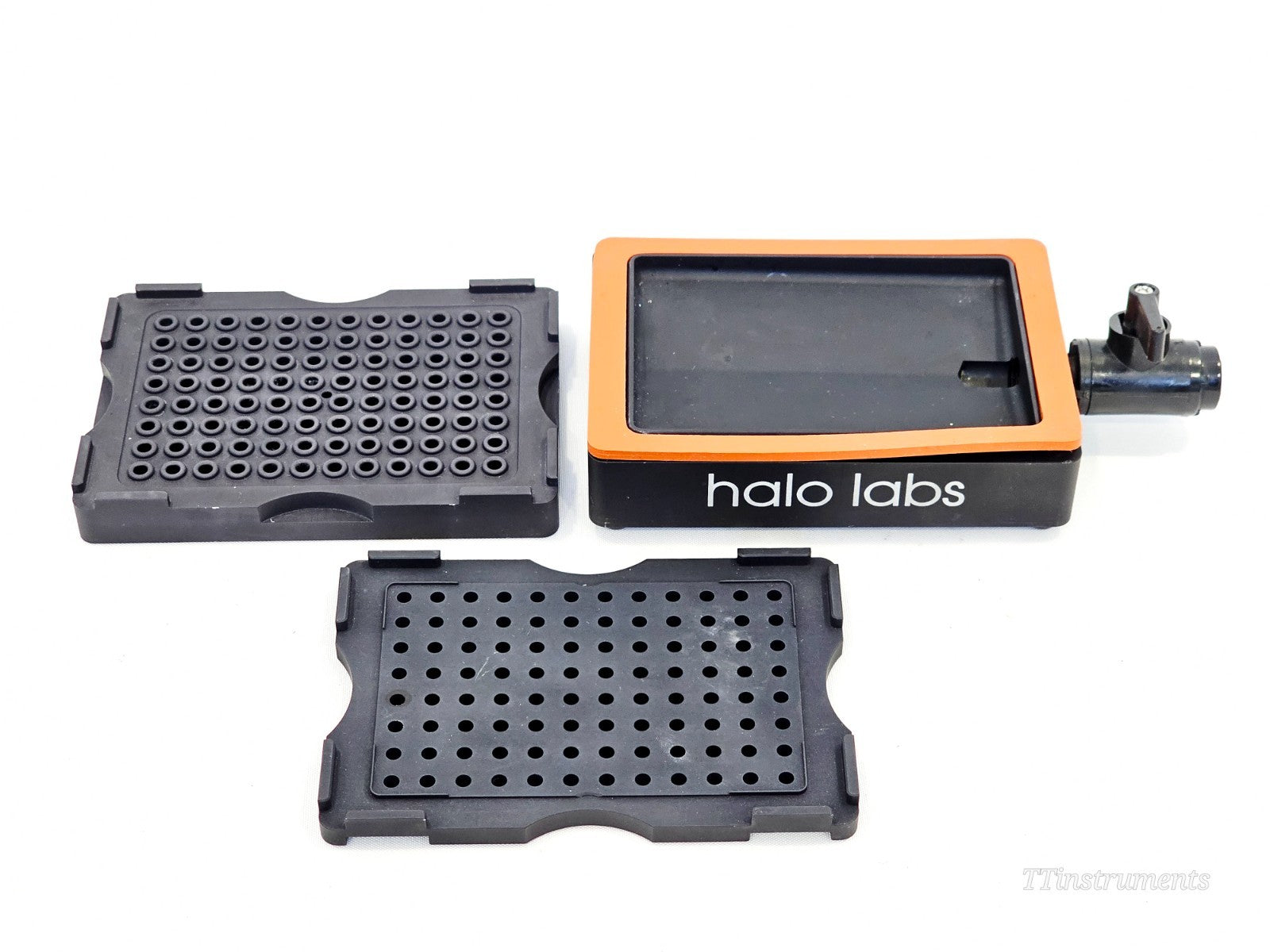

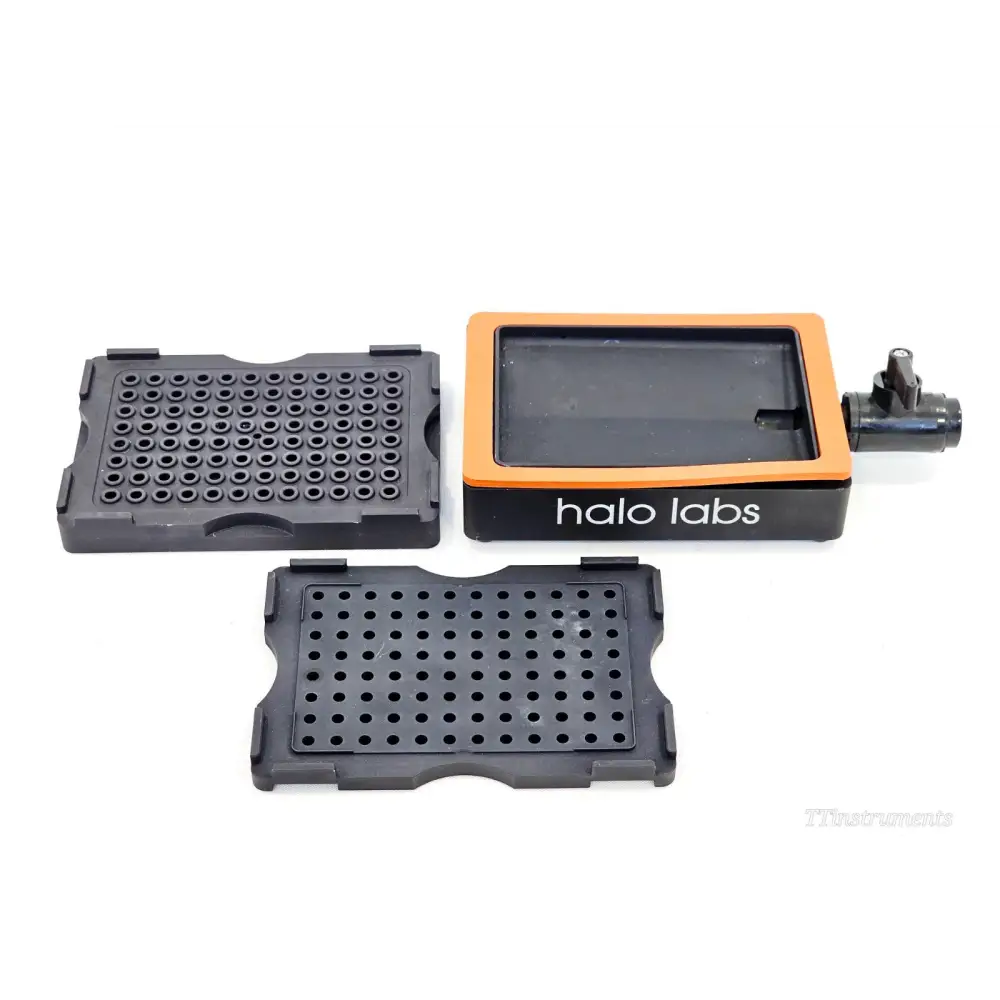

• Halo Labs vacuum manifold/filtration base unit

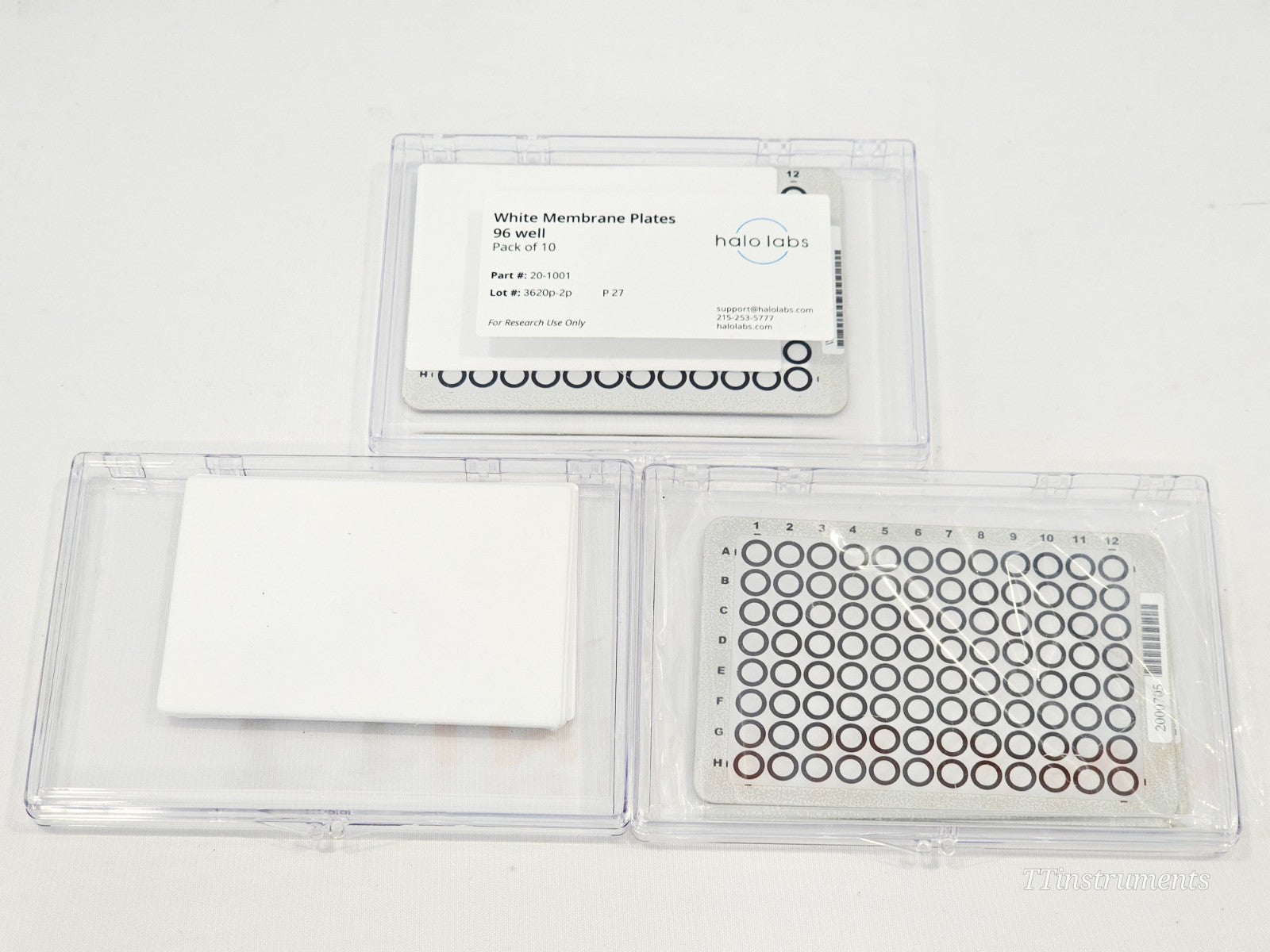

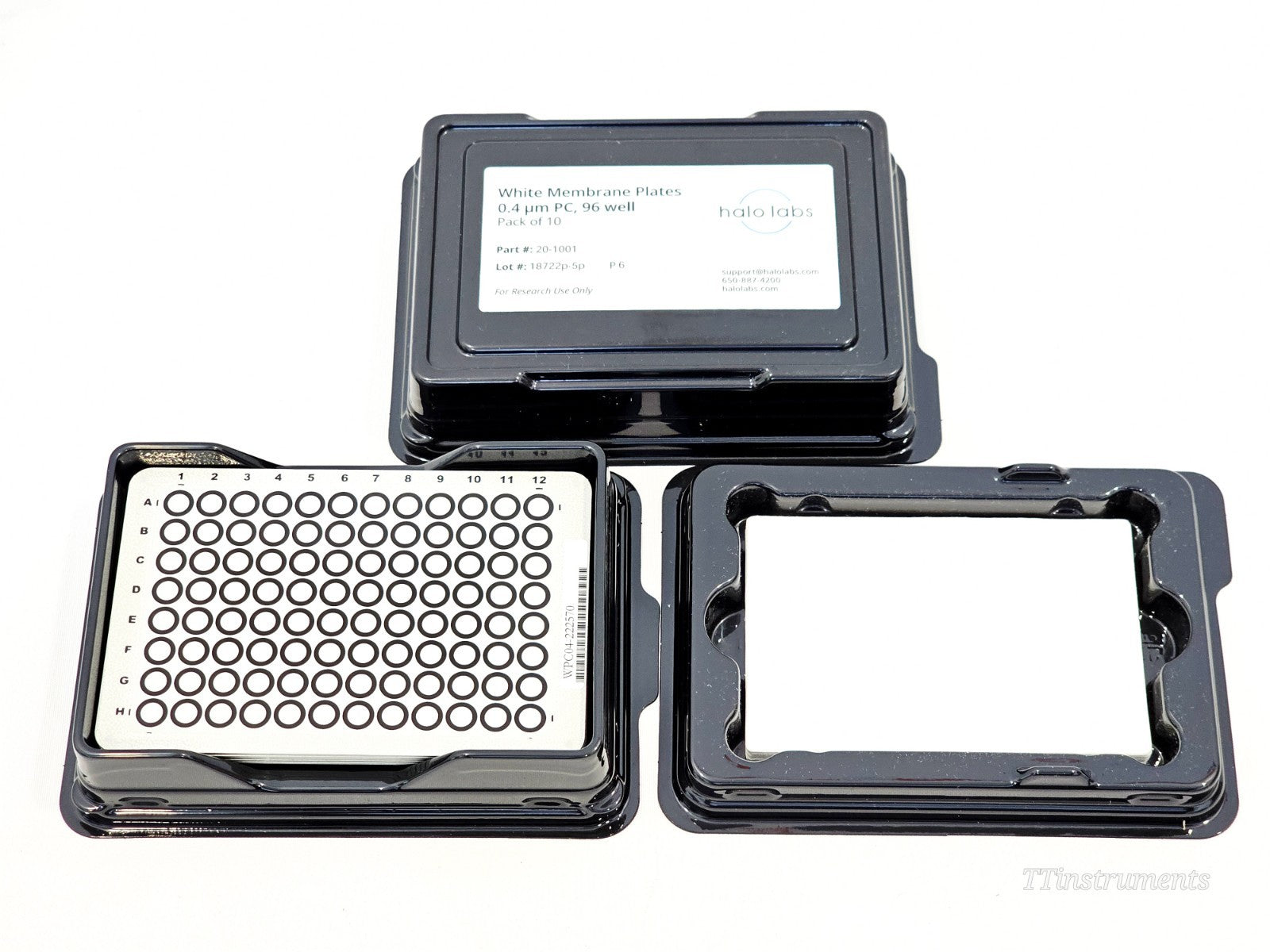

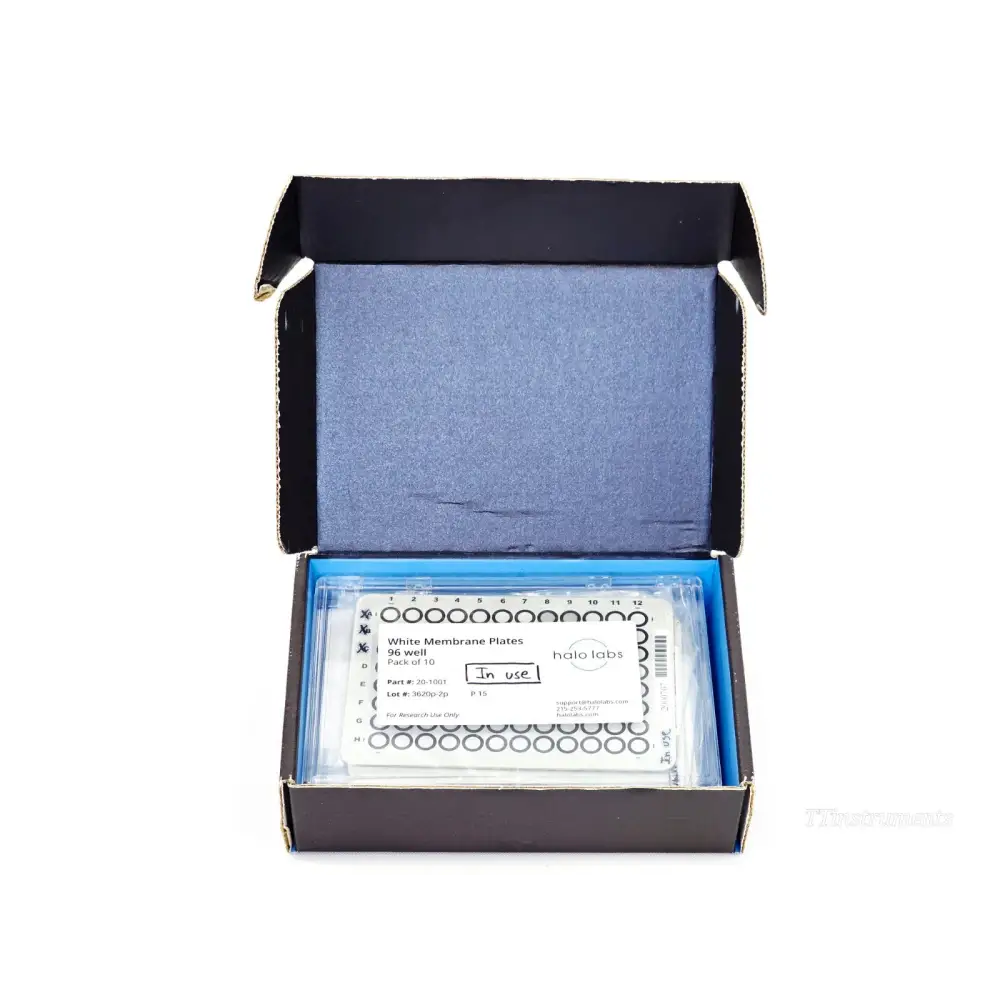

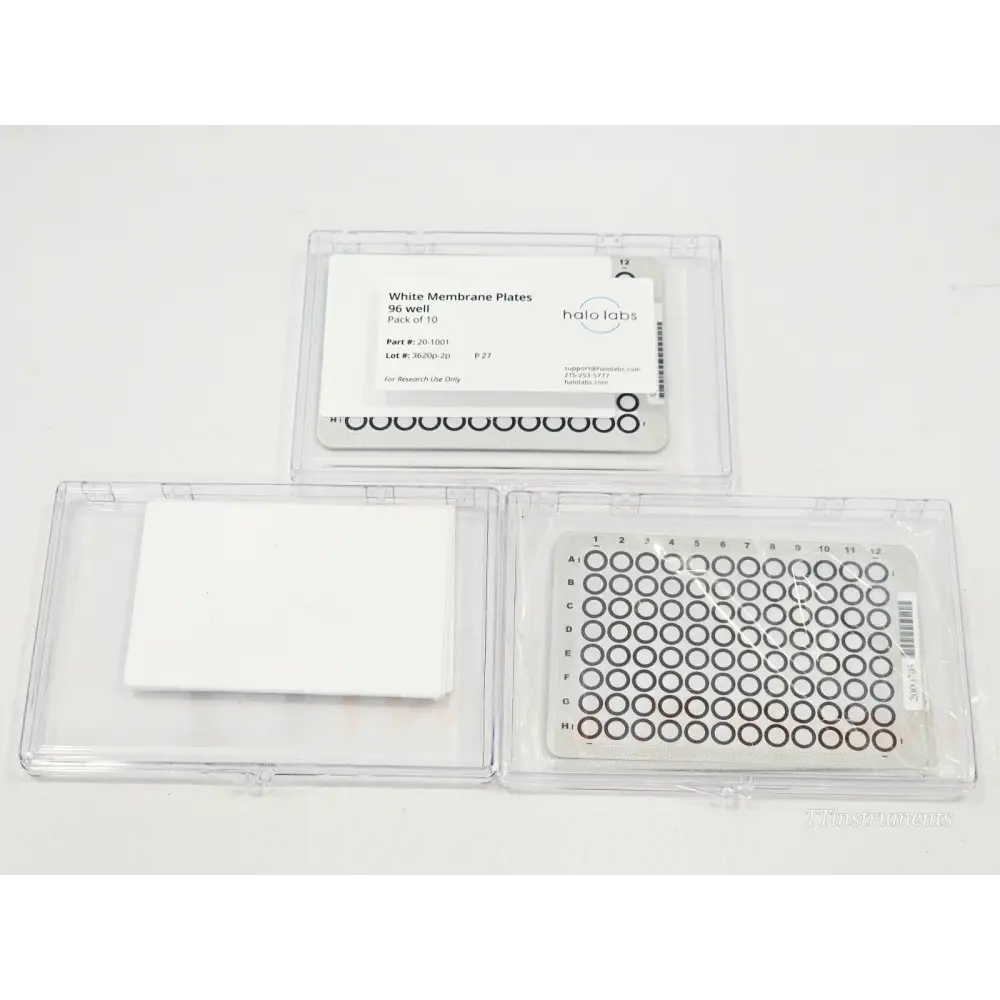

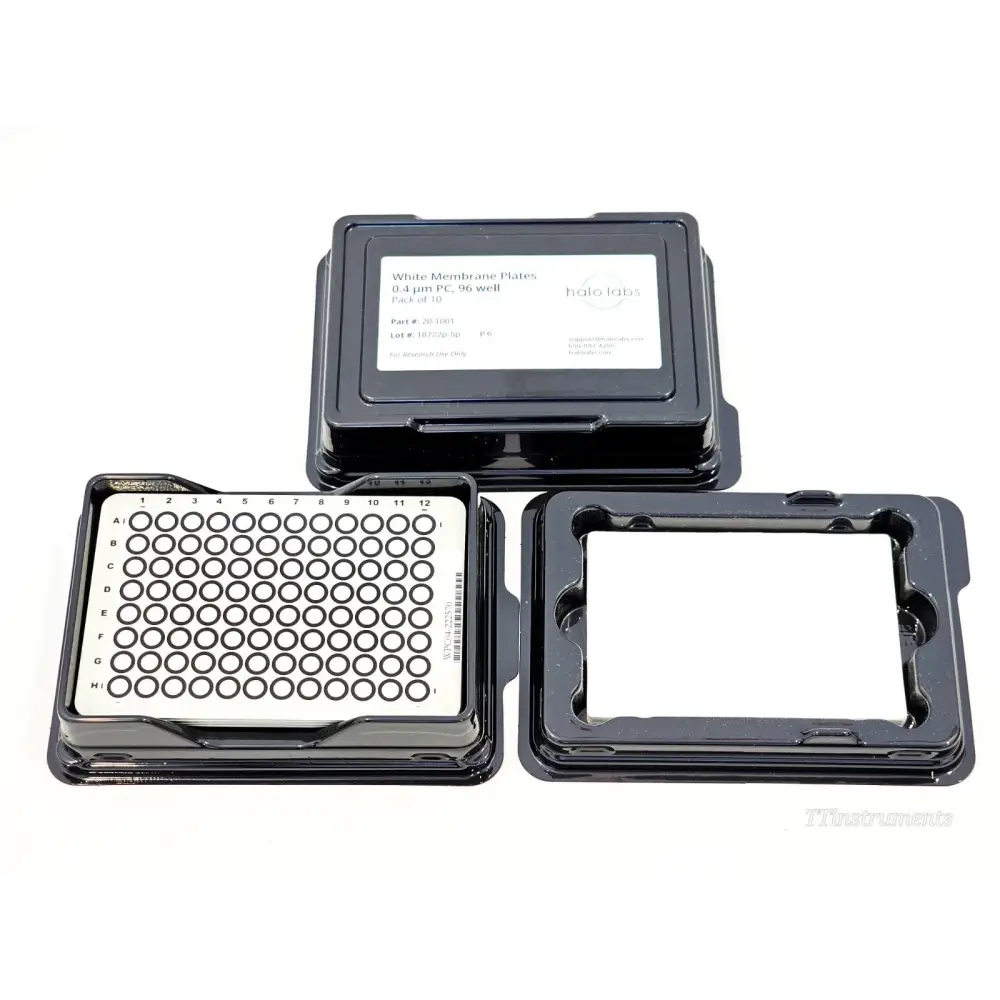

• Halo Labs White Membrane Plates 0.4 µm PC, 96-well (partial pack)

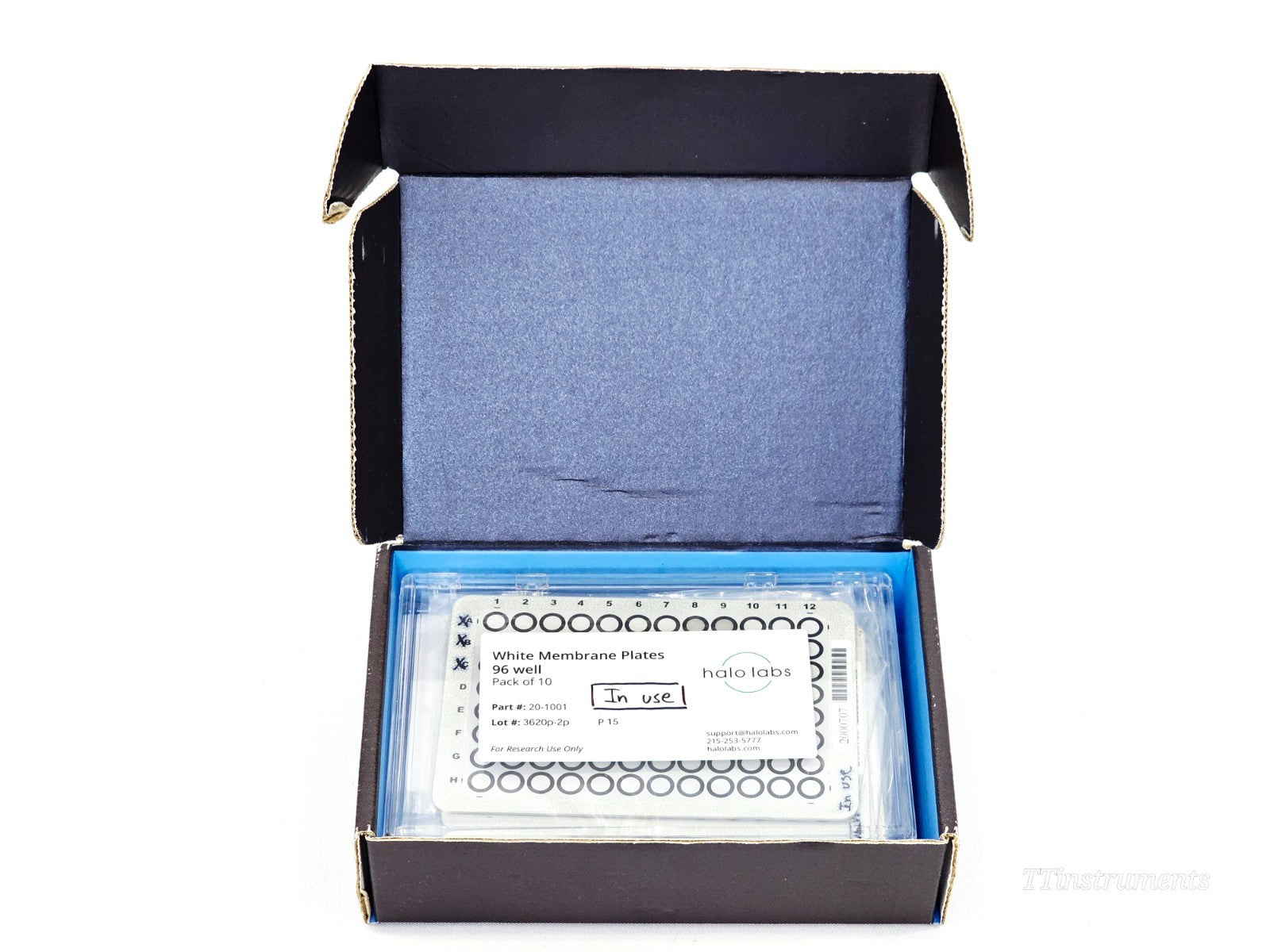

• Additional Halo Labs membrane plate boxes (x2, as seen)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Halo Labs HORIZON® (P/N 10-0001) is the industry's first system designed specifically to address the demand for quantitative subvisible particle analysis at every stage of biologic drug formulation. Powered by Backgrounded Membrane Imaging (BMI) technology, the HORIZON enables low-volume, high-throughput subvisible particle characterisation from early lead optimisation and pre-formulation through to late-stage development.

The system captures a background image of the membrane before vacuum filtration, then re-images the same membrane with captured particles. The background is precisely aligned and subtracted pixel-by-pixel to eliminate membrane texture, delivering high-contrast particle images with strong reproducibility and minimal interference from membrane imperfections. Contrast is reported to be 10x greater than measurements performed in liquid, and sizes are calibrated using an electron microscope.

The HORIZON is a fully automated, fluidics-free system using disposable 96-well membrane plates. With walk-away automation, it can screen up to 96 formulation samples in under 2 hours. Results are delivered with CVs consistently below 8% for polydisperse samples. The system is insensitive to the refractive index of the solution, enabling reliable measurement of translucent protein aggregates that are missed by light obscuration and flow imaging methods.

VUE (ParticleVue) software provides automated particle characterisation outputs including Equivalent Circular Diameter (ECD), aspect ratio, circularity, and particle count. Interactive scatter plots and histograms support rapid visualisation of size distribution and key statistics. Individual particle images can be reviewed directly within the software.

Note: ParticleVue software v3.0 or newer is not supported on the HORIZON instrument.

Key Specifications:
Technology: Backgrounded Membrane Imaging (BMI)
Plate Format: 96-well disposable membrane plates
Sample Volume: As low as 25 µL per sample
Throughput: Up to 96 samples per run, screened in under 2 hours
Detection Range: Subvisible particles >1 µm
Particle Sizing Accuracy: Within ~2.2% of NIST-traceable standards
Coefficient of Variation (CV): <8% for polydisperse samples
Automation: Fully automated, fluidics-free
Software: ParticleVue (VUE) — up to v2.x supported
Outputs: Particle count, ECD, aspect ratio, circularity, morphology images

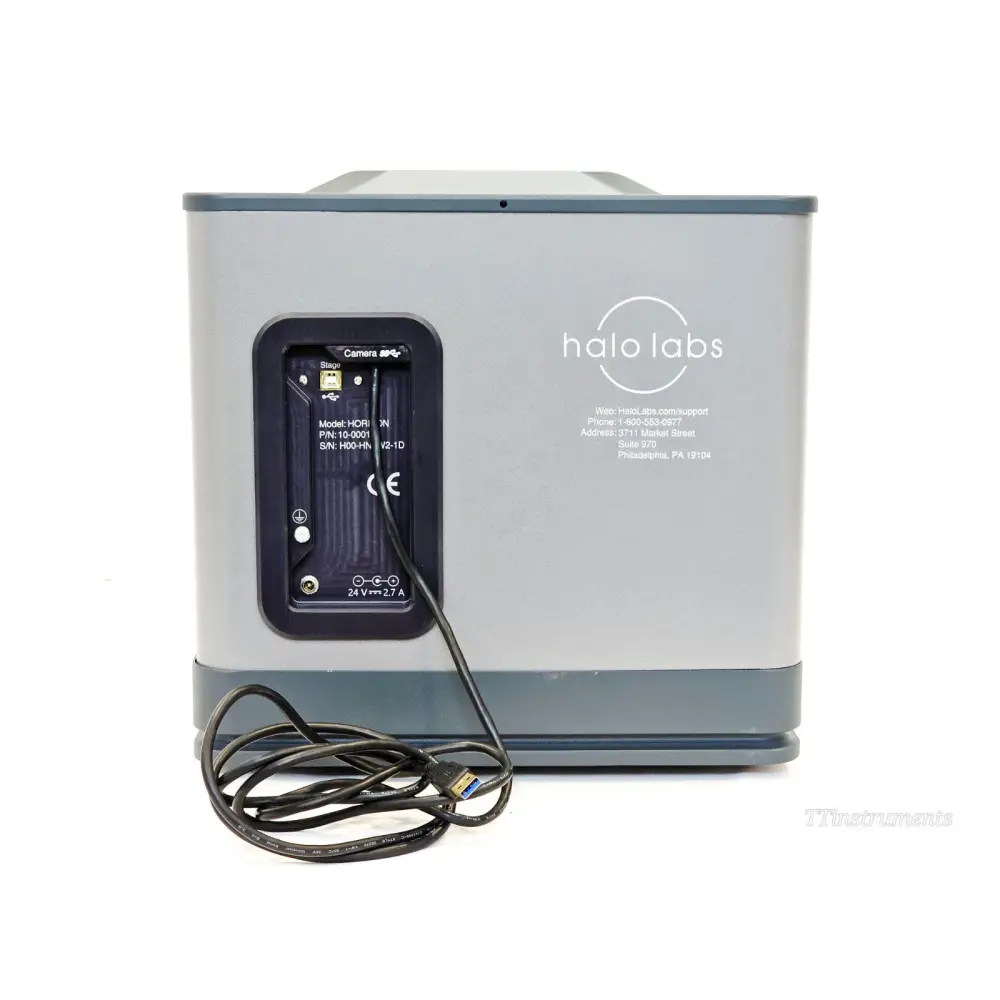

Connectivity: USB 3.0 to PC
Power Input: 24 V DC, 2.7 A
Part Number: 10-0001
Manufacturer: Halo Labs (now part of Waters Corporation)

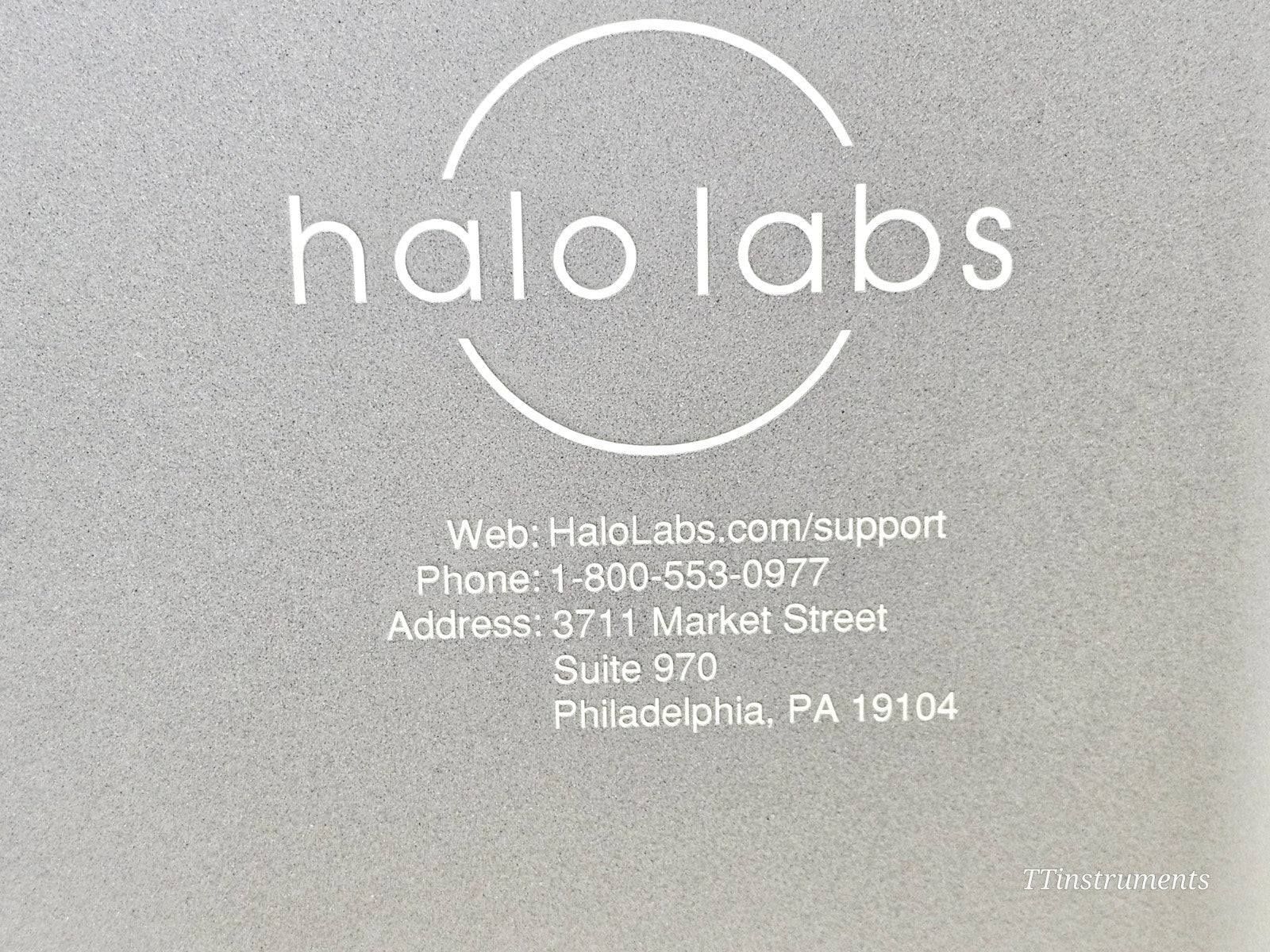

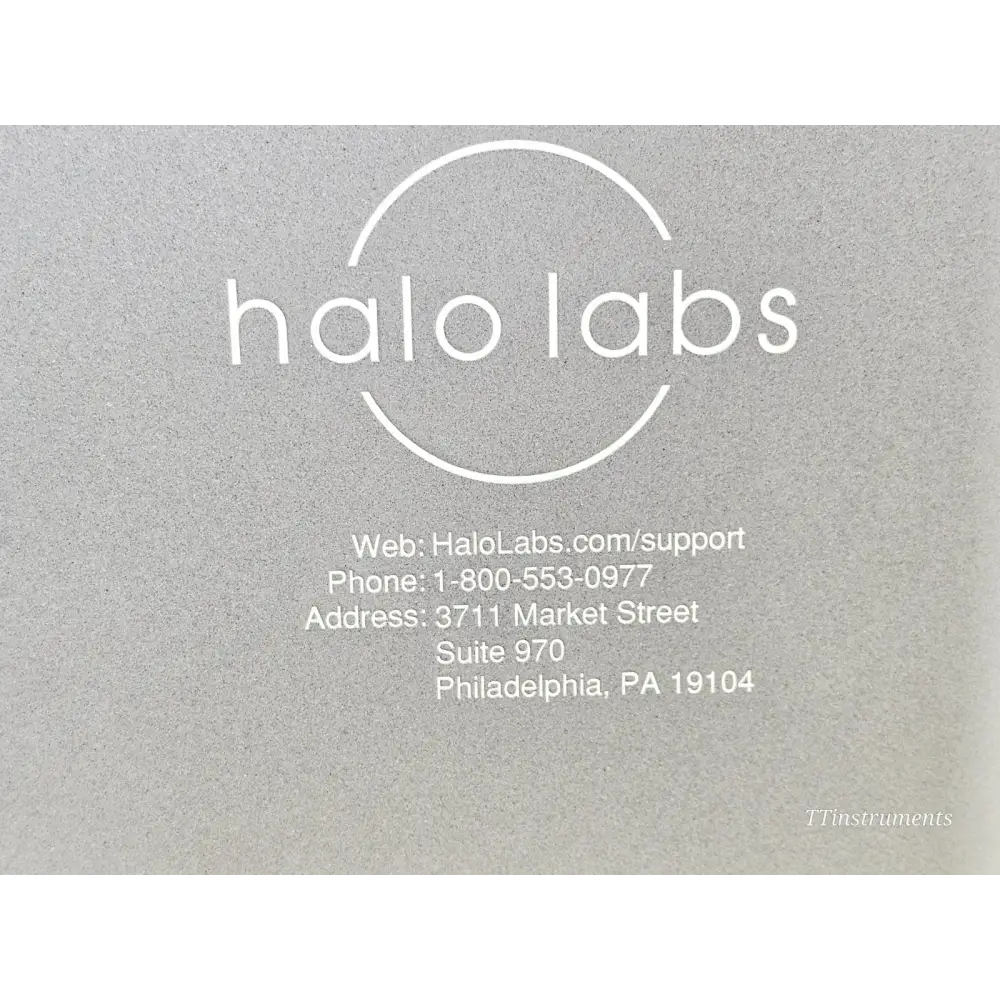

Manufacturer Address: 3711 Market Street, Suite 970, Philadelphia, PA 19104, USA

Applications:
- Biopharmaceutical formulation screening and stability studies
- Subvisible particle analysis for protein aggregates
- Pre-formulation and lead optimisation
- Drug product quality control and lot release testing
- USP <787>, <788>, and <789> compatible workflows (on successor Aura platform; Horizon supports USP <788> methodology)

Halo Labs Application Note 1 (Rev F) — Introduction to Backgrounded Membrane Imaging (BMI) with the Horizon/Aura system: Download PDF

Halo Labs Application Note 4 (Rev C) — Particle sizing accuracy verification with NIST-traceable bead standards on the Horizon system: Download PDF

Halo Labs Application Note 9 (Rev C) — USP <788> compendial subvisible particle measurements with the Aura/Horizon system: Download PDF
