Condition: Used — Good working condition.

The GW Instek GPL-5010 is a transient limiter commonly used in EMI testing applications. When a system experiences an unexpected power outage or sudden errors from the power supply terminal, large transient signals can enter a spectrum analyser and cause damage. The GPL-5010 disrupts these large signals before they reach the equipment, protecting both the terminal circuit and the analyser itself. It features a BNC(F) to N(M) connector configuration for use with the GSP-9330 Spectrum Analyzer, and together with the GLN-5040A Two Line V-Network, it constitutes a complete EMI test system.

Applications include:
• Power supply design (switch-mode and linear)
• Inverter and transformer design
• LED illumination design
• Electromagnetic interference (EMI) testing
• Terminal circuit protection

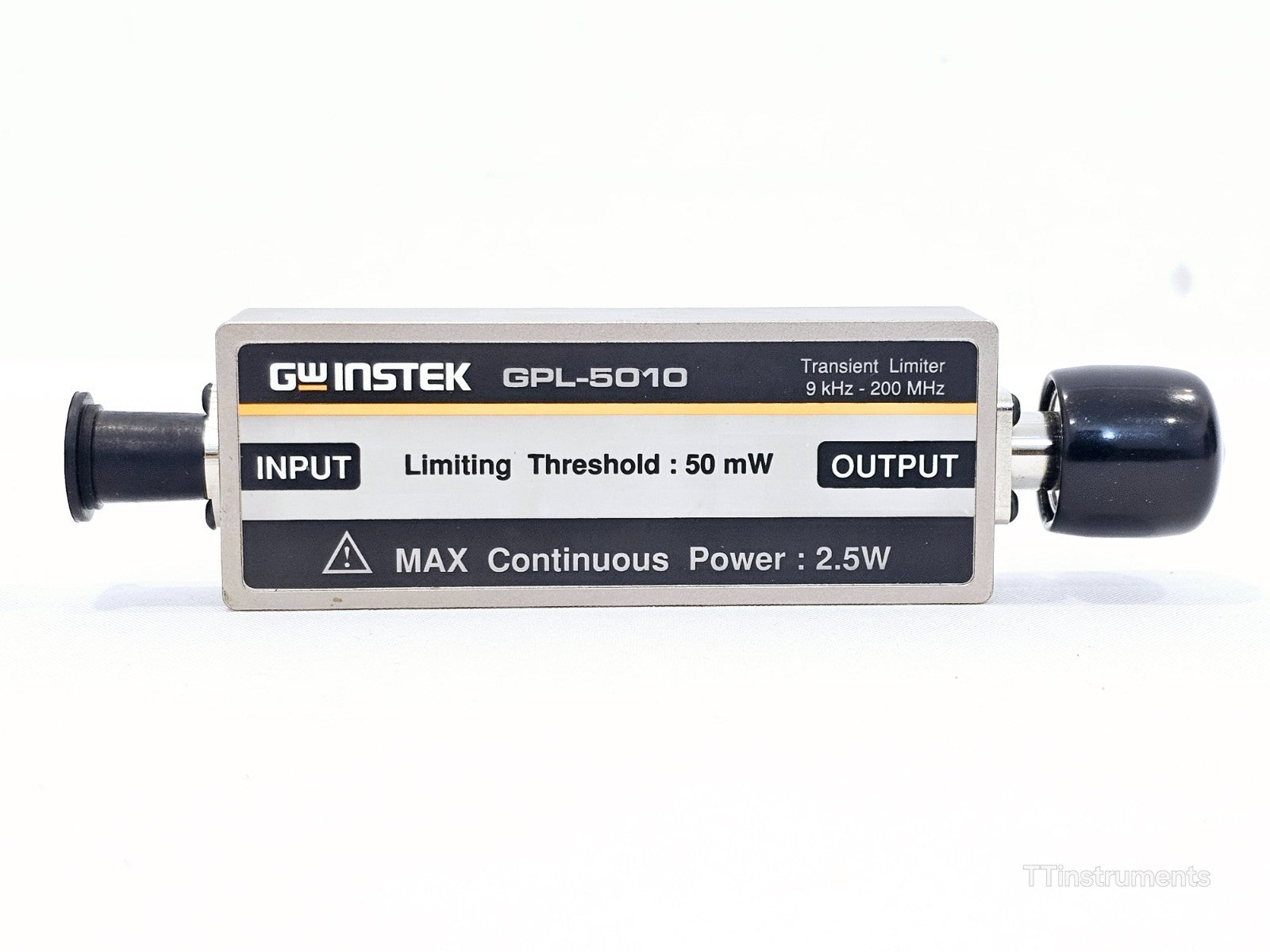

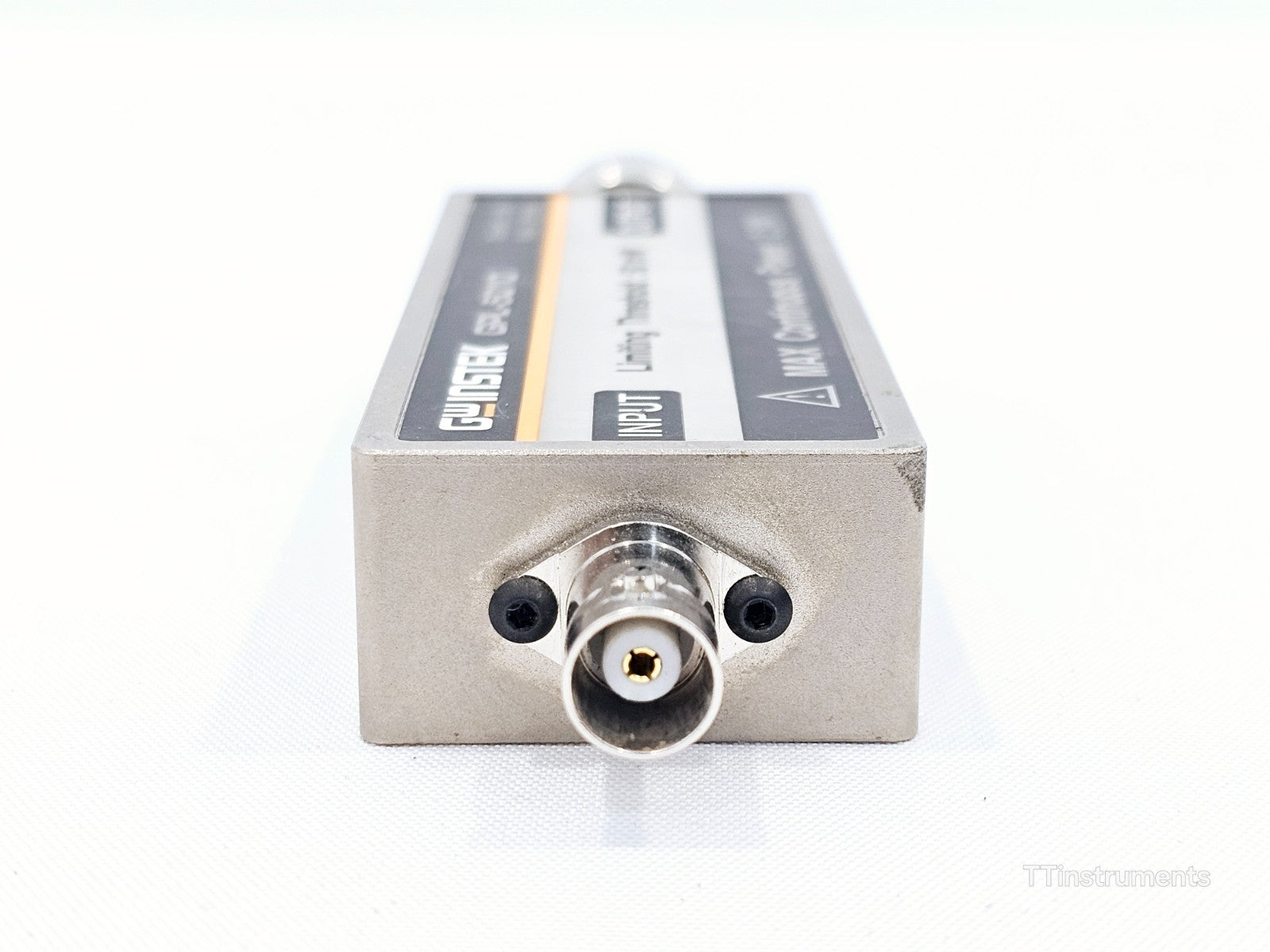

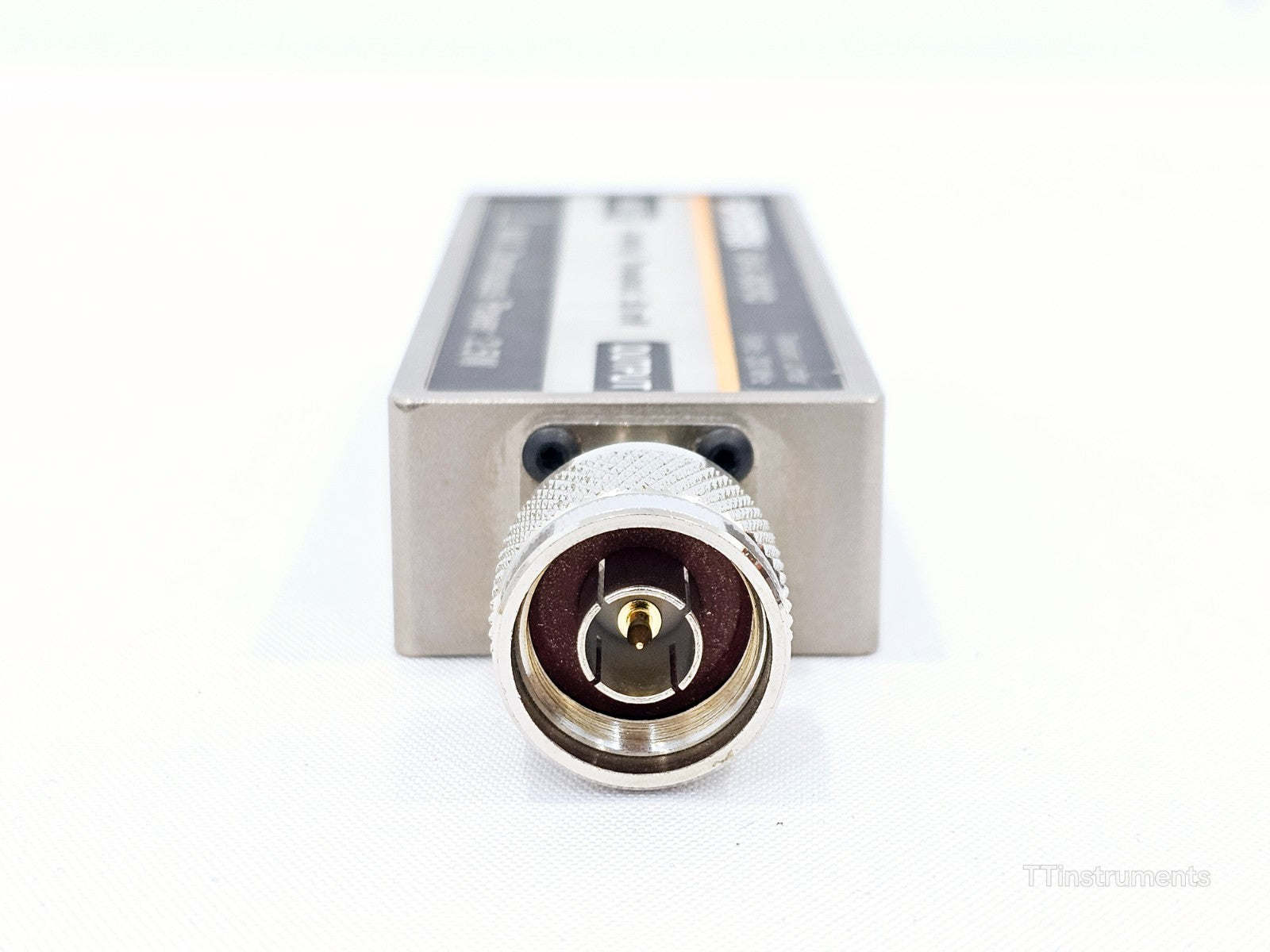

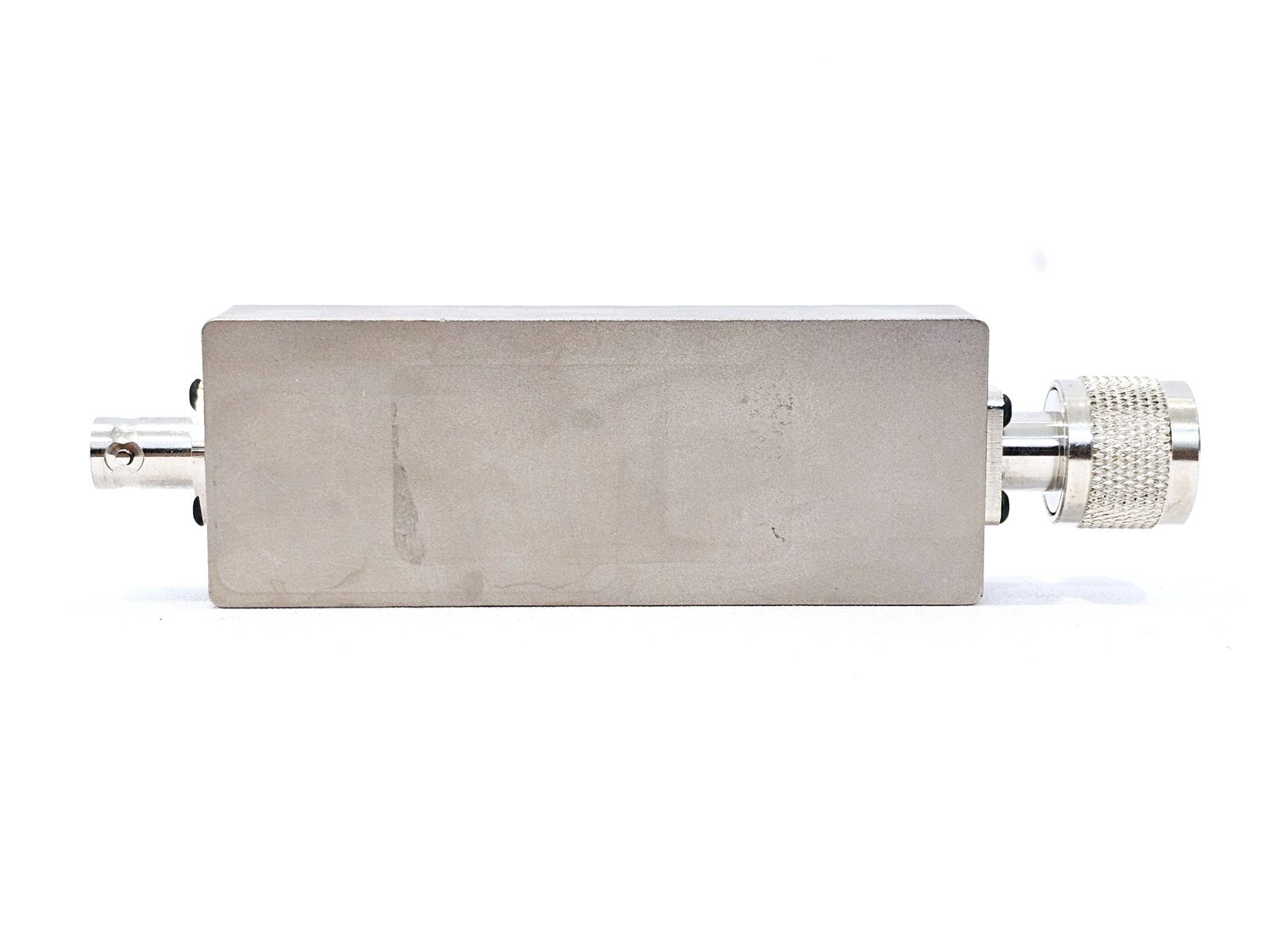

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The GW Instek GPL-5010 is a passive transient limiter designed to safeguard spectrum analysers and associated terminal circuits from high-level transient signals that may occur during EMI testing. It is an essential protection accessory for engineers working in EMC/EMI compliance testing environments.

When used in conjunction with the GW Instek GLN-5040A Two Line V-Network (LISN), the GPL-5010 forms a complete EMI test system suitable for conducted emissions measurements. The BNC(F) to N(M) connector configuration makes it directly compatible with the GW Instek GSP-9330 Spectrum Analyzer.

Key Specifications:
Product Type: Transient Limiter
Connector Interface: BNC Female to N Male
Compatible Instrument: GW Instek GSP-9330 Spectrum Analyzer
Primary Function: Protection of spectrum analyser input from transient overload signals
Typical Applications: EMI/EMC testing, power supply design, inverter and transformer design, LED illumination testing
Complementary Accessory: GW Instek GLN-5040A Two Line V-Network

Please refer to the GW Instek manufacturer website for full technical specifications.
