Condition: Used — Tested and fully functional. Cosmetic imperfections are present but do not affect performance.

The GW Instek GDM-396 is a 3¾-digit true-RMS handheld digital multimeter from the GDM-300/400 Series, featuring an RS-232C interface for data logging and remote control. The unit supports auto/manual ranging, capacitance and frequency measurement, continuity and diode testing, and includes a backlit display for use in low-light field environments.

Included in the sale:

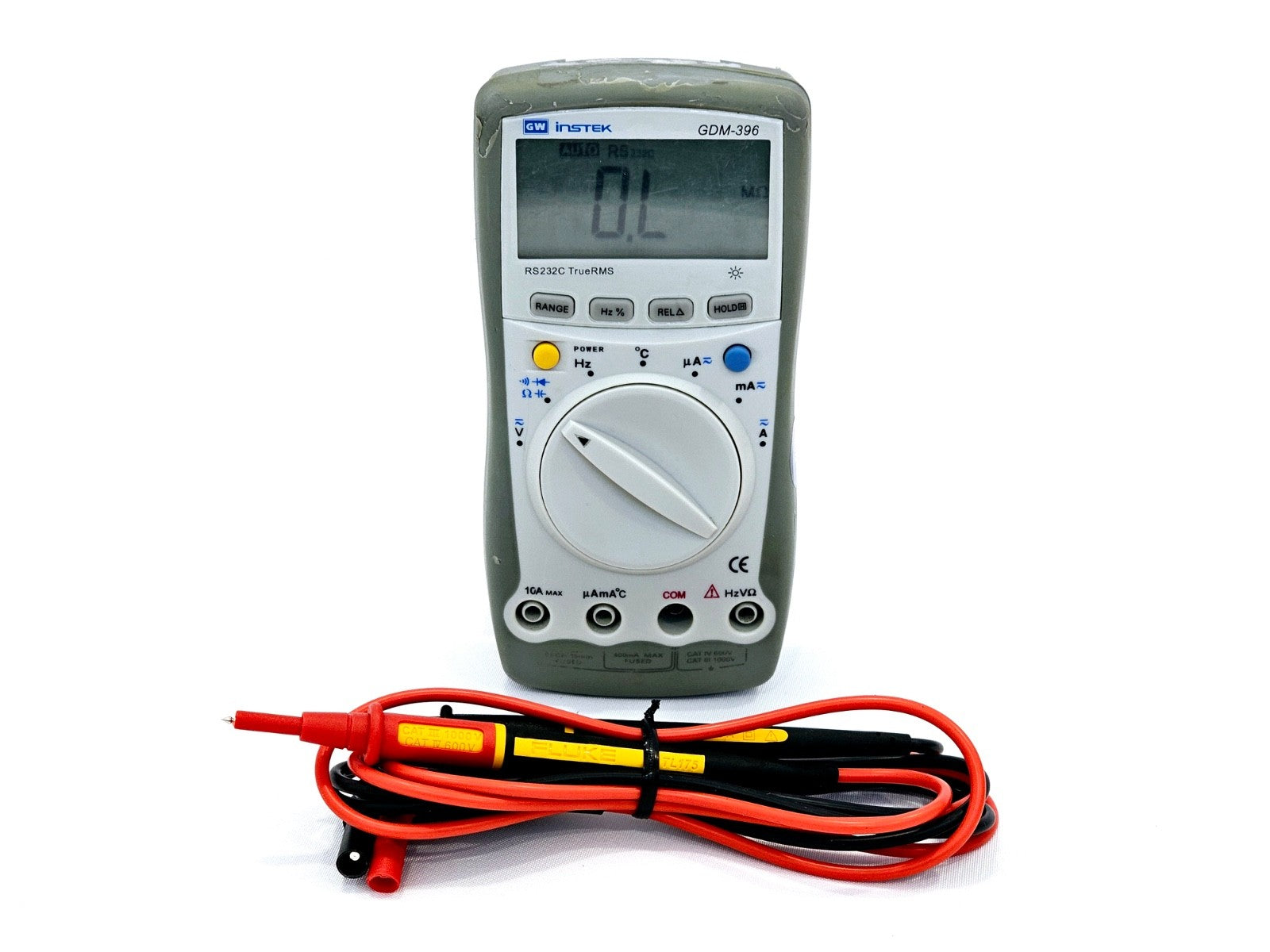

• GW Instek GDM-396 digital multimeter
• Fluke test leads

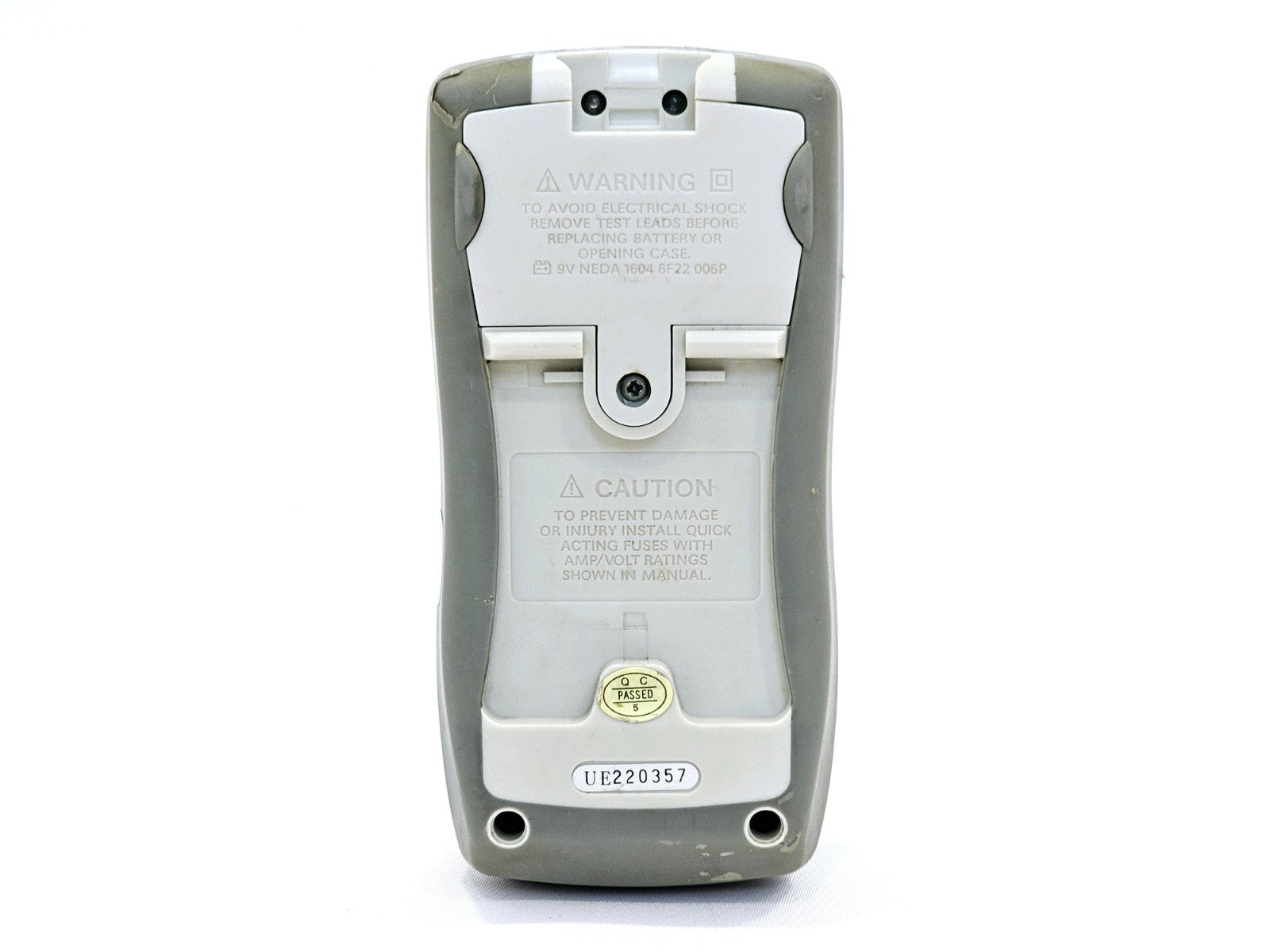

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The GW Instek GDM-396 is a 3¾-digit handheld digital multimeter from the GDM-300/400 Series, designed for general service, fieldwork, and bench use. Its true-RMS measurement capability ensures accurate AC voltage and current readings even on distorted or non-sinusoidal waveforms. The built-in RS-232C interface allows the meter to be connected to a PC for data logging and remote control, making it suitable for automated test applications.

Key features include auto and manual ranging, backlit LCD display, capacitance and frequency measurement, continuity buzzer, and diode test. The compact and rugged handheld form factor makes the GDM-396 well suited for both laboratory and field environments.

Specifications:
Display: 3¾-digit LCD with backlight
True RMS: Yes
Interface: RS-232C
DC Voltage: 400mV / 4V / 40V / 400V / 1000V
AC Voltage: 400mV / 4V / 40V / 400V / 750V (True RMS)
DC Current: 400µA / 4mA / 40mA / 400mA / 4A / 10A
AC Current: 400µA / 4mA / 40mA / 400mA / 4A / 10A (True RMS)
Resistance: 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ
Capacitance: 4nF / 40nF / 400nF / 4µF / 40µF / 200µF
Frequency: 4kHz / 40kHz / 400kHz / 4MHz / 40MHz
Additional Functions: Continuity, diode test, data hold, relative mode
Power: 9V battery

Please refer to the GW Instek website for full and up-to-date specifications.

Please refer to the manufacturers website for more information.
