Condition: New Other — not in original packaging, like new, supplied as pictured.

The GW Instek AFG-2225 is a dual-channel arbitrary function generator offering 25 MHz frequency bandwidth with 1 µHz resolution and 10 Vpp output amplitude on both channels. Both channels share identical characteristics, making this instrument well suited to differential and IQ signalling applications. Built-in waveforms include Sine, Square, Ramp (Triangle) and Noise, with a 1%–99% adjustable duty cycle on the Square waveform for use as a pulse source. The 66 built-in arbitrary waveforms can be edited or entirely new waveforms created. Modulation modes include AM, FM, PM, FSK and SUM, alongside Sweep, Burst and Frequency Counter functions. A 3.5-inch colour LCD provides clear waveform and parameter display, and USB Host/Device interfaces allow direct connection to a PC or compatible GW Instek GDS-series oscilloscopes for waveform capture and reconstruction.

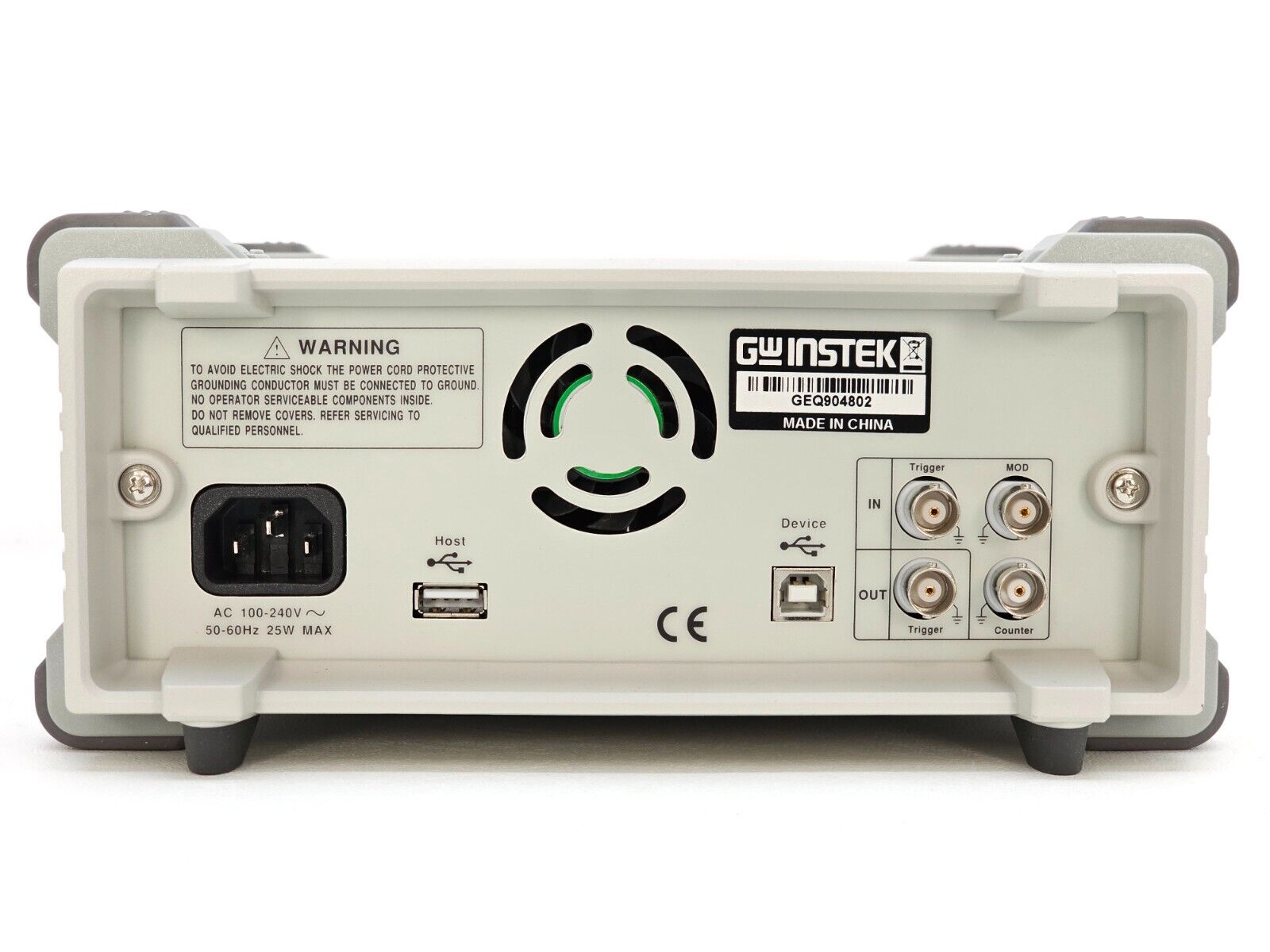

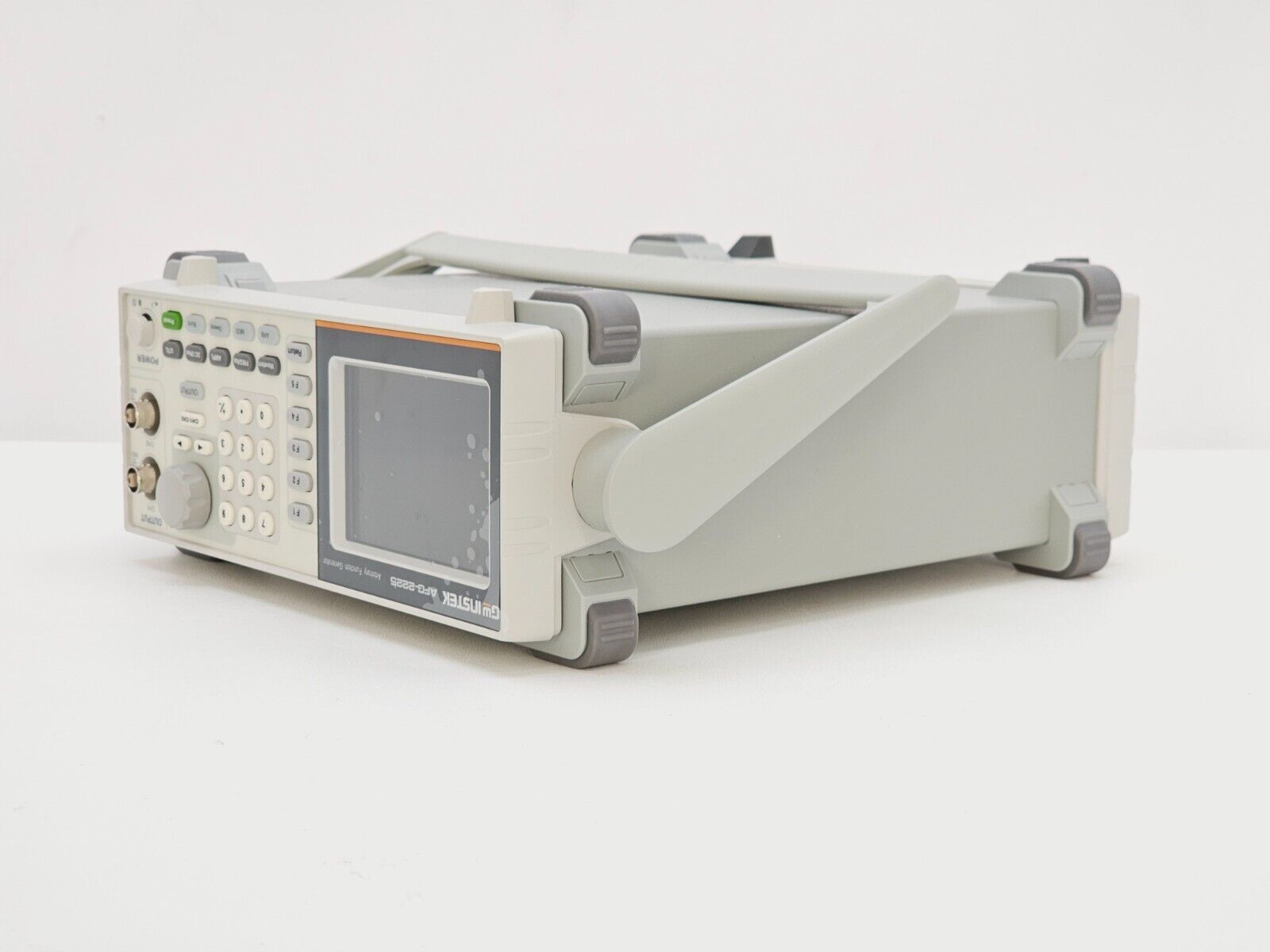

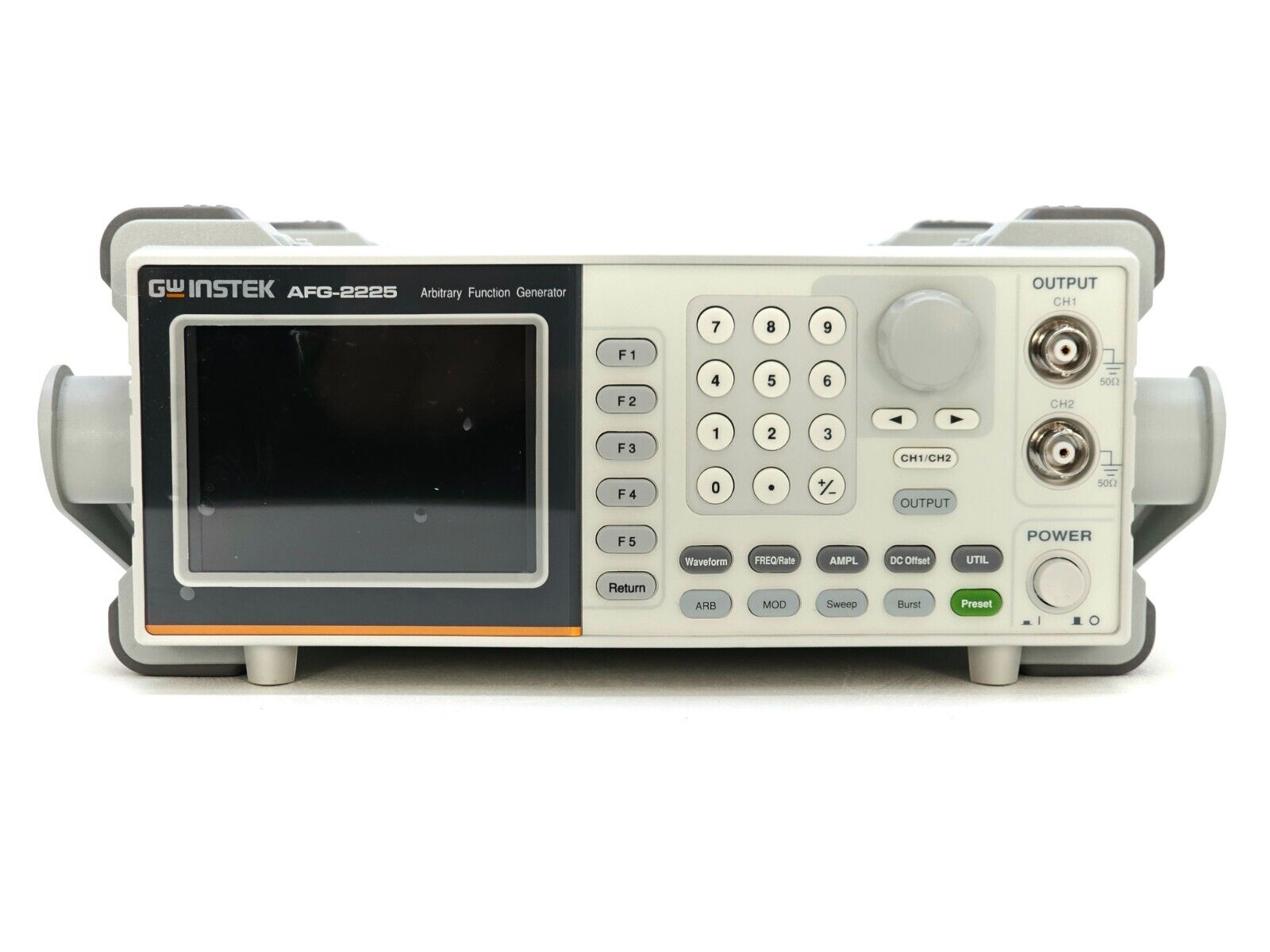

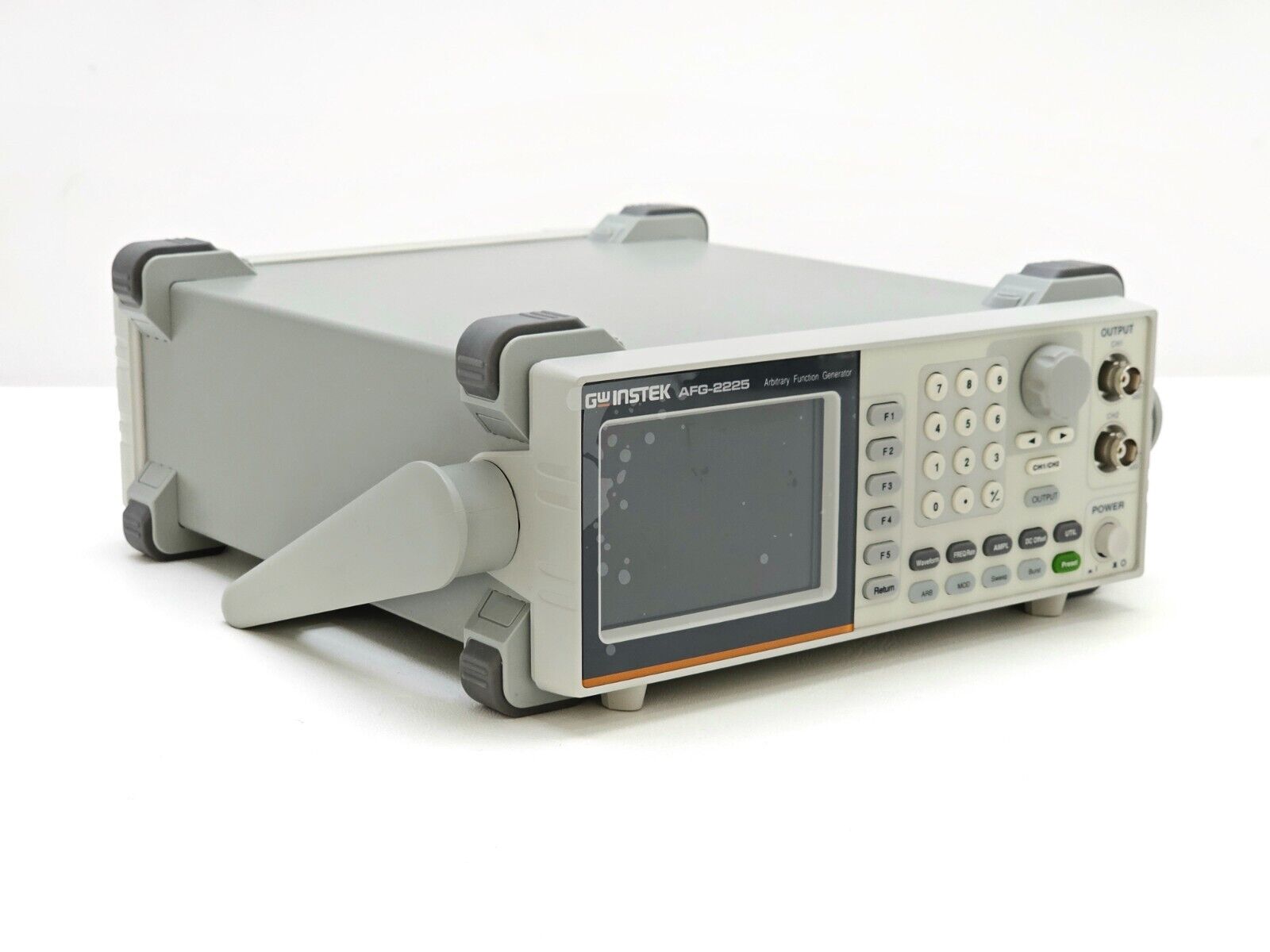

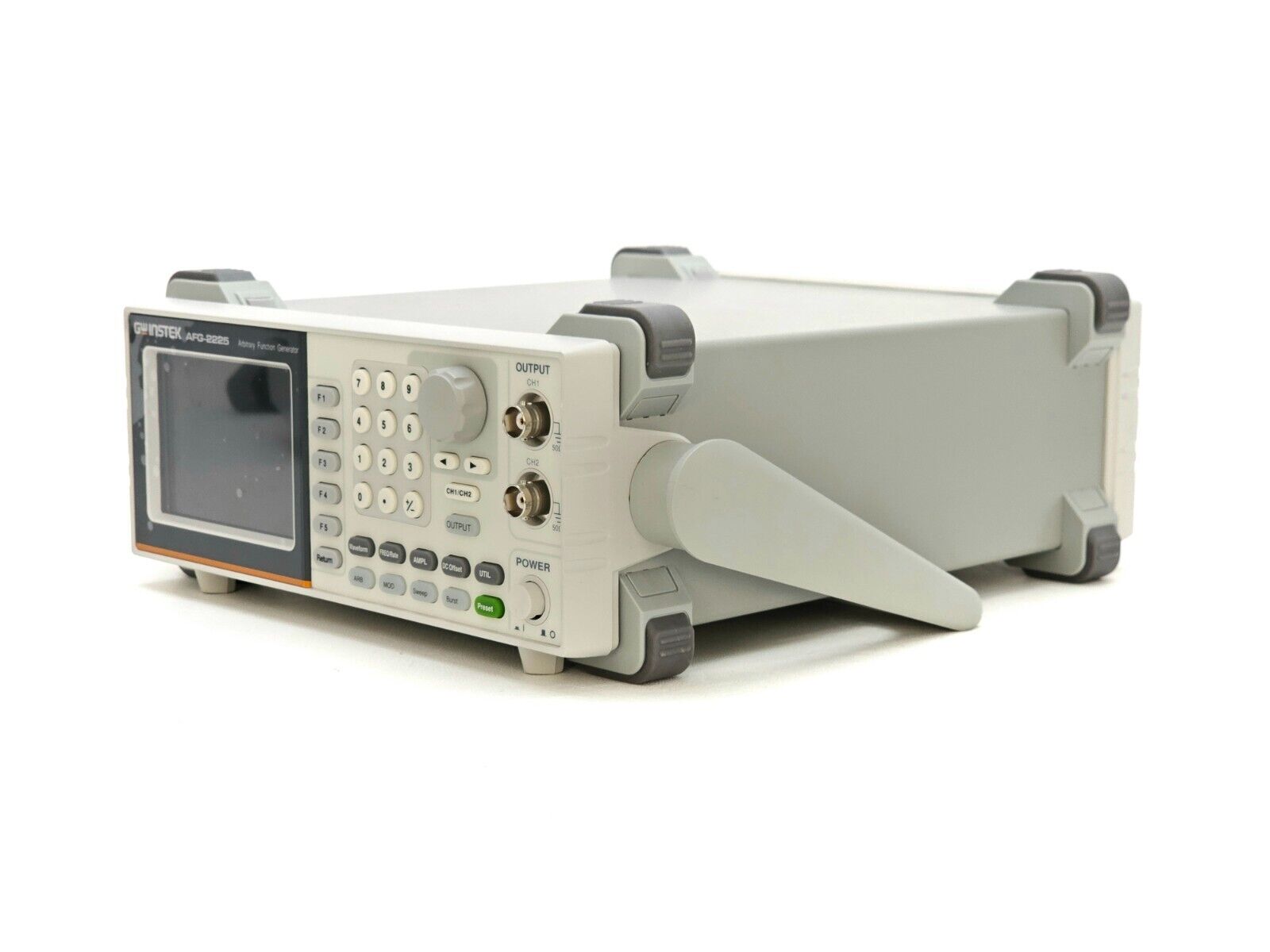

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

GW Instek AFG-2225 — Dual-Channel Arbitrary Function Generator

The GW Instek AFG-2225 is a basic-level dual-channel arbitrary function generator that delivers superior features for its class. Both channels are equipped with identical characteristics to support dual-signal applications such as differential or IQ signalling. Its outstanding cost-to-performance ratio makes it a practical instrument for accelerating the development process across education, R&D, and production environments.

The AFG-2225 features AM, FM, PM, FSK and SUM modulation, Sweep, Burst and Frequency Counter functions applicable to a wide range of communication fields. Its intuitive interface and 3.5-inch colour LCD display comprehensive operation information including the true waveform at the output. USB Host and Device interfaces allow the instrument to link with PCs and GW Instek GDS-series Digital Storage Oscilloscopes, enabling captured waveforms to be reconstructed and replayed. Arbitrary waveforms can be created using the PC software and transferred via USB flash drive.

Key Specifications:
Channels: 2 (identical characteristics)
Frequency Range: 1 µHz to 25 MHz
Frequency Resolution: 1 µHz
Output Amplitude: 10 Vpp
Built-in Waveforms: Sine, Square, Ramp (Triangle), Noise
Arbitrary Waveforms: 66 built-in, user-editable
Square Duty Cycle: 1% to 99% adjustable
Modulation: AM, FM, PM, FSK, SUM
Additional Functions: Sweep, Burst, Frequency Counter
Display: 3.5-inch colour LCD
Interfaces: USB Host, USB Device
Impedance: Switchable output impedance function
Waveform Memory: Editable via front panel or PC software

GW Instek AFG-2225 User Manual (PDF): Download PDF

GW Instek AFG-2225 Datasheet (PDF): Download PDF
