Condition: Used

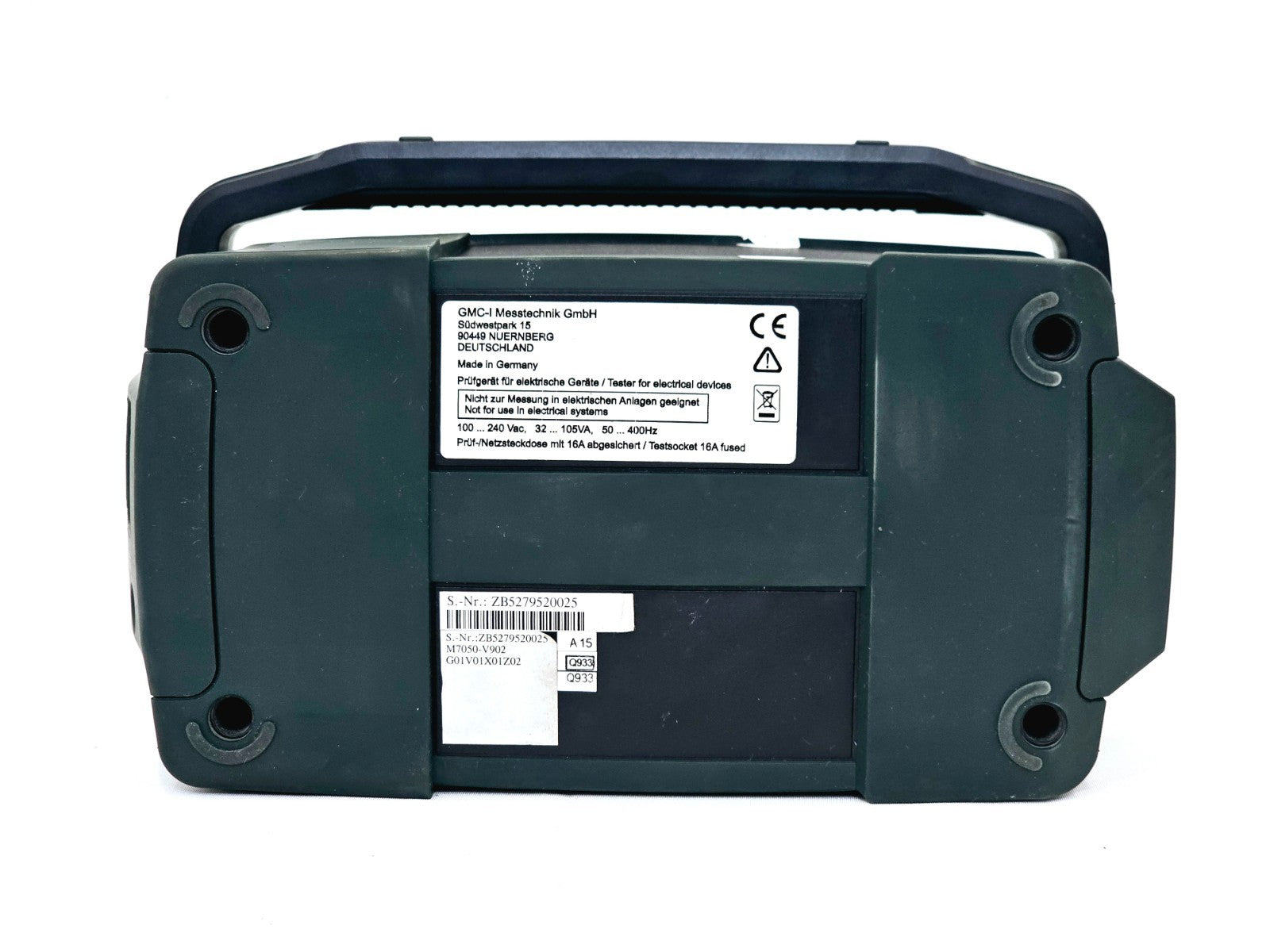

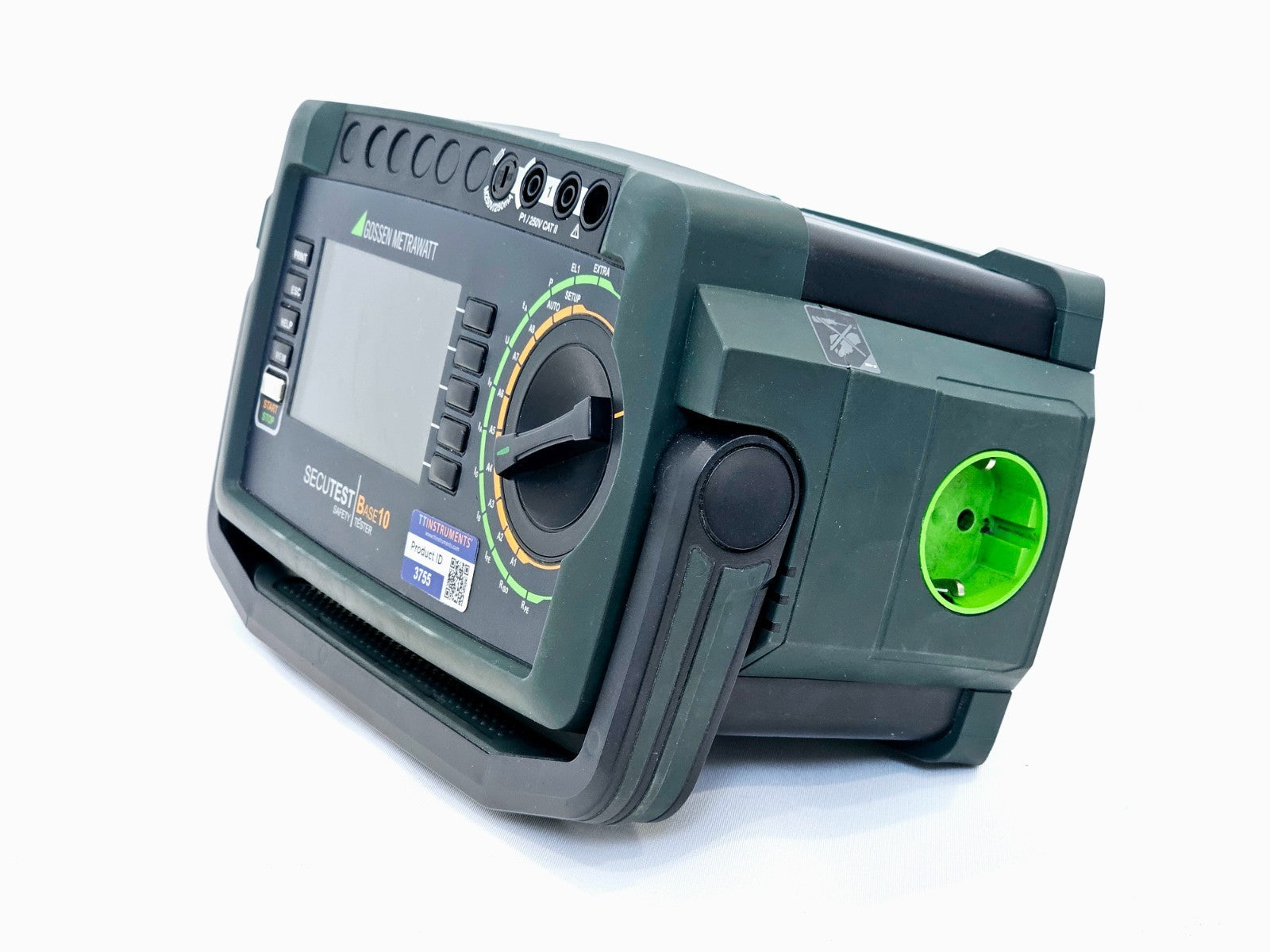

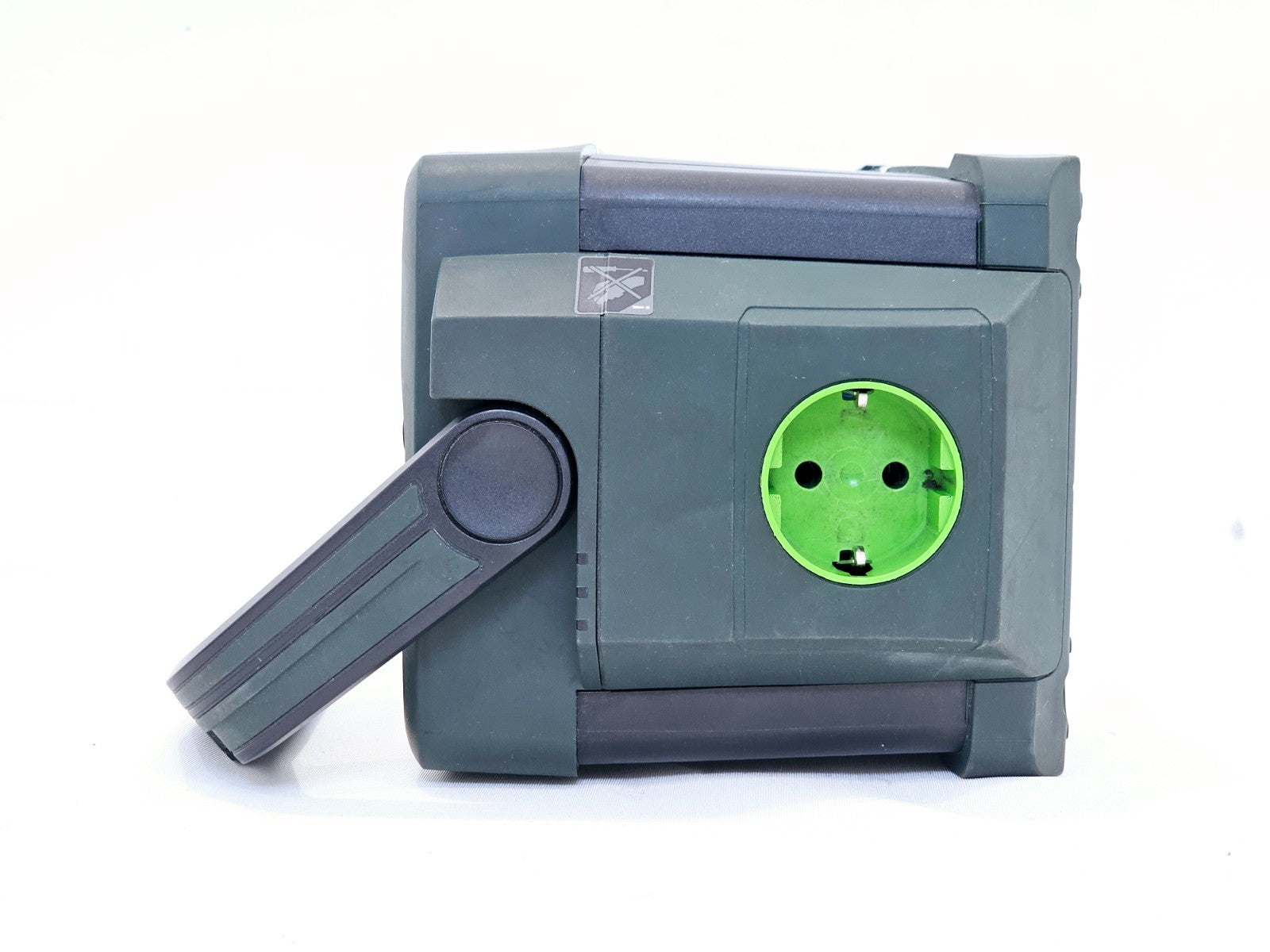

This Gossen Metrawatt SECUTEST Base 10 (M7050-V902) is a fully functional electrical safety tester in used condition with cosmetic imperfections that do not affect performance. The unit features serial number ZB5279520025 and is manufactured by GMC-I Messtechnik GmbH, Nuremberg, Germany. The rear label confirms mains input of 100–240 Vac, 32–105 VA, 50–400 Hz.

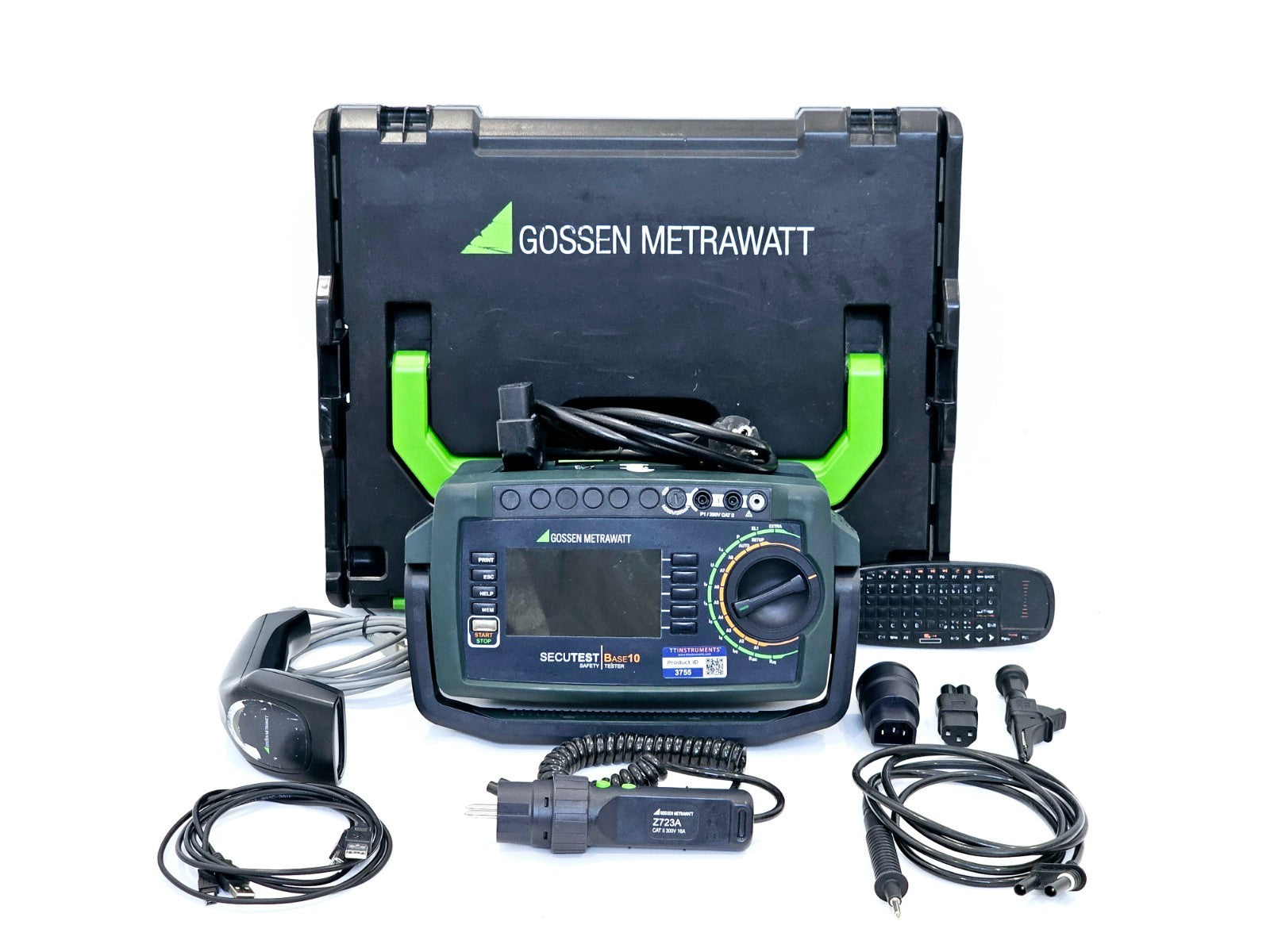

Included in the sale:

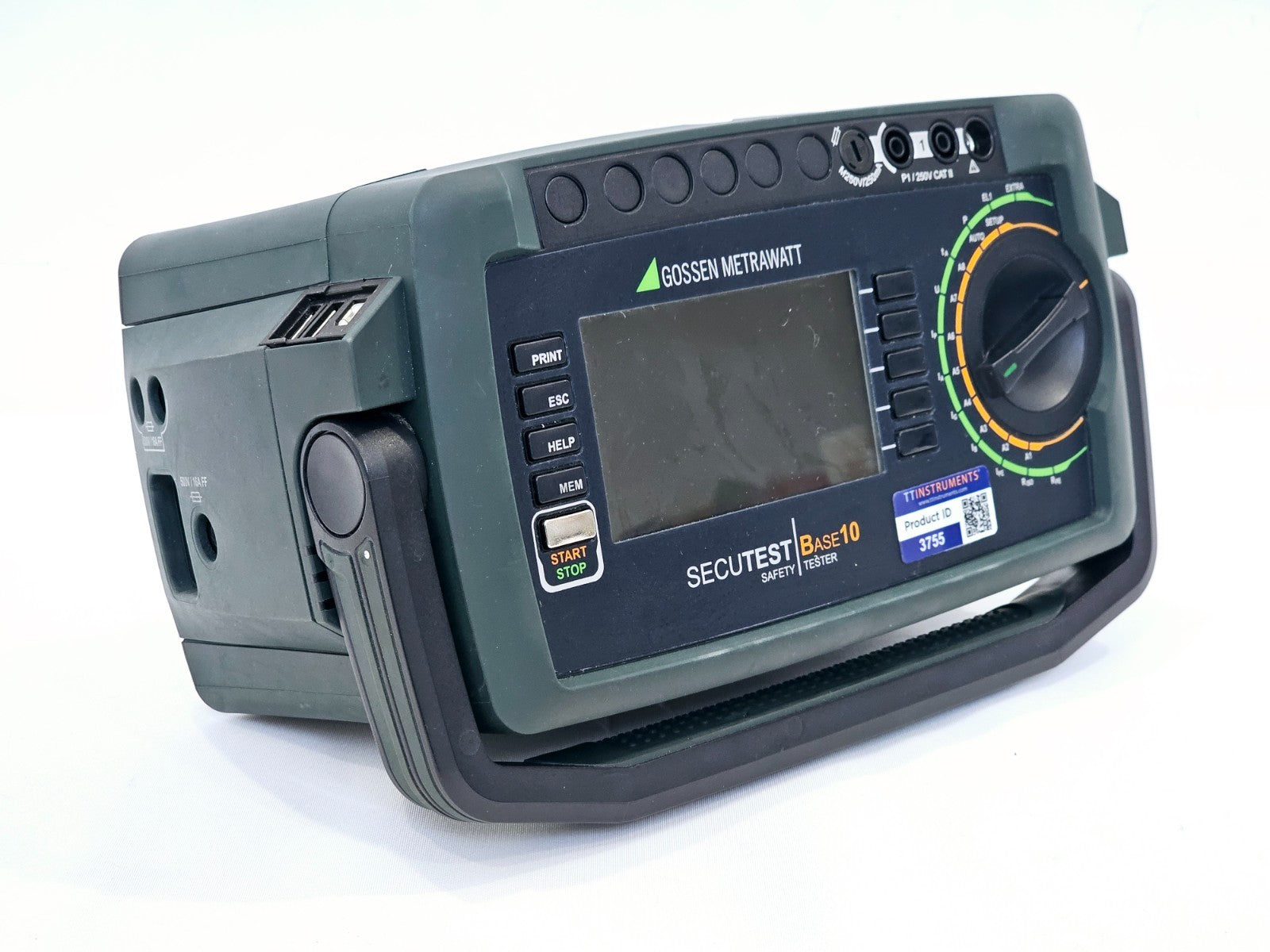

• Gossen Metrawatt SECUTEST Base 10 (M7050-V902) main unit

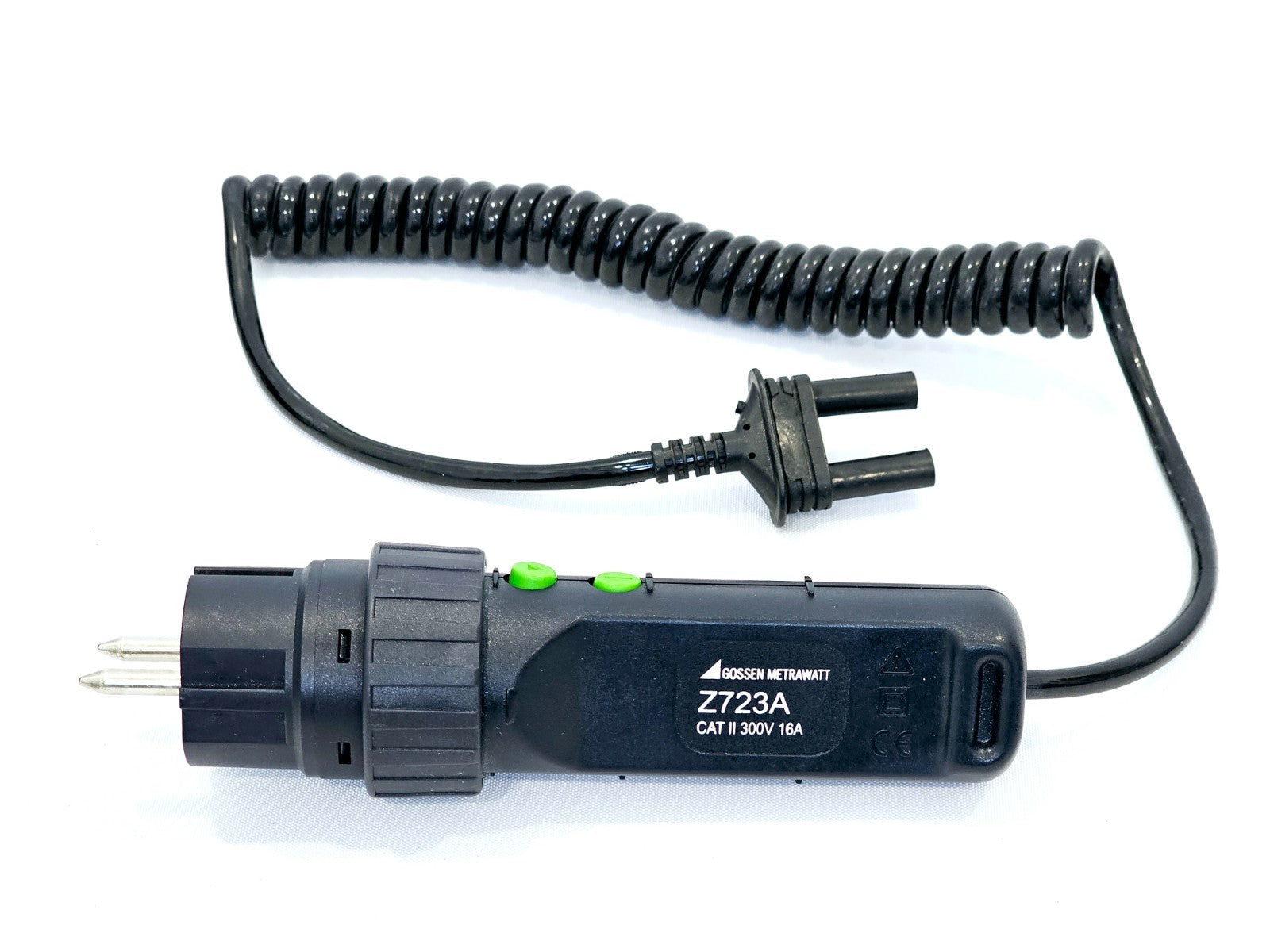

• Gossen Metrawatt Z723A test probe adapter (CAT II 300V 16A) with coiled lead

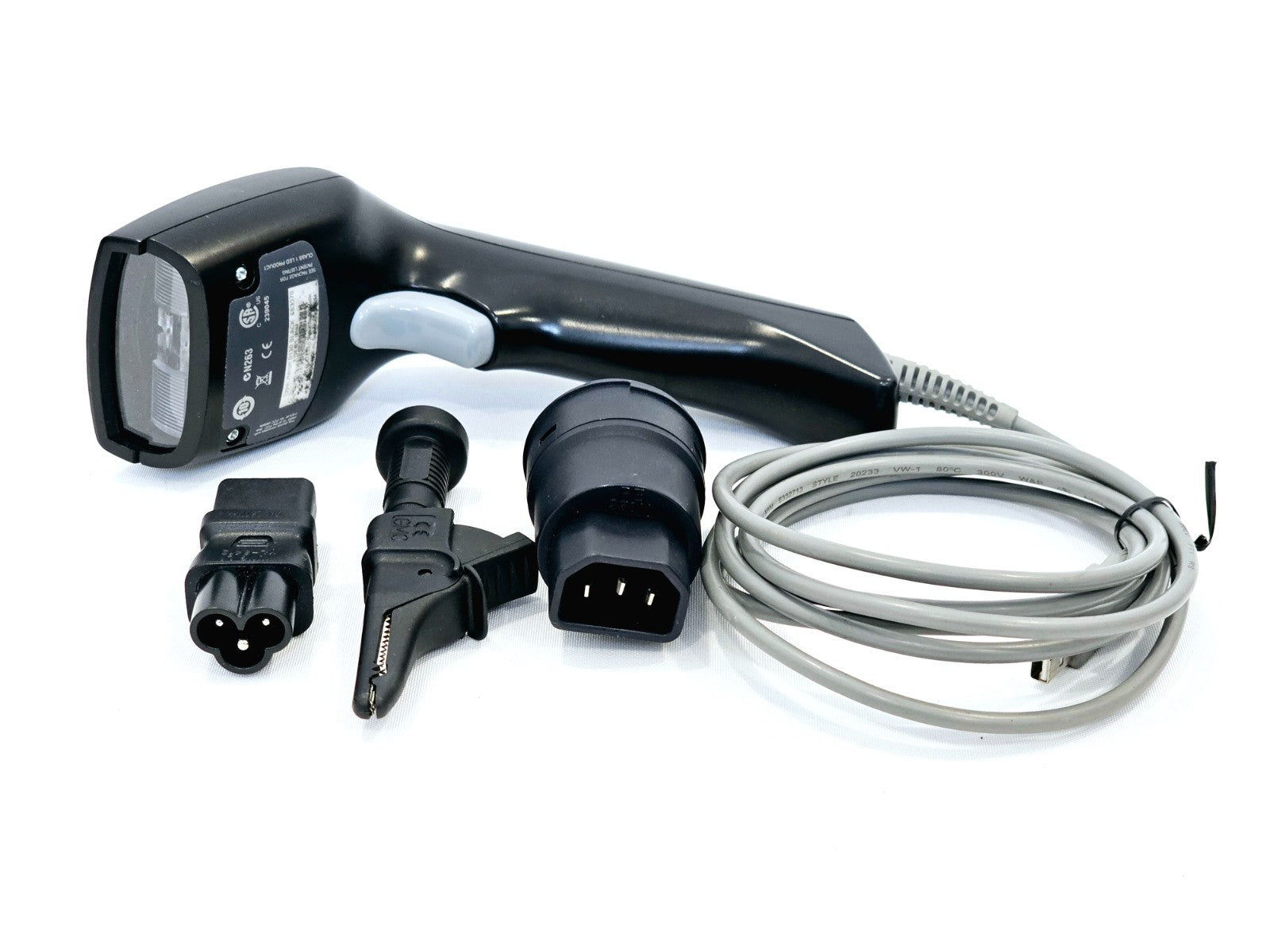

• Barcode scanner

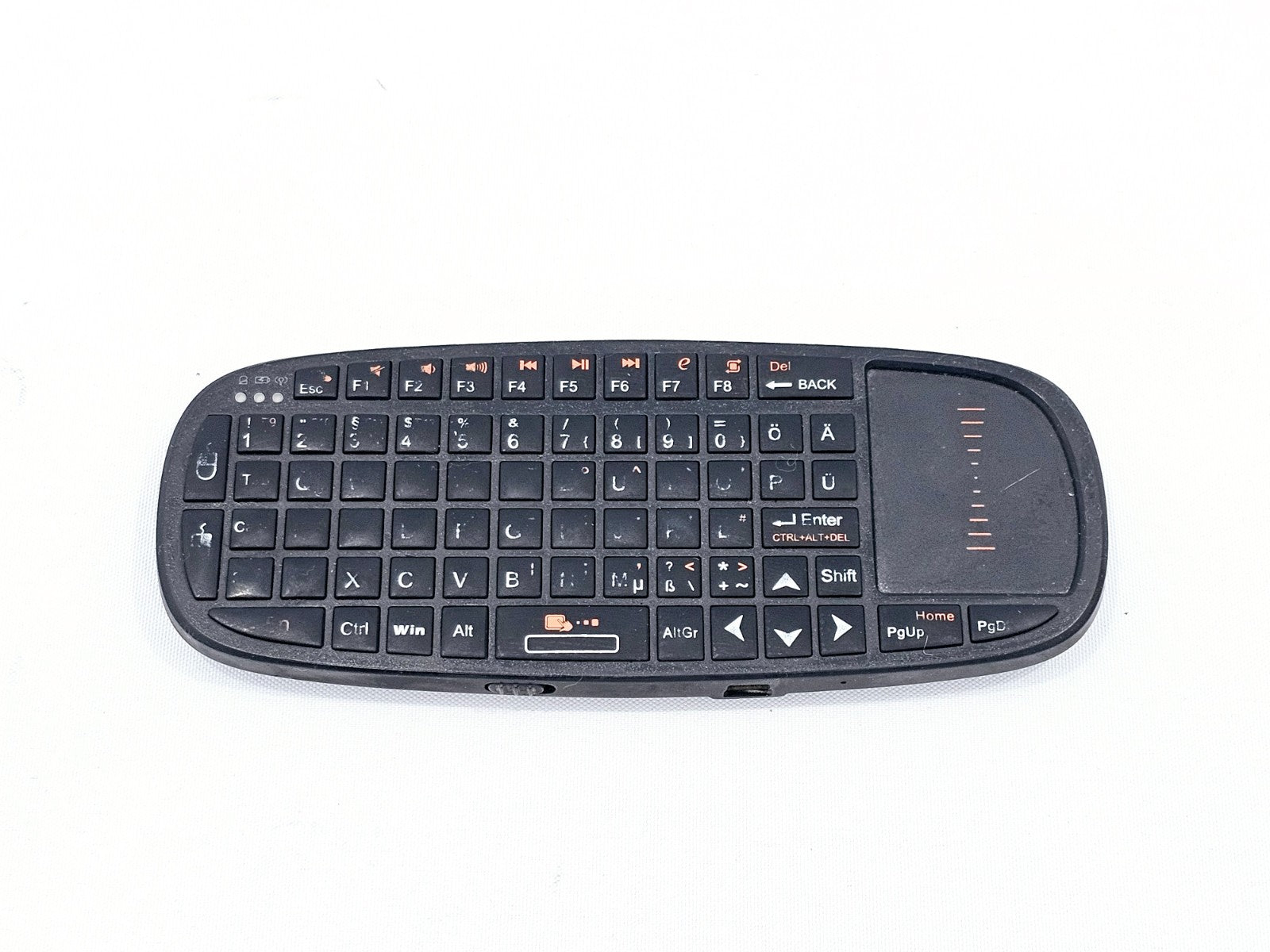

• Mini wireless air mouse / keyboard remote

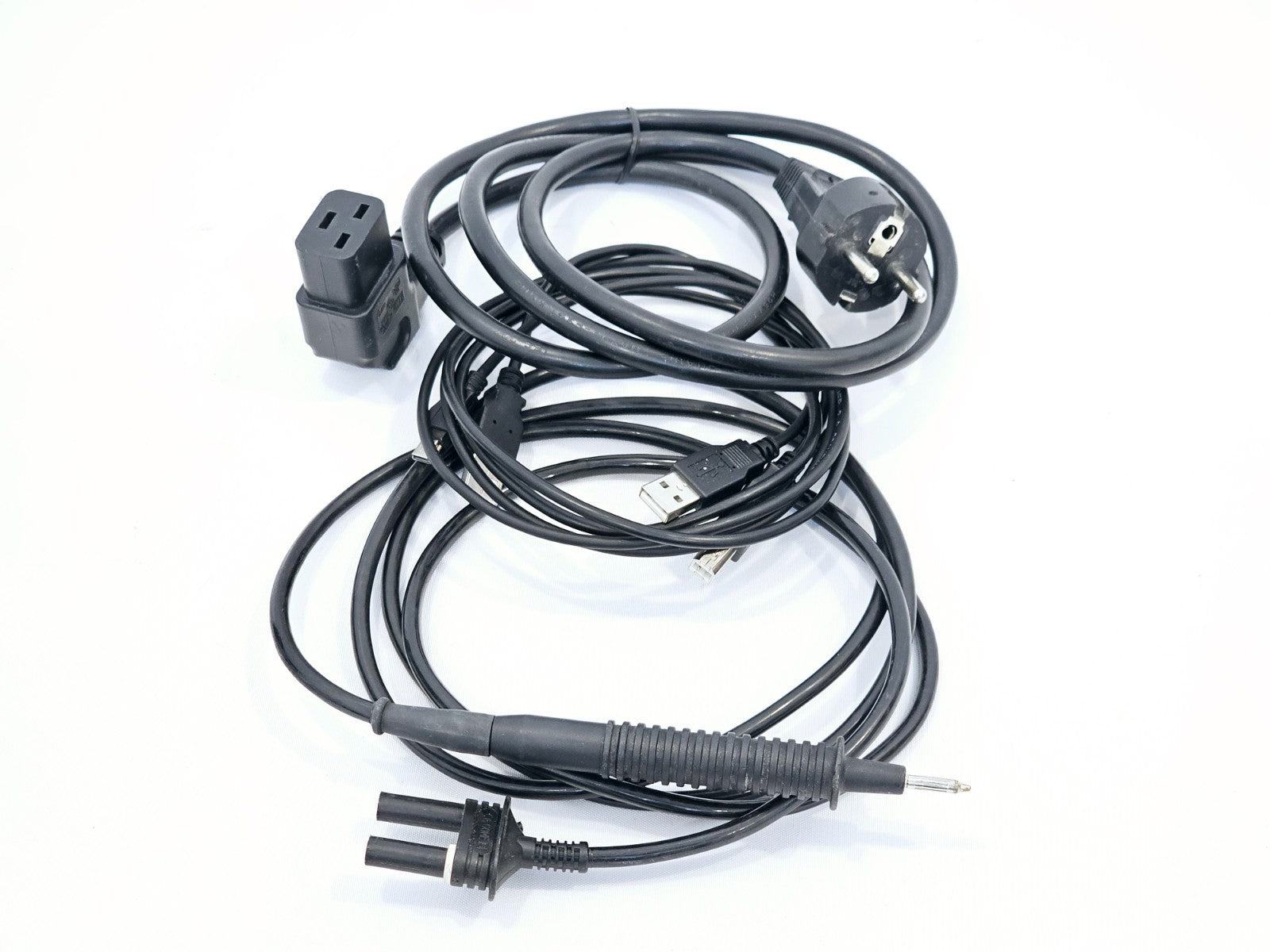

• USB cable
• Mains power cable
• IEC C14 test socket adapter
• Additional probe/connector adapters (as pictured)
• Gossen Metrawatt branded hard carry case (Systainer style)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Gossen Metrawatt SECUTEST Base 10 (M7050-V902) is a professional test instrument for measuring the electrical safety of devices, medical equipment, and arc welding units in accordance with DIN VDE 0701-0702, IEC/EN 62353 (VDE 0751), and IEC/EN 60974-4 (VDE 0544-4). The BASE10 variant features a selectable protective conductor test current of 200 mA or 10 A AC, making it suitable for testing a wide range of electrical appliances and equipment.

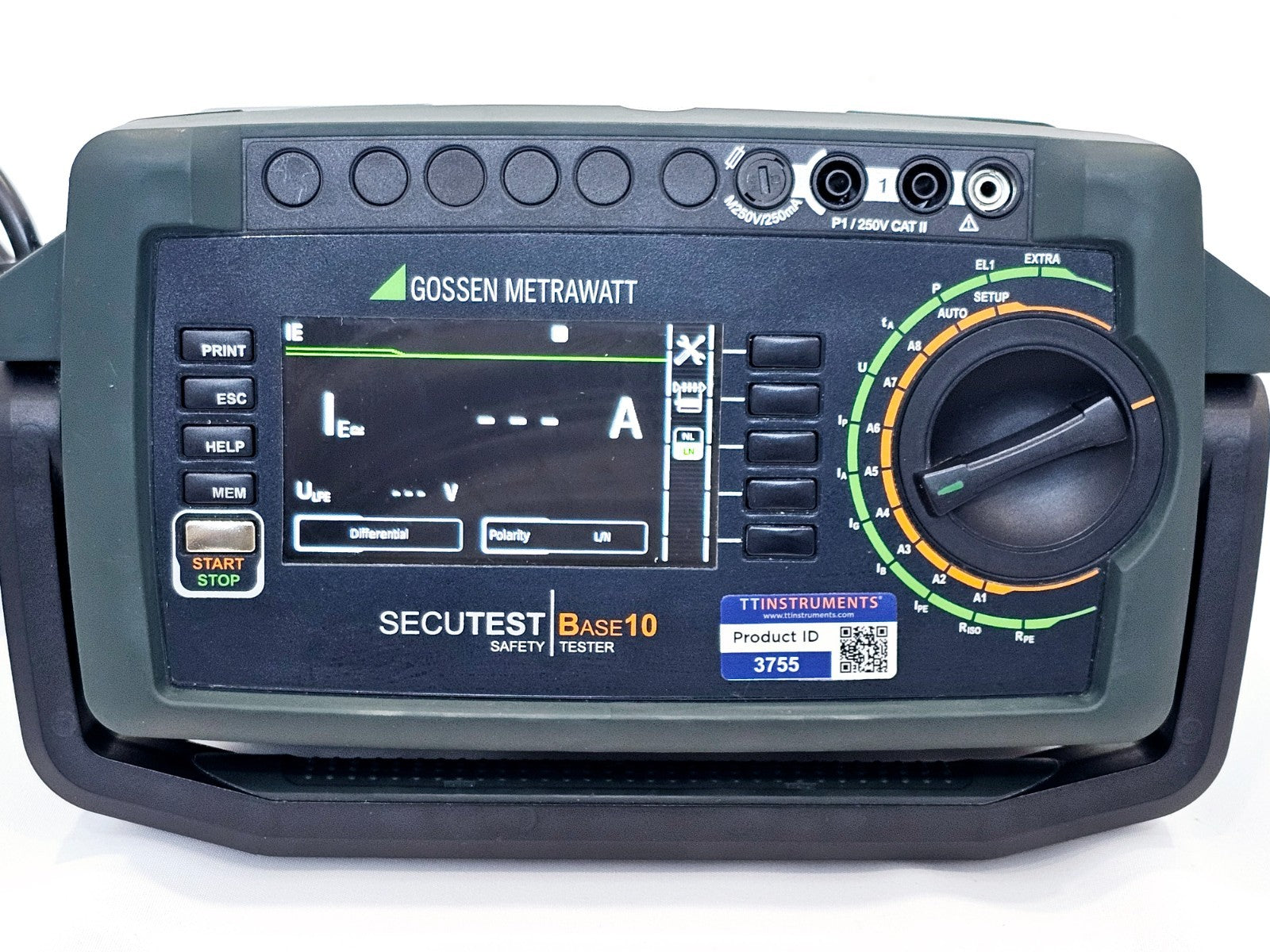

The instrument provides predefined and user-programmable automatic test sequences, enabling fast, repeatable safety testing without requiring specialist knowledge. A high-resolution 4.3" backlit colour TFT display shows menus, measurement results, schematic diagrams, and error messages clearly. Navigation is via a dual-level rotary selector switch combined with direct push buttons and softkeys.

Test functions include protective conductor resistance (RPE), insulation resistance (RISO) at 50–500 V DC, differential leakage current, substitute leakage current, touch leakage current, device leakage current, patient leakage current, and function testing (voltage, power, power factor, residual current). The emergency shutdown activates as soon as differential current exceeds 10 mA (adjustable to 30 mA), providing maximum operator safety.

Data entry is supported via USB-connected barcode reader, RFID scanner, or USB keyboard. Test results can be printed via an optional thermal printer (Z721S) or transferred to a PC using the ETC or IZYTRONIQ software. Firmware updates are performed via the USB slave port.

The M7050-V902 is the Master Package variant, which includes the standard SECUTEST BASE10 equipment plus additional accessories.

Key Specifications:
Model Number: M7050-V902
Protective Conductor Test Current: 200 mA DC or 10 A AC (selectable)
Insulation Resistance Test Voltage: 50 V to 500 V DC
Leakage Current Range: 0 to 30 mA
Leakage Current Resolution: 10 µA
Mains Input Voltage: 100 to 240 V AC
Mains Frequency: 50 to 400 Hz
Power Consumption (instrument): Approx. 32 VA (200 mA DUT) / Approx. 105 VA (10 A DUT)

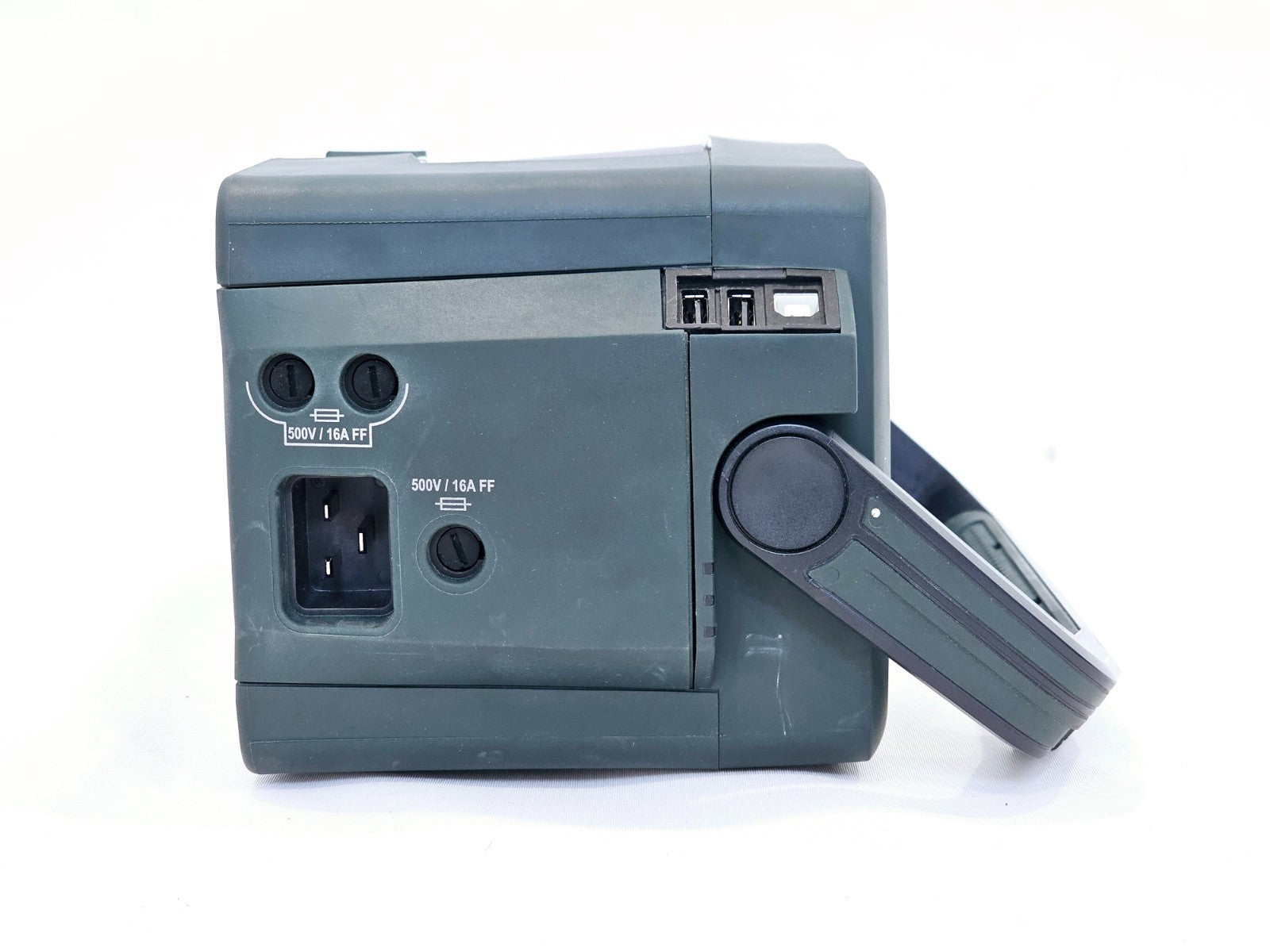

Test Socket Fuse: 500 V / 16 A FF
Display: 4.3" backlit colour TFT
Data Interfaces: USB master (×2), USB slave
Memory: Internal database for test structures and results
Emergency Shutdown: At ≥10 mA differential current (adjustable to 30 mA)
Mains Connection Error Detection: Automatic
Compliance Standards: VDE 0701-0702, IEC/EN 62353, IEC/EN 60974-4
Protection Class: Class I (IEC 61010-1)
Operating Temperature: 0 to +40 °C
Storage Temperature: –20 to +60 °C
Max. Altitude: 2000 m
Relative Humidity: Max. 75%, non-condensing
Country of Manufacture: Germany
Manufacturer: GMC-I Messtechnik GmbH, Südwestpark 15, 90449 Nuremberg, Germany

SECUTEST BASE(10) / PRO and SECULIFE ST BASE(25) — full operating instructions manual (English): Download PDF

SECUTEST ST BASE(10) / PRO and SECULIFE ST BASE(25) — operating instructions manual (English, newer ST series): Download PDF

SECUTEST BASE(10) and PRO — condensed quick start operating instructions (English): Download PDF
