Condition: Used

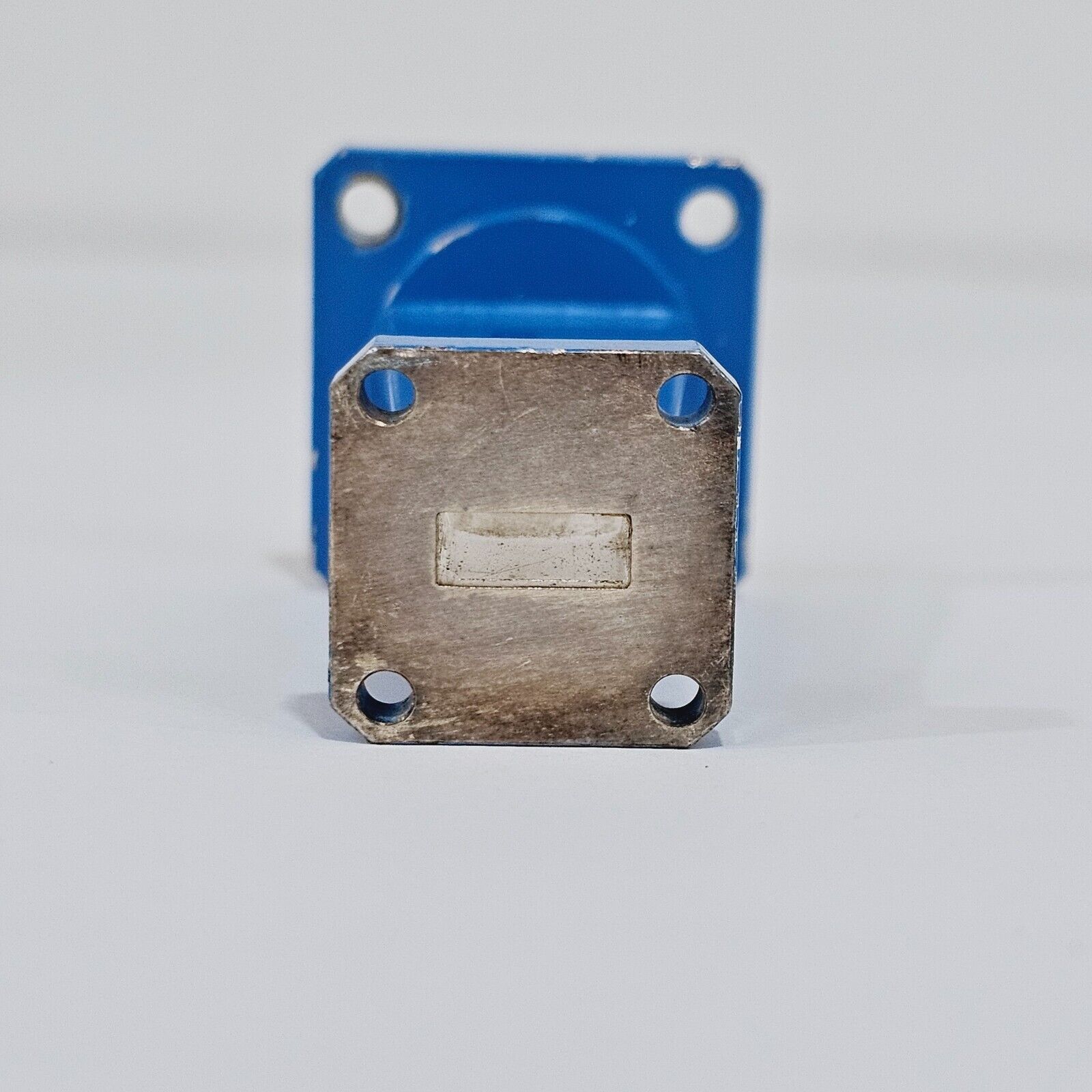

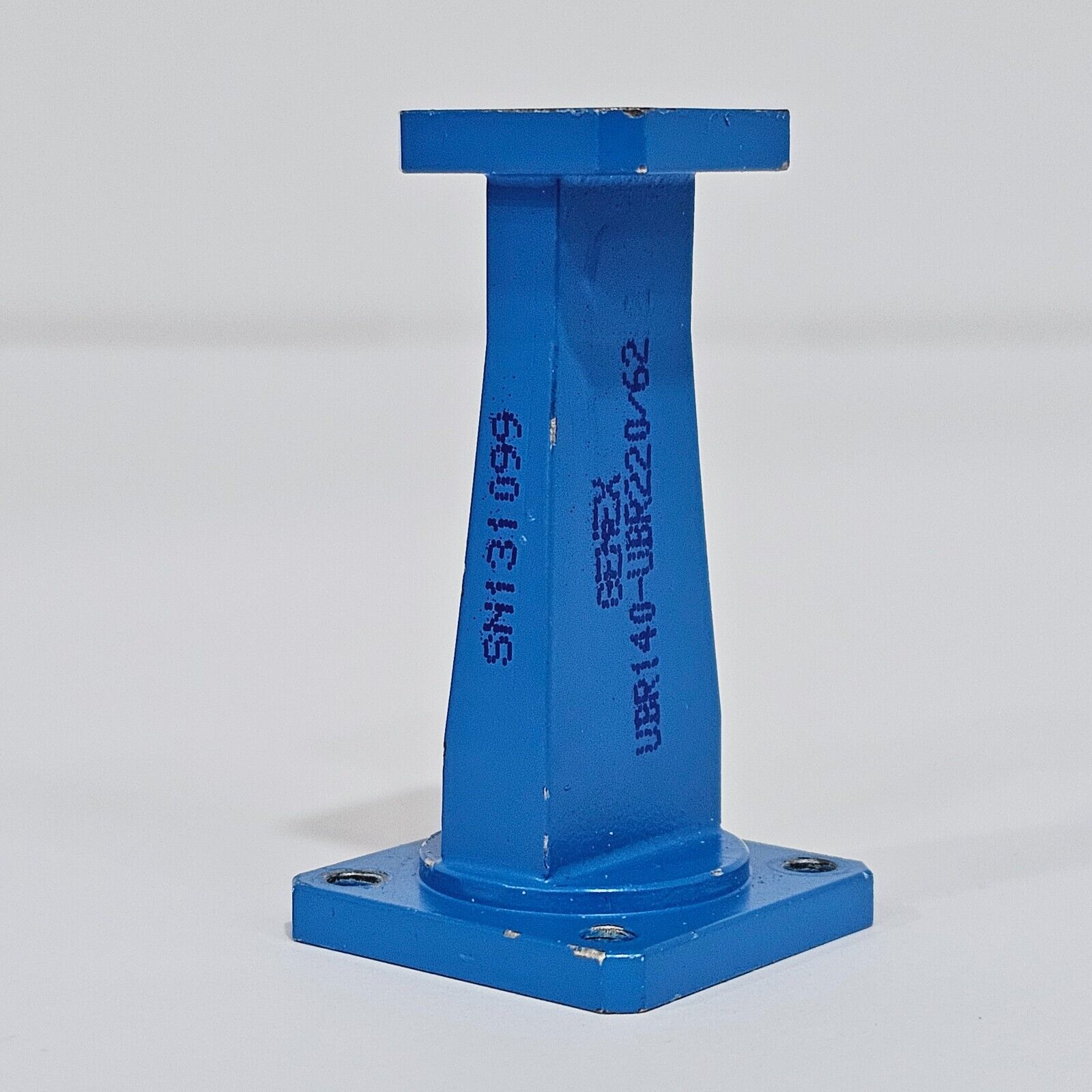

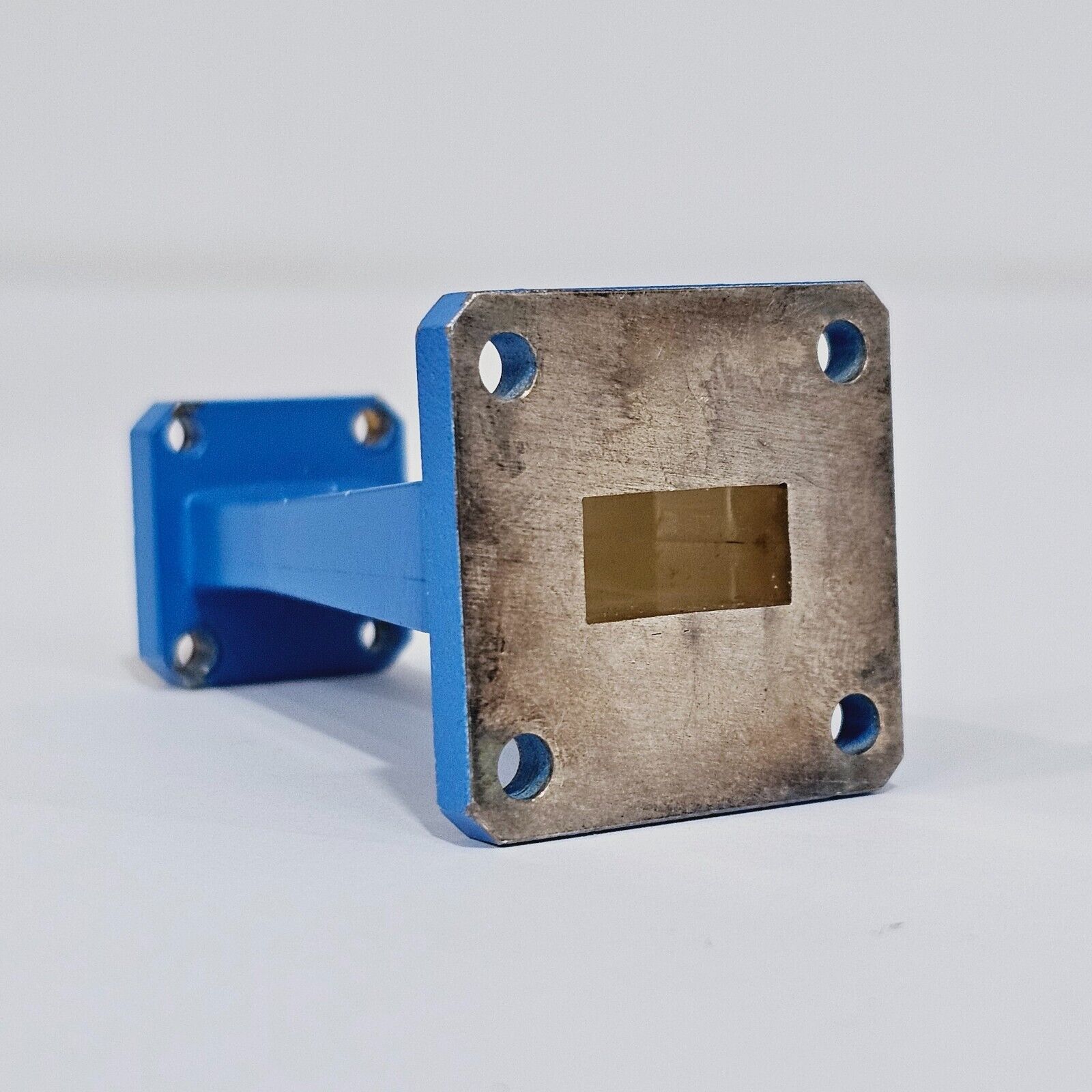

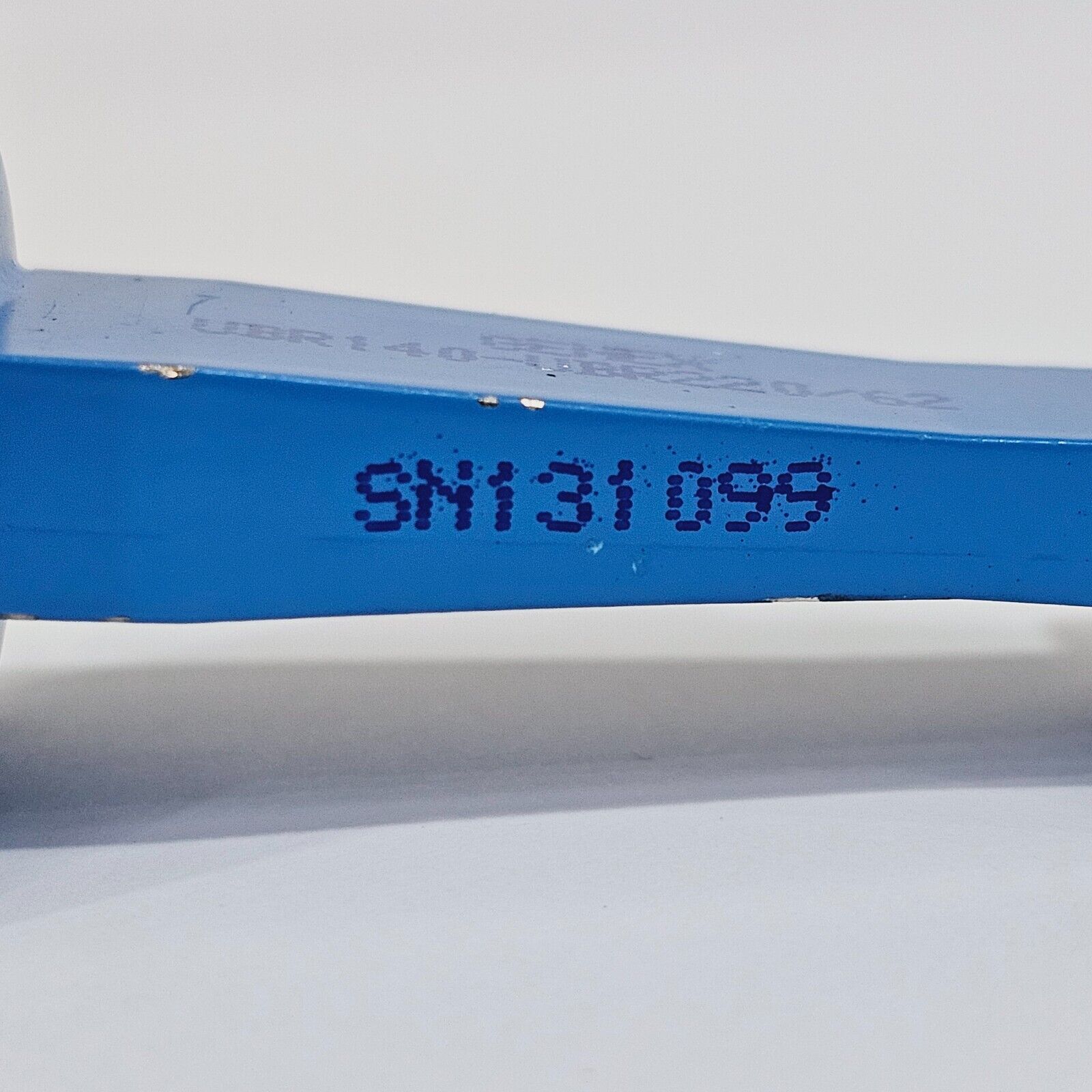

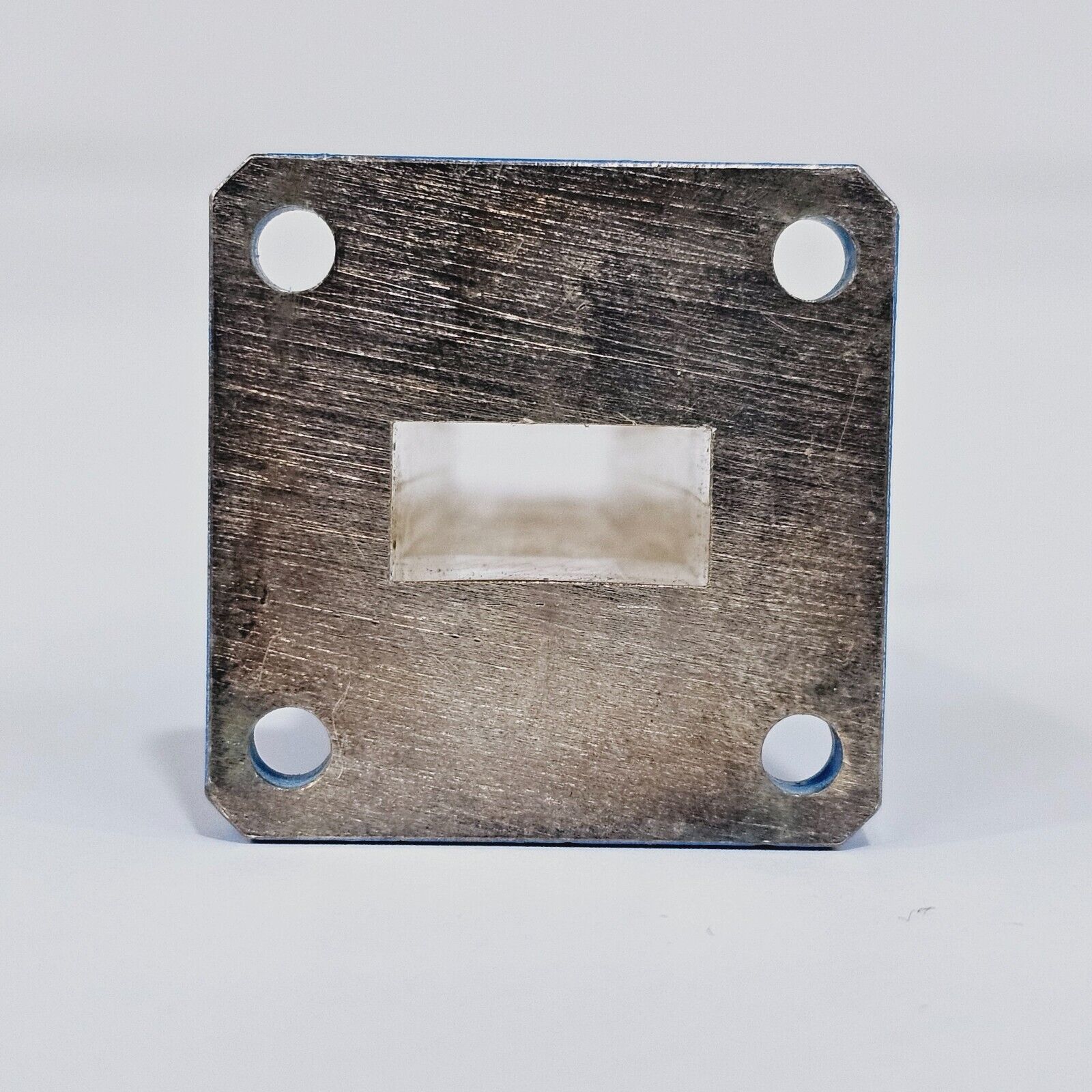

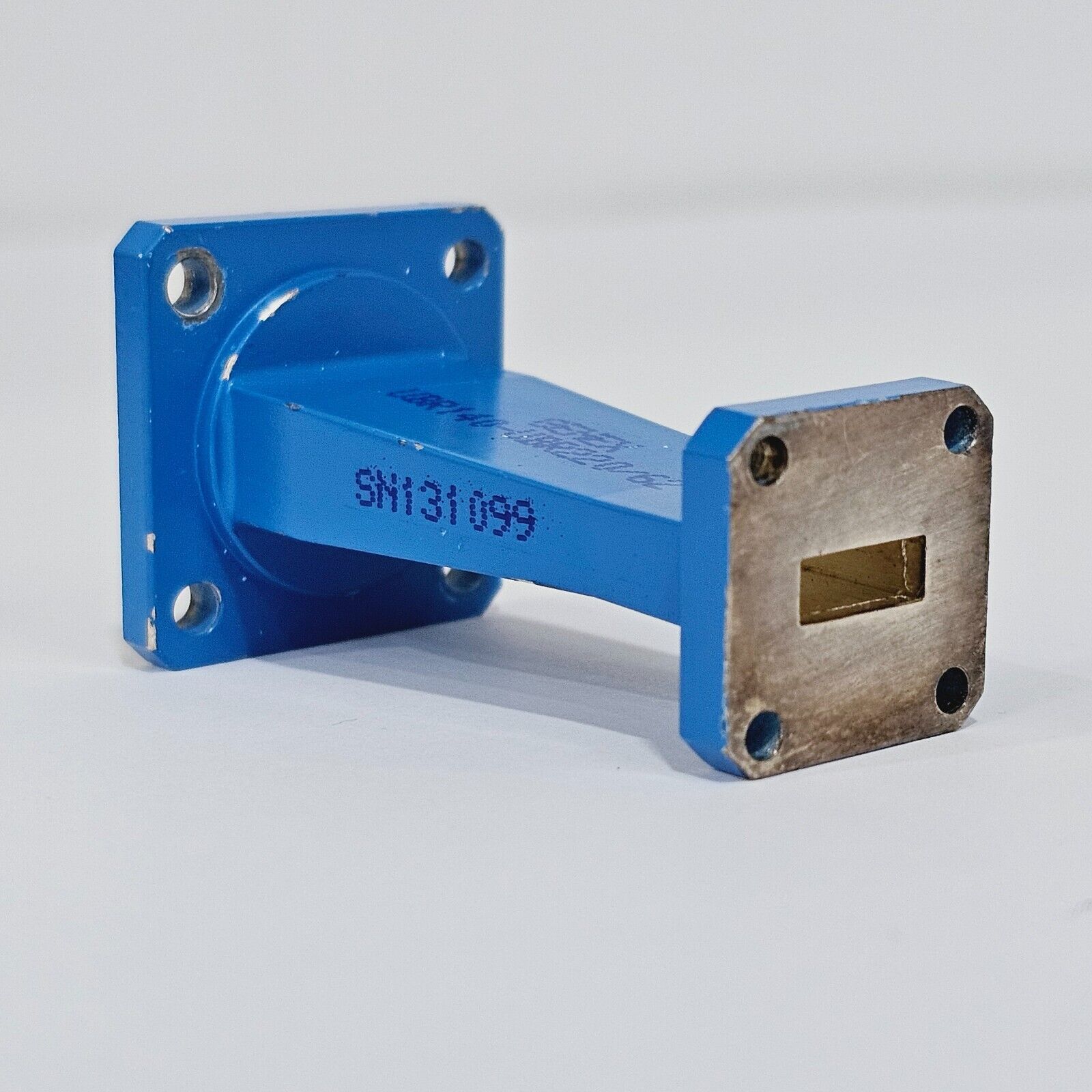

Used Genex UBR140-UBR220/62 waveguide flange adaptor, serial number SN131099. This compact tapered transition piece converts between a WR62/UBR140 circular flange port and a WR42/UBR220 square flange port, finished in blue-painted aluminium with ink-stamped model and serial markings. The UBR220 face shows signs of wear consistent with field use.

What is included in the sale:
• 1 x Genex UBR140-UBR220/62 waveguide flange adaptor

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

The Genex UBR140-UBR220/62 is a waveguide-to-waveguide flange adaptor designed to provide a low-loss, mechanically robust transition between two different rectangular waveguide sizes and their associated flange standards. One end features a UBR140 (WR62) flange interface and the other a UBR220 (WR42) flange interface, with an internal tapered section that manages the cross-sectional change between the two waveguide bores.

UBR140 (WR62) is associated with the R140 waveguide band operating from approximately 12.4 GHz to 18 GHz (Ku-band). UBR220 (WR42) is associated with the R220 waveguide band operating from approximately 17.6 GHz to 26.5 GHz (K-band). The adaptor is used wherever equipment with differing waveguide flange standards must be interconnected, such as in satellite earth station feed chains, microwave point-to-point link assemblies, radar front ends, and RF test benches.

The unit designation '/62' indicates the WR62 waveguide bore on the larger-aperture side. The blue-painted aluminium body construction provides corrosion resistance and mechanical durability.

Typical Specifications (waveguide band reference data):
Product Type: Waveguide flange-to-flange transition adaptor
Port 1 Flange Standard: UBR140 (WR62 / WG18 / R140)
Port 1 Frequency Range: 12.4 GHz to 18 GHz
Port 1 Waveguide Bore (nominal): 15.80 mm x 7.90 mm (WR62)
Port 2 Flange Standard: UBR220 (WR42 / WG20 / R220)
Port 2 Frequency Range: 17.6 GHz to 26.5 GHz
Port 2 Waveguide Bore (nominal): 10.67 mm x 4.32 mm (WR42)
Body Material: Aluminium
Body Finish: Blue paint
Flange Style: UBR (plain, ungrooved) both ends
Mounting: Four-hole flange on each end
Manufacturer: Genex
Part Number: UBR140-UBR220/62

Please refer to the manufacturer's website for full and current specifications.
