The images provided are of the actual item you will receive. Please review them carefully for cosmetic condition.

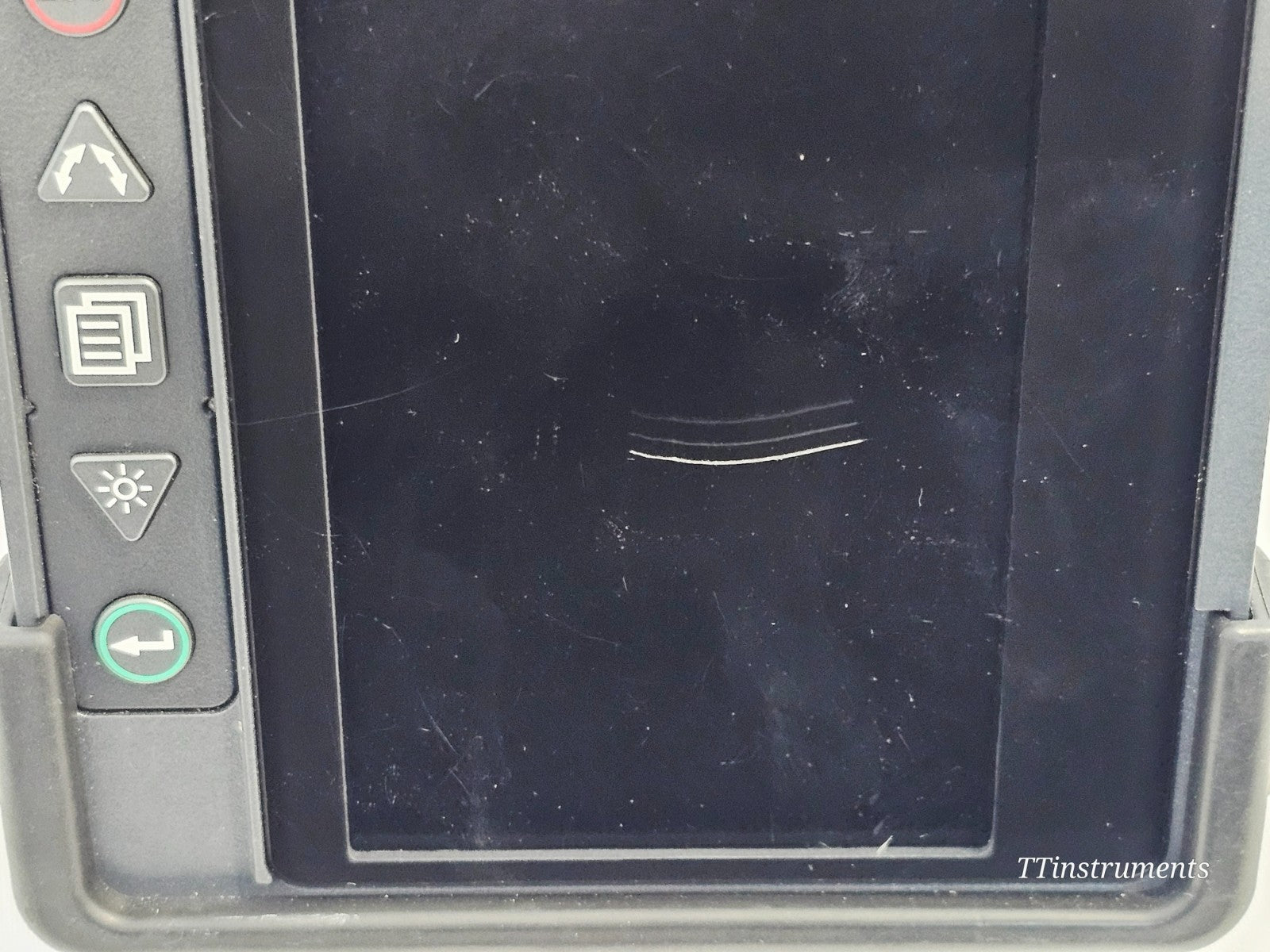

This Fujikura FSM-70S core alignment fusion splicer is in used condition and in good overall cosmetic condition. The LCD screen has light surface scratches which do not affect display readability or functionality. The unit has been tested and is fully functional.

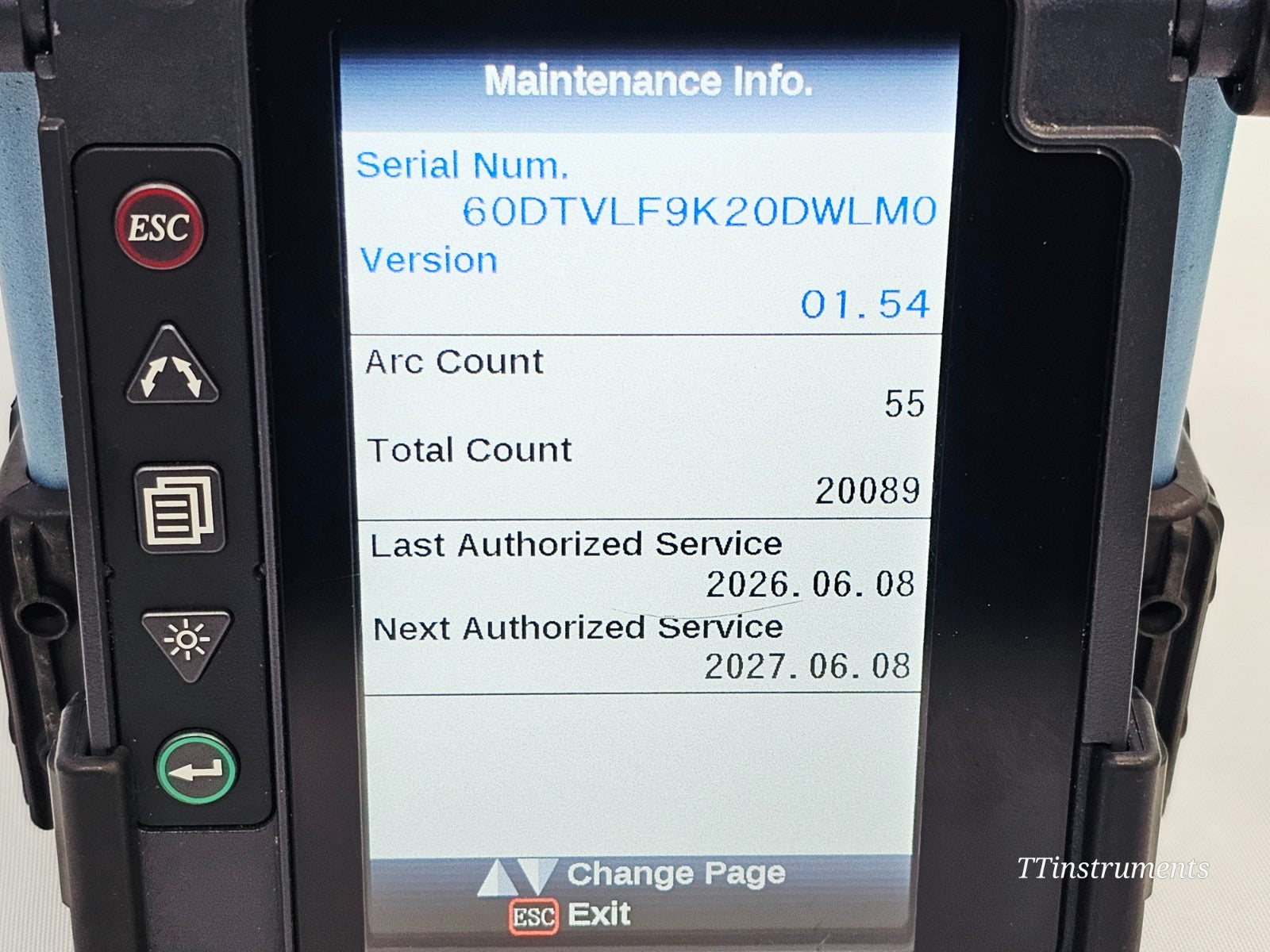

Maintenance Info (as confirmed on-screen):
• Firmware Version: 01.54
• Current Arc Count: 55
• Total Lifetime Splice Count: 20,089
• Last Authorised Service: 8 June 2026
• Next Authorised Service Due: 8 June 2027

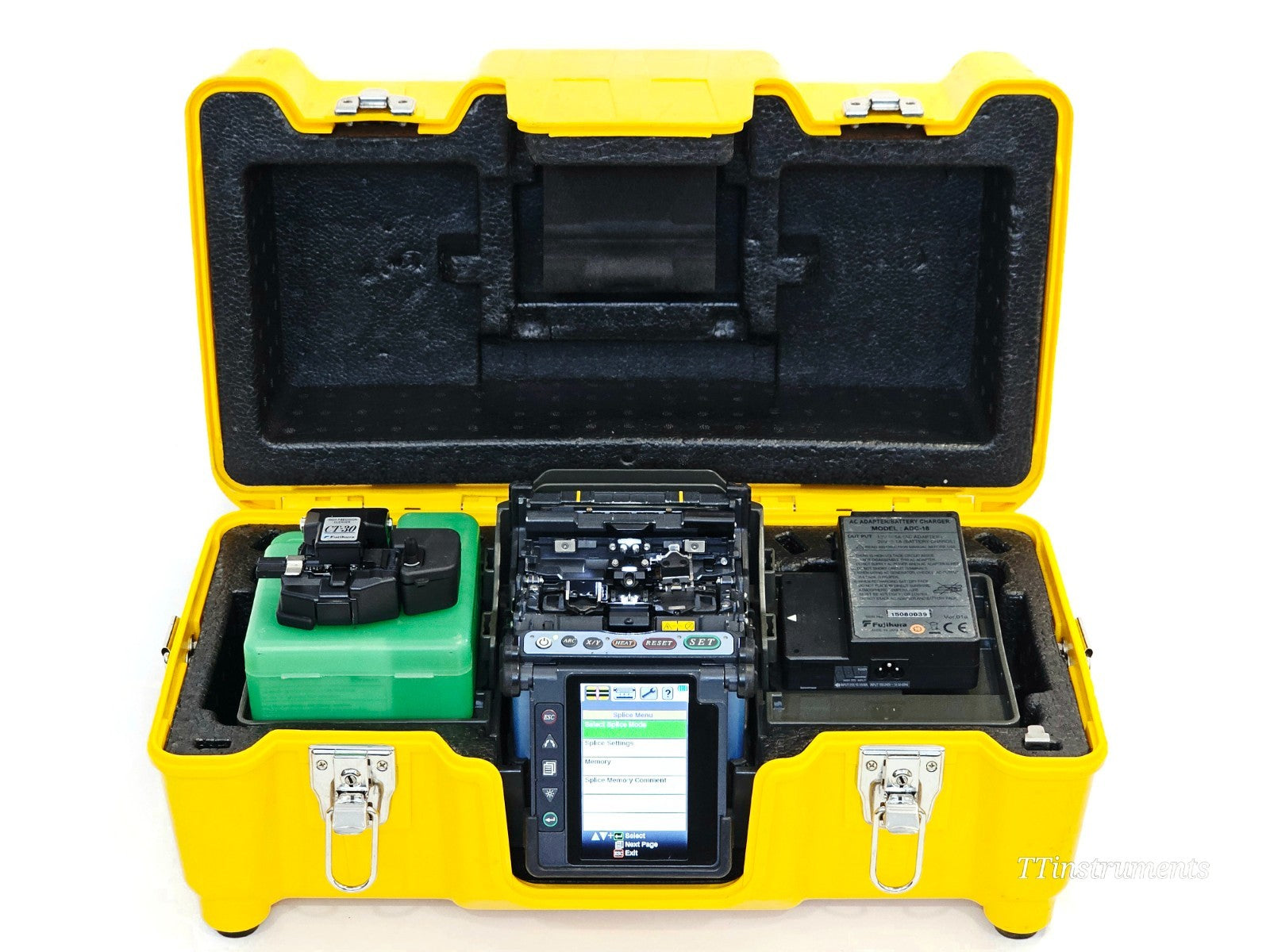

This listing includes:
• Fujikura FSM-70S Fusion Splicer
• Fujikura CT-30 High Precision Fibre Cleaver (with carry case)
• AC Adapter / Battery Charger (ADC-18)
• Transit carry case (CC-30)

Please note: staff should verify and confirm all additional accessories present in the case before publishing.

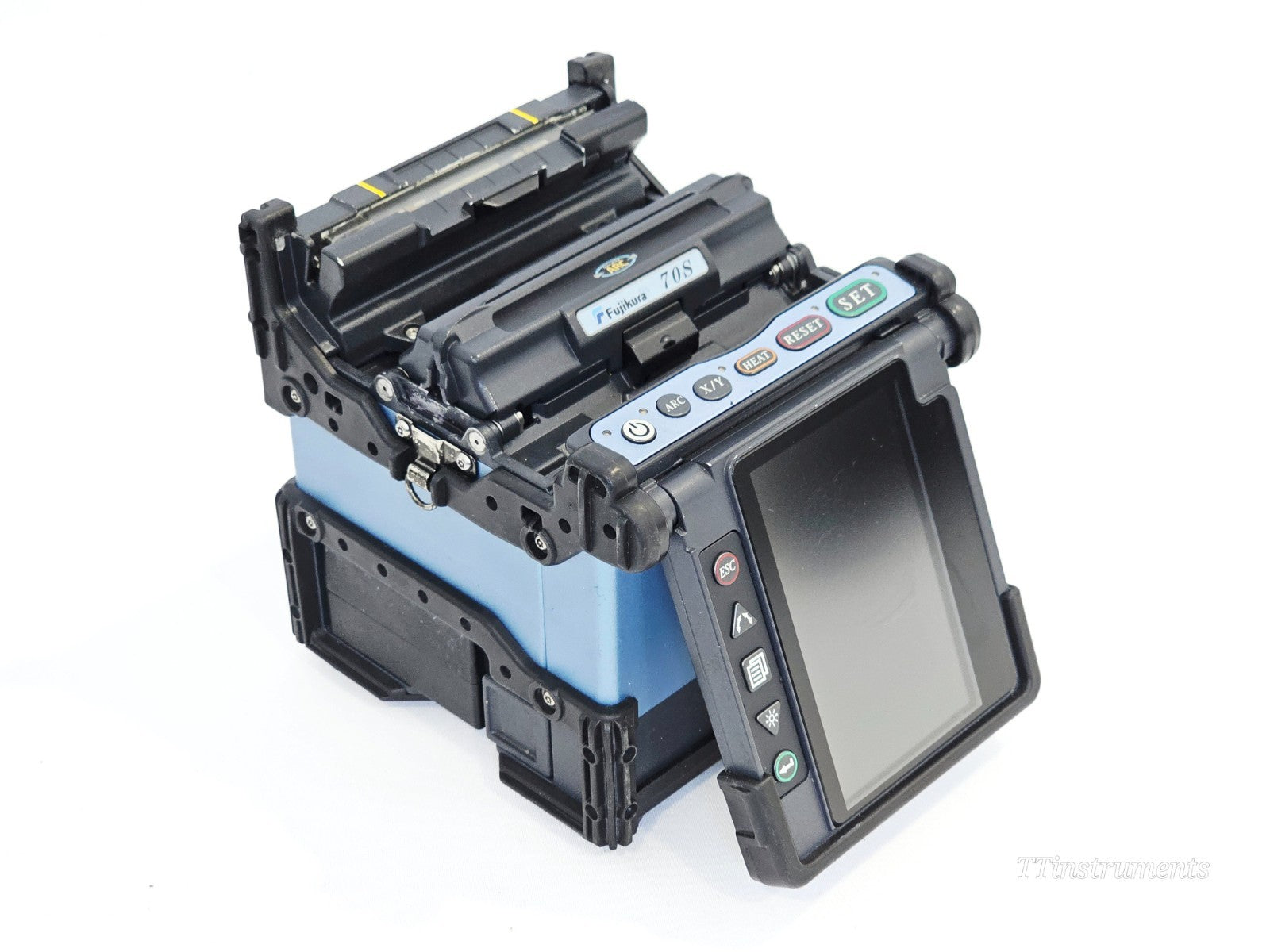

The Fujikura FSM-70S is a core-to-core alignment single fibre fusion splicer engineered for speed, durability, and precision in demanding field environments. It is designed for splicing SM (G.652/G.657), MM (G.651.1), DS (G.653), CS (G.654), NZDS (G.655/G.656), and erbium-doped optical fibres for telecommunications, PON, and FTTx applications.

Key features and highlights:
- Ultra-fast splicing: as low as 6 seconds (Ultra Fast mode) or 7 seconds (SM Fast mode)
- Clamshell tube heater provides a typical 13-second shrink time
- Automated, programmable wind protector opens and closes to initiate/complete splices automatically
- Programmable auto-open sheath clamps reduce manual handling steps
- Mirror-less optical system and severe-impact resistant 4.7-inch TFT colour LCD monitor
- Dual-camera system displays X and Y fibre axes simultaneously
- 100 preset and user-programmable splicing modes
- Stores last 2,000 splice results in internal memory
- Li-Ion battery supports up to 200 splice/heat cycles per charge
- Withstands a 762 mm (30-inch) drop test; rated for shock, dust, and rain resistance
- Operates at wind velocities up to 15 m/s and at altitudes up to 5,000 m
- USB and Mini-DIN connectivity for PC communication and headset support
- On-board training videos and internet software upgrade capability
- Multi-function transit case doubles as an integrated field workstation

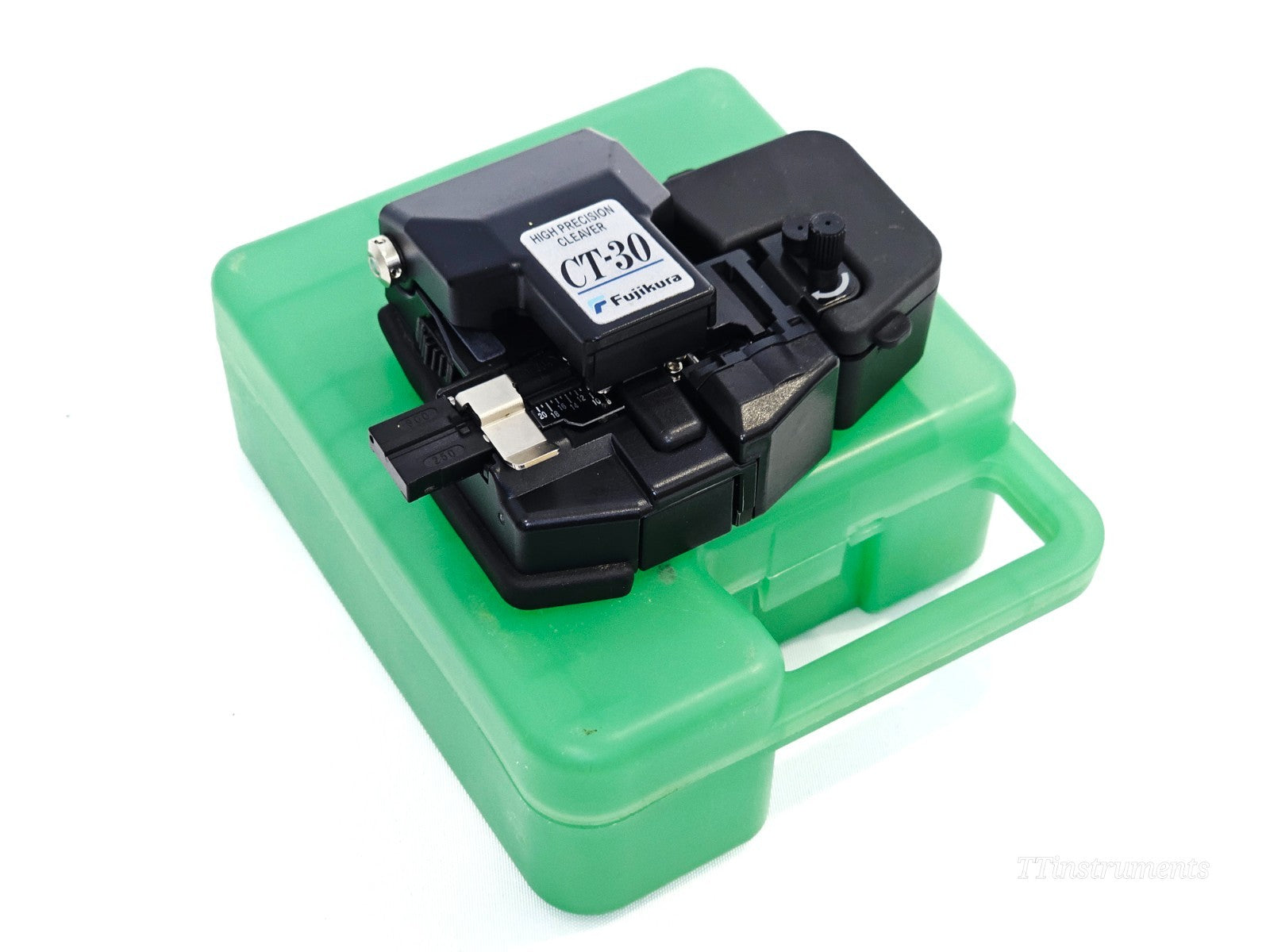

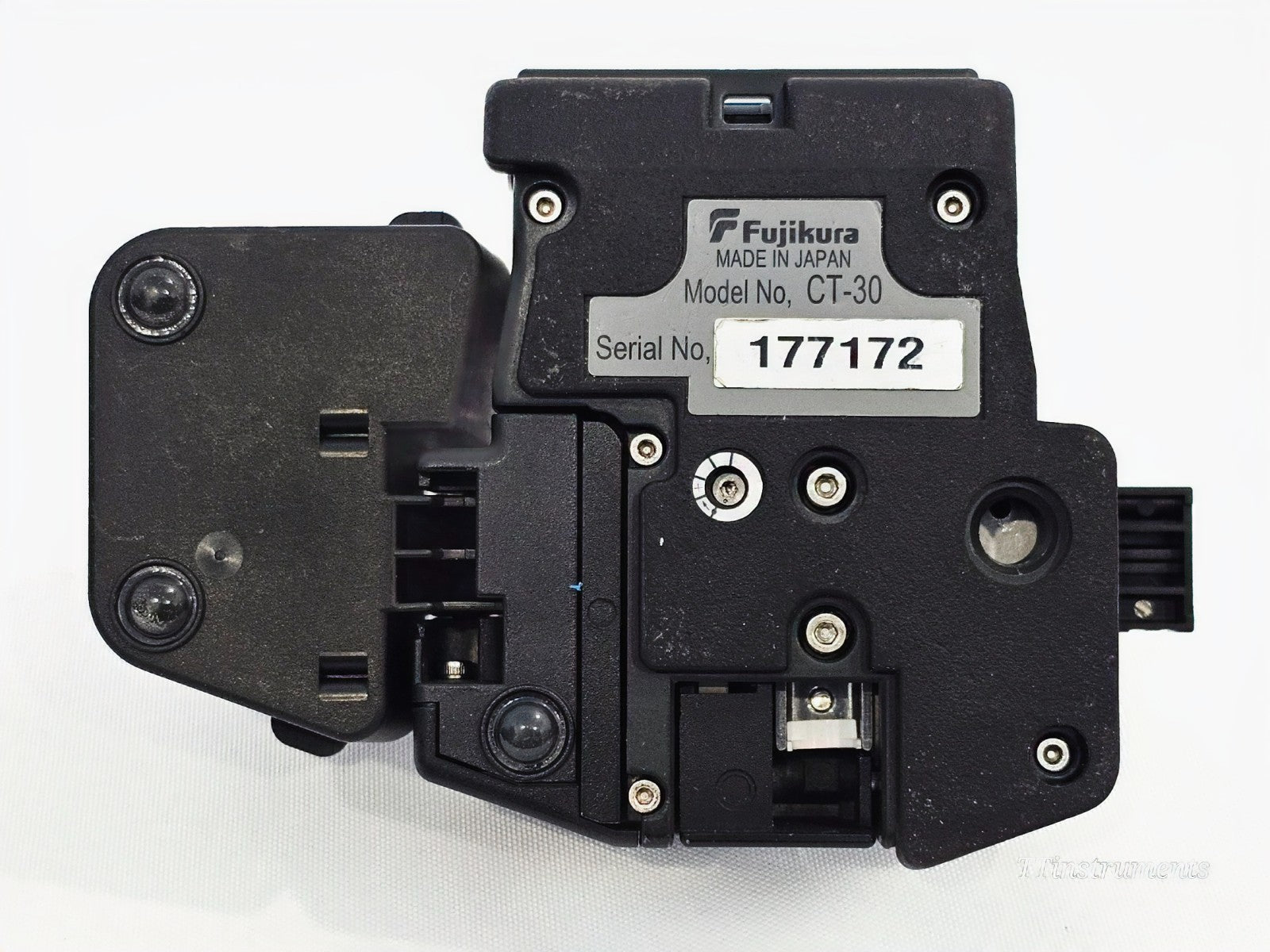

The included Fujikura CT-30 is a high-precision fibre cleaver compatible with single and ribbon fibres (up to 12 fibres). Its 16-position, 3-height-level CB-16 blade delivers up to 48,000 single-fibre cleaves before replacement is required.

Applicable Fibres: SM (G.652 & G.657), MM (G.651.1), DS (G.653), CS (G.654), NZDS (G.655 & G.656), Erbium-doped
Typical Splice Loss (SM): 0.02 dB
Typical Splice Loss (MM): 0.01 dB
Typical Splice Loss (DS/NZDS): 0.04 dB
Splicing Time (SM Fast): 7 seconds
Tube Heating Time: 13 seconds (FP-03 sleeve)
Splicing Modes: 100 preset + user-programmable
Splice Memory: 2,000 results
Display: 4.7-inch TFT colour LCD, 320x (single axis) / 200x (dual axis)
Electrode Life: 5,000 arc discharges per set
Battery Life: 200 splice/heat cycles (BTR-09)
Power Supply: 100–240 V AC (auto) or 10–15 V DC
Wind Resistance: 15 m/s maximum
Operating Temperature: -10 to +50°C
Altitude: 0–5,000 m
Dimensions: 146 W x 159 D x 150 H mm
Weight: 2.5 kg (with ADC-18 adapter)
Drop Resistance: 762 mm (30 inches)
Country of Manufacture: Japan

Fujikura FSM-70S datasheet: Download PDF
