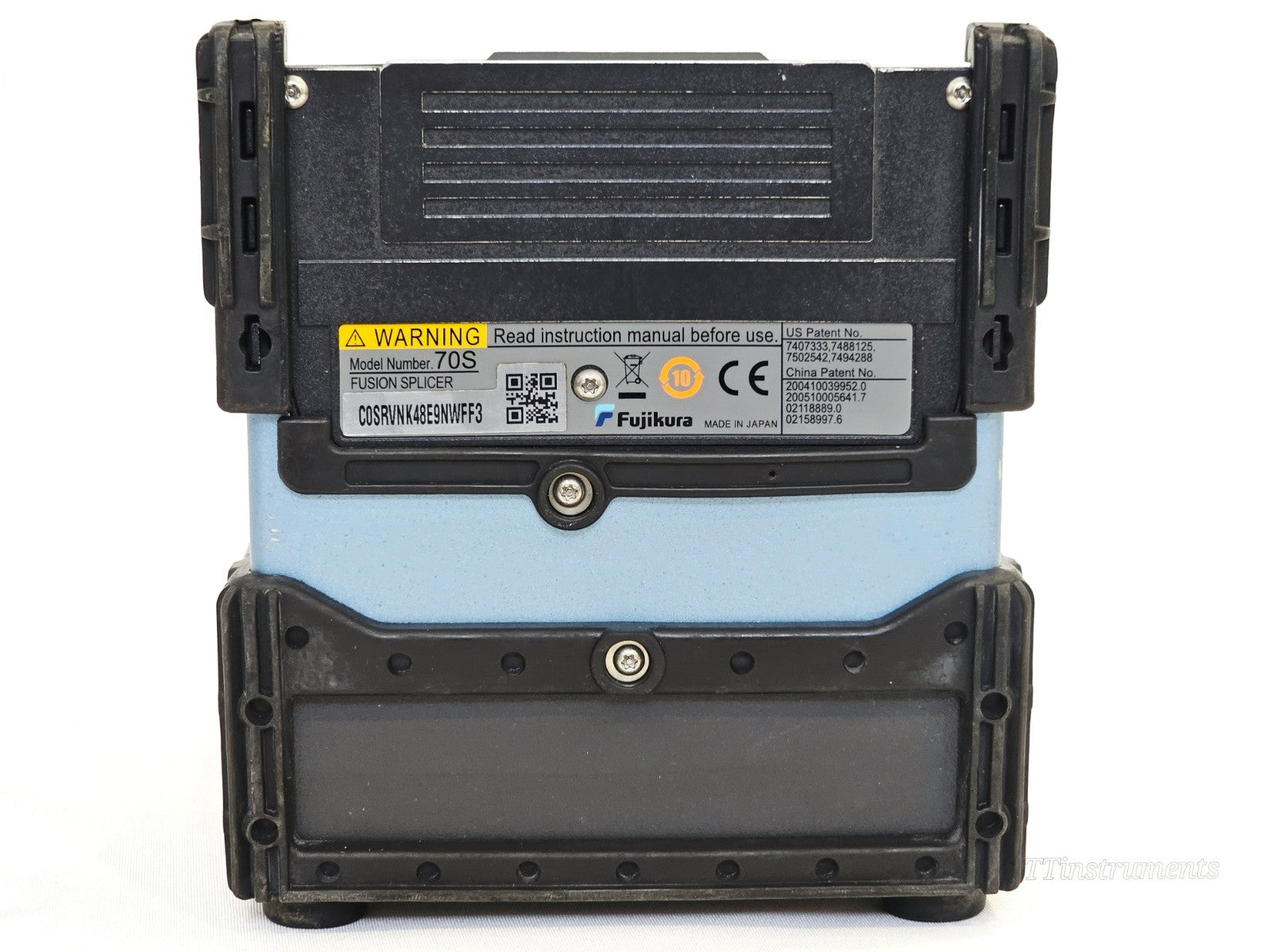

Fujikura FSM-70S Core Alignment Fusion Splicer with CT-30 Cleaver ARC 14826

Condition: Used

• The LCD screen has surface scratches, which do not affect functionality or display readability.

  Tested and fully functional. The unit powers on and operates correctly.


  What's Included:

• Fujikura FSM-70S Fusion Splicer

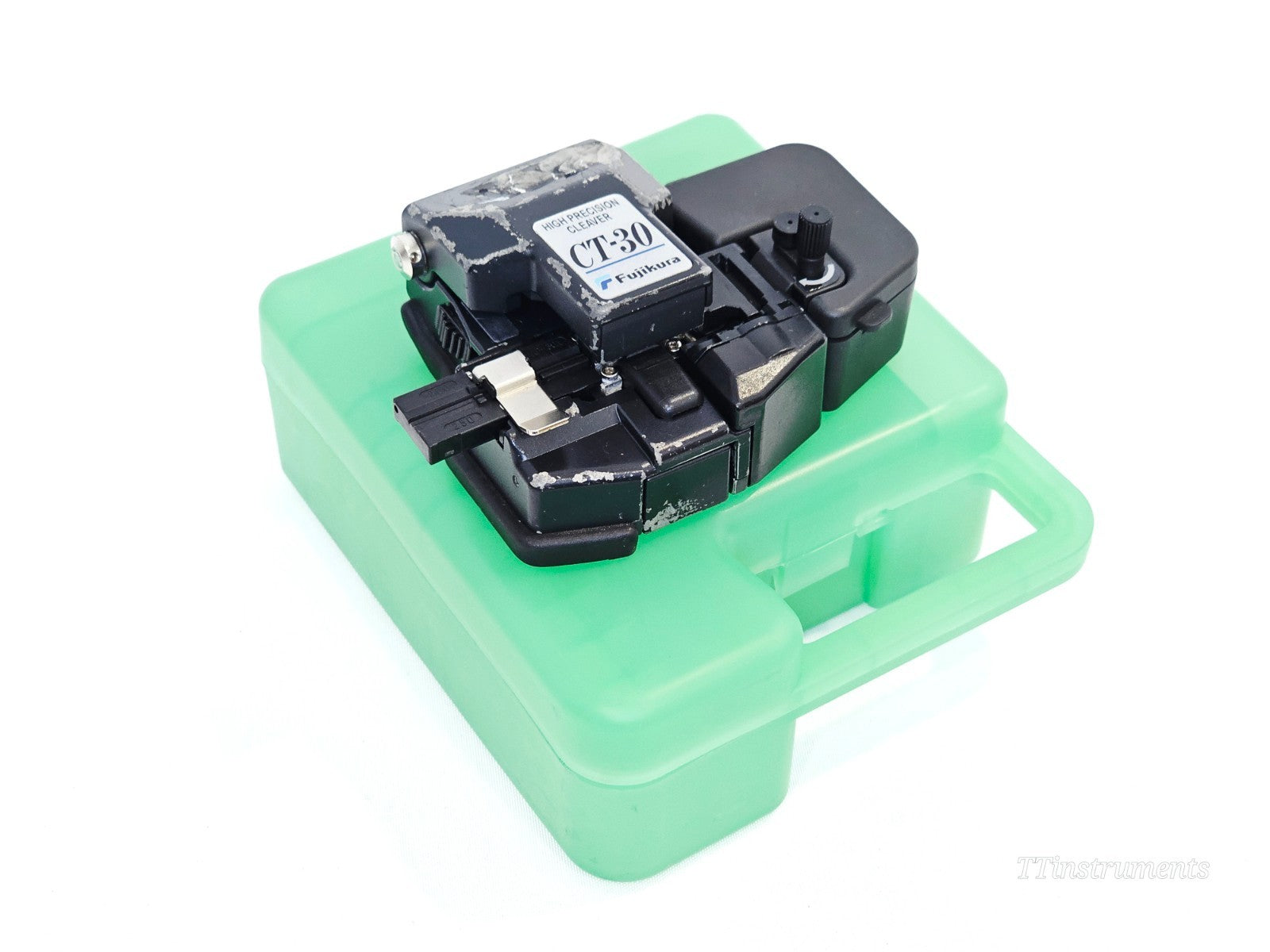

• Fujikura CT-30 High Precision Fibre Cleaver (with carry case)
• AC Adapter / Battery Charger (ADC-18)

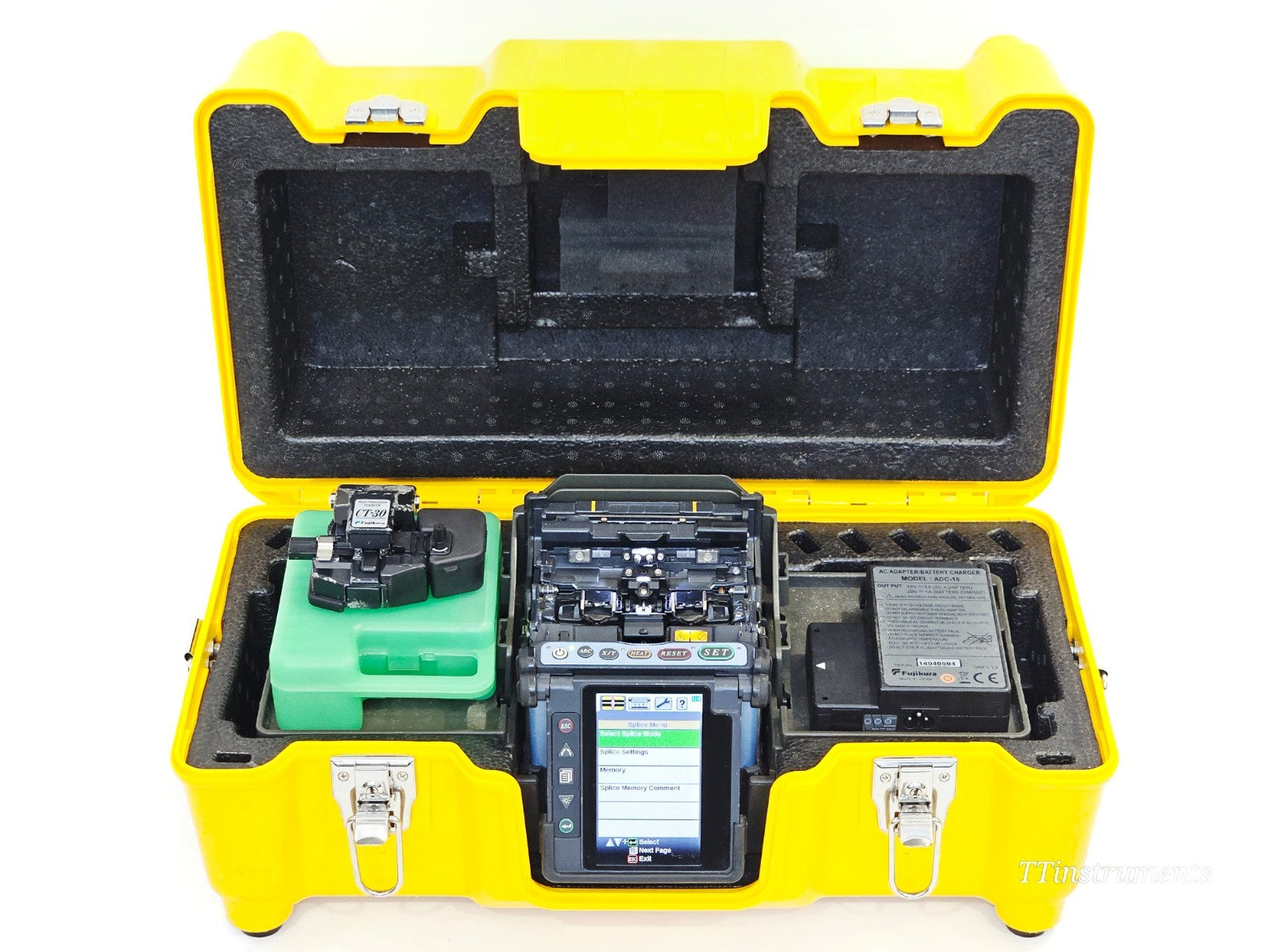

• Transit / carry case (CC-30)

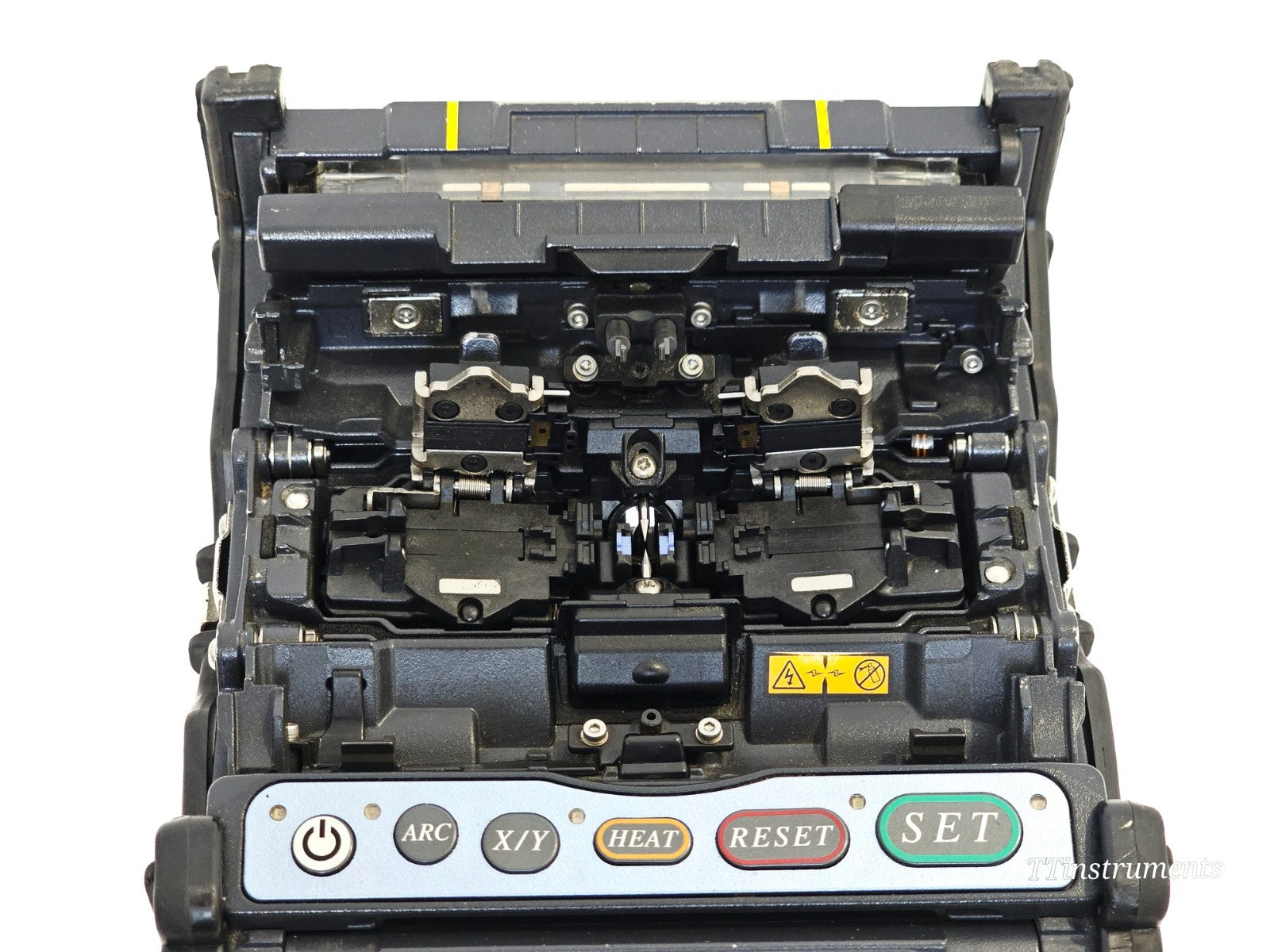

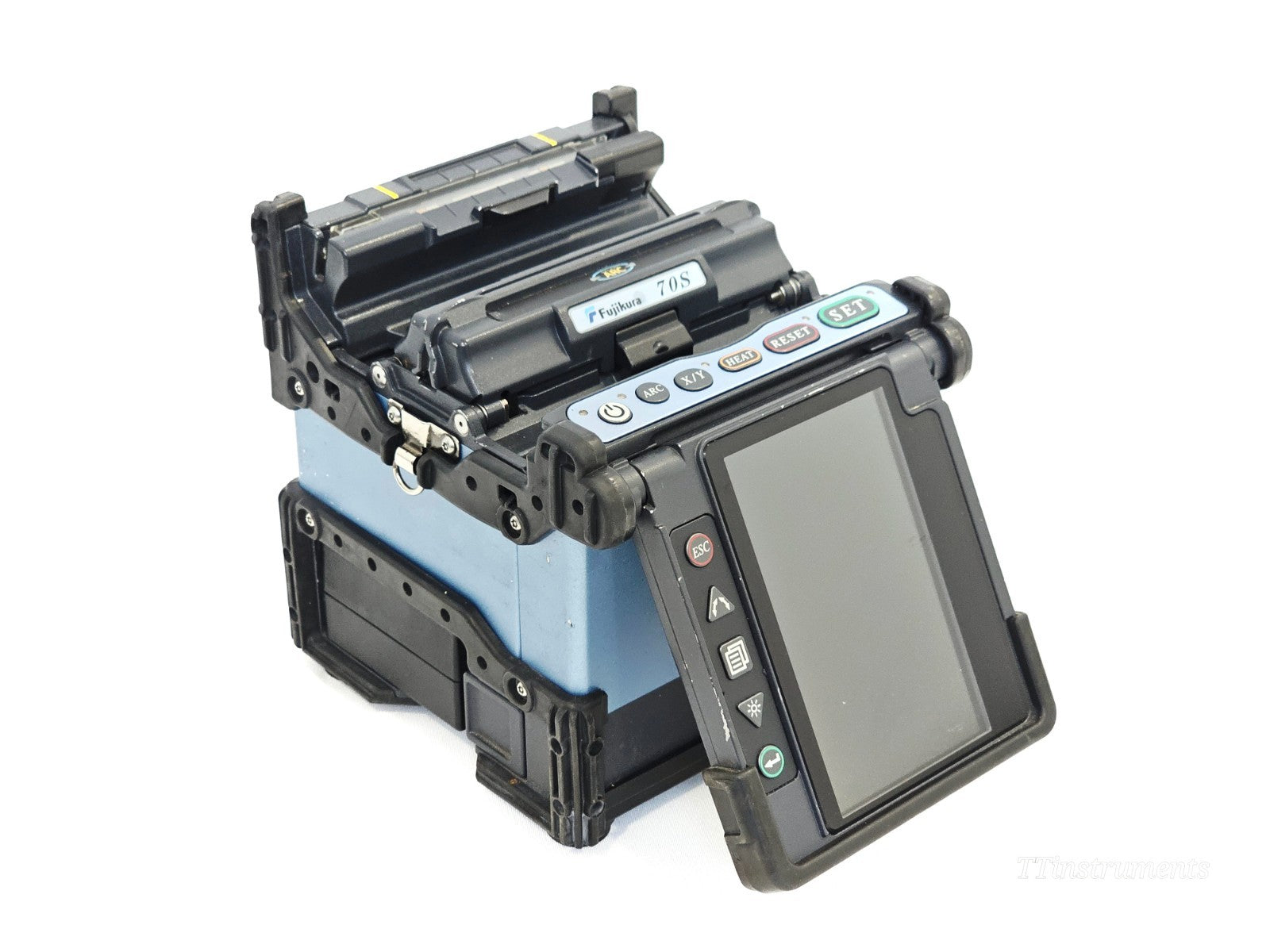

The Fujikura FSM-70S is a professional-grade, core-to-core alignment single fibre fusion splicer designed for high-efficiency splicing of SM, MM, DS, CS, NZDS and erbium-doped fibres. It delivers a typical splice time of just 7 seconds and tube heating in as little as 13 seconds, making it one of the fastest splicers available for field or van-based deployment. The 70S features an automated programmable wind protector, clamshell tube heater, mirror-less optical system, and a severe-impact resistant 4.7-inch TFT colour LCD monitor, all housed in a rugged chassis that withstands a 762 mm (30-inch) drop test.

Key Technical Specifications

Fusion Splicer

- Applicable Fibres: SM (G.652 & G.657), MM (G.651.1), DS (G.653), CS (G.654), NZDS (G.655 & G.656), Erbium-doped
- Typical Splice Loss: 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS), 0.04 dB (NZDS)
- Splicing Time: Ultra Fast – 6 sec, SM Fast – 7 sec, SM Auto – 10 sec, Auto – 15 sec
- Tube Heating Time: 13 sec (FP-03 sleeve), 17 sec (FP3-40), 5–16 sec (micro sleeves)
- Splicing Modes: 100 preset and user-programmable modes

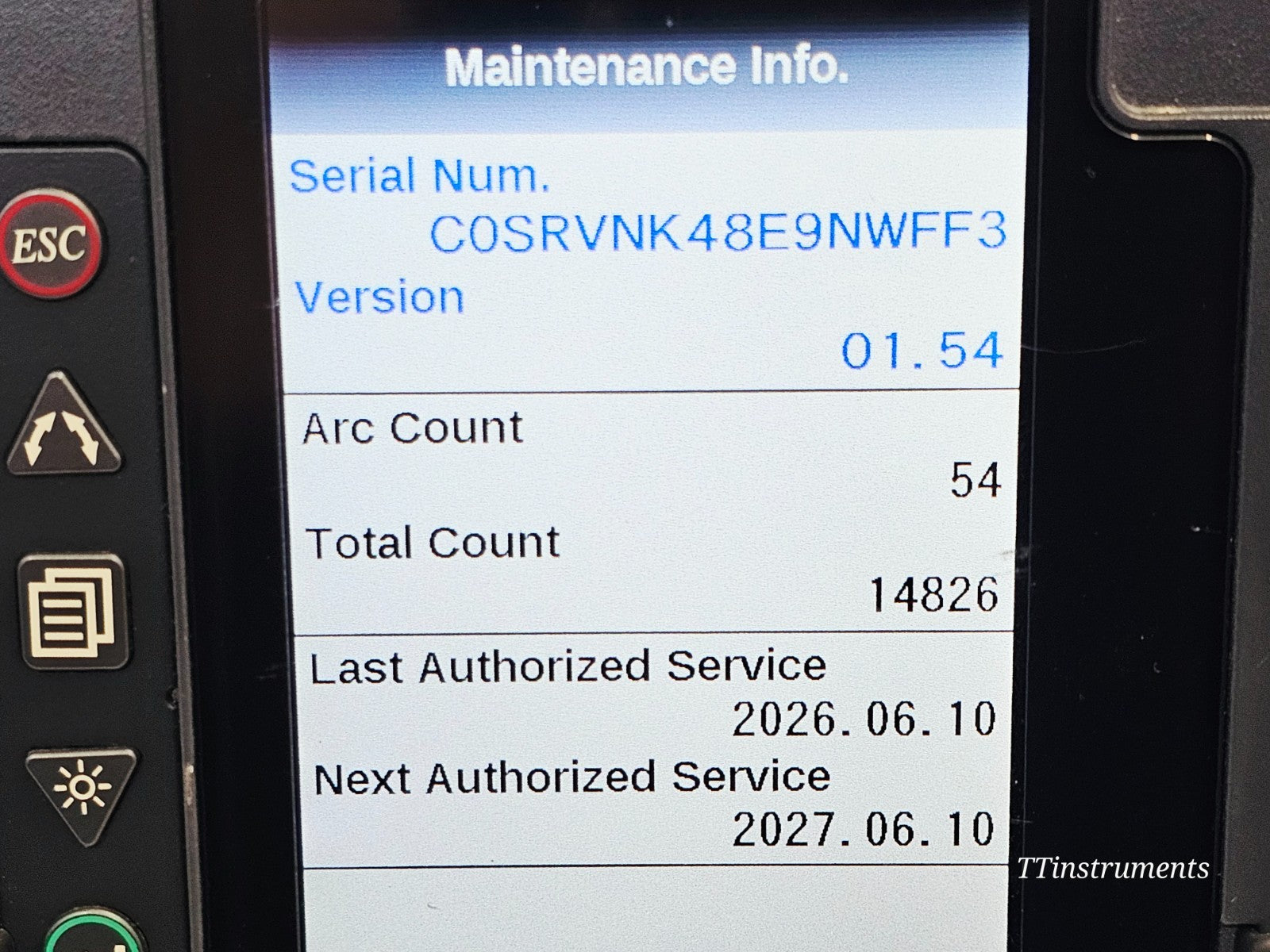

- Splice Result Storage: Last 2,000 splice results stored in internal memory
- Display: 4.7-inch TFT colour LCD with 320× magnification (single axis) and 200× magnification (dual axis)
- Arc Calibration: Automatic real-time with manual calibration option
- Electrode Life: Up to 5,000 arc discharges per set
- Battery (BTR-09): Up to 200 splice/heat cycles per charge
- Power Supply: Auto-selecting 100–240 V AC (ADC-18), 10–15 V DC input or 14.8 V DC (BTR-09 battery)
- Wind Resistance: Up to 15 m/s
- Operating Conditions: 0–5,000 m altitude, –10°C to +50°C, 0–95% RH
- Connectivity: USB 1.1 (USB-B), Mini-DIN 6-pin (HJS-02/03), Bluetooth (70S+ models)
- Dimensions: 146 × 159 × 150 mm (W × D × H)
- Weight: 2.5 kg (with ADC-18), 2.7 kg (with BTR-09 battery)
- Drop Resistance: 762 mm (30-inch) drop tested
- Country of Manufacture: Japan

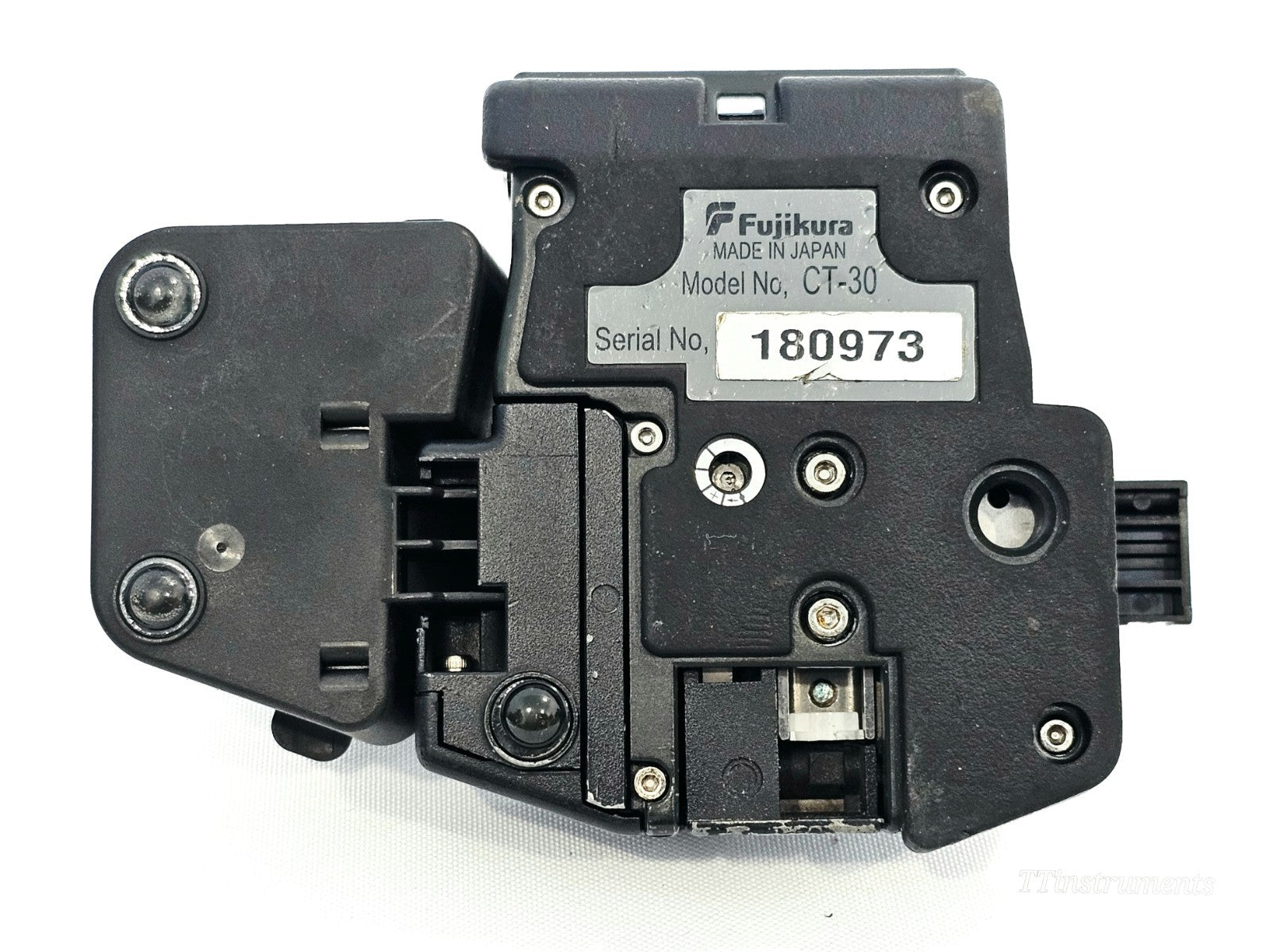

CT-30 High Precision Fibre Cleaver

- Blade Life: Up to 48,000 single-fibre cleaves (16 blade positions × 3 height levels)
- Ribbon Fibre Capability: Up to 12-fibre ribbon (approximately 4,000 ribbon cleaves per blade)
- Typical Cleave Angle: Less than 0.5°
- Fibre Compatibility: 250 µm to 900 µm coating, 125 µm cladding
- Scrap Collection: Built-in fibre scrap collector
- Country of Manufacture: Japan
