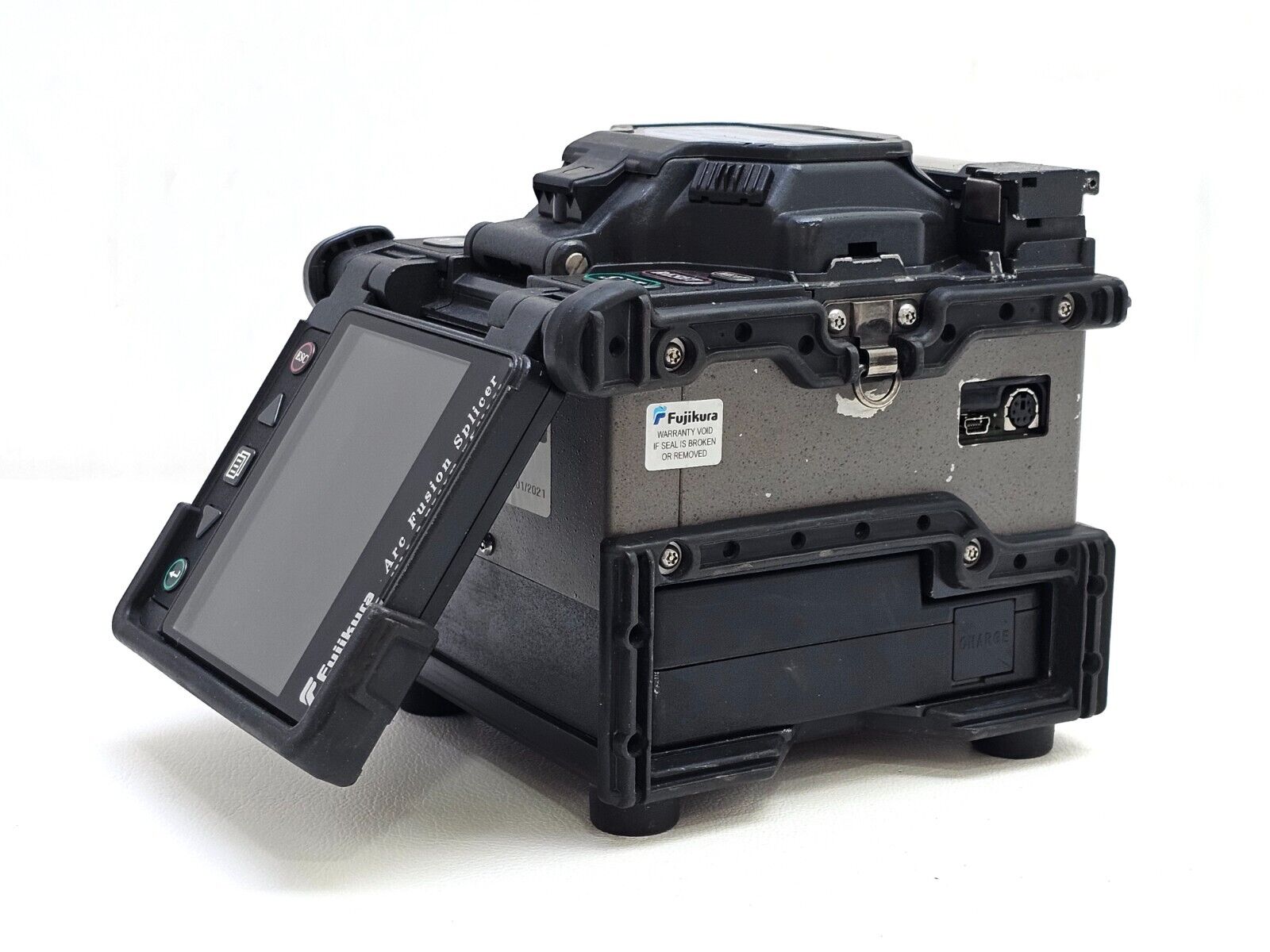

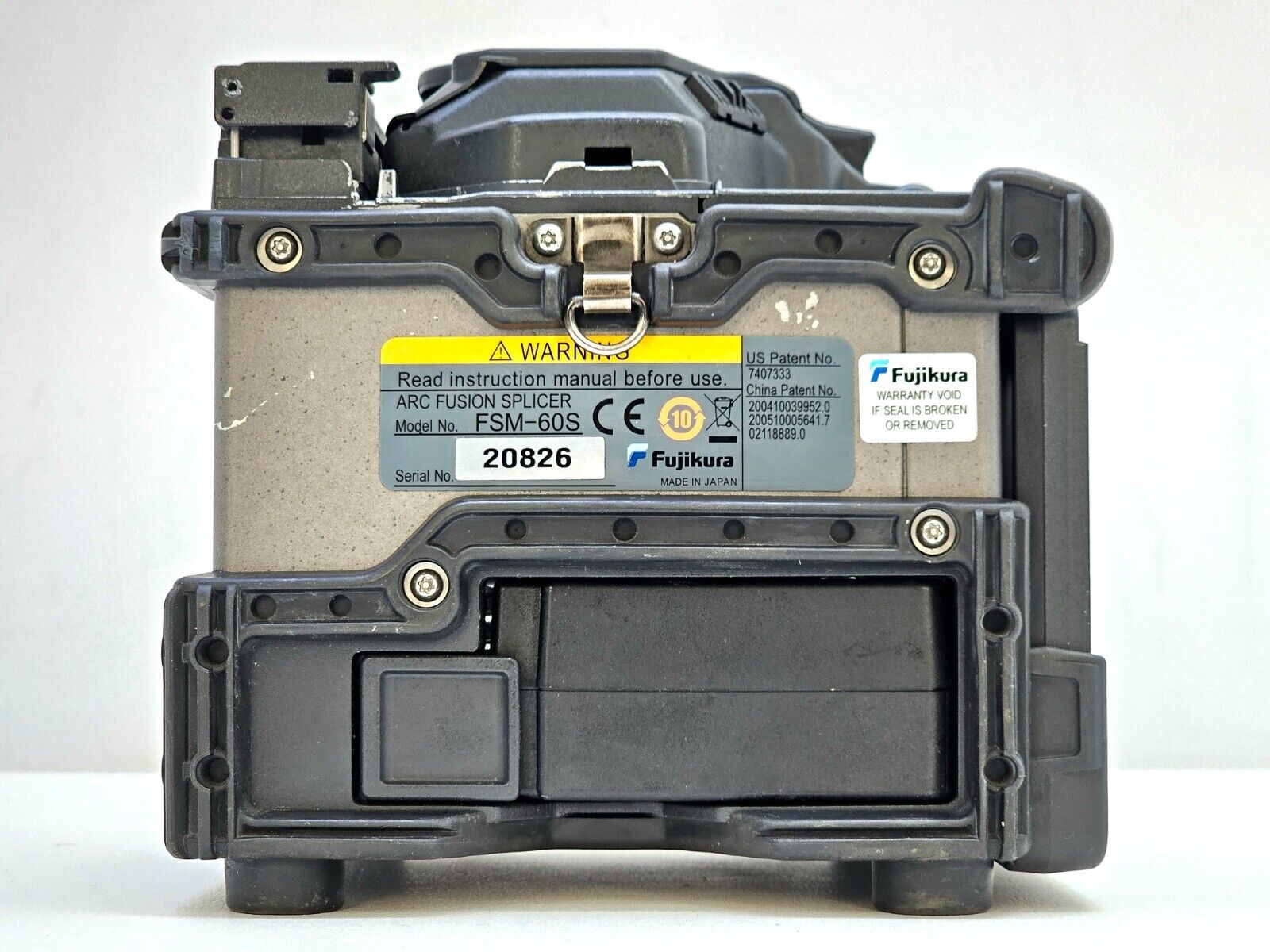

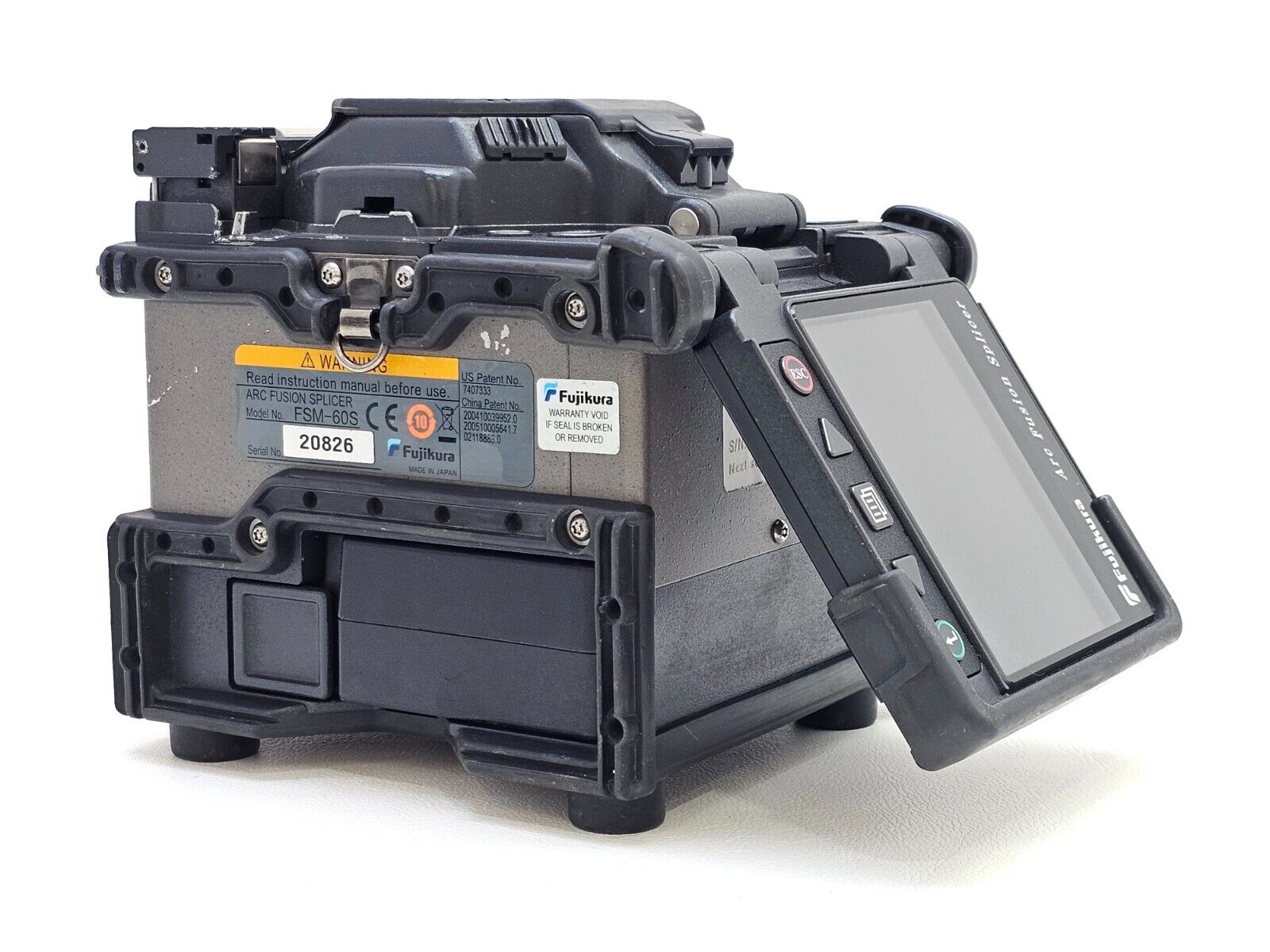

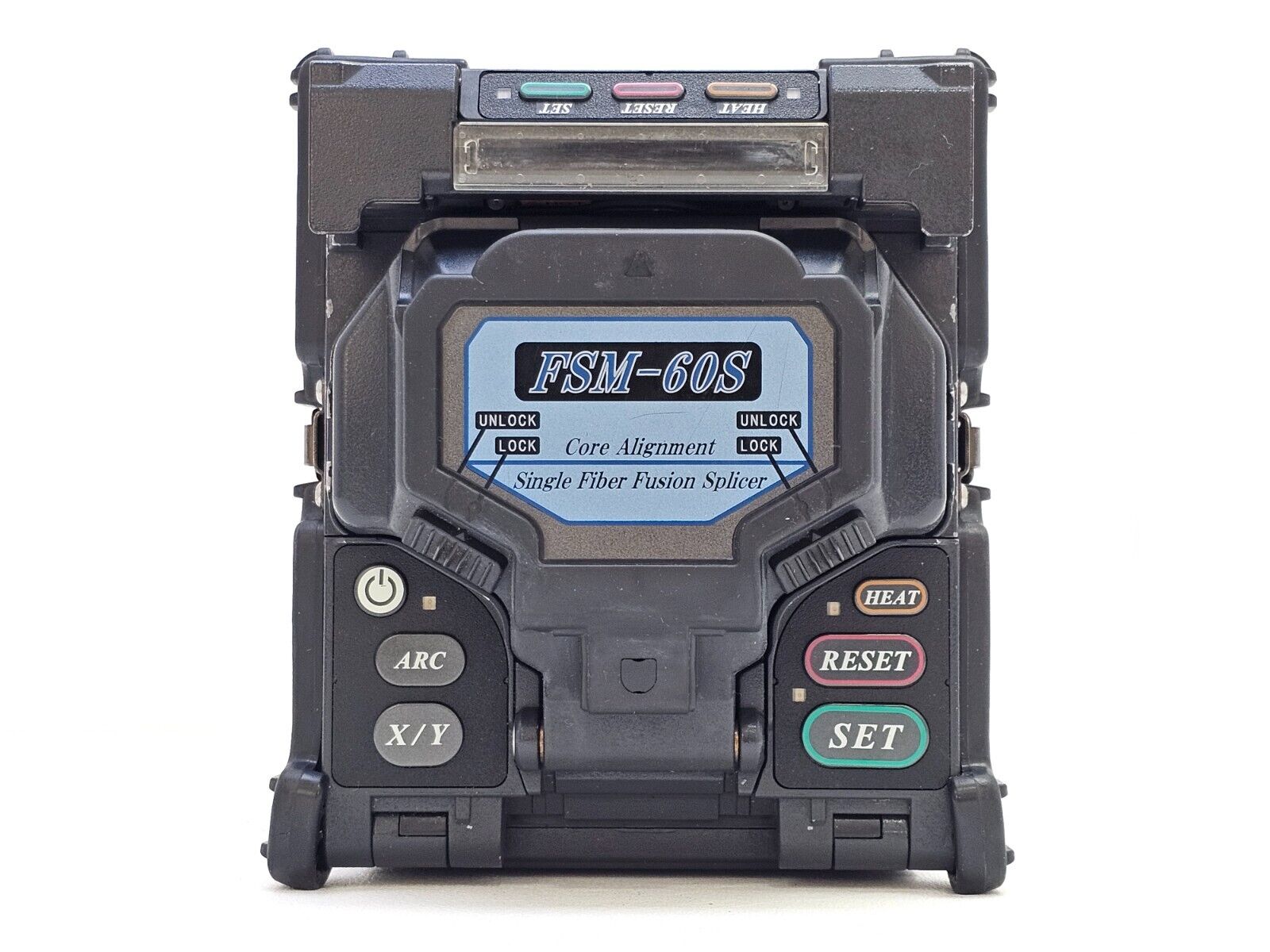

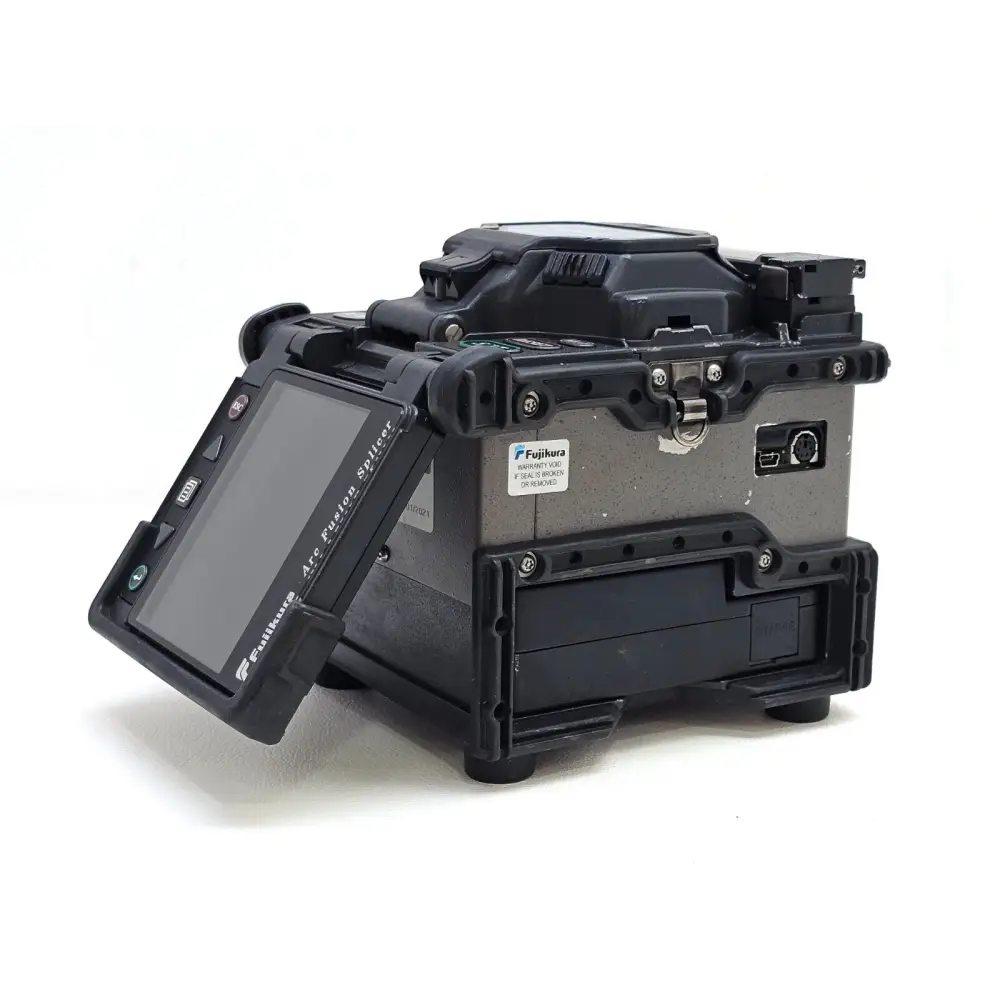

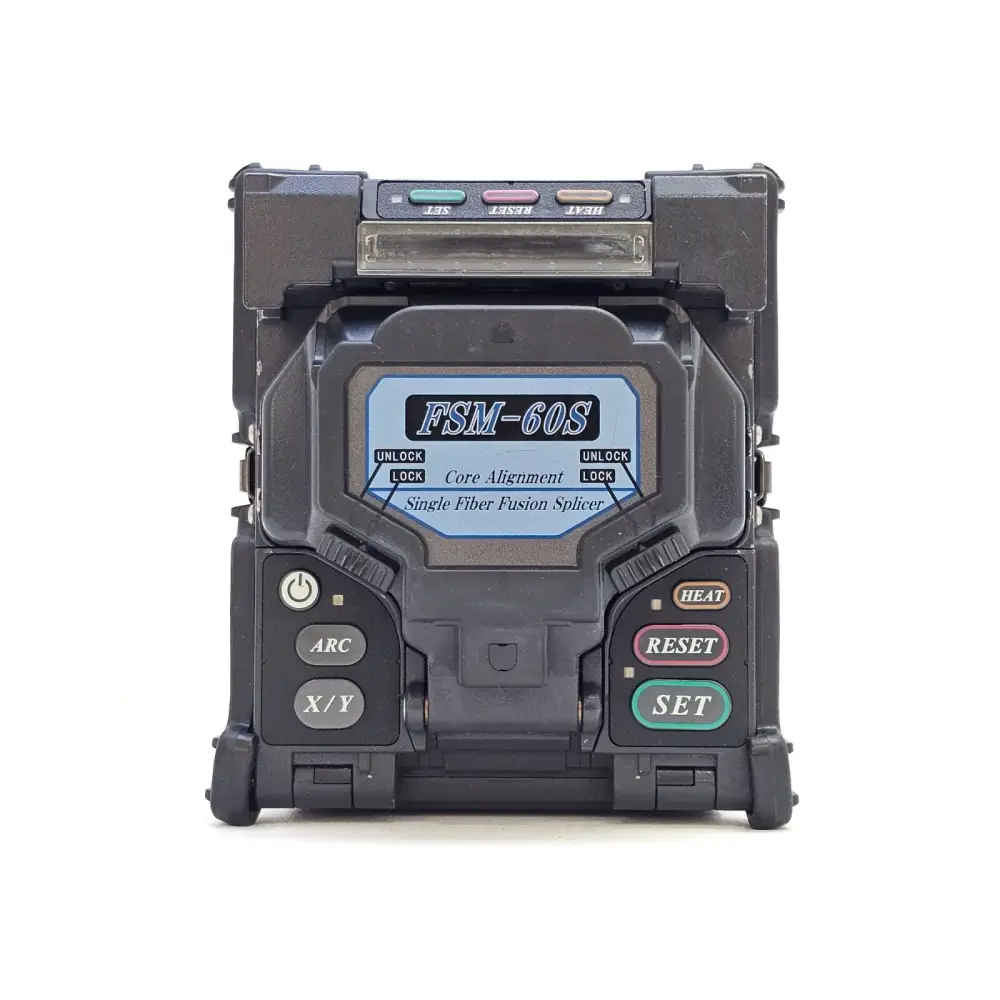

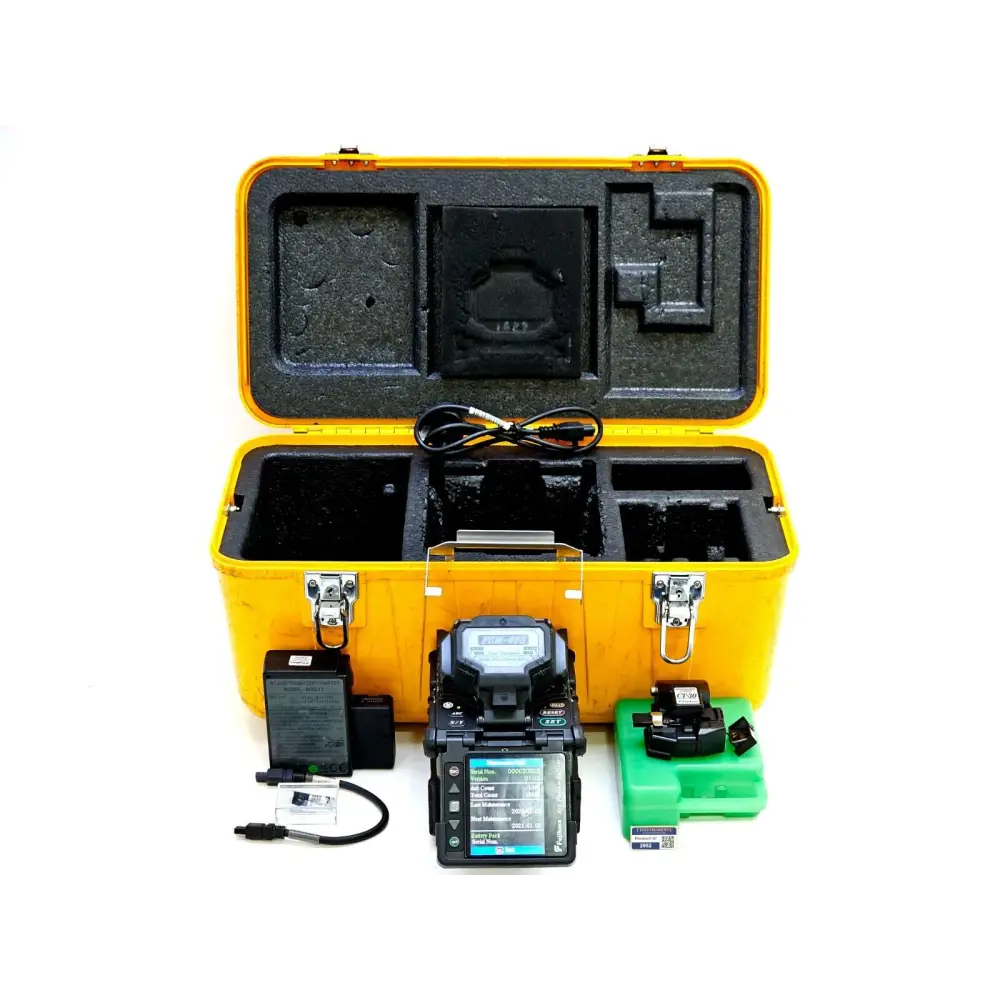

The Fujikura FSM-60S is a core-alignment fusion splicer developed for professional fibre optic network installation and maintenance. It supports a wide range of fibre types including single-mode (SM), multimode (MM), and various specialty fibres, making it highly versatile for telecommunications, CATV, and data network applications.
The FSM-60S features Fujikura's proven core-alignment technology, which actively aligns fibre cores prior to splicing to achieve consistently low splice loss results. Its intuitive interface and automated splicing sequence make it suitable for both experienced engineers and field technicians. The splicer's compact and rugged build ensures reliable performance across a variety of environments.
Key Specifications:
Splicer Type: Core-alignment fusion splicer
Compatible Fibre Types: Single-mode (SM), Multimode (MM), specialty fibres
Splice Loss (SM, typical): 0.02 dB
Splice Loss (MM, typical): 0.01 dB
Splicing Time: Approximately 9 seconds
Heating Time: Approximately 35 seconds
Fibre Diameter: 0.125 mm to 0.25 mm (cladding)
Tension Test: Standard 2.0 N

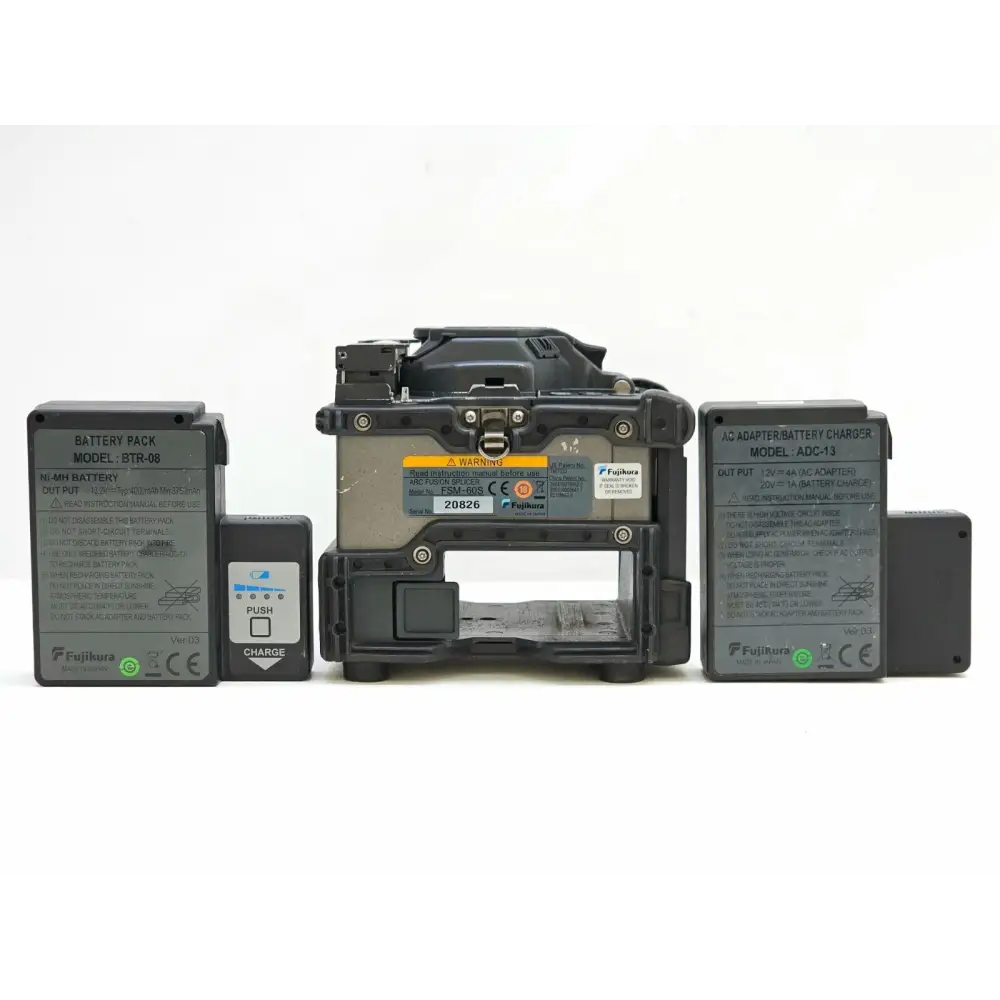

Battery Life: Approximately 200 splice and heat cycles per charge

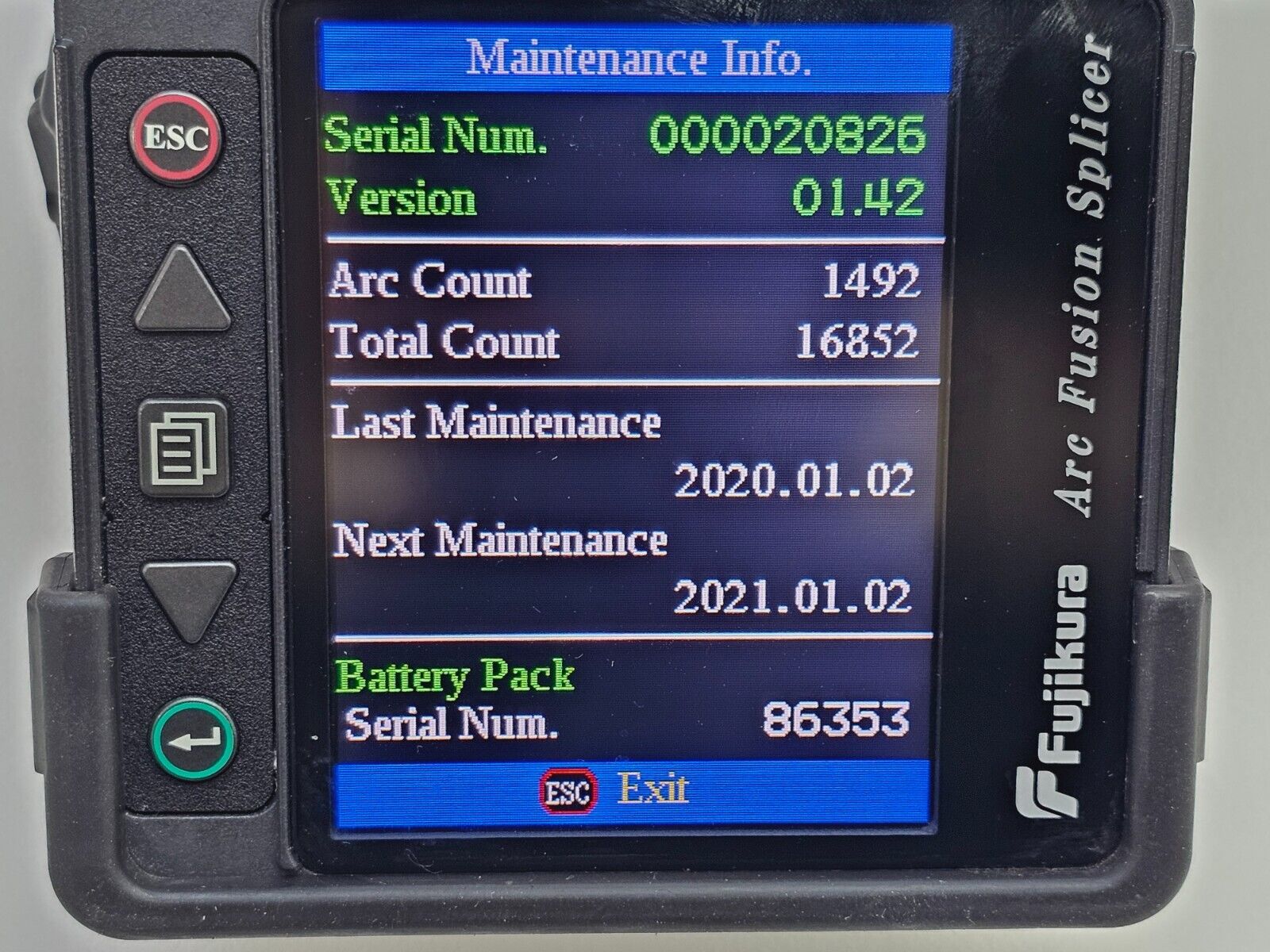

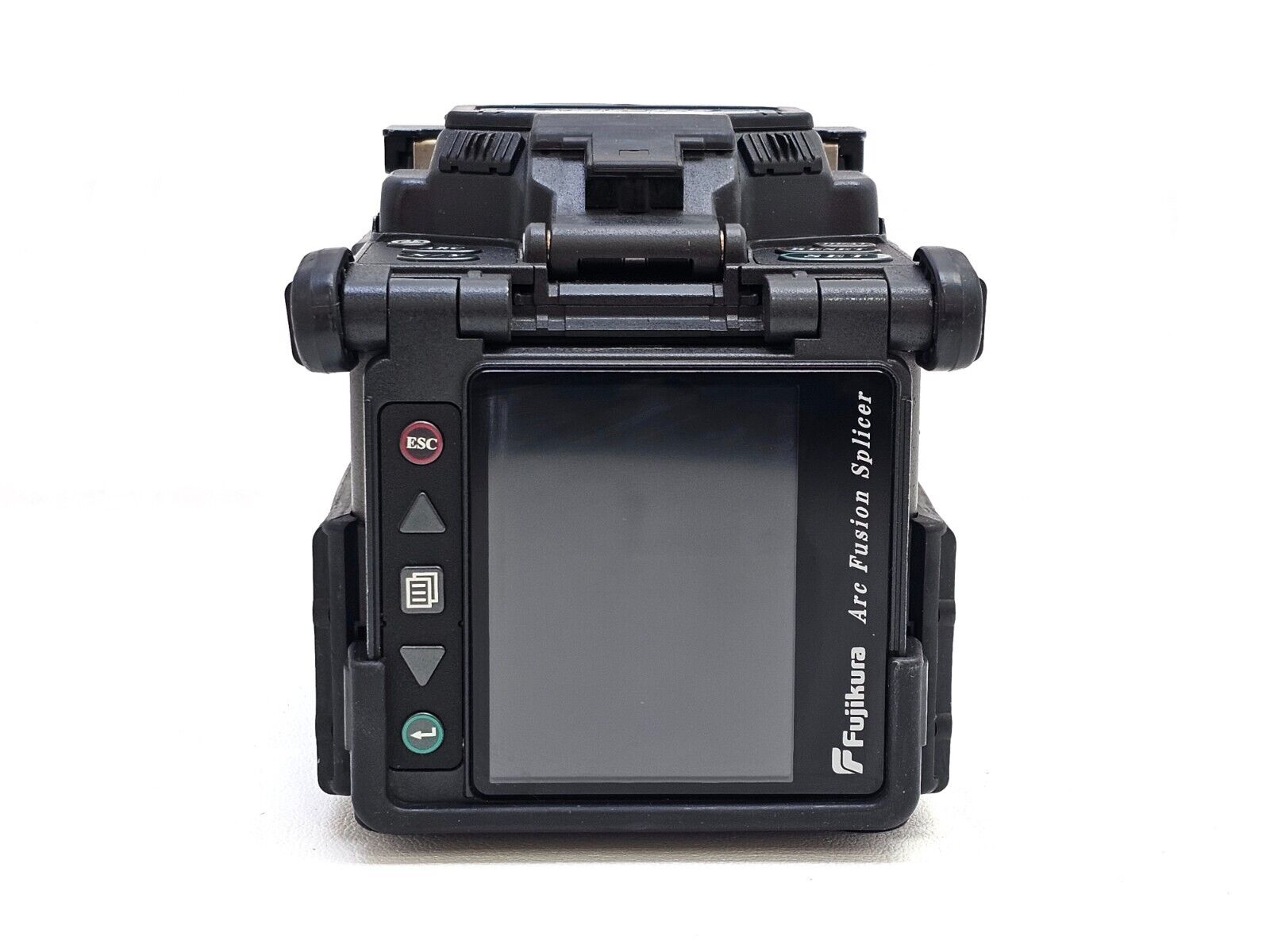

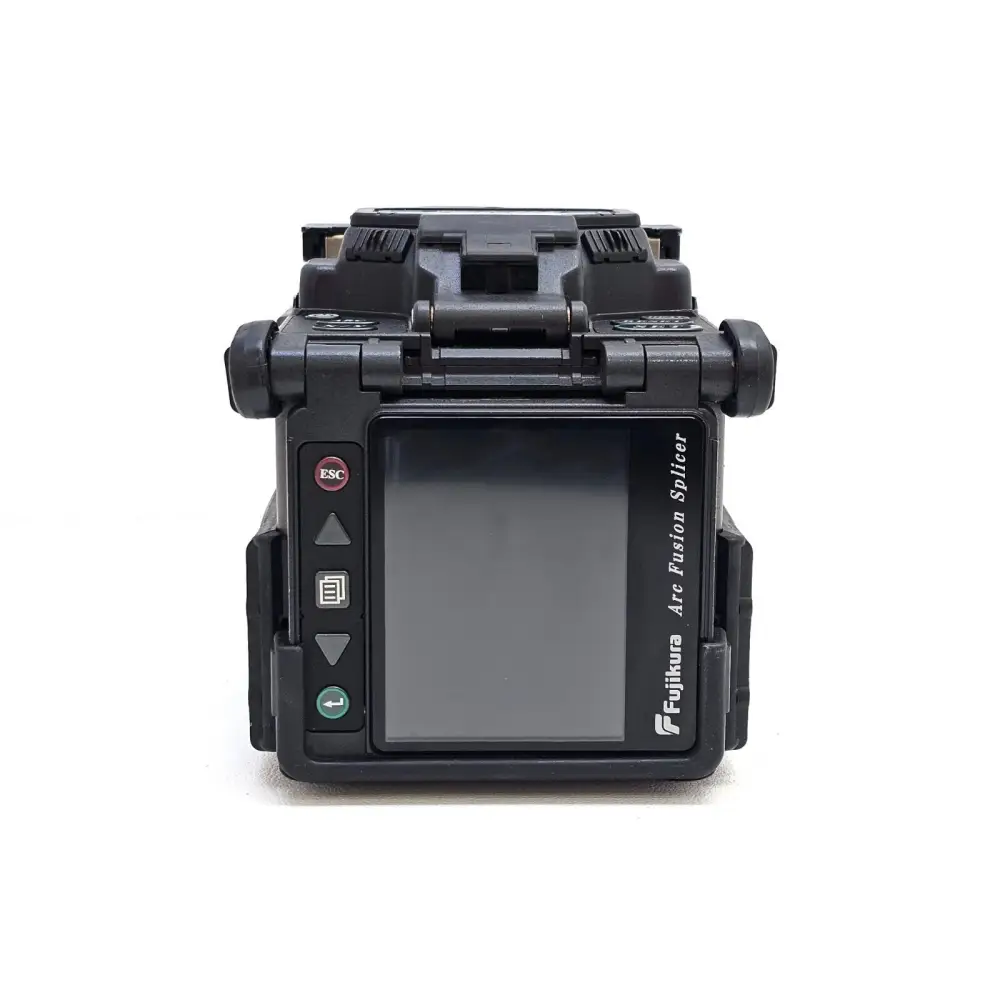

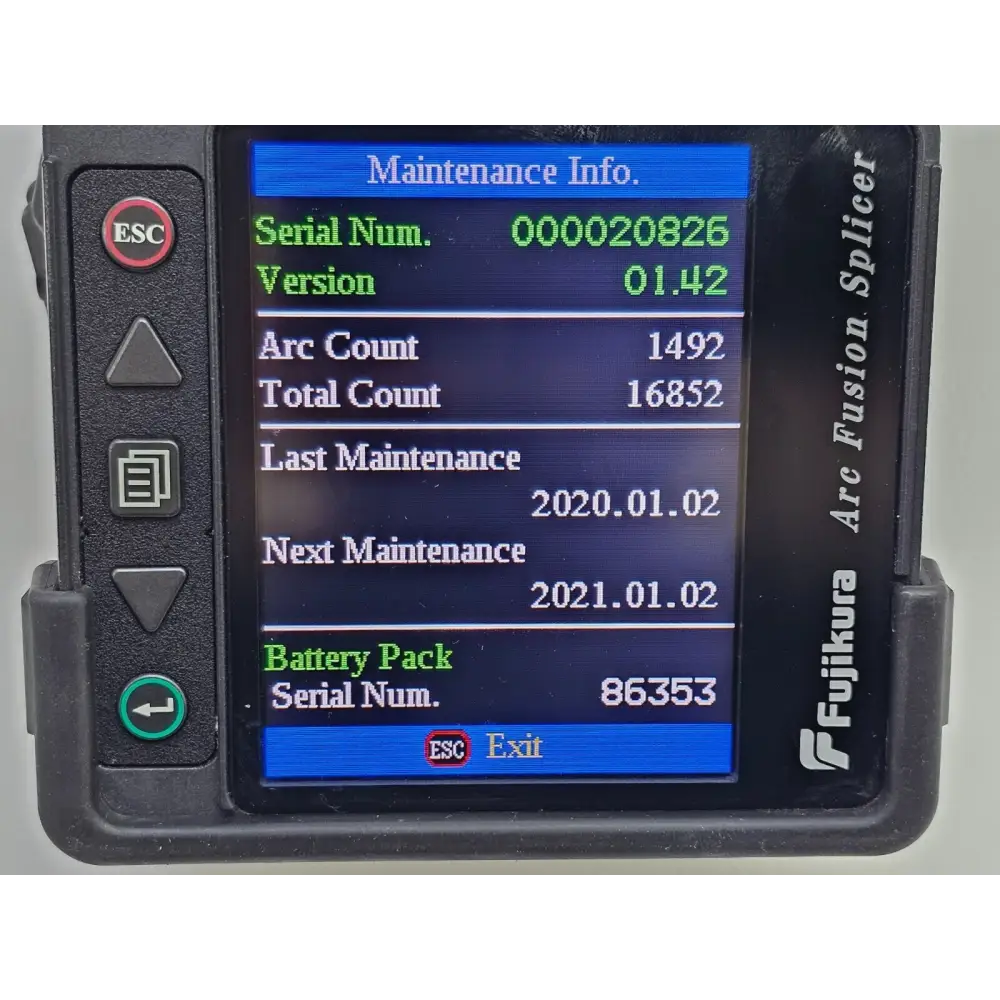

Display: Colour LCD monitor with dual camera viewing

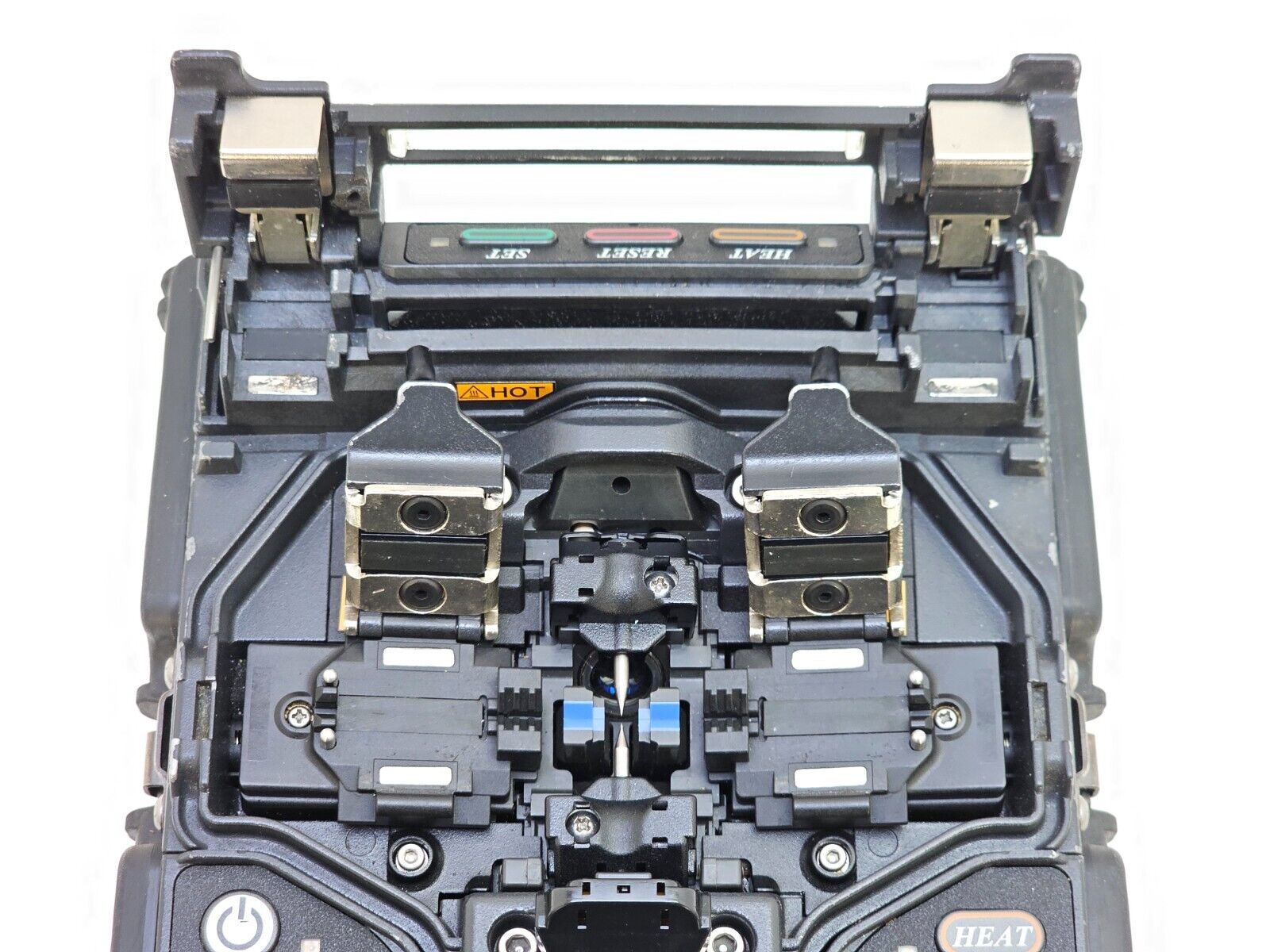

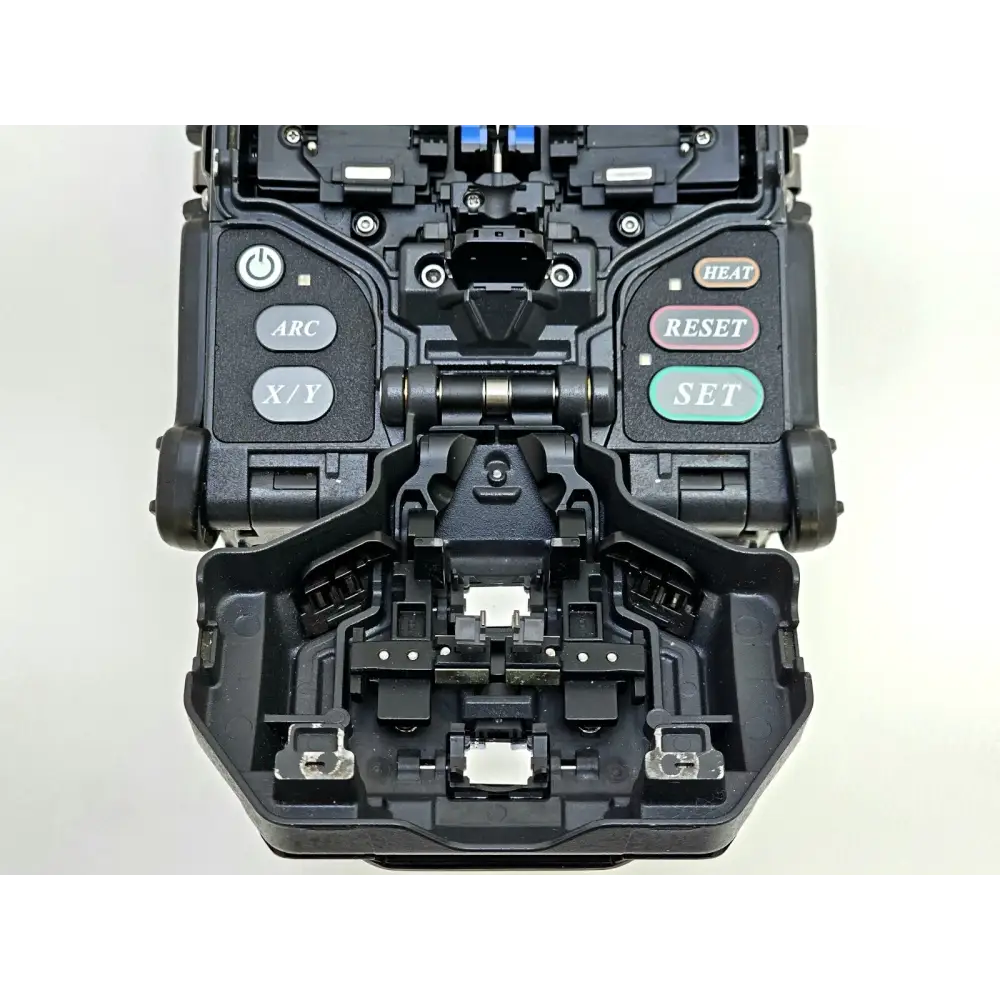

Fibre Holders: Universal clamp type
Dimensions: Approximately 130 x 150 x 155 mm
Weight: Approximately 3.0 kg (with battery)
Operating Temperature: -10°C to +50°C
Storage Temperature: -40°C to +80°C
