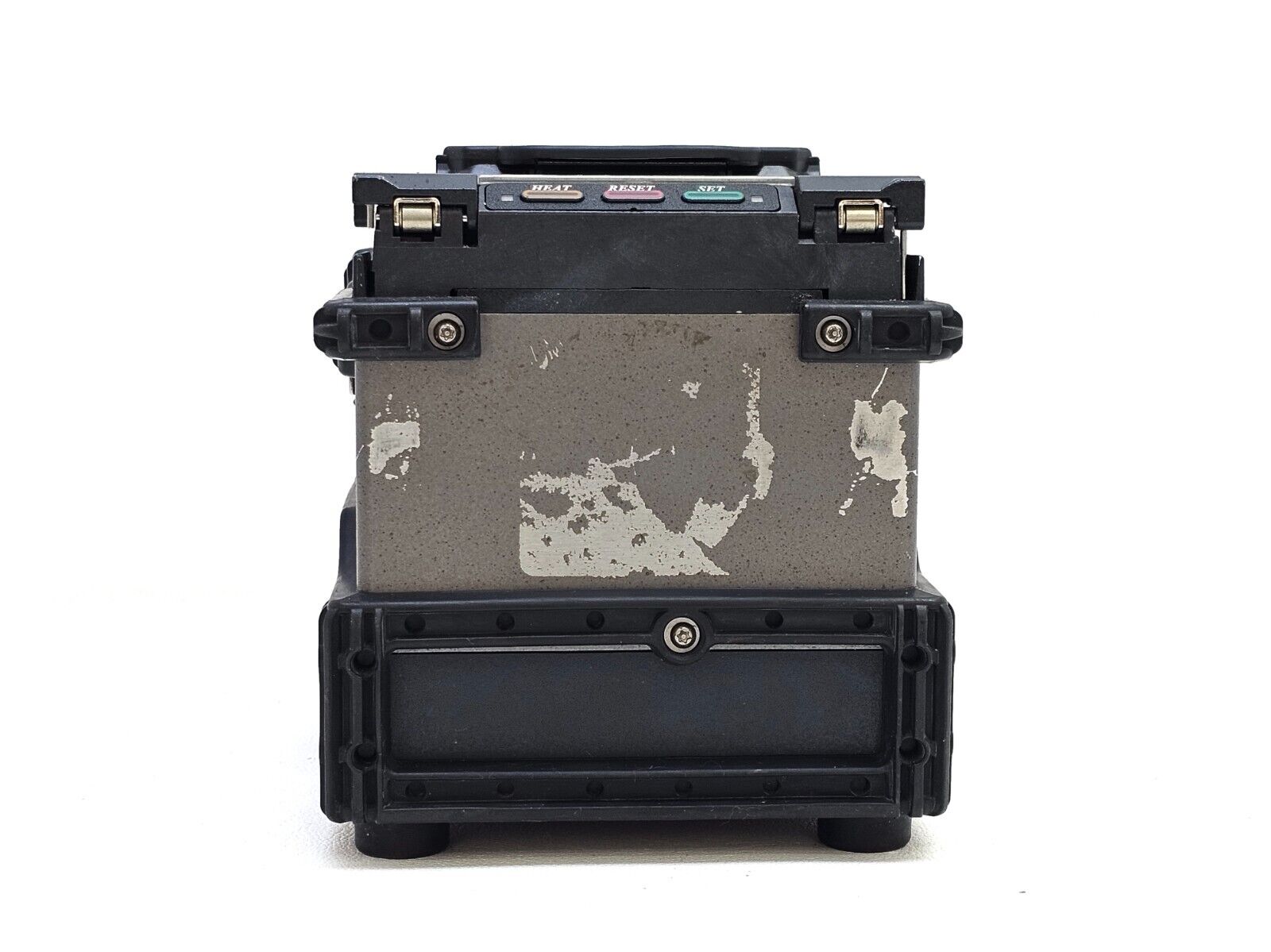

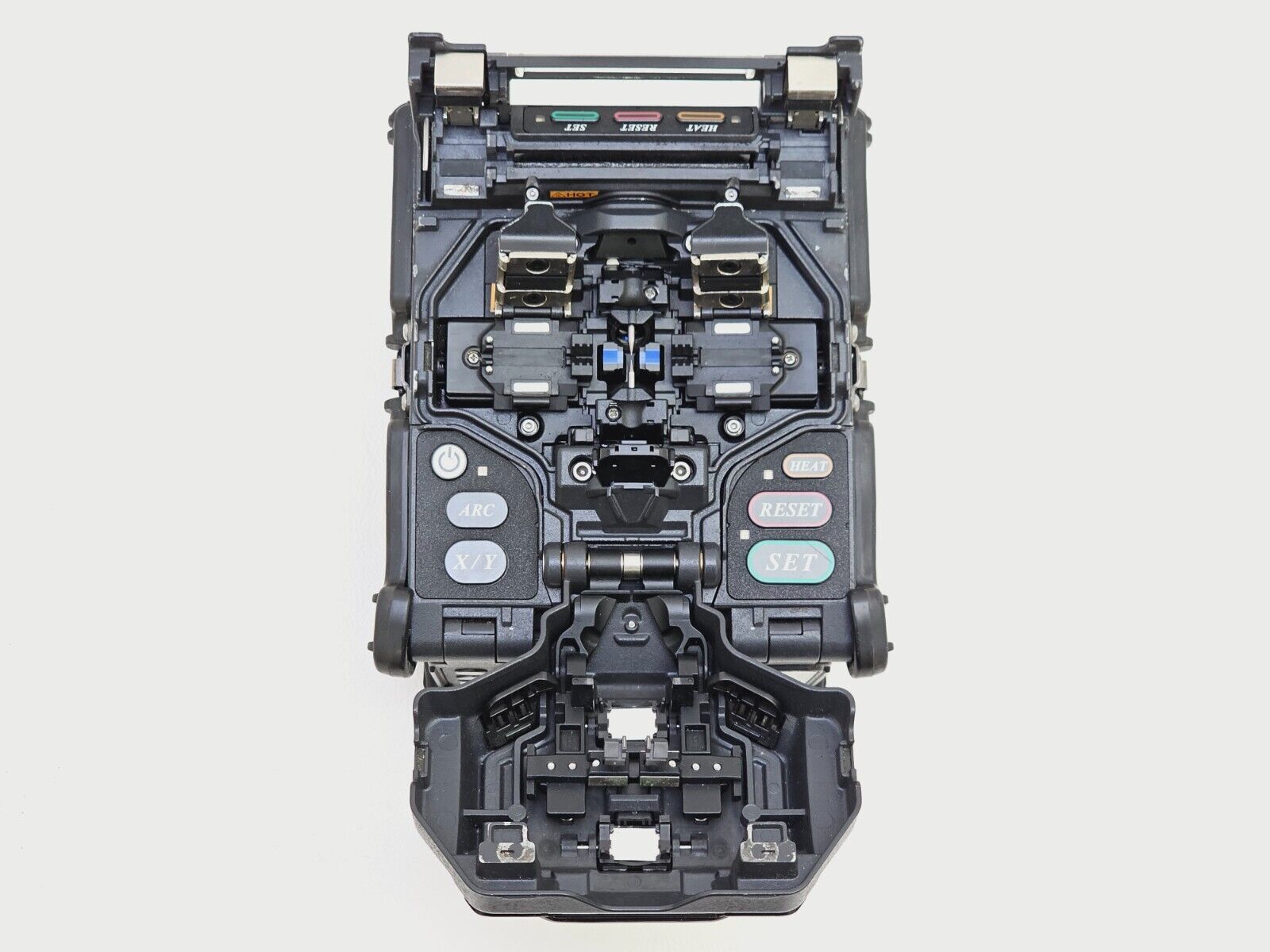

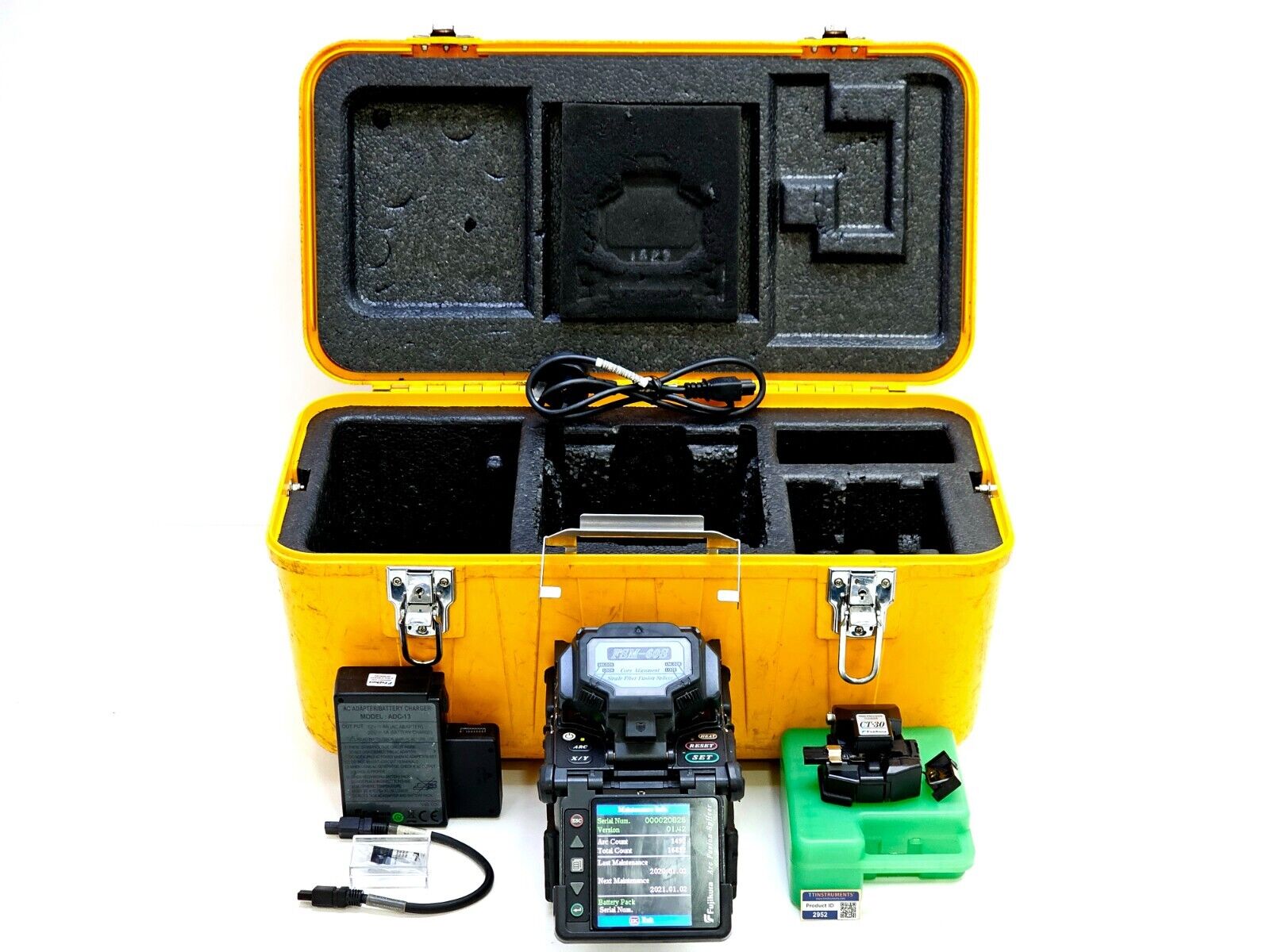

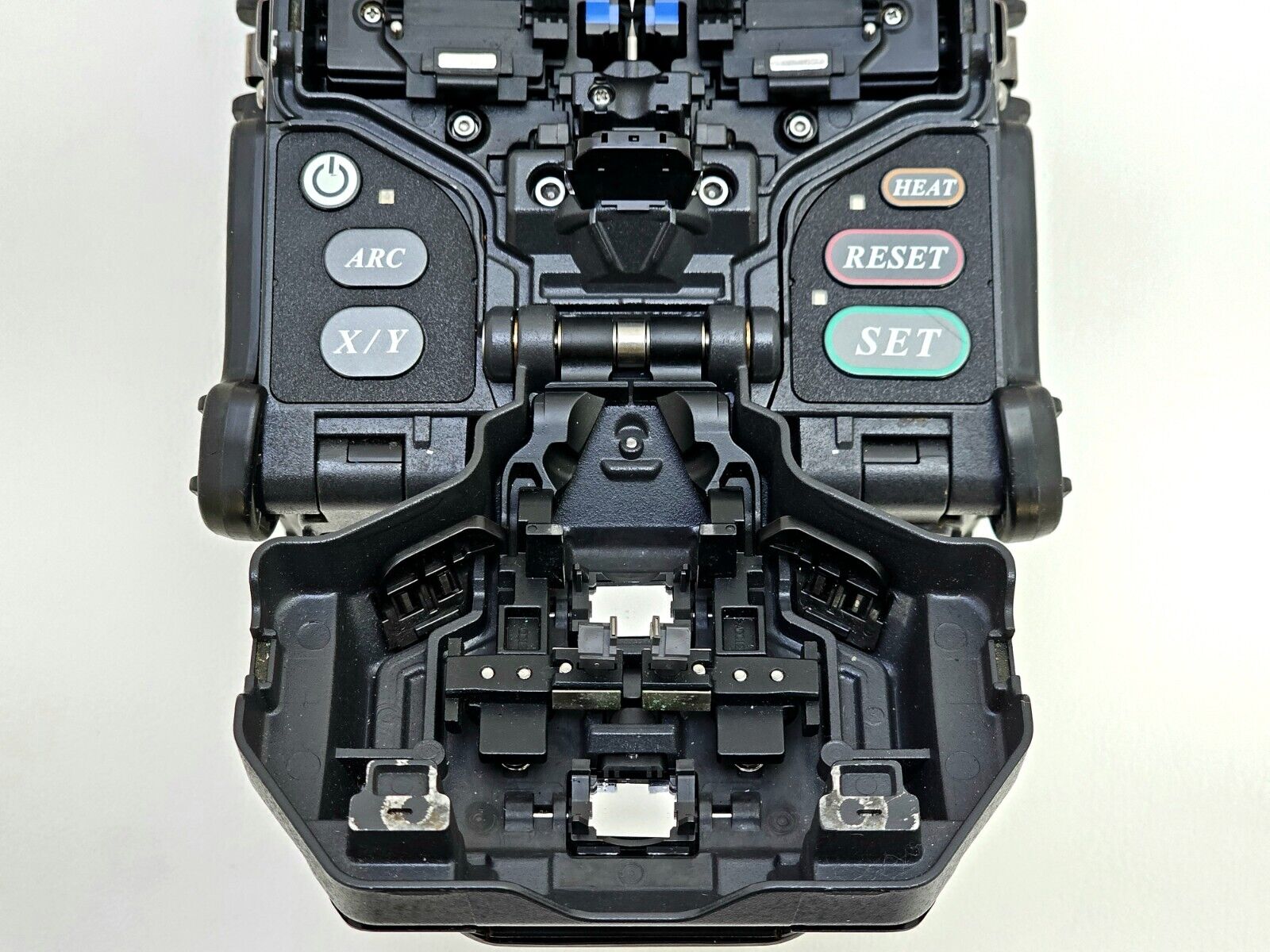

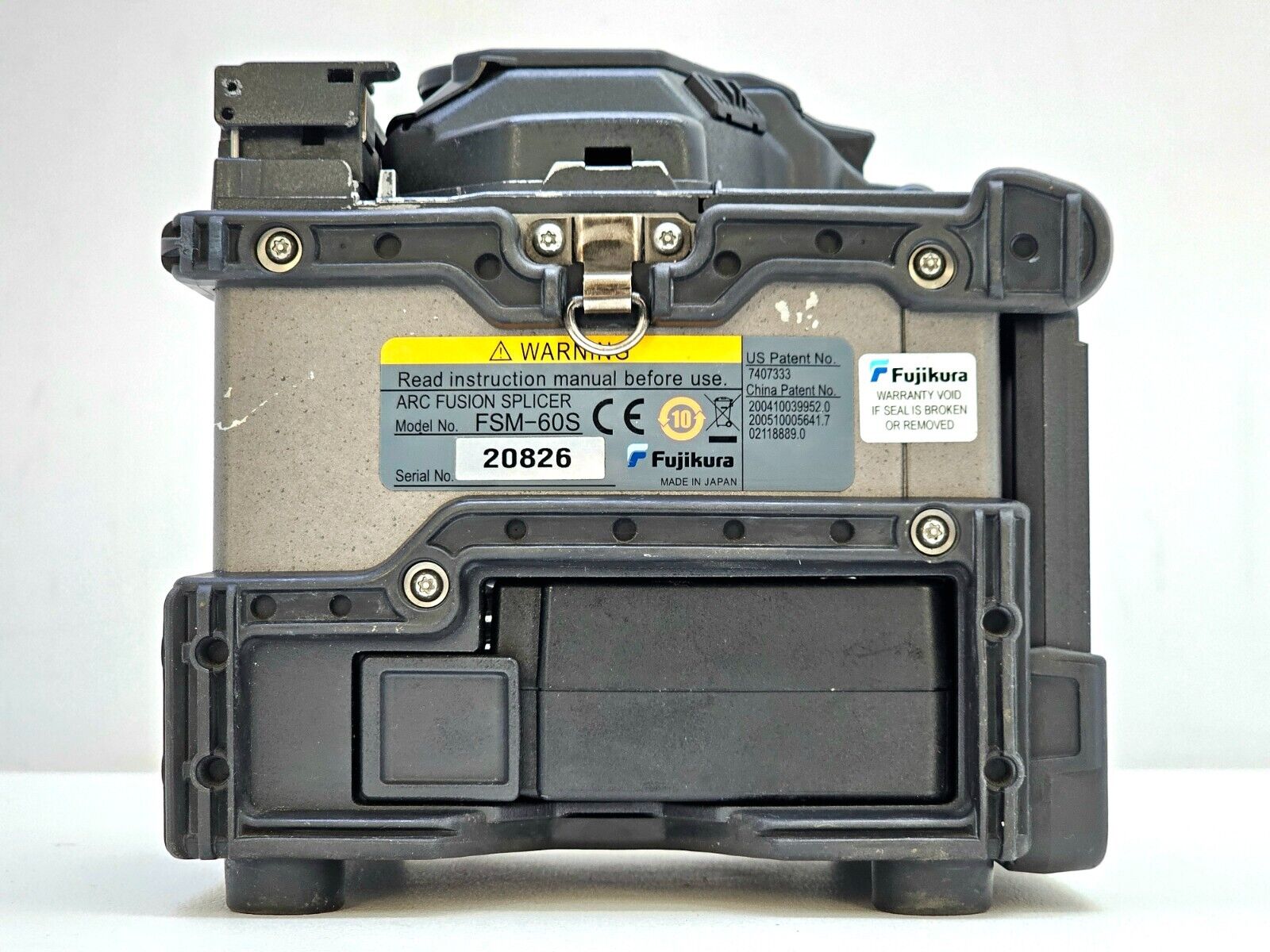

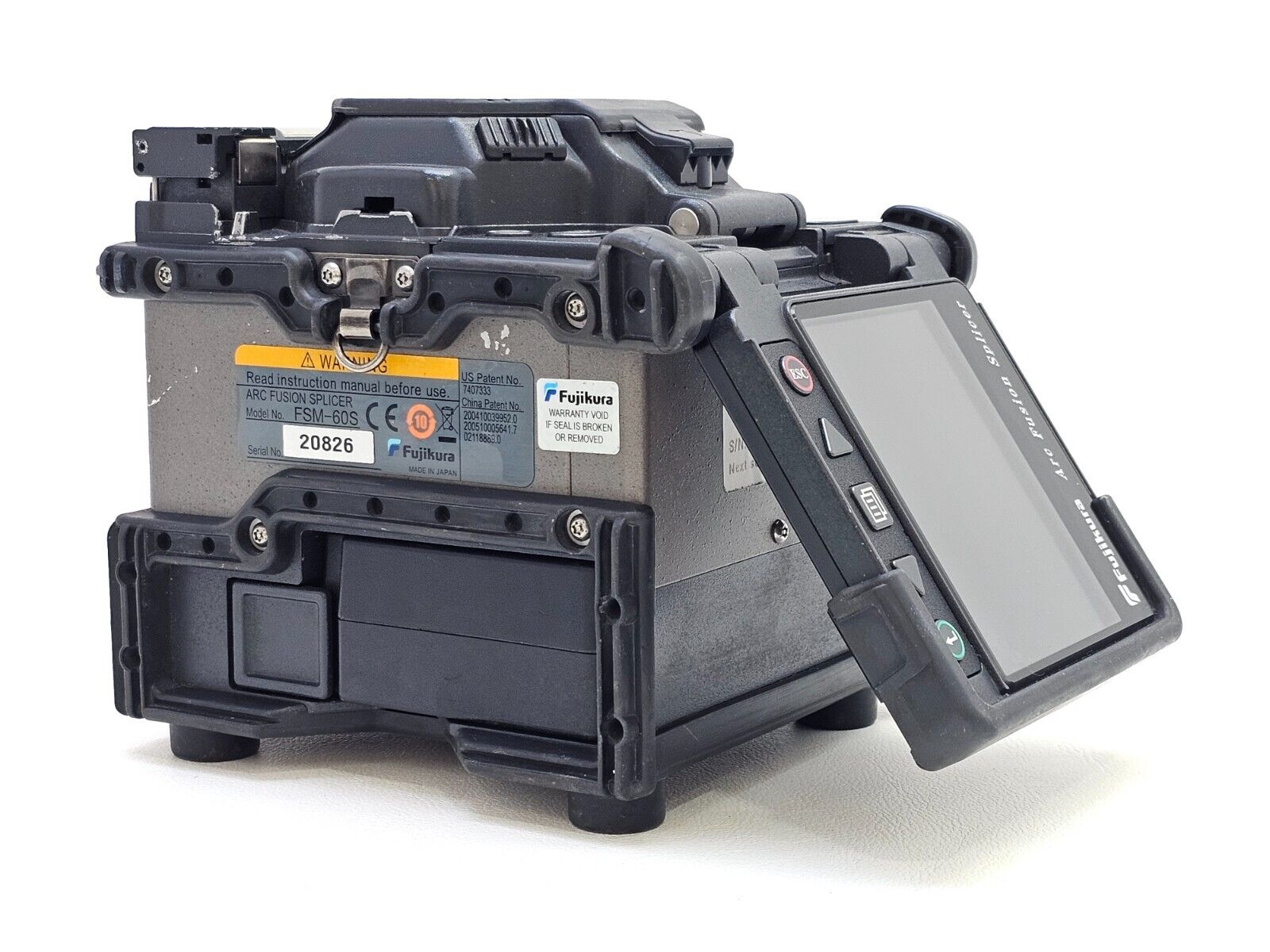

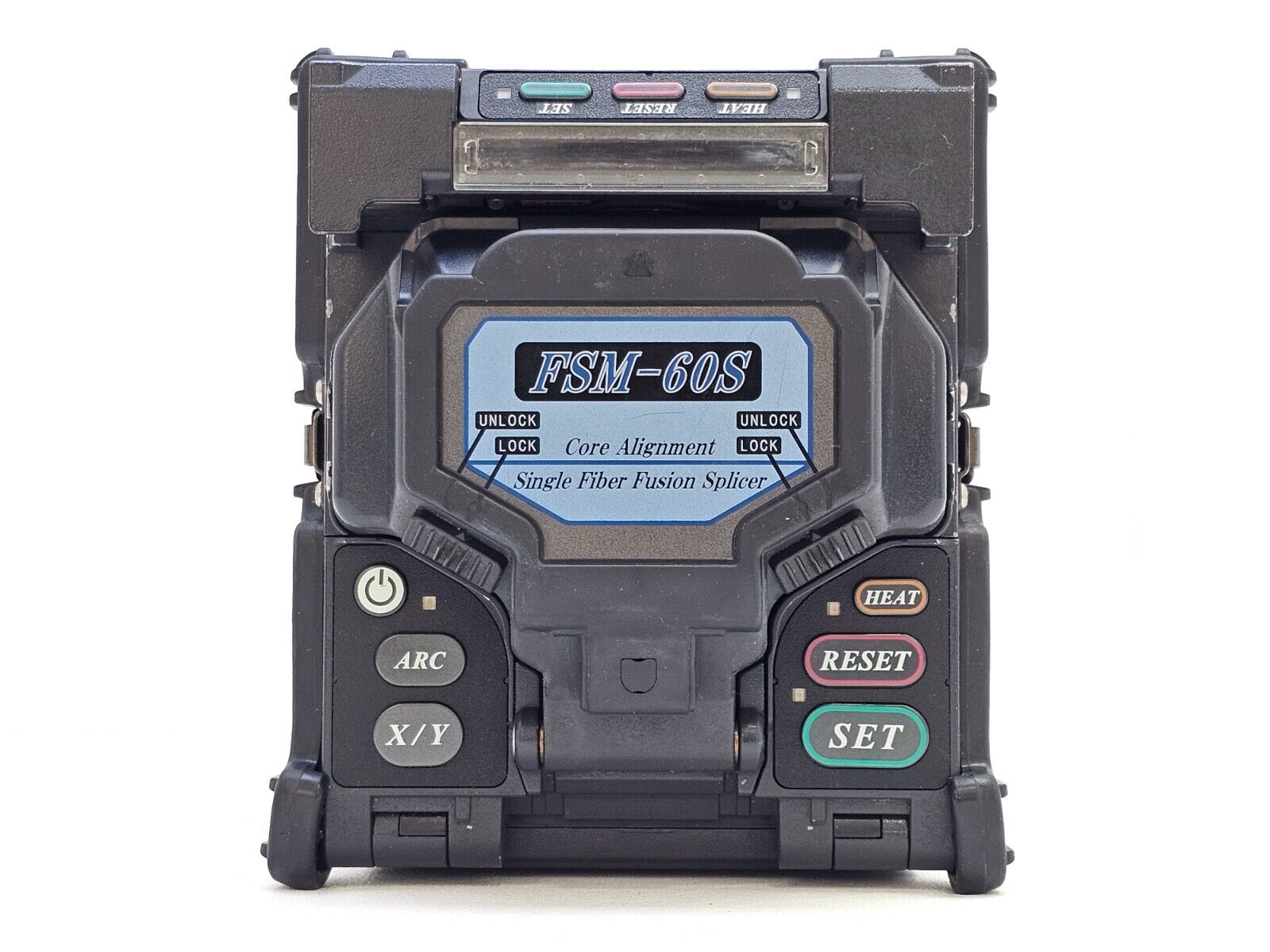

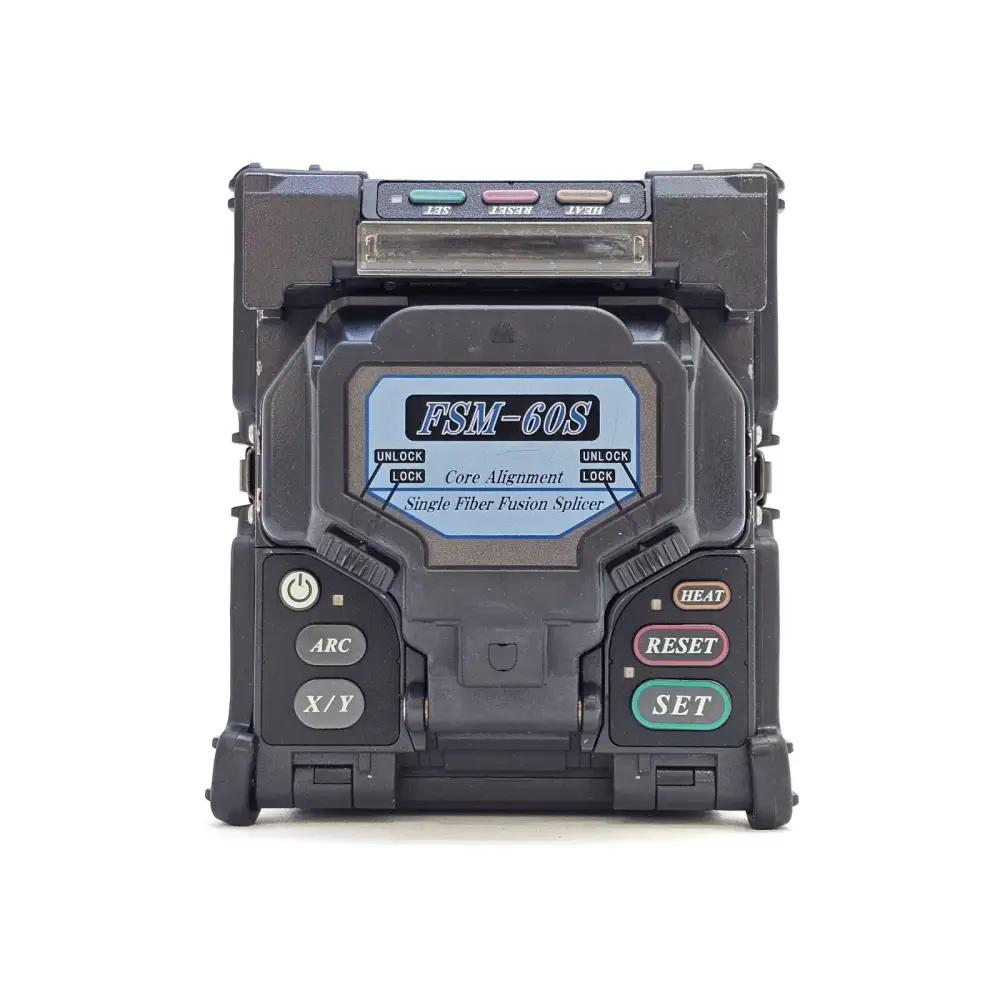

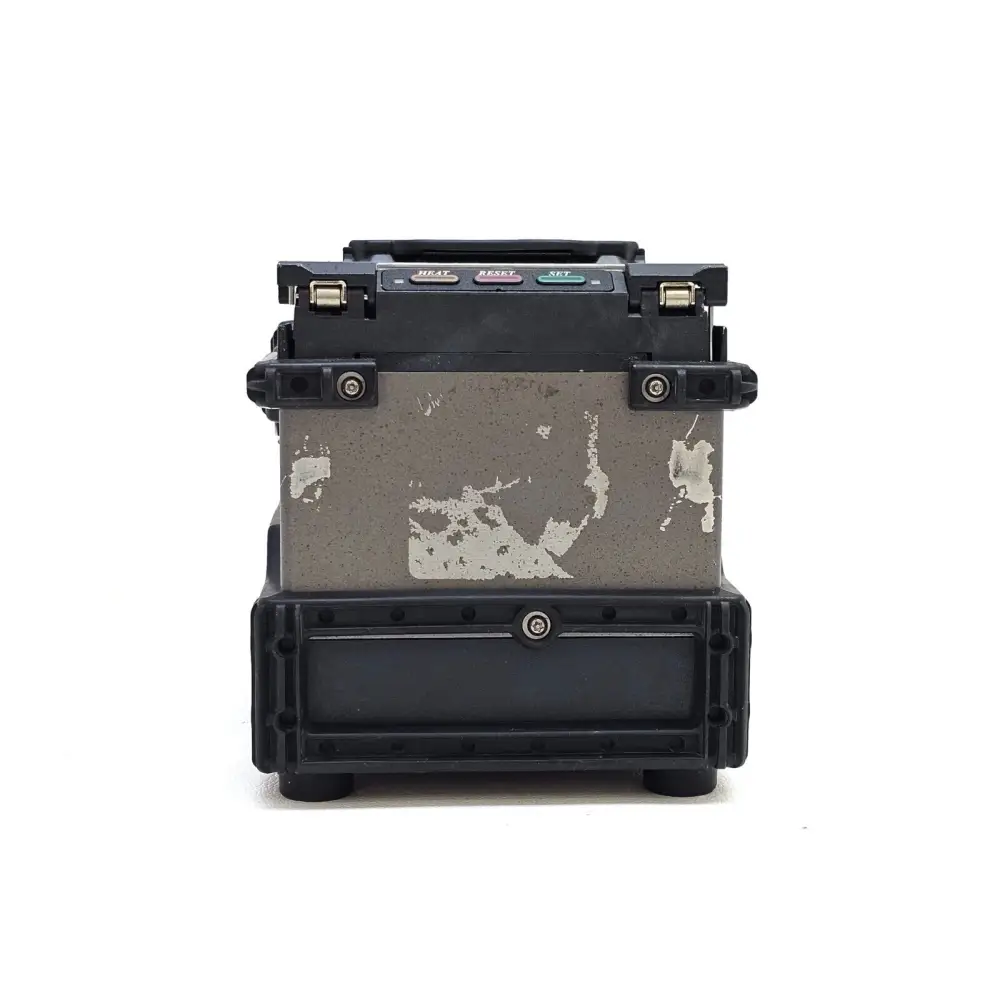

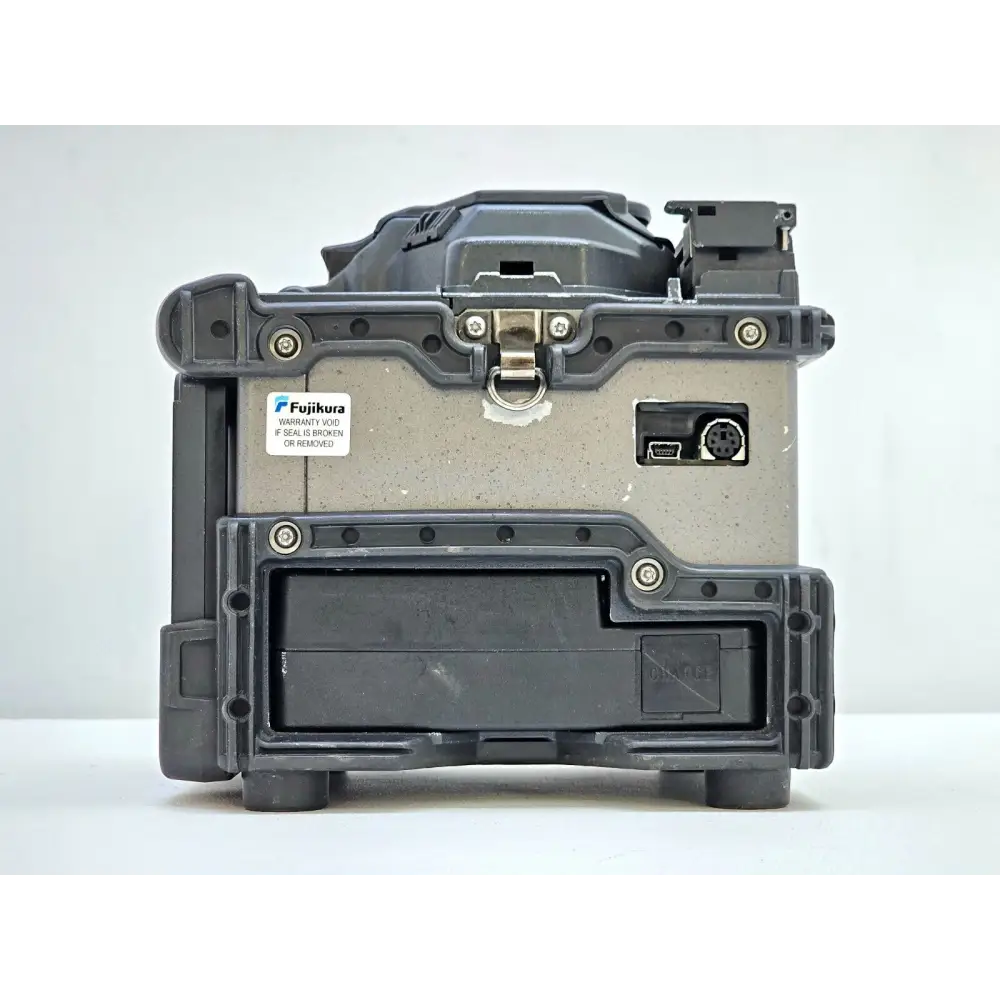

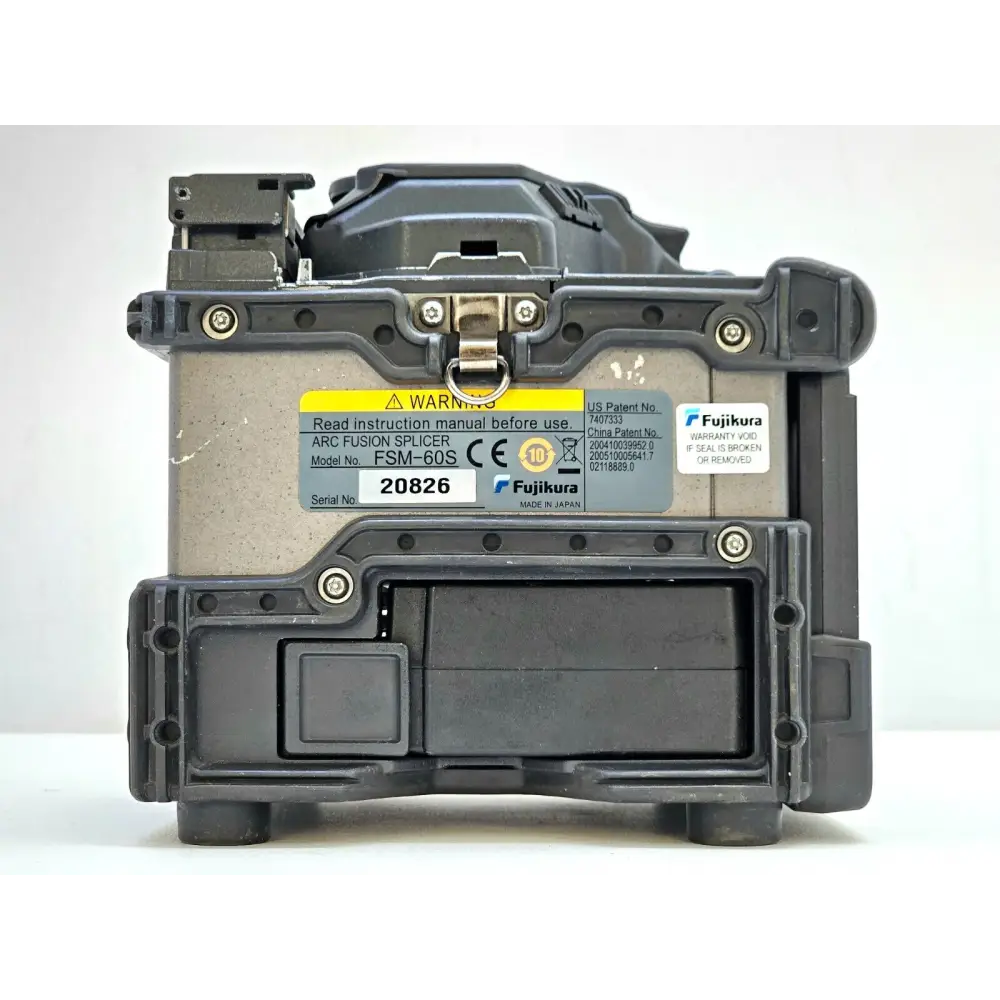

The Fujikura FSM-60S is a core-alignment fusion splicer developed for professional fibre optic network installation and maintenance. It supports a wide range of fibre types including single-mode (SM), multimode (MM), and various specialty fibres, making it highly versatile for telecommunications, CATV, and data network applications.

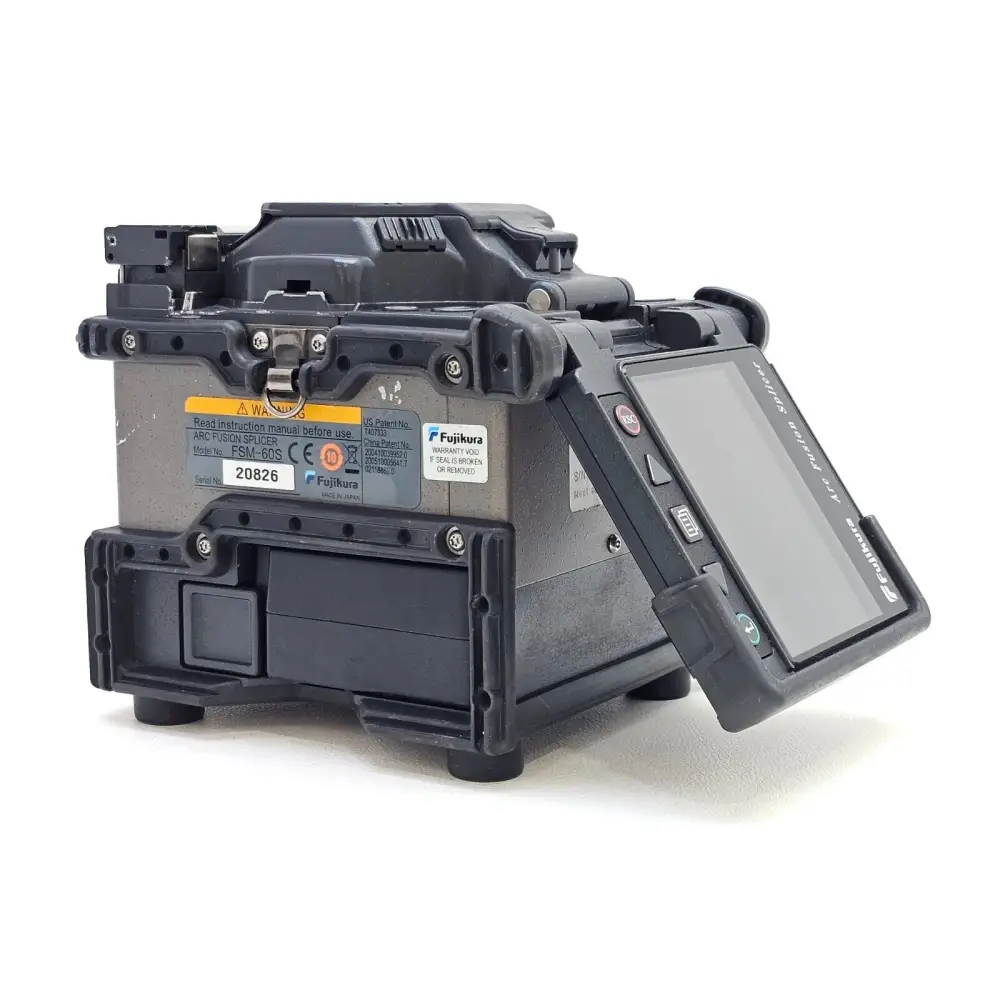

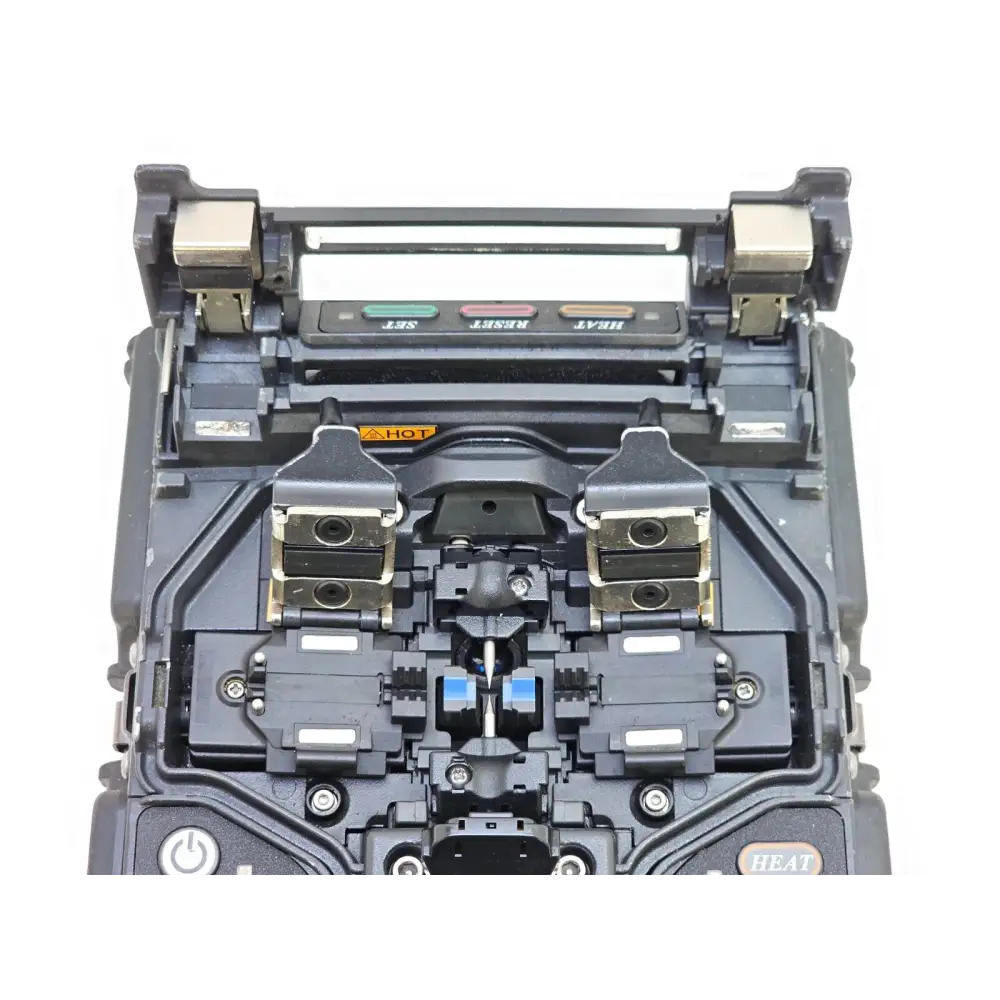

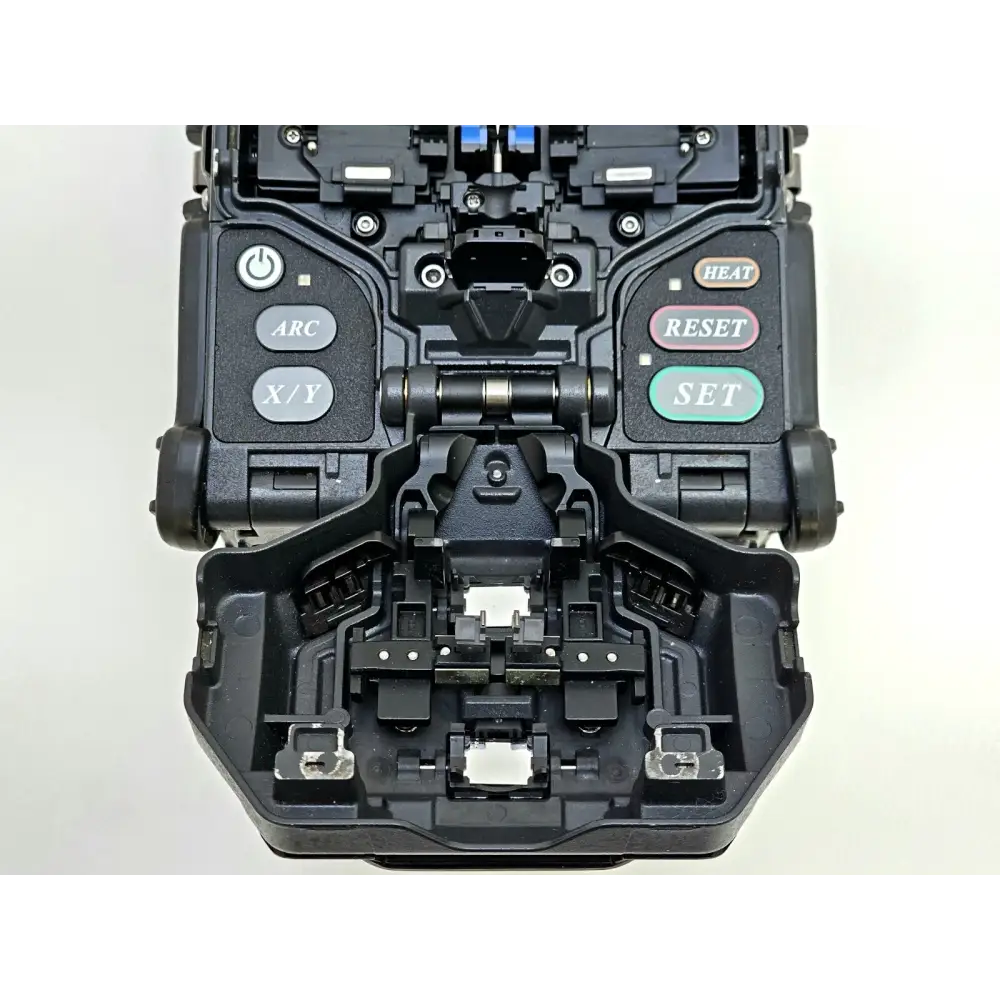

The FSM-60S features Fujikura's proven core-alignment technology, which actively aligns fibre cores prior to splicing to achieve consistently low splice loss results. Its intuitive interface and automated splicing sequence make it suitable for both experienced engineers and field technicians. The splicer's compact and rugged build ensures reliable performance across a variety of environments.
Key Specifications:
Splicer Type: Core-alignment fusion splicer
Fibre Compatibility: Single-mode (SM), Multimode (MM), specialty fibres
Splice Time: Approximately 9 seconds
Heating Time: Approximately 35 seconds
Typical Splice Loss (SM): 0.02 dB
Typical Splice Loss (MM): 0.01 dB
Fibre Diameter: 0.125 mm (cladding)

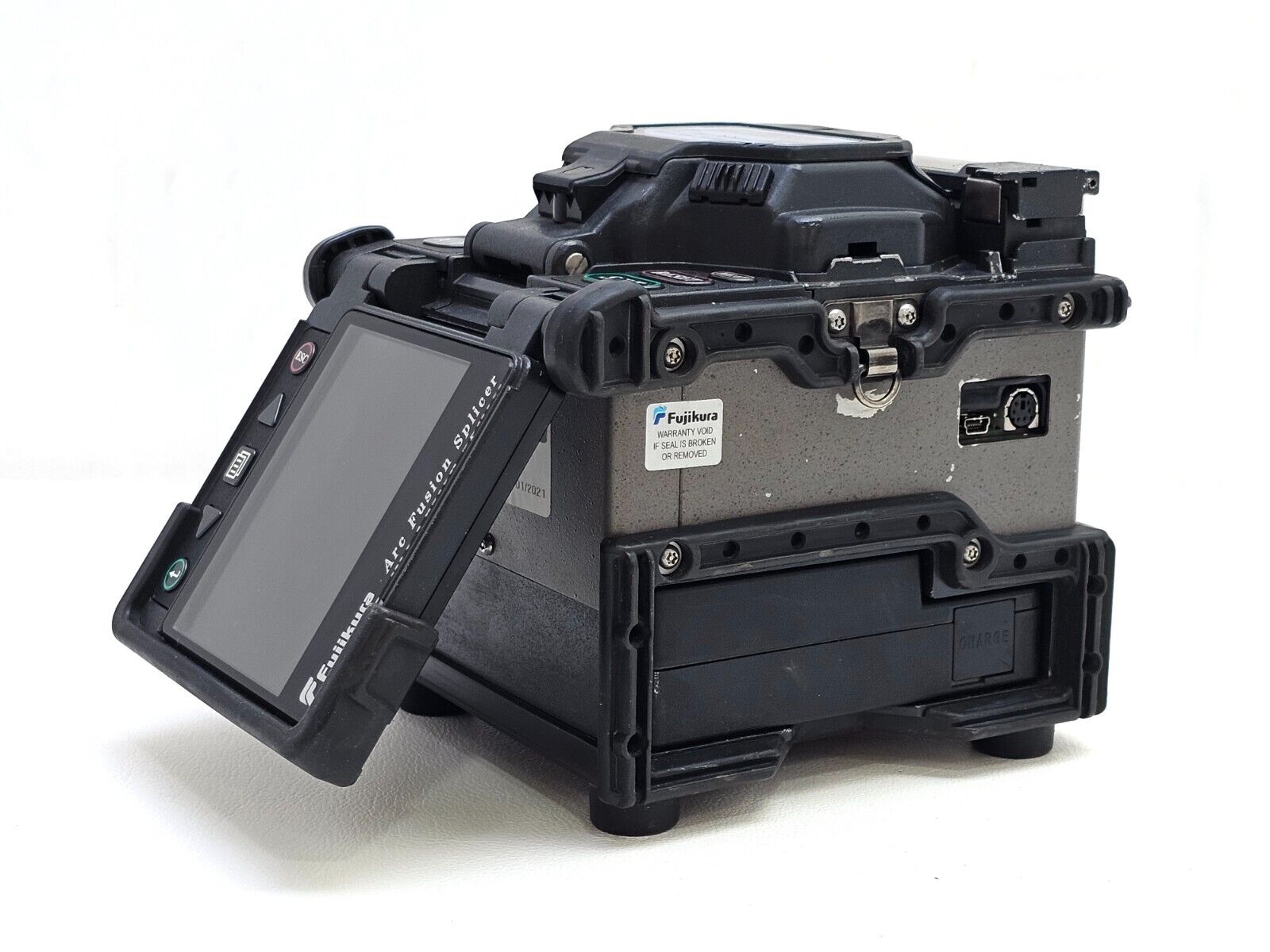

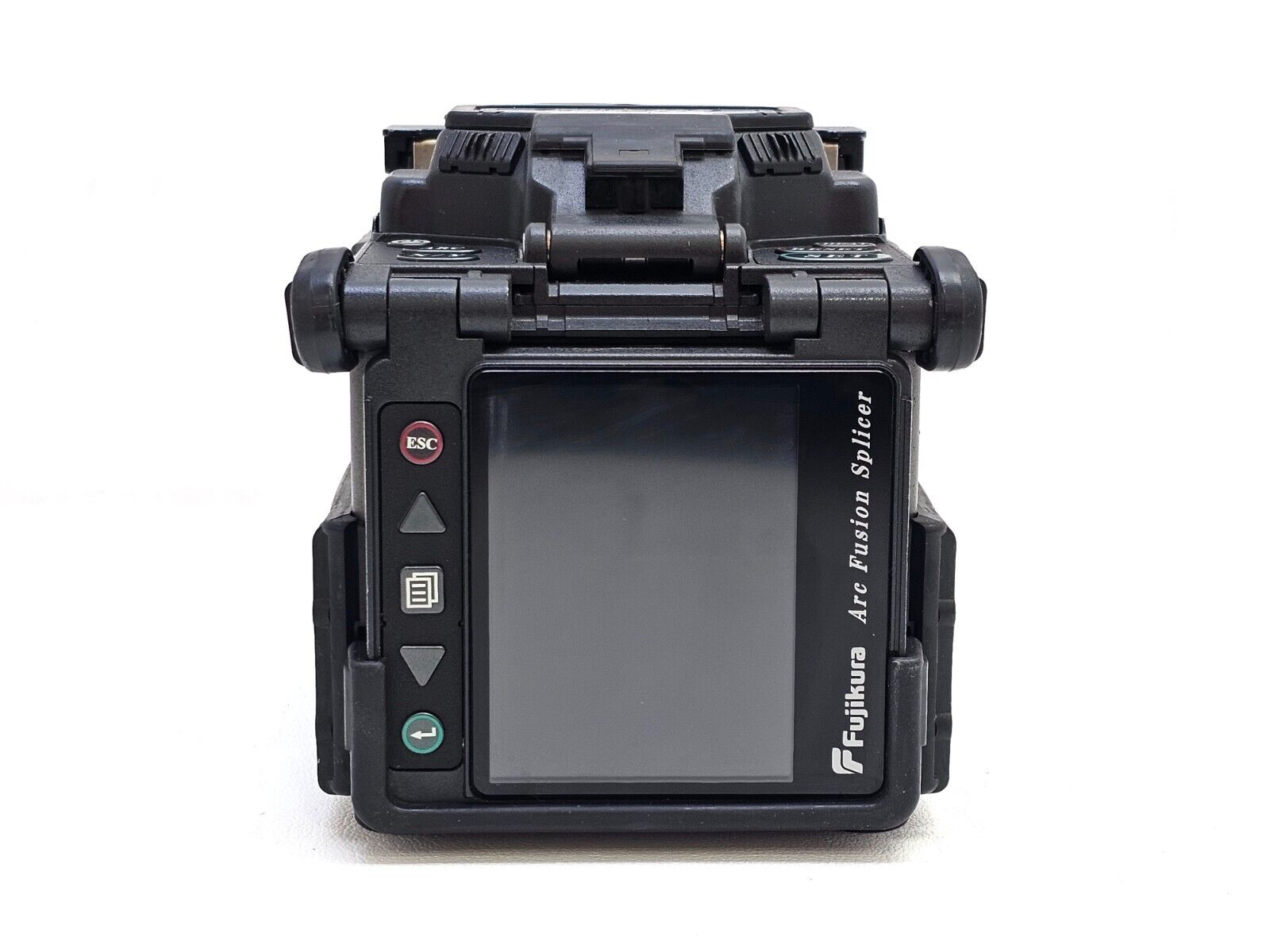

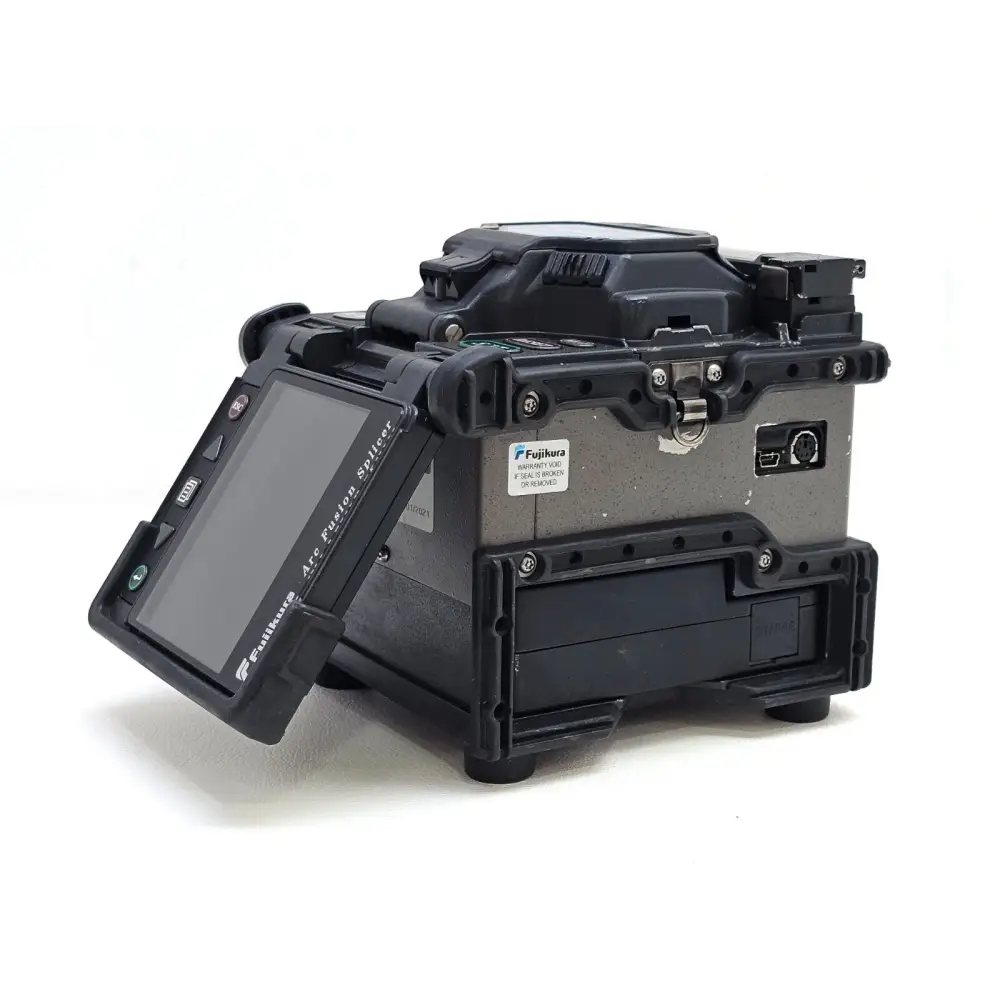

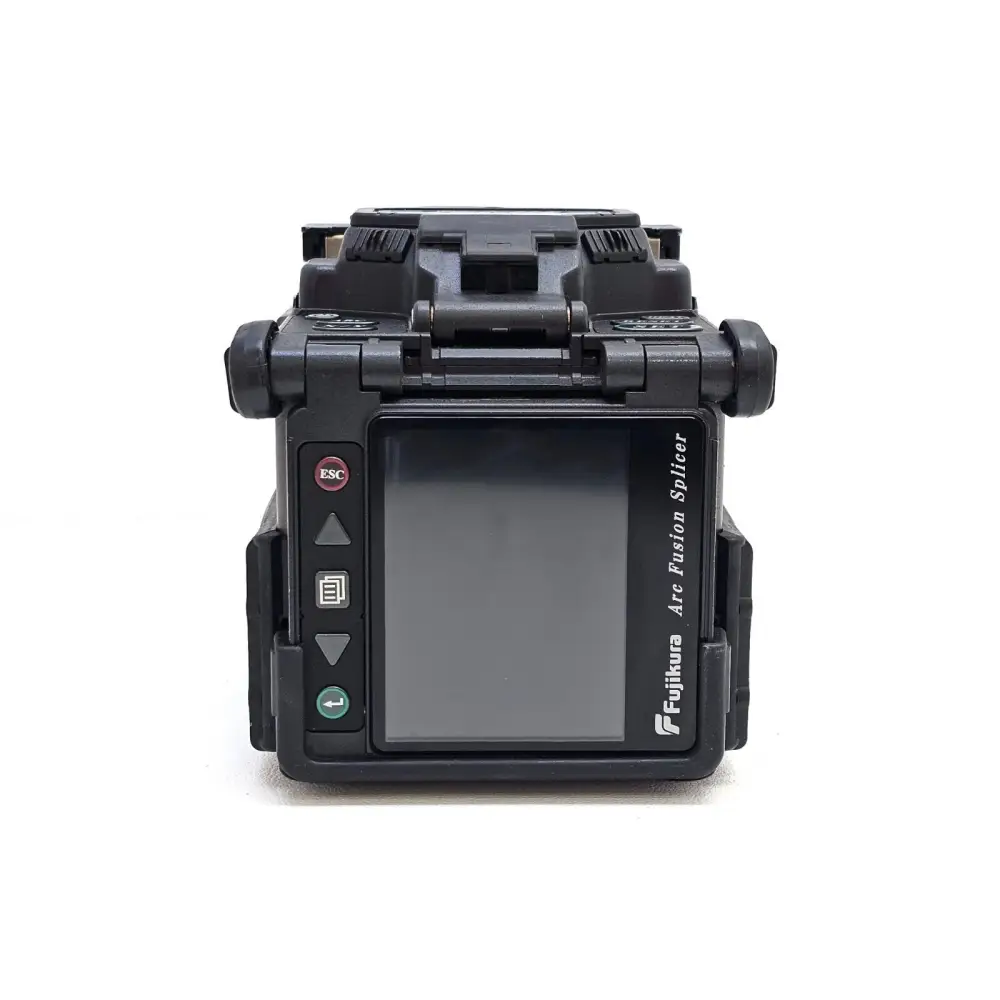

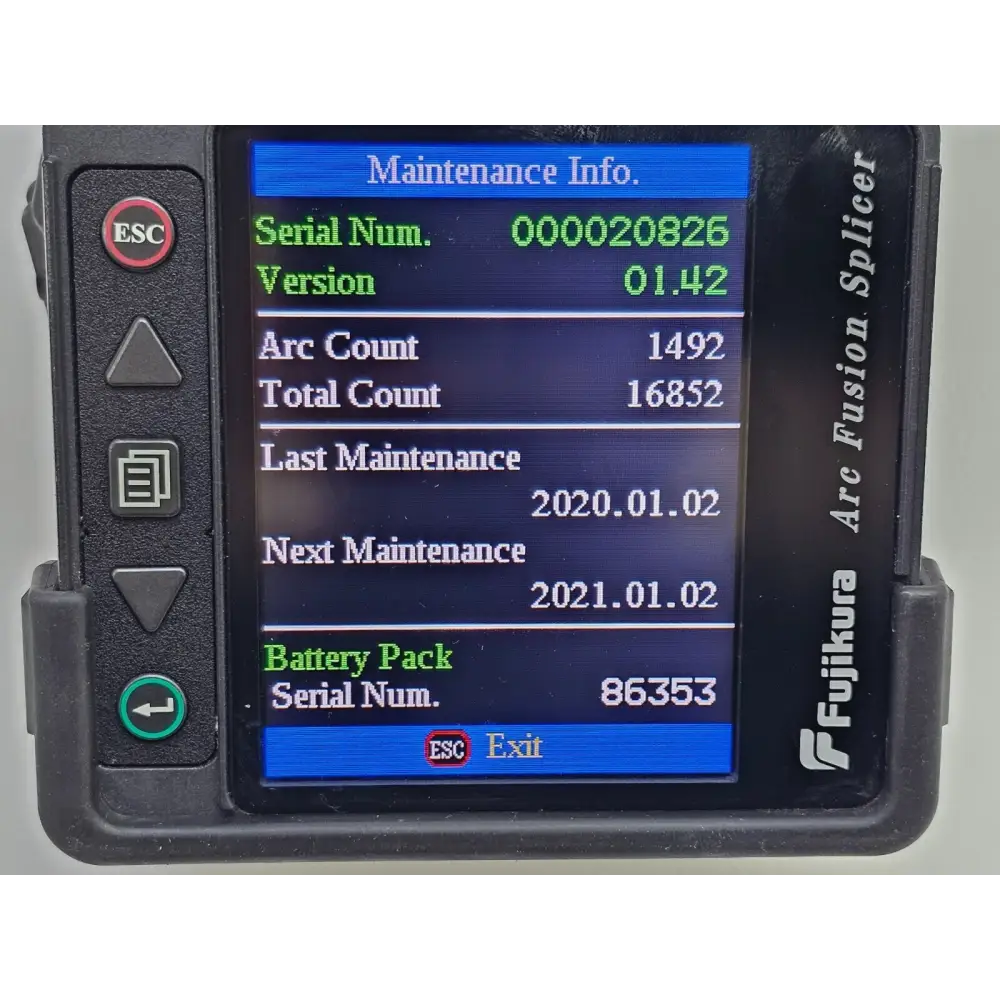

Display: Dual 3.5-inch colour LCD monitors

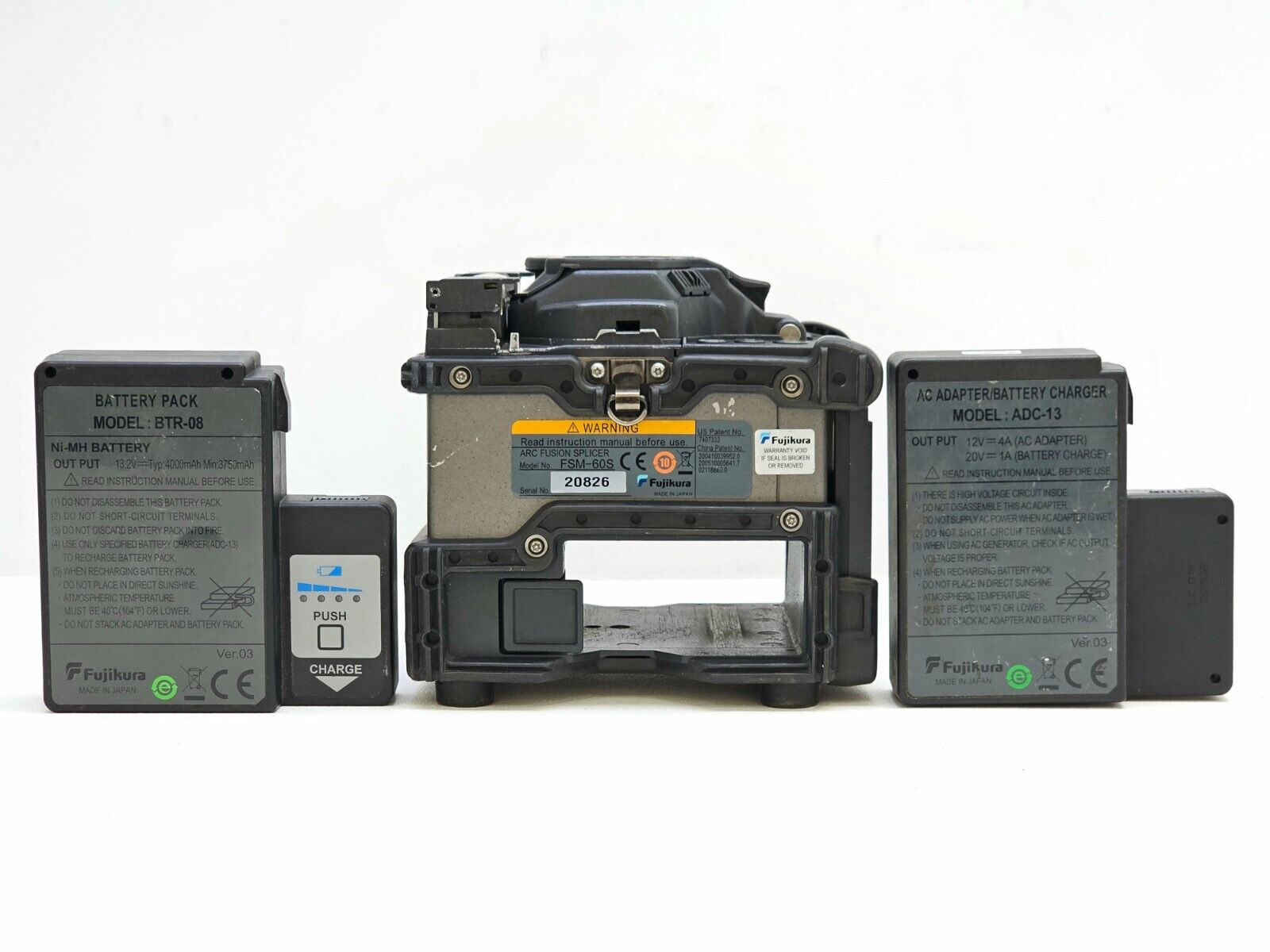

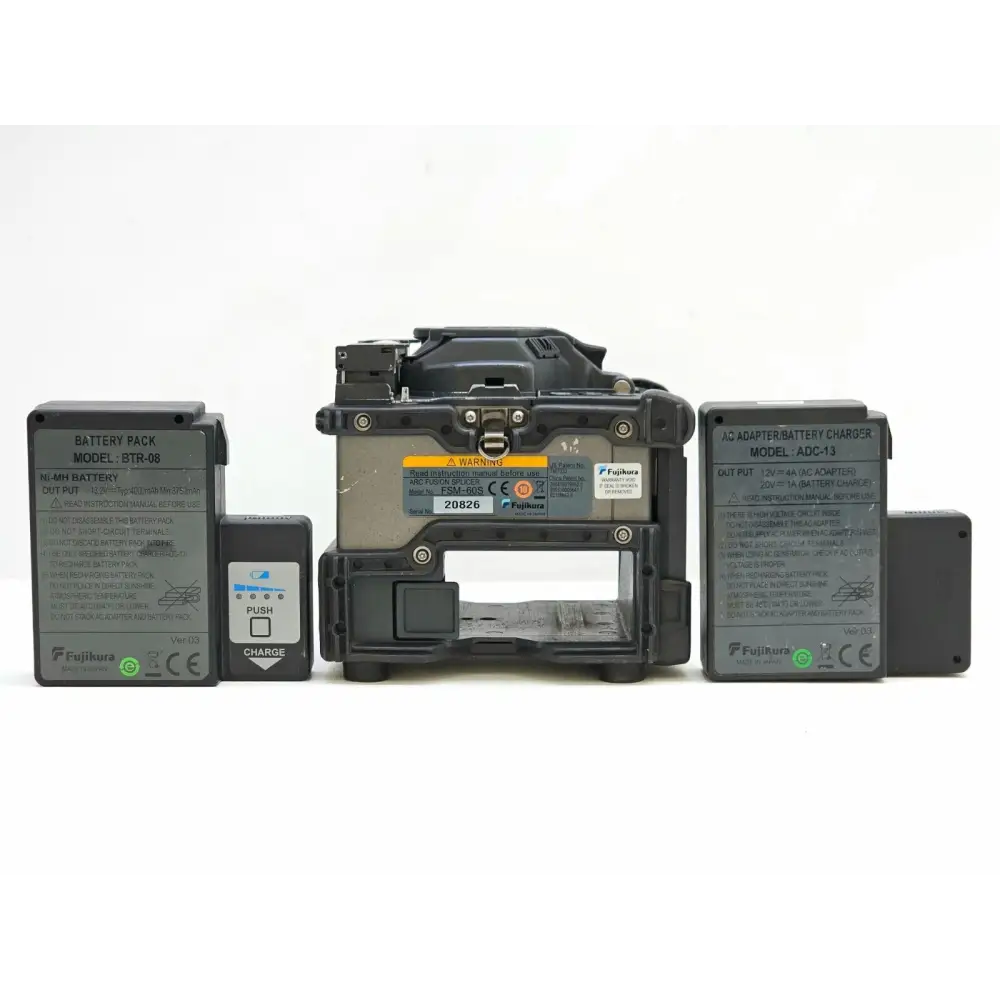

Battery: Lithium-ion, approximately 200 splice and heat cycles per charge
Operating Temperature: -10°C to +50°C
Dimensions: 118 × 118 × 152 mm
Weight: Approximately 2.2 kg (with battery)
Please refer to the Fujikura manufacturer website for full and up-to-date product specifications.
