The images provided are of the actual item you will receive. Please review them carefully for cosmetic condition.

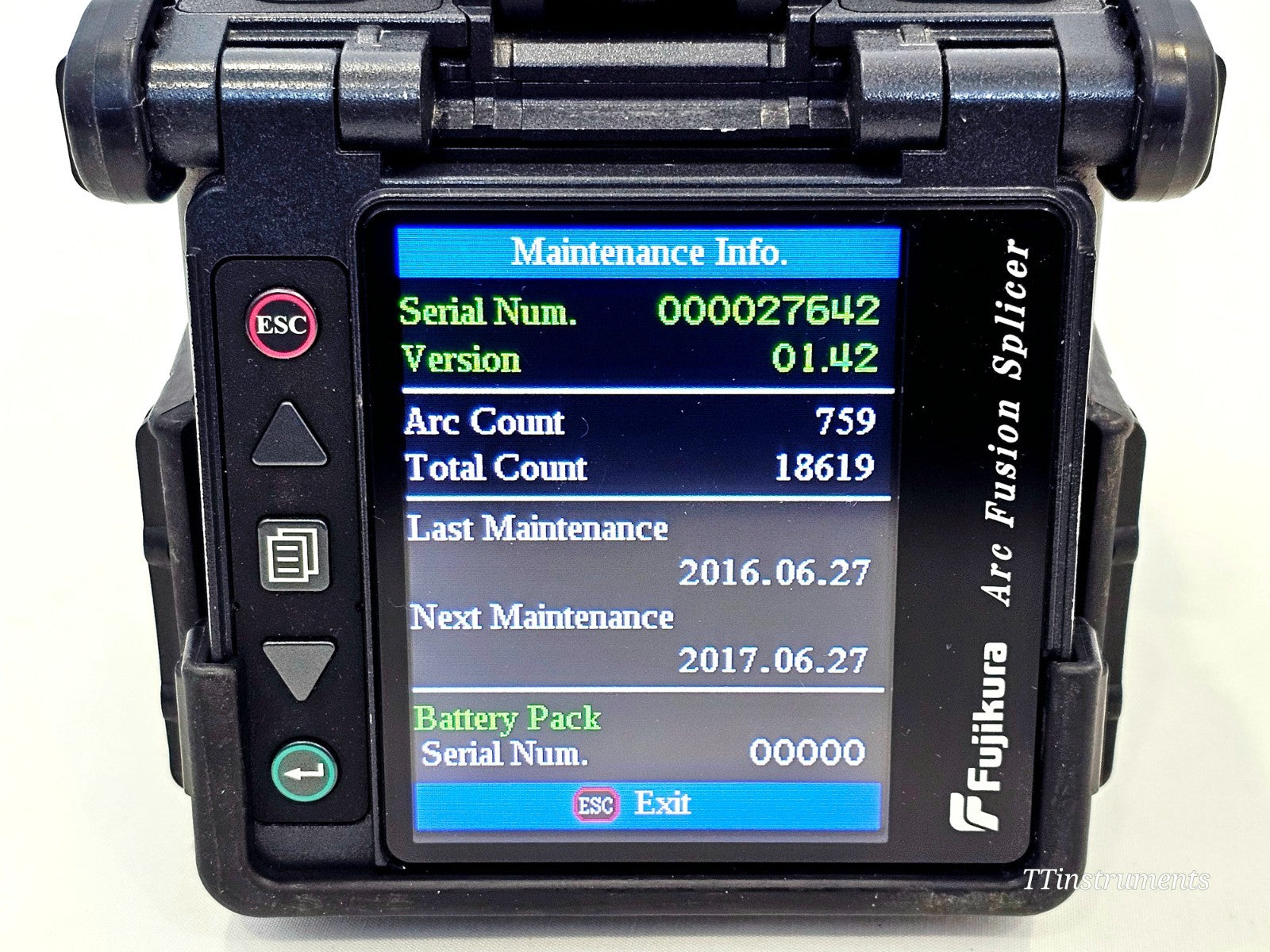

This Fujikura FSM-60S fusion splicer is in good cosmetic condition and has been tested and confirmed fully functional. The unit is running firmware version 01.42.

Arc count since last service: 759. Total lifetime splice count: 18,619. The arc count is low, indicating the current electrode set has significant remaining life. The total count is moderate for this model; a routine service is advisable before extended field deployment.

The unit is supplied with the following:

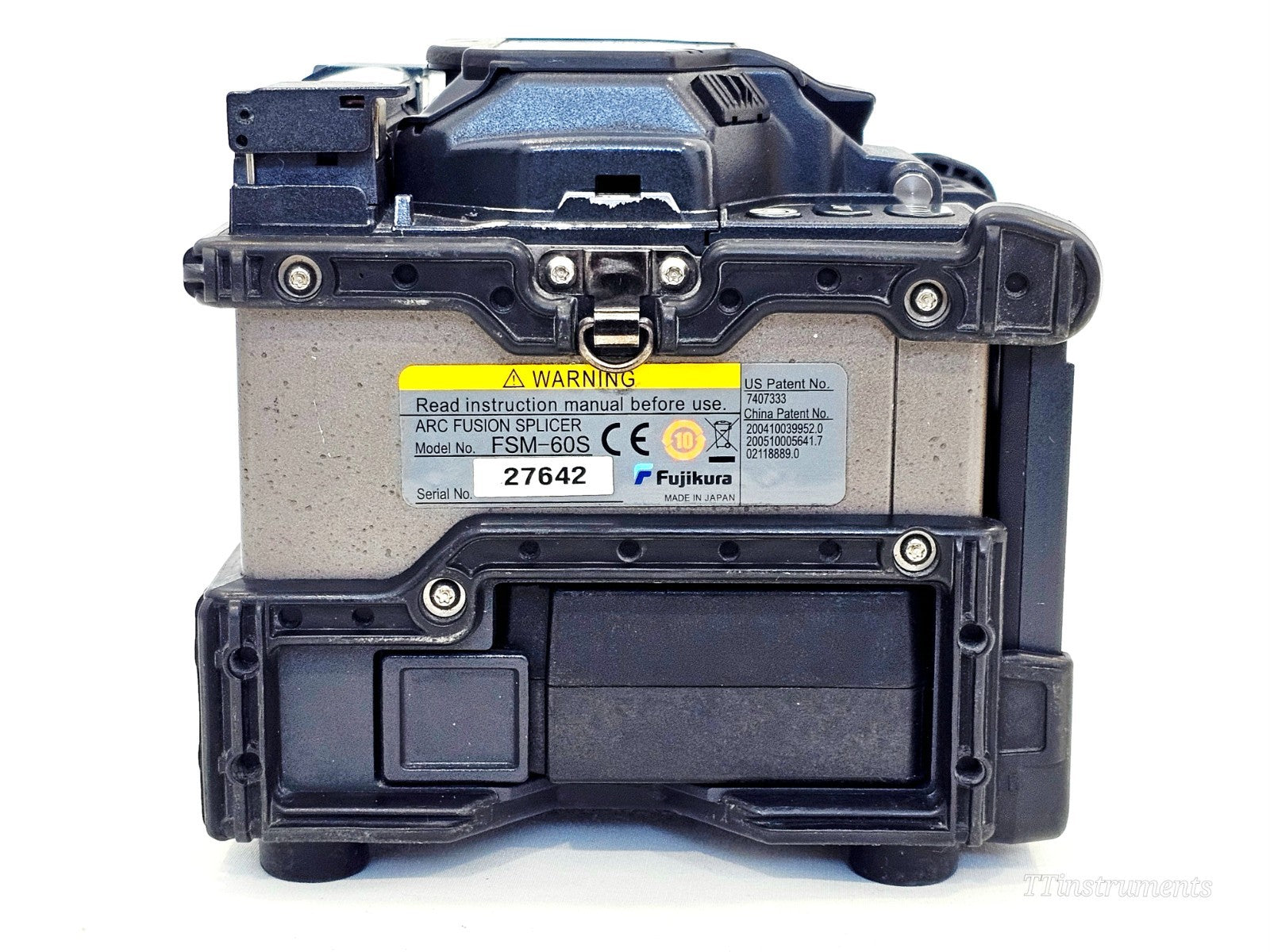

• Fujikura FSM-60S Arc Fusion Splicer

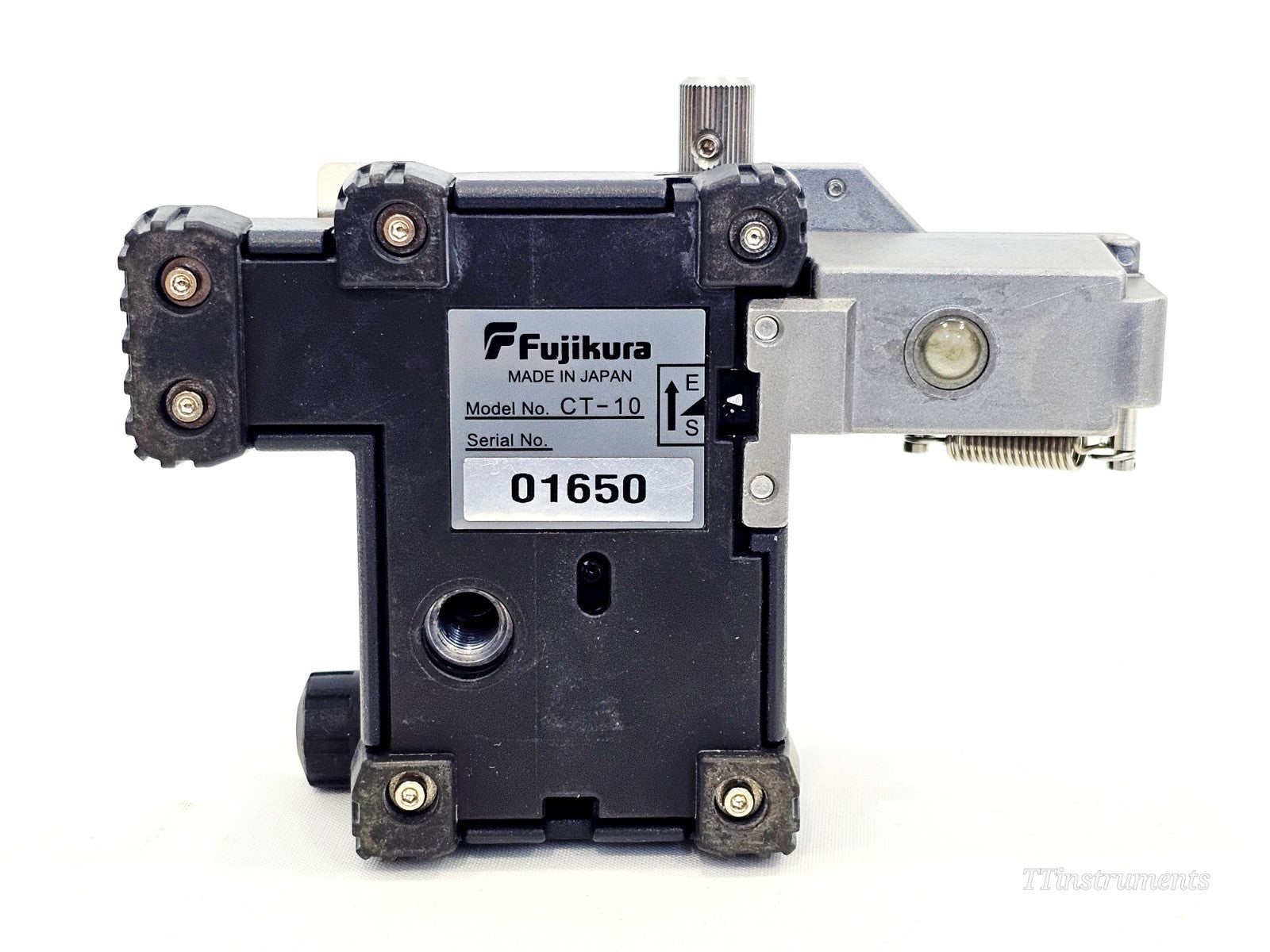

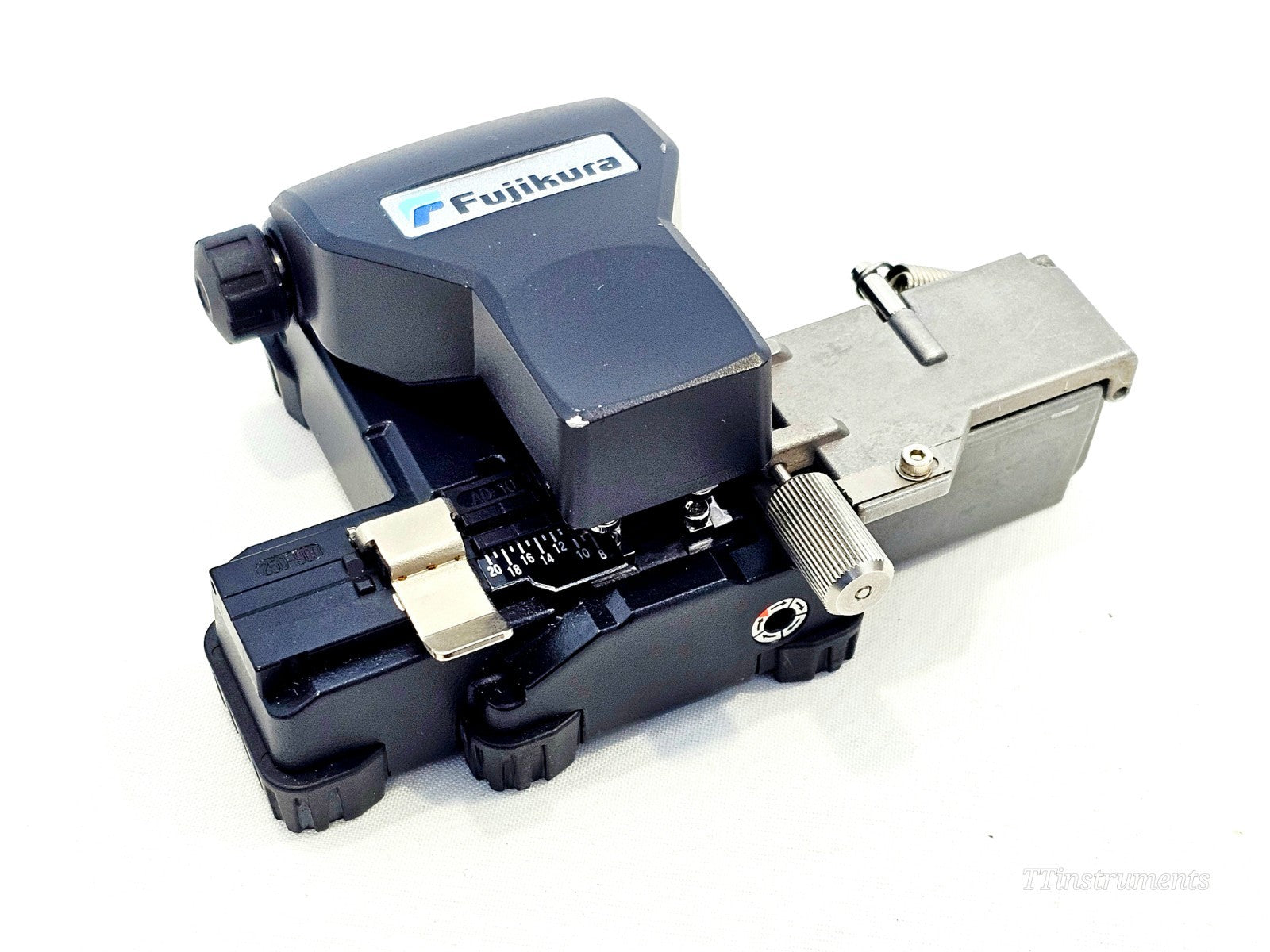

• Fujikura CT-10 Fibre Cleaver
• Fujikura ADC-13 AC Adapter / Battery Charger
• AC Power Cord
• Yellow transit carry case

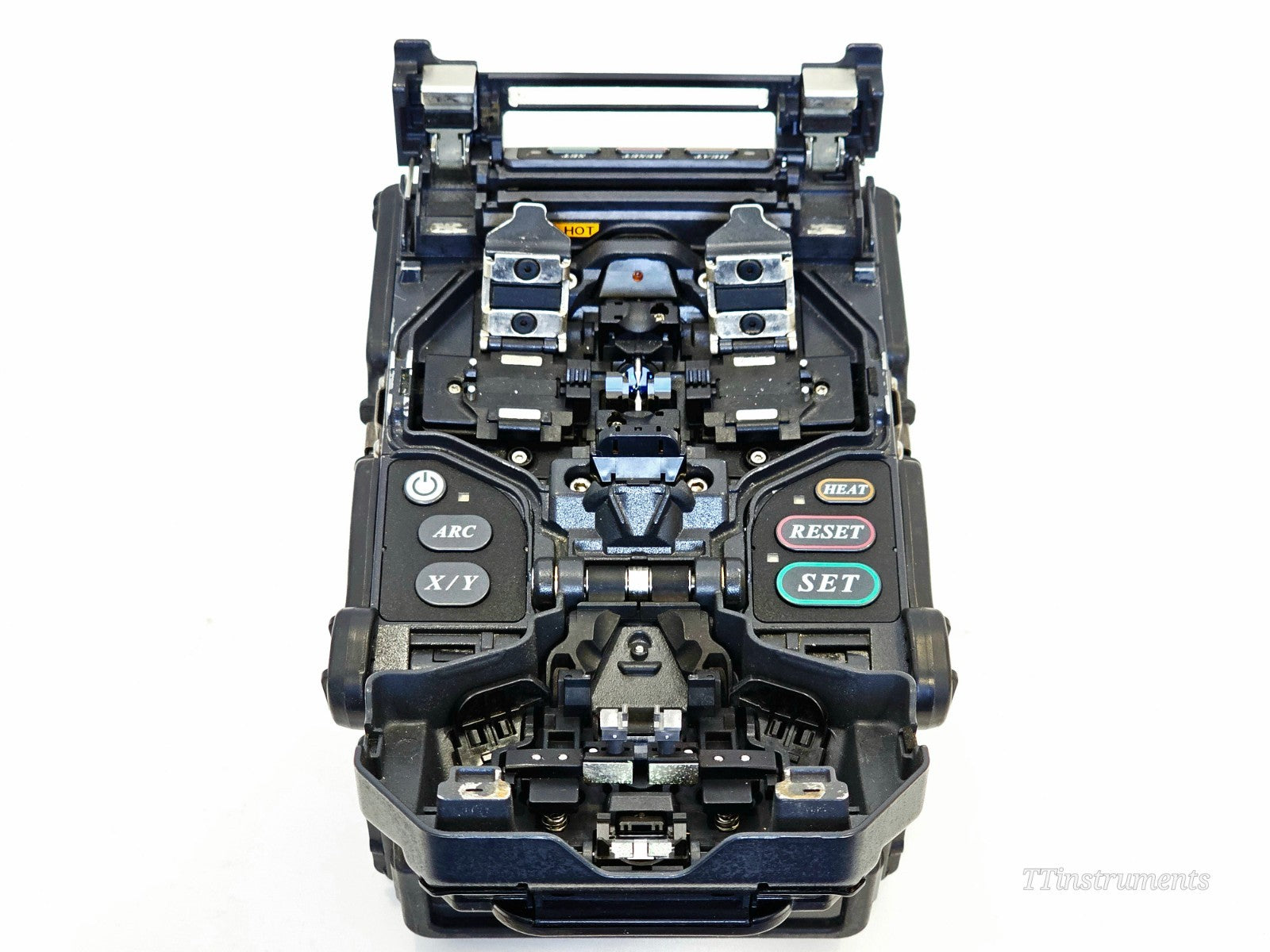

The Fujikura FSM-60S is a single-fibre arc fusion splicer designed for demanding field conditions, setting the standard for core alignment splicing with its proven Profile Alignment System (PAS) technology. It is engineered to be fast, compact, and robust — built to resist shock, dust, and rain while delivering consistent low-loss splice results across all standard fibre types.

Key features and highlights:
- Core-to-core alignment using dual-camera PAS (Profile Alignment System)
- 9-second splice time (SM FAST mode); total cycle including tube heat: 39 seconds
- Built-in tube heater with 30 heating modes and auto-start function
- Automatic arc calibration — calibration-free in normal operation
- User-selectable clamping: sheath clamp or fibre holder system
- Dual monitor position with automatic image orientation
- 4.1" TFT colour LCD with anti-reflective coating
- Up to 160 splice/heat cycles per battery charge (BTR-08)
- Stores last 2,000 splice results in internal memory
- USB interface for splice data download and firmware upgrades via PC
- Shock, dust, and rain resistant construction; survives 76 cm drop test
- RoHS and WEEE compliant

Applicable fibre types: SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655)
Typical splice loss (SM): 0.02 dB
Typical splice loss (MM): 0.01 dB
Typical splice loss (DS / NZDS): 0.04 dB
Splicing time: 9 sec (SM FAST) / 10 sec (SM AUTO) / 13 sec (AUTO)
Tube heating time: approx. 30 sec (FP-03 sleeve)
Splicing modes: 100 preset and user-programmable
Display: 4.1" TFT colour LCD, 300× (single axis) / 187× (dual axis)
Battery cycles: approx. 160 splice/heat cycles per charge
Power supply: 100–240 V AC (auto); 13.2 V DC (BTR-08 battery)
Operating temperature: -10 to +50°C
Operating altitude: 0 to 5,000 m
Wind protection: up to 15 m/s
Dimensions: 136 W × 161 D × 143 H mm
Weight: approx. 2.3 kg (with AC adapter)
Country of manufacture: Japan

Fujikura FSM-60S datasheet: Download PDF
