Fujikura FSM-22S Fiber Optic SM MM Fusion Splicer 22S ARC 2750

Condition: Used

This Fujikura FSM-22S fusion splicer has an ARC count of 2750 and has been tested and confirmed to be in working order. The FSM-22S offers both single-mode and multimode splicing capability, making it a versatile tool for fibre optic engineers and installation teams.

Included in the sale:
• Fujikura FSM-22S Fusion Splicer with clamp
• Battery
• Power adapter
• Screwdriver
• Fibre stripper
• Carry case

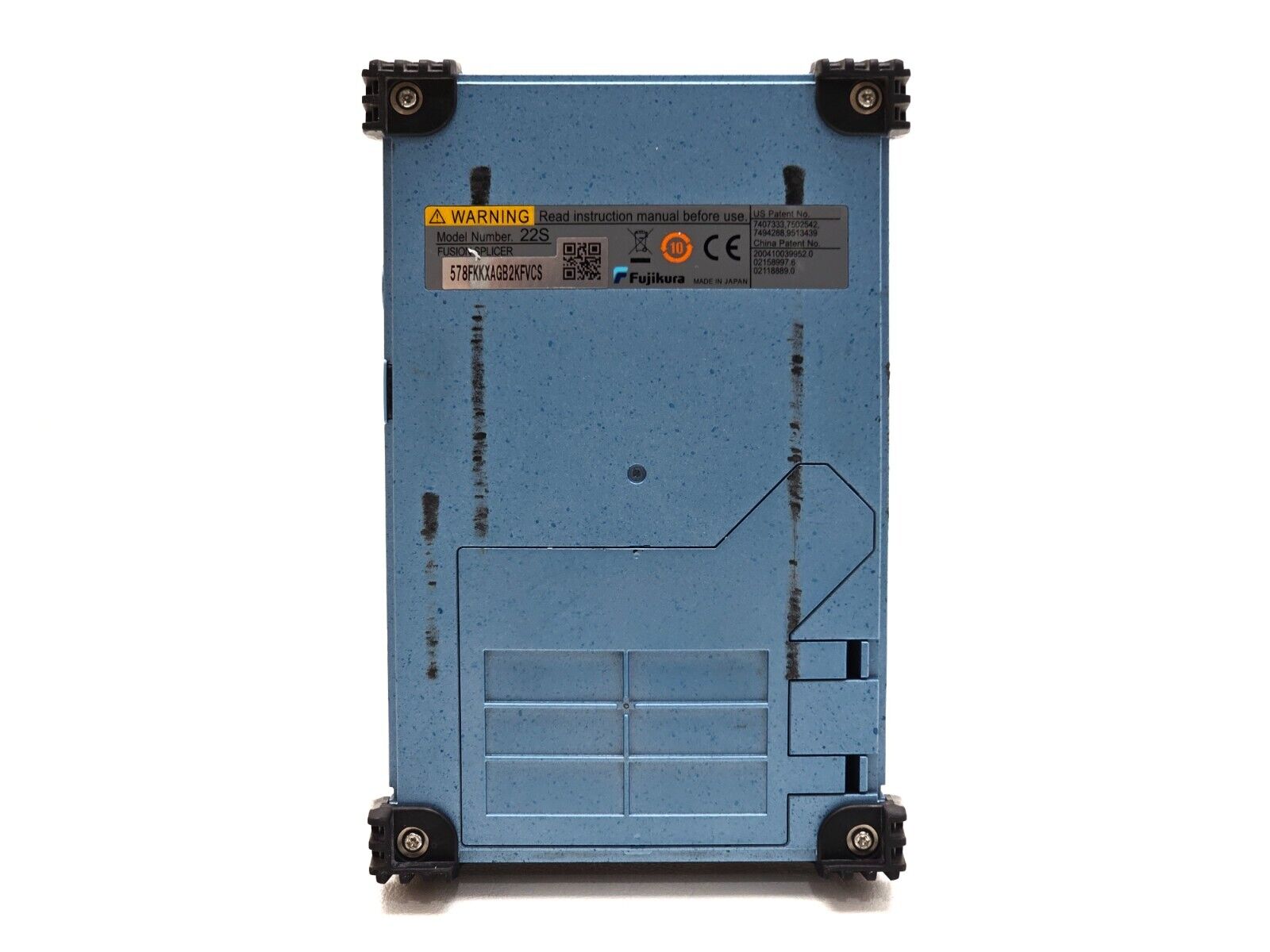

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Fujikura FSM-22S is a professional-grade fusion splicer capable of splicing both single-mode (SM) and multimode (MM) optical fibres. Designed for use in field and workshop environments, the FSM-22S offers reliable core alignment technology, ensuring consistently low splice losses suitable for telecommunications, CATV, and LAN applications.

The unit features an intuitive interface with automatic splicing and heating cycles, reducing operator error and improving throughput. Its ruggedised construction and battery-powered operation make it well suited to outdoor and mobile deployment.

Key Specifications:
Fibre Type Compatibility: Single-mode (SM) and Multimode (MM)
Splicing Method: Core alignment
Splice Time: Approximately 9 seconds (typical)
Heating Time: Approximately 35 seconds (typical)
Splice Loss (SM): 0.02 dB typical
Splice Loss (MM): 0.01 dB typical
Display: Colour LCD monitor
Power Supply: AC adapter / battery pack
Operating Temperature: -10°C to +50°C
Storage Temperature: -40°C to +80°C

Please refer to the Fujikura manufacturer website for full and up-to-date specifications.
