Condition: Used

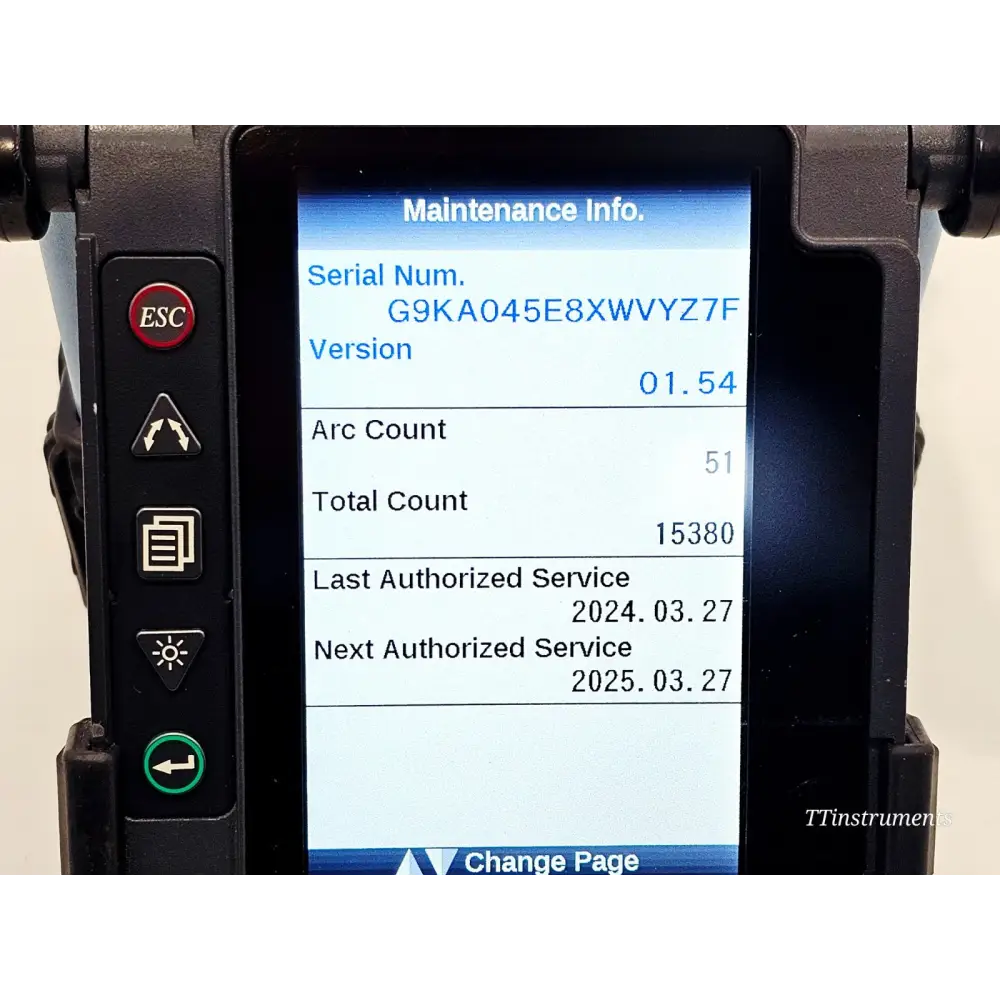

The Fujikura FSM-70S is a professional single-fibre core alignment fusion splicer. This unit carries firmware version 01.54, an arc count of 15,380, and was last authorised service in March 2024 with only 51 arcs performed since — making it effectively near-serviced condition.

Included in the sale:
• Fujikura FSM-70S fusion splicer with sheath clamps

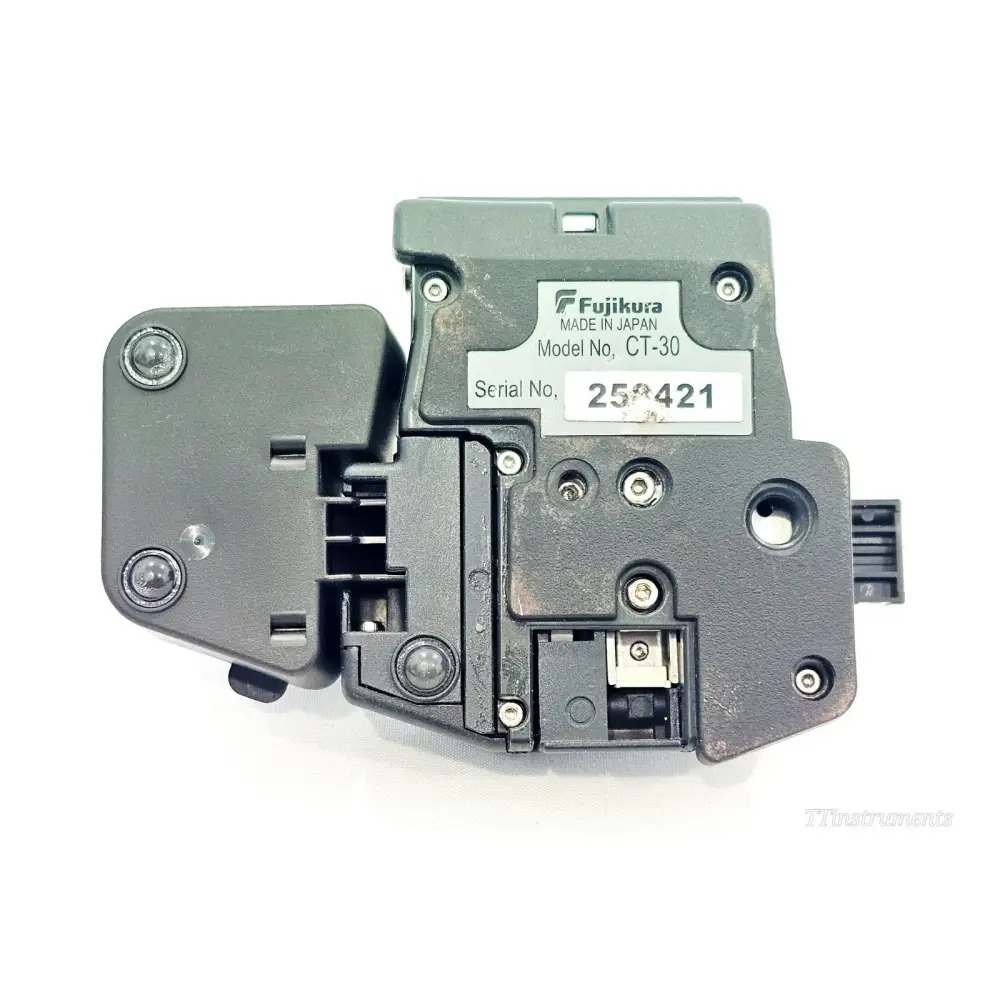

• Fujikura CT-30 high precision fibre cleaver with guide plate (S/N 258421)
• Battery pack
• AC adapter/battery charger (ADC-18)
• Connecting cable
• Yellow carry case

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Fujikura FSM-70S is a fully ruggedised, core alignment single-fibre fusion splicer designed to deliver fast, consistent, and low-loss splice performance in the field or lab. It was specifically designed to be more ergonomic, faster, and more durable than the preceding 60S series, reducing splicing time to as little as 7 seconds.

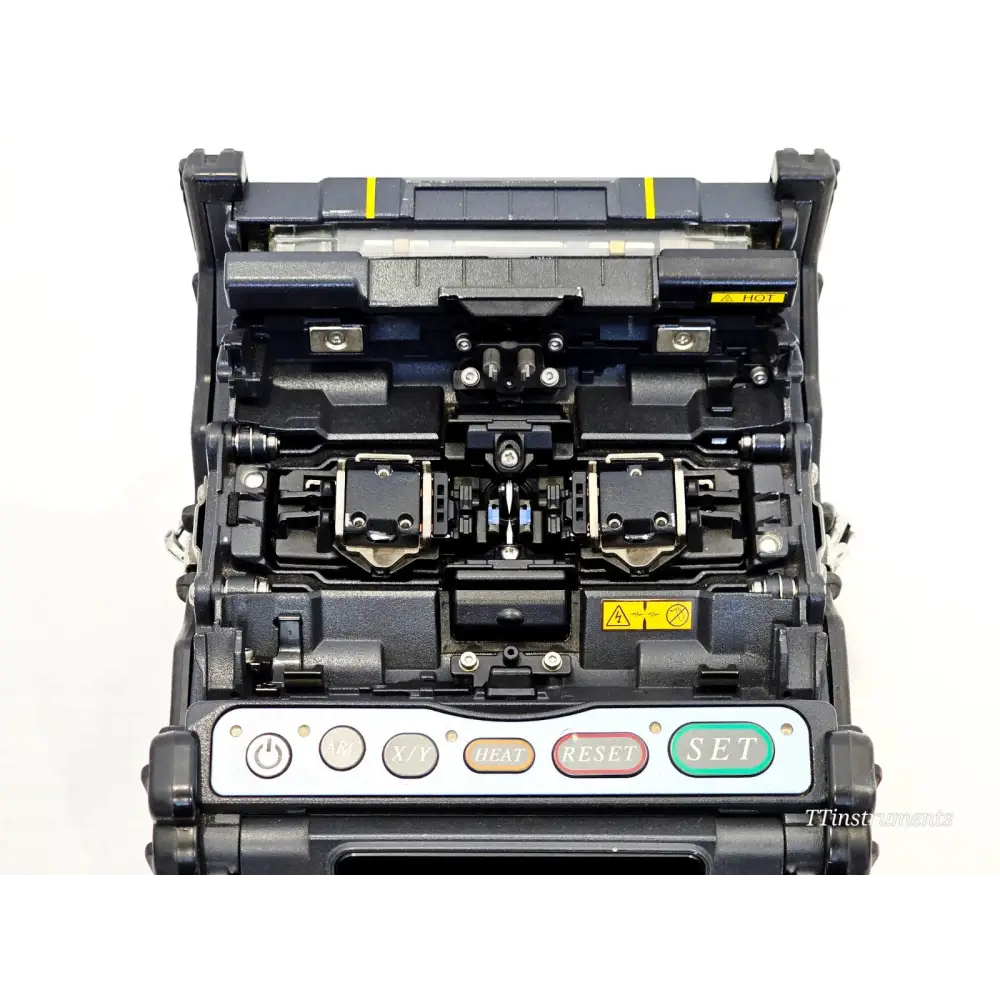

Key features include a user-programmable automated wind protector that closes to initiate the splice and opens upon completion, and fully programmable auto-open sheath clamps to speed up fibre removal after the tensile test. The automated clamshell-design tube heater applies heat to both sides of the splice protection sleeve for a reduced shrink time. A mirrorless optical system and severe-impact resistant monitor greatly enhance durability. The unit withstands a 762 mm (30") drop test and resists shock, rain, and dust. Built-in video tutorials support on-the-go operator training.

FSM-70S Specifications:
Applicable Fibre Types: Single-mode (G.652 & G.657), Multimode (G.651.1), DS (G.653), CS (G.654), NZDS (G.655 & G.656), Erbium-doped fibre
Typical Average Splice Loss: 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS), 0.04 dB (NZDS)
Splicing Time: SM FAST mode — 7 seconds; SM AUTO mode — 12 seconds; AUTO mode — 15 seconds
Arc Calibration: Automatic real-time; manual arc calibration also available
Splice Loss Estimate: Based upon dual camera core alignment data
Storage of Splice Results: Last 2,000 results stored in internal memory
Fibre Display: X or Y, or both X and Y simultaneously; front or rear monitor display with automated image orientation
Magnification: 300X (single X or Y view), 160X (X and Y view)
Viewing Method: Dual cameras with 4.73-inch TFT colour LCD monitor
Tube Heating Time: Typical 14 seconds (FP-03 sleeve); 17 seconds (FP3-40); 5–16 seconds (Fujikura micro sleeves)
Battery Life: Typical 200 splice/heat cycles per charge (with power save active)
Power Supply: Auto voltage selection 100–240 V AC or 10–15 V DC (ADC-18); 14.8 V DC (BTR-09 battery)
Terminals: USB 1.1 (USB-B type) for PC communication; Mini-DIN (6-pin) for HJS-02/03
Wind Protection: Up to 15 m/s (34 mph)
Operating Conditions: 0 to 5,000 m altitude; 0 to 95% RH; -10 to +50°C
Dimensions: 146 W x 159 D x 150 H mm
Weight: 2.5 kg (with ADC-18); 2.7 kg (with BTR-09 battery)

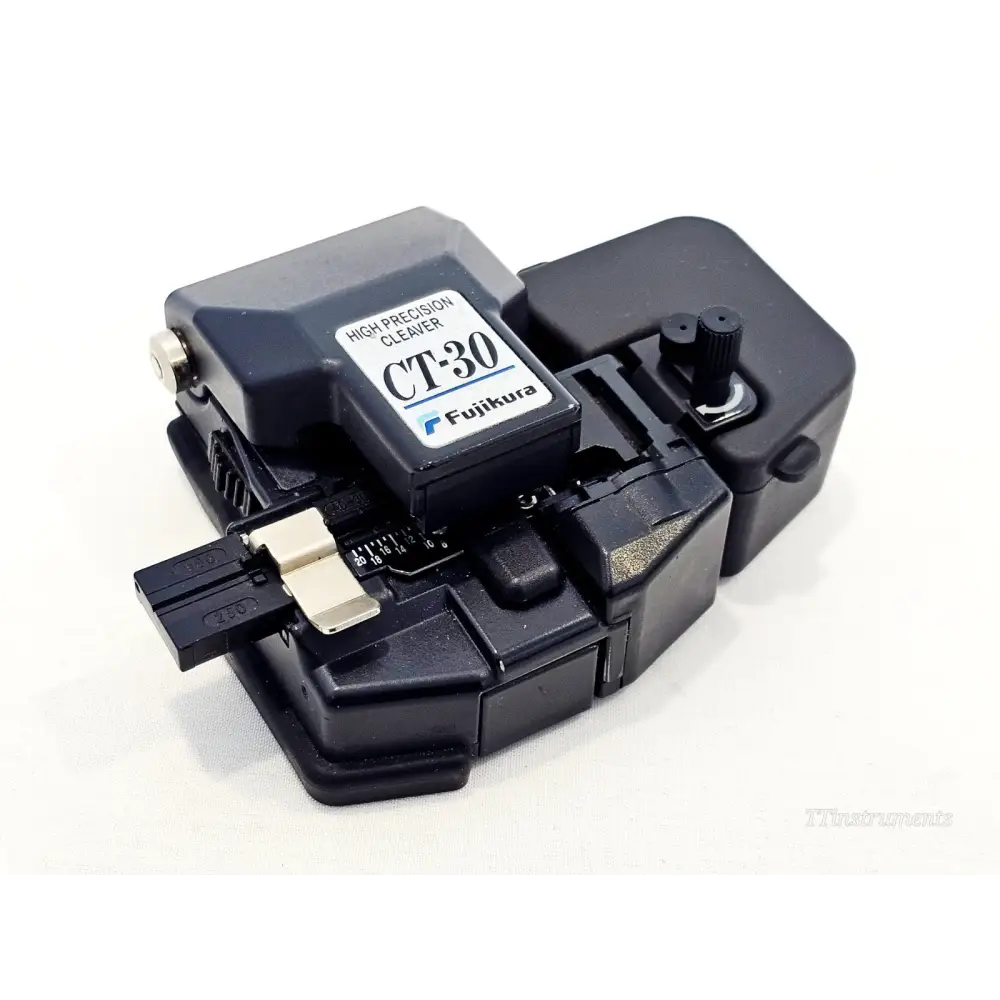

Fujikura CT-30 High Precision Fibre Cleaver:
The CT-30 sets the standard for portability, reliability, and ease of use. Available for single-fibre or ribbon splicing (up to 12-fibre ribbons), compatible with all Fujikura fusion splicers.
Blade Life: 48,000 single-fibre cleaves (16 rotating positions x 3 height positions)
Cleave Angle: Typically <0.5°
Applicable Fibres: Single fibres 250 µm to 900 µm coating, 125 µm cladding
Cleave Length (900 µm fibre): 10 mm to 20 mm; (250 µm fibre): 6 mm to 20 mm
Dimensions (W x D x H): 69 mm x 82 mm x 41 mm
Built-in fibre scrap collector standard

Fujikura FSM-70S fusion splicer datasheet — technical specifications and key features: Download PDF

Fujikura FSM-70S datasheet (ISRE) — full product specifications sheet: Download PDF

Fujikura CT-30 series user manual — operation, blade maintenance, and scrap collection instructions: Download PDF

Fujikura CT-30 specifications sheet — performance data and cleaver specifications: Download PDF

Fujikura FSM-70S fusion splicer specifications sheet (Fiber Instrument Sales): Download PDF
