Condition: Used

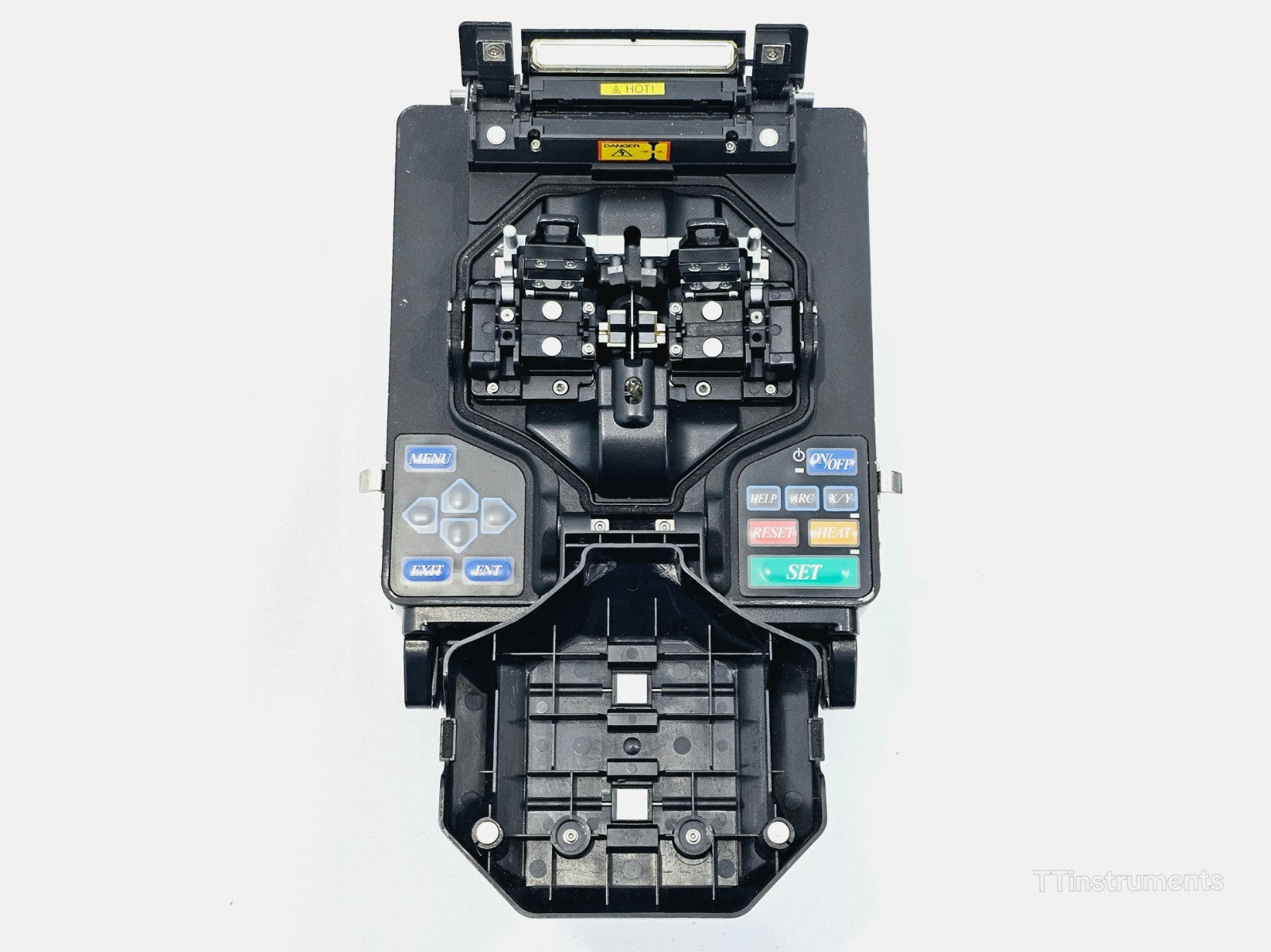

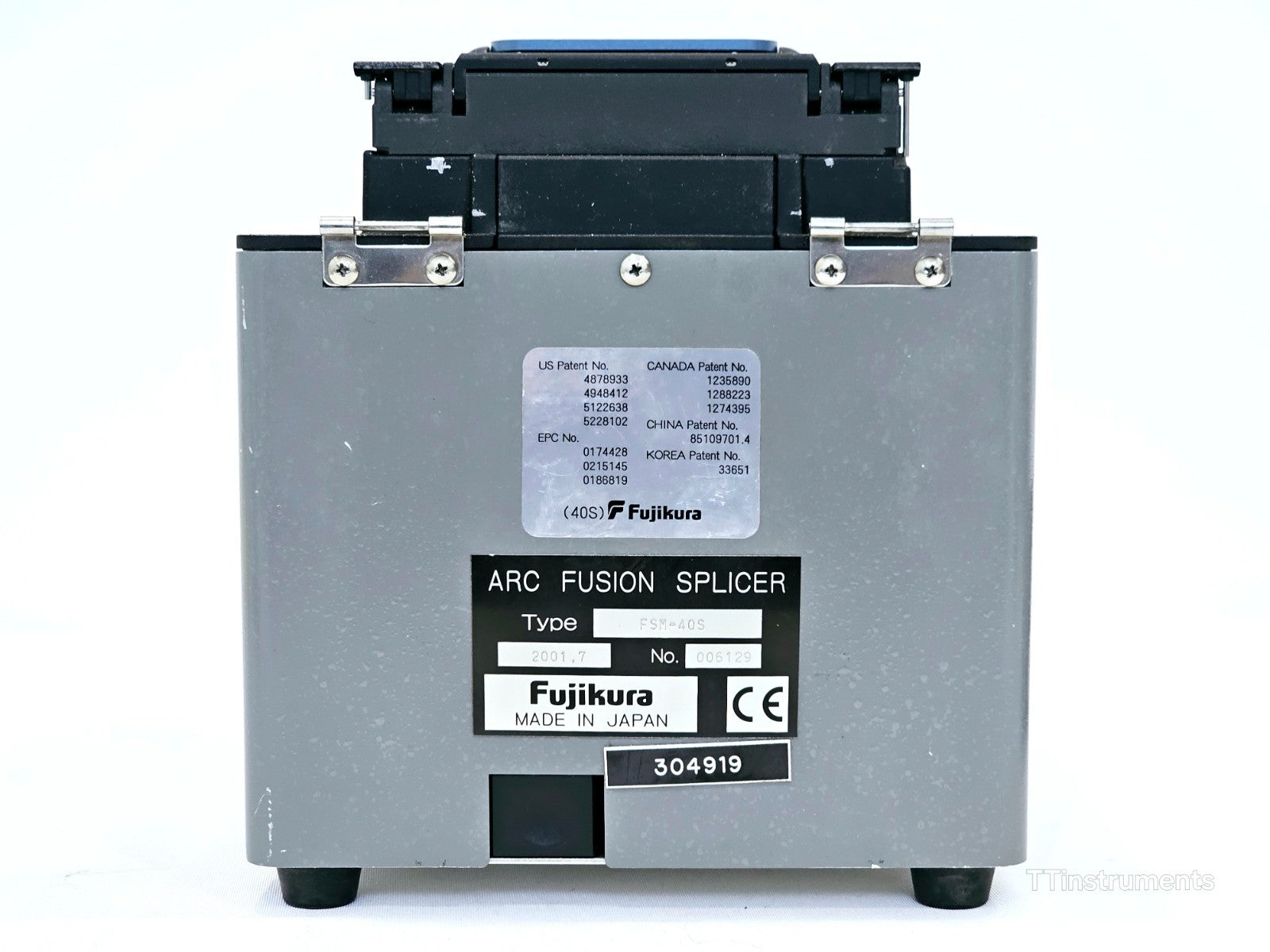

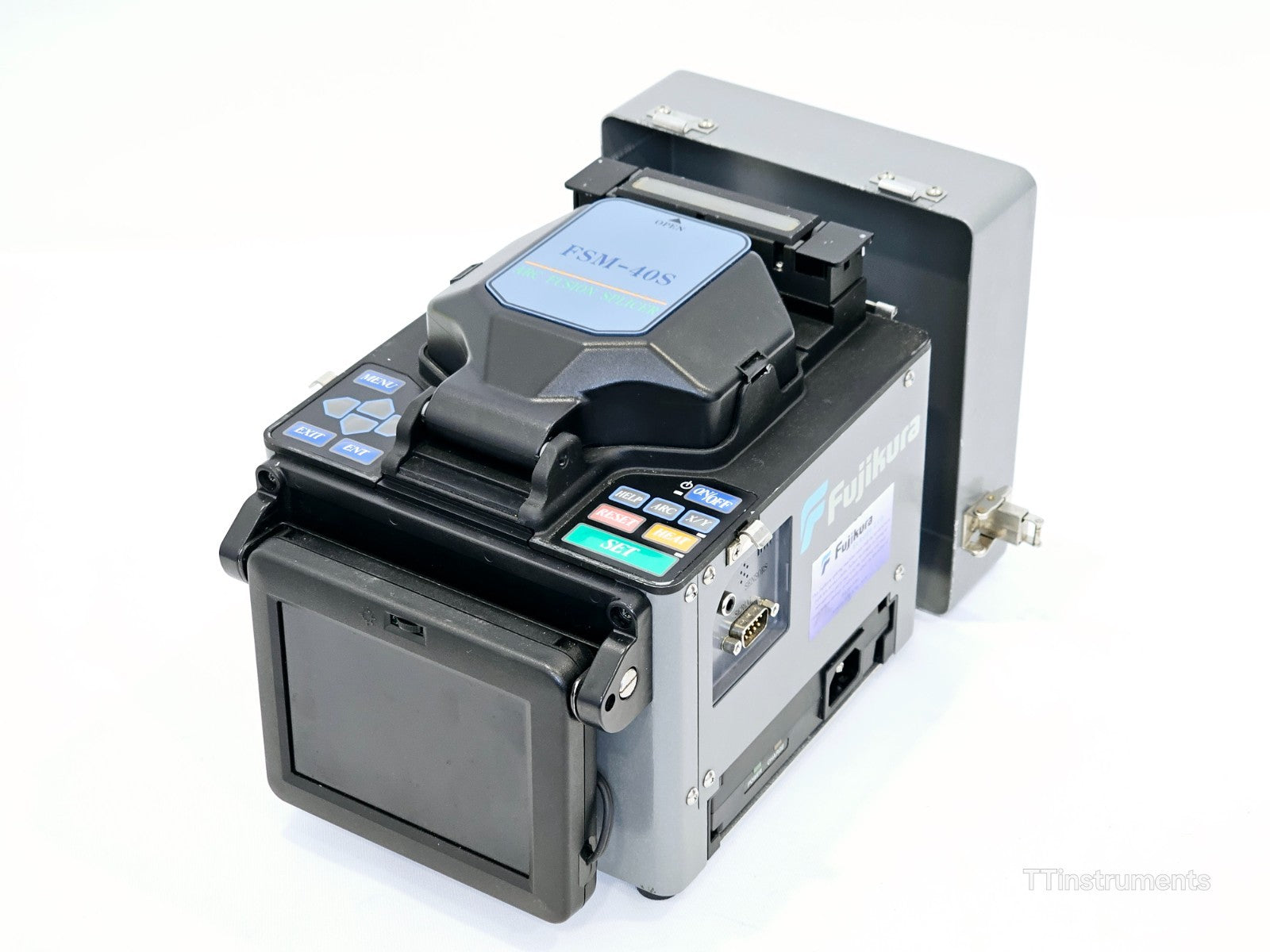

This Fujikura FSM-40S fusion splicer has been tested and is in full working order. The unit has an arc count of 14,214, which is well within the serviceable range for this model. Supplied as pictured with clamps included.

Included in the sale:
• Fujikura FSM-40S fusion splicer (arc count 14,214)
• Fibre clamps

Please note: No battery is included — the unit can be operated on mains power only. A kettle lead/power cord is not supplied. No cleaver or any other accessories are included unless specifically shown in the images.

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Fujikura FSM-40S is a professional-grade fusion splicer developed for single-fibre splicing in field and laboratory environments. Utilising core alignment technology, the FSM-40S achieves consistently low splice loss across a broad range of fibre types. Its compact and lightweight construction makes it well suited for field deployment, while its intuitive interface and automated splice cycle reduce operator training time.

The FSM-40S supports active core alignment, enabling reliable splicing of single-mode, multimode, dispersion-shifted, and non-zero dispersion-shifted fibres. The unit features automatic wind protection, an integrated heating oven for fibre protection sleeves, and a high-resolution camera system for precise fibre alignment.

Key Specifications:
Splicing Method: Core alignment
Applicable Fibre: SM, MM, DS, NZDS
Splice Loss (SM): 0.02 dB typical
Splice Time: Approximately 9 seconds
Heating Time: Approximately 35 seconds
Tension Test: Standard 2.0 N
Display: Colour LCD monitor
Arc Count Capacity: Up to approximately 5,000 arcs per electrode set
Power Supply: AC adapter / DC battery (optional)
Operating Temperature: -10°C to +50°C
Dimensions: Approximately 130 x 150 x 150 mm
Weight: Approximately 2.2 kg (without battery)

The FSM-40S is a trusted choice for fibre network contractors, telecoms engineers, and laboratory technicians requiring a reliable and portable splicing solution.
