Condition: Used

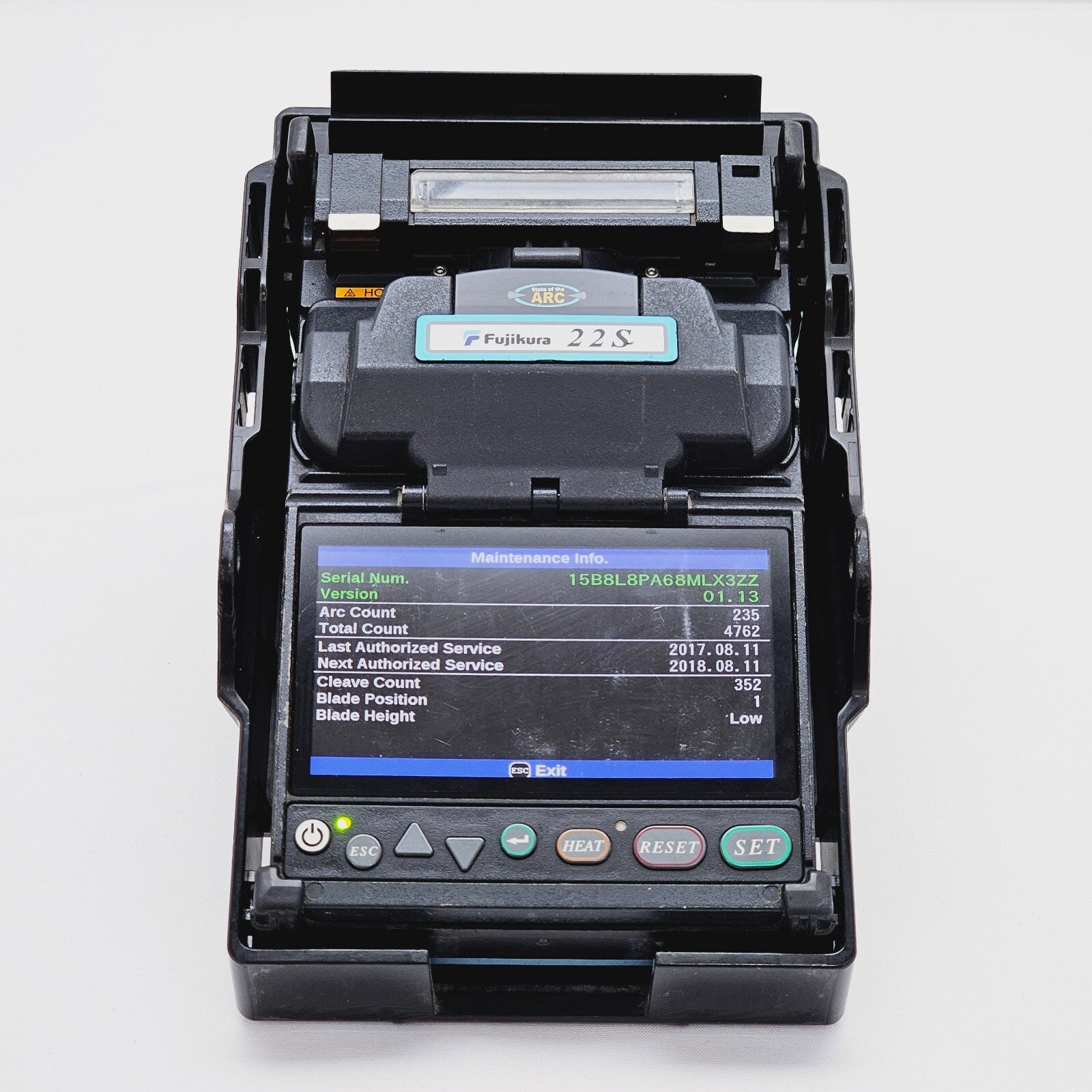

This Fujikura FSM-22S SM/MM Fiber Fusion Splicer is offered in used condition with an ARC count of 4762. As a used unit, some level of wear, tear, and cosmetic imperfections should be expected commensurate with its age and usage history. Pricing is reflective of the condition.

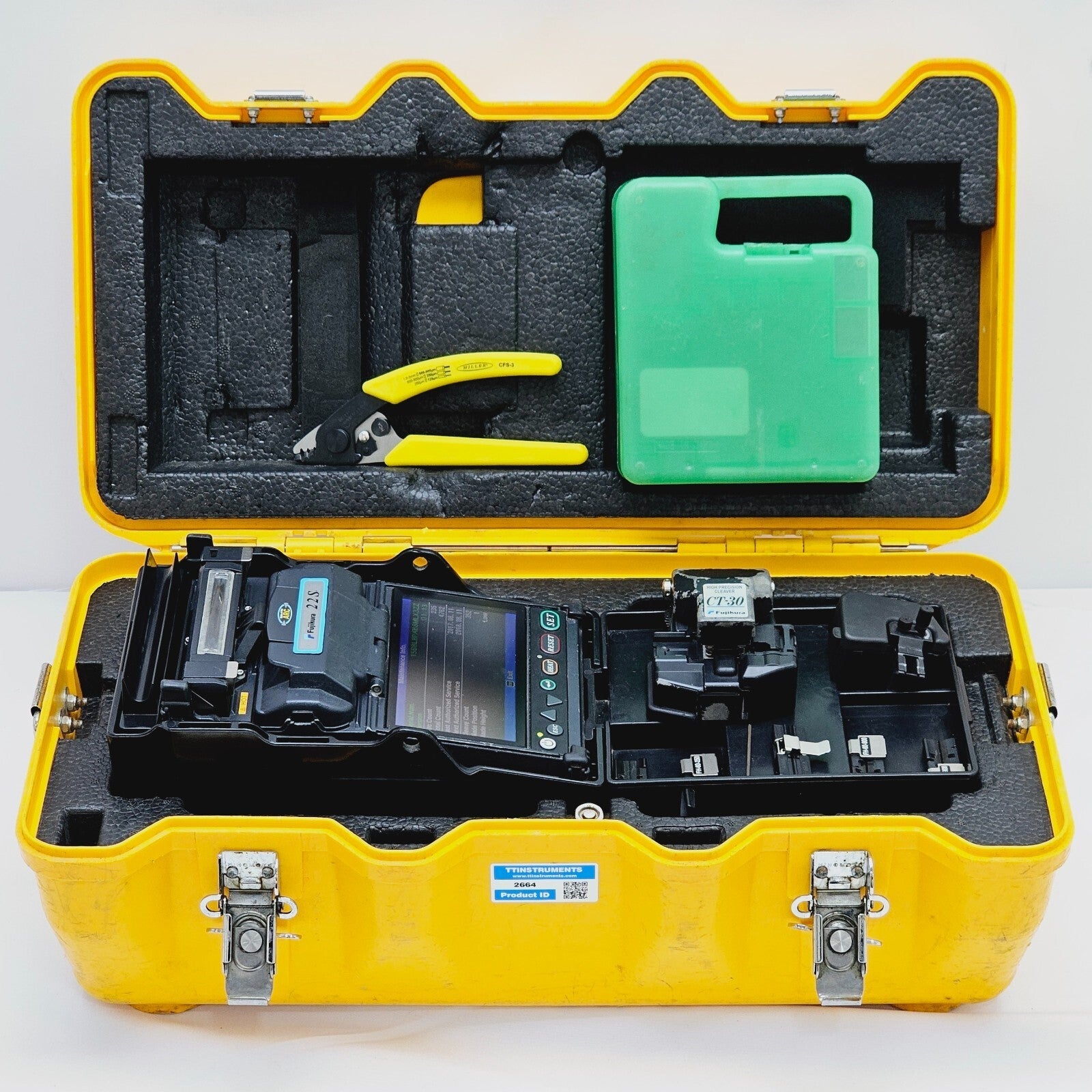

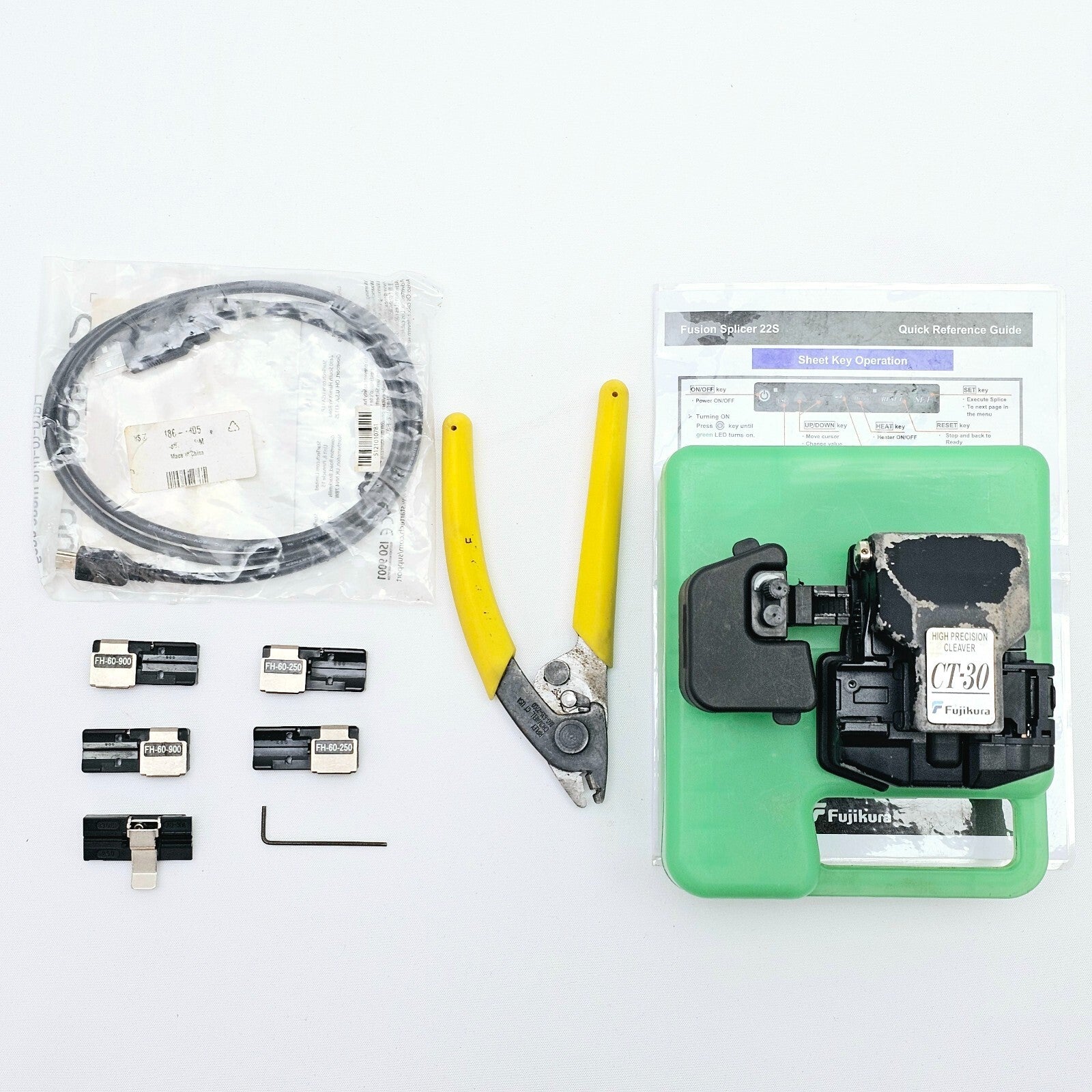

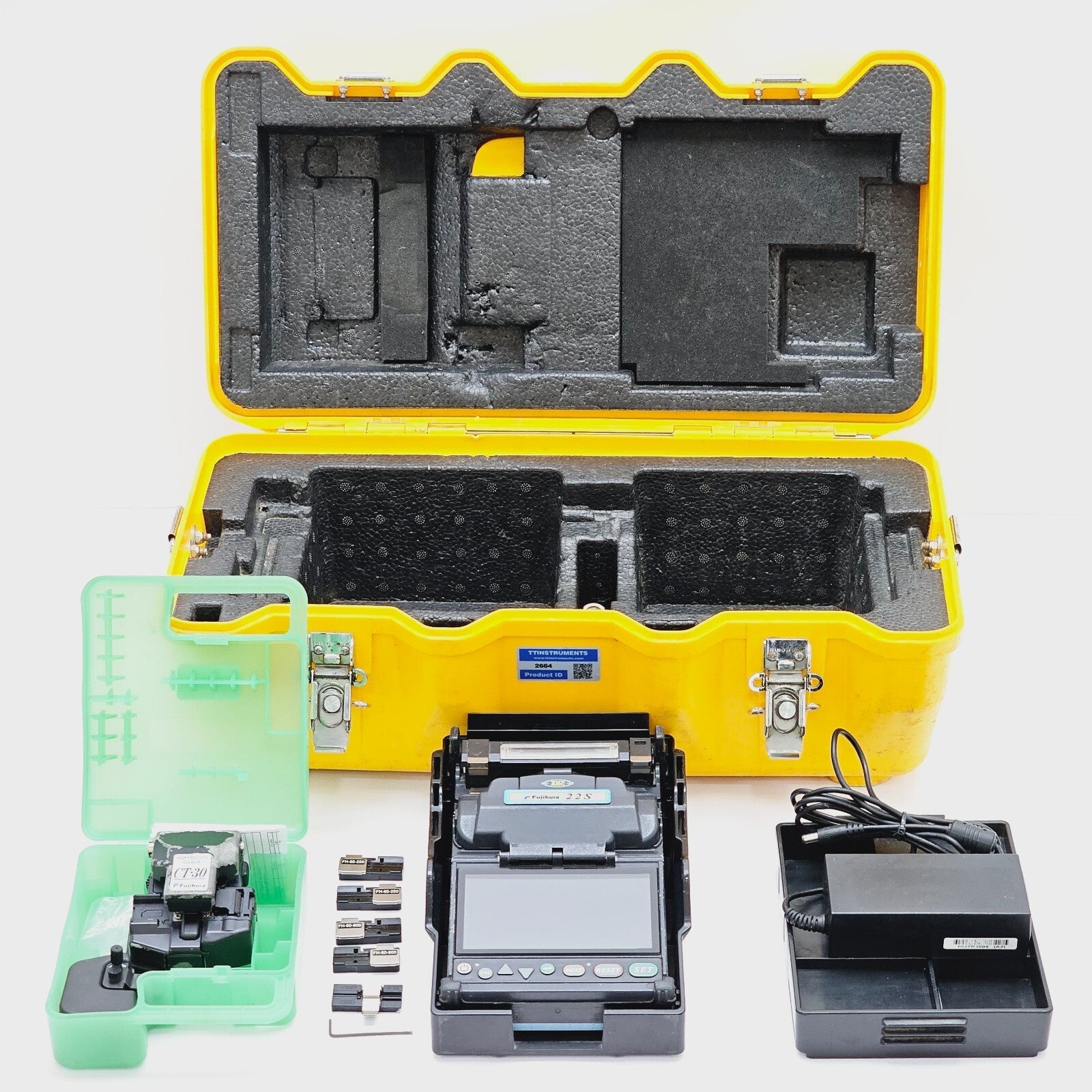

Included in the sale:
• Fujikura FSM-22S SM/MM Active Cladding Alignment Fiber Fusion Splicer (ARC count: 4762)

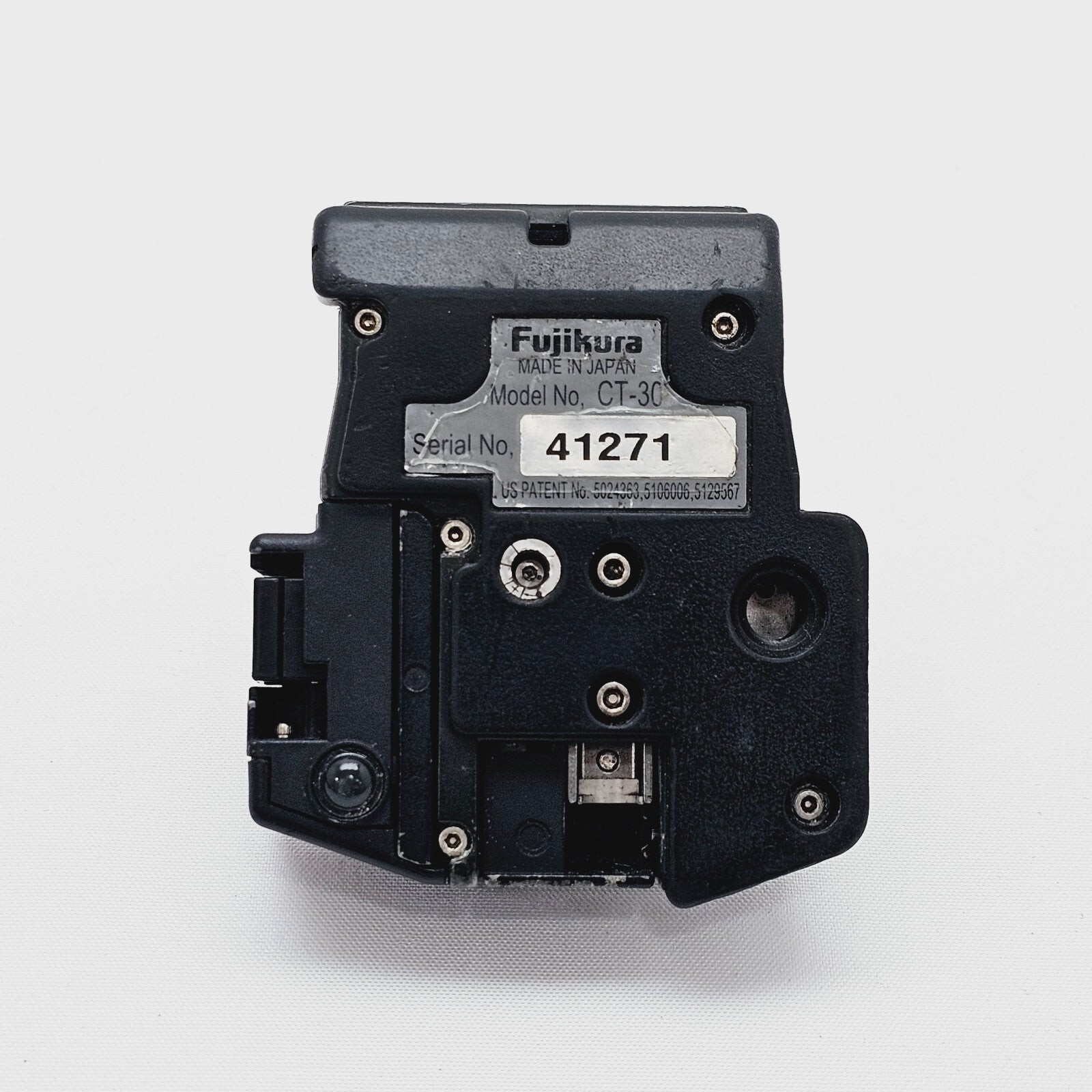

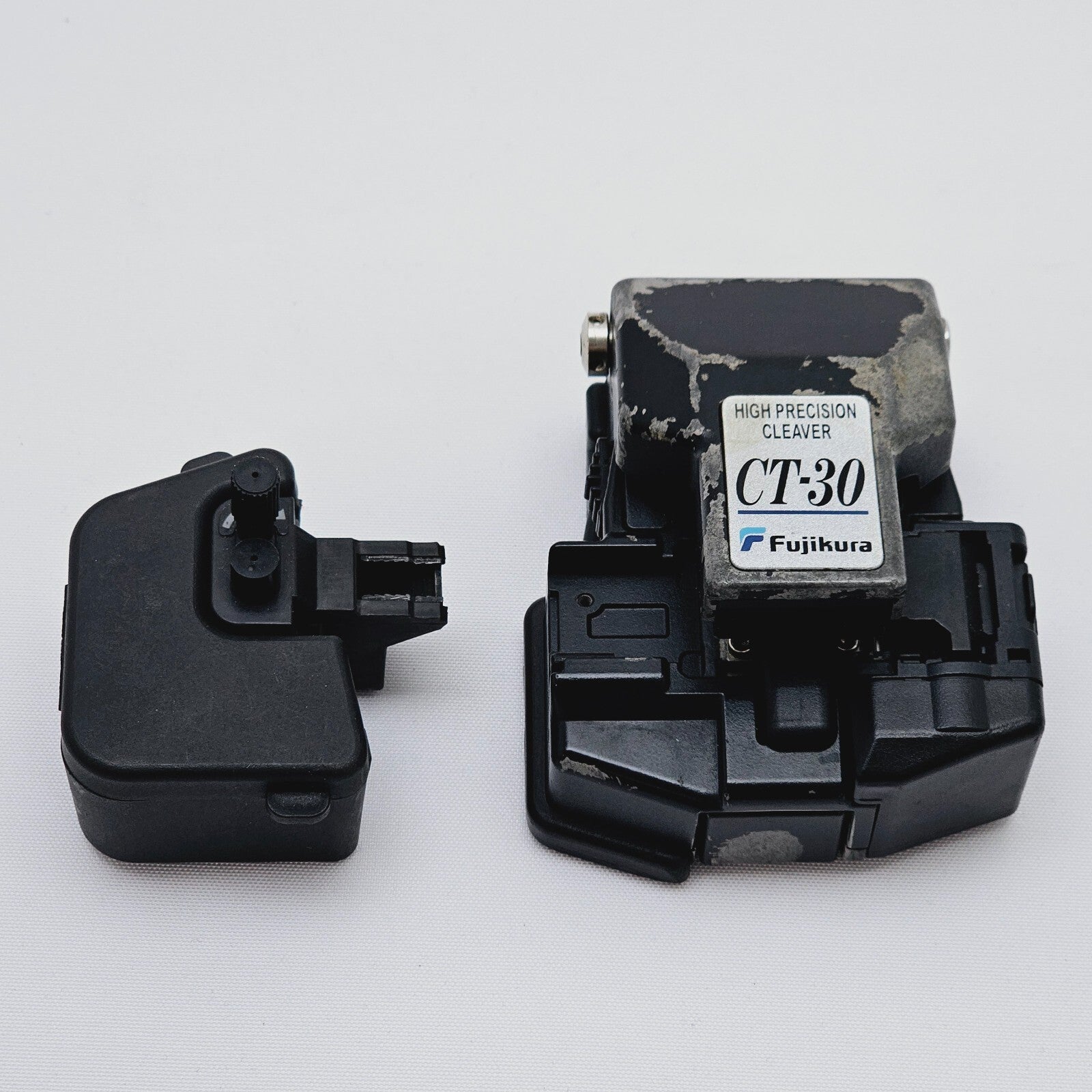

• Fujikura CT-30 High Precision Fiber Cleaver with case and guide plate
• FH-60-250 Fiber Holder Set
• FH-60-900 Fiber Holder Set
• AC Adapter/Charger
• Hard Carrying Case
• Work Tray
• Fiber Stripper

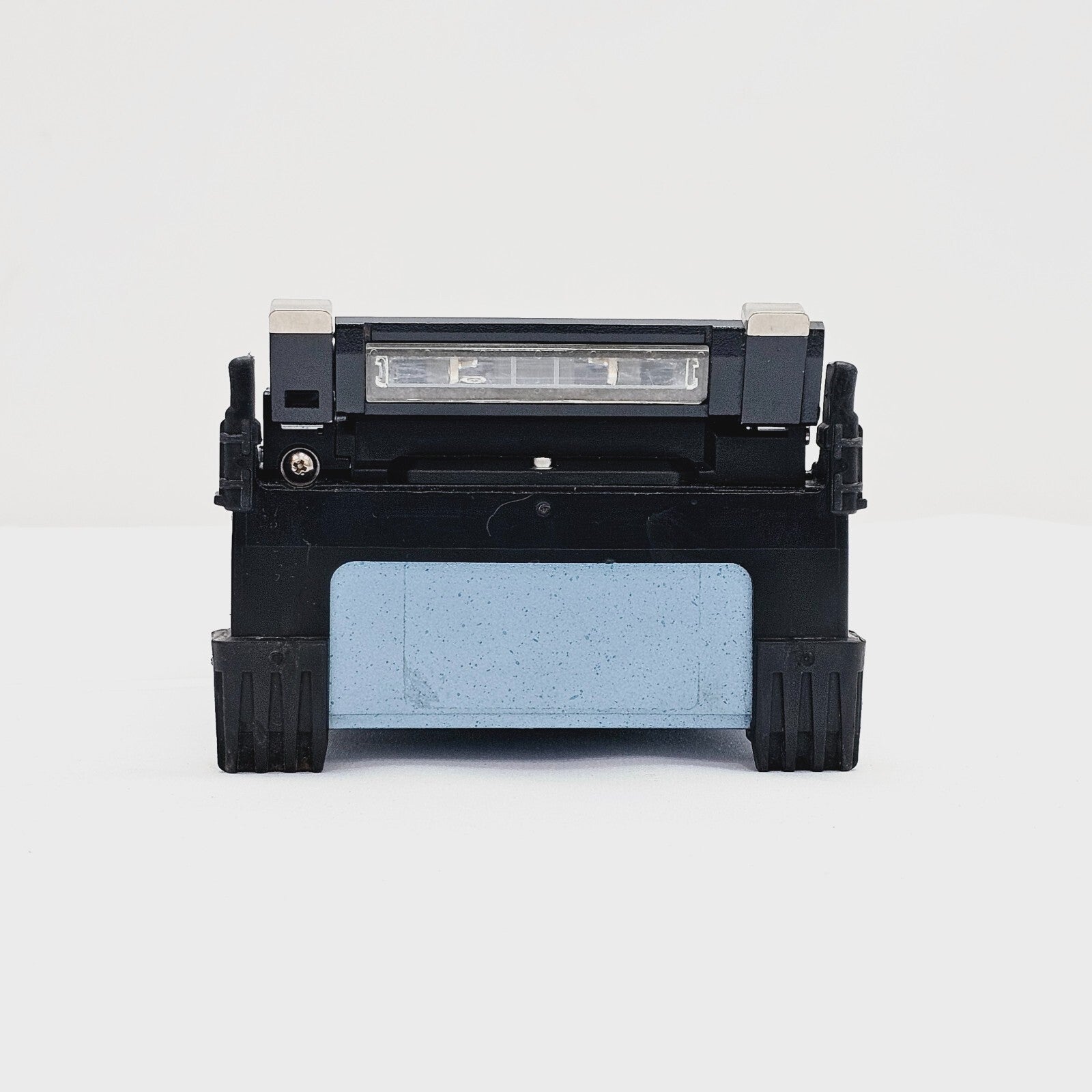

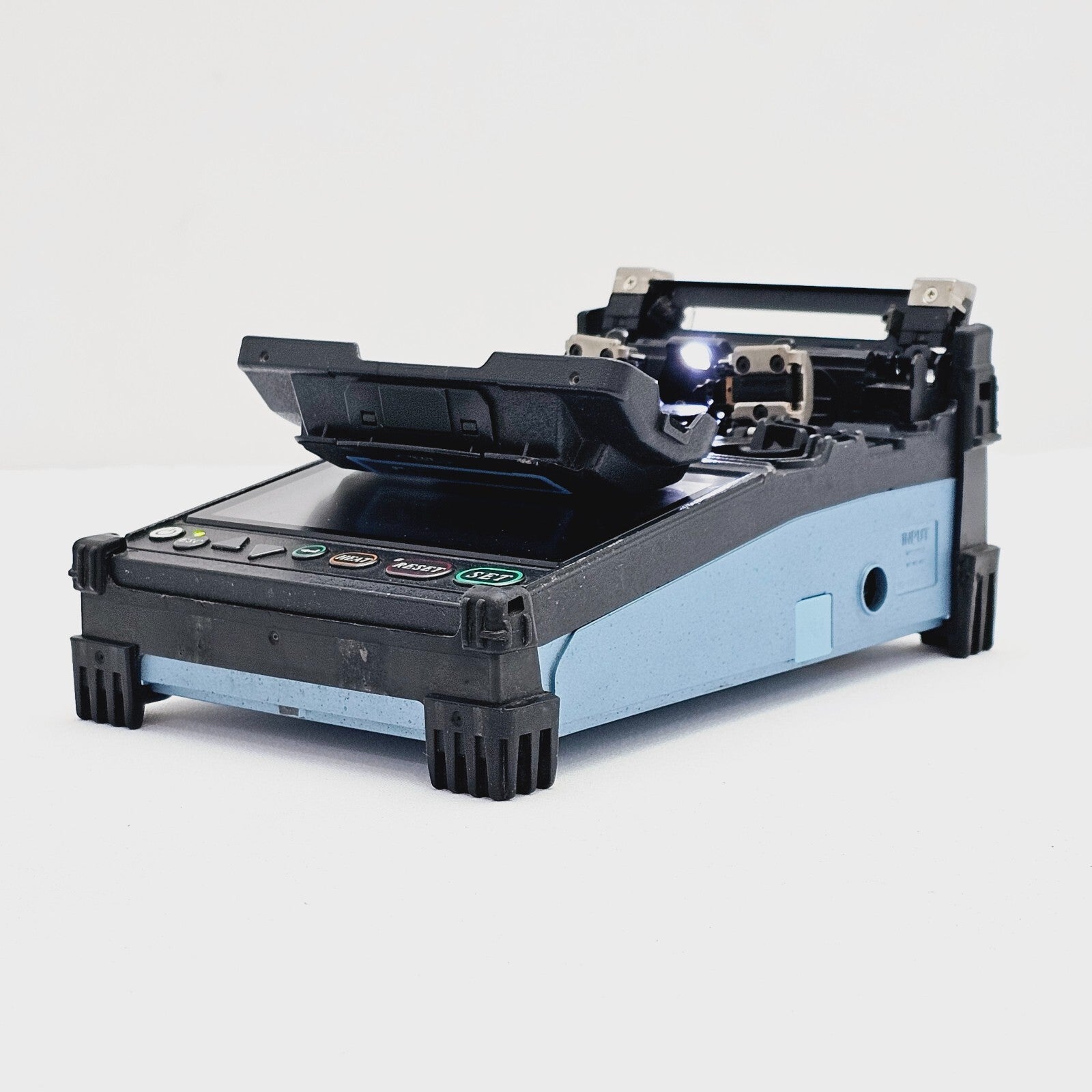

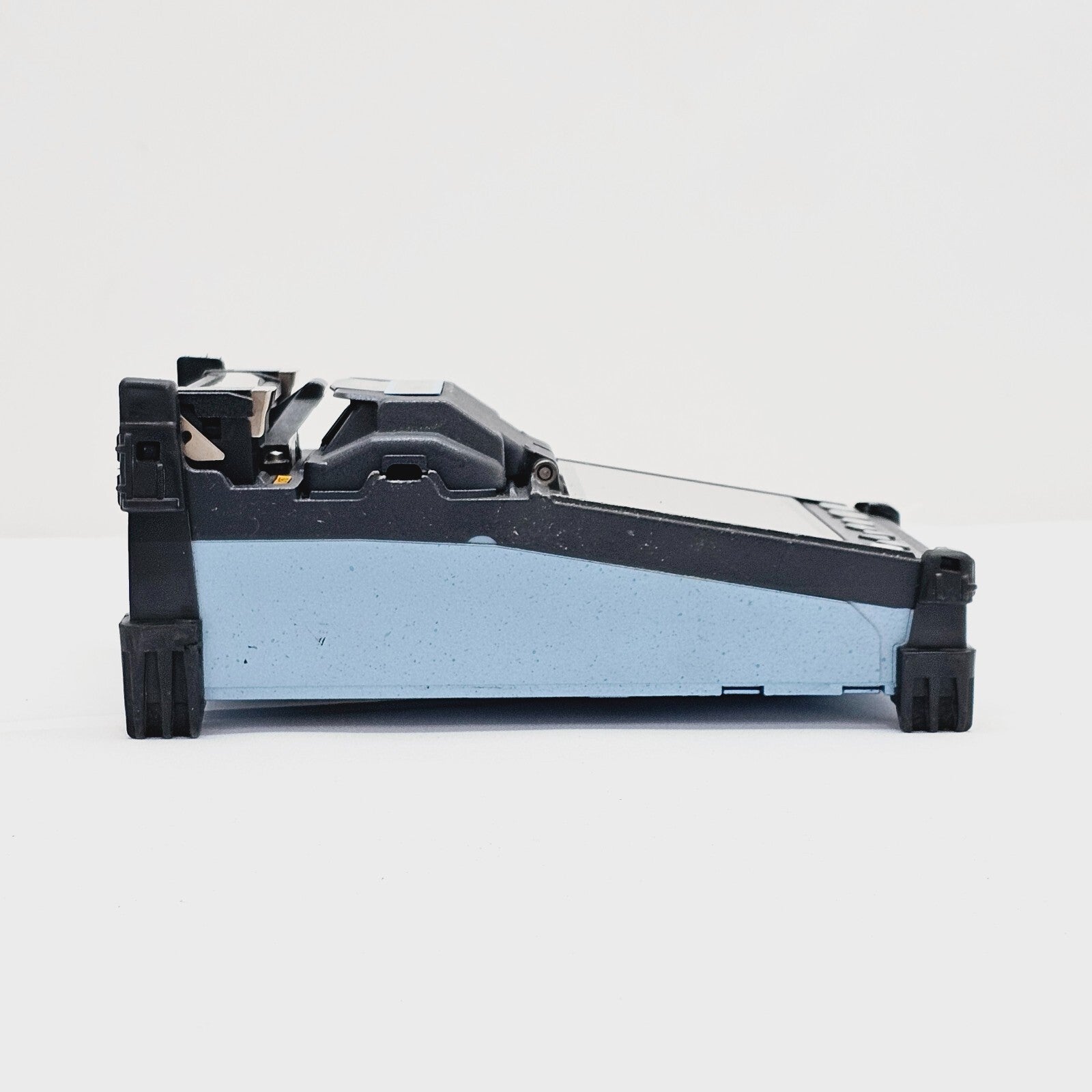

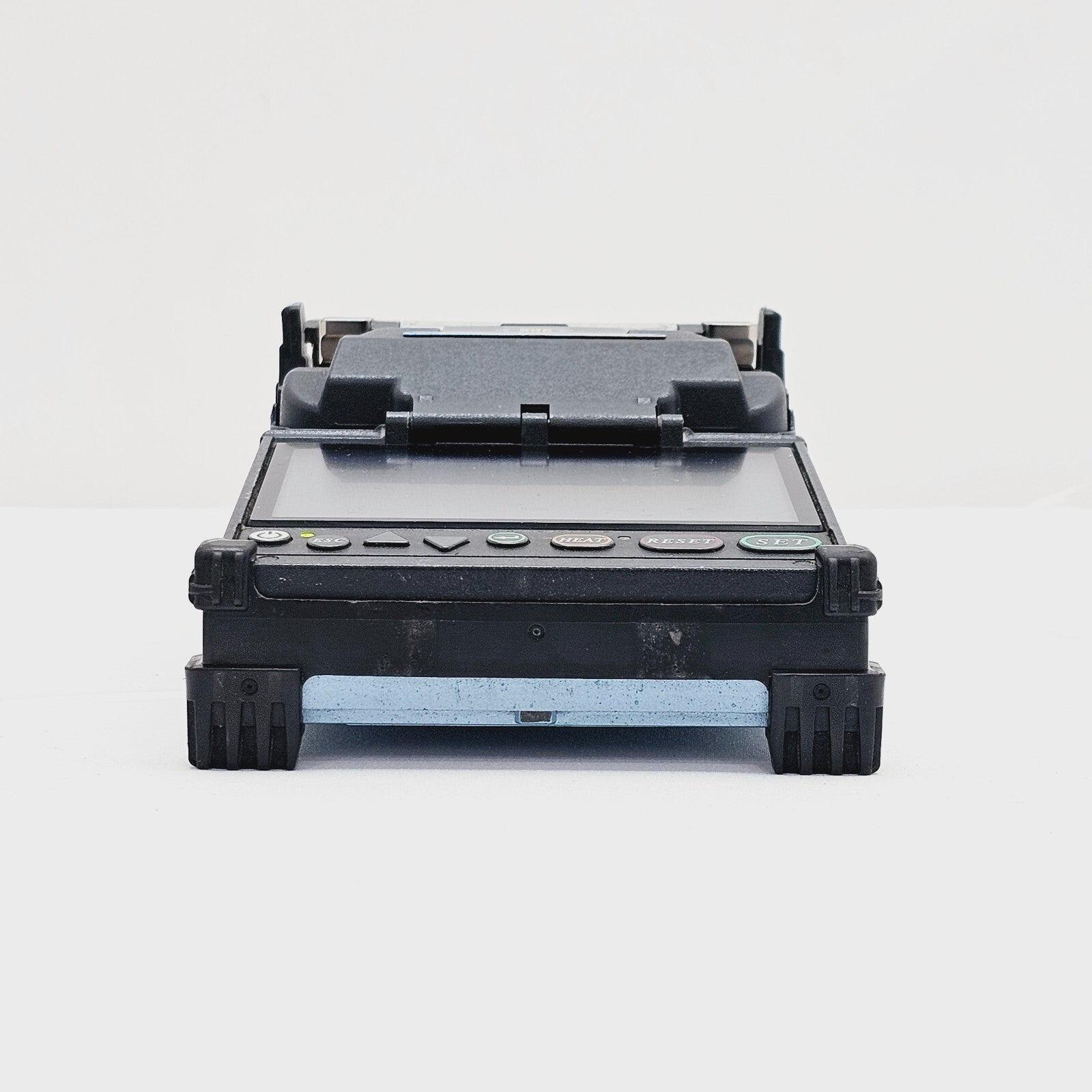

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

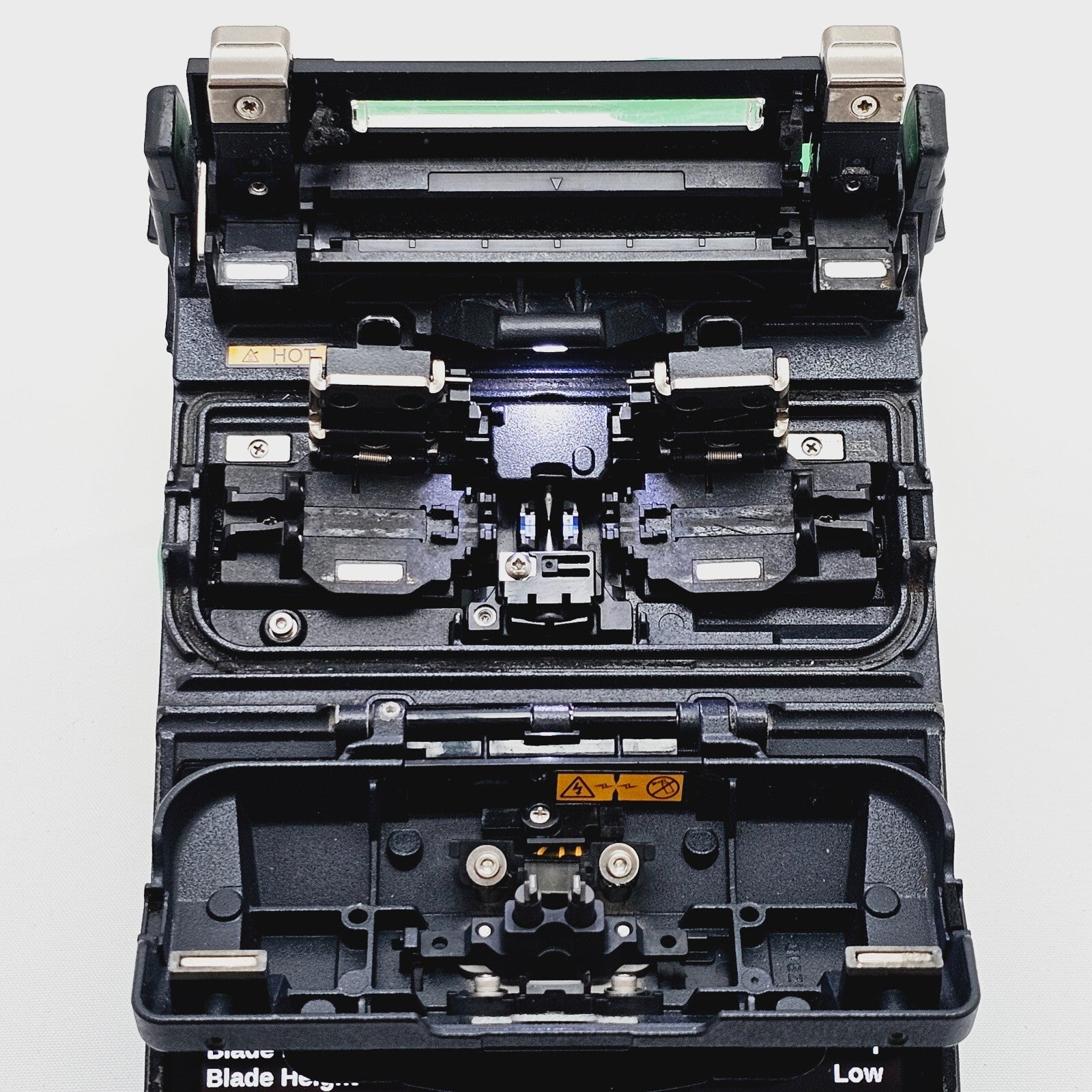

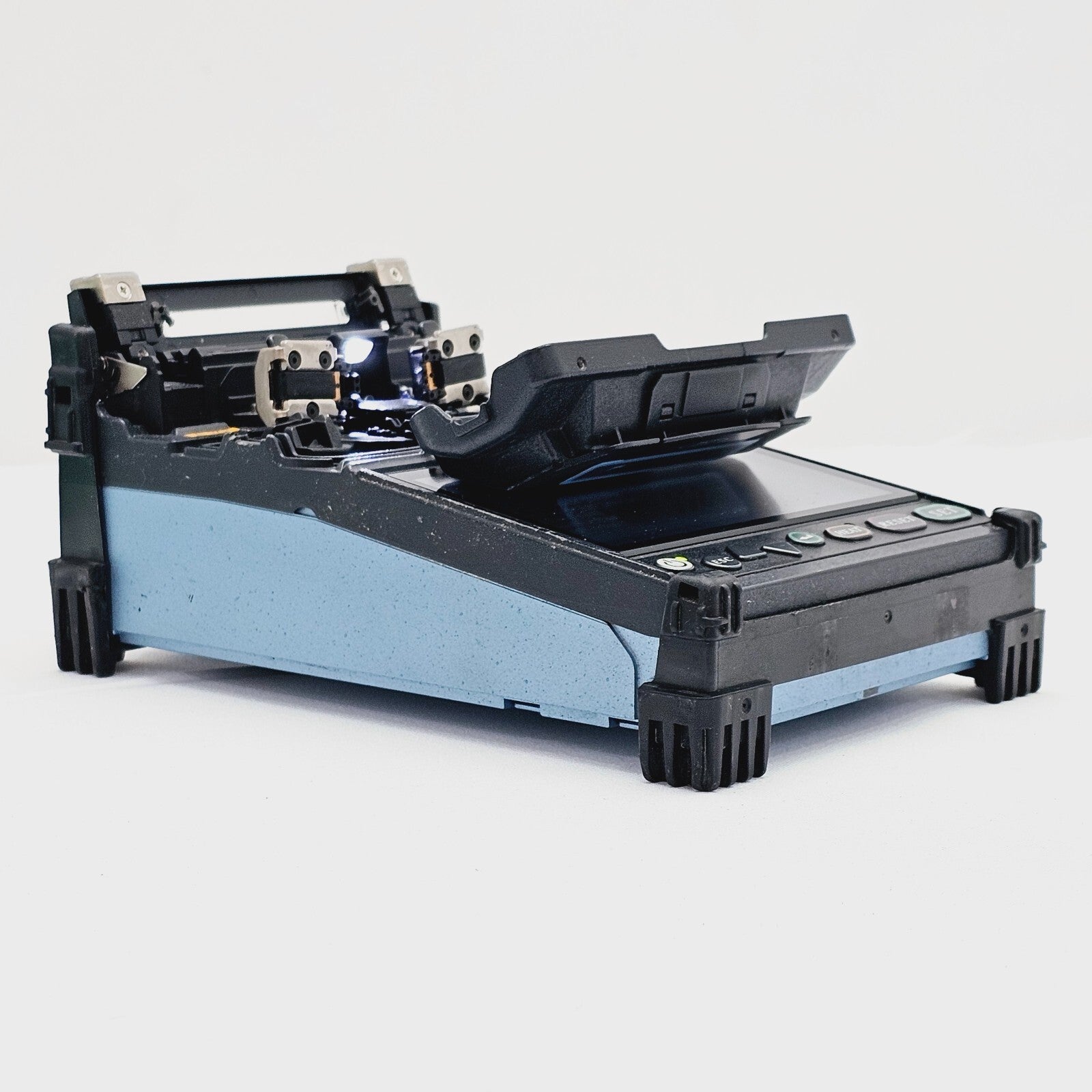

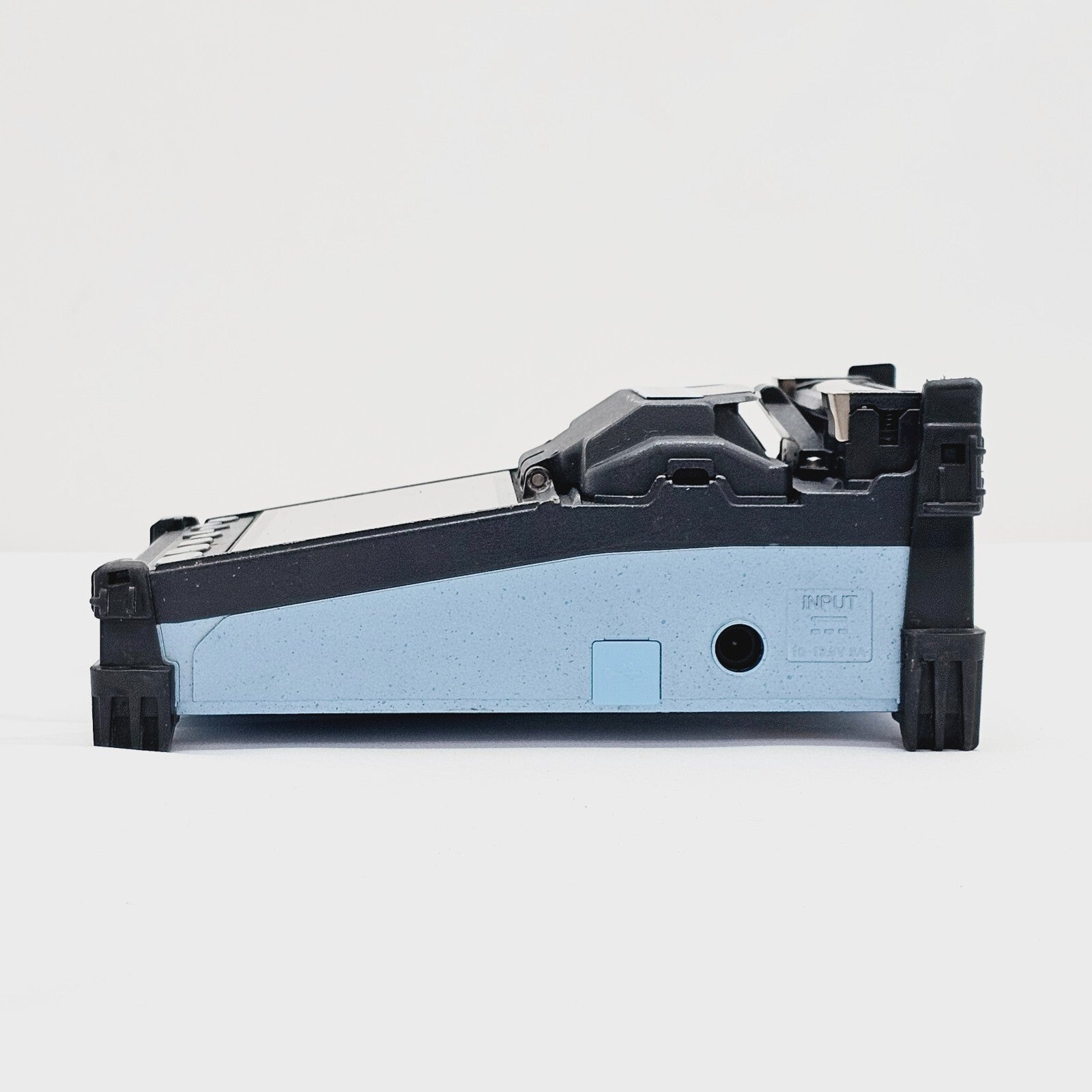

The Fujikura FSM-22S active cladding alignment fusion splicer bridges the long-standing gap between core alignment and fixed v-groove fusion splicer technology. Moveable v-grooves eliminate splicer errors due to dust and other contaminants. Despite its incredibly small size, this ruggedised, full-featured unit offers unmatched versatility for splicing in the most challenging environments.

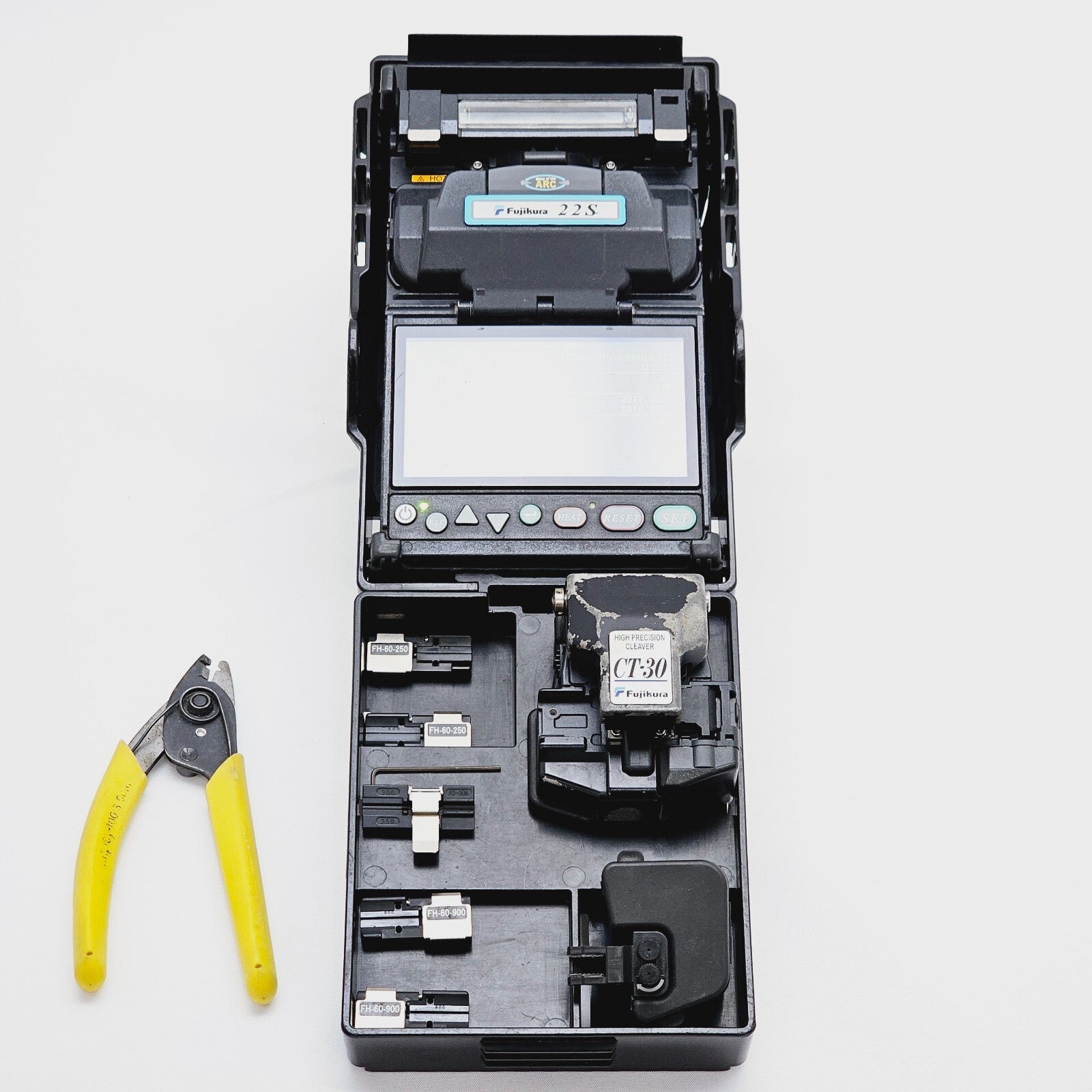

The innovative transit case and work tray provide multiple options for the best utilisation of available workspace, while the long-life battery provides power for up to 200 splice cycles including application of the splice protection sleeve. The FSM-22S incorporates features typically found only in more expensive models. Removable sheath clamps allow the use of fiber holders if desired, offering added flexibility across a wide range of cable types.

Key Specifications:
Splicer Type: Active Cladding Alignment (Moveable V-Groove)
Fibre Compatibility: Single-Mode (SM) and Multimode (MM)
Typical Splice Loss (SM): 0.02 dB
Typical Splice Loss (MM): 0.01 dB
Splice Time: Approximately 9 seconds
Heating Time: Approximately 35 seconds
Battery Life: Up to 200 splice and heat cycles per charge
Display: 4.7-inch colour LCD monitor
Ingress Protection: IP52
Dimensions: Compact field-portable design
Weight: Approximately 1.3 kg (without battery)
Operating Temperature: -10°C to +50°C

Product datasheet
