Condition: Used

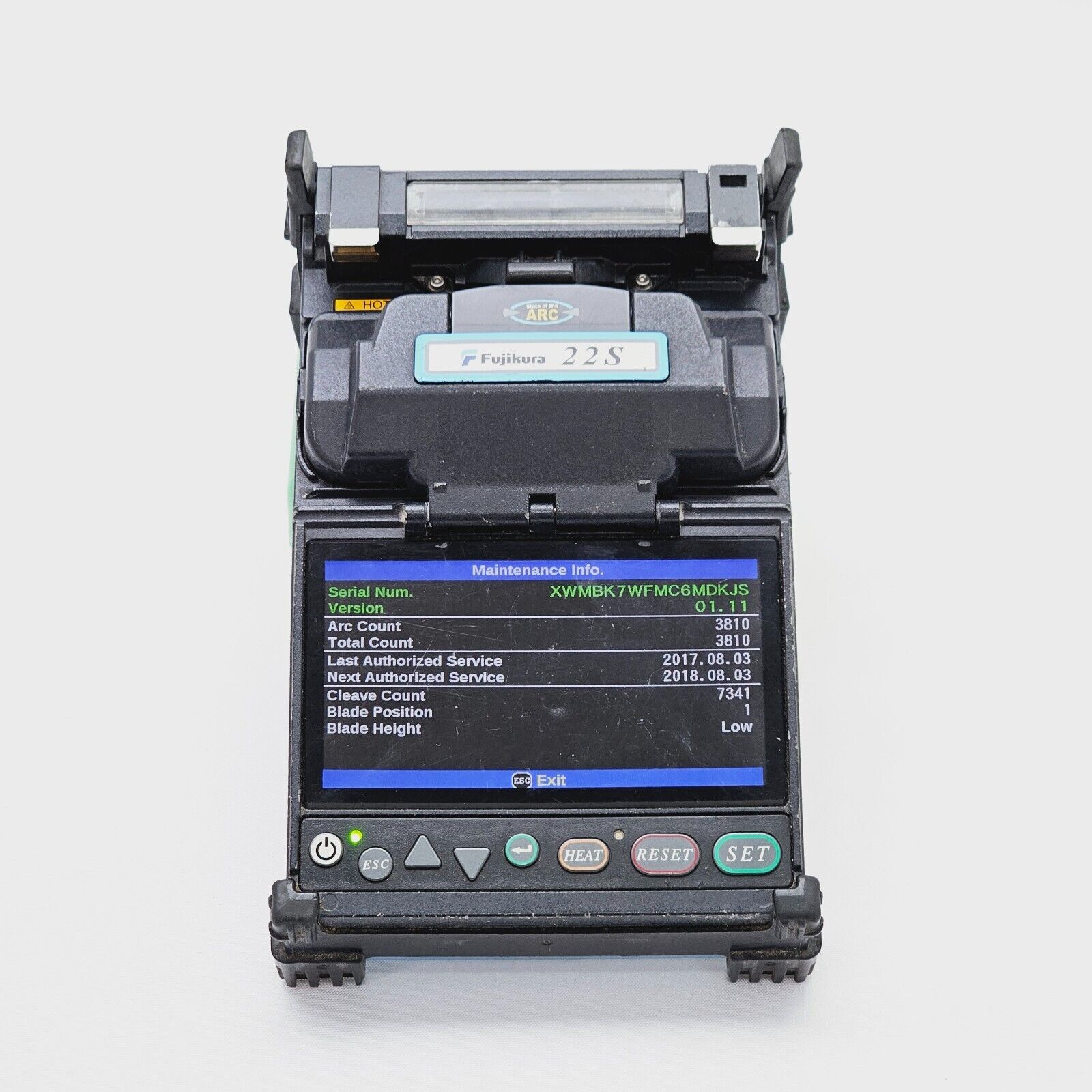

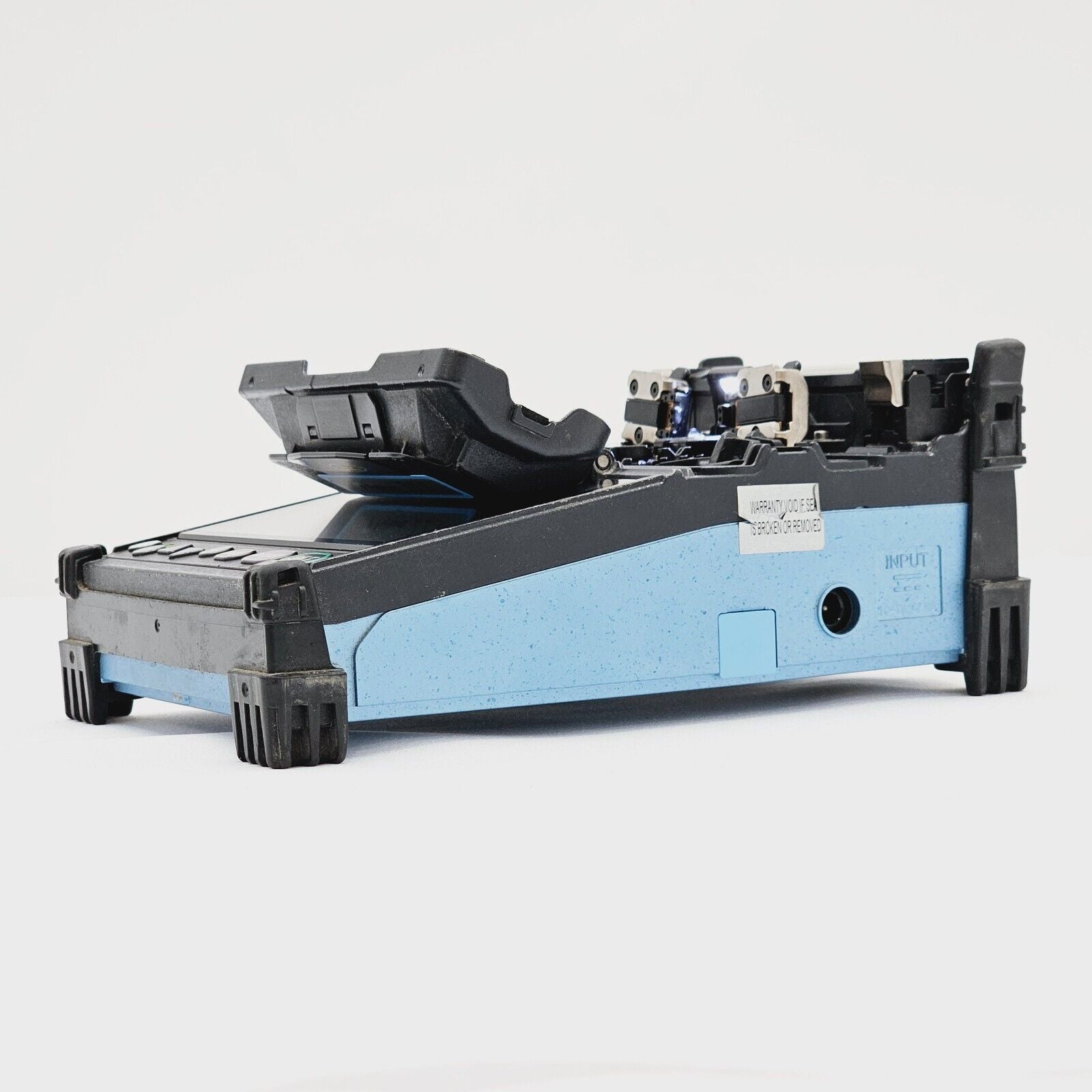

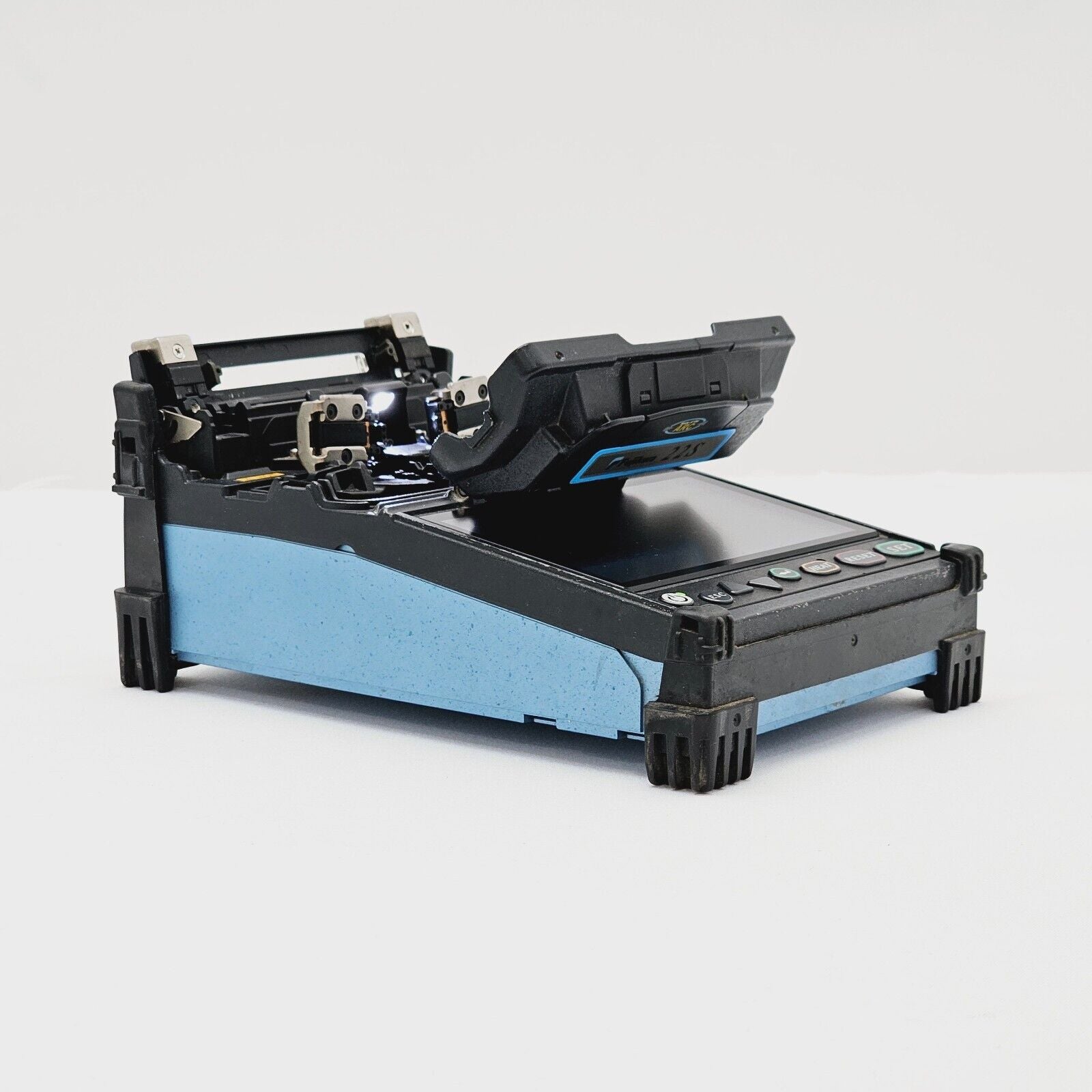

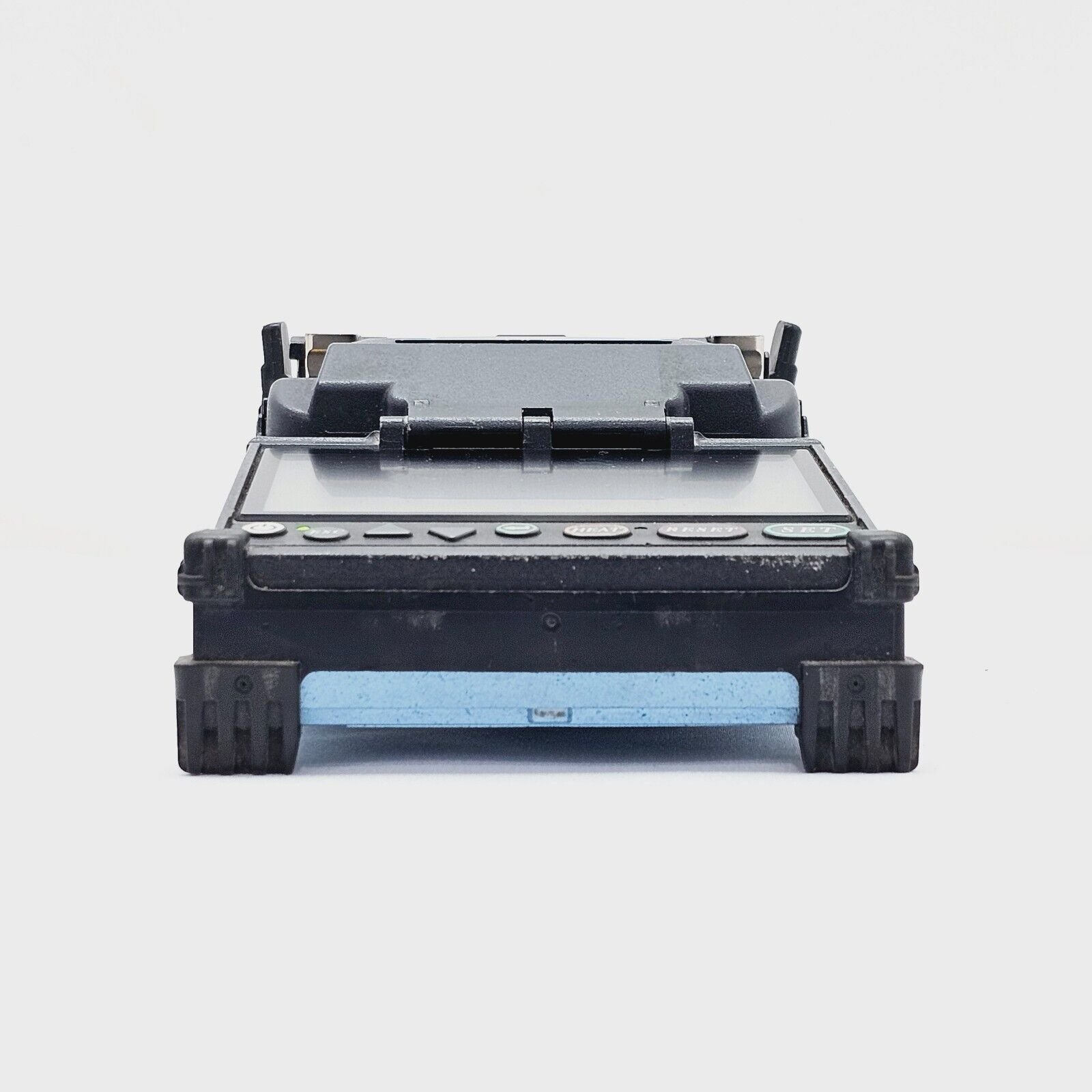

This Fujikura 22S fusion splicer is supplied with ARC count 3810, indicating moderate use. The unit includes the CT-30 cleaver with guide plate, fiber holders for 250/900µm fiber, and is presented as a complete working kit.

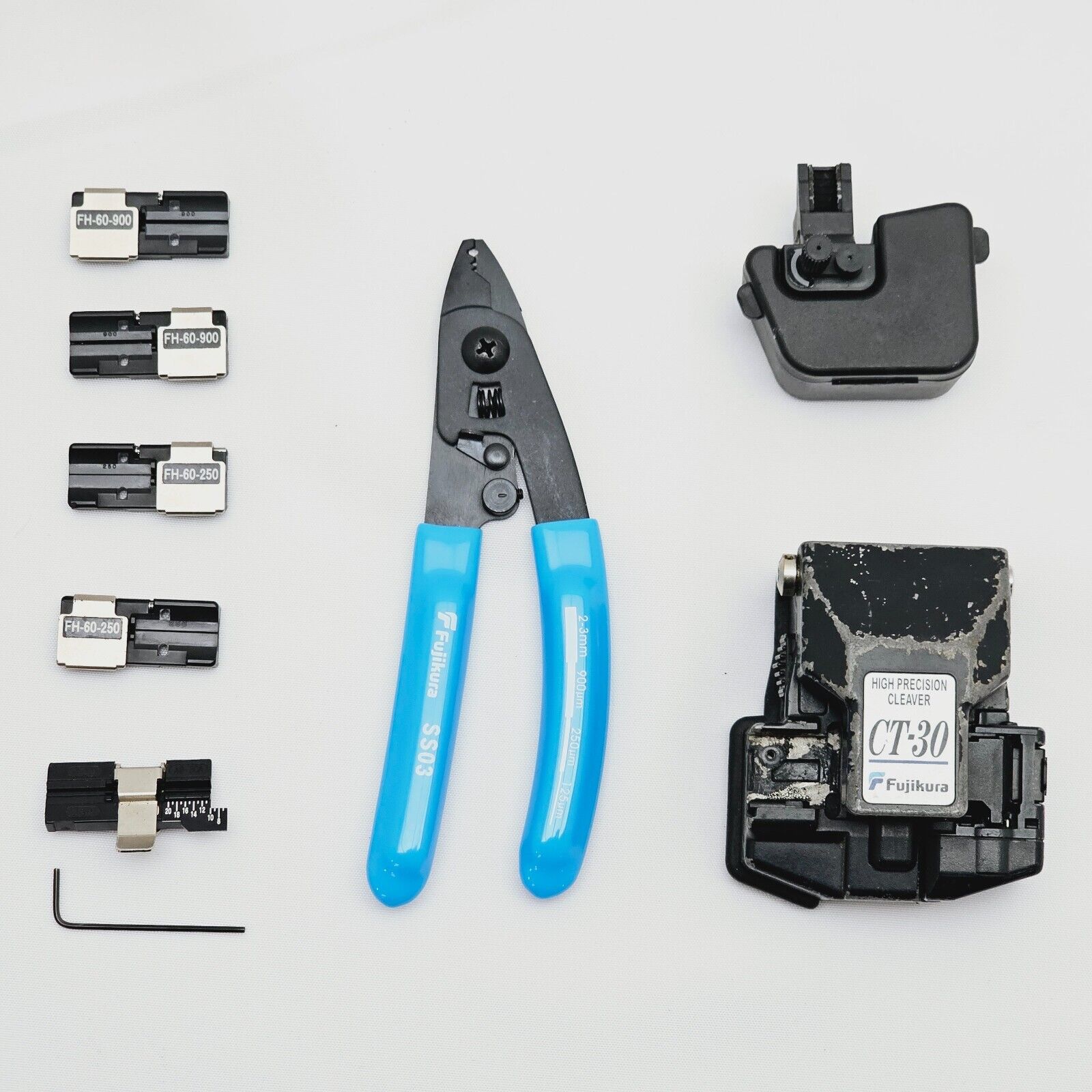

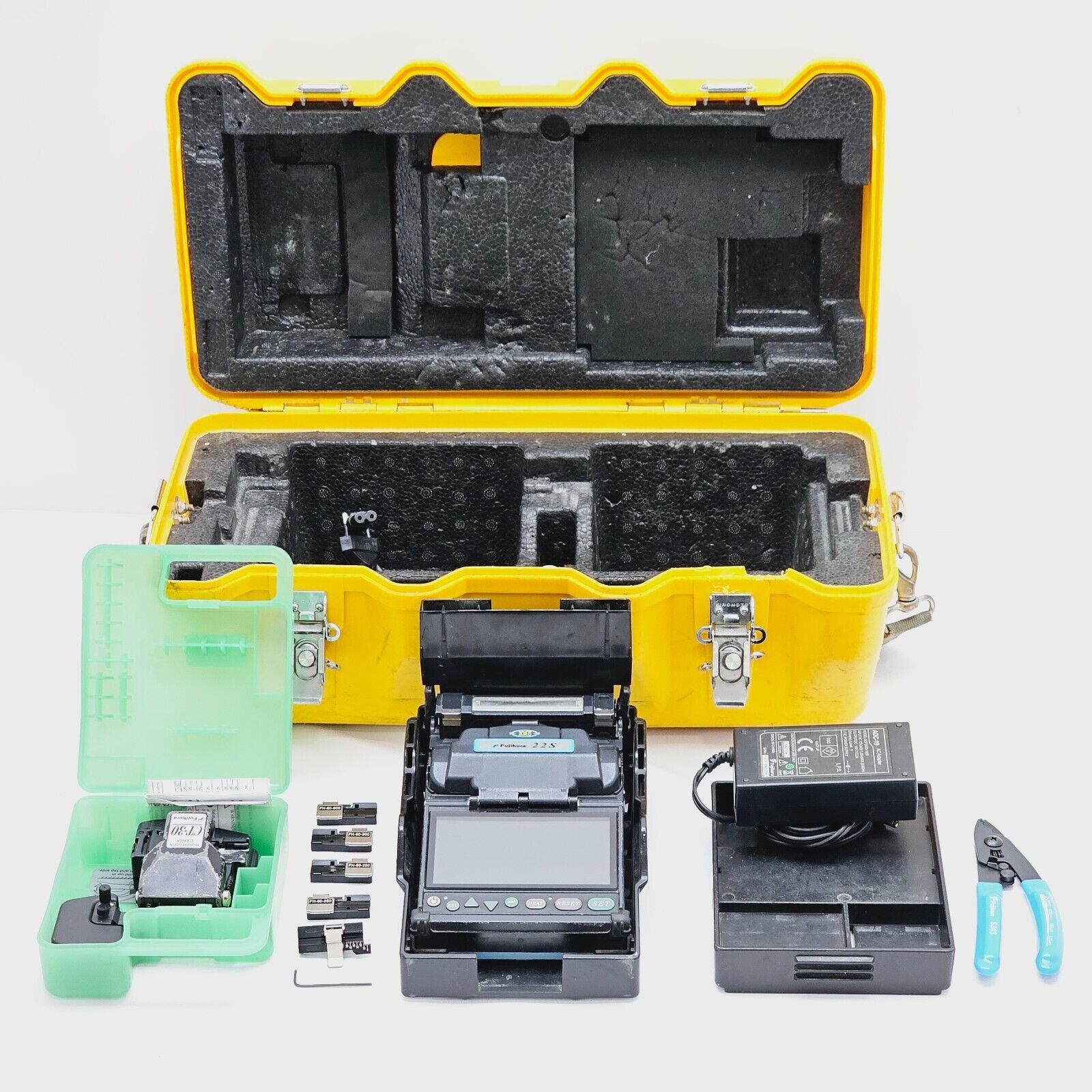

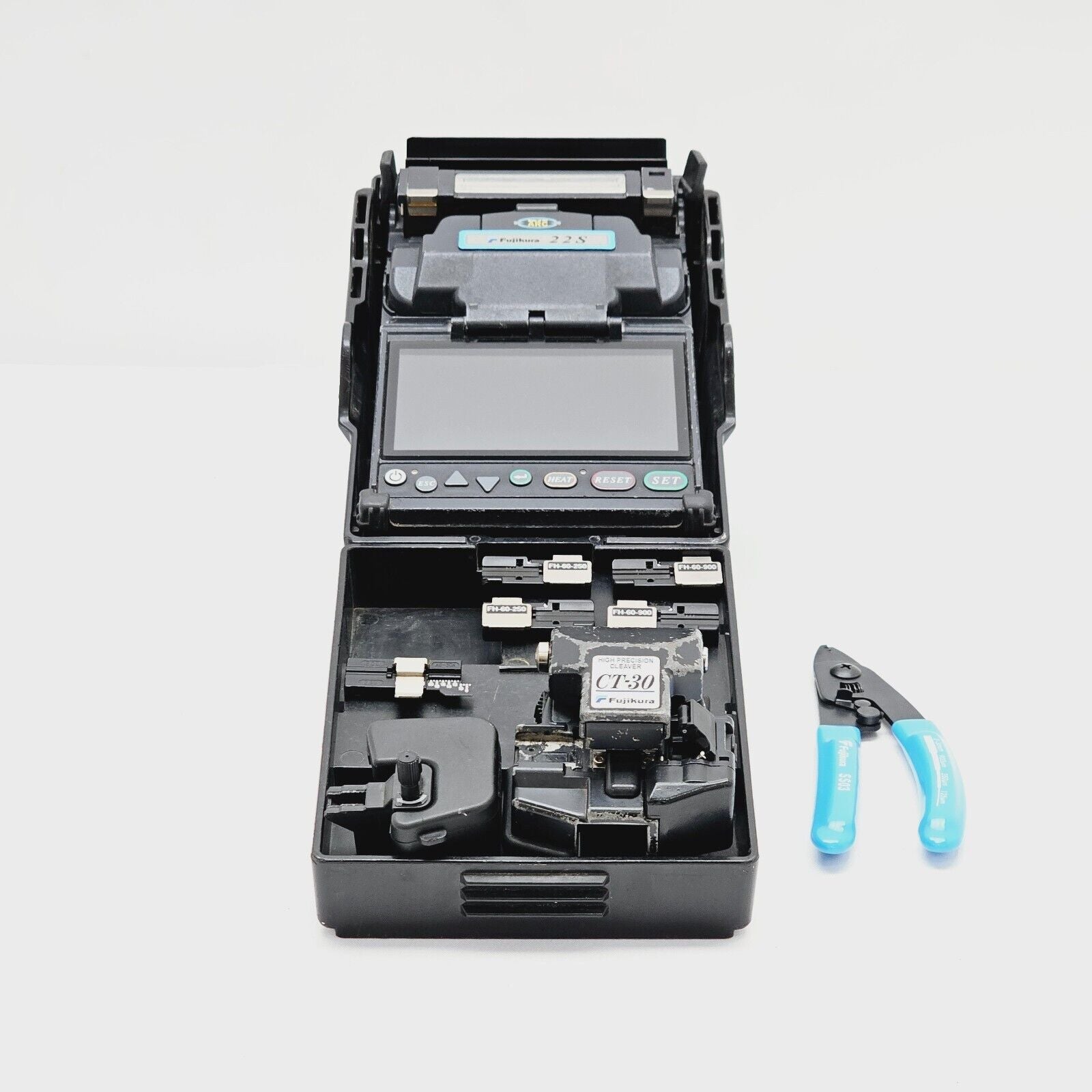

Included in the sale:
• Fujikura 22S Splicer (ARC count: 3810)

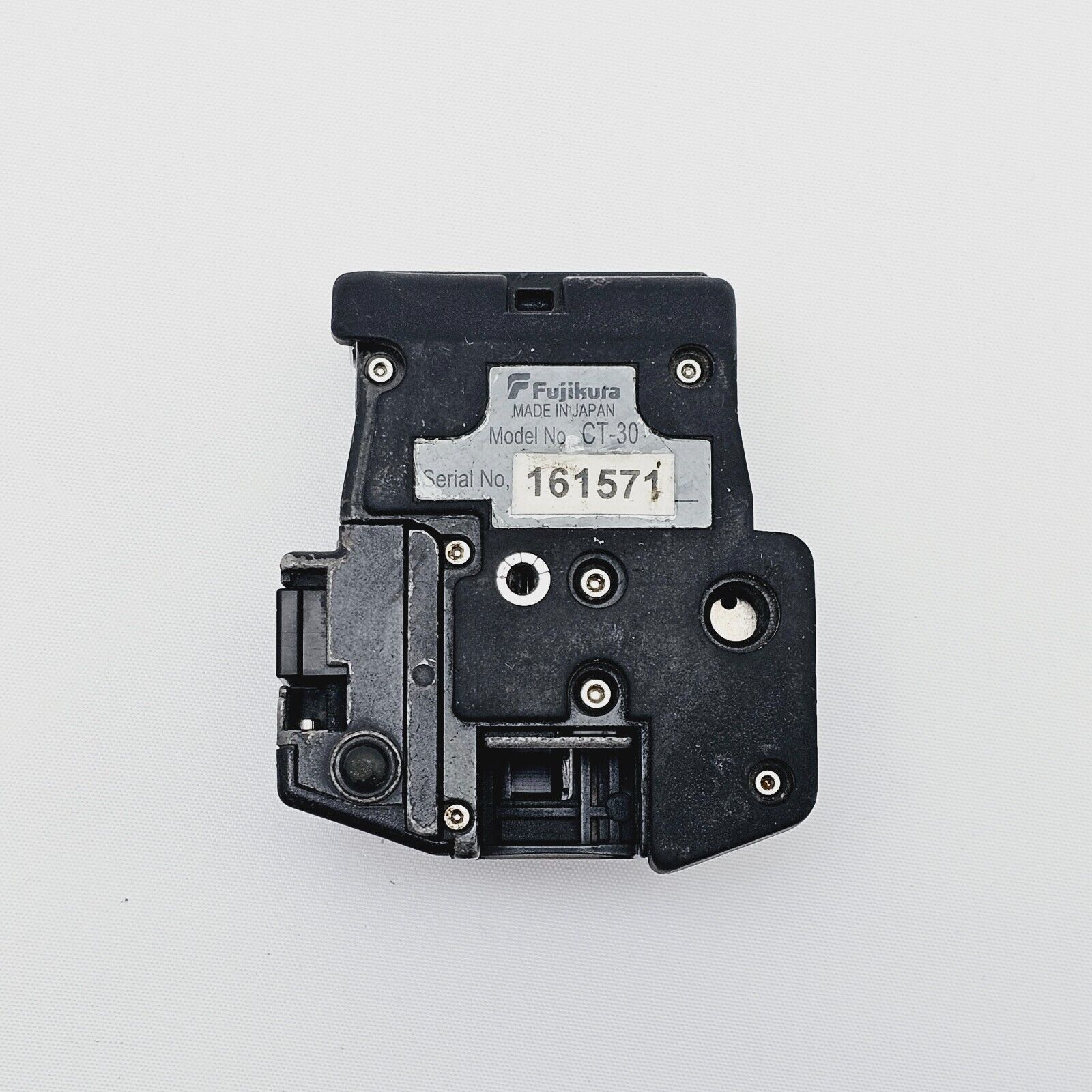

• CT-30 Cleaver with guide plate
• Fiber holders 250/900
• Stripper
• Power adapter

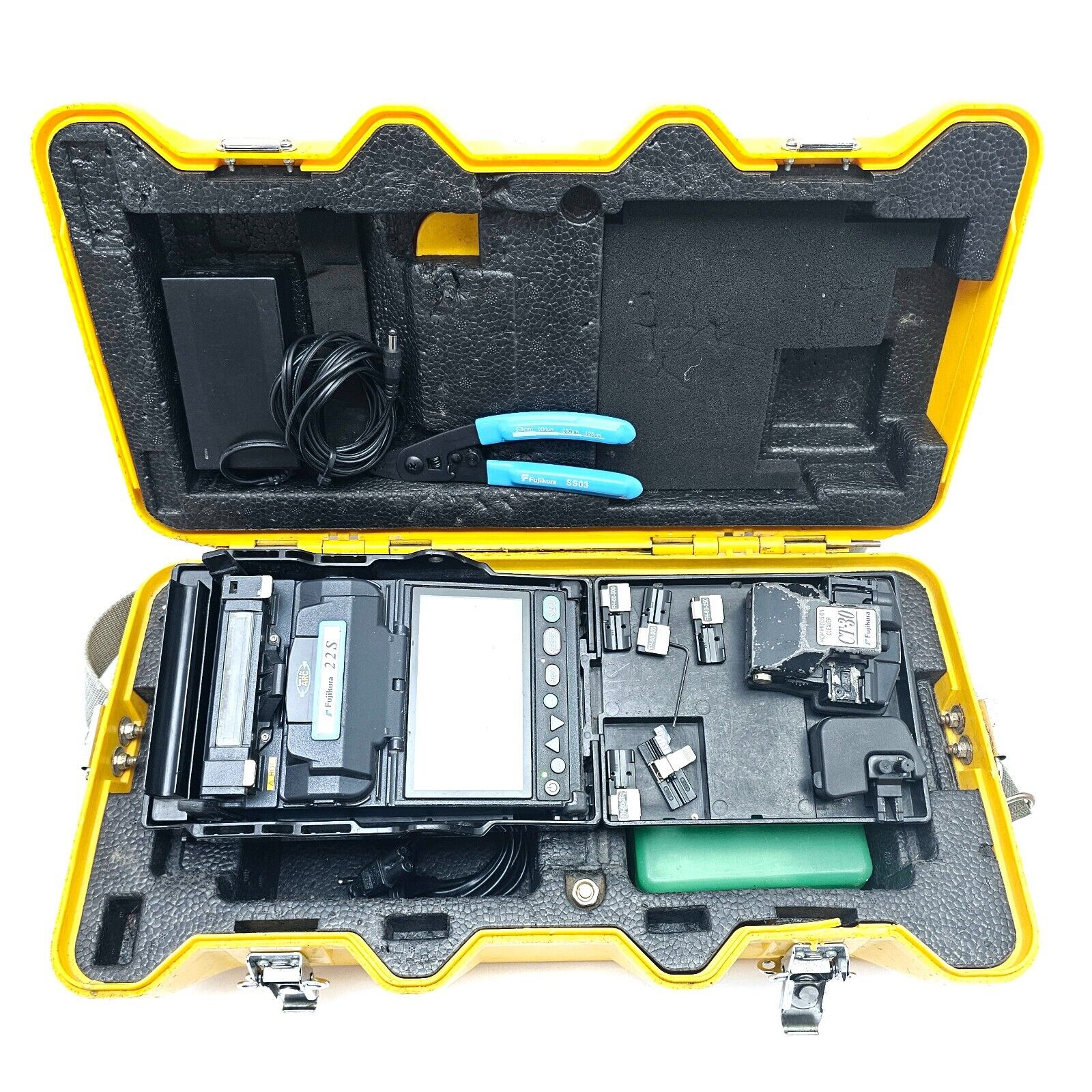

• Carry case with work tray

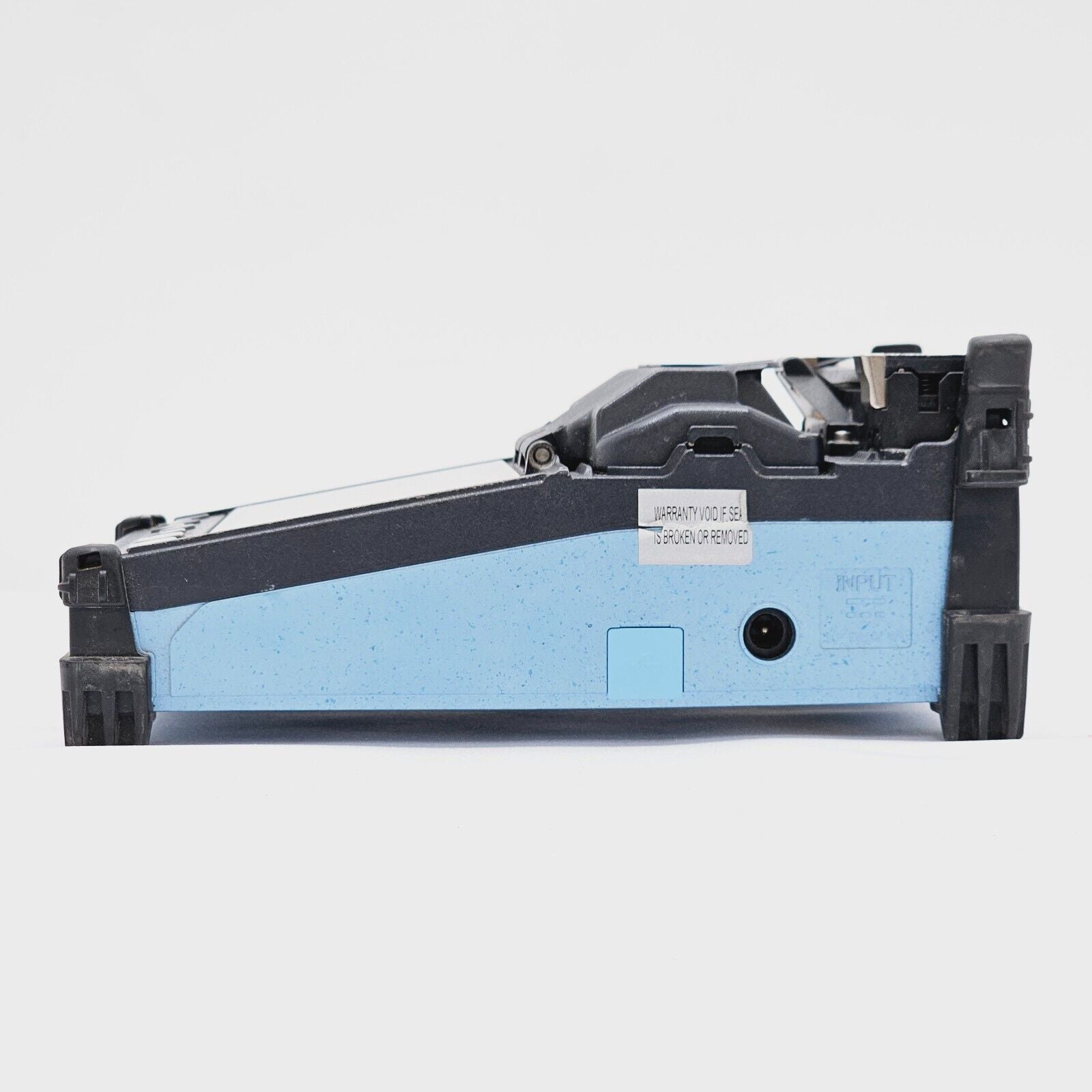

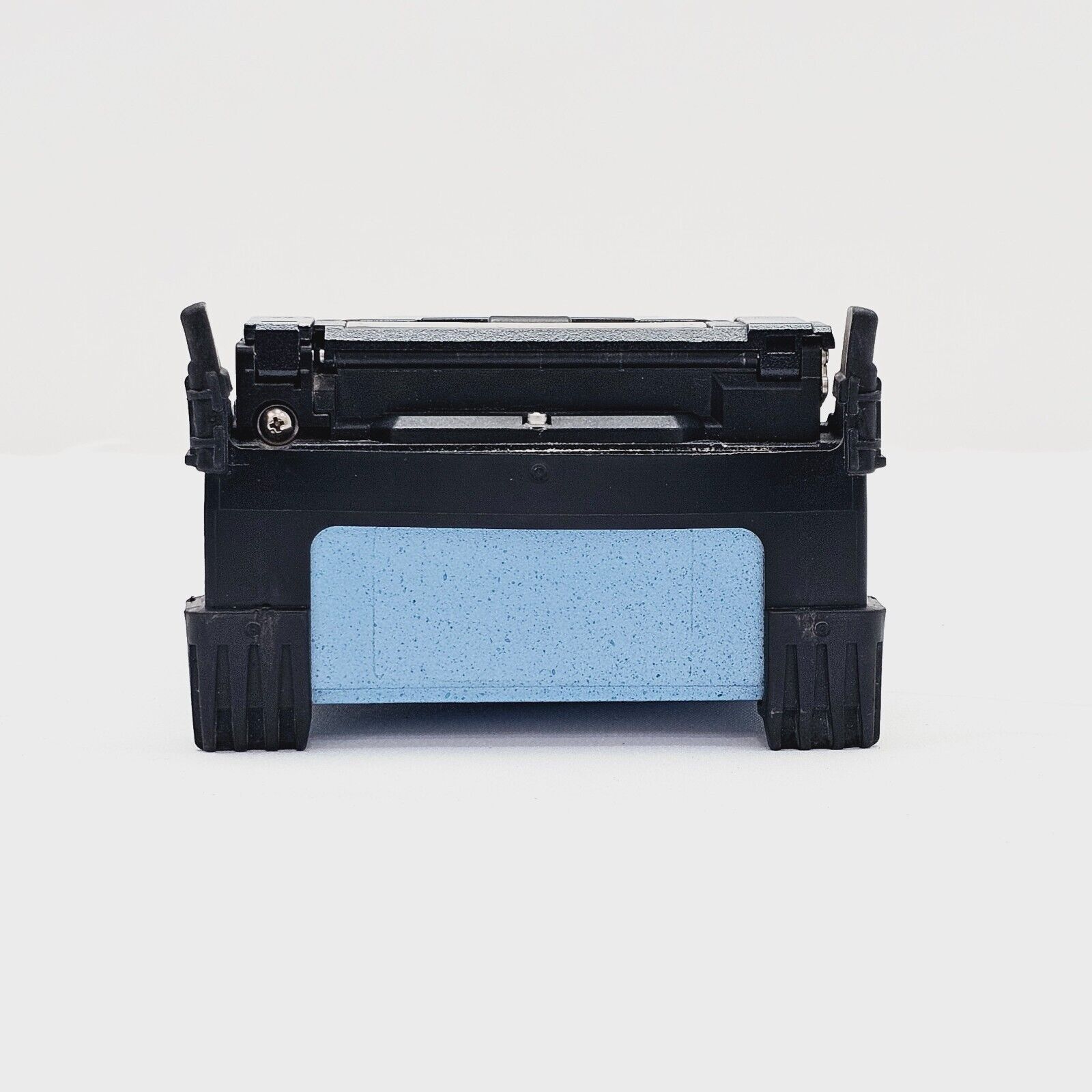

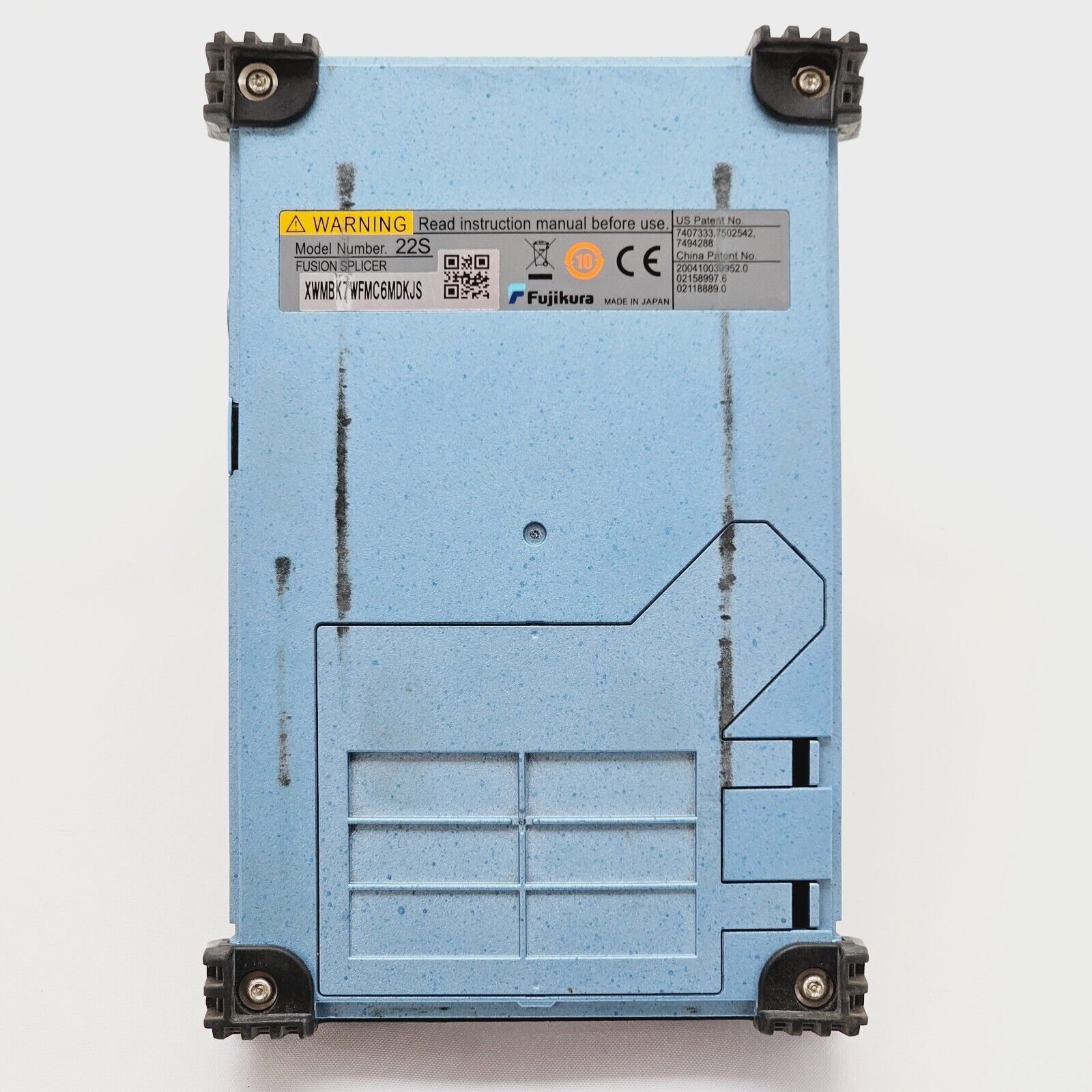

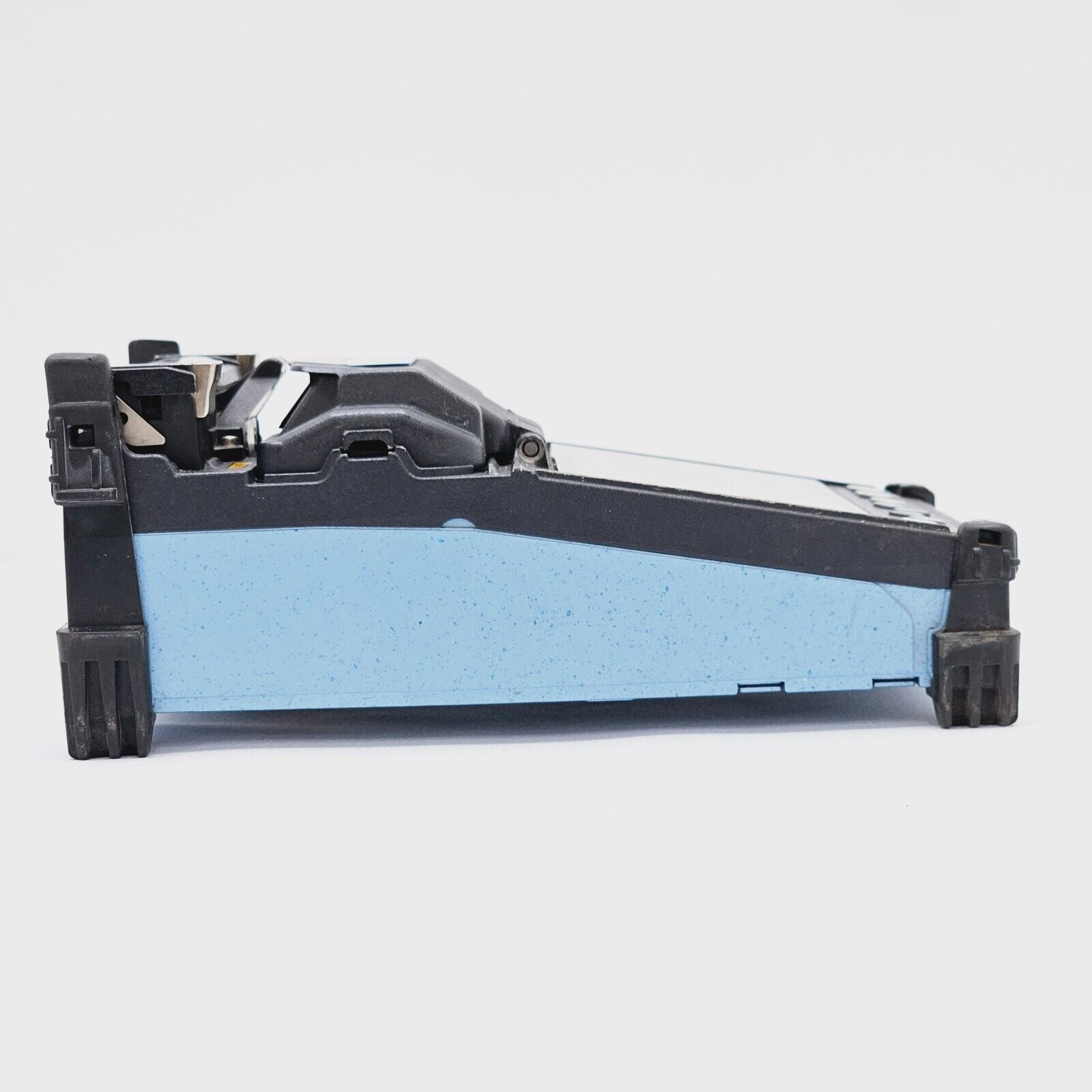

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Fujikura 22S active cladding alignment fusion splicer bridges the long-standing gap between core alignment and fixed v-groove fusion splicer technology. Moveable v-grooves eliminate splicer errors due to dust and other contaminants. Despite its incredibly small size, this ruggedised, full-featured unit offers unmatched versatility for splicing in the most challenging environments.

The innovative transit case and work tray provide multiple options for the best utilisation of available workspace, while the long-life battery provides power for up to 200 splice cycles including application of the splice protection sleeve. The Fujikura 22S incorporates features typically found only in more expensive models. Removable sheath clamps allow the use of fiber holders if desired.

The large 4.7" monitor provides a crystal-clear image, even in the brightest sunlight, for evaluating splice quality. The electrode life has been extended to 3,000 splices, minimising downtime for replacement and stabilisation. Software updates are accomplished via the internet, allowing users to quickly update splice programs as new ones become available. The fully ruggedised chassis provides shock, dust and moisture protection, while the two-camera observation system provides accurate fiber alignment and loss estimation calculations. The Fujikura 22S is also fully compatible with the FUSEConnect® line of fusion installable connectors.

Key Specifications:
Alignment Method: Active cladding alignment with moveable v-grooves
Display: 4.7" colour LCD monitor
Dimensions: 4.72" W x 7.44" D x 2.8" H
Battery Life: Up to 200 splice and shrink cycles per charge
Electrode Life: 3,000 splices
Fiber Compatibility: SM, MM
Fiber Holders: 250µm and 900µm
Splice Time: Approximately 9 seconds
Heating Time: Approximately 35 seconds
Protection: Shock, dust and moisture resistant chassis
Software Updates: Via internet
Compatibility: FUSEConnect® fusion installable connectors

Product datasheet
