Fujikura 22S Fiber SM MM Splicer w/ CT-30 Cleaver & Fiber Holders 250 ARC 6597
Model: 22S
Condition: Used
In stock: 0
SKU: 2665 1A03
- Fiber Optics
- Fusion Splicers
- Splicing
Choose options
Condition: Used

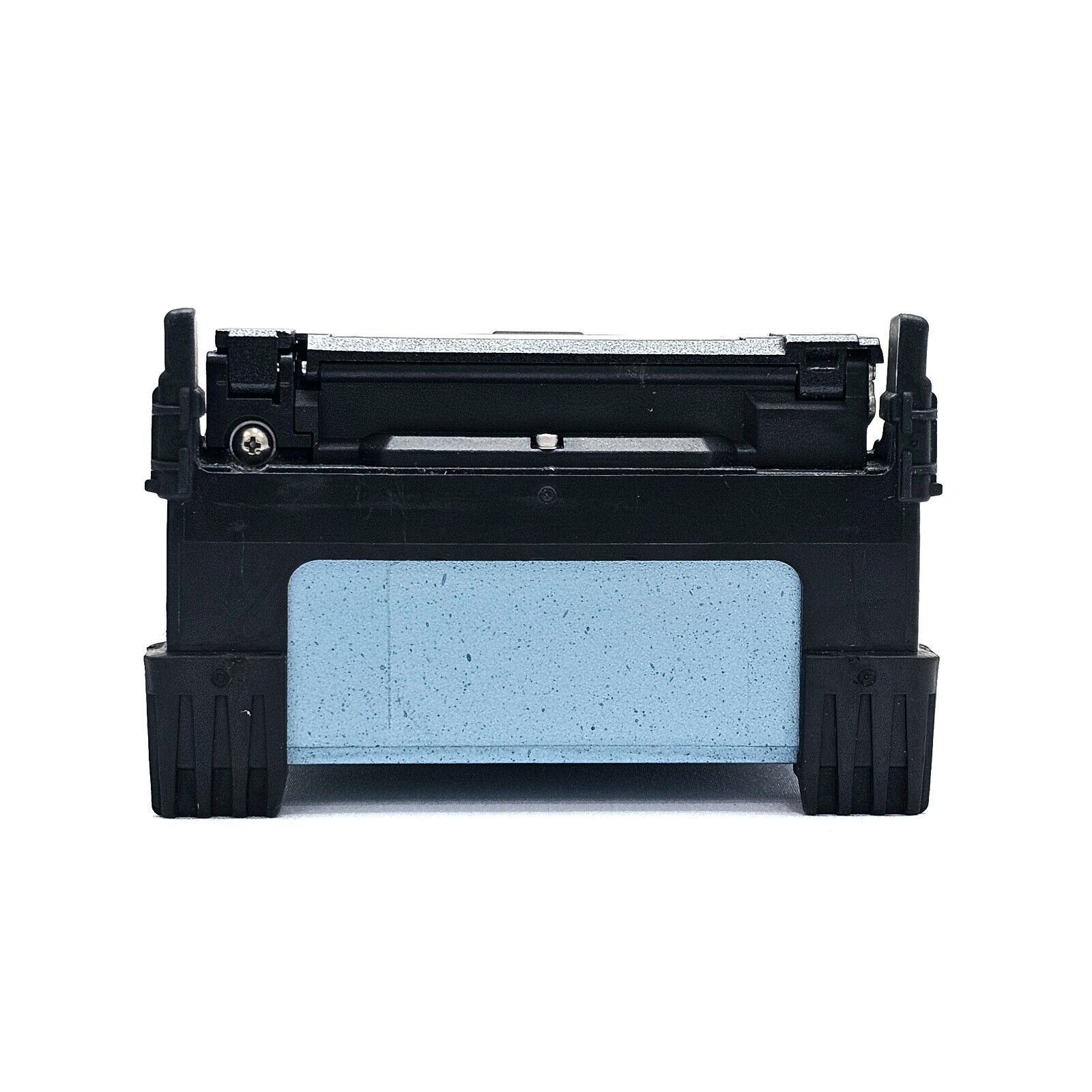

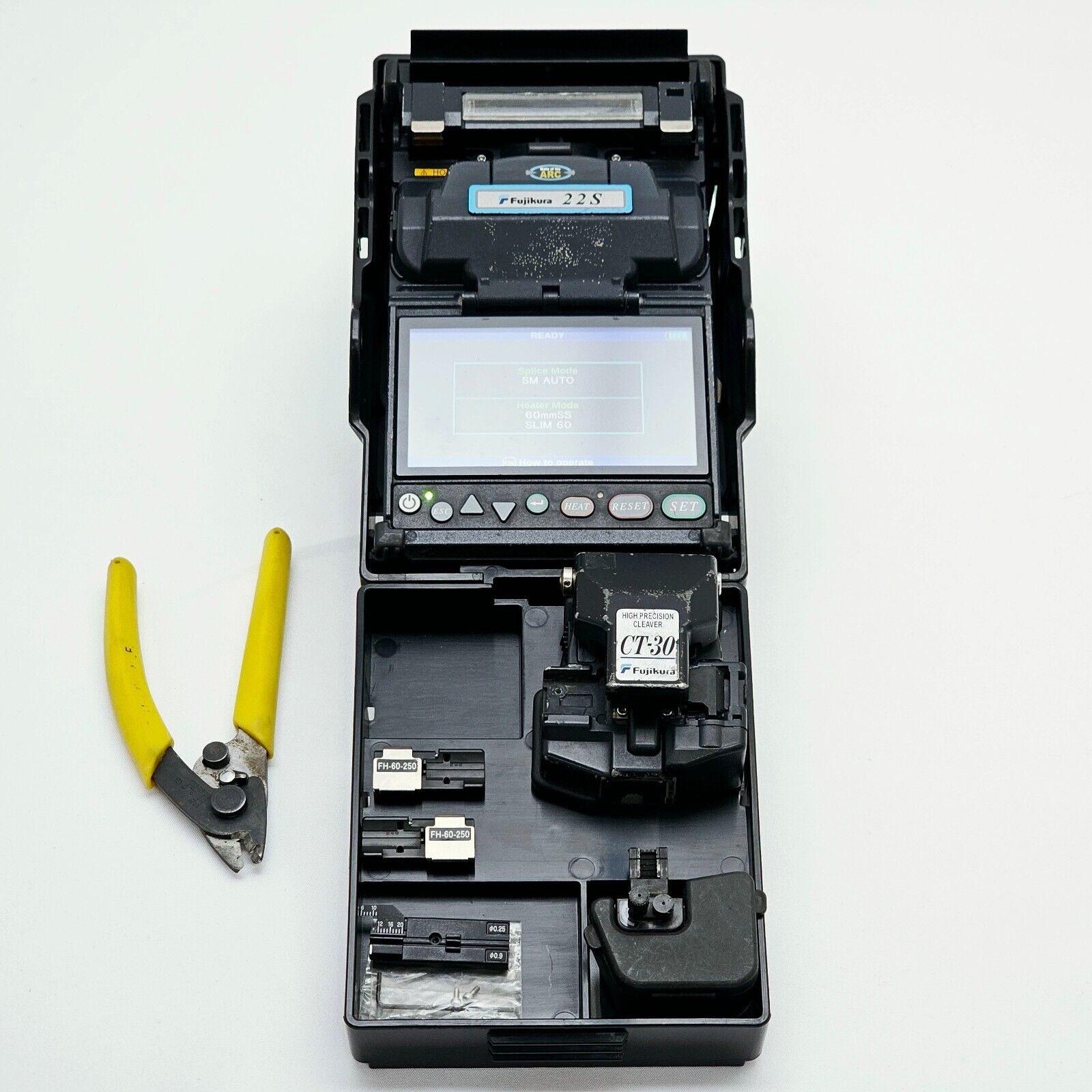

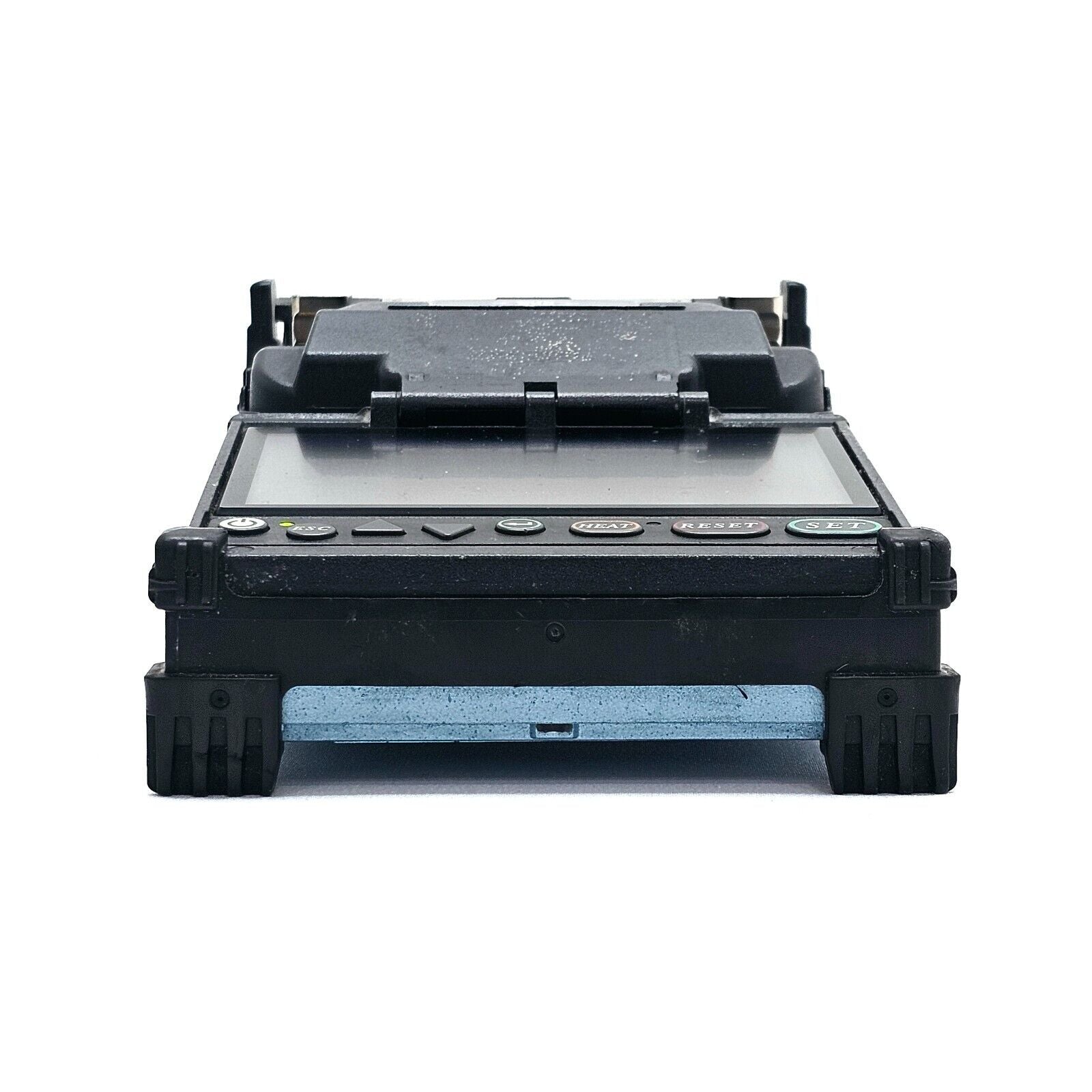

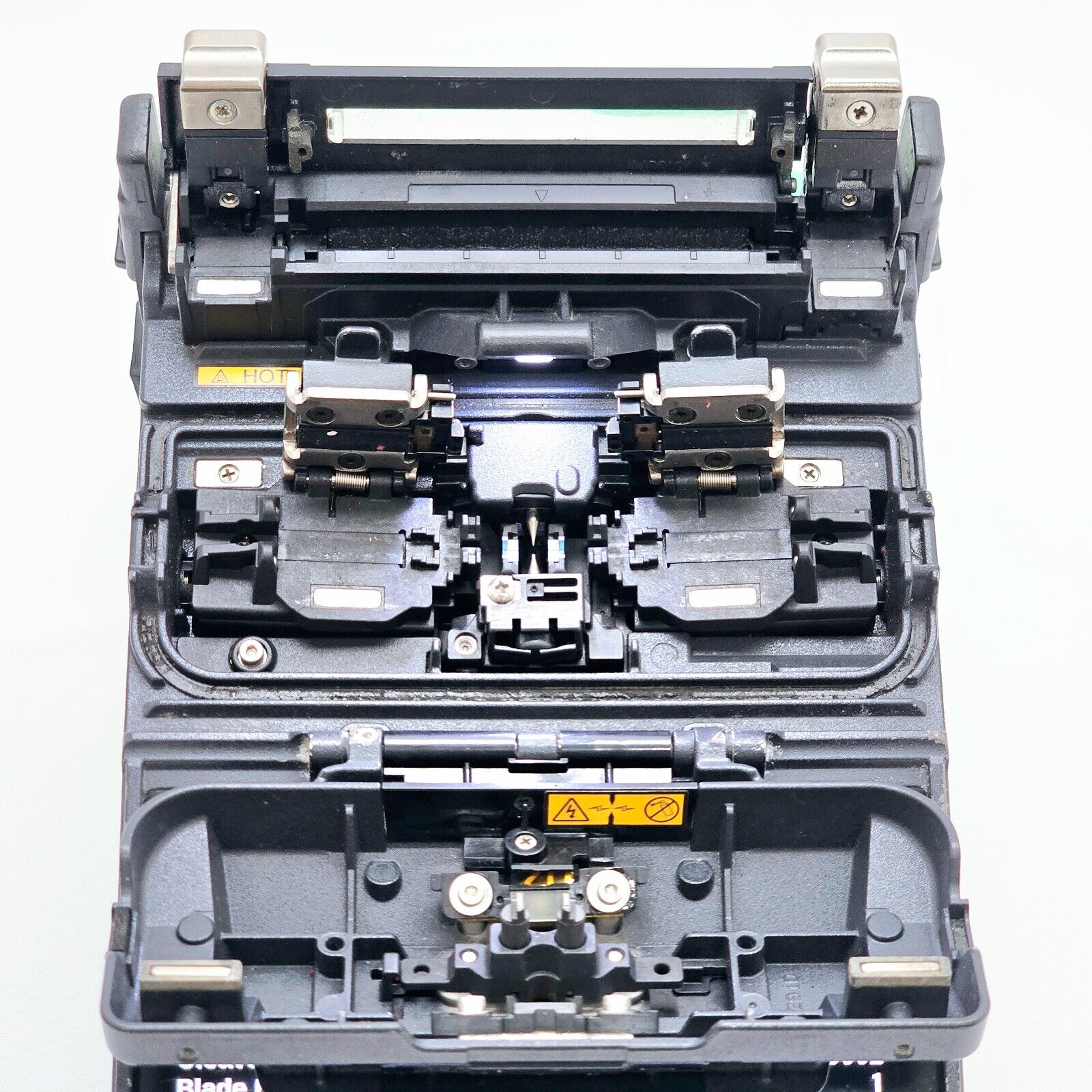

This Fujikura 22S active cladding alignment fusion splicer is supplied with an ARC count of 6597. The unit comes complete with the CT-30 cleaver (with guide plate), fiber holders, a 250 stripper, power adapter, and carry case with work tray. The 22S features moveable v-grooves, a dual-camera observation system, extended-life electrodes rated to 3,000 splices, and is fully compatible with FUSEConnect® fusion installable connectors.

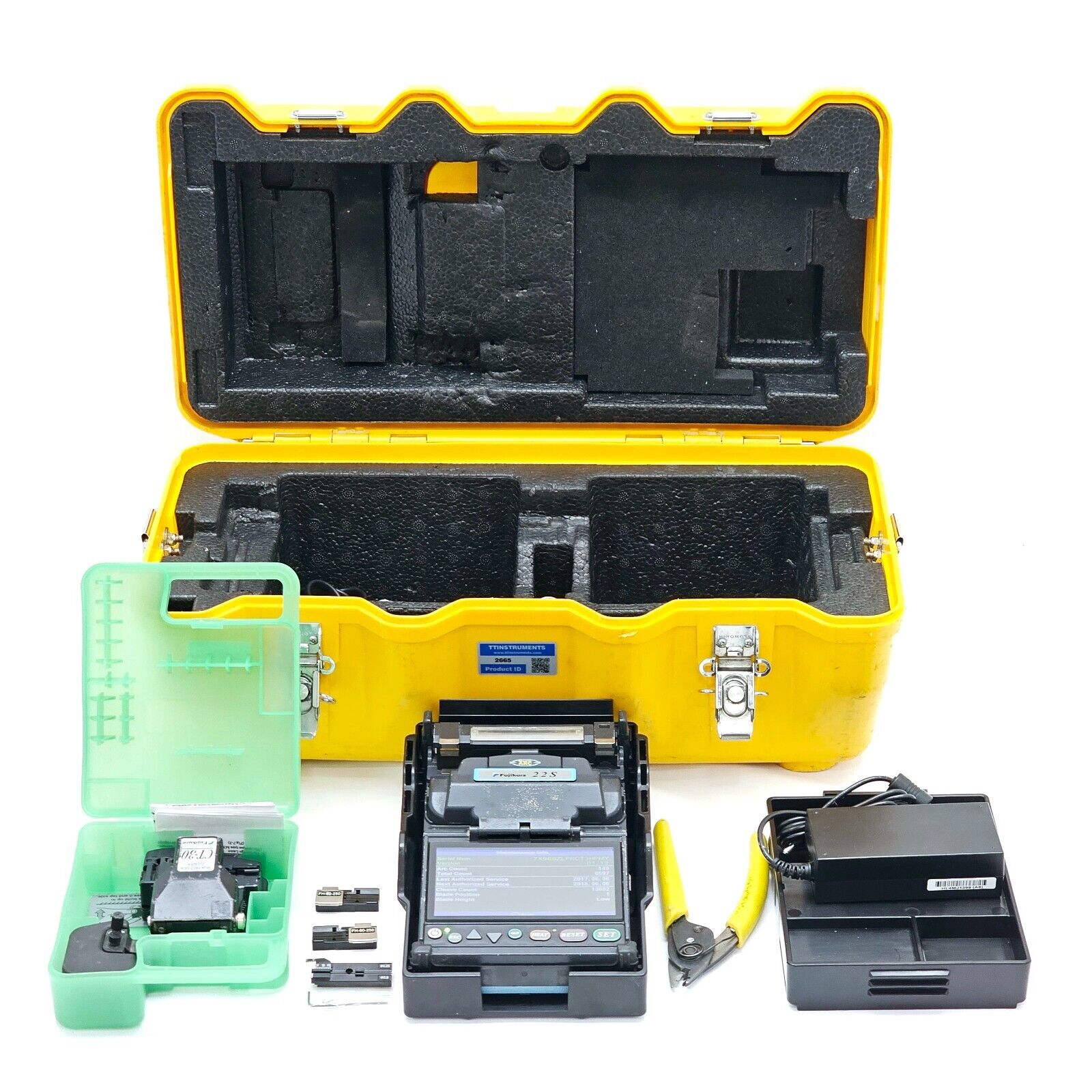

Included in the sale:

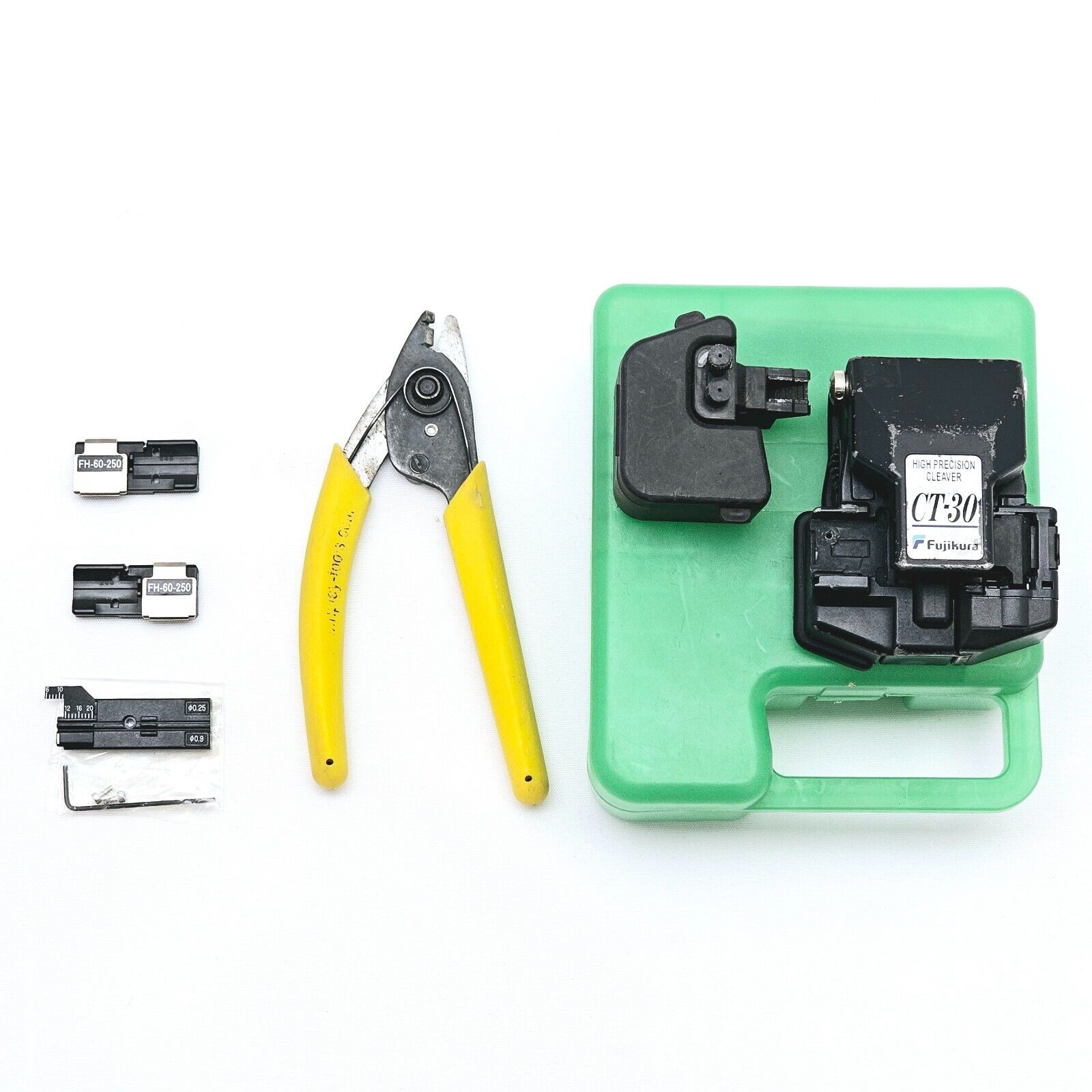

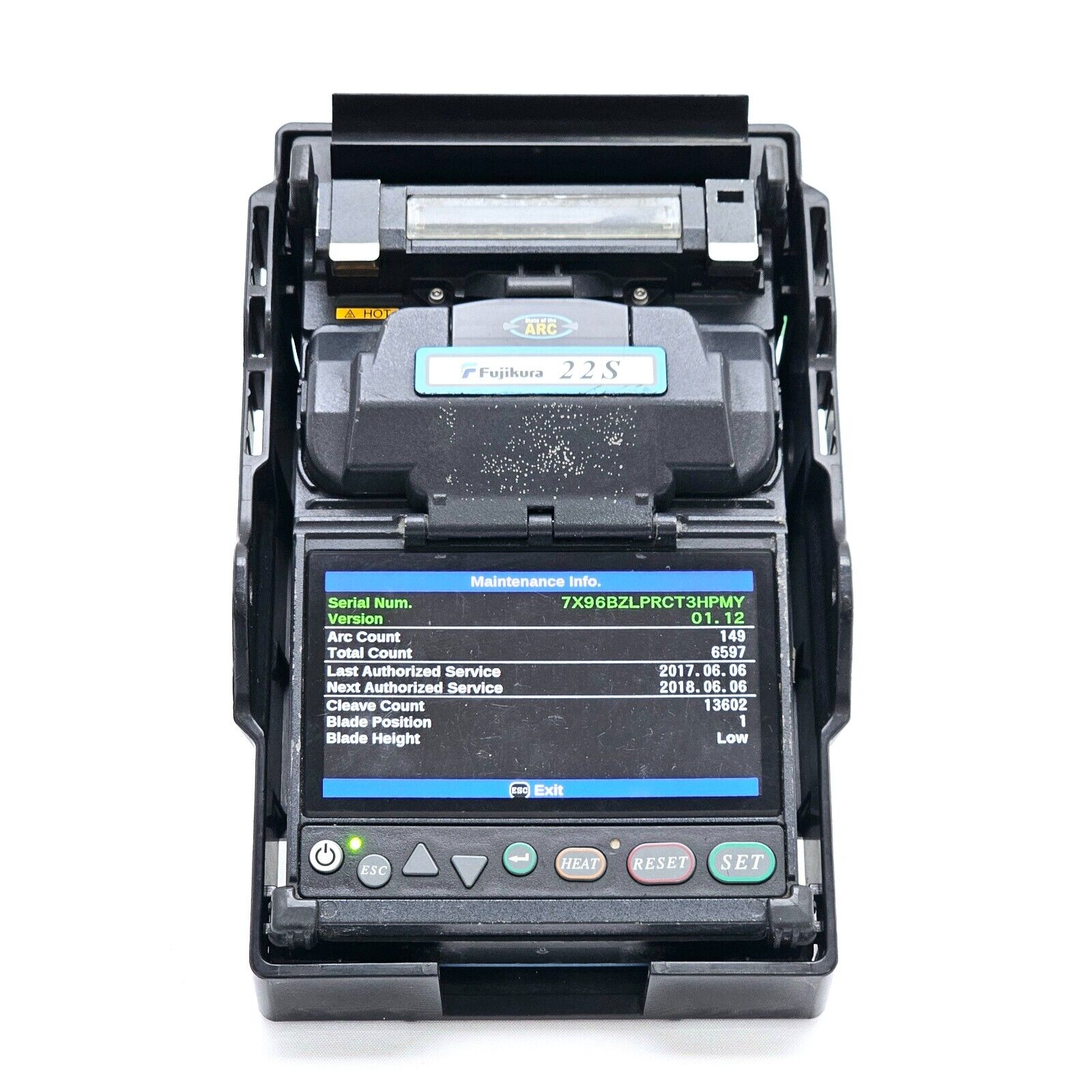

• Fujikura 22S Fusion Splicer (ARC count: 6597)

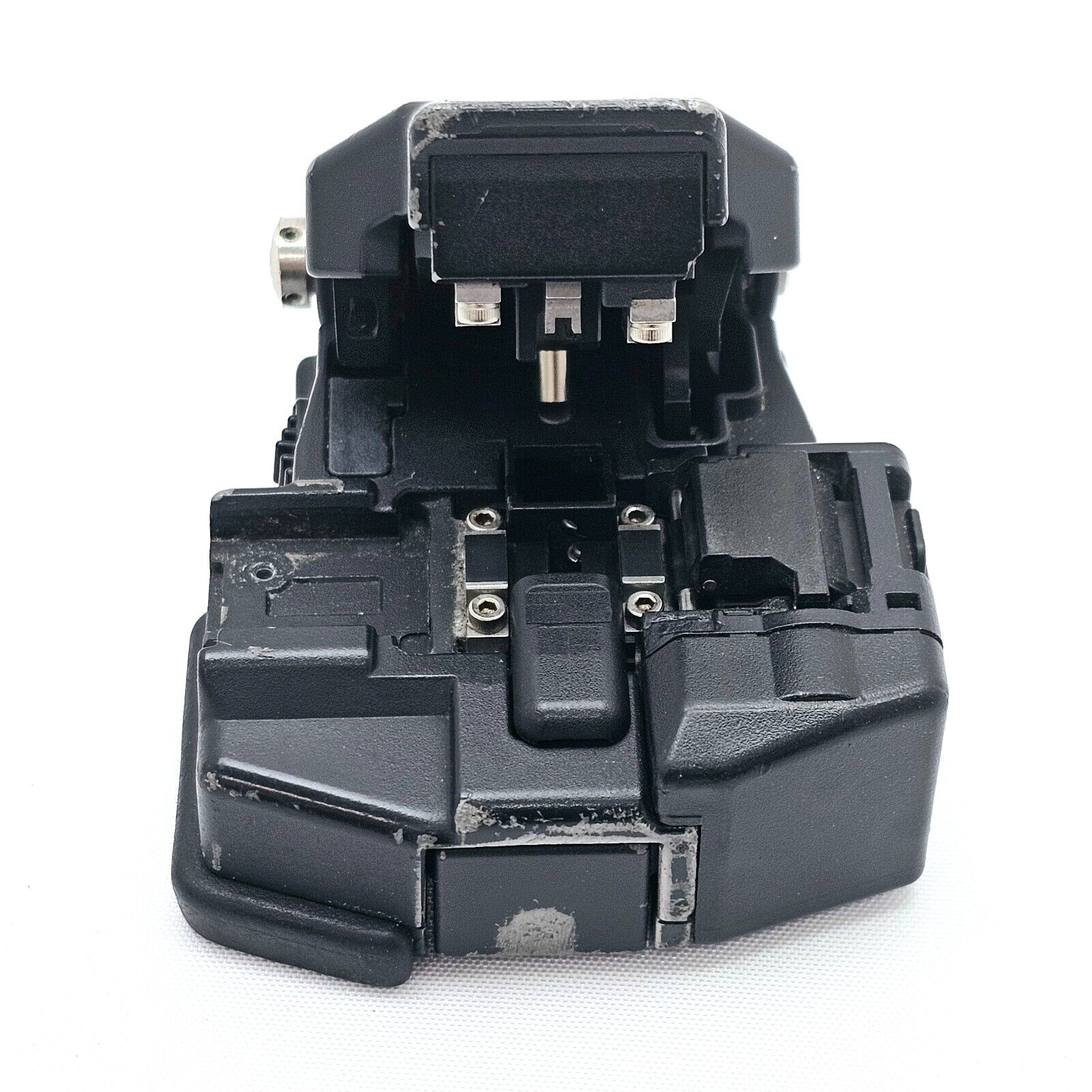

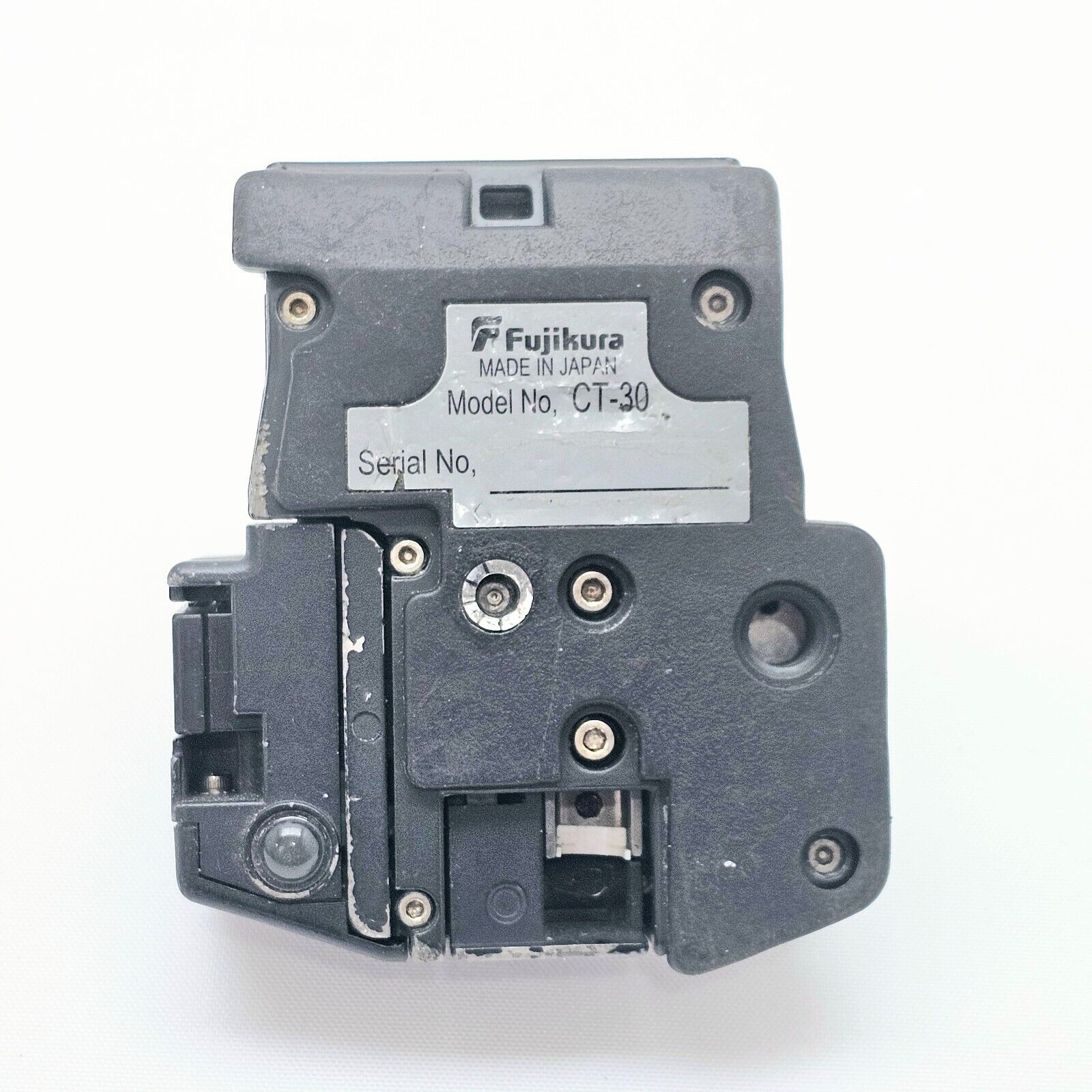

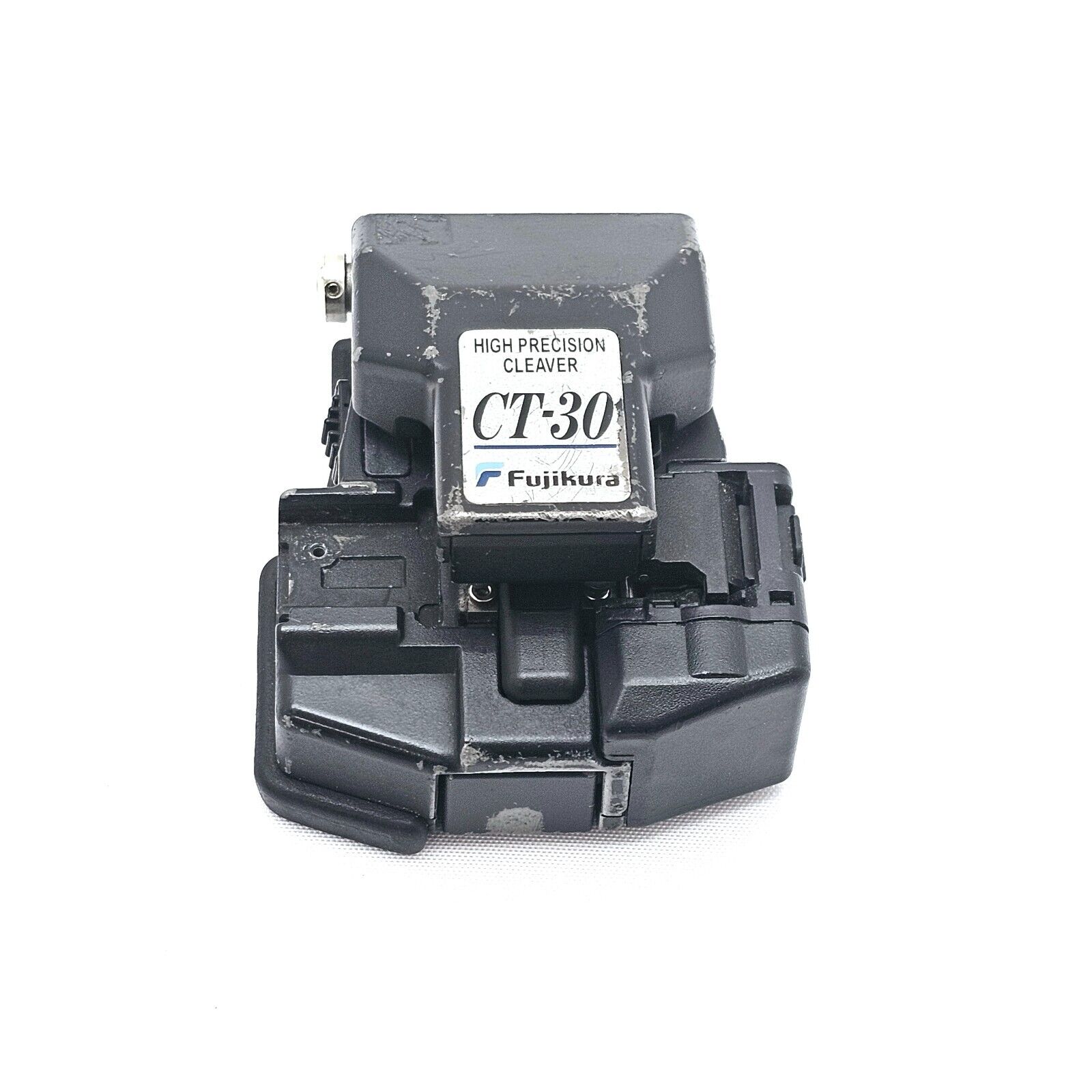

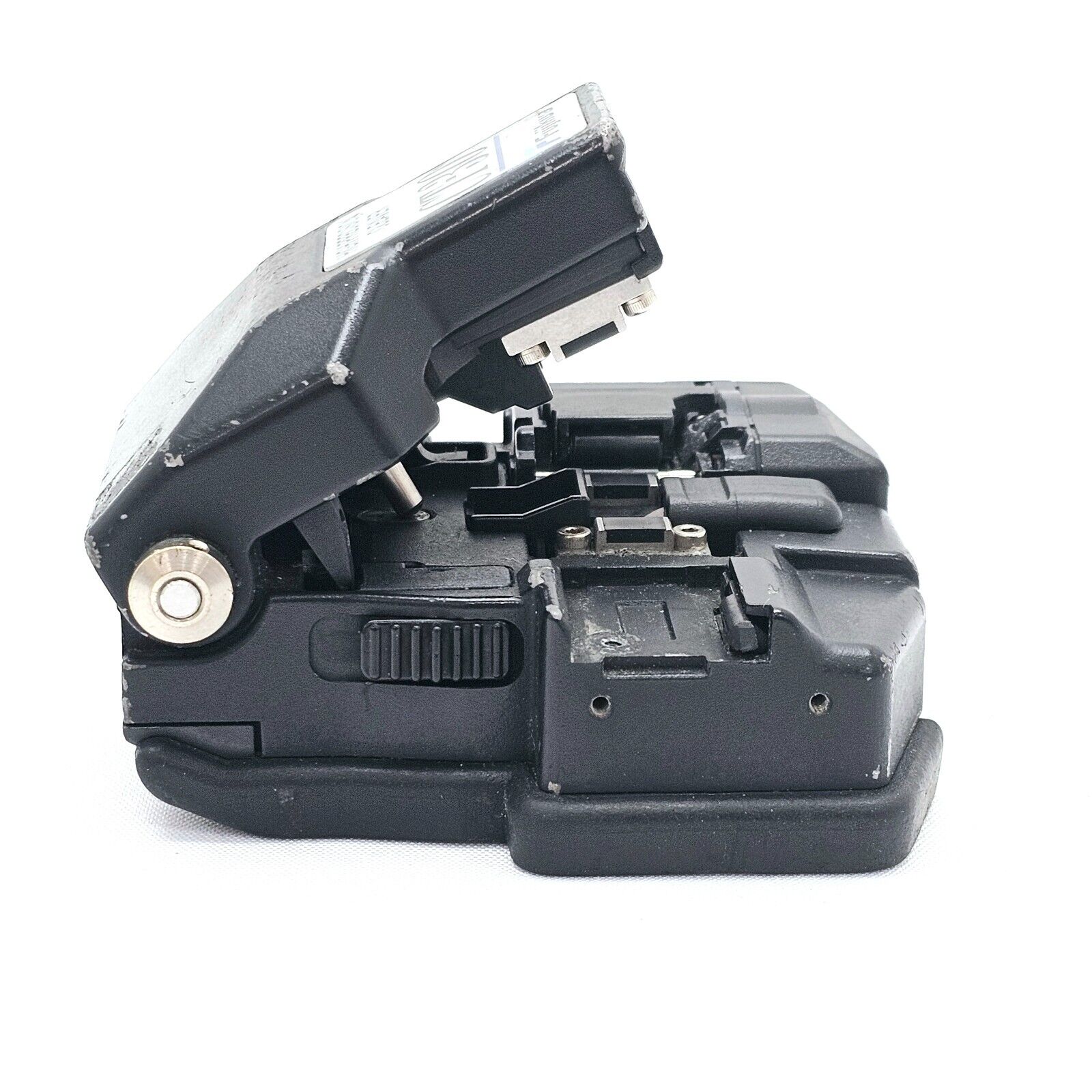

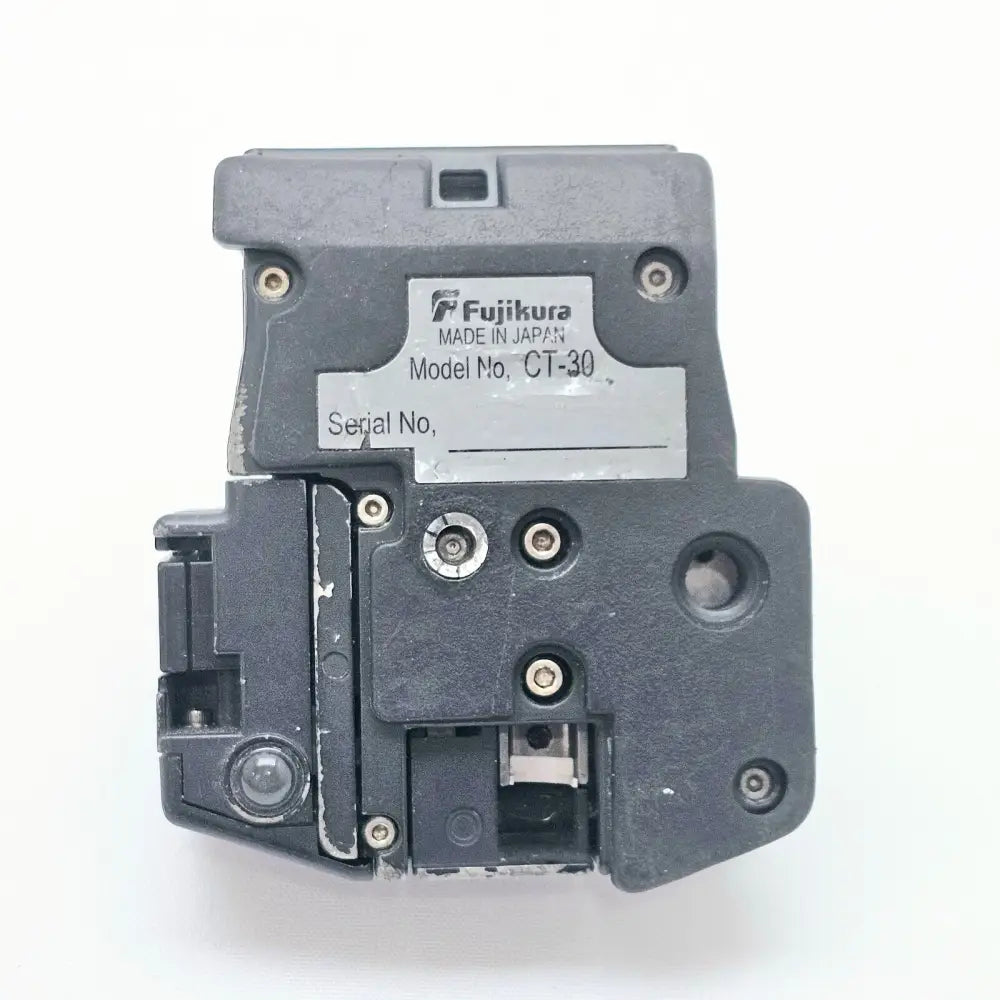

• CT-30 Cleaver with guide plate
• Fiber holders
• 250 Stripper
• Power adapter

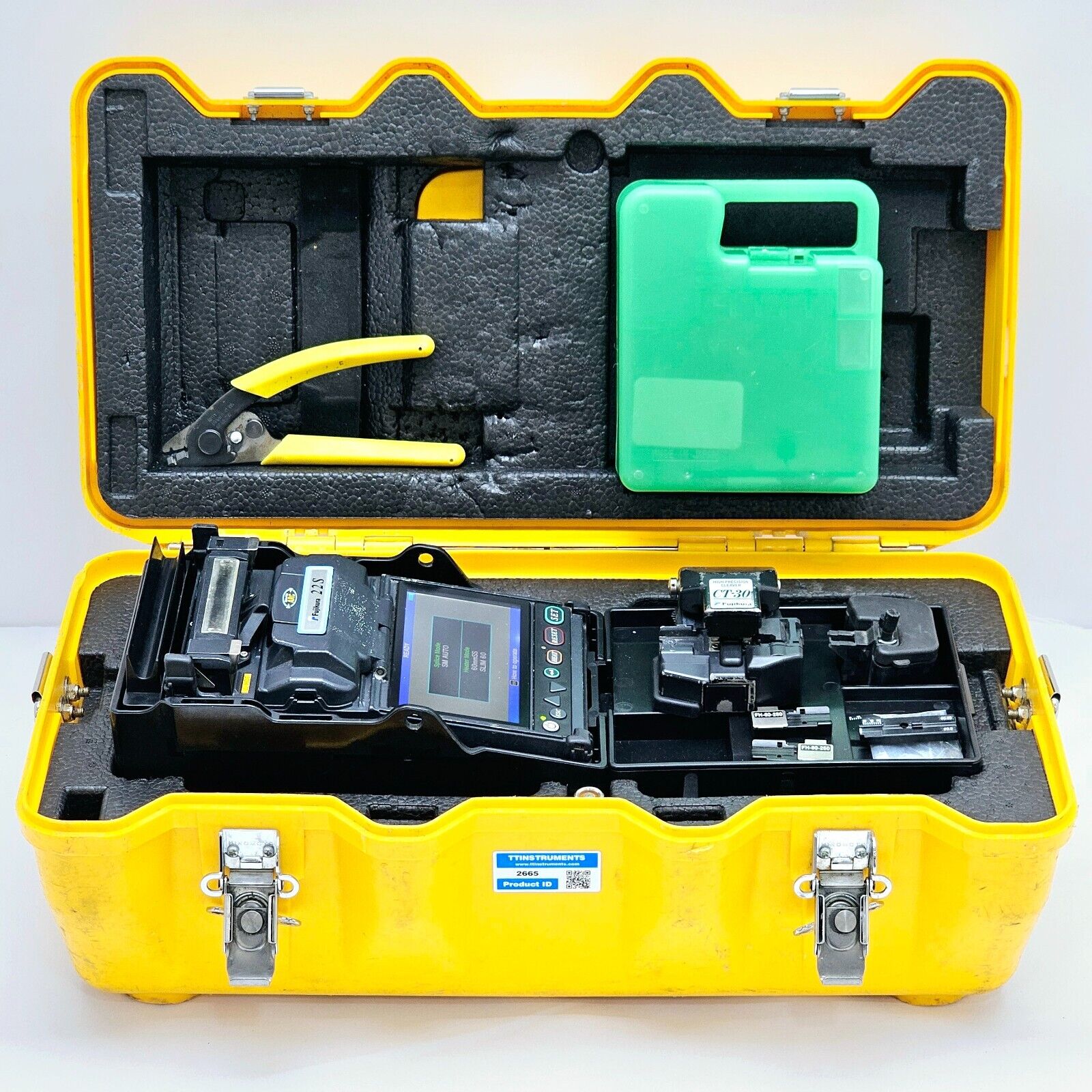

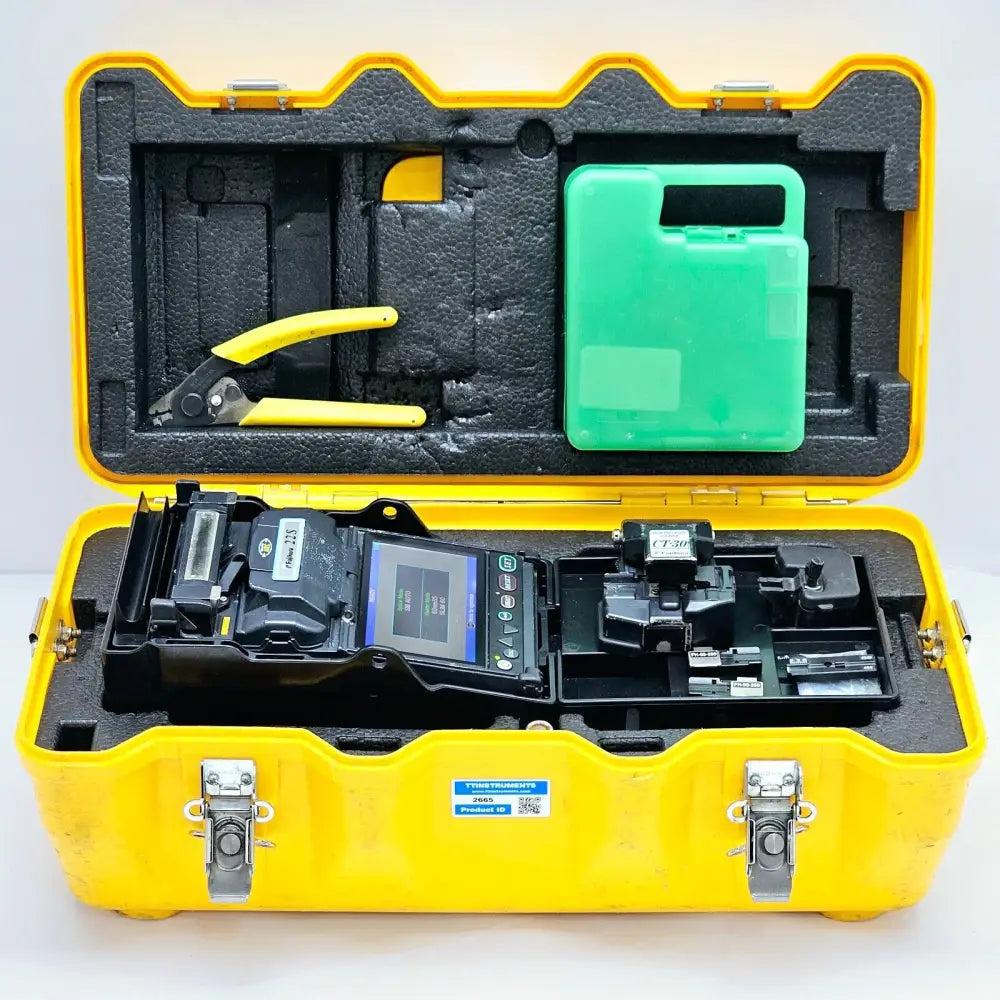

• Carry case with work tray
The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.
The Fujikura 22S active cladding alignment fusion splicer bridges the long-standing gap between core alignment and fixed v-groove fusion splicer technology. Moveable v-grooves eliminate splicer errors due to dust and other contaminants. Despite its incredibly small size, this ruggedised, full-featured unit offers unmatched versatility for splicing in the most challenging environments.
The innovative transit case and work tray provide multiple options for the best utilisation of available workspace, while the long-life battery provides power for up to 200 splice cycles including application of the splice protection sleeve. Removable sheath clamps allow the use of fibre holders if desired. The large 4.7" monitor provides a crystal-clear image even in the brightest sunlight for evaluating splice quality. The electrode life has been extended to 3,000 splices, minimising downtime for replacement and stabilisation. Software updates are accomplished via the internet, allowing users to quickly update splice programs as they become available. The fully ruggedised chassis provides shock, dust and moisture protection, while the two-camera observation system delivers accurate fibre alignment and loss estimation. The Fujikura 22S is also fully compatible with the FUSEConnect® line of fusion installable connectors.
Key Specifications:
Alignment Method: Active cladding alignment with dual cameras
Fibre Type: Single-mode (SM) and Multimode (MM)
Display: 4.7" high-brightness colour LCD monitor
Dimensions: 4.72"W x 7.44"D x 2.8"H
Battery Life: Up to 200 splice and shrink cycles per charge
Electrode Life: 3,000 splices
Protection: Ruggedised for shock, dust and moisture resistance
Splice Time: Approximately 9 seconds
Heating Time: Approximately 35 seconds
Compatibility: FUSEConnect® fusion installable connectors
Connectivity: Internet-based software updates
Product datasheet
Product Overview
Condition: Used
This Fujikura 22S active cladding alignment fusion splicer is supplied with an ARC count of 6597. The unit comes complete with the CT-30 cleaver (with guide plate), fiber holders, a 250 stripper, power adapter, and carry case with work tray. The 22S features moveable v-grooves, a dual-camera observation system, extended-life electrodes rated to 3,000 splices, and is fully compatible with FUSEConnect® fusion installable connectors.
Included in the sale:
• Fujikura 22S Fusion Splicer (ARC count: 6597)
• CT-30 Cleaver with guide plate
• Fiber holders
• 250 Stripper
• Power adapter
• Carry case with work tray
The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.
Manufacturer's Description
The Fujikura 22S active cladding alignment fusion splicer bridges the long-standing gap between core alignment and fixed v-groove fusion splicer technology. Moveable v-grooves eliminate splicer errors due to dust and other contaminants. Despite its incredibly small size, this ruggedised, full-featured unit offers unmatched versatility for splicing in the most challenging environments.
The innovative transit case and work tray provide multiple options for the best utilisation of available workspace, while the long-life battery provides power for up to 200 splice cycles including application of the splice protection sleeve. Removable sheath clamps allow the use of fibre holders if desired. The large 4.7" monitor provides a crystal-clear image even in the brightest sunlight for evaluating splice quality. The electrode life has been extended to 3,000 splices, minimising downtime for replacement and stabilisation. Software updates are accomplished via the internet, allowing users to quickly update splice programs as they become available. The fully ruggedised chassis provides shock, dust and moisture protection, while the two-camera observation system delivers accurate fibre alignment and loss estimation. The Fujikura 22S is also fully compatible with the FUSEConnect® line of fusion installable connectors.
Key Specifications:
Alignment Method: Active cladding alignment with dual cameras
Fibre Type: Single-mode (SM) and Multimode (MM)
Display: 4.7" high-brightness colour LCD monitor
Dimensions: 4.72"W x 7.44"D x 2.8"H
Battery Life: Up to 200 splice and shrink cycles per charge
Electrode Life: 3,000 splices
Protection: Ruggedised for shock, dust and moisture resistance
Splice Time: Approximately 9 seconds
Heating Time: Approximately 35 seconds
Compatibility: FUSEConnect® fusion installable connectors
Connectivity: Internet-based software updates
Resources
Product datasheet
